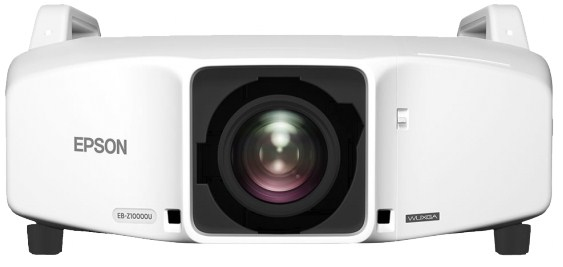

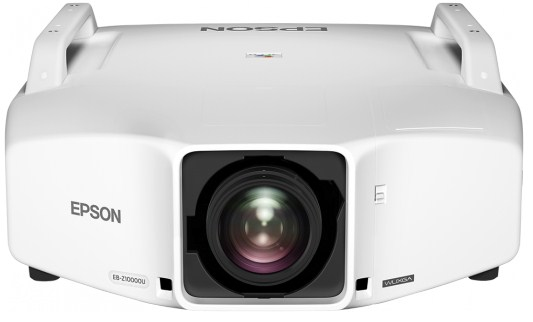

Epson EB-Z10000U Large venue projector 10000 ANSI lumens 3LCD WUXGA (1920x1200) White
Roll over image to zoom inClick to Open expanded view
Epson EB-Z10000U Large venue projector 10000 ANSI lumens 3LCD WUXGA (1920x1200) White
Epson EB-Z10000U Large venue projector 10000 ANSI lumens 3LCD WUXGA (1920x1200) White
Print
Model: V11H610040

Epson EB-Z10000U Large venue projector 10000 ANSI lumens 3LCD WUXGA (1920x1200) White

Manufacturer:
Epson
Epson EB-Z10000U, 10000 ANSI lumens, 3LCD, WUXGA (1920x1200), 15000:1, 16:10, 1524 - 12700 mm (60 - 500")
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products
Video Bars
Audio Conferencing

Description

Epson EB-Z10000U. Projector brightness: 10000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Lamp, Service life of light source: 2000 h, Service life of light source (economic mode): 4000 h. Focal length range: 36 - 57.5 mm, Aperture range (F-F): 1.65 - 2.51, Zoom ratio: 1.61:1. Video processing: 10 bit. Serial interface type: RS-232

Product Properties

  • Model
  • V11H610040
  • Design
  • Cable lock slot
  • Yes
  • Cable lock slot type
  • Kensington
  • LED indicators
  • Yes
  • Market positioning
  • Portable
  • Product colour
  • White
  • Product type
  • Large venue projector
  • Display
  • Built-in display
  • Yes
  • Display
  • LCD
  • Screen Size
  • 2.62 cm (1.03")
  • Features
  • Country of origin
  • China
  • HDCP
  • No
  • Noise level
  • 40 dB
  • Noise level (economic mode)
  • 35 dB
  • Lens system
  • Aperture range (F-F)
  • 1.65 - 2.51
  • Focal length range
  • 36 - 57.5 mm
  • Horizontal lens shift range
  • -18 - 18%
  • Throw ratio
  • 1.57 - 2.56:1
  • Vertical lens shift range
  • -60 - 60%
  • Zoom capability
  • Yes
  • Zoom ratio
  • 1.61:1
  • Light source
  • Lamp power
  • 380 W
  • Lamp power (economic mode)
  • 304 W
  • Light source type
  • Lamp
  • Service life of light source
  • 2000 h
  • Service life of light source (economic mode)
  • 4000 h
  • Logistics data
  • Pallet gross height
  • 161 cm
  • Pallet gross length
  • 120 cm
  • Pallet gross width
  • 80 cm
  • Pallet height (UK)
  • 161 cm
  • Pallet length (UK)
  • 120 cm
  • Pallet width (UK)
  • 100 cm
  • Products per pallet
  • 4 pc(s)
  • Products per pallet (UK)
  • 4 pc(s)
  • Products per pallet layer
  • 1 pc(s)
  • Products per pallet layer (UK)
  • 1 pc(s)
  • Quantity per pack
  • 1 pc(s)
  • Network
  • Ethernet LAN
  • No
  • Ethernet LAN (RJ-45) ports
  • 0
  • Operational conditions
  • Operating relative humidity (H-H)
  • 20 - 80%
  • Storage relative humidity (H-H)
  • 10 - 90%
  • Storage temperature (T-T)
  • -10 - 60 °C
  • Other features
  • RS-232 ports
  • 1
  • Packaging content
  • Batteries included
  • Yes
  • Bundled software
  • EasyMP Monitor EasyMP Multi PC Projection EasyMP Network Projection
  • Cables included
  • AC, HDMI
  • Manual
  • Yes
  • Remote control included
  • Yes
  • Ports & interfaces
  • AC (power) in
  • Yes
  • Audio (L/R) in
  • 0
  • BNC input ports
  • 6
  • Component video (YPbPr/YCbCr) in
  • 1
  • Composite video in
  • 1
  • DVI port
  • Yes
  • HDMI ports
  • 1
  • PC in (D-Sub)
  • Yes
  • S-Video inputs quantity
  • 1
  • Serial interface type
  • RS-232
  • USB 2.0 ports quantity
  • 1
  • VGA (D-Sub) ports quantity
  • 2
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (economy mode)
  • 788 W
  • Power consumption (standby)
  • 0.37 W
  • Power consumption (typical)
  • 1060 W
  • Power source
  • AC
  • Projector
  • Colour light output
  • 10000 ANSI lumens
  • Contrast ratio (typical)
  • 15000:1
  • Keystone correction, horizontal
  • ± 30°
  • Keystone correction, vertical
  • ± 30°
  • Native aspect ratio
  • 16:10
  • Projection distance (tele)
  • 3.3 - 27.8 m
  • Projection distance (wide)
  • 2 - 17.2 m
  • Projection technology
  • 3LCD
  • Projector brightness
  • 10000 ANSI lumens
  • Projector brightness (economic mode)
  • 6600 ANSI lumens
  • Projector native resolution
  • WUXGA (1920x1200)
  • Screen size compatibility
  • 1524 - 12700 mm (60 - 500")
  • Supported aspect ratios
  • 16:10
  • White light output
  • 10000 ANSI lumens
  • Storage
  • Card reader integrated
  • No
  • Video
  • 3D
  • No
  • Full HD
  • Yes
  • Video processing
  • 10 bit
  • Weight & dimensions
  • Depth
  • 534 mm
  • Height
  • 197 mm
  • Package depth
  • 893 mm
  • Package height
  • 369 mm
  • Package weight
  • 33.7 kg
  • Package width
  • 655 mm
  • Weight
  • 26 kg
  • Width
  • 741 mm
