Description

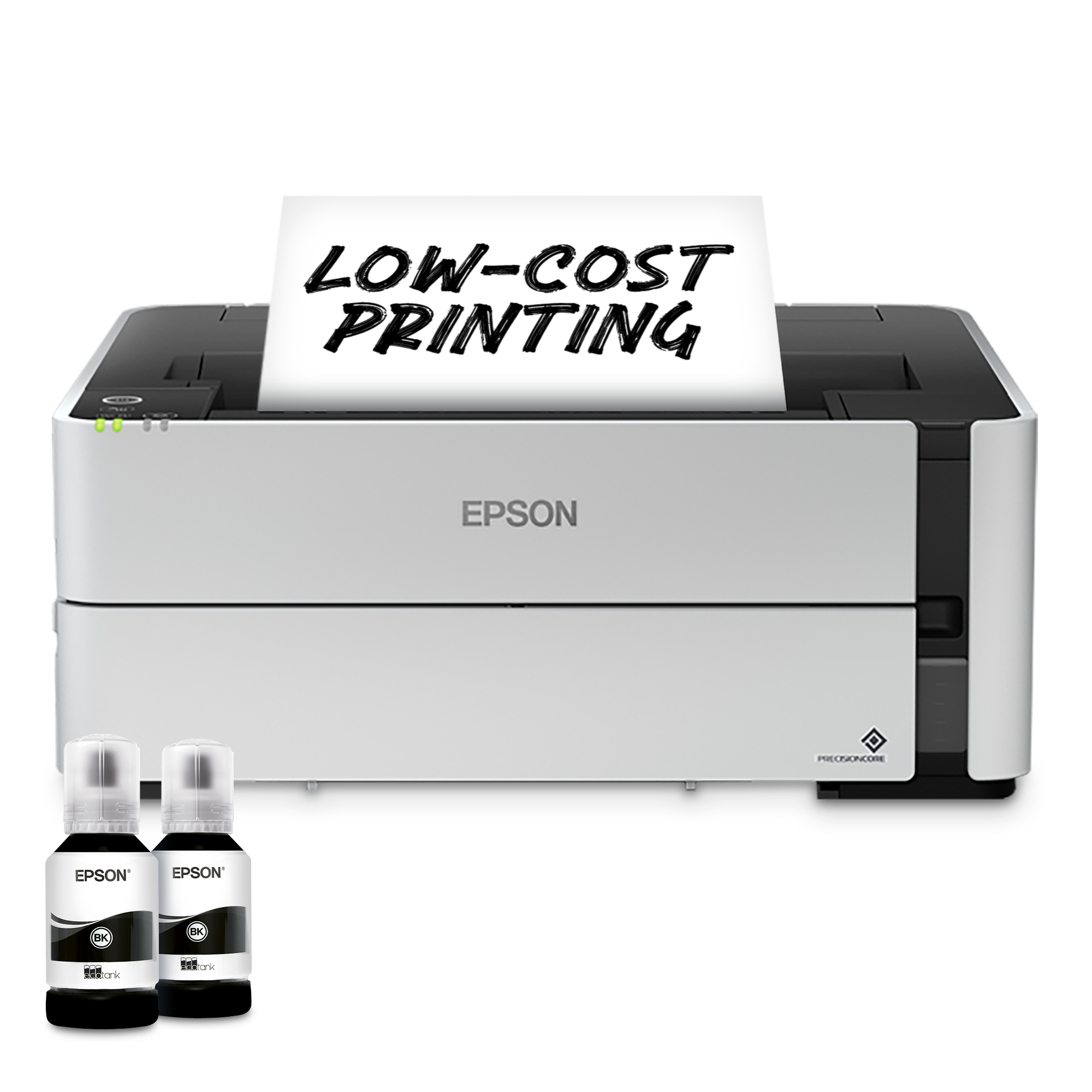

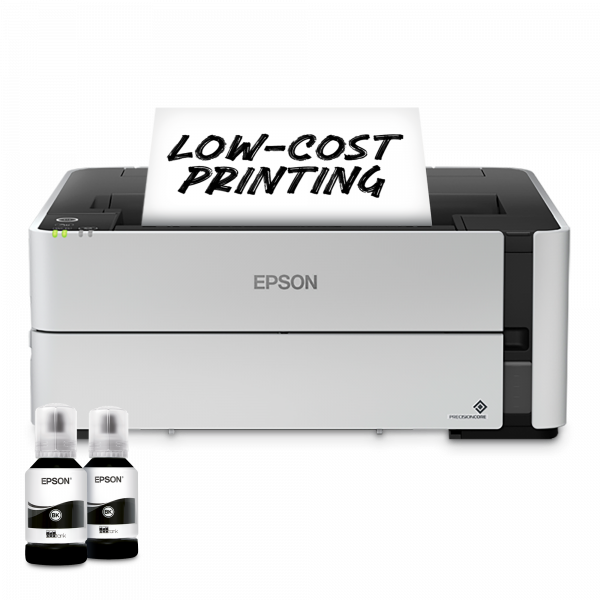

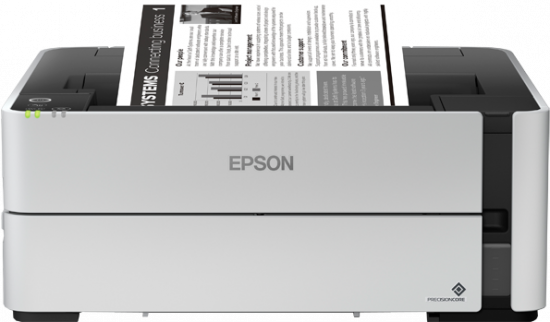

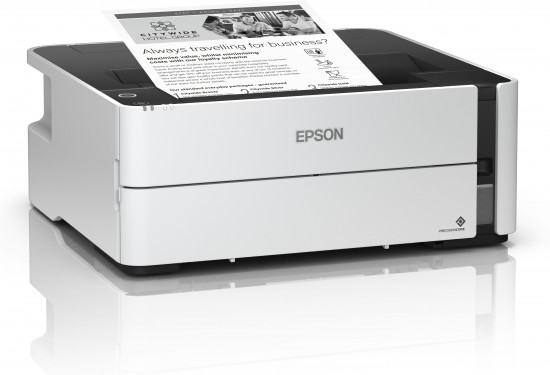

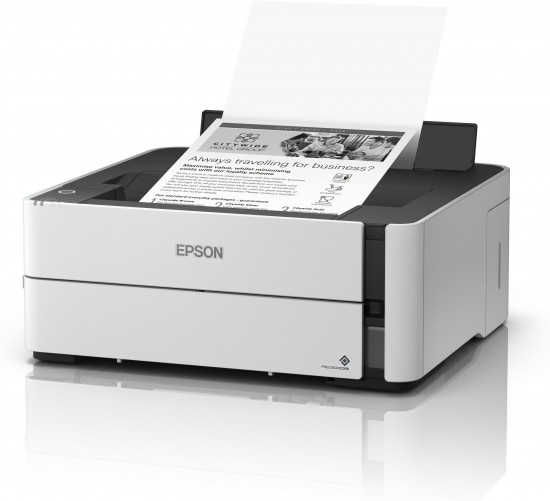

Epson EcoTank ET-M1170. Maximum duty cycle: 5000 pages per month. Maximum resolution: 1200 x 2400 DPI. Maximum ISO A-series paper size: A4. Print speed (black, normal quality, A4/US Letter): 39 ppm. Duplex printing. Wi-Fi. Product colour: Black, White

Stress-free, convenient printing with up to 5 laser toners worth of ink in one bottle*: Save up to 90% on printing costs* with the refillable ink tank
A4 single function mono printer: High quality print from the number 1 ink tank printer brand sold worldwide*
Use less energy: Save up to 95% in power consumption when you switch from a laser printer*
Print up to 11,000 pages with the included ink bottles*: Just add paper for low intervention printing!
Fast printing and wireless connectivity lets you print from anywhere: Mobile printing, 20ppm print speeds* and no warm up time

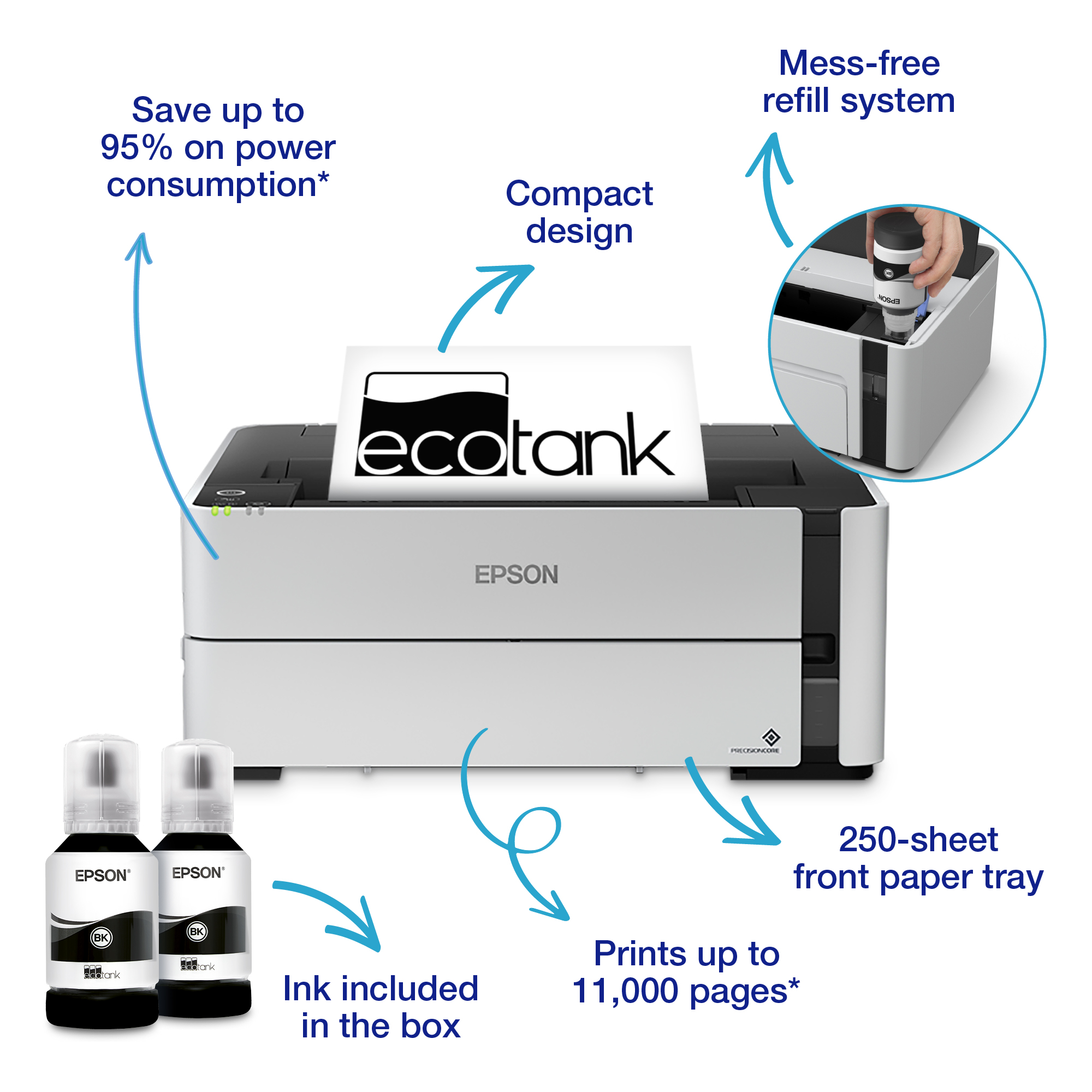

Simple, hassle-free ink tank system lets you refill from bottles: Plus the EcoTank bottle airflow system ensures it's mess-free too

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Product Properties

Manufacturer
Epson

Model
C11CH44401BY

EAN
8715946663555

Bullet points

Point
A4 single function mono printer

Fast printing and wireless connectivity lets you print from anywhere

Print up to 11,000 pages with the included ink bottles*

Simple, hassle-free ink tank system lets you refill from bottles

Stress-free, convenient printing with up to 5 laser toners worth of ink in one bottle*

Use less energy: Save up to 95% in power consumption when you switch from a laser printer*

Design

Country of origin
Philippines

Market positioning
Home & office

Product colour
Black, White

Features

Colour
No

Duplex printing
Yes

Maximum duty cycle
5000 pages per month

Page description languages
GDI

Print head nozzles
400 Nozzles Black

Printing colours
Black

Input & output capacity

Number of Trays
1

Paper input type
Paper tray

Total input capacity
250 sheets

Total output capacity
100 sheets

Logistics data

Harmonized System (HS) code
84433210

Products per pallet
14 pc(s)

Products per pallet (UK)
28 pc(s)

Products per pallet layer
2 pc(s)

Products per pallet layer (UK)
4 pc(s)

Network

Ethernet LAN
Yes

Mobile printing technologies
Epson Connect, Epson iPrint, Epson Email Print, Epson Remote Print

Security algorithms
64-bit WEP, 128-bit WEP, WPA2-PSK

Supported network protocols
TCP/IPv4, TCP/IPv6

Wi-Fi
Yes

Wi-Fi Direct
Yes

Other features

All-in-one functions
Print

Box contents

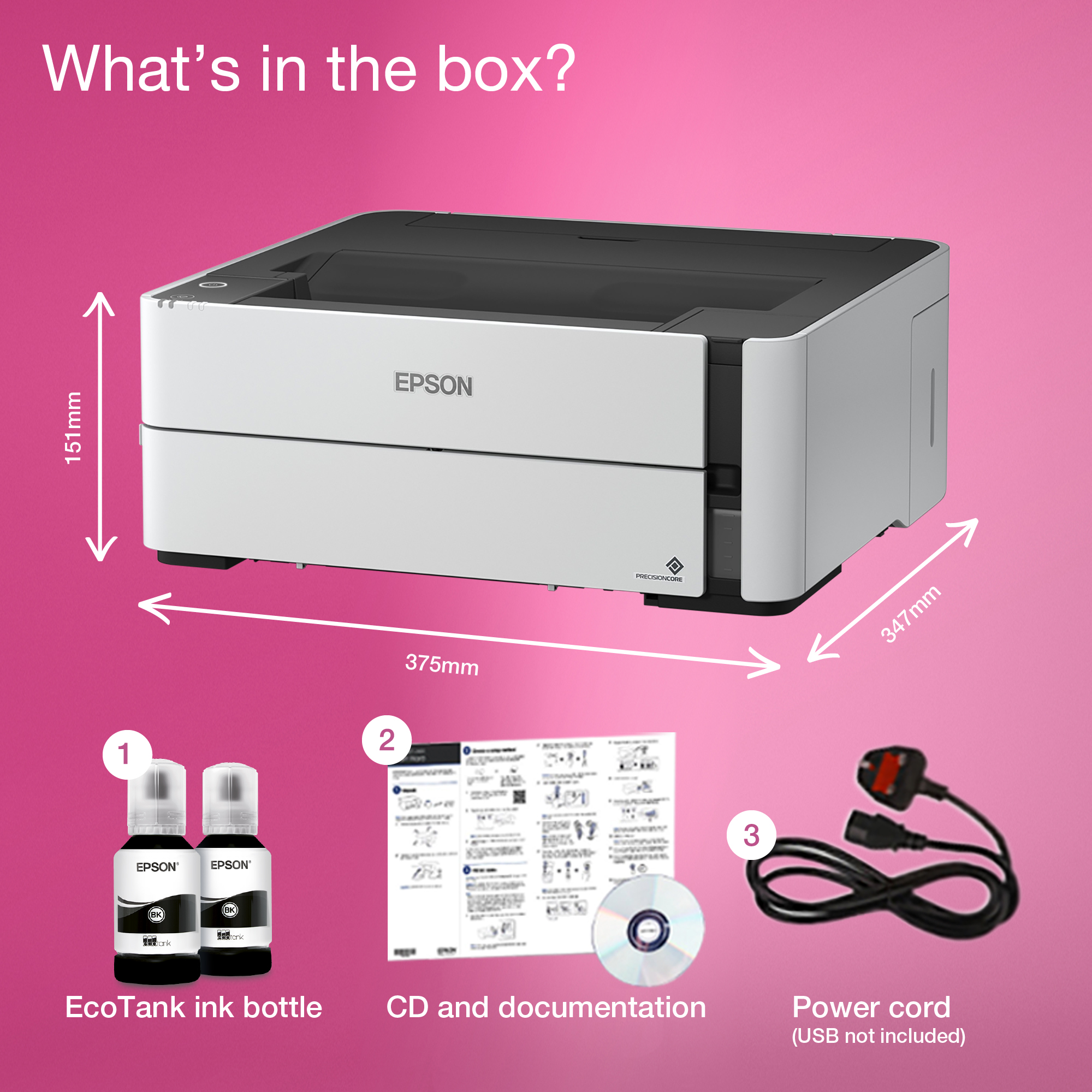

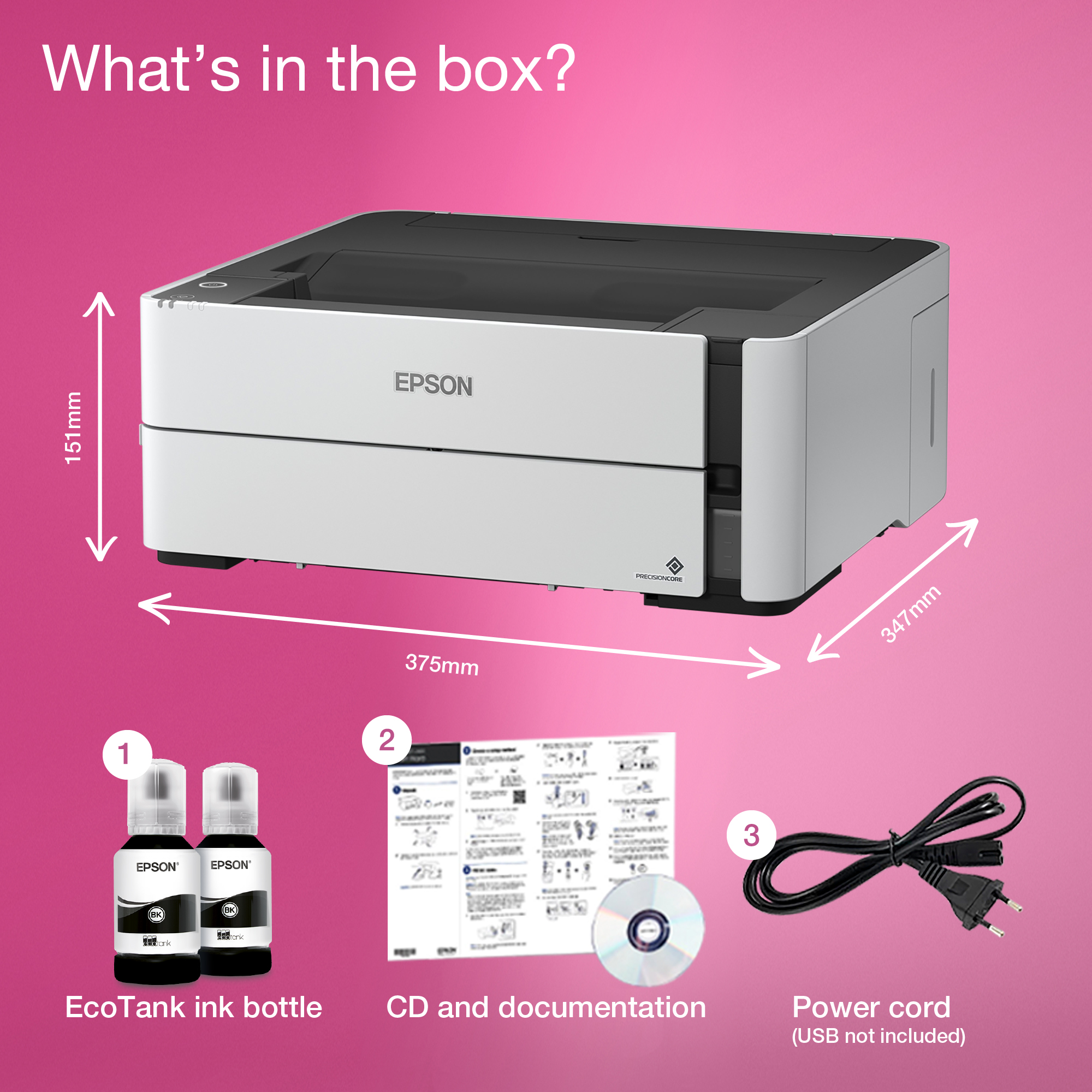

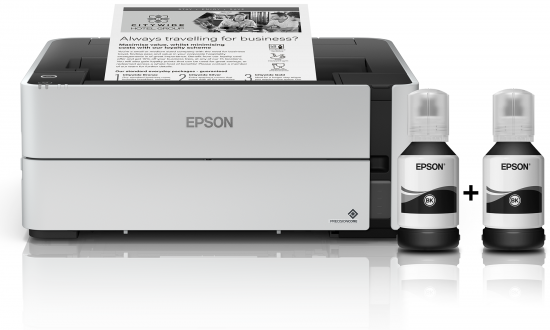

Main unit, Power cable, Warranty card, X2 ink bottles

Colour printing technology
Pigment ink

Emulations
GDI

Ink drop
2.8 pl

Interface
Hi-Speed USB - compatible with USB 2.0 specification, Ethernet interface (100 Base-TX / 10 Base-T), Wi-Fi Direct, Wireless LAN IEEE 802.11b/g/n

Print speed
39 pages/min Monochrome (plain paper 75 g/m²)

Printing method
Epson PrecisionCore

Packaging data

Package depth
440 mm

Package height
275 mm

Package weight
6 kg

Package width
410 mm

Quantity per pack
1 pc(s)

Paper handling

Envelopes sizes
10, C6, DL

ISO A-series sizes (A0...A9)
A4, A5, A6

ISO B-series sizes (B0...B9)
B5, B6

Maximum ISO A-series paper size
A4

Multi-purpose tray media types
Envelopes, Plain paper

Non-ISO print media sizes
Legal

Paper tray media types
Envelopes, Plain paper

Paper tray media weight
64 - 90 g/m²

Performance

Sound pressure level (printing)
56 dB

Ports & interfaces

Standard interfaces
Ethernet, USB, Wireless LAN

USB port
Yes

Power

AC input voltage
100 - 240 V

Power consumption (off)
0.2 W

Power consumption (printing)
13 W

Power consumption (ready)
3.3 W

Printing

Duplex print speed (black, normal quality, A4/US Letter)
9 ppm

Duplex print speed (ISO/IEC 24734, A4) black
9 ppm

Print Quality
1200 x 2400 DPI

Printer Speed (Black)
39 ppm

Time to first page (black, normal)
6 s

System requirements

Compatible operating systems
Mac OS X 10.6.8 or later, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003 R2 x64, Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP SP3, XP Professional x64 Edition SP2

Mac operating systems supported
Yes

Windows operating systems supported
Yes

Server operating systems supported
Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2012 x64, Windows Server 2016

Technical details

Safety warning
Contains 2,4,7,9-tetramethyldec-5-yne-4,7-diol. May produce an allergic reaction.
Always follow the information on the product label.

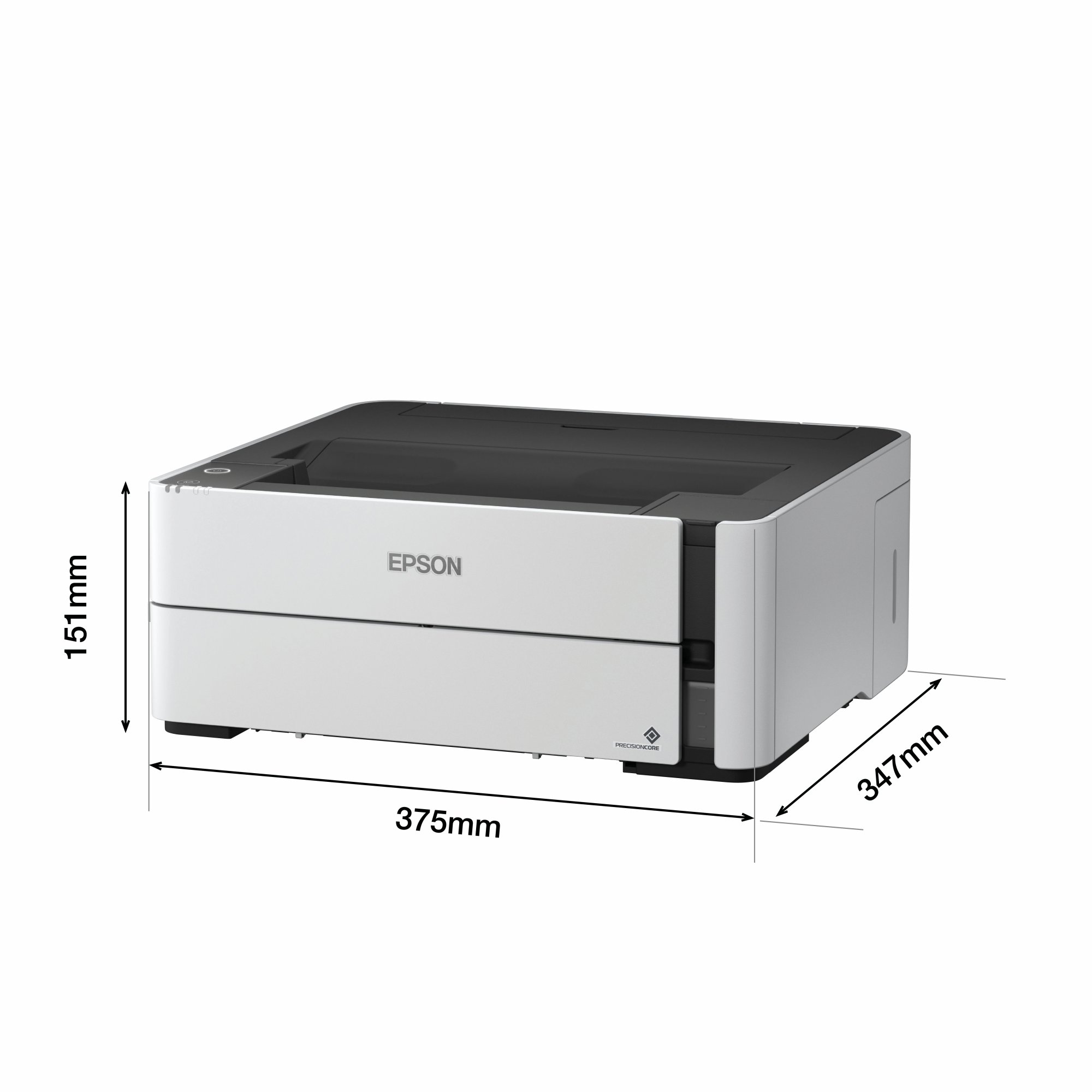

Weight & dimensions

Depth
347 mm

Height
151 mm

Weight
4.3 kg

Width
375 mm
