Description

Epson FastFoto FF-680W. Maximum scan size: 216 x 910 mm, Optical scanning resolution: 600 x 600 DPI, Input colour depth: 30 bit. Scanner type: Sheet-fed scanner, Product colour: Black. Sensor type: CIS, Light source: RGB LED, Image quality improvement: Grain reduction, Colour restoration. Standard input capacity: 100 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Photo paper, Media thickness (min): 0.3 mm

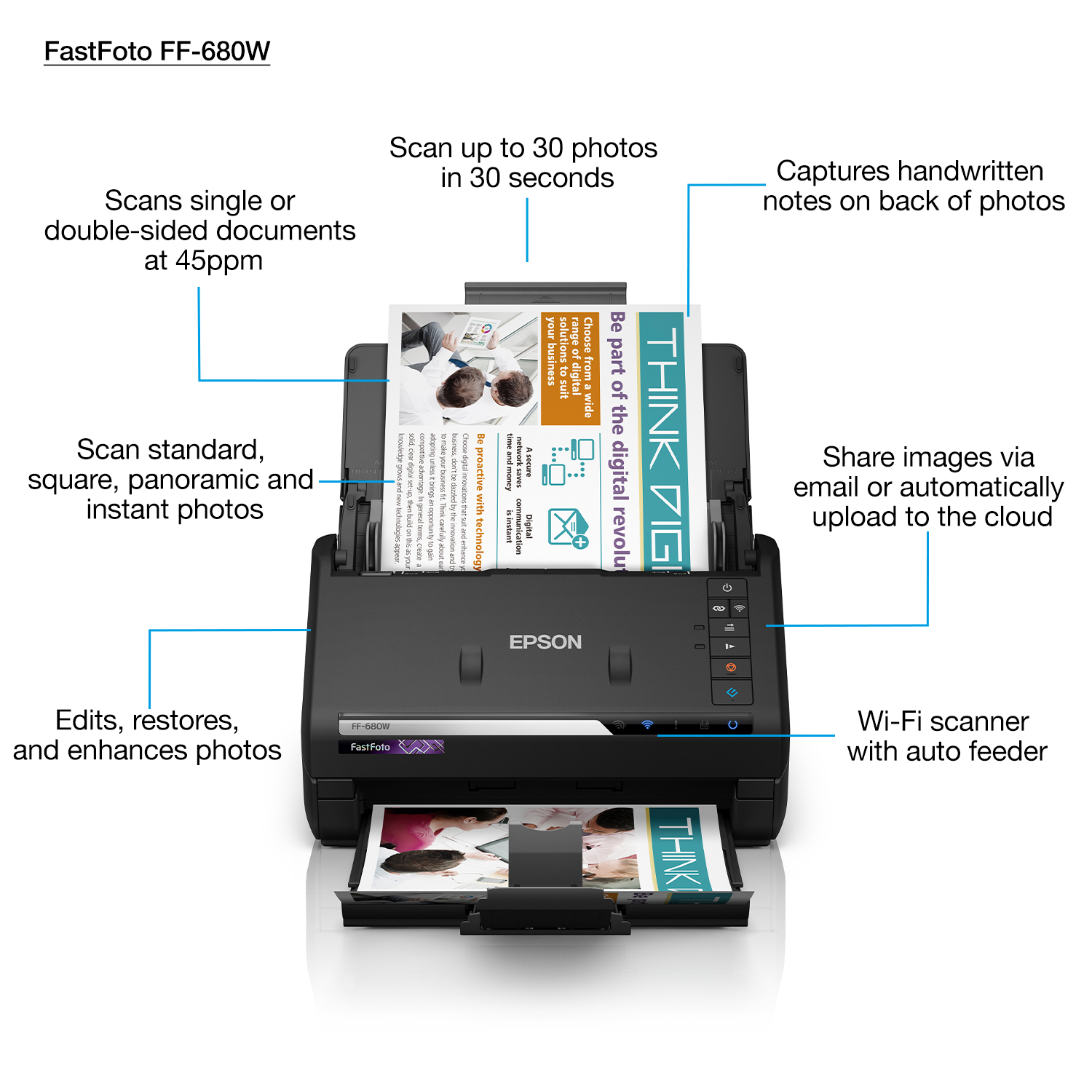

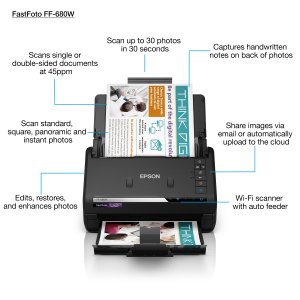

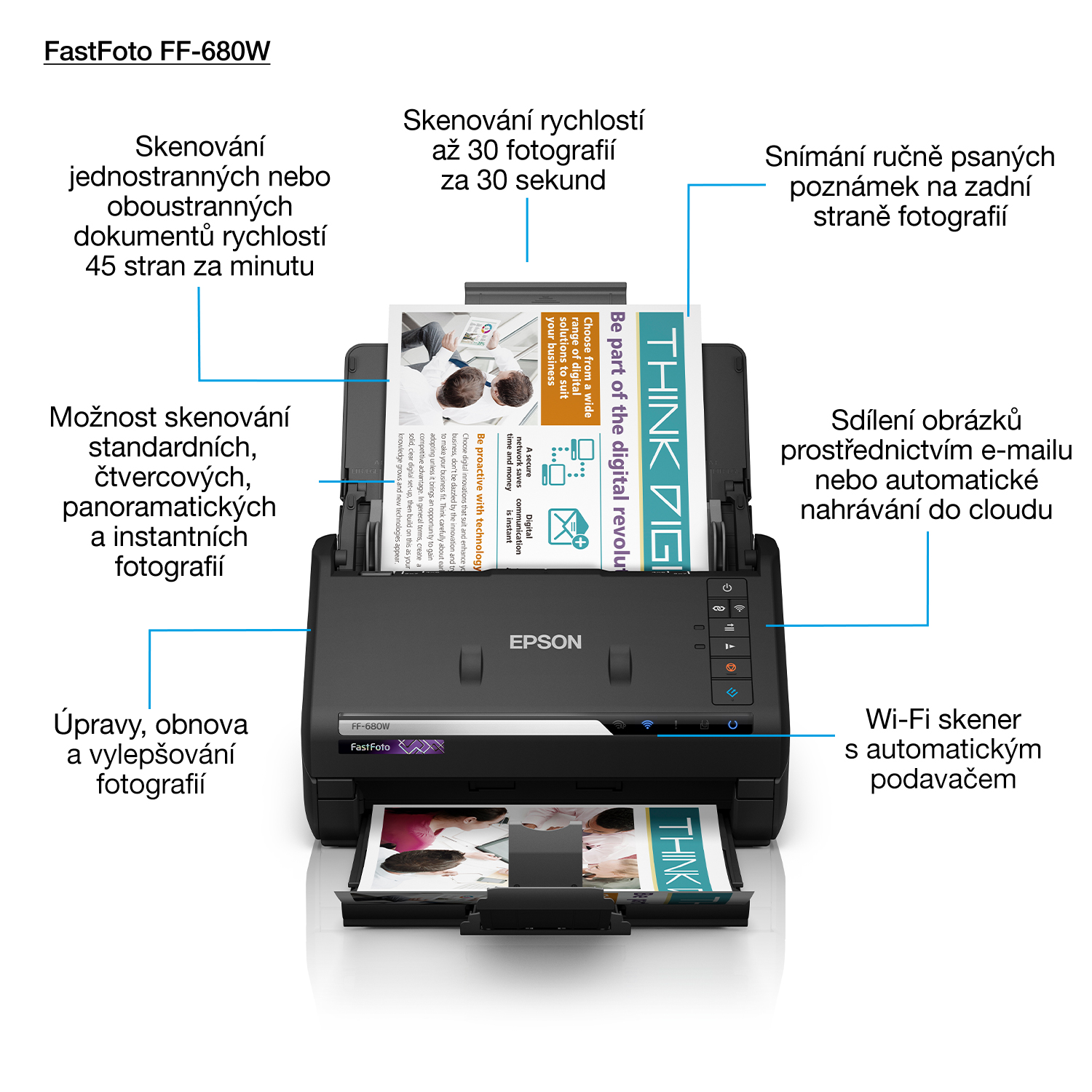

Powerful Document Scanning — includes Epson ScanSmart Software with OCR; scan receipts, tax records, wills and more, up to 45 ppm/90 ipm
Perfect Picture Imaging System — bring new life to old photos with auto enhancement, color restoration, red-eye reduction, de-skew, crop, rotate
Easy Auto-Upload and Backup — instantly share your memories as you scan via Dropbox® and Google Drive™
Single-Step Technology — capture both the image and any handwritten notes on the back in a single scan

Product Properties

Manufacturer
Epson

Model
B11B237401WA

EAN
8715946670676

Design

Built-in display
No

Product colour
Black

Scanner type
Sheet-fed scanner

Input capacity

Standard input capacity
100 sheets

Logistics data

Country of origin
Indonesia

Harmonized System (HS) code
84716070

Pallet gross weight
0 g

Pallet weight (UK)
0 g

Products per pallet
63 pc(s)

Products per pallet (UK)
77 pc(s)

Products per pallet layer
9 pc(s)

Products per pallet layer (UK)
11 pc(s)

Network

Wi-Fi
Yes

Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)

Operational conditions

Operating relative humidity (H-H)
15 - 80%

Operating temperature (T-T)
5 - 35 °C

Other features

Image formats supported
JPEG, TIFF

Output resolutions
300, 600 dpi

Packaging content

AC adapter included
Yes

Bundled software
Epson ScanSmart

Cables included
USB

Cleaning cloth
Yes

Drivers included
Yes

Quick start guide
Yes

Packaging data

Package depth
369 mm

Package height
294 mm

Package weight
4.99 kg

Package width
256 mm

Quantity per pack
1 pc(s)

Paper handling

Maximum ISO A-series paper size
A4

Media thickness (min)
0.3 mm

Scanning media types supported
Photo paper

Performance

Image quality improvement
Grain reduction, Colour restoration

Light source
RGB LED

Scan to
E-mail, Network folder

Sensor type
CIS

Ultrasonic sensor
Yes

Ports & interfaces

Standard interfaces
USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN

USB port
Yes

USB version
3.2 Gen 1 (3.1 Gen 1)

Power

AC input frequency
50 - 60 Hz

Power consumption (off)
0.1 W

Power consumption (standby)
9.2 W

Power consumption (typical)
17 W

Sleep mode
Yes

Scanning

ADF scan speed (b/w, A4)
45 ppm

ADF scan speed (colour, A4)
45 ppm

Colour scanning
Yes

Duplex scanning
Yes

Input colour depth
30 bit

Input greyscale depth
10 bit

Maximum scan size
216 x 910 mm

Optical scanning resolution
600 x 600 DPI

Output colour depth
24 bit

Output greyscale depth
8 bit

Output monochrome depth
1 bit

System requirements

Compatible operating systems
Mac OS X 10.11.x, Mac OS X 10.12.x, Windows 10, Windows 7, Windows 7, 64-Bit-Version, Windows 8 (32/64 Bit)

Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra

Windows operating systems supported
Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64

Weight & dimensions

Depth
169 mm

Height
176 mm

Weight
3.7 kg

Width
296 mm

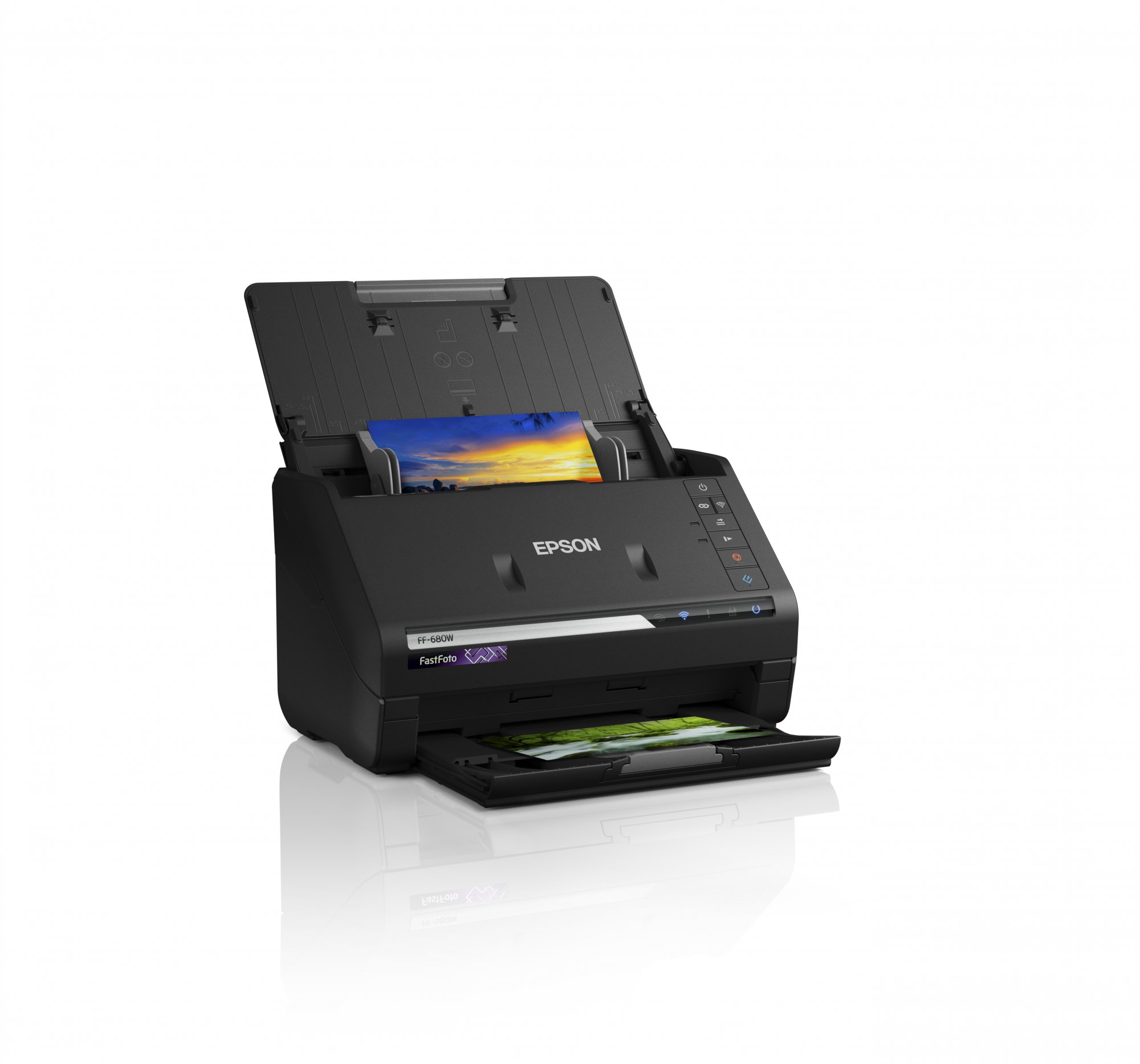

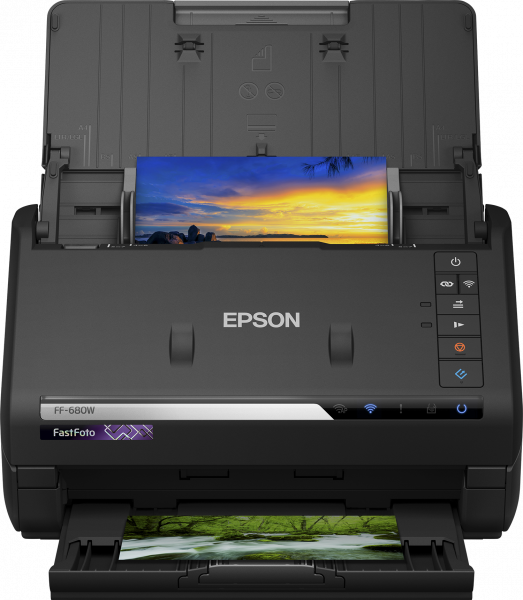

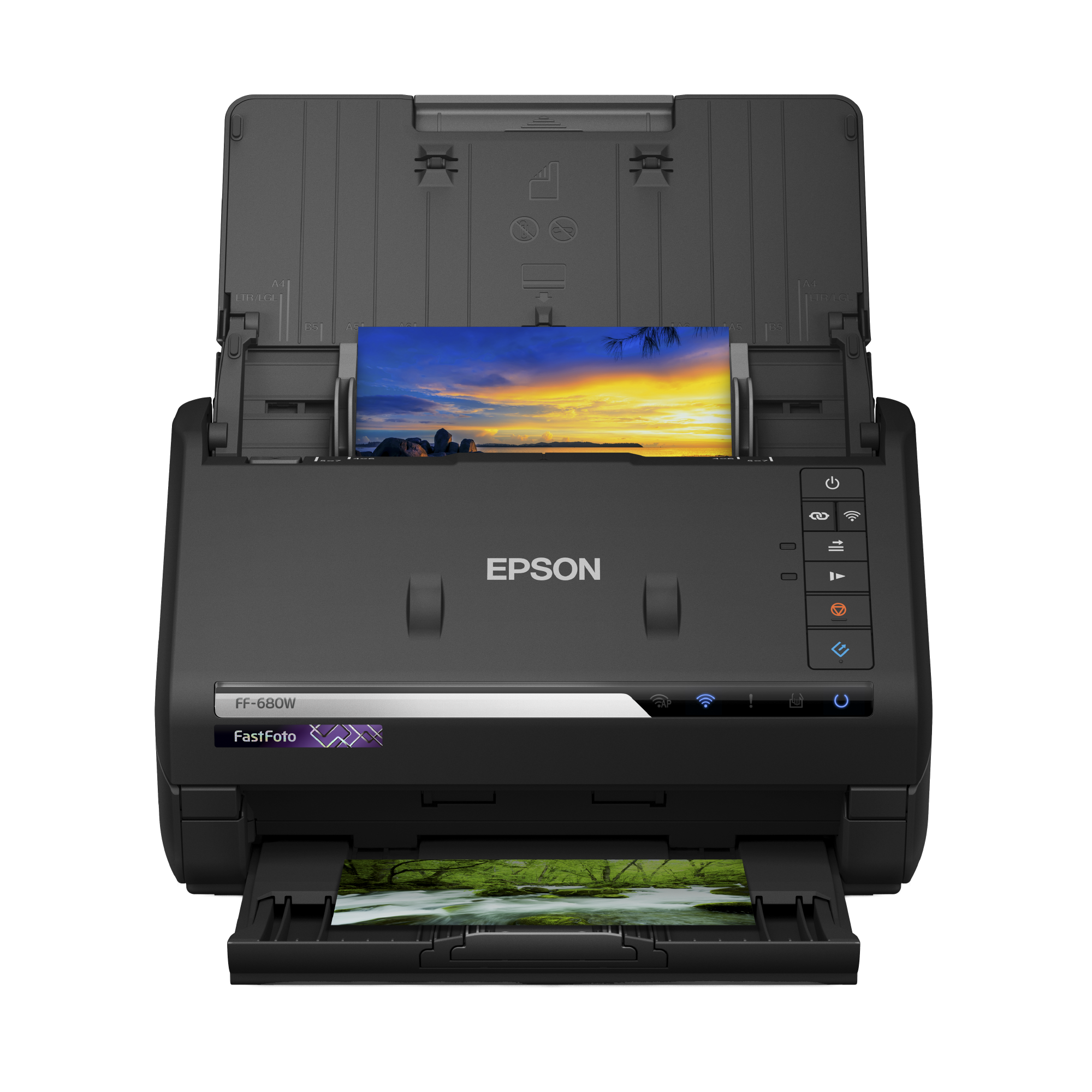

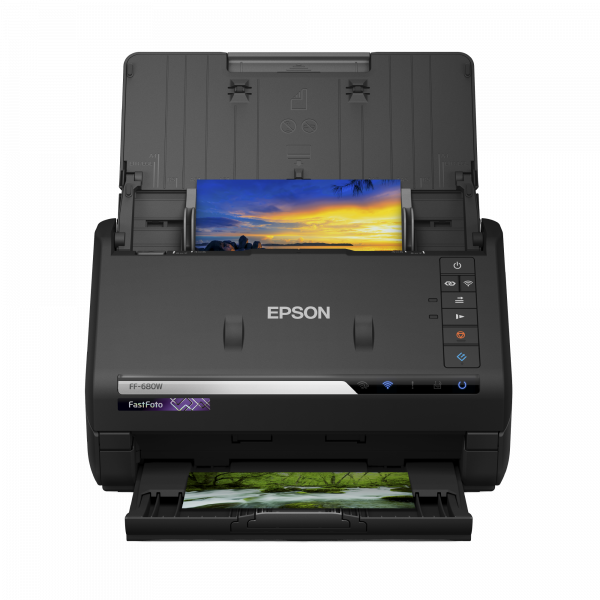

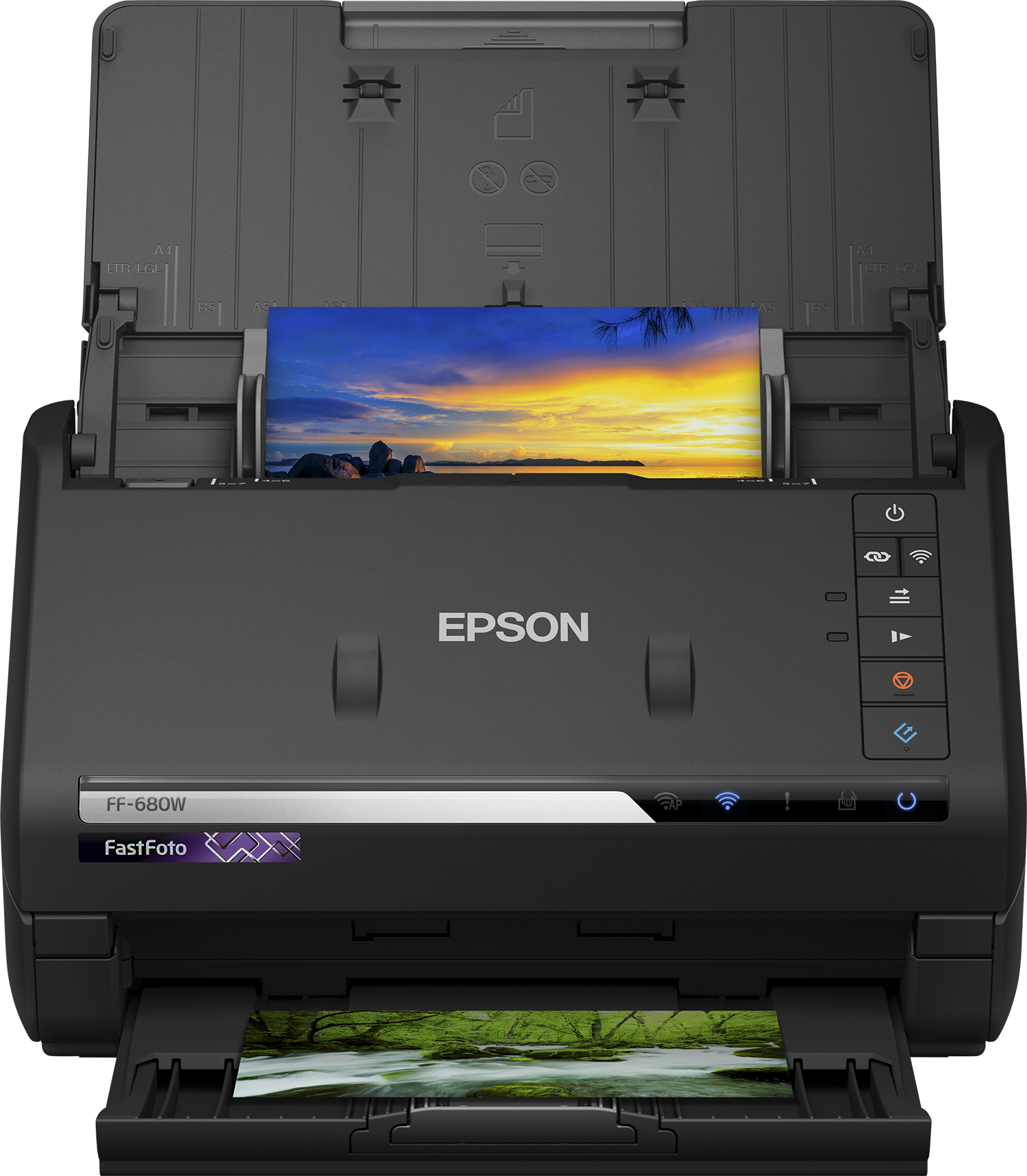

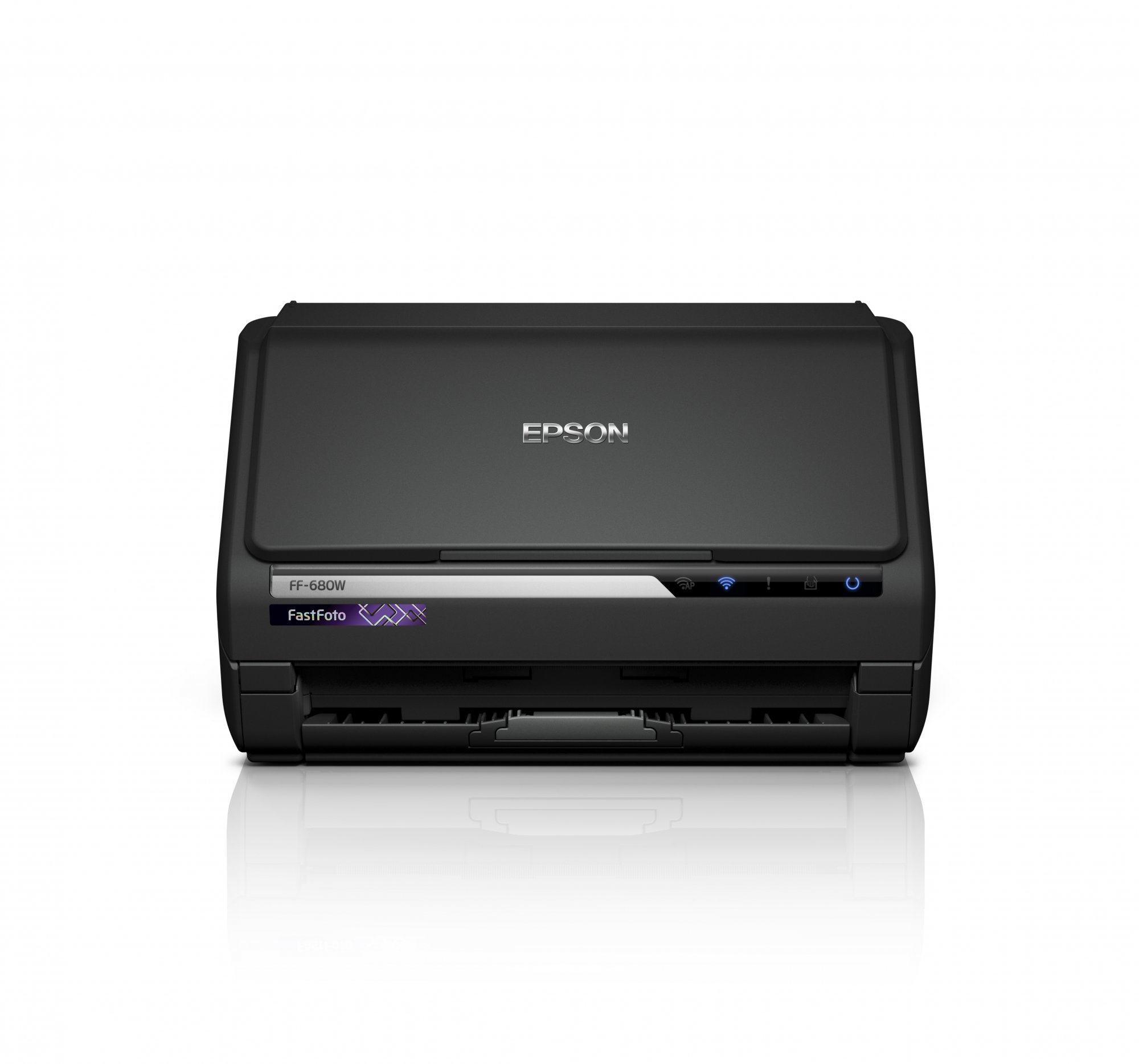

Epson FastFoto FF-680W Sheet-fed scanner 600 x 600 DPI A4 Black
