Description

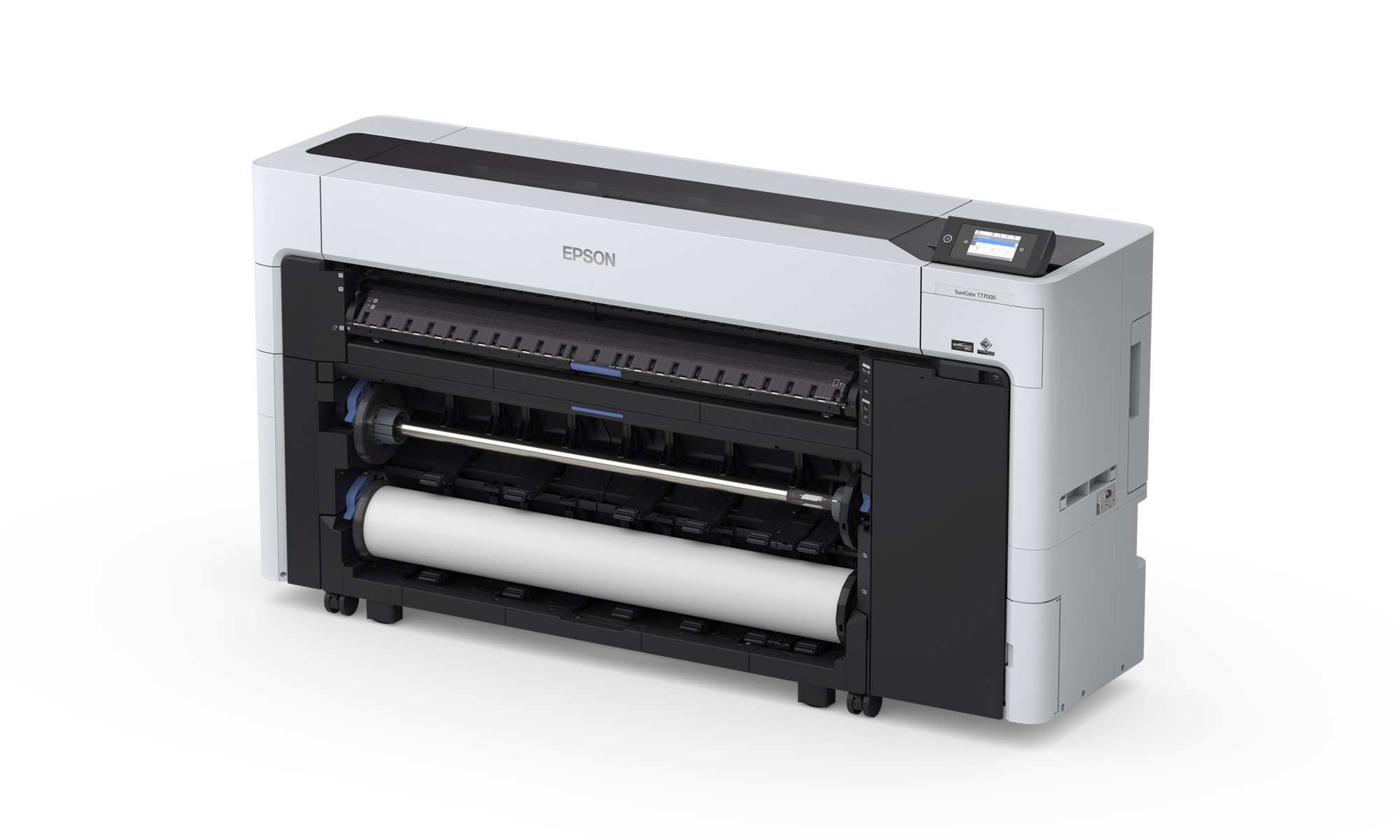

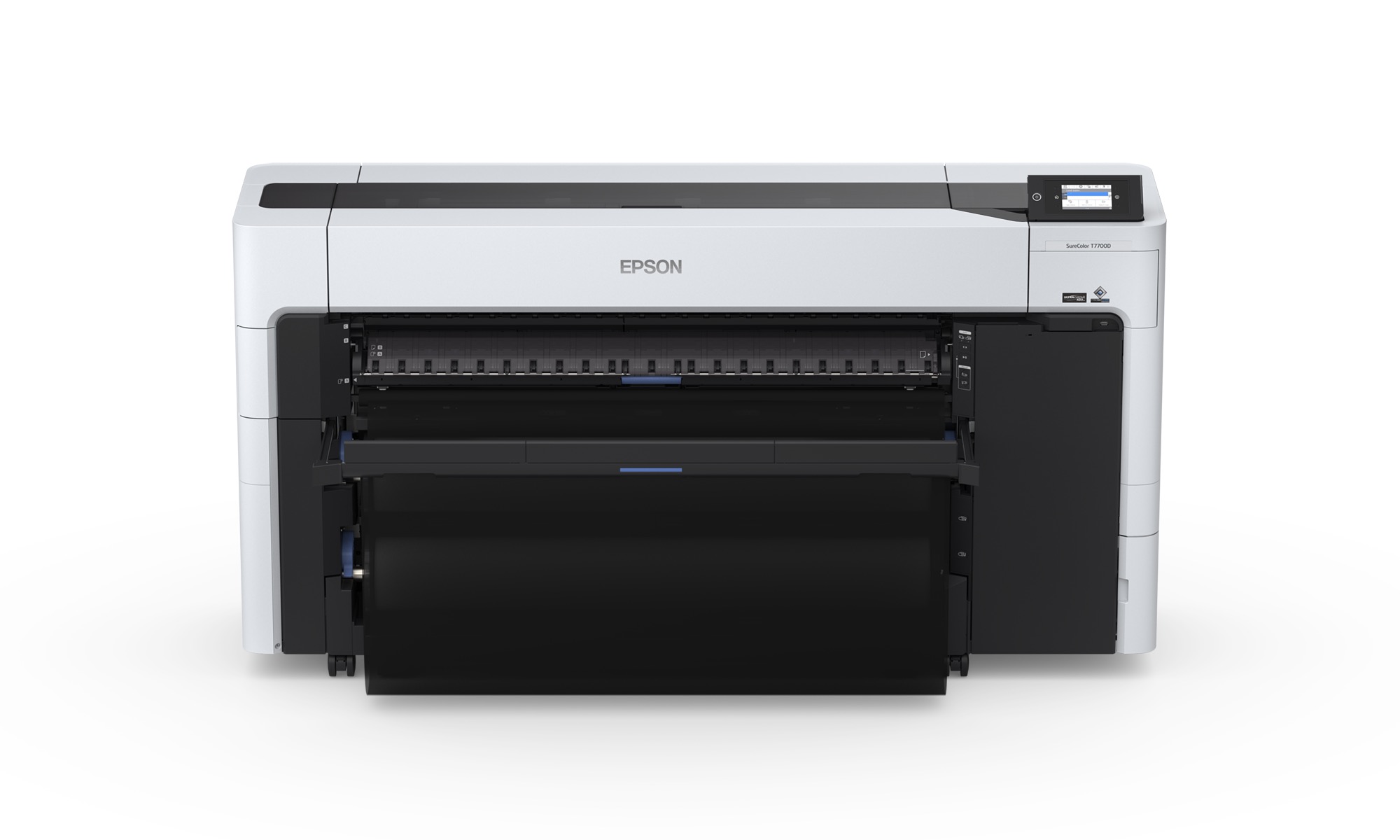

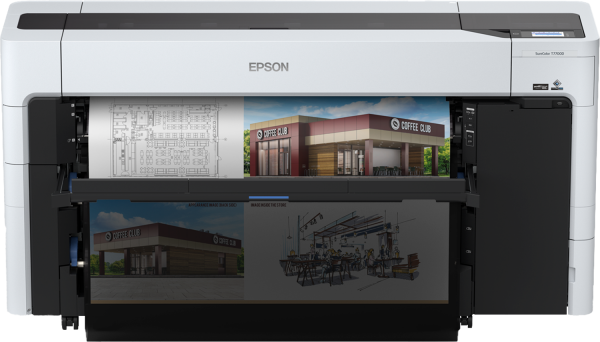

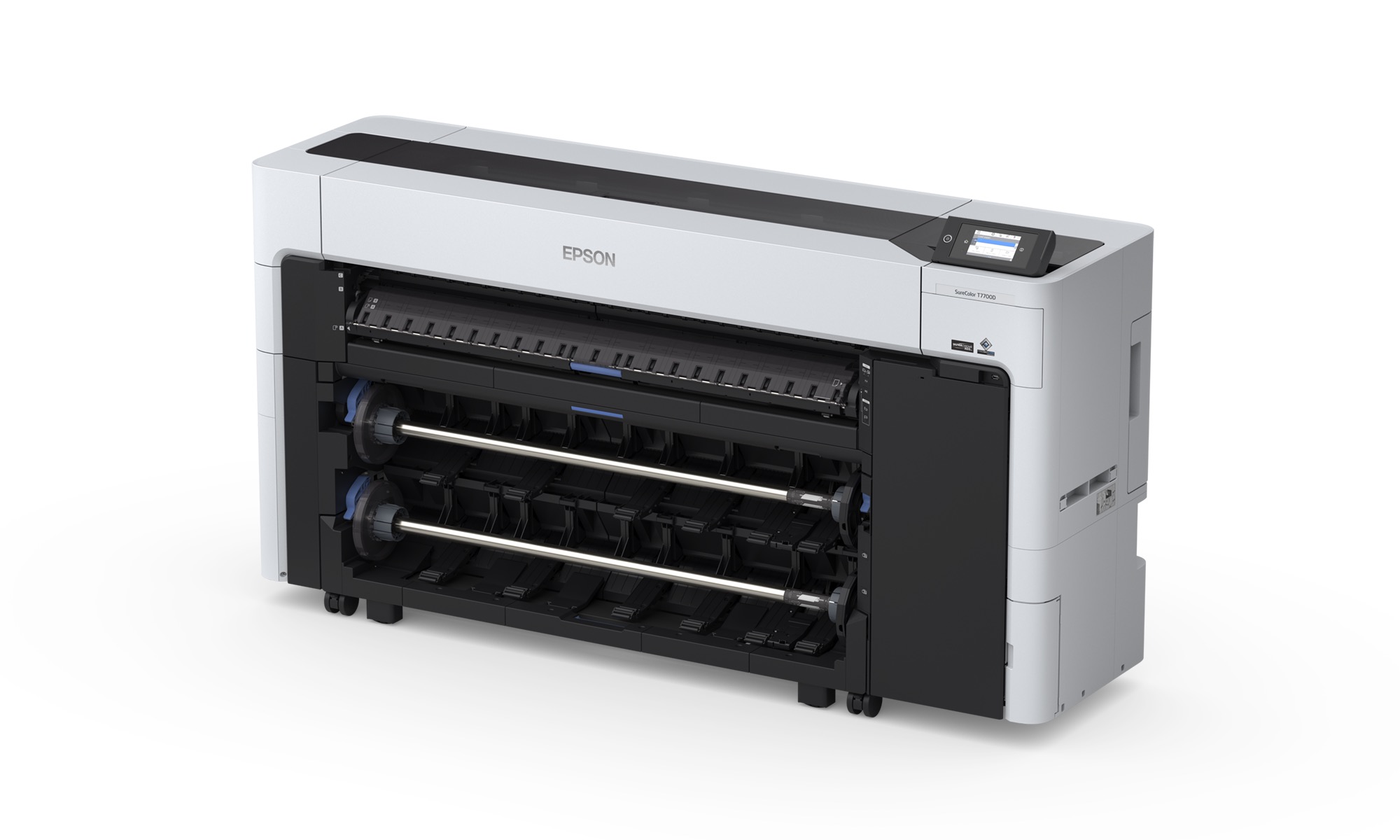

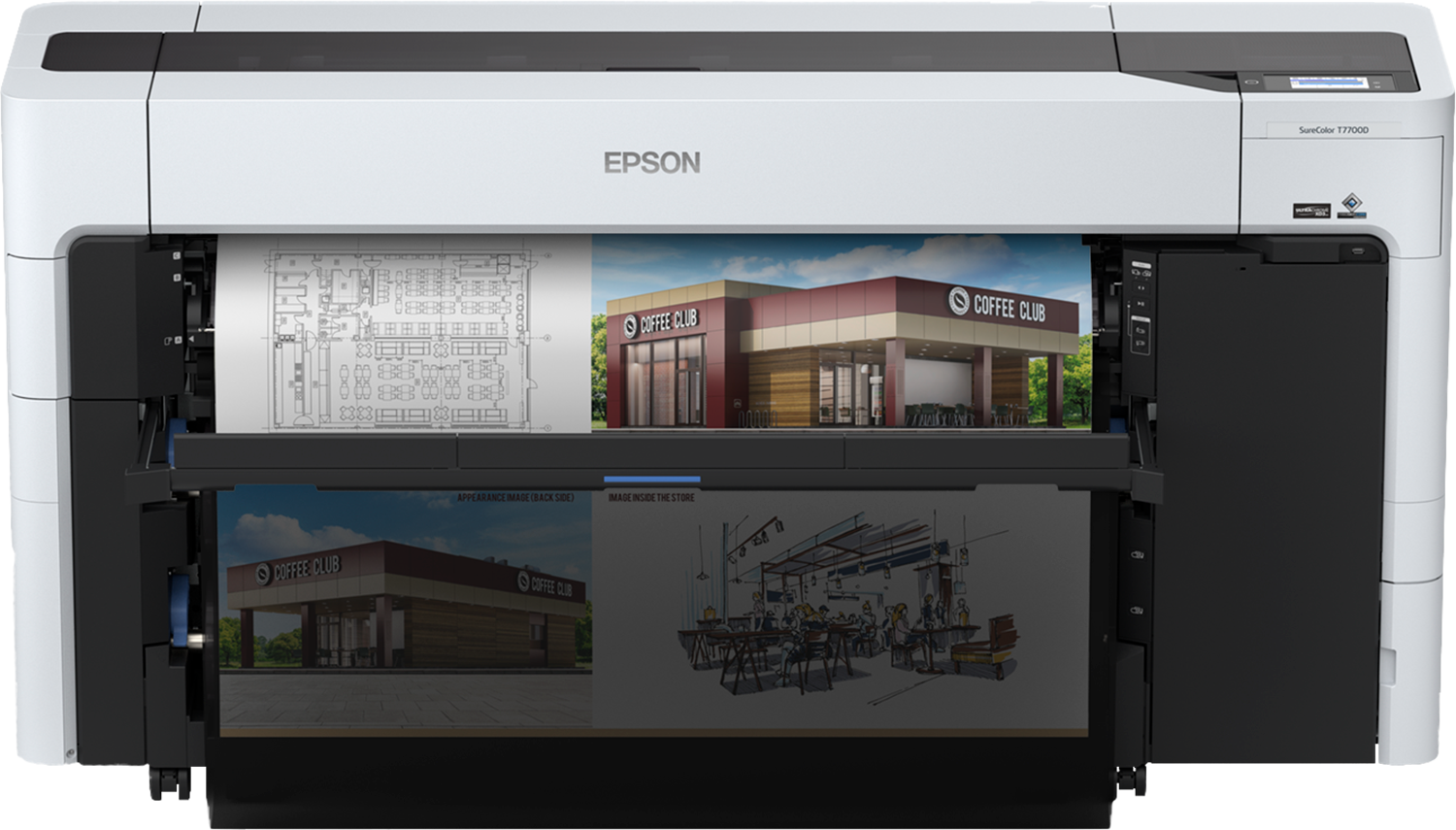

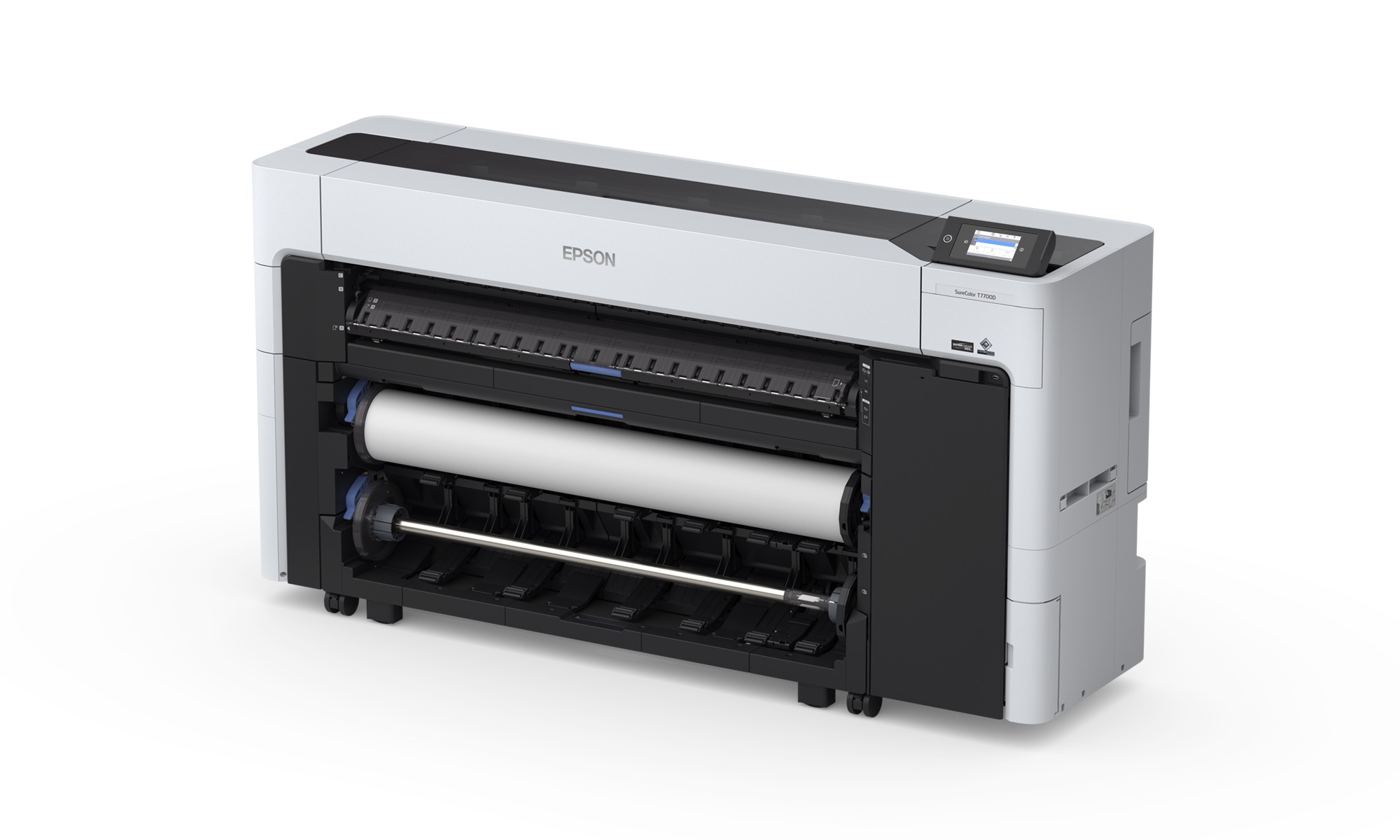

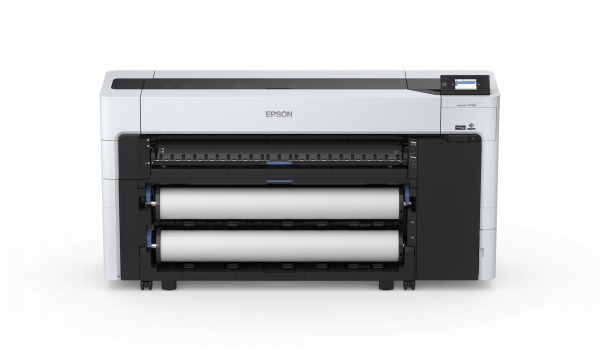

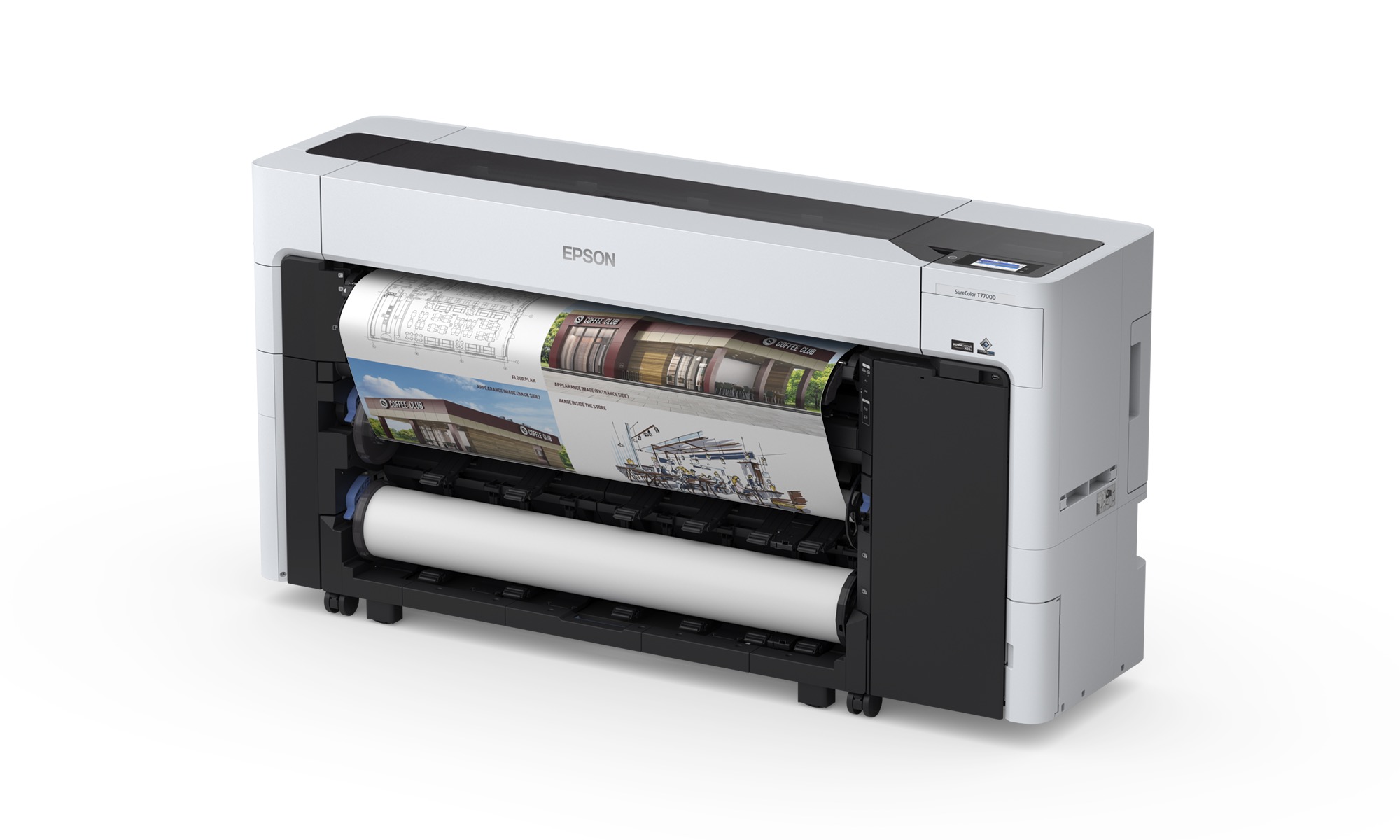

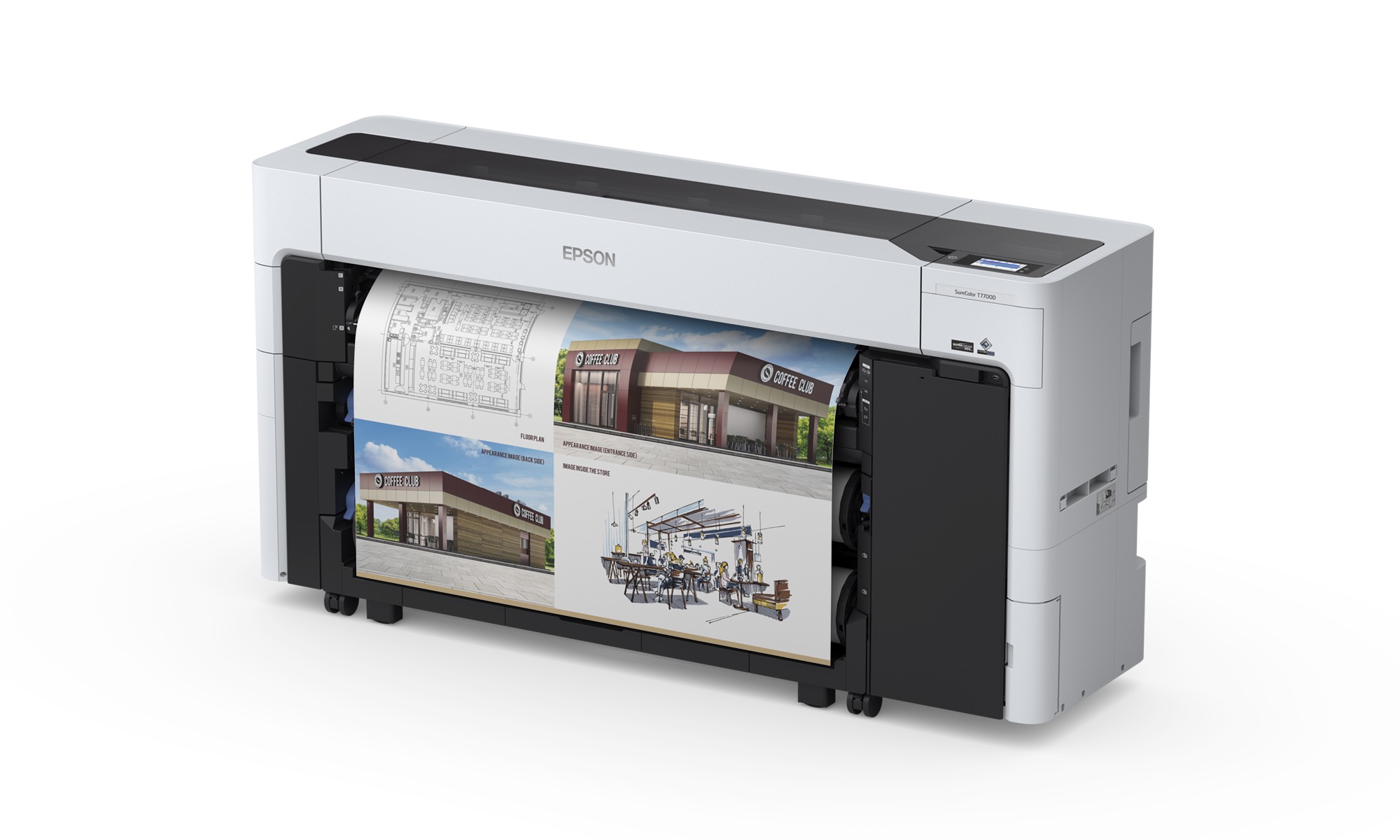

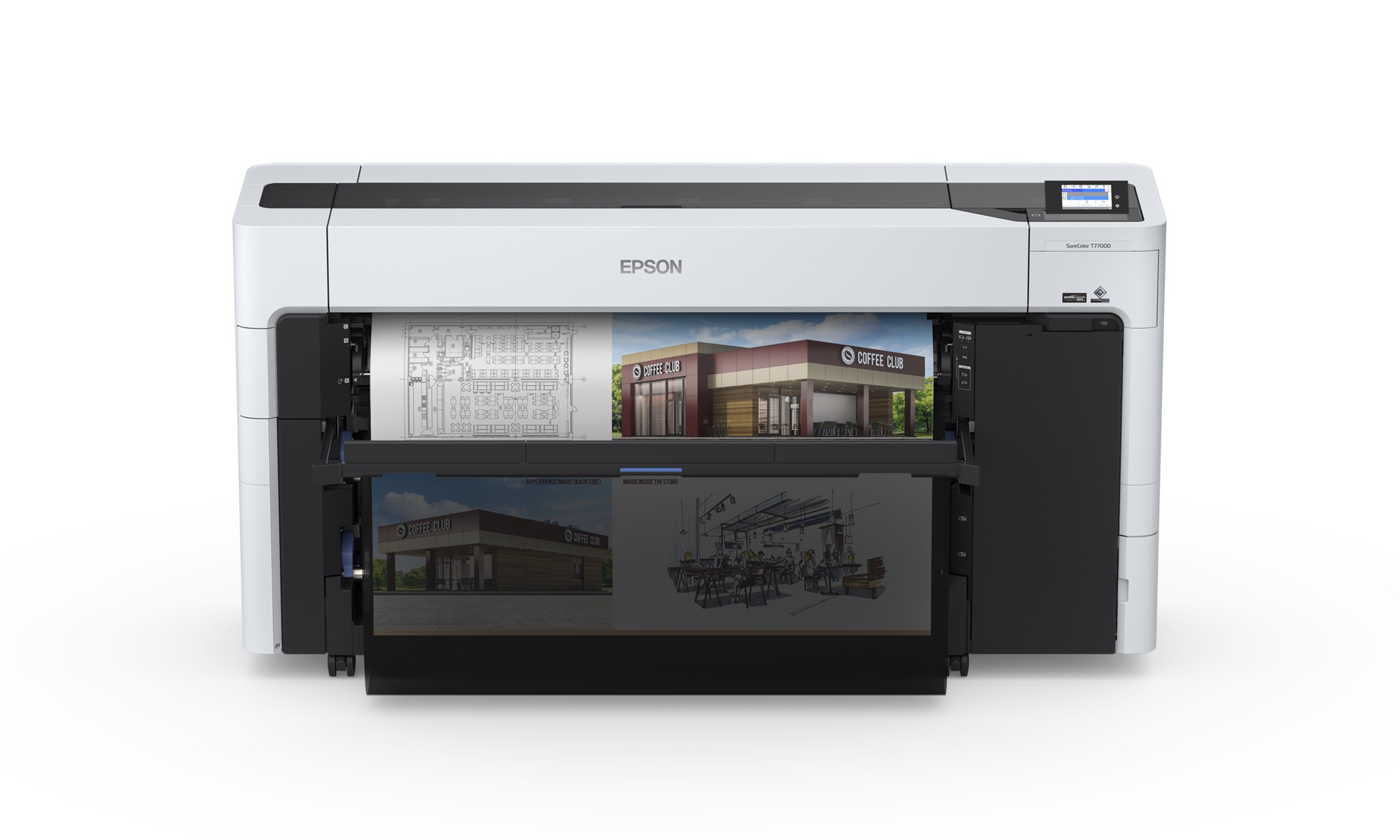

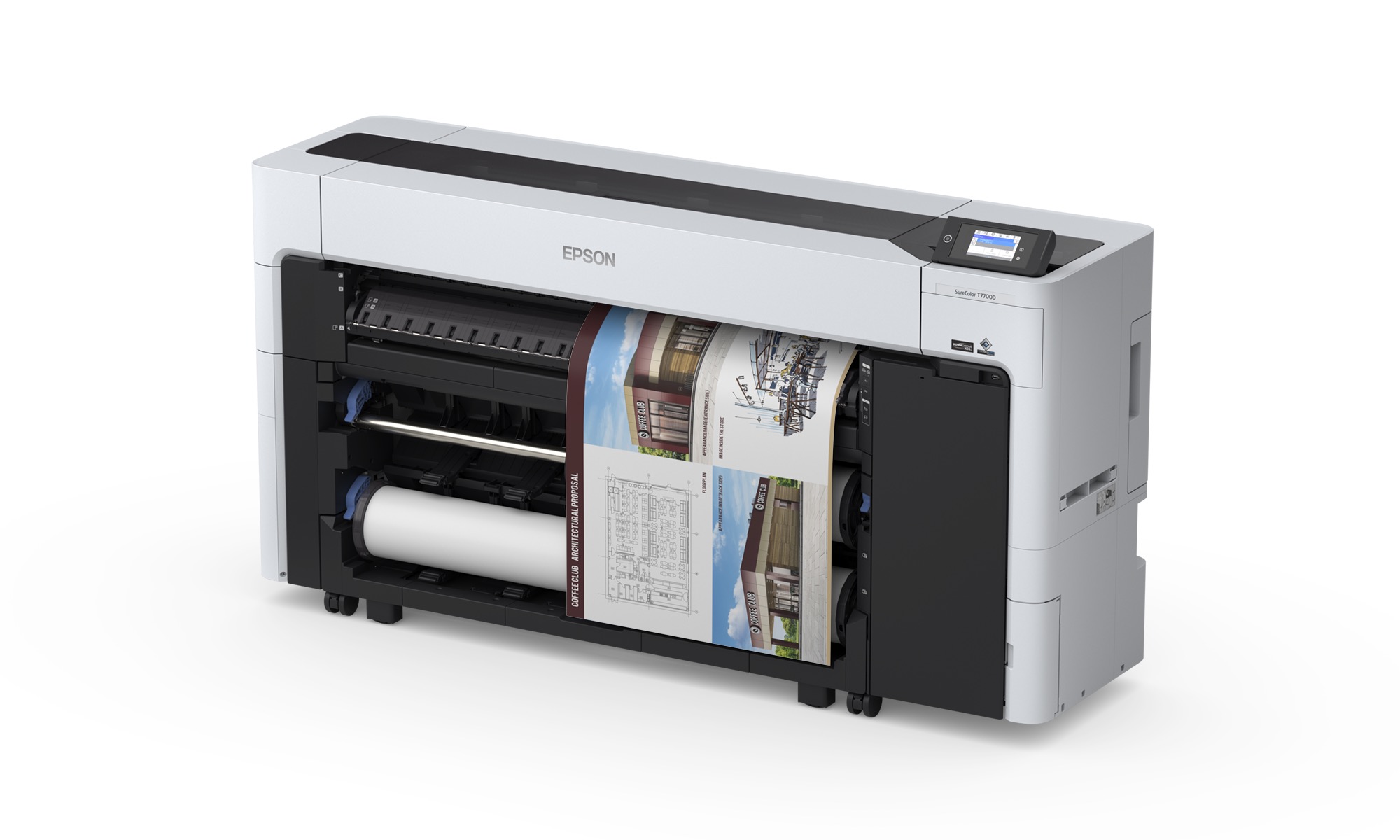

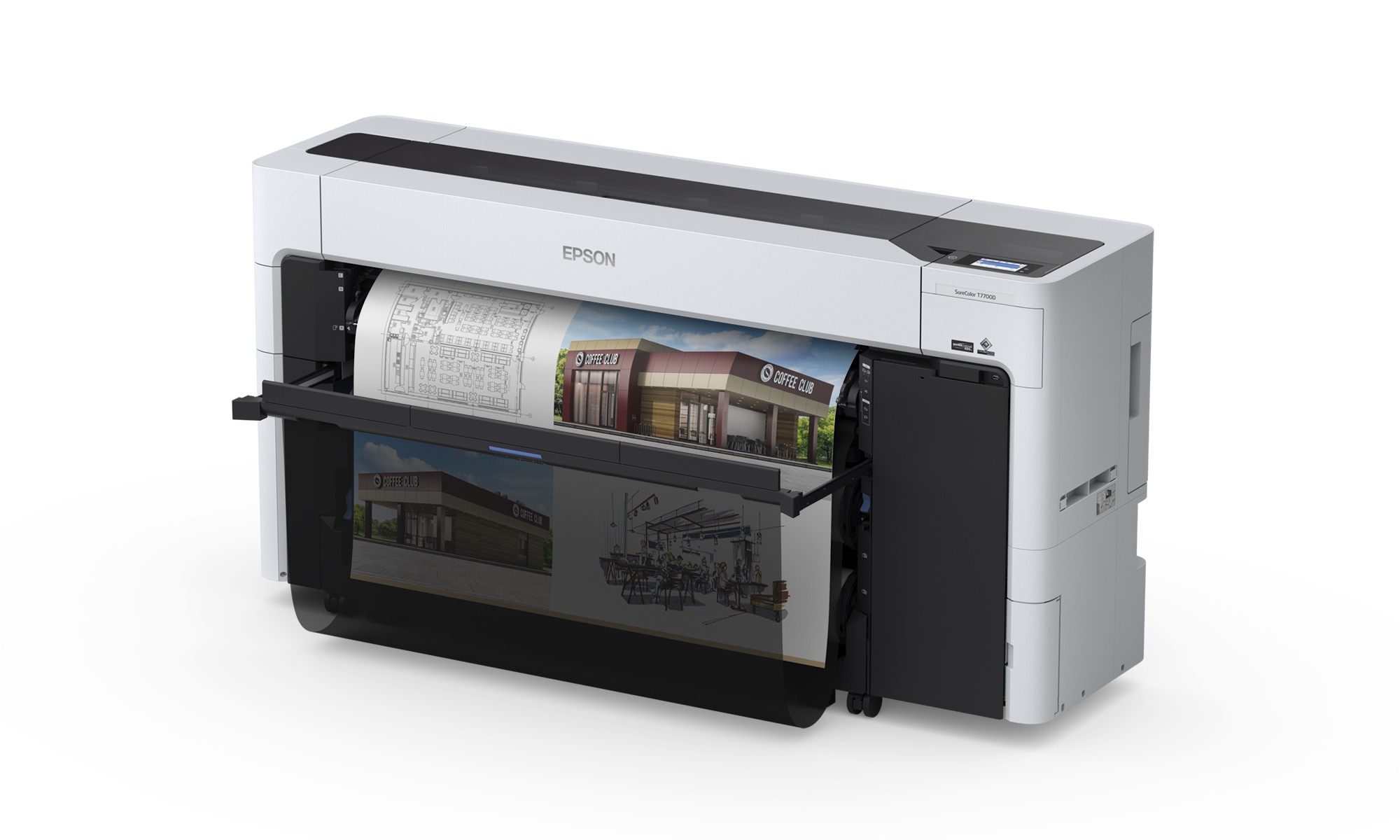

Epson SureColor SC-T7700D. Print technology: Inkjet, Maximum resolution: 1200 x 2400 DPI, Page description languages: ESC/P-R, HP-GL/2, PDF 1.7, PostScript 3. Maximum print size: A2 (420 x 594 mm), Paper tray media types: Roll, ISO A-series sizes (A0...A9): A0, A2, A3, A4, A5. Ethernet LAN data rates: 10,100,1000 Mbit/s, Mobile printing technologies: Apple AirPrint, Epson Cloud Solution PORT, Epson Smart Panel, Security algorithms: SNMP, IPSec, 256-bit AES, 128-bit AES, SSL/TLS, WPA3. Product colour: Black, White, Display: LCD, Display diagonal: 11 cm (4.33"). Power consumption (standby): 0.3 W, Power consumption (typical): 70 W, AC input voltage: 100 - 240 V

Enhanced security features: Protect highly confidential documents with ease
Compact and contemporary design: Fits seamlessly into most working environments
Impressive print speeds: Up to 130m{s2/hr
Versatility: Automatic media loading, dual roll, auto take-up, and auto-switching
Quality: 6-colour printer with 350/700ml ink cartridges

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Product Properties

Manufacturer
Epson

Model
C11CH83301A1

EAN
8715946699554

Bullet points

Point
Compact and contemporary design: Fits seamlessly into most working environments

Enhanced security features: Protect highly confidential documents with ease

Impressive print speeds: Up to 130m{s2/hr

Quality: 6-colour printer with 350/700ml ink cartridges

Versatility: Automatic media loading, dual roll, auto take-up, and auto-switching

Copying

Copying
No

Logistics data

Quantity per pack
1 pc(s)

Other features

Ink drop
3.5 pl, With Variable-Sized Droplet Technology

Line accuracy
+/- 0,26

Minimum line width
0.02 mm

Print quality (black, draft quality)
600 DPI

Printer features
Touchscreen, Bluetooth, Direct print from USB, Driver Preview, Auto Take up Reel, Nozzle Verification Technology

Touchscreen
Yes

Packaging data

Cartridge(s) included
Yes

Manual
Yes

Package depth
2000 mm

Package height
1215 mm

Package weight
197 kg

Package width
750 mm

Paper handling

Auto take-up reel
Yes

Borderless printing width
10" (25.4cm) Roll, 17" (43.1cm) Roll, 24" (60.9cm) Roll, 36" (91.4cm) Roll, 44" (111.8cm) Roll

ISO A-series sizes (A0...A9)
A0, A2, A3, A4, A5

ISO B-series sizes (B0...B9)
B0, B1

Max Paper Size
A2 (420 x 594 mm)

Maximum roll width
111.8 cm

Media thickness
Single Sheet0.1 mm, Roll0.8 mm, Rigid board supported

Paper tray media types
Roll

Performance

Built-in display
Yes

Colour display
Yes

Control type
Touch

Country of origin
Indonesia

Display
LCD

Display diagonal
11 cm (4.33")

Internal memory
4096 MB

Product colour
Black, White

Sound power level (standby)
6.6 dB

Sound pressure level (printing)
6.6 dB

Ports & interfaces

Direct printing
Yes

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Mobile printing technologies
Apple AirPrint, Epson Cloud Solution PORT, Epson Smart Panel

Security algorithms
SNMP, IPSec, 256-bit AES, 128-bit AES, SSL/TLS, WPA3

USB 2.0 ports quantity
1

USB port
Yes

Wi-Fi
Yes

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (standby)
0.3 W

Power consumption (typical)
70 W

Printing

Colour
Yes

Colour management
ICC Profile

Colour printing technology
Ultrachrome® XD3

Number of print cartridges
6

Page description languages
ESC/P-R, HP-GL/2, PDF 1.7, PostScript 3

Print head
PrecisionCore™ Micro TFP printhead

Print head nozzles
1,600 Nozzles per Color

Print Quality
1200 x 2400 DPI

Print speed (normal quality, A1)
120 pph

Print Technology
Inkjet

Product Colour
Black, Cyan, Magenta, Matte black, Photo black, Red, Yellow

Scanning

Scanning
No

System requirements

Compatible operating systems
Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP, macOS 11 or later

Windows operating systems supported
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP

Technical details

Box contents
AC adapter, Adobe PostScript 3, Ink set, Installation/safety manual, Maintenance boxes, Roll Feed Spindle 44", Setup guide, SureColor T-Series Printer, Warranty Documents

Weight & dimensions

Depth
499 mm

Height
975 mm

Weight
158 kg

Width
1848 mm
