Description

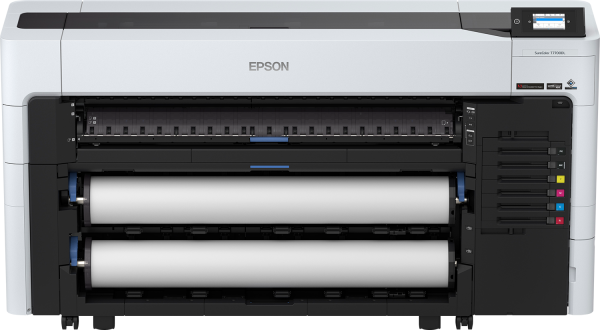

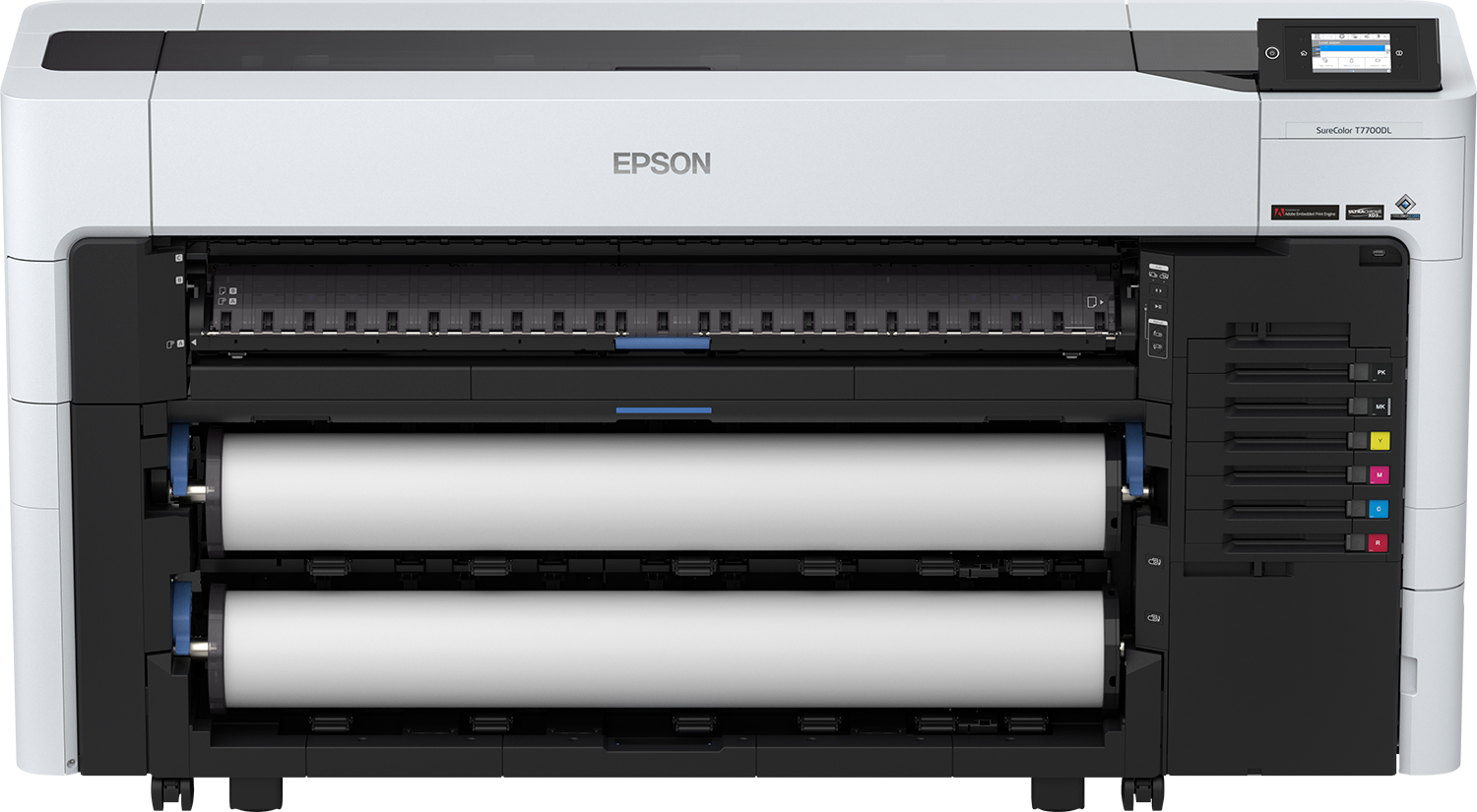

Epson SureColor SC-T7700DL. Print technology: Inkjet, Maximum resolution: 2400 x 1200 DPI, Printing colours: Cyan, Magenta, Matte black, Photo black, Red, Yellow. Maximum print size: A0 (841 x 1189 mm), Paper tray media types: Roll, ISO A-series sizes (A0...A9): A0, A1. Mobile printing technologies: Apple AirPrint, Epson Cloud Solution PORT, Epson Smart Panel, Security algorithms: SNMP, IPSec, 256-bit AES, 128-bit AES, SSL/TLS, WPA3. Product colour: Black, White, Display: LCD, Display diagonal: 11 cm (4.33"). Power consumption (PowerSave): 32 W, Power consumption (standby): 2 W, Power consumption (typical): 75 W

High productivity: Fast, versatile and secure printing from PC, mobile, USB and 960GB SSD
Enhanced security features: Protect highly confidential documents with ease
Versatility: Automatic media loading, dual roll and Production Stacker{s3
High image quality: Sharp detailed prints thanks to Adobe PostScript 3 as standard
Less waste: 1.6L ink packs reducing wastage and dedicated Mk, Pk channels

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Product Properties

Manufacturer
Epson

Model
C11CJ74301A1

EAN
8715946699646

Bullet points

Point
Enhanced security features: Protect highly confidential documents with ease

High image quality: Sharp detailed prints thanks to Adobe PostScript 3 as standard

High productivity: Fast, versatile and secure printing from PC, mobile, USB and 960GB SSD

Less waste: 1.6L ink packs reducing wastage and dedicated Mk, Pk channels

Versatility: Automatic media loading, dual roll and Production Stacker{s3

Copying

Copying
No

Logistics data

Quantity per pack
1 pc(s)

Other features

Ink drop
3.5 pl, With Variable-Sized Droplet Technology

Printer features
Touchscreen, Bluetooth, Direct print from USB, Driver Preview, Auto Take up Reel, Nozzle Verification Technology

Packaging data

Package depth
1985 mm

Package height
1205 mm

Package weight
210.5 kg

Package width
750 mm

Paper handling

ISO A-series sizes (A0...A9)
A0, A1

ISO B-series sizes (B0...B9)
B0, B1

Max Paper Size
A0 (841 x 1189 mm)

Maximum roll diameter
17 cm

Media thickness
Single Sheet0.1 mm, Roll0.8 mm, Rigid board supported

Paper tray media types
Roll

Roll weight (rear roll)
12.5 kg

Performance

Built-in display
Yes

Colour display
Yes

Control type
Touch

Country of origin
Indonesia

Display
LCD

Display diagonal
11 cm (4.33")

Internal memory
4096 MB

Product colour
Black, White

Sound pressure level (printing)
6.6 dB

Ports & interfaces

Direct printing
Yes

Mobile printing technologies
Apple AirPrint, Epson Cloud Solution PORT, Epson Smart Panel

Security algorithms
SNMP, IPSec, 256-bit AES, 128-bit AES, SSL/TLS, WPA3

USB port
Yes

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (off)
0.3 W

Power consumption (PowerSave)
32 W

Power consumption (standby)
2 W

Power consumption (typical)
75 W

Printing

Colour
Yes

Colour printing technology
Ultrachrome® XD3

Print head
PrecisionCoreTM Micro TFP printhead

Print head nozzles
1,600 Nozzles per Color

Print Quality
2400 x 1200 DPI

Print Technology
Inkjet

Product Colour
Cyan, Magenta, Matte black, Photo black, Red, Yellow

Scanning

Scanning
No

System requirements

Compatible operating systems
Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP, macOS 11 or later

Mac operating systems supported
Yes

Windows operating systems supported
Yes

Technical details

Box contents
AC adapter, Adobe PostScript 3, Installation/safety manual, Maintenance boxes, Roll Feed Spindle 44", Setup guide, SureColor T-Series Printer, Warranty Documents

Weight & dimensions

Depth
499 mm

Height
975 mm

Weight
155 kg

Width
1848 mm
