Description

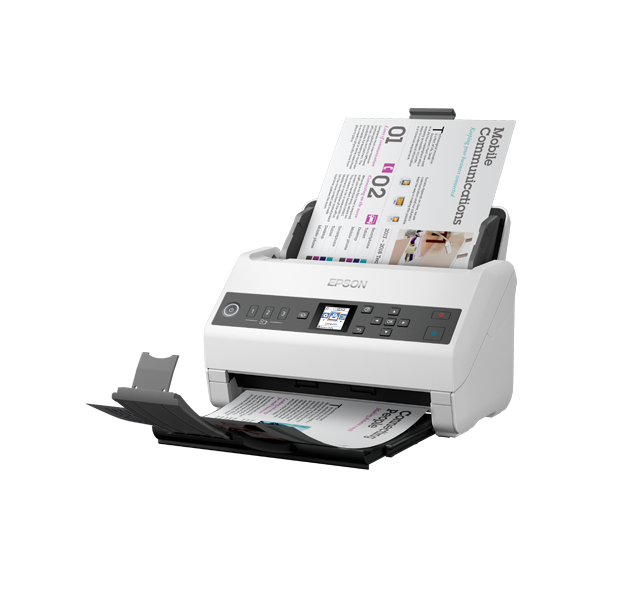

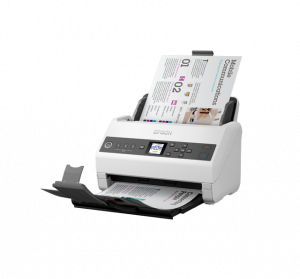

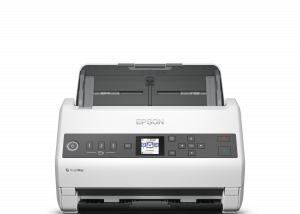

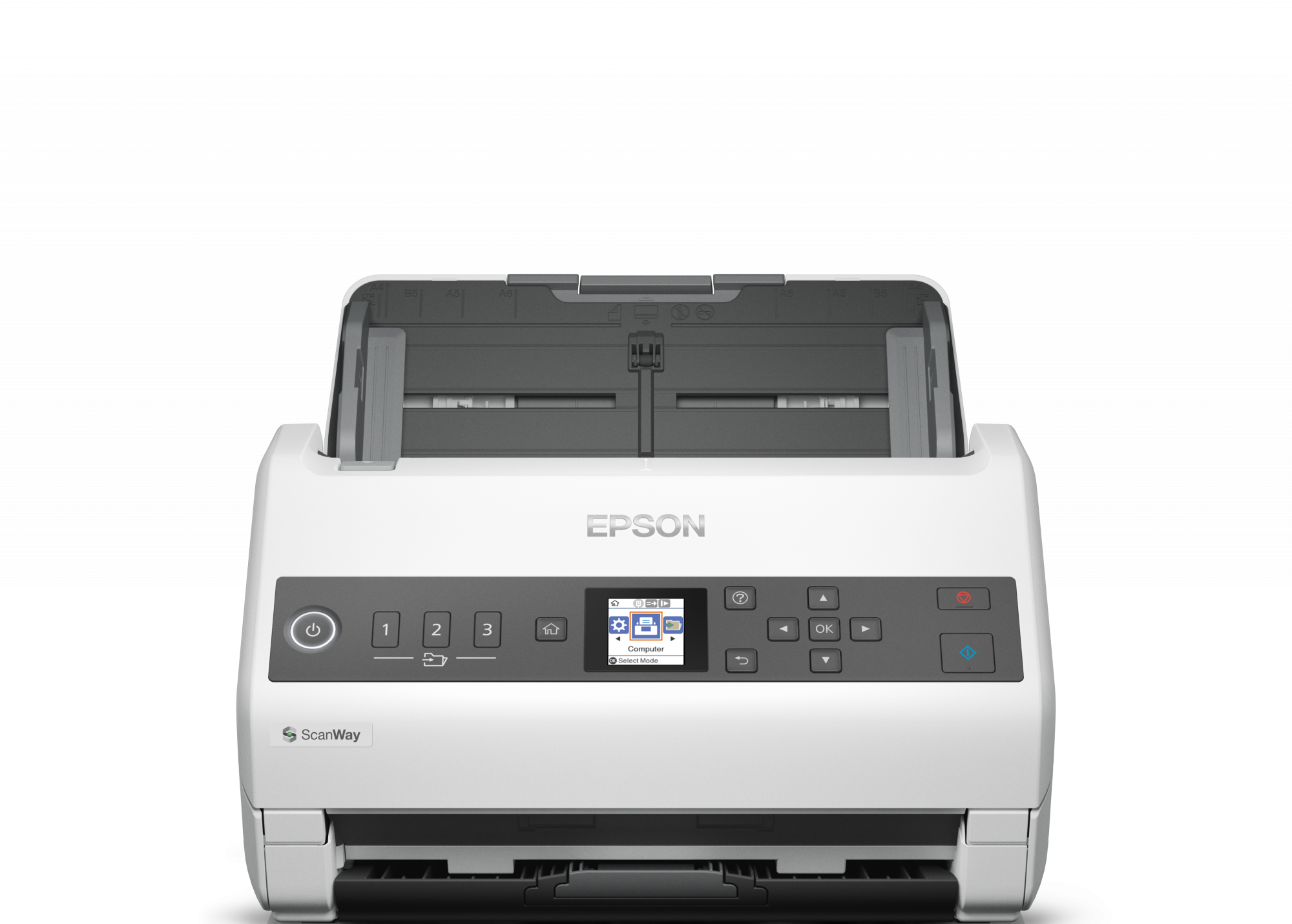

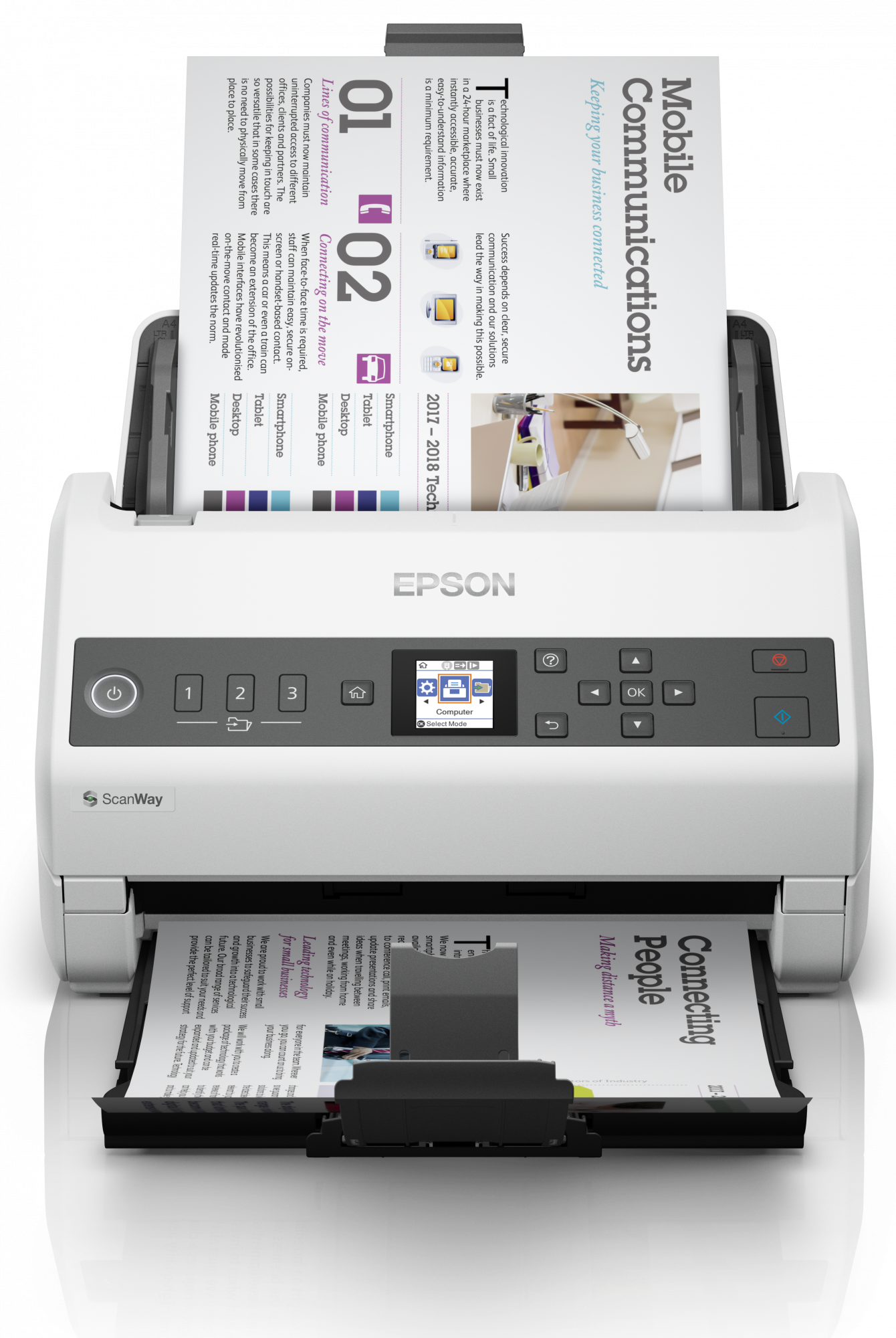

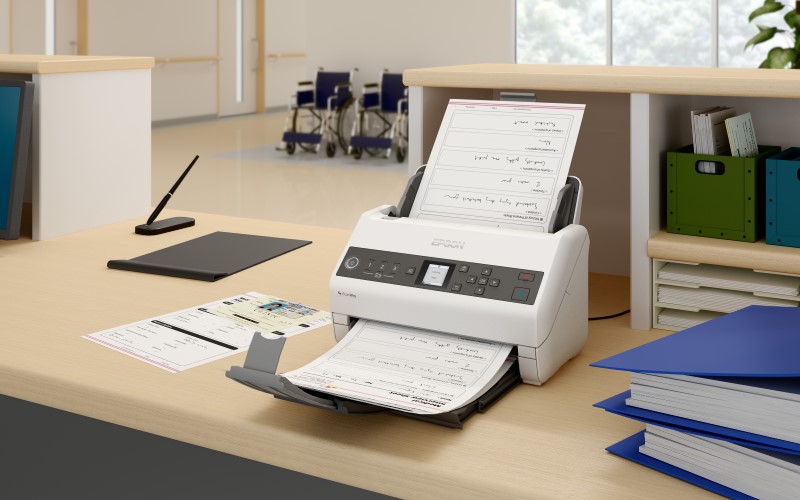

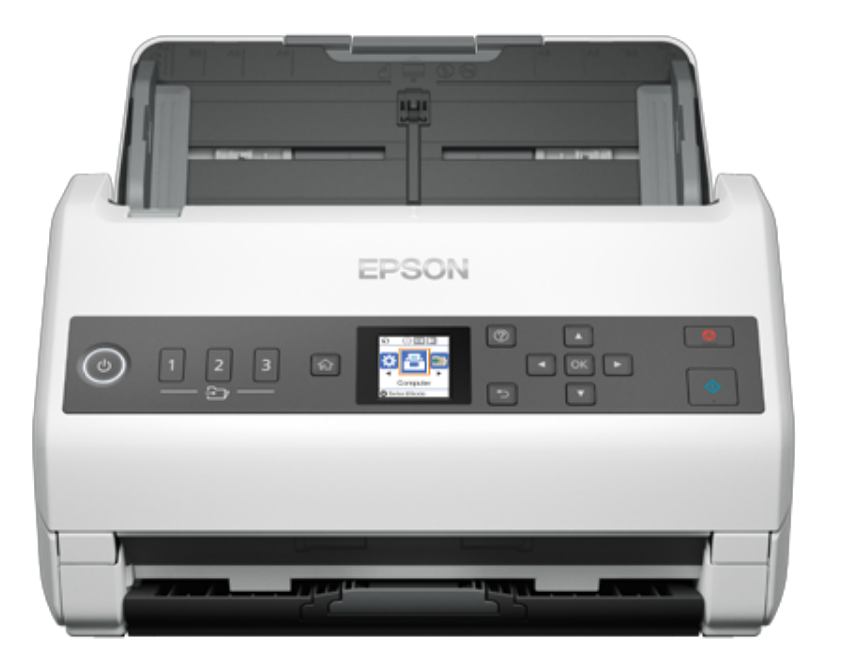

Epson WorkForce DS-730N. Maximum scan size: 215.9 x 6096 mm, Optical scanning resolution: 600 x 600 DPI, Input colour depth: 30 bit. Scanner type: Sheet-fed scanner, Product colour: Black, White, Display: LCD. Sensor type: CIS, Light source: ReadyScan LED, Scan file formats: DOCX, BMP, JPEG, PDF, PNG, PPTX, TIFF, XLSX. Auto document feeder (ADF) input capacity: 100 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Envelopes, Plastic Card, Post Card(JPN), ISO A-series sizes (A0...A9): A4, A5, A6

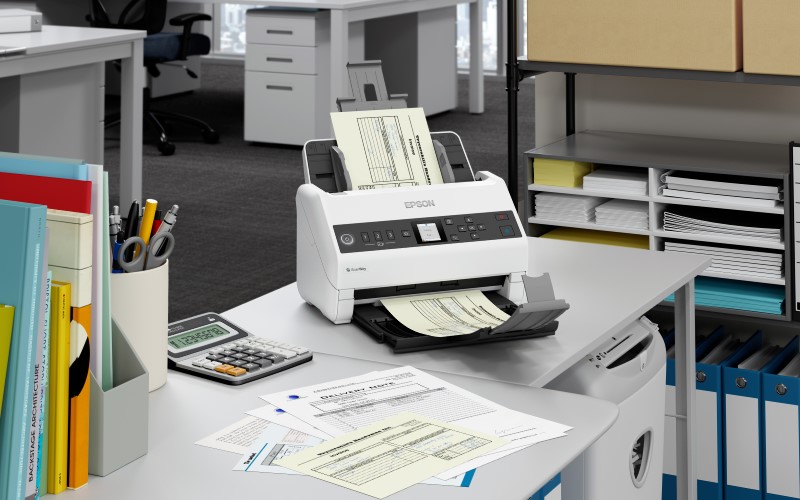

Standalone network scanning: Release the potential of a connected workplace
File sharing: One touch scan to different destinations

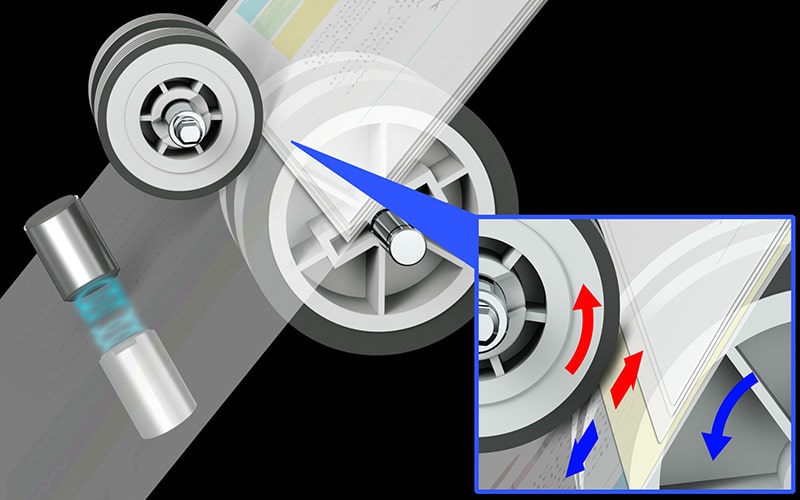

Reliable paper handling: Take control with ultra-sonic sensors and paper protection
Speed with control: Use slow mode or scan documents with speeds of up to 40 ppm (80ipm)

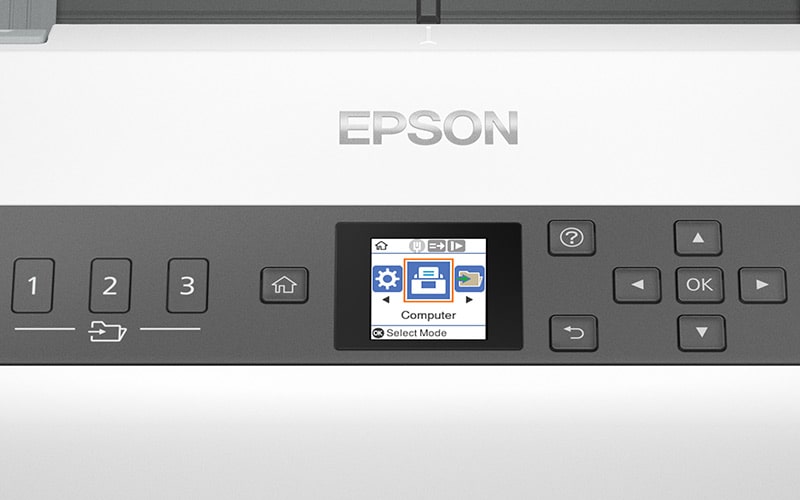

Built-in display: Easy to use 1.44 inch colour LCD

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Product Properties

Manufacturer
Epson

Model
B11B259401BY

EAN
8715946679211

Bullet points

Point
Built-in display: Easy to use 1.44 inch colour LCD

File sharing: One touch scan to different destinations

Reliable paper handling: Take control with ultra-sonic sensors and paper protection

Speed with control: Use slow mode or scan documents with speeds of up to 40 ppm (80ipm)

Standalone network scanning: Release the potential of a connected workplace

Design

Built-in display
Yes

Colour display
Yes

Display
LCD

Display diagonal
3.71 cm (1.46")

Product colour
Black, White

Scanner type
Sheet-fed scanner

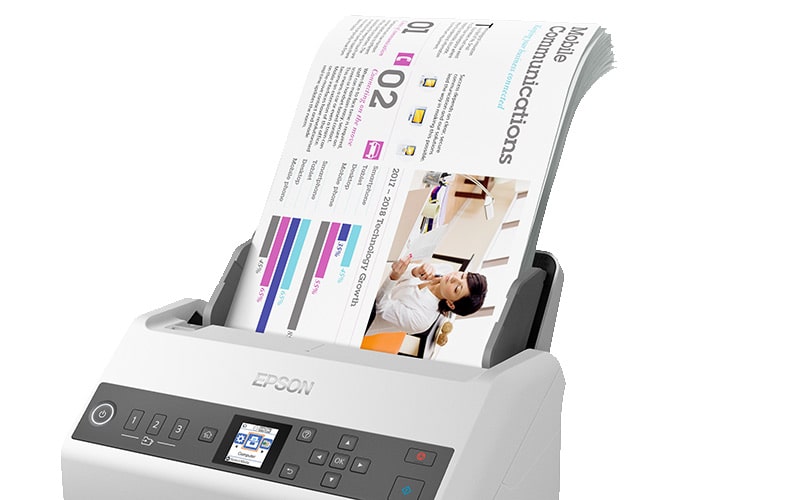

Input capacity

Auto document feeder (ADF) input capacity
100 sheets

Logistics data

Country of origin
Indonesia

Harmonized System (HS) code
84716070

Products per pallet
48 pc(s)

Products per pallet (UK)
60 pc(s)

Network

Ethernet LAN
Yes

Operational conditions

Operating relative humidity (H-H)
15 - 80%

Operating temperature (T-T)
5 - 35 °C

Storage relative humidity (H-H)
-25 - 60%

Storage temperature (T-T)
25 - 60 °C

Other features

Box contents
AC adapter, Driver and utilities, Main unit, Power cable, Setup guide, USB cable, Warranty card

Image formats supported
BMP, JPEG, TIFF, MTIFF, PNG

Interface
USB 2.0, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Hi-Speed USB - compatible with USB 2.0 specification

Printer features
RGB colour dropout, Advanced Colour Dropout / Enhance, Skip blank page, A3 stitching, Punch holes removal, Advanced editing, Pre-defined scanning settings, Automatic de-skew, Automatic multi-document recognition, Dual Image Output (Windows only), Auto-rotation, Text enhancement, Edge fill, Barcode Recognition, Manual / Automatic Job Separation, Scan to Cloud Storage

Scanner features
RGB colour dropout, Advanced Colour Dropout / Enhance, Skip blank page, A3 stitching, Punch holes removal, Advanced editing, Pre-defined scanning settings, Automatic de-skew, Automatic multi-document recognition, Dual Image Output (Windows only), Auto-rotation, Text enhancement, Edge fill, Barcode Recognition, Manual / Automatic Job Separation, Scan to Cloud Storage

Packaging content

Bundled software

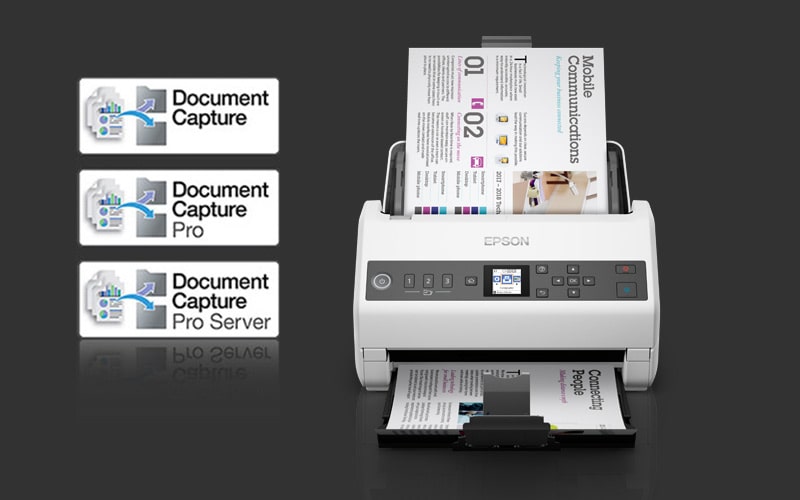

Epson Device Admin, Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Document Capture Pro Server (on free download), Epson Event Manager, Epson Scan 2, Web browser interface

Packaging data

Package depth
370 mm

Package height
320 mm

Package weight
4.93 kg

Package width
270 mm

Quantity per pack
1 pc(s)

Paper handling

ISO A-series sizes (A0...A9)
A4, A5, A6

ISO B-series sizes (B0...B9)
B4, B5, B6

Legal
Yes

Letter
Yes

Maximum ISO A-series paper size
A4

Scanning media types supported
Business Card, Envelopes, Plastic Card, Post Card(JPN)

Performance

Light source
ReadyScan LED

Scan file formats
DOCX, BMP, JPEG, PDF, PNG, PPTX, TIFF, XLSX

Scan to
E-mail, FTP, Network folder

Sensor type
CIS

Ports & interfaces

Optional Connectivity
Ethernet

USB connector type
USB Type-B

USB port
Yes

USB version
2.0

Power

AC input frequency
50 - 60 Hz

Input voltage
100 - 240 V

Power supply type
AC

Scanning

ADF scan speed (b/w, A4)
40 ppm

ADF scan speed (colour, A4)
40 ppm

Black/white scanning colour modes
Monochrome

Duplex ADF scan speed (b/w, A4)
80 ipm

Duplex ADF scan speed (colour, A4)
80 ipm

Input colour depth
30 bit

Input greyscale depth
10 bit

Maximum scan size
215.9 x 6096 mm

Optical scanning resolution
600 x 600 DPI

Output colour depth
24 bit

Output greyscale depth
8 bit

System requirements

Compatible operating systems
Mac OS 10.6+, Windows 10, Windows 10 (32/64 bit), Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64bit), Windows Server 2012 R2, Windows Vista, Windows XP SP3

Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur

Windows operating systems supported
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP

Server operating systems supported
Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2

Weight & dimensions

Depth
169 mm

Height
167 mm

Weight
3.6 kg

Width
296 mm
