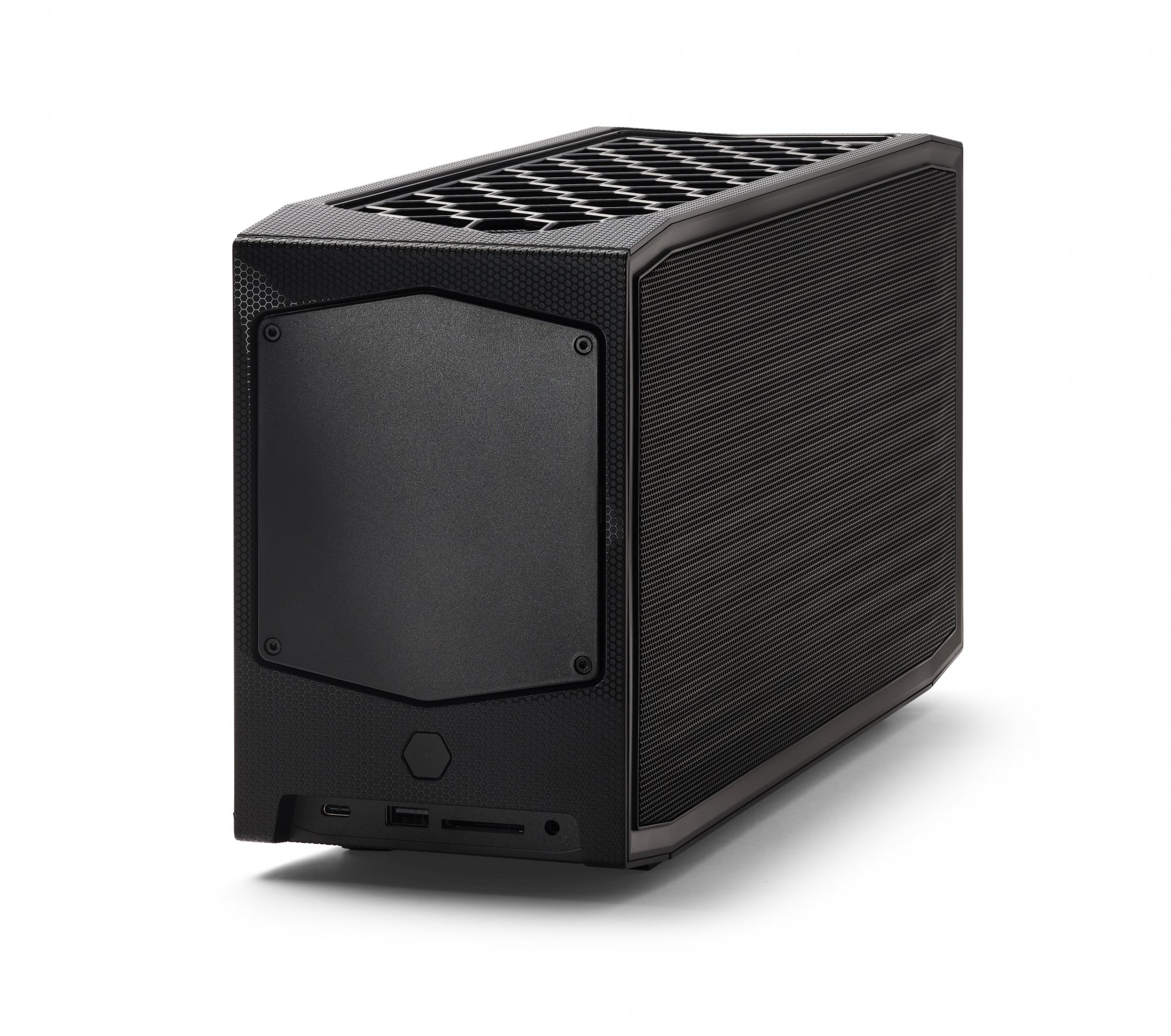

Intel NUC 12 Pro X Kit - NUC12DCMv9 8L sized PC Black i9-12900 Intel W680
Roll over image to zoom inClick to Open expanded view
Intel NUC 12 Pro X Kit - NUC12DCMv9 8L sized PC Black i9-12900 Intel W680
Print
Model: 90AB2DCM-MBF100
EAN: 5032037227612

Intel NUC 12 Pro X Kit - NUC12DCMv9 8L sized PC Black i9-12900 Intel W680

Manufacturer:
Intel
Intel NUC 12 Pro X Kit - NUC12DCMv9, 8L sized PC, PC barebone, Intel W680, DDR4-SDRAM, PCI Express, Serial ATA III, Wi-Fi 6E (802.11ax)
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Intel NUC 12 Pro X Kit - NUC12DCMv9. Chassis type: 8L sized PC, Product type: PC barebone. Motherboard chipset: Intel W680, BIOS type: EEPROM. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express, Serial ATA III, RAID levels: 0, 1. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.3. Cooling type: Active

Product Properties

  • Model
  • 90AB2DCM-MBF100
  • EAN
  • 5032037227612
  • Audio
  • Built-in speaker(s)
  • No
  • Design
  • ARK ID
  • 216966
  • Cable lock slot
  • Yes
  • Cable lock slot type
  • Kensington
  • Chassis type
  • 8L sized PC
  • Cooling type
  • Active
  • Housing material
  • Metal, Plastic
  • LED indicators
  • Yes
  • Product colour
  • Black
  • Product type
  • PC barebone
  • Status
  • Launched
  • Expansion slots
  • PCI Express slots version
  • 5, 4.0
  • PCI Express x16 slots
  • 1
  • Graphics
  • Graphics card family
  • Intel
  • Number of displays supported
  • 3
  • On-board graphics card
  • No
  • On-board graphics card model
  • Intel UHD Graphics 770
  • Logistics data
  • Harmonized System (HS) code
  • 84713000
  • Memory
  • ECC
  • Yes
  • Memory bandwidth (max)
  • 51.2 GB/s
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 64 GB
  • Memory slots type
  • SO-DIMM
  • Memory voltage
  • 1.2,1.35 V
  • Non-ECC
  • Yes
  • Number of DIMM slots
  • 2
  • Number of memory slots
  • 2
  • Removable memory card slot
  • SDXC with UHS-II support
  • Supported memory clock speeds
  • 3200 MHz
  • Supported memory types
  • DDR4-SDRAM
  • Network
  • Bluetooth
  • Yes
  • Bluetooth version
  • 5.3
  • Ethernet LAN
  • Yes
  • LAN controller
  • Intel I225-LM
  • Top Wi-Fi standard
  • Wi-Fi 6E (802.11ax)
  • Wi-Fi
  • Yes
  • Wi-Fi standards
  • Wi-Fi 6E (802.11ax)
  • WLAN controller model
  • Intel Wi-Fi 6E AX211
  • Operational conditions
  • Operating temperature (T-T)
  • 0 - 35 °C
  • Storage temperature (T-T)
  • -20 - 60 °C
  • Other features
  • Additional headers
  • 2x USB2.0, FRONT_PANEL
  • Launch date
  • Q2'22
  • Number of SATA connectors
  • 2
  • Packaging content
  • Power cord included
  • No
  • Performance
  • Audio output channels
  • 7.1 channels
  • BIOS type
  • EEPROM
  • Commodity Classification Automated Tracking System (CCATS)
  • G157815L2
  • Export Control Classification Number (ECCN)
  • 5A992C
  • Motherboard chipset
  • Intel W680
  • Number of processors supported
  • 1
  • Ports & interfaces
  • Ethernet LAN (RJ-45) ports
  • 2
  • HDMI ports
  • 1
  • HDMI version
  • 2.0b
  • M.2 card slot (storage)
  • 2 via PCH + 1 via CPU (NVMe)
  • M.2 card slot (wireless)
  • Intel® Wi-Fi 6E AX211
  • SATA Ports
  • 2
  • Thunderbolt 4 ports quantity
  • 2
  • USB 2.0 ports quantity
  • 0
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 7
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 1
  • USB ports quantity
  • 12
  • USB version
  • 2.0/3.2 Gen 2 (3.1 Gen 2)
  • VGA (D-Sub) ports quantity
  • 0
  • Power
  • Power supply type
  • Internal power supply unit
  • Processor
  • Built-in processor
  • Yes
  • CPU configuration (max)
  • 1
  • L2 cache
  • 14 MB
  • Memory bandwidth supported by processor (max)
  • 51.2 GB/s
  • Number of Cores
  • 16
  • Processor
  • i9-12900
  • Processor boost frequency
  • 5.1 GHz
  • Processor cache
  • 30 MB
  • Processor family
  • Intel® Core™ i9
  • Processor generation
  • 12th gen Intel® Core™ i9
  • Processor manufacturer
  • Intel
  • Processor threads
  • 24
  • Thermal Design Power (TDP)
  • 65 W
  • Processor special features
  • Embedded options available
  • No
  • Enhanced Intel SpeedStep Technology
  • Yes
  • Execute Disable Bit
  • Yes
  • Idle States
  • Yes
  • Intel 64
  • Yes
  • Intel Rapid Storage Technology
  • Yes
  • Intel Stable Image Platform Program (SIPP)
  • Yes
  • Intel Trusted Execution Technology
  • Yes
  • Intel Virtualization Technology (VT-x)
  • Yes
  • Intel Virtualization Technology for Directed I/O (VT-d)
  • Yes
  • Intel VT-x with Extended Page Tables (EPT)
  • Yes
  • Intel® AES New Instructions (Intel® AES-NI)
  • Yes
  • Intel® Optane™ Memory Ready
  • Yes
  • Intel® Platform Trust Technology (Intel® PTT)
  • Yes
  • Intel® Virtualization Technology (Intel® VT)
  • VT-d, VT-x
  • Intel® vPro™ Platform Eligibility
  • Yes
  • Software
  • Compatible operating systems
  • Windows 10, 64-bit*
  • Windows operating systems supported
  • Windows 11 x64, Windows 10 x64
  • Storage
  • Card reader integrated
  • Yes
  • Compatible memory cards
  • SDXC
  • Number of storage drives supported
  • 3
  • RAID levels
  • 0, 1
  • SSD form factor
  • M.2
  • Storage drive interface
  • PCI Express, Serial ATA III
  • Storage drive sizes supported
  • M.2
  • Supported storage drive types
  • SSD
  • Sustainability
  • Sustainability certificates
  • ENERGY STAR, ErP
  • Technical details
  • Compliance certificates
  • REACH, RoHS
  • Weight & dimensions
  • Depth
  • 189 mm
  • Height
  • 120 mm
  • Width
  • 357 mm
