Description

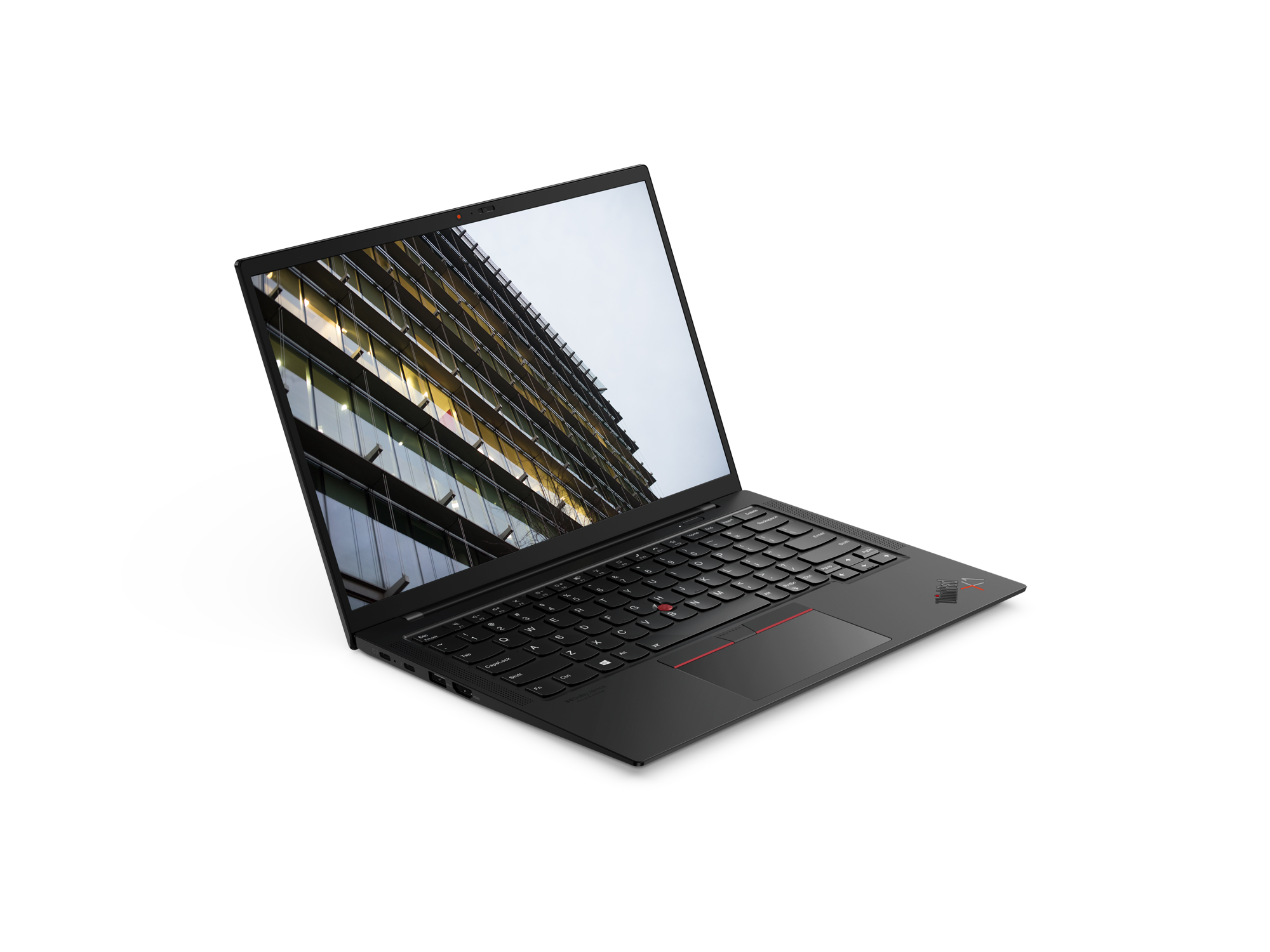

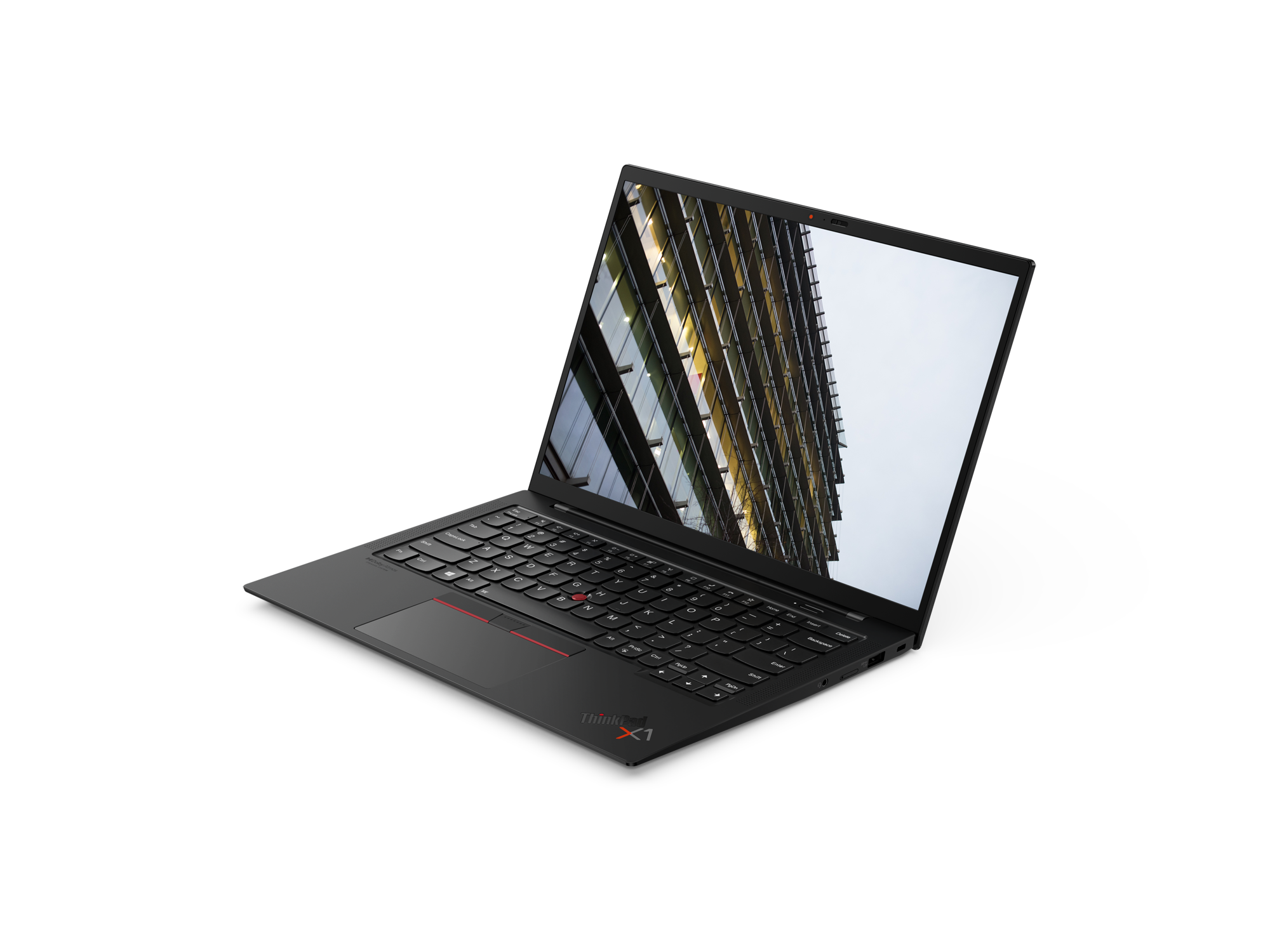

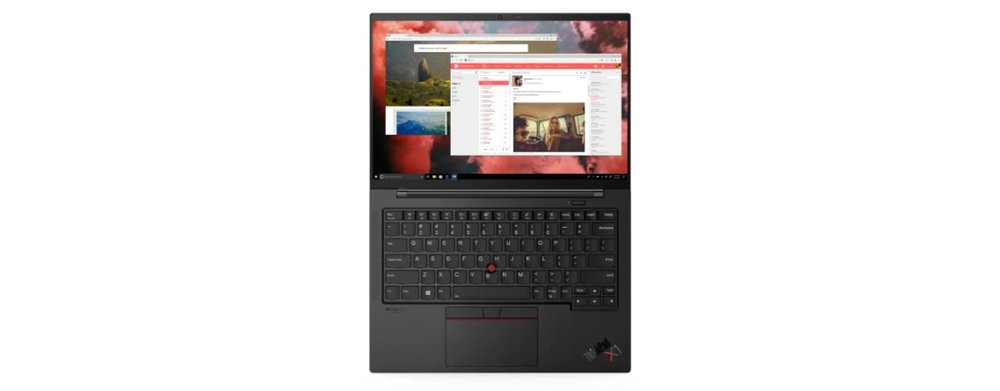

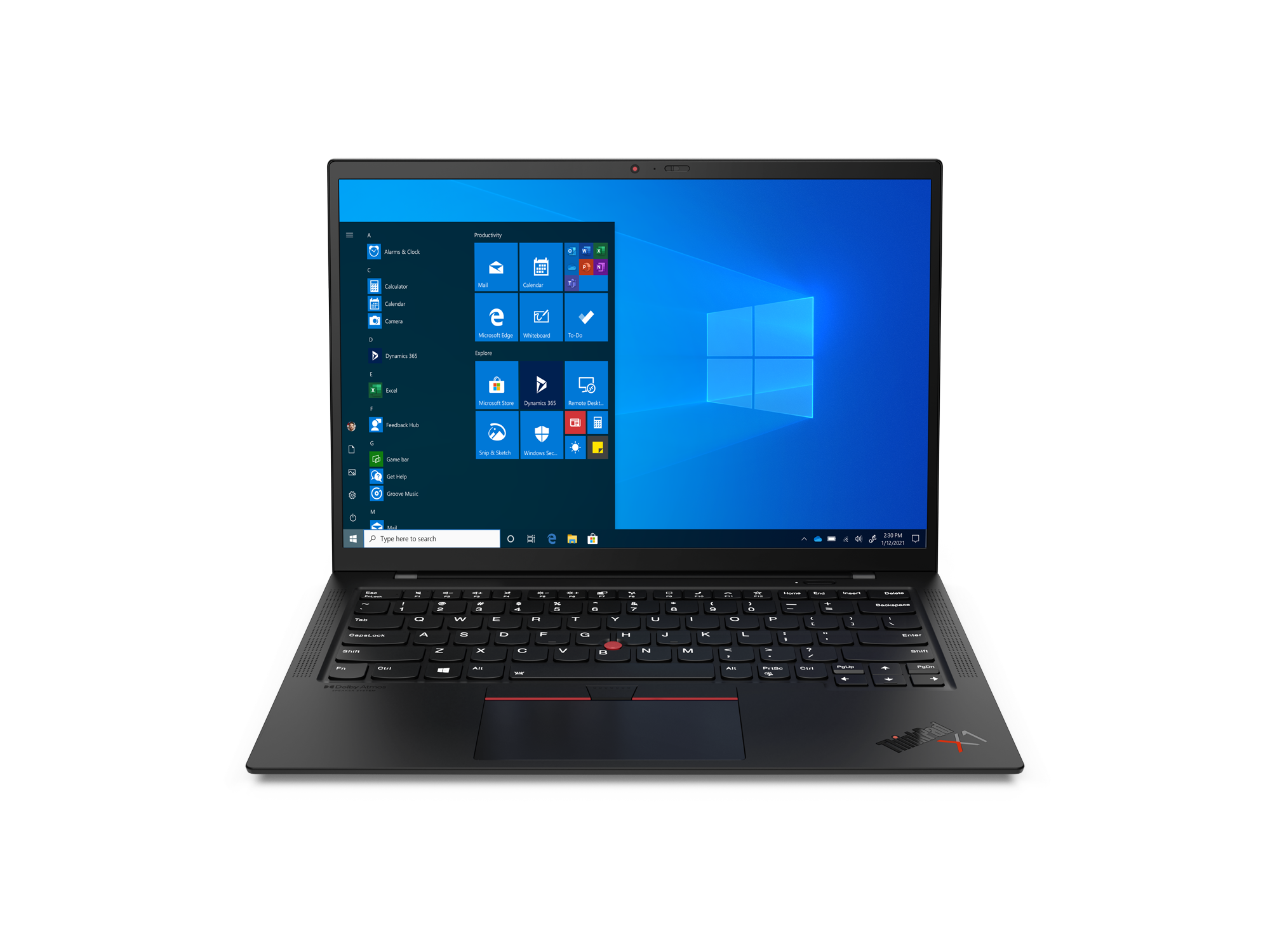

Lenovo ThinkPad X1 Carbon Gen 9. Product type: Laptop, Form factor: Clamshell. Processor family: Intel® Core™ i5, Processor model: i5-1135G7. Display diagonal: 35.6 cm (14"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 8 GB, Internal memory type: LPDDR4x-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel Iris Xe Graphics. Operating system installed: Windows 10 Pro. Product colour: Black. Weight: 1.13 kg

Intel Core i5-1135G7 (4C/8T, 2.4/4.2GHz, 8MB)
14" WUXGA (1920x1200) IPS 400nits 100% sRGB
8GB LPDDR4x-4266
256GB SSD M.2 2280 PCIe x4 NVMe Opal 2.0
Intel Iris Xe Graphics
Windows 10 Pro 64

Responsiveness reimagined

With the Intel® Evo™ platform, the ThinkPad X1 Carbon Gen 9 laptop delivers a powerhouse combination of performance, responsiveness, battery life, and stunning visuals. With up to 11th Gen Intel® Core™ i7 vPro® processors, you can count on an exceptional experience, anywhere.

Cool under pressure

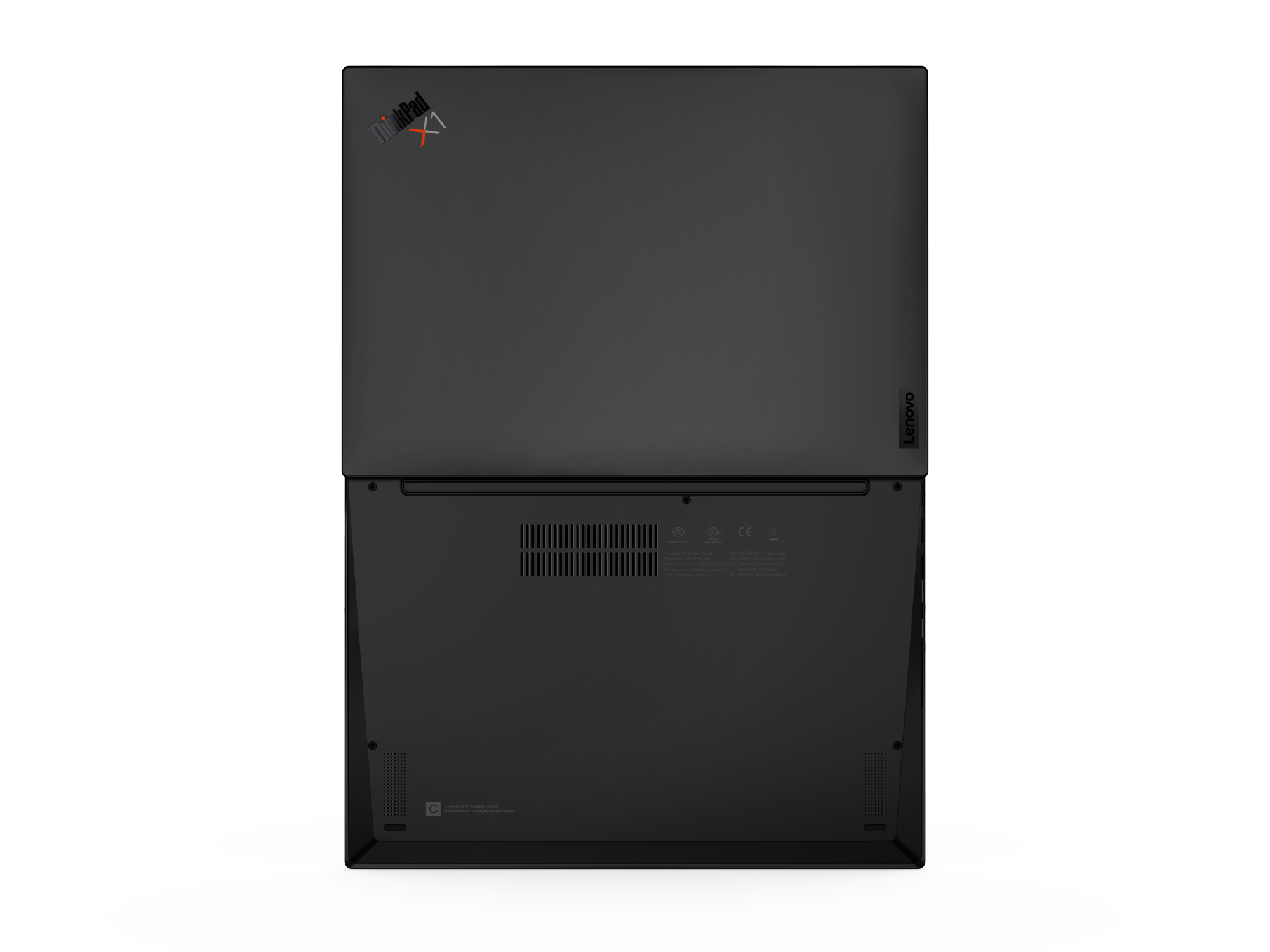

The new one-bar hinge, dual fan, and rear venting for an improved Intelligent Thermal Solution mean you can put in long hours on the job, and the ThinkPad X1 Carbon Gen 9 laptop will stay as cool as you are.

Security integrated seamlessly

With an updated suite of built-in ThinkShield security solutions, the ThinkPad X1 Carbon Gen 9 laptop safeguards your device and your data. Biometrics provide an extra-secure fingerprint reader that’s integrated with the power button—so you can log in and boot up instantaneously. Human-presence detection automatically locks your device when you move away, and in combination with the optional IR camera, it enables zero-touch login even from sleep. Plus, choose the PrivacyGuard display panel to ensure wandering eyes can’t see what’s on your screen.

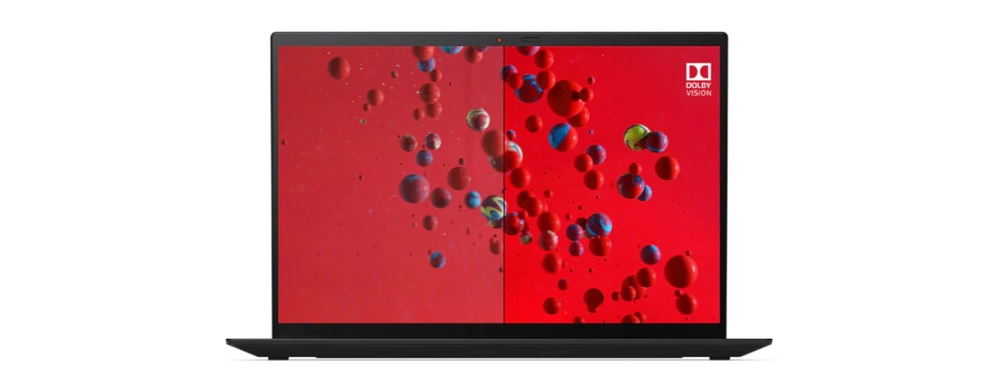

Vibrant visuals easy on the eyes

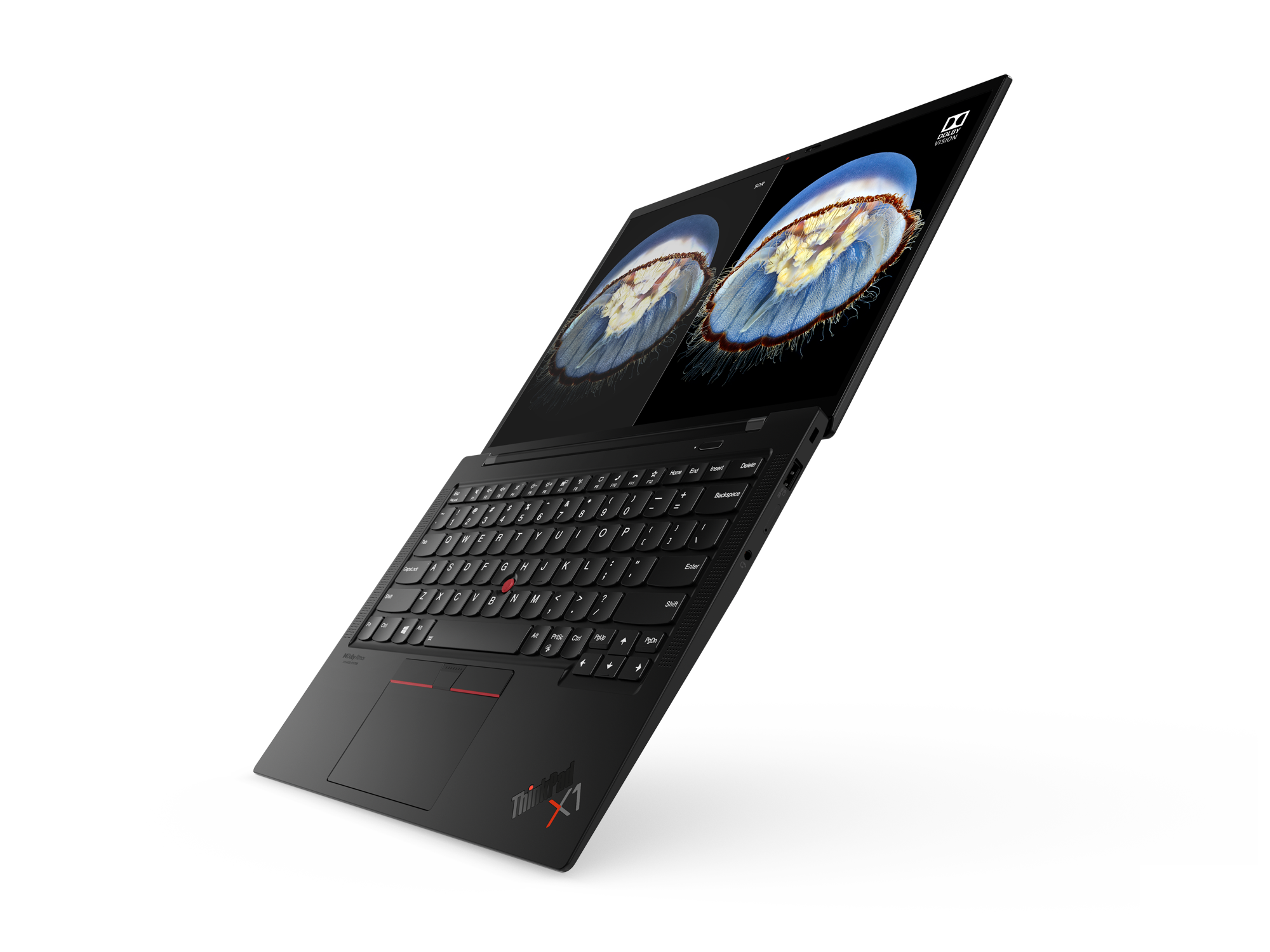

The ThinkPad X1 Carbon Gen 9 laptop features a refined 16:10 display with narrow bezels and a rich, high-resolution screen. Choose the UHD+ panel with Dolby Vision™ to improve your viewing experience. Powerful Intel® Iris™ Xe graphics render amazing picture clarity and color accuracy—whether you’re video-conferencing, browsing, or watching media. Plus, not only is this low-power panel energy efficient, but it’s also TÜV Rheinland-certified for reduced blue-light emissions to promote eye-care health.

Enhanced remote collaboration

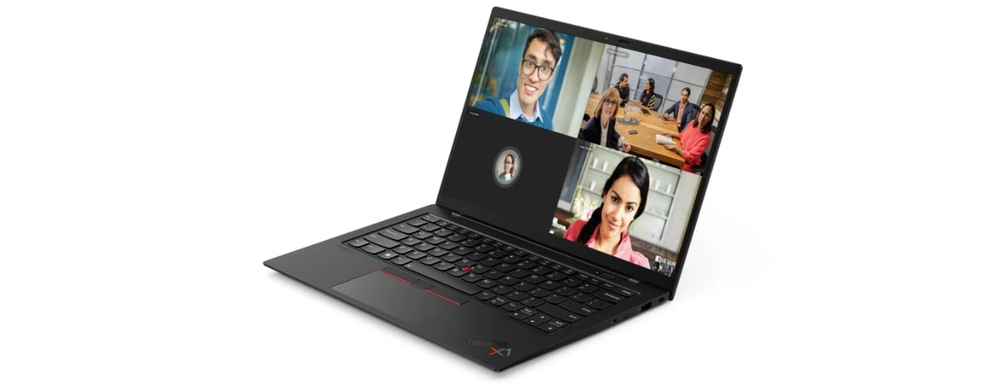

The Dolby Atmos® Speaker System on the ThinkPad X1 Carbon Gen 9 laptop includes two upward-firing speakers and two downward-firing woofers—this creates an immersive sound experience you’ll enjoy for work and for play. Dolby Voice® and four 360-degree far-field mics combined with a high-definition camera for visual clarity improve remote collaboration and ensure you’re heard loud and clear during calls.

Future-proof

The ThinkPad X1 Carbon Gen 9 laptop offers a true smartphone-like experience in an always-connected PC. Speedy WiFi 6 lets you jump on crowded public platforms fast while avoiding lag-time and buffering. And with the optional 4G / 5G WWAN*, you can enjoy faster, more secure access to your network and uninterrupted video streaming. Stay connected to what matters most, no matter where you are.

Military-grade tough

ThinkPad laptops are tested against 12 military-grade requirements and more than 200 quality checks to ensure they run in extreme conditions. From the Arctic wilderness to desert dust storms, from zero-gravity to spills and drops, you can trust these laptops to handle whatever life throws your way.

<p>Buy this PC and get a Free upgrade to Windows 11 when available.<sup>1</sup></p>

Buy this PC and get a Free upgrade to Windows 11 when available.¹

1 Upgrade rollout plan is being finalized and is scheduled to begin late in 2021 and continue into 2022. Specific timing will vary by device. Certain features require specific hardware, see https://www.microsoft.com/windows/windows-11-specifications.

Product Properties

Manufacturer
Lenovo

Model
20XW0027UK

EAN
195713153478

Audio

Audio chip
Realtek ALC3306

Audio system
Dolby Atmos

Built-in microphone
Yes

Number of built-in speakers
4

Number of microphones
4

Battery

Battery capacity
57 Wh

Battery life (max)
21.3 h

Battery technology
Lithium Polymer (LiPo)

Fast charging
Yes

Bullet points

Point
14" WUXGA (1920x1200) IPS 400nits 100% sRGB

256GB SSD M.2 2280 PCIe x4 NVMe Opal 2.0

8GB LPDDR4x-4266

Intel Core i5-1135G7 (4C/8T, 2.4/4.2GHz, 8MB)

Intel Iris Xe Graphics

Windows 10 Pro 64

Camera

Front camera
Yes

Front camera HD type
HD

Front camera resolution
1280 x 720 pixels

Infrared (IR) camera
Yes

Privacy camera
Yes

Privacy type
Privacy shutter

Certificates

Certification
ENERGY STAR,TCO,EPEAT Gold,RoHS

Compliance certificates
RoHS

Design

Colour name
Black, Paint

Form factor
Clamshell

Housing material
Carbon fibre, Magnesium

Intel® vPro™ Platform Eligibility
No

Product colour
Black

Product type
Laptop

Display

Anti-glare screen
Yes

Colour gamut
100%

Contrast ratio (typical)
1000:1

Display brightness
400 cd/m²

HD type
WUXGA

LED backlight
Yes

Native aspect ratio
16:10

Panel type
IPS

RGB colour space
sRGB

Screen Resolution
1920 x 1200 pixels

Screen Size
35.6 cm (14")

Touchscreen
No

Graphics

Discrete graphics card
No

Discrete graphics card model
Not available

On-board GPU manufacturer
Intel

On-board graphics card
Yes

On-board graphics card family
Intel Iris Xe Graphics

On-board graphics card model
Intel Iris Xe Graphics

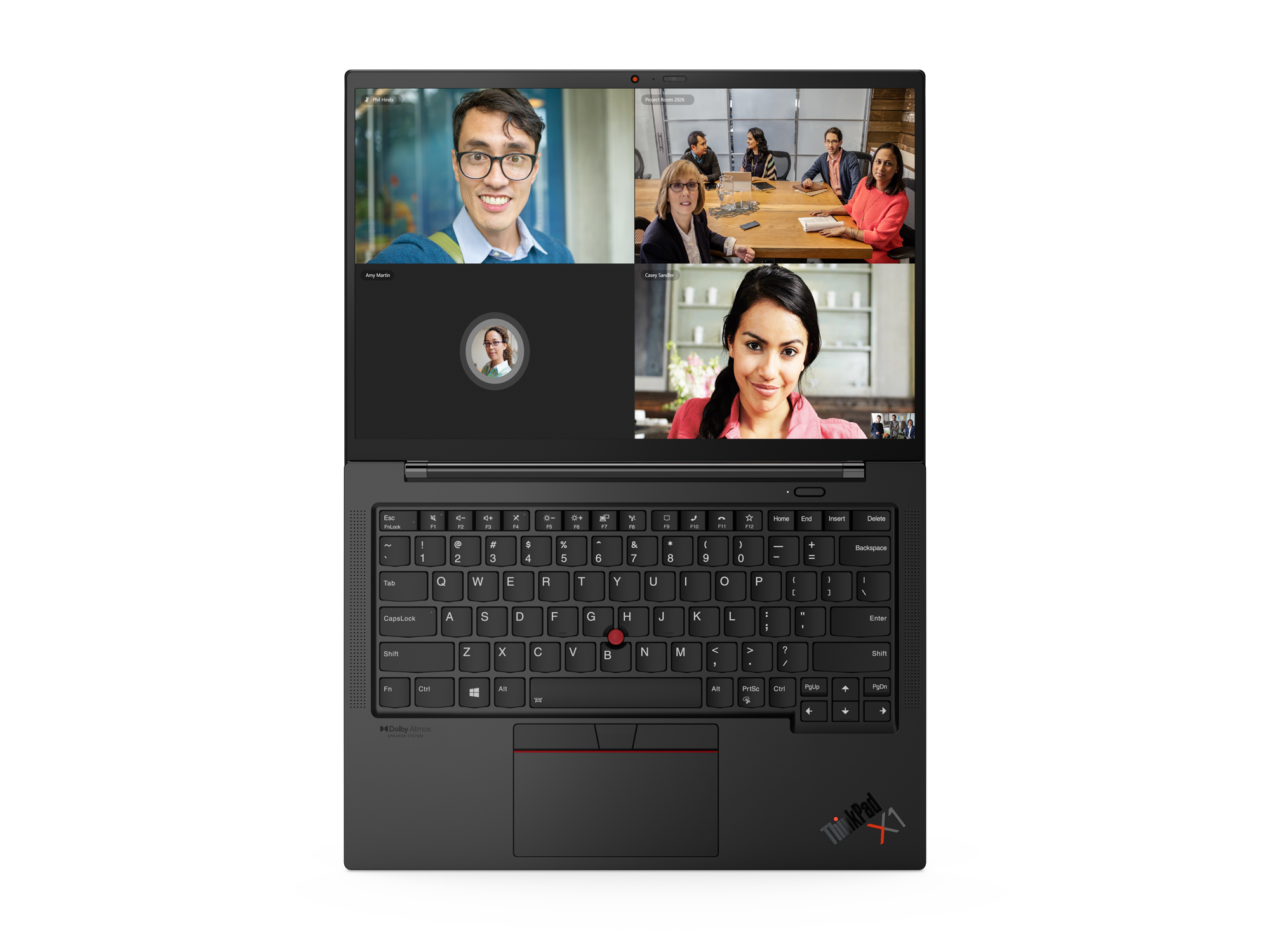

Keyboard

Keyboard backlit
Yes

Keyboard language
UK English

Numeric keypad
No

Pointing device
ThinkPad UltraNav

Spill-resistant keyboard
Yes

Logistics data

Harmonized System (HS) code
84713000

Memory

Internal memory type
LPDDR4x-SDRAM

Memory clock speed
4266 MHz

Memory form factor
On-board

Memory Installed
8 GB

Memory Slot Support
8 GB

Network

Antenna type
2x2

Bluetooth
Yes

Bluetooth version
5.2

Ethernet LAN
No

Mobile network connection
No

Near Field Communication (NFC)
Yes

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

WLAN controller manufacturer
Intel

WLAN controller model
Intel Wi-Fi 6 AX201

WWAN
Upgradable

Operational conditions

Operating relative humidity (H-H)
8 - 95%

Operating temperature (T-T)
5 - 35 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
5 - 43 °C

Packaging content

AC adapter included
Yes

Performance

Motherboard chipset
Intel SoC

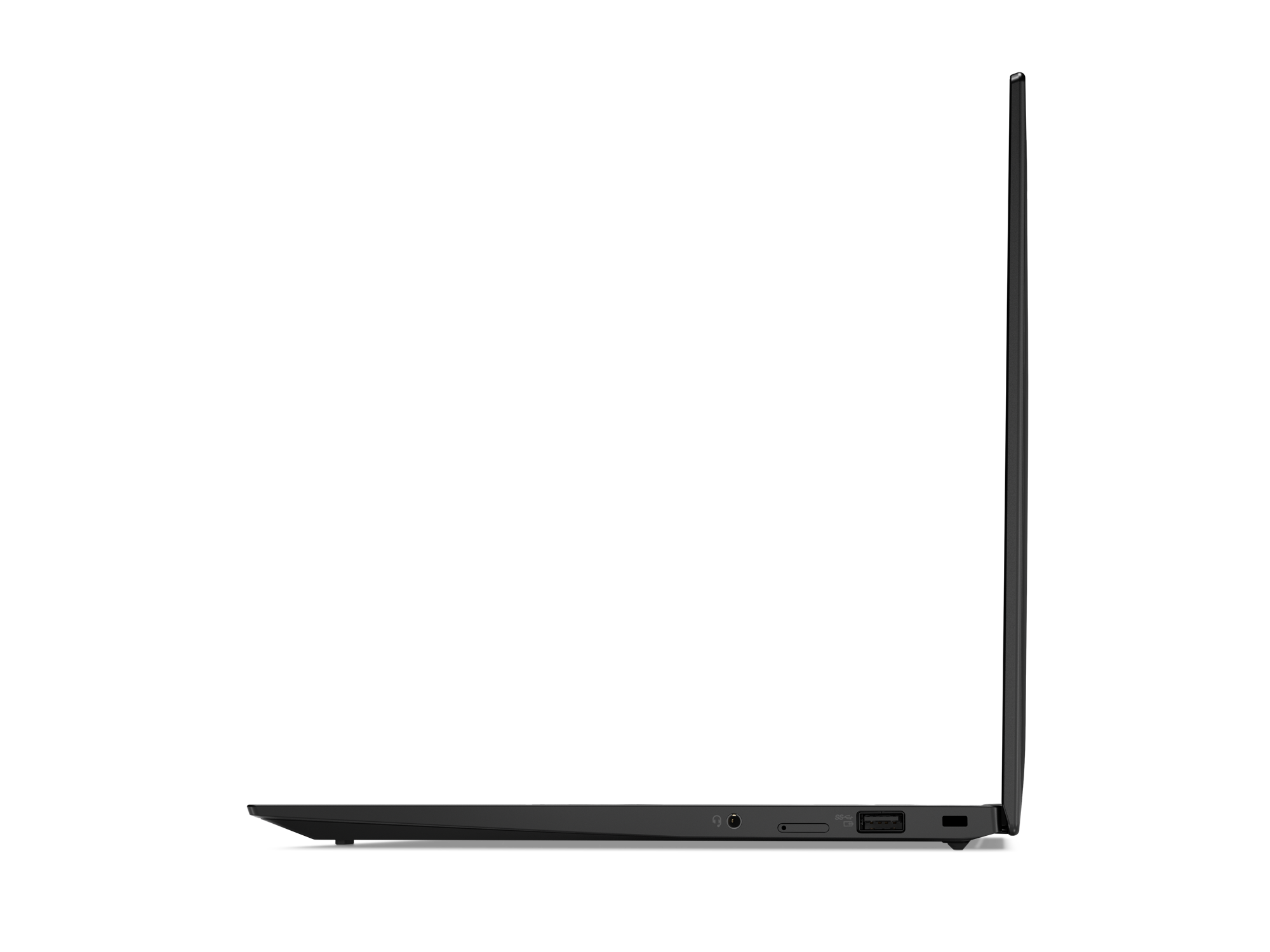

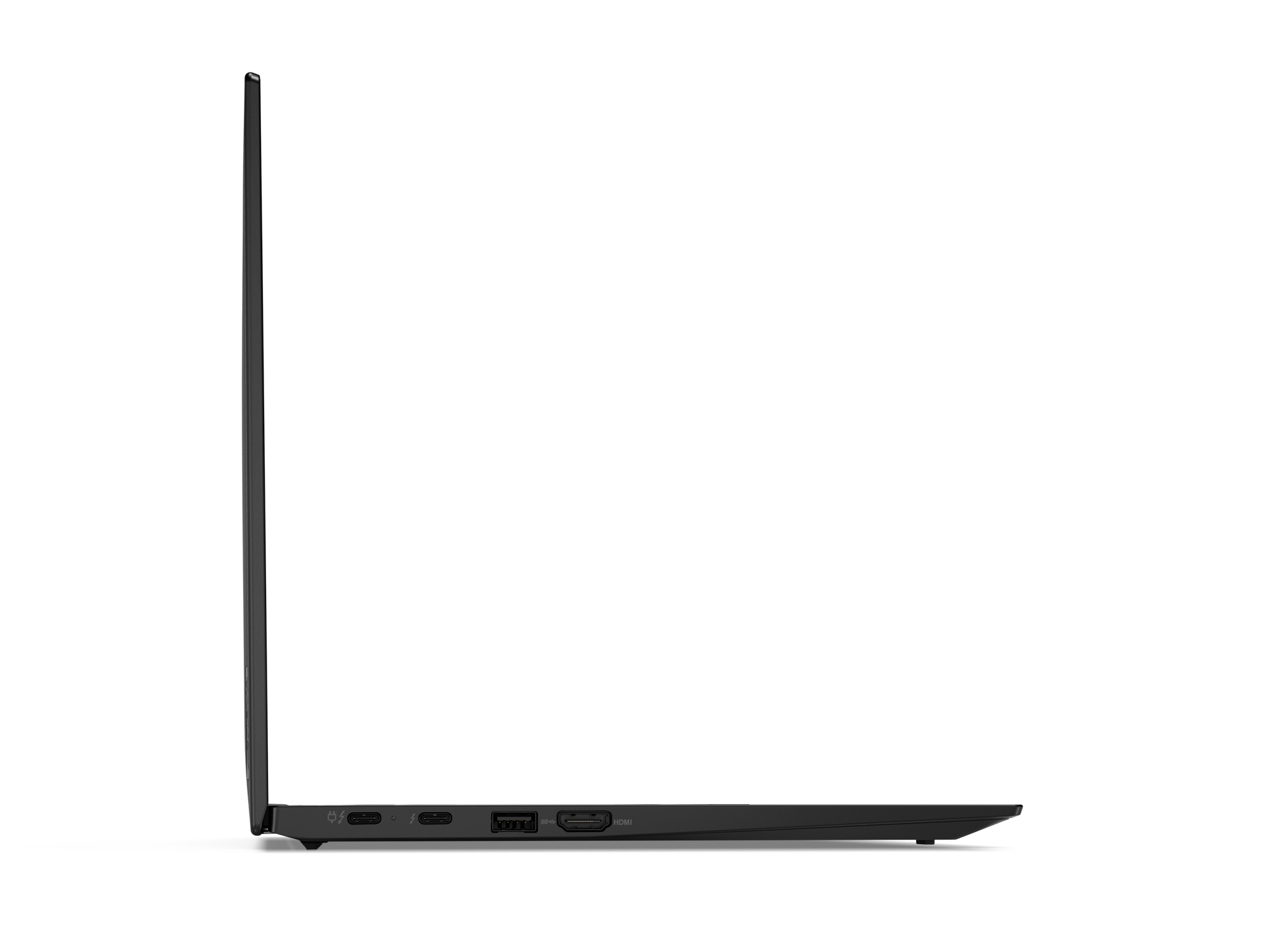

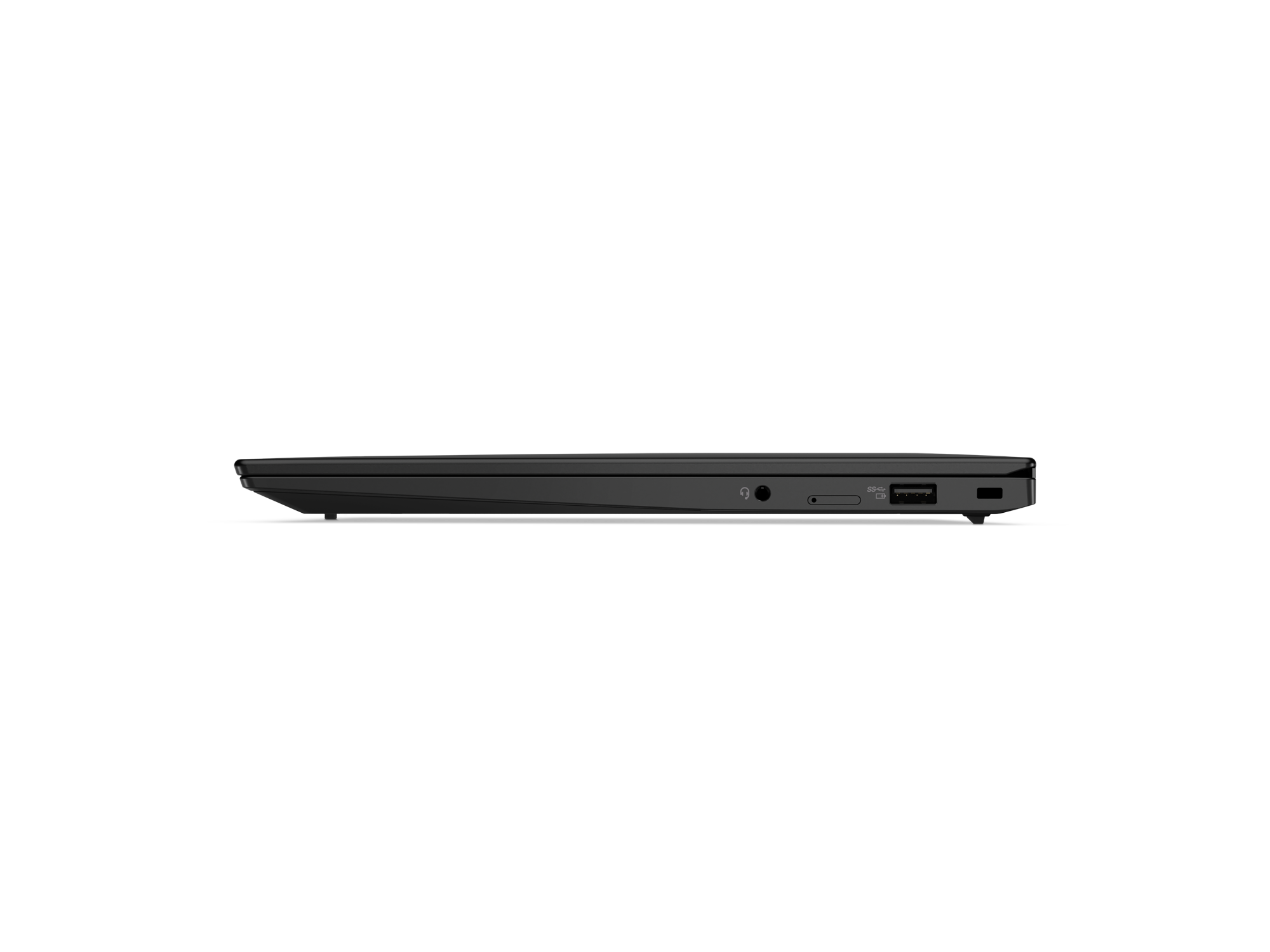

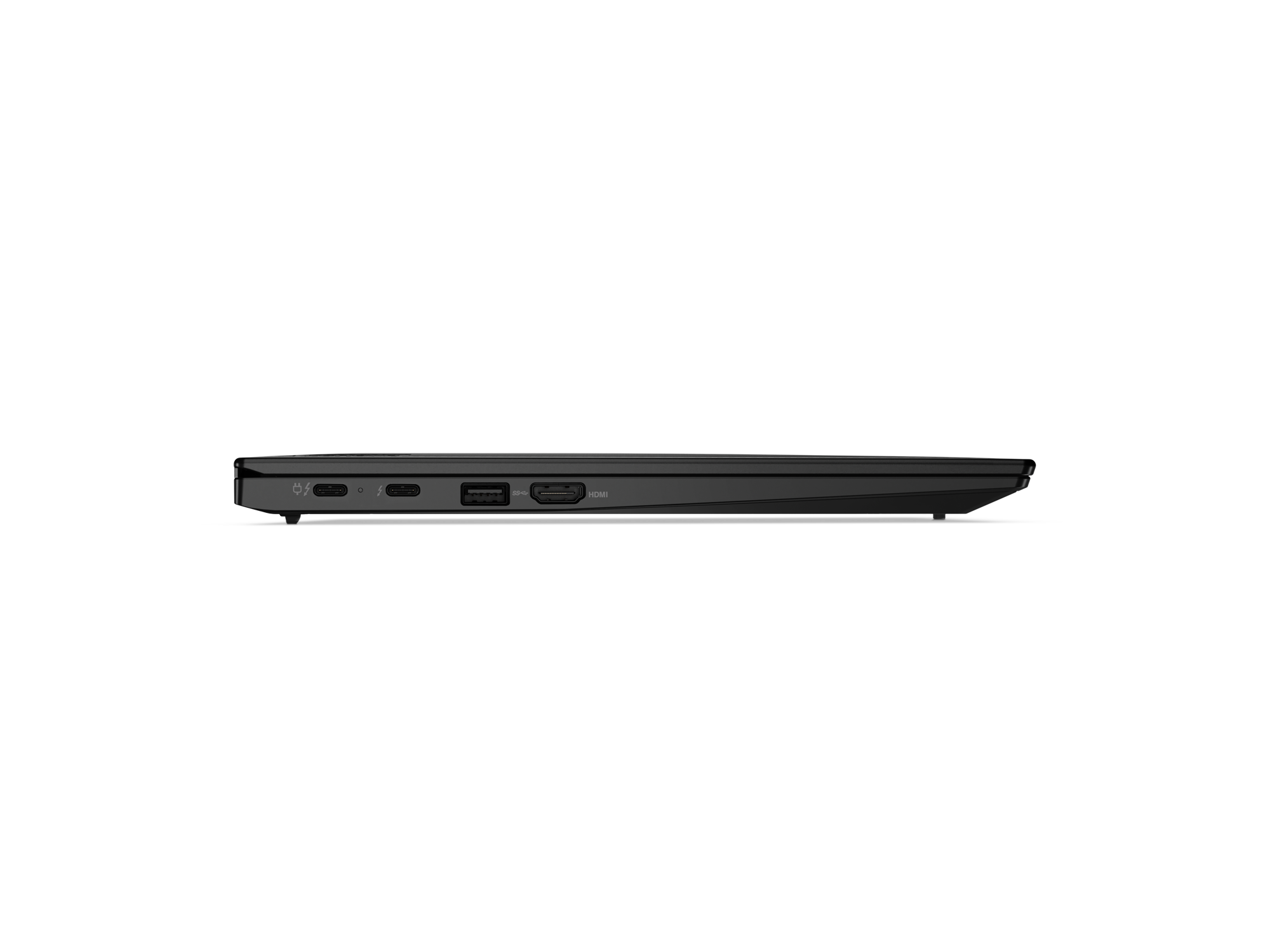

Ports & interfaces

Combo headphone/mic port
Yes

HDMI ports
1

HDMI version
2.0

Intel® Thunderbolt 4
Yes

Thunderbolt 4 ports quantity
2

USB 2.0 ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0

USB Sleep-and-Charge
Yes

USB Sleep-and-Charge ports
1

USB Type-C DisplayPort Alternate Mode
Yes

Power

AC adapter frequency
50/60 Hz

AC adapter input voltage
100 - 240 V

AC adapter power
65 W

USB Power Delivery (USB PD)
Yes

USB Type-C charging port
Yes

Processor

Configurable TDP-down
12 W

Configurable TDP-down frequency
0.9 GHz

Configurable TDP-up
28 W

Configurable TDP-up frequency
2.4 GHz

Number of Cores
4

Processor
i5-1135G7

Processor boost frequency
4.2 GHz

Processor cache
8 MB

Processor cache type
Smart Cache

Processor family
Intel® Core™ i5

Processor generation
11th gen Intel® Core™ i5

Processor manufacturer
Intel

Processor threads
8

Processor special features

CPU configuration (max)
1

Embedded options available
No

Idle States
Yes

Intel Software Guard Extensions (Intel SGX)
No

Intel Stable Image Platform Program (SIPP)
No

Intel Trusted Execution Technology
No

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Security

Cable lock slot
Yes

Cable lock slot type
Kensington

Fingerprint reader
Yes

Password protection
Yes

Password protection type
Power on, SSD, Supervisor

Smart card reader
No

Trusted Platform Module (TPM)
Yes

Trusted Platform Module (TPM) version
2.0

Windows Hello
Yes

Software

Operating system architecture
64-bit

Operating system installed
Windows 10 Pro

Operating system language
English

Storage

Card reader integrated
No

Number of SSDs installed
1

NVMe
Yes

Optical drive type
No

SSD capacity
256 GB

SSD form factor
M.2

SSD interface
NVMe, PCI Express 4.0

Storage Capacity
256 GB

Storage type
SSD

Total SSDs capacity
256 GB

Sustainability

Sustainability certificates
ENERGY STAR, EPEAT Gold, TCO

Weight & dimensions

Depth
221.6 mm

Height
14.9 mm

Weight
1.13 kg

Width
315 mm

Lenovo ThinkPad X1 Carbon Gen 9 Intel® Core™ i5 i5-1135G7 Laptop 35.6 cm (14") WUXGA 8 GB LPDDR4x-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 10 Pro UK English Black
