Description

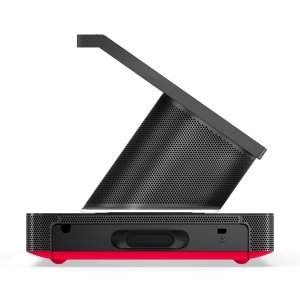

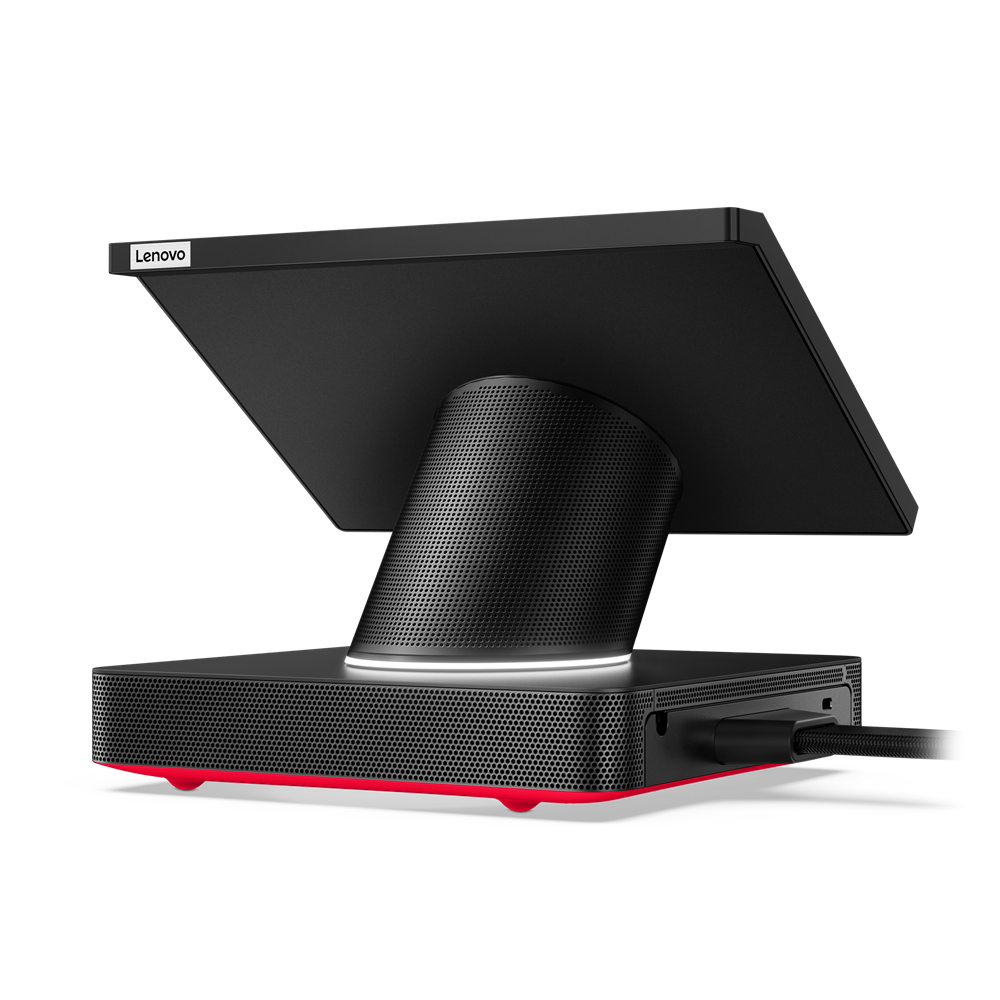

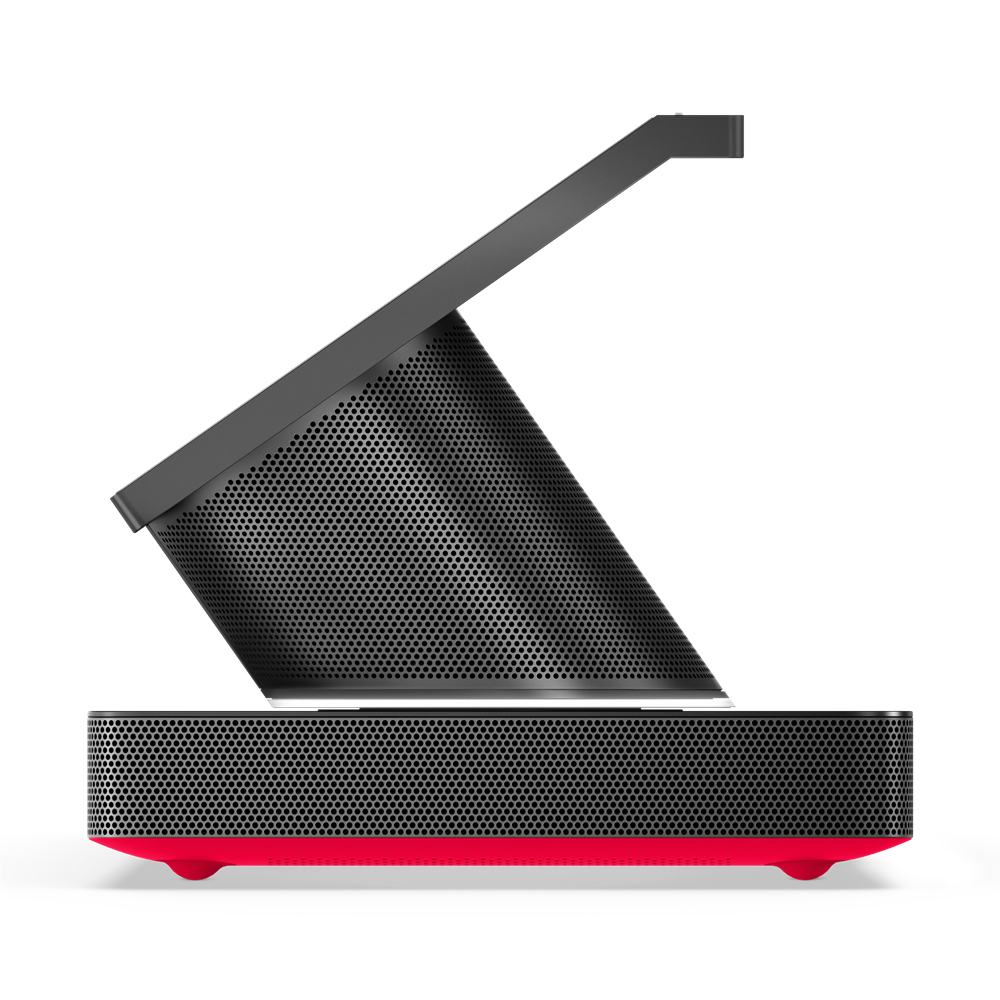

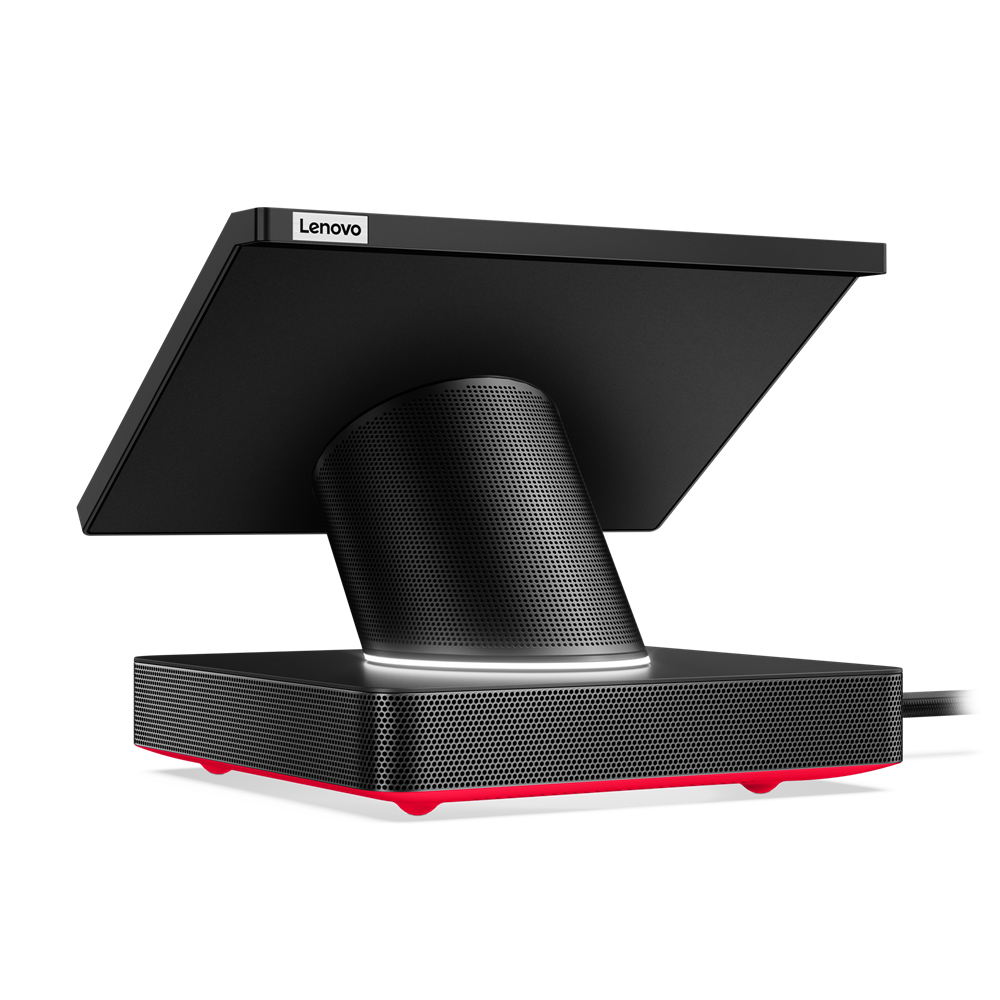

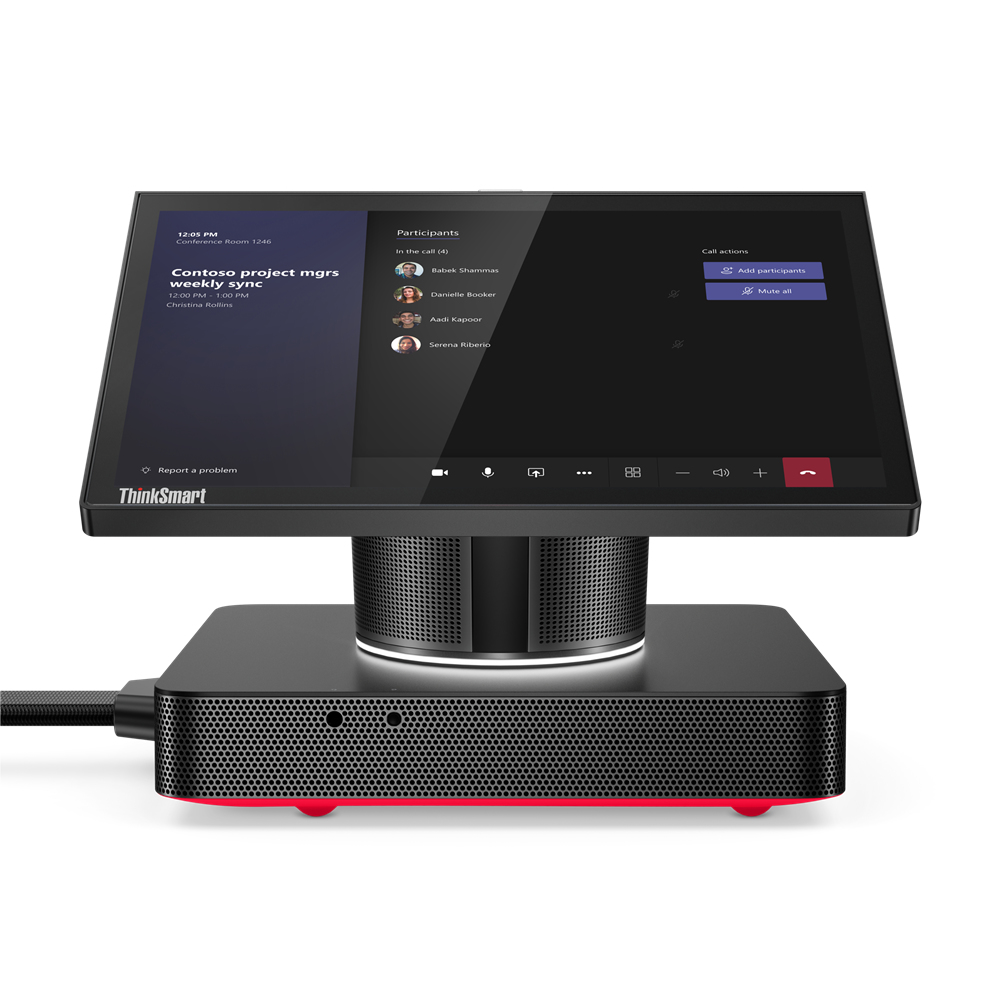

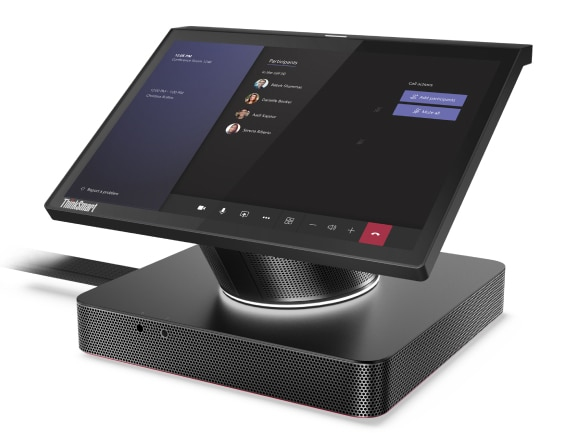

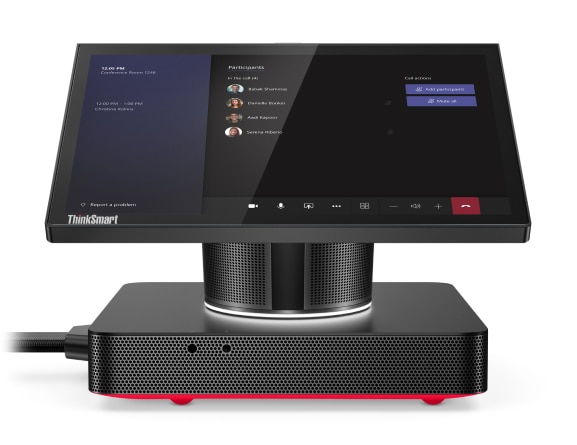

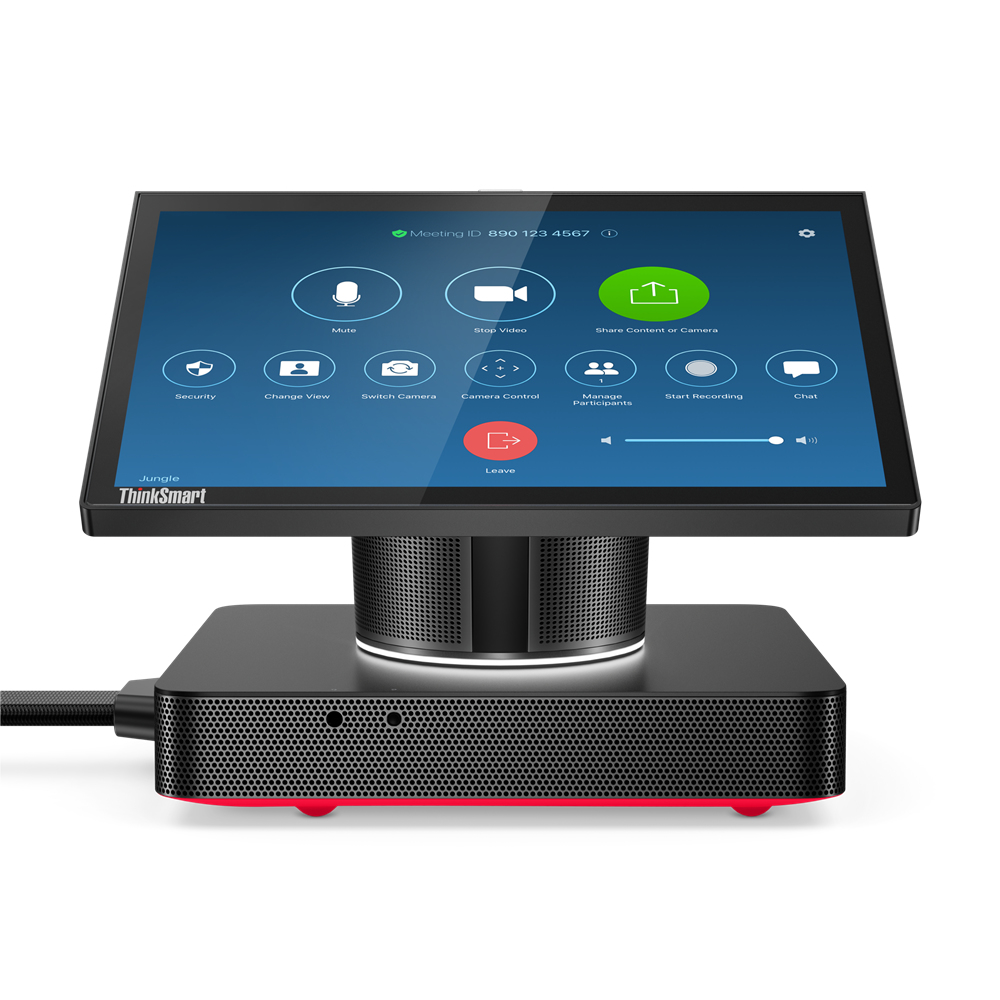

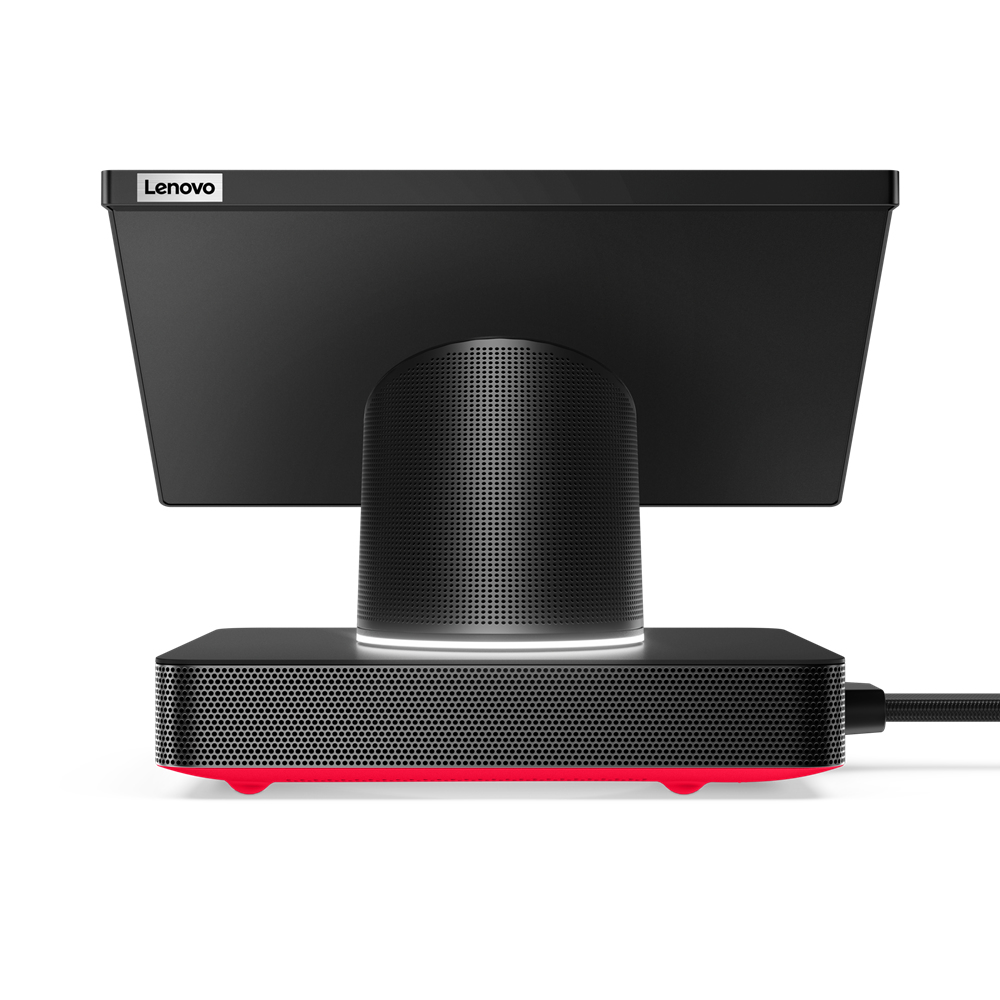

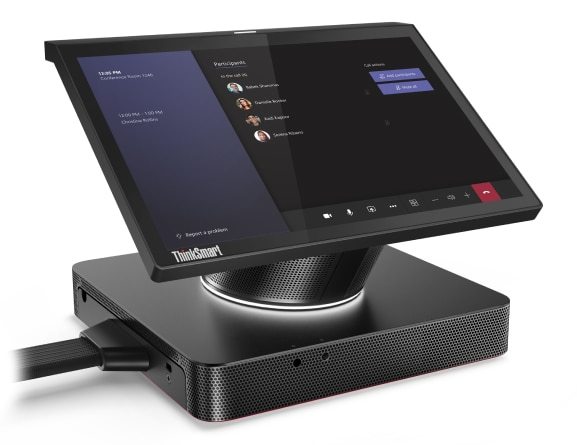

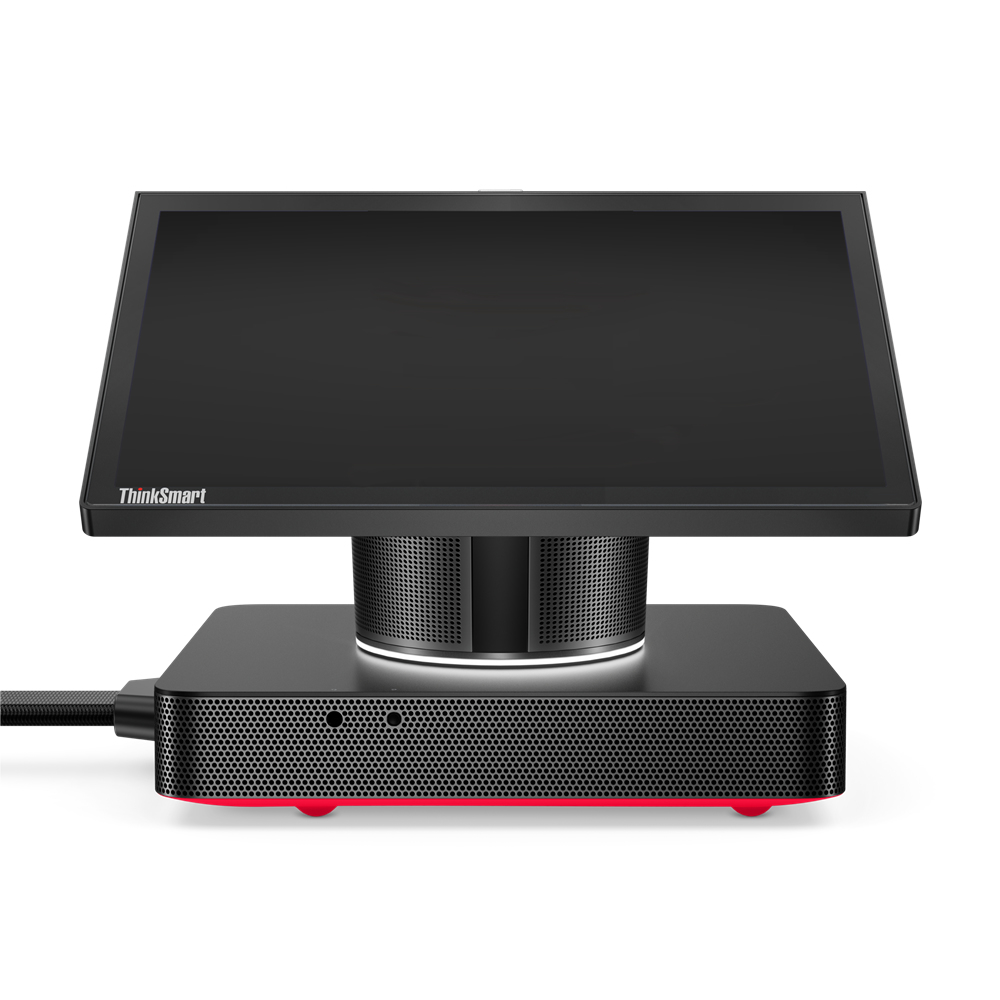

Lenovo ThinkSmart Hub. Product type: All-in-One PC. Display diagonal: 25.6 cm (10.1"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels, Touchscreen, Panel type: WVA. Processor family: Intel® Core™ i5, Processor frequency: 1.6 GHz. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel® HD Graphics. Operating system installed: Windows 10 IoT Enterprise. Product colour: Black

Intel Core i5-8365U (4C/8T, 1.6/4.1GHz, 6MB)
1x 8GB SO-DIMM DDR4-2400
256GB SSD M.2 2280 PCIe 3.0x4 NVMe
Intel HD Graphics
Windows 10 IoT Enterprise SAC 64

Built for teamwork

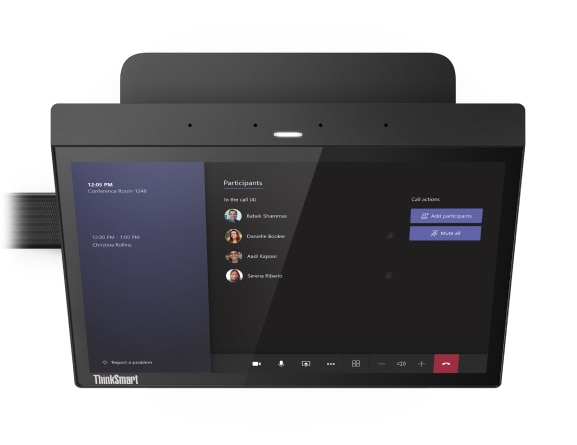

The ThinkSmart Hub makes collaborating easy, whether it’s across town or around the globe. Start your meetings on time, manage your cables, communicate via voice and chat in real time on Microsoft Teams, and share control with the rotatable display. Designed for small- and medium-sized rooms, this smart room device easily scales across a range of room sizes with a mix of curated accessories, providing a solution for a variety of environments.

Save time & money

With one-touch meeting start, participants can avoid dial-in delays and begin collaborating immediately via the ThinkSmart Hub. IT professionals can use the ThinkSmart Manager console to deploy, monitor, manage, and troubleshoot all Hub devices from one centralized location, while optional Smart Office Professional Services provide additional, personalized support.

Clear & clean audio, video, and workspace

Don’t miss a word—ThinkSmart Hub’s four built-in, premium-tuned 3W speakers and four dual-array mics will fill the meeting room and participants’ remote locations with crystal-clear audio. The 10.1” antiglare, smudge-resistant display features FHD (1920 x 1200) resolution and 320nit brightness. And the device has a minimal footprint and a clutter-reducing single-cable mechanism.

Collaborate fearlessly

ThinkSmart Hub is backed by Lenovo ThinkShield—the most comprehensive, end-to-end security solution on the market. Combining industry-leading secure hardware, software, services, and processes, ThinkShield protects your privacy and your data. Keep your collaboration secure.

Product Properties

Manufacturer
Lenovo

Model
11H30006UK

EAN
195891887912

Audio

Built-in microphone
Yes

Built-in speaker(s)
Yes

Number of speakers
4

RMS rated power
12 W

Bullet points

Point
1x 8GB SO-DIMM DDR4-2400

256GB SSD M.2 2280 PCIe 3.0x4 NVMe

Intel Core i5-8365U (4C/8T, 1.6/4.1GHz, 6MB)

Intel HD Graphics

Windows 10 IoT Enterprise SAC 64

Camera

Built-in camera
No

Certificates

Compliance certificates
RoHS

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Colour name
Black

Product colour
Black

Display

Anti-glare screen
Yes

Display brightness
320 cd/m²

HD type
WUXGA

Native aspect ratio
16:10

Panel type
WVA

Screen Resolution
1920 x 1200 pixels

Screen Size
25.6 cm (10.1")

Touchscreen
Yes

Graphics

Discrete graphics card
No

Discrete graphics card model
Not available

On-board GPU manufacturer
Intel

On-board graphics card
Yes

On-board graphics card model
Intel® HD Graphics

Memory

Internal memory type
DDR4-SDRAM

Memory clock speed
2400 MHz

Memory form factor
DIMM/SO-DIMM

Memory Installed
8 GB

Memory layout (slots x size)
1 x 8 GB

Memory Slot Support
8 GB

Memory slots
1

Memory slots type
SO-DIMM

Network

Antenna type
2x2

Bluetooth
Yes

Bluetooth version
5.0

Ethernet LAN
Yes

Ethernet LAN data rates
100,1000 Mbit/s

Top Wi-Fi standard
Wi-Fi 5 (802.11ac)

Wi-Fi
Yes

Wi-Fi standards
Wi-Fi 5 (802.11ac)

WLAN controller manufacturer
Intel

WLAN controller model
Intel Dual Band Wireless-AC 9560

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
5 - 35 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-20 - 60 °C

Packaging content

Keyboard included
Yes

Keyboard language
UK English

Mouse included
Yes

Performance

Motherboard chipset
Intel SoC

Placement supported
Horizontal

Product type
All-in-One PC

Trusted Platform Module (TPM)
Yes

Ports & interfaces

Combo headphone/mic port
Yes

DisplayPorts quantity
1

Ethernet LAN (RJ-45) ports
1

HDMI ports
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

Power

AC adapter power
90 W

Processor

Configurable TDP-down
10 W

Configurable TDP-down frequency
0.8 GHz

Configurable TDP-up
25 W

Configurable TDP-up frequency
1.9 GHz

Number of Cores
4

Processor
i5-8365U

Processor boost frequency
4.1 GHz

Processor family
Intel® Core™ i5

Processor frequency
1.6 GHz

Processor generation
8th gen Intel® Core™ i5

Processor manufacturer
Intel

Processor special features

CPU configuration (max)
1

Embedded options available
No

Enhanced Intel SpeedStep Technology
Yes

Execute Disable Bit
Yes

Idle States
Yes

Intel 64
Yes

Intel Clear Video Technology
Yes

Intel Flex Memory Access
Yes

Intel Software Guard Extensions (Intel SGX)
Yes

Intel Stable Image Platform Program (SIPP)
Yes

Intel Trusted Execution Technology
Yes

Intel TSX-NI
Yes

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Software

Operating system architecture
64-bit

Operating system installed
Windows 10 IoT Enterprise

Storage

Card reader integrated
No

Number of SSDs installed
1

Optical drive type
No

SSD capacity
256 GB

SSD form factor
M.2

SSD interface
PCI Express

Storage Capacity
256 GB

Storage type
SSD

Total SSDs capacity
256 GB

Technical details

Box contents
ThinkSmart One Cable (1.83m)

Weight & dimensions

Depth (with stand)
200 mm

Height (with stand)
185.3 mm

Weight (with stand)
2.45 kg

Width (with stand)
240 mm

Lenovo ThinkSmart Hub Intel® Core™ i5 i5-8365U 25.6 cm (10.1") 1920 x 1200 pixels Touchscreen All-in-One PC 8 GB DDR4-SDRAM 256 GB SSD Windows 10 IoT Enterprise Wi-Fi 5 (802.11ac) Black
