Description

Logitech Rally Ultra-HD ConferenceCam. Product type: Group video conferencing system, Number of persons: 10 person(s). HD type: 4K Ultra HD, Supported video modes: 576p, 720p, 900p, 1080p, 1440p, 2160p, Maximum frame rate: 60 fps. Digital zoom: 15x. Ethernet LAN. Product colour: Black

Logitech extended guarantee adds one year to the original manufacturer's guarantee, which provides that your Logitech Rally hardware shall be free from defects in material and workmanship.
The purchase of a one-year Logitech extended guarantee, at the time of hardware or room solution purchase, adds one additional year to the original Logitech manufacturer's two-year guarantee.
Logitech one-year extended guarantee is intended to ensure that your Logitech hardware shall be free from defects in material and workmanship for a total of three years.
The Logitech extended guarantee provides an additional year of coverage that helps protect your investment, maximise its value and ensure optimal performance of your Logitech conference room hardware.
A three-year guarantee is right in line with the typical depreciation and replacement cycle of most conference room equipment.

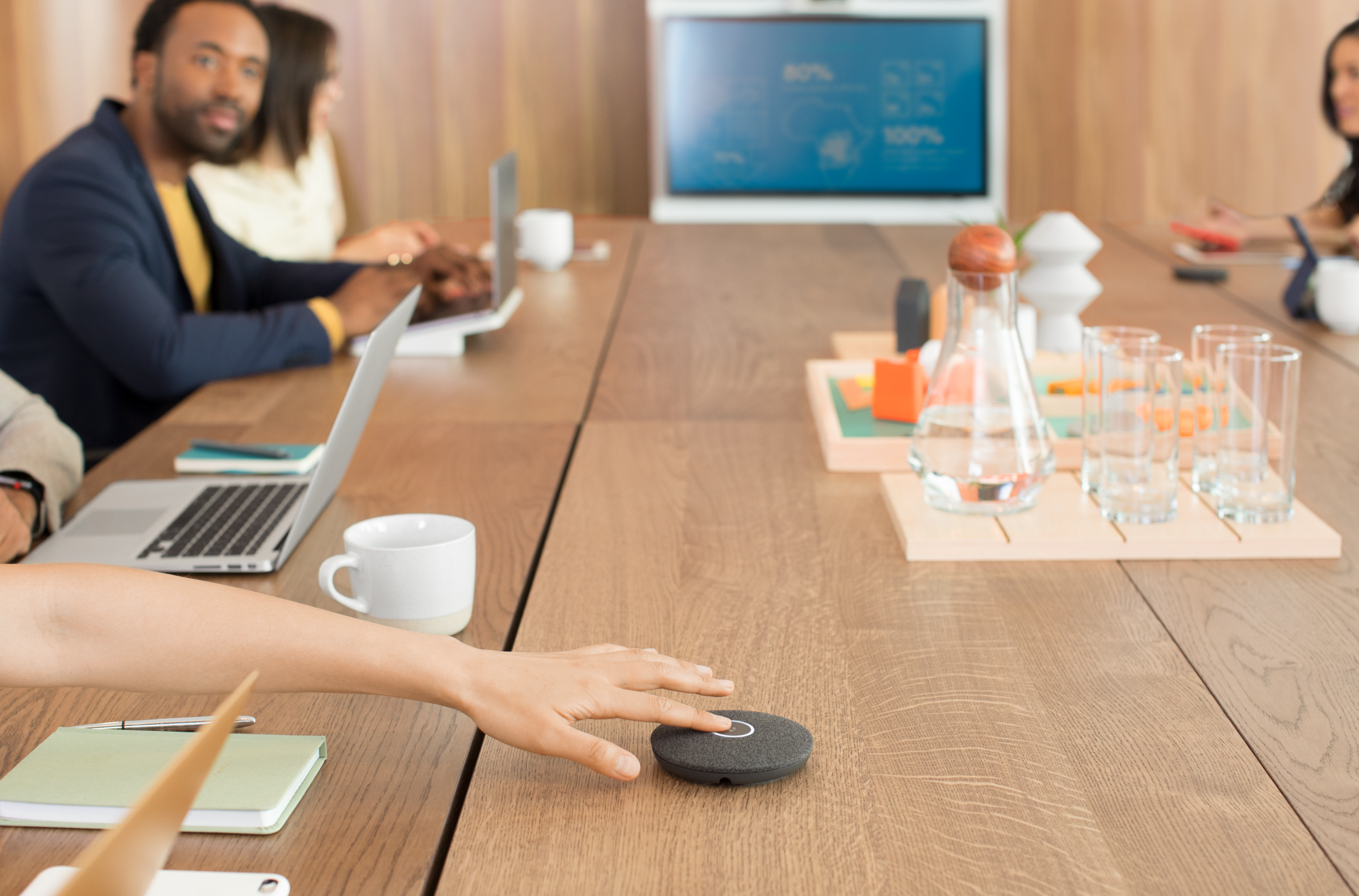

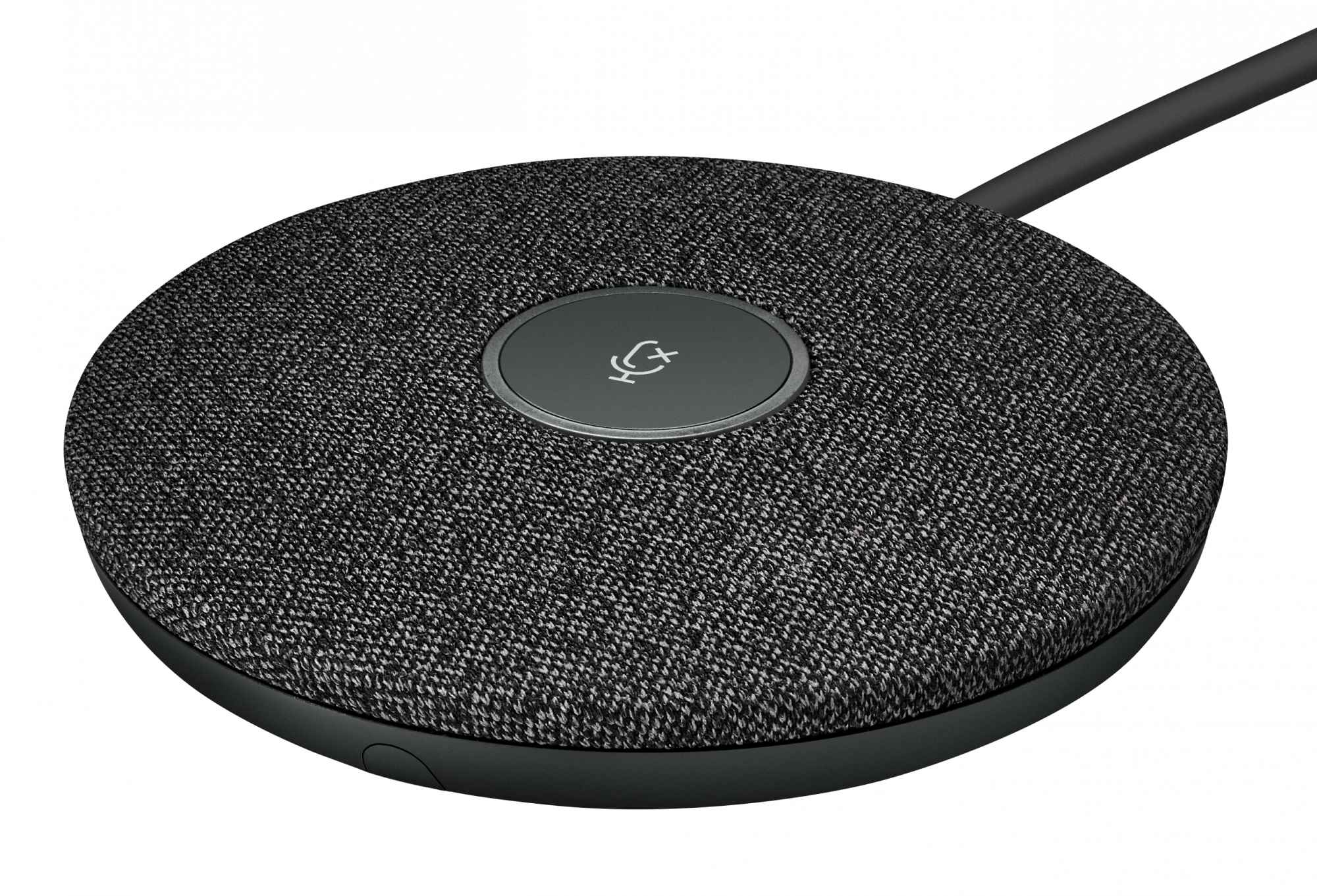

Advanced Modular Audio

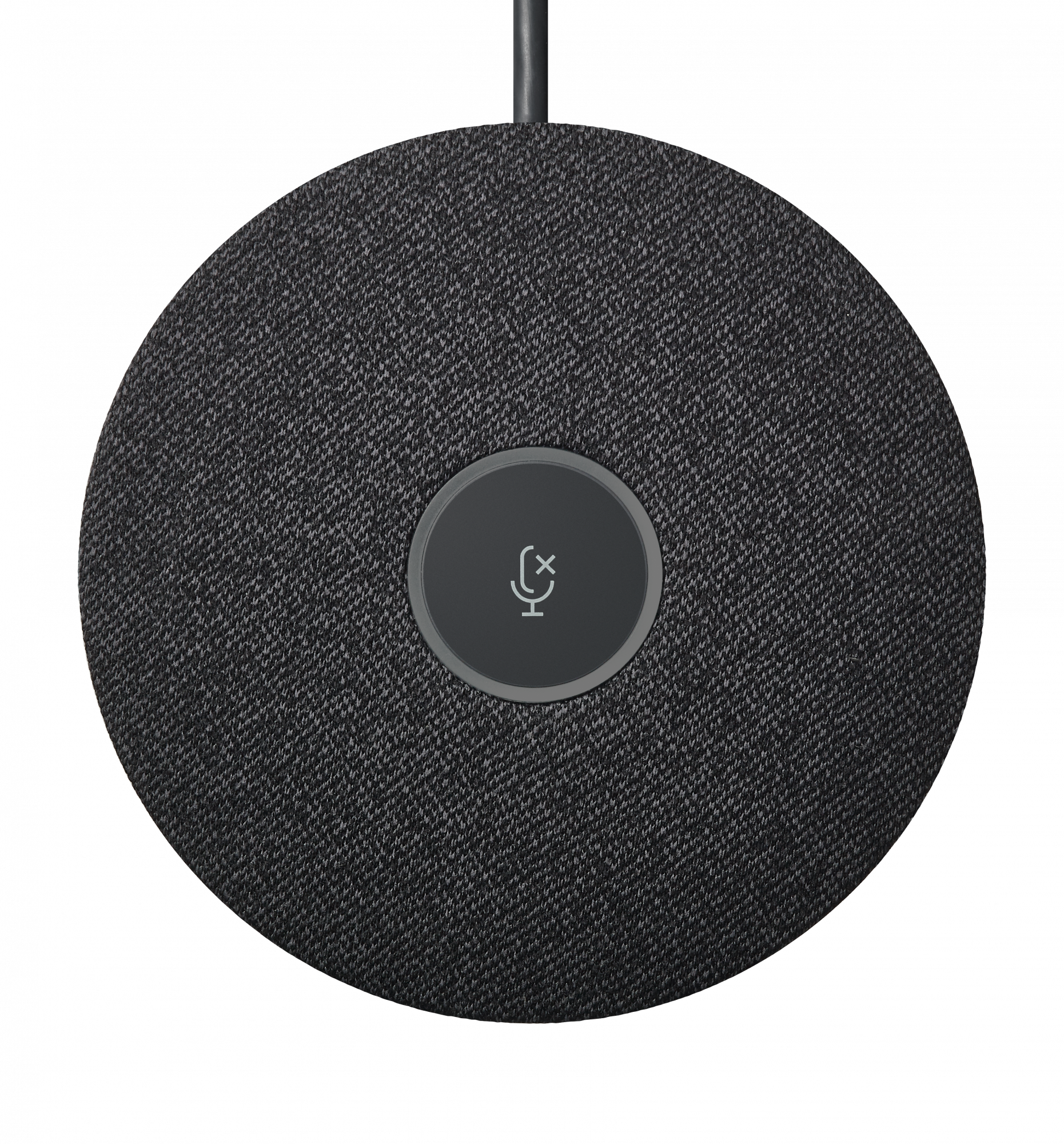

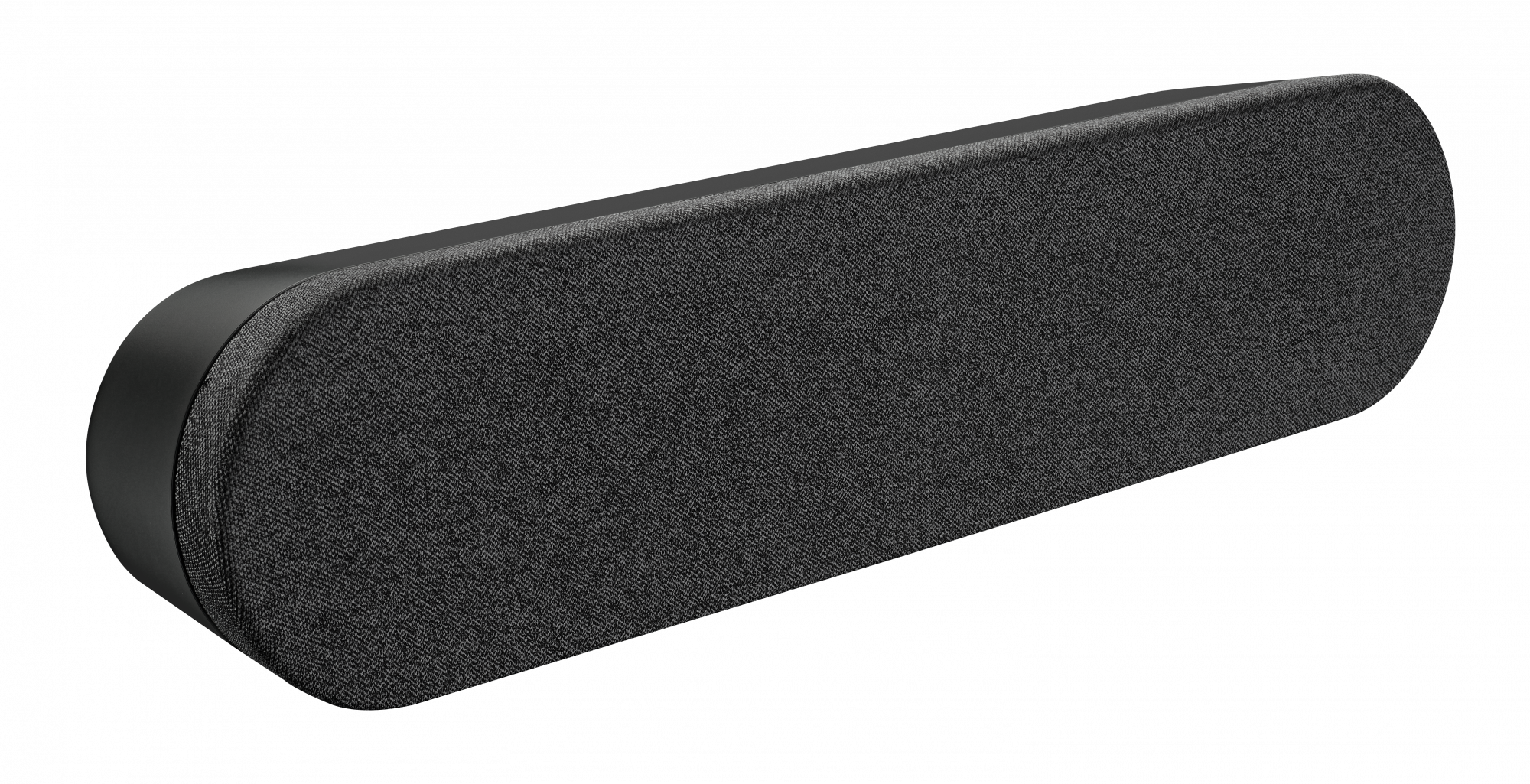

Crystal-clear audio is essential for world-class video conferencing, and Rally excels in delivering sound that's natural, crisp, and highly intelligible. Logitech RightSound ™ enhances voice clarity by suppressing background noise, auto-leveling voices, and focusing on active speakers. Exquisitely sensitive mic pods ensure that everyone in the meeting can be clearly heard while stand-alone speakers fill larger rooms with rich, life-like sound.

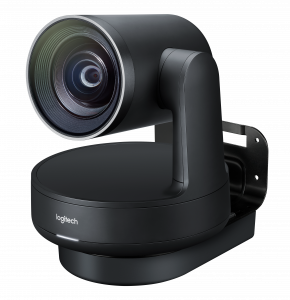

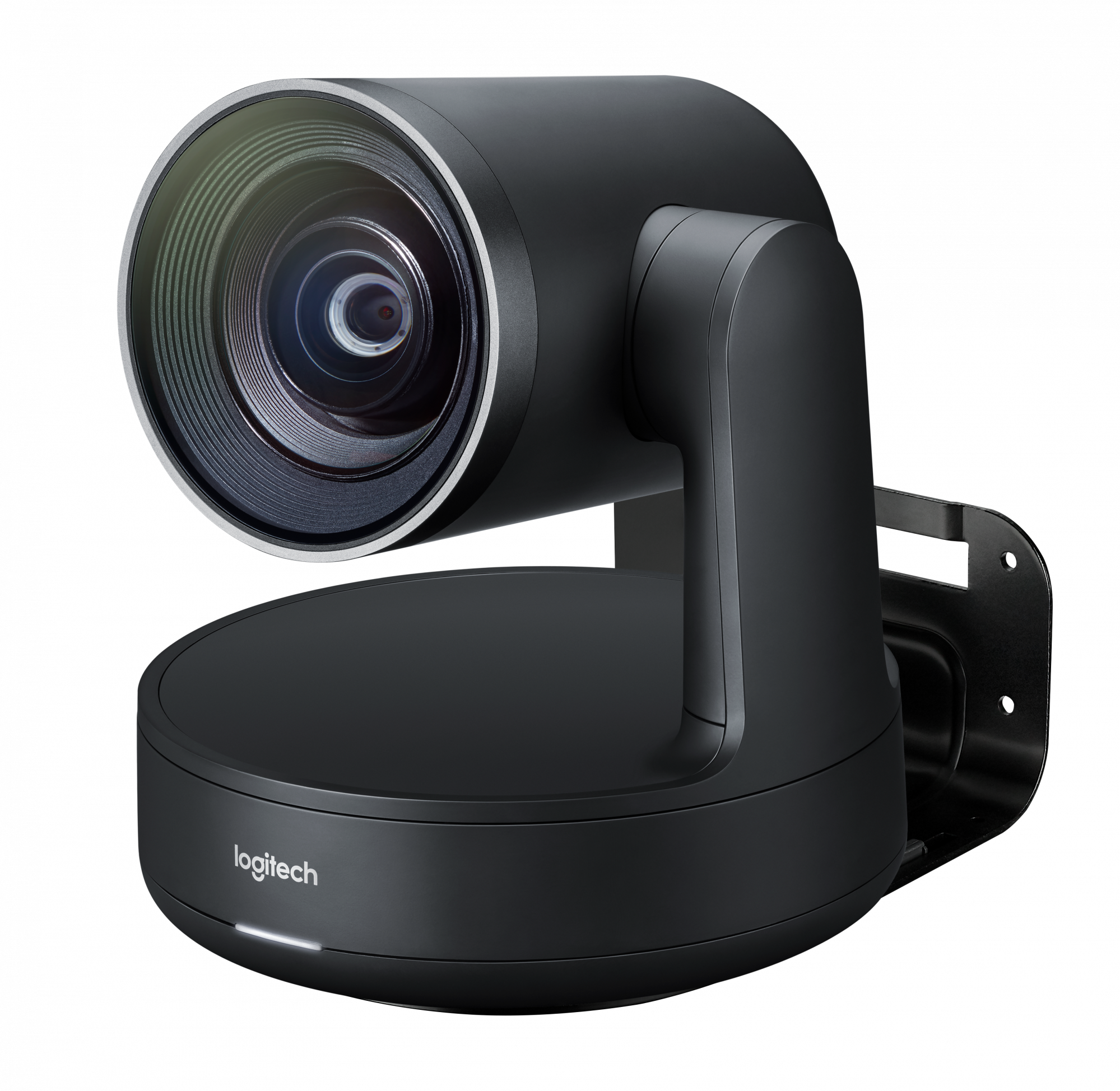

Sleek Industrial Design

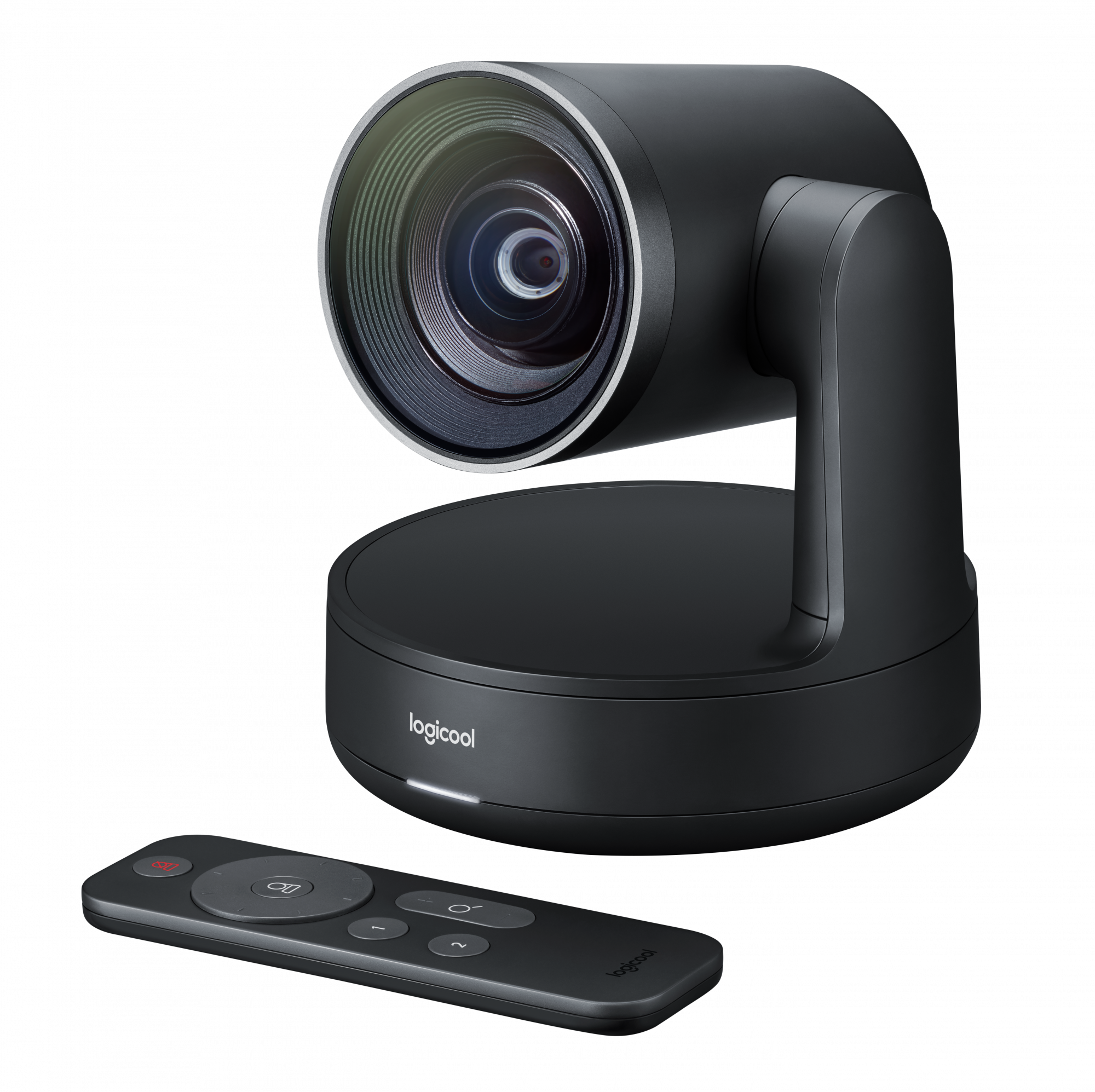

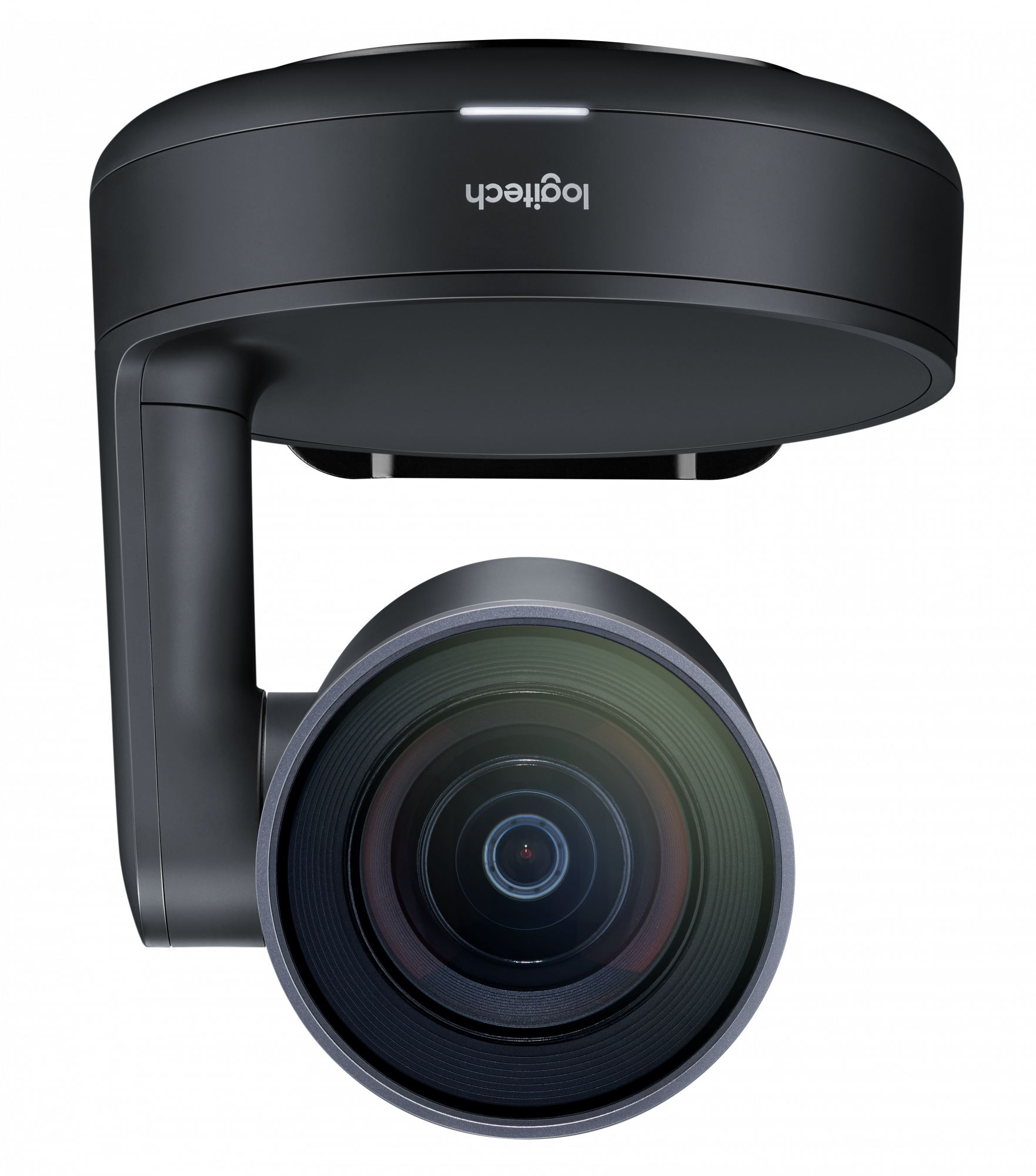

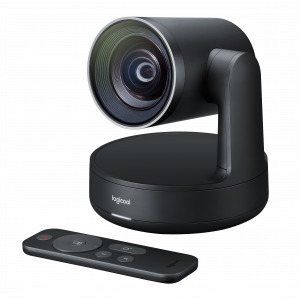

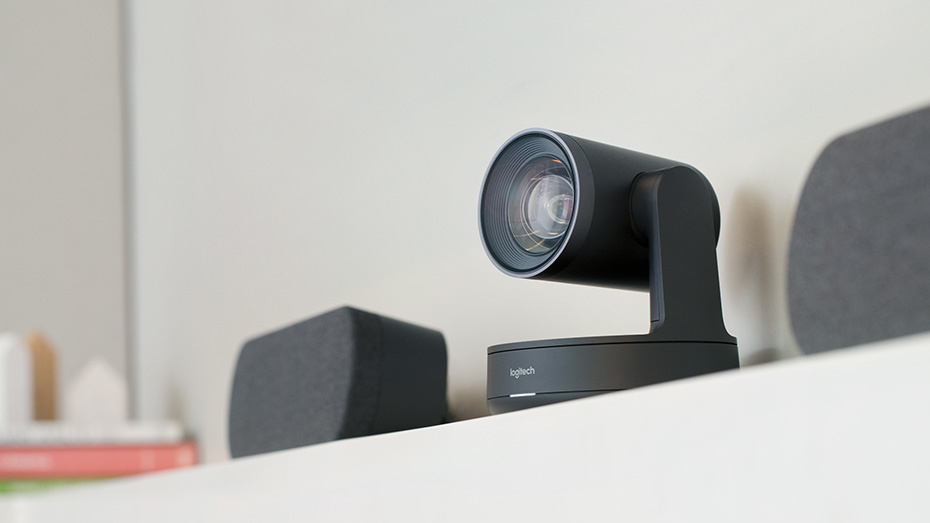

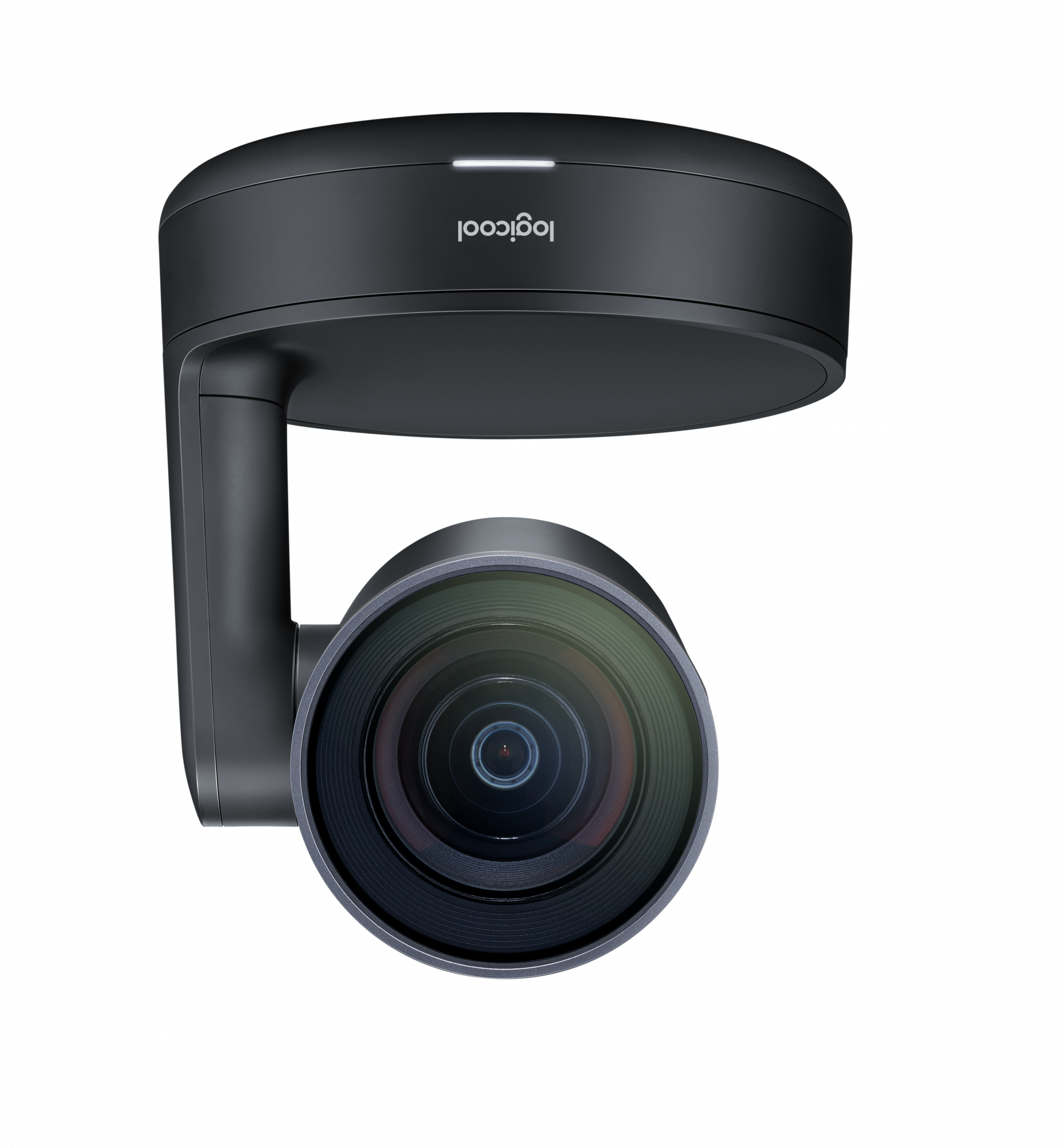

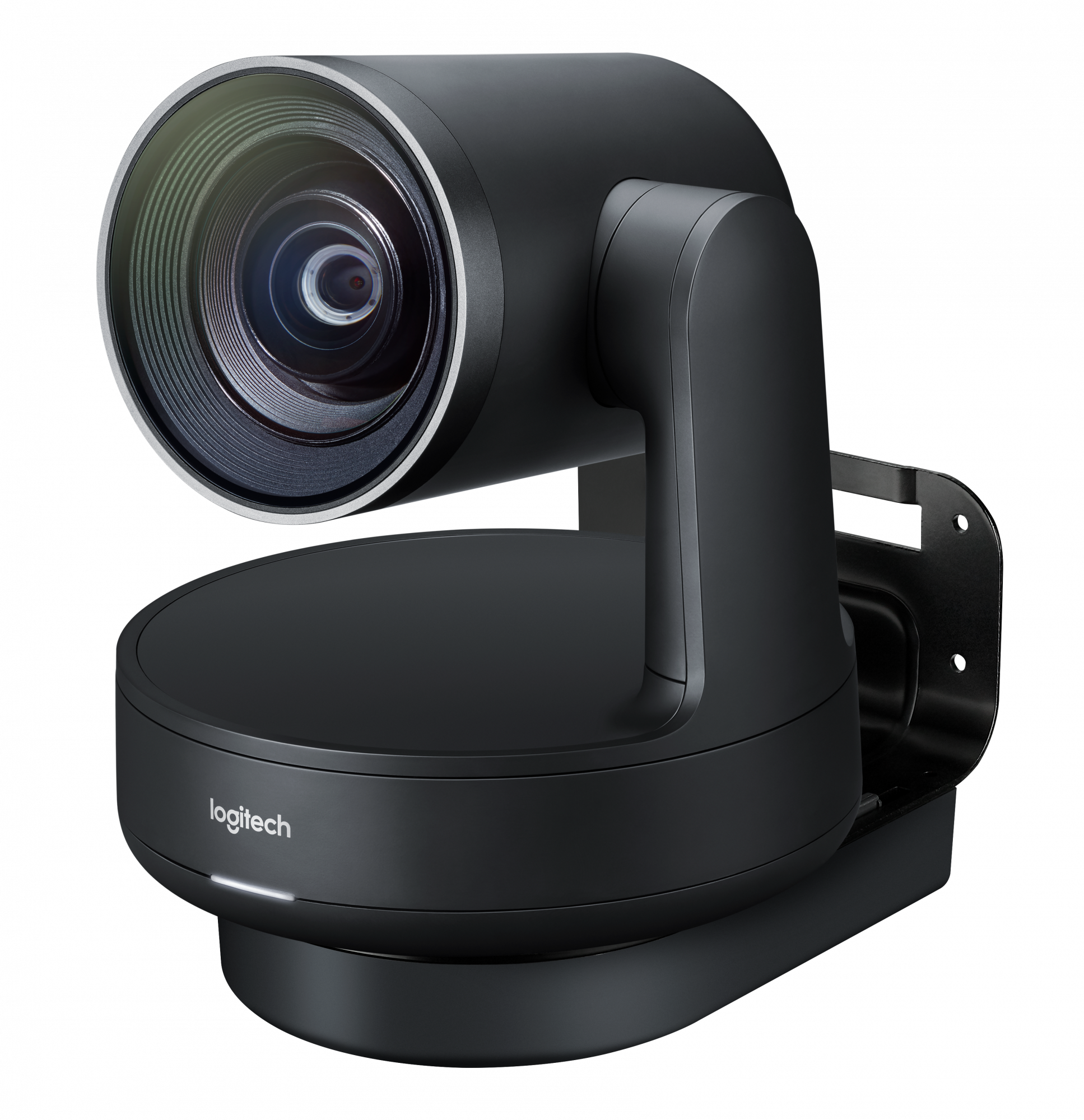

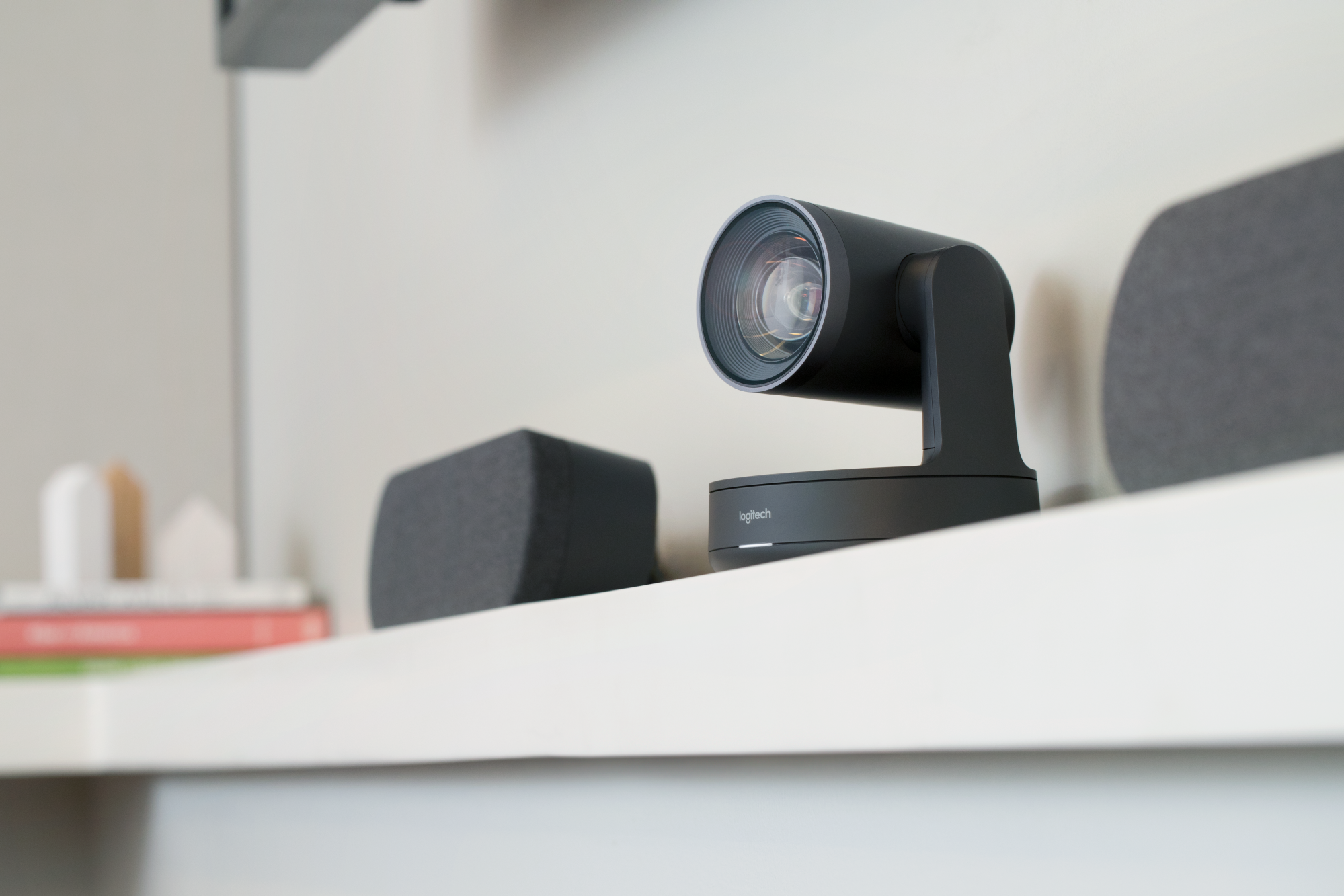

Every component in the Rally system features premium industrial design suitable for any professional setting. Even as Rally helps everyone look and sound great during video meetings, each part of the system looks great in its own right. The premium PTZ camera at the core of the system is elegantly finished in matte black with slate gray metal trim, complemented by sleekly designed audio components and accessories that look great in any room.

Enhanced User Experience

Logitech RightSense ™ is a suite of technologies built into Rally that automate a better user experience. RightSight ™ perfectly auto-frames participants no matter their distance from the lens. RightLight ™ prioritizes faces over environment to render natural-looking skin tones while RightSound ™ enhances vocal clarity by suppressing background noise, auto-leveling voices, and focusing on active speakers to support better meetings automatically!

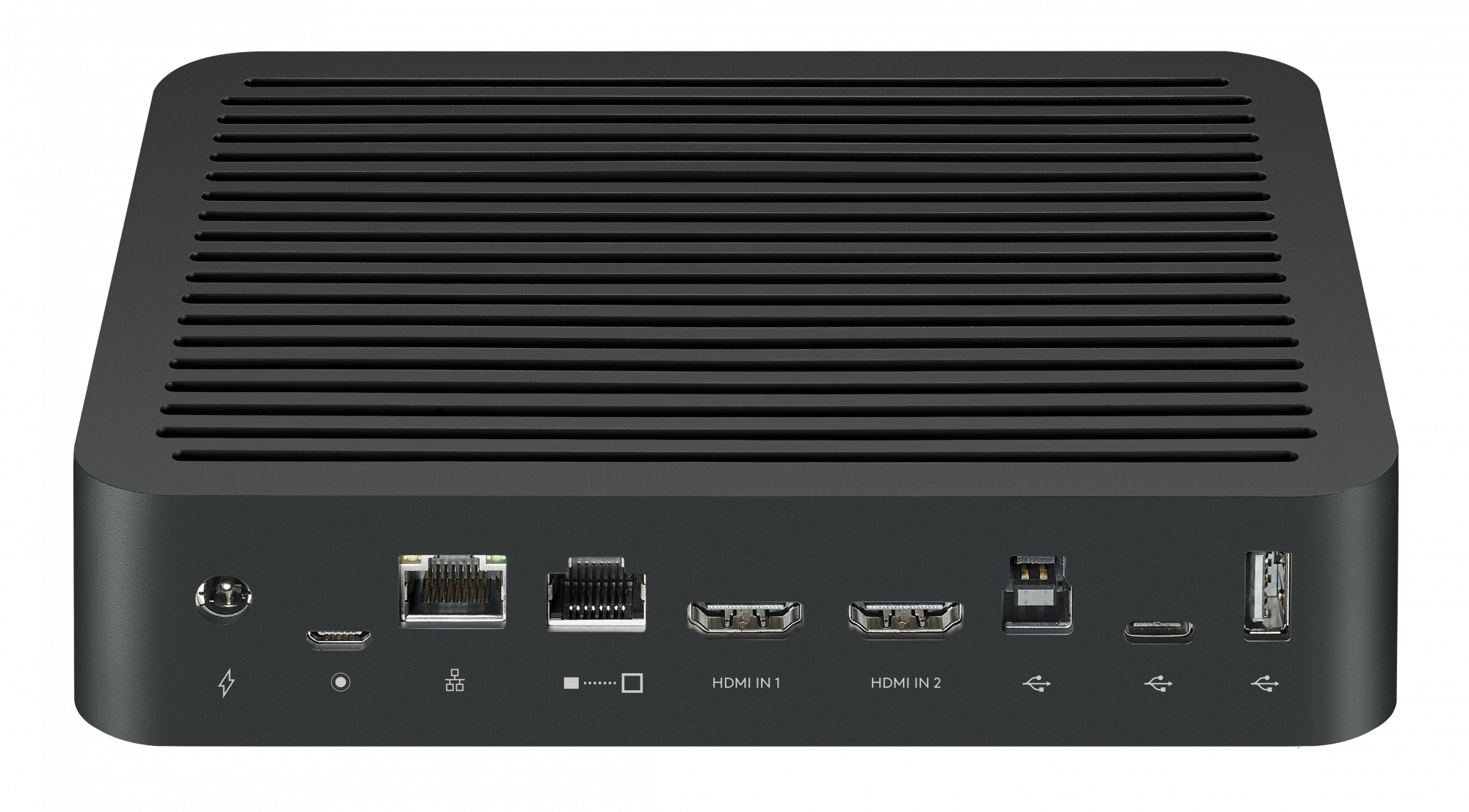

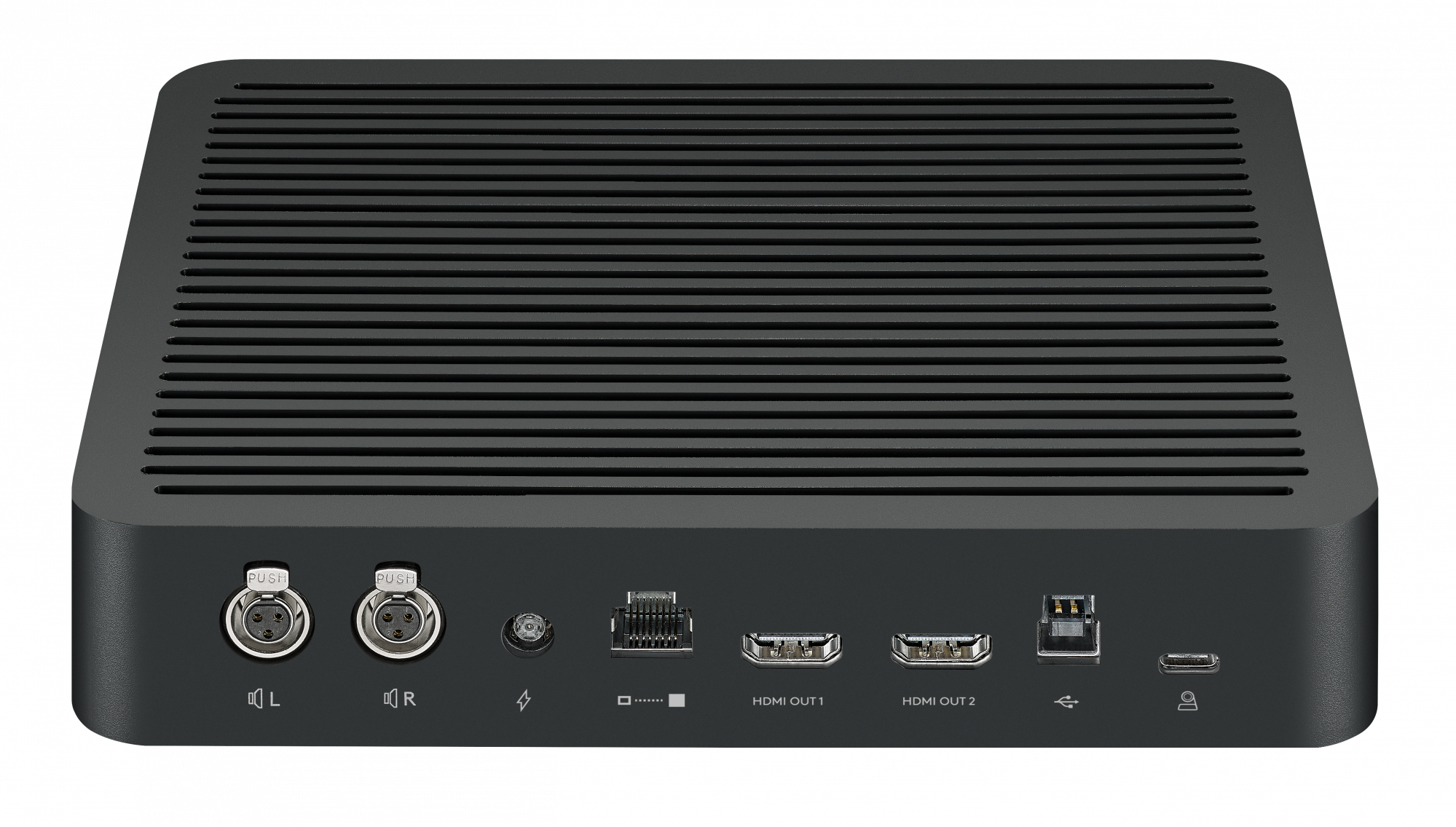

Smart Cabling and Content Sharing

With a Display Hub and Table Hub to keep cables neat and organized, Rally components and the meeting computer remain securely out of sight. Connected by a single CAT6 cable, both hubs feature a full complement of connections so you can locate the meeting computer near the display or at the table. An HDMI input on the Table Hub eliminates the need for extra-cost cable extenders and makes wired content sharing easy.

Product Properties

Manufacturer
Logitech

Model
960-001237

EAN
5099206082601

Audio

Echo cancellation
Y

Frequency range
300 - 10000 Hz

Microphone pick-up range
4.5 m

Noise reduction
Y

Output level
95/100 dB

Sample rates
0 - 48 kHz

Battery

Battery capacity
0.675 Wh

Camera

Digital zoom
15x

Focus adjustment
Auto

Number of camera presets
3

Zoom capability
Y

Computer system

Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey

Windows operating systems supported
Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1

Features

Cable lock slot
Y

Cable lock slot type
Kensington

Telepresence
N

Interface module

Interface module HDMI input ports quantity
2

Interface module HDMI output ports quantity
2

Logistics data

Harmonized System (HS) code
85176990

Master (outer) case gross weight
9.5 kg

Master (outer) case height
736 mm

Master (outer) case length
348 mm

Master (outer) case width
240 mm

Microphone

Microphone colour
Black

Microphone direction type
Omnidirectional

Microphone frequency
90 - 16000 Hz

Microphone mute
Y

Microphone sensitivity
-27 dB

Number of microphone arrays
1

Number of microphones
4

Sound pressure level (max)
95 dB

Network

Ethernet LAN
Y

Packaging content

AC adapter included
Y

Cables included
AC, HDMI, LAN (RJ-45), USB Type-A to Micro USB-B, USB Type-C to USB Type-C

Camera included
Y

External interface module included
Y

HDMI cable length
2 m

Microphone included
Y

Networking cable length
5 m

Packaging content

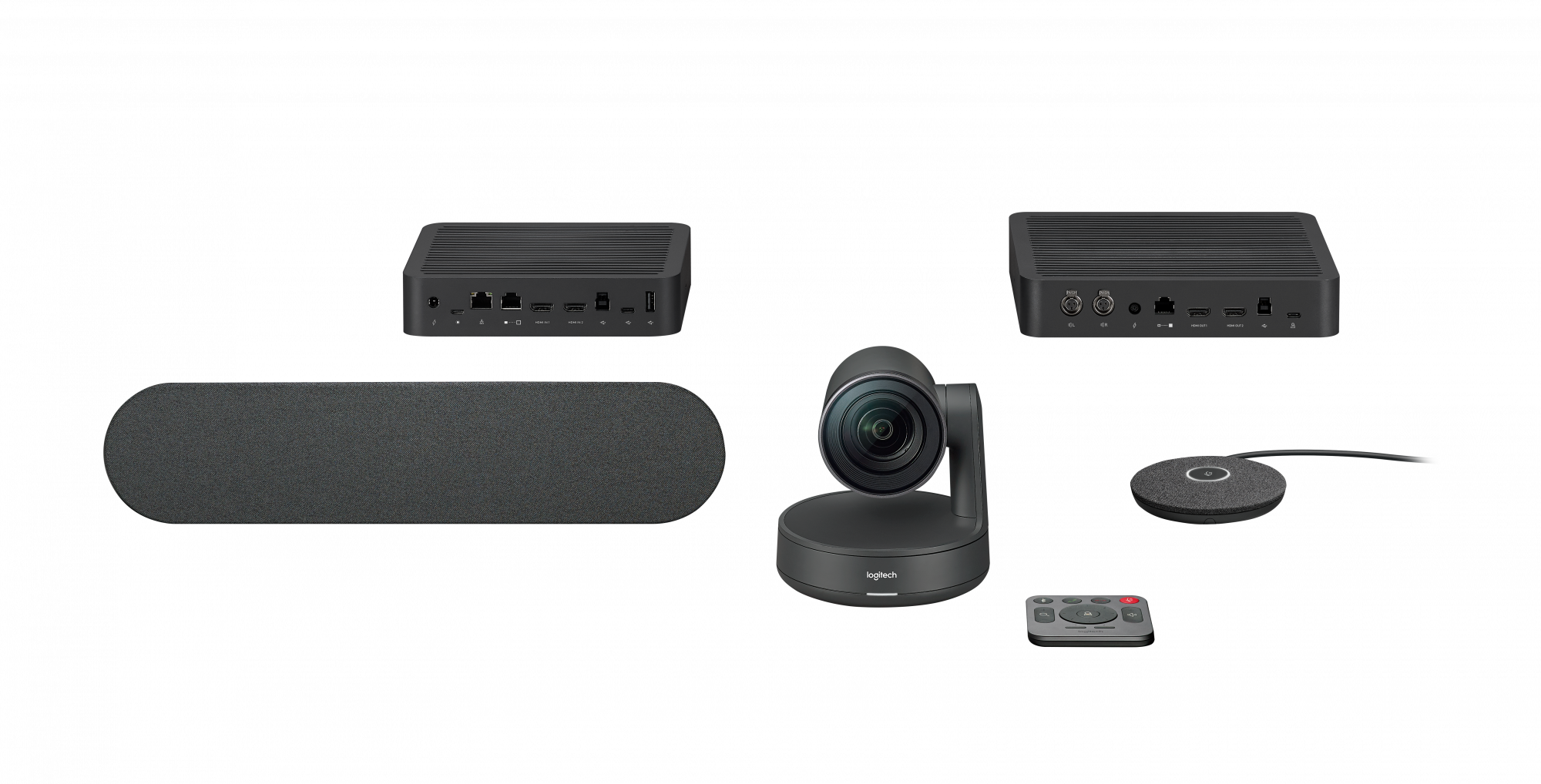

Rally camera Rally display hub Rally table hub Rally speaker (x1) Rally mic pod (x1) Remote control USB Type C to USB Type C USB Type A to USB Type B CAT6A Ethernet cable HDMI Type A (x2) A/C cables (x2) Power supplies (x2) Documentation 2-year manufacturer’s guarantee

Power cable length
1.5 m

Quick start guide
Y

Remote control included
Y

Speaker included
Y

Performance

Number of persons
10 person(s)

Pan range
-90 - 90°

Pan speed
70 °/sec

Product colour
Black

Product type
Group video conferencing system

PTZ control
Y

Tilt angle range
-90 - 50°

Tilt speed
70 °/sec

Tripod mounting supported
Y

Ports & interfaces

DC-in jack
Y

Ethernet LAN (RJ-45) ports
3

HDMI ports
4

Line-in
Y

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
2

USB connector type
USB Type-A, USB Type-B, USB Type-C

Power

Battery capacity
220 mAh

Battery technology
Lithium

Number of batteries supported
2

Power source type
AC

Video

HD type
4K Ultra HD

Maximum frame rate
60 fps

Supported video modes
576p, 720p, 900p, 1080p, 1440p, 2160p

Weight & dimensions

Camera dimensions (WxDxH)
152 x 152 x 182.5 mm

Microphone dimensions (WxHxD)
102 x 102 x 21 mm

Package depth
700 mm

Package height
220 mm

Package weight
8.53 kg

Package width
275 mm

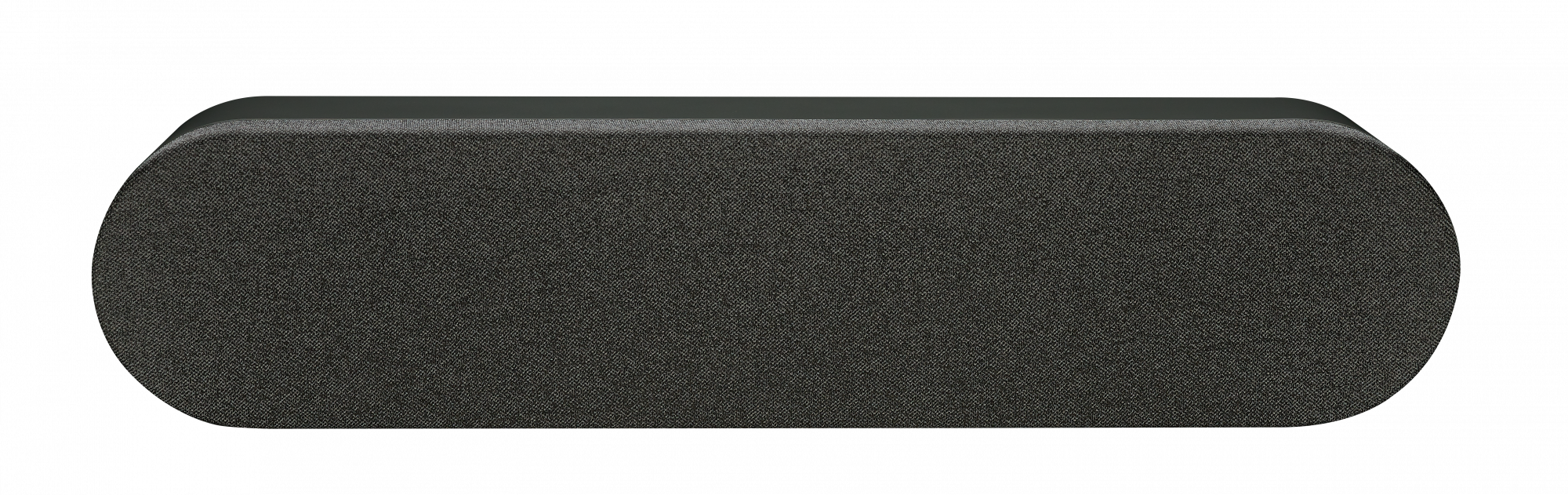

Speaker dimensions (WxDxH)
449 x 80 x 103 mm

Logitech Rally Ultra-HD ConferenceCam video conferencing system 10 person(s) Ethernet LAN Group video conferencing system
