Description

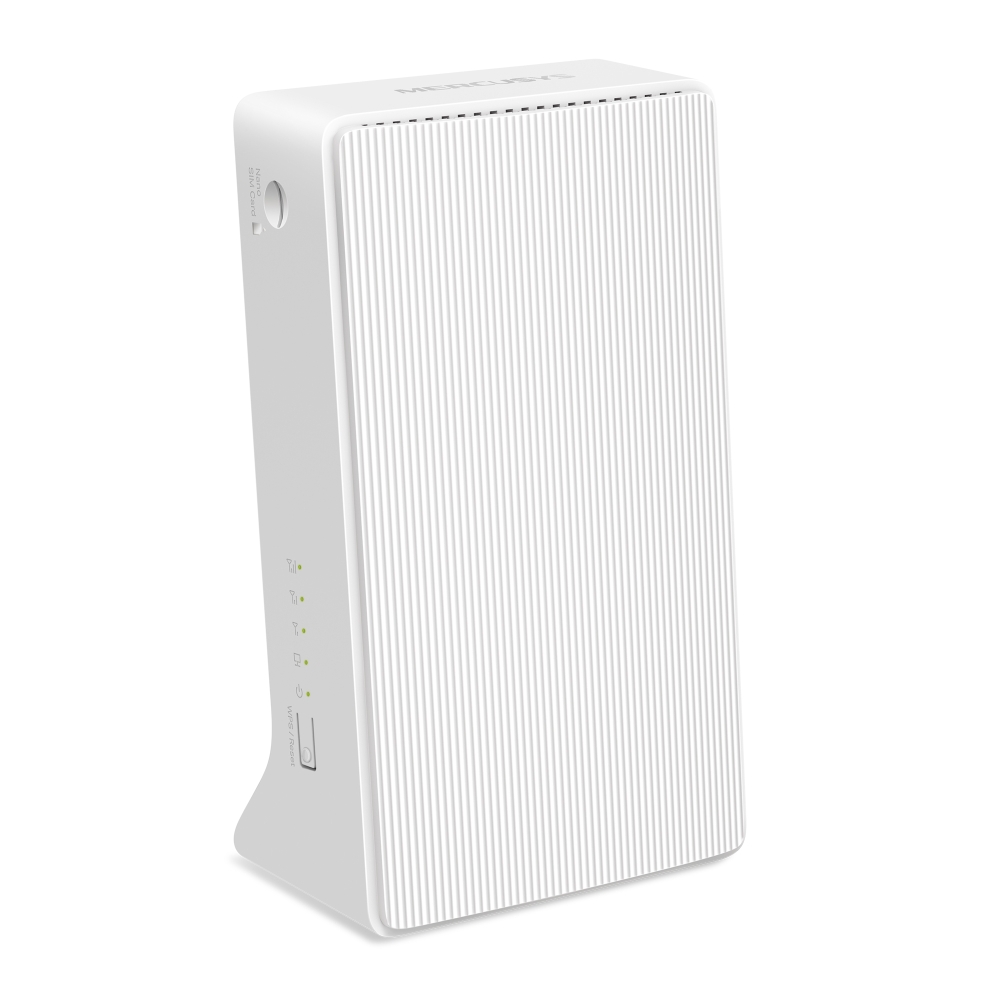

Mercusys 300 Mbps Wireless N 4G LTE Router. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 3G standards: HSPA, HSPA+, UMTS, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps

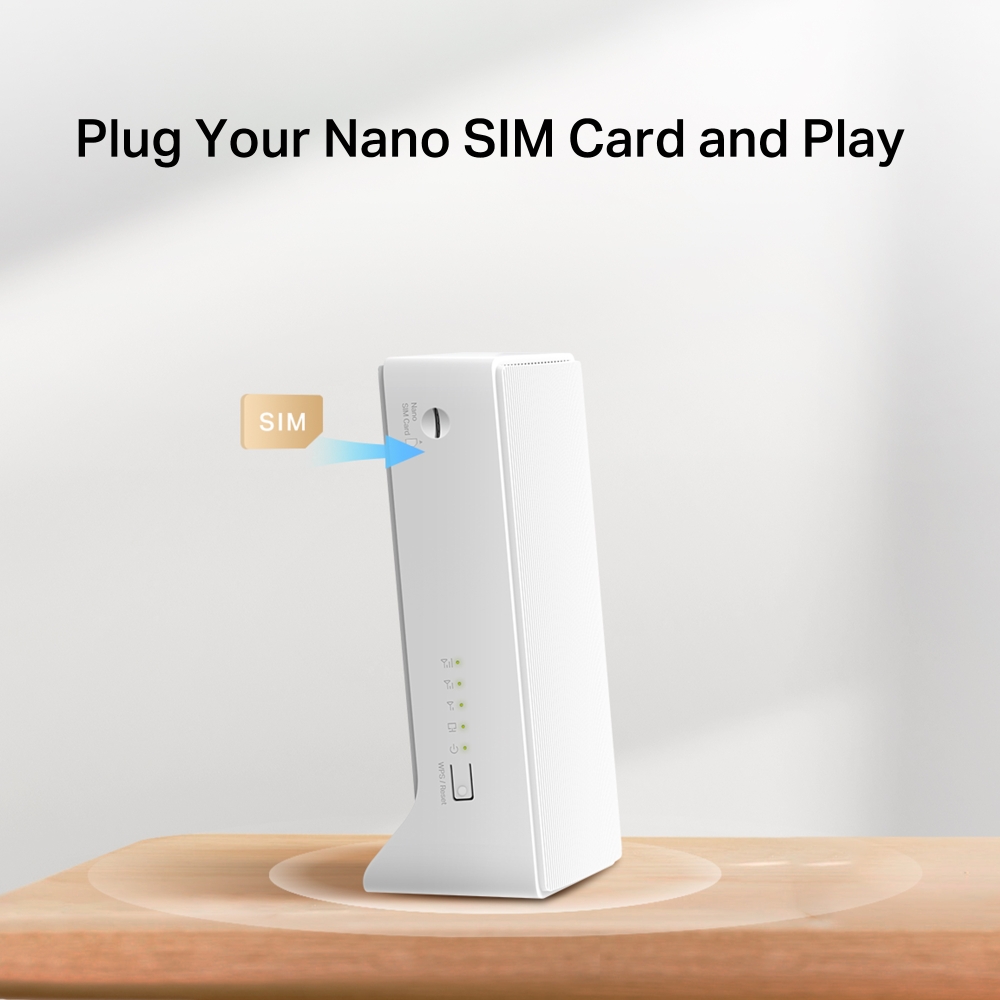

Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests
300 Mbps WiFi – Fast WiFi speeds up to 300 Mbps to share your network
Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection

Product Properties

Manufacturer
Mercusys

Model
MB110-4G

EAN
6957939002237

Antenna

Antenna design
Internal

Bullet points

Point
300 Mbps WiFi – Fast WiFi speeds up to 300 Mbps to share your network

Design

Indication light
Yes

Product colour
White

Product type
Desktop/pole router

Features

Firmware upgradeable
Yes

Management features

Reset button
Yes

Wi-Fi Multimedia (WMM)/(WME)
Yes

WPS push button
Yes

Mobile network

3G standards
HSPA, HSPA+, UMTS

4G bands supported
700,800,850,900,1800,2100,2300,2500,2600 MHz

4G standard
LTE-TDD & LTE-FDD

Dual SIM support
No

Mobile network generation
4G

SIM card type
NanoSIM

UMTS bands supported
850,900,2100 MHz

Network

Cabling technology
10/100Base-T(X)

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rates
10,100 Mbit/s

Ethernet LAN interface type
Ethernet

Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Port forwarding
Yes

Port triggering
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

AC adapter included
Yes

Quick installation guide
Yes

Packaging data

Number of products included
1 pc(s)

Package type
Box

Ports & interfaces

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
2

USB port
No

Power

Output current
0.85 A

Output voltage
9 V

Power source type
DC

Protocols

DHCP server
Yes

Universal Plug and Play (UPnP)
Yes

VoIP protocols
IPv4, IPv6

Security

DMZ support
Yes

Firewall
Yes

Port-based Network Access Control (PNAC)
Yes

Security algorithms
64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

System event log
Yes

WAN connection

3G/4G USB modem compatibility
Yes

DSL WAN
No

Ethernet WAN
Yes

SIM card slot
Yes

WAN connection type
RJ-45

Weight & dimensions

Depth
92 mm

Height
150.5 mm

Width
90 mm

Wireless LAN features

Top Wi-Fi standard
Wi-Fi 4 (802.11n)

Wi-Fi band
Single-band (2.4 GHz)

Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)

WLAN data transfer rate (max)
300 Mbit/s
