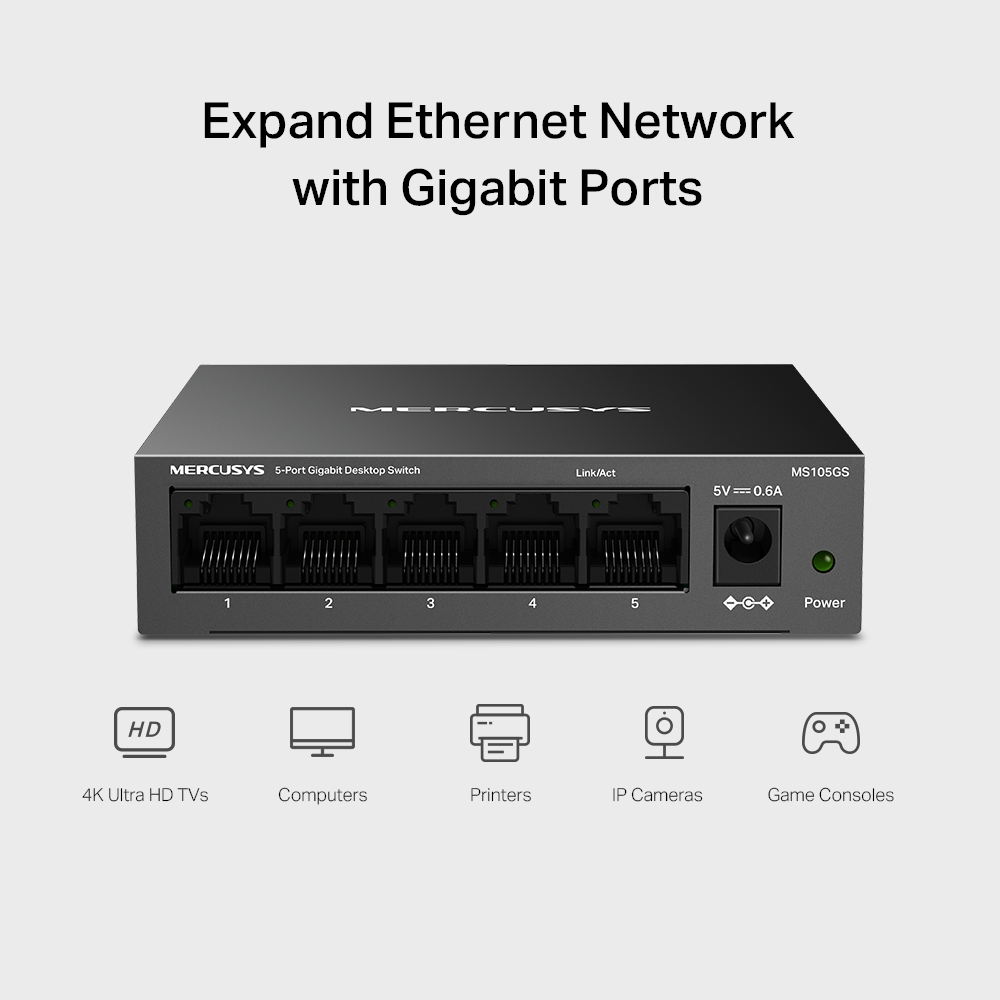

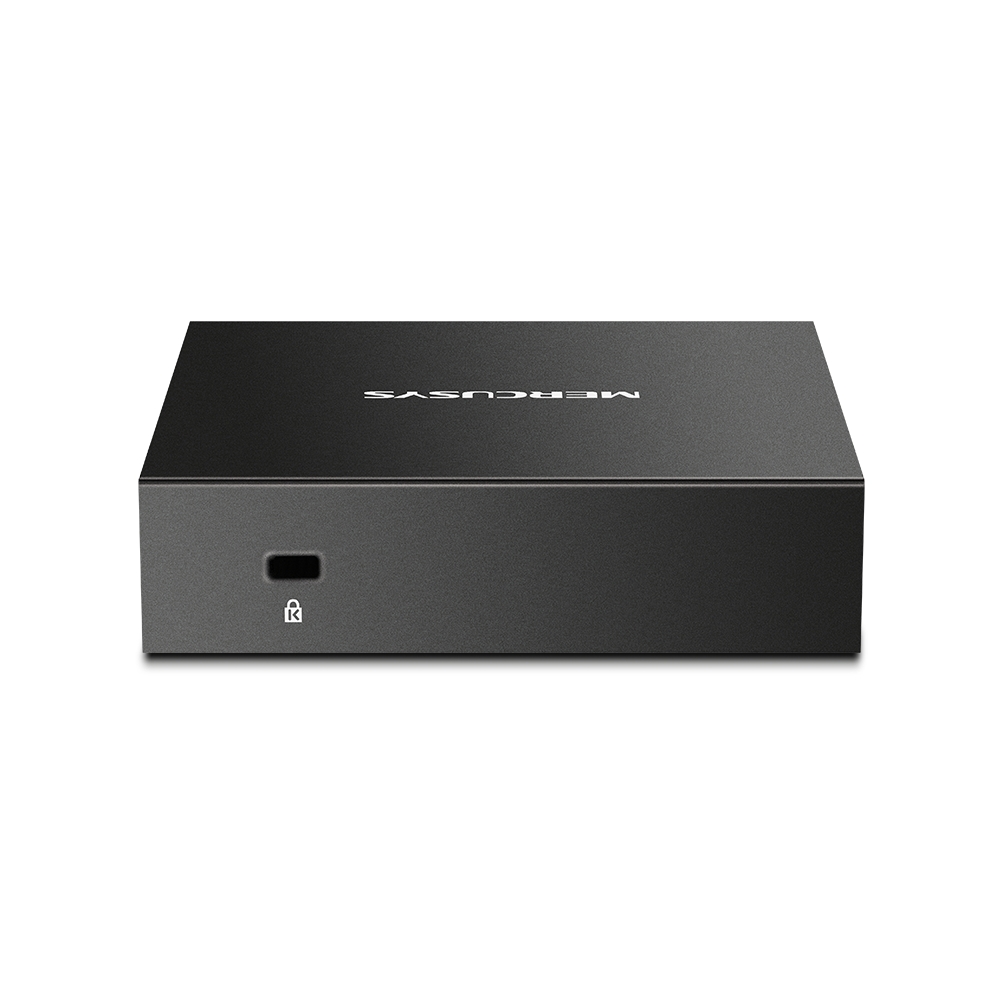

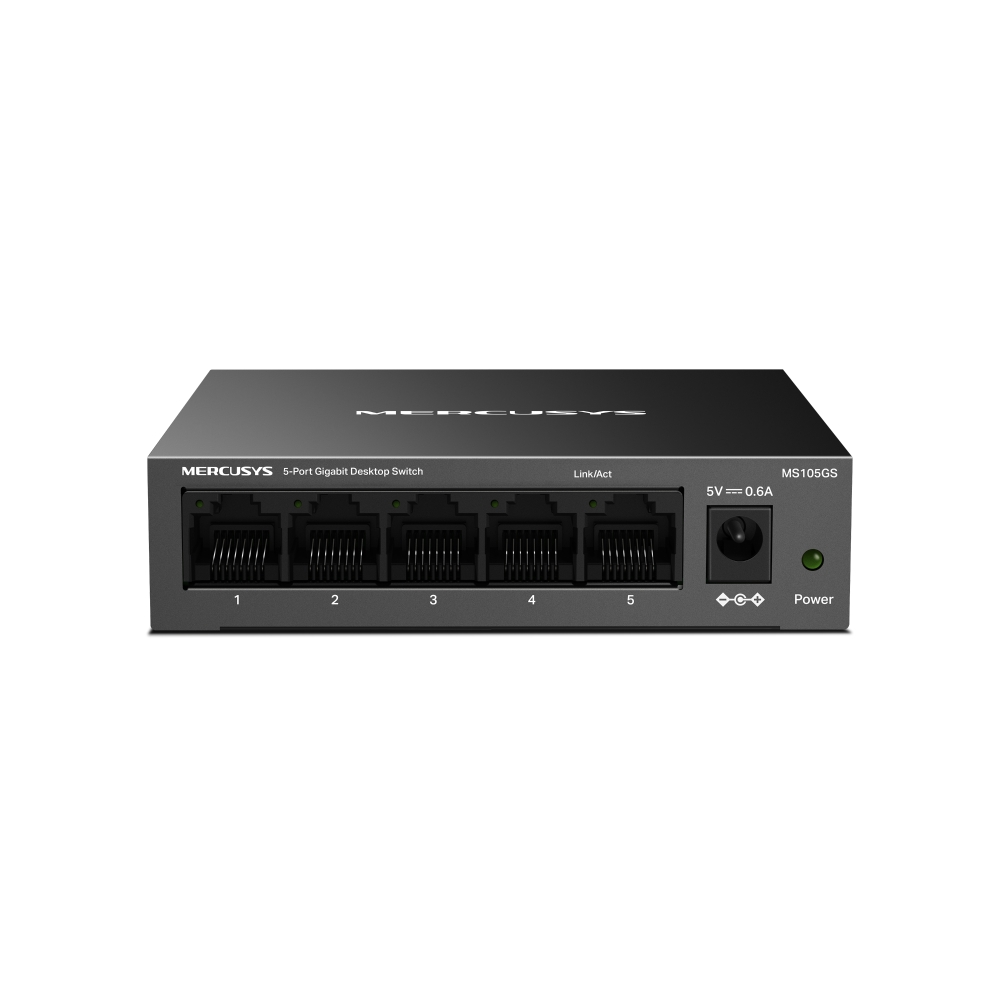

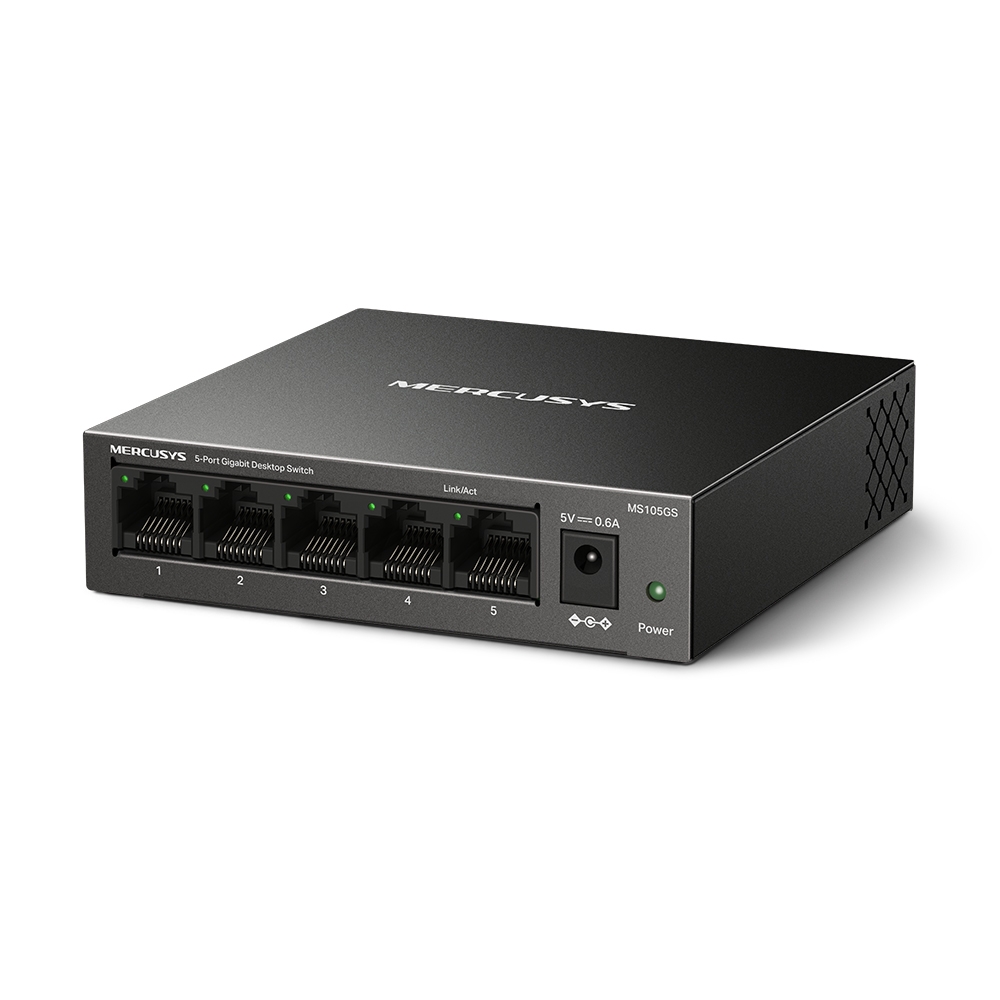

Mercusys 5-Port Gigabit Desktop Switch
Roll over image to zoom inClick to Open expanded view
Mercusys 5-Port Gigabit Desktop Switch
Mercusys 5-Port Gigabit Desktop Switch
Mercusys 5-Port Gigabit Desktop Switch
Mercusys 5-Port Gigabit Desktop Switch
Mercusys 5-Port Gigabit Desktop Switch
Mercusys 5-Port Gigabit Desktop Switch
Print
Model: MS105GS
EAN: 6957939001322

Mercusys 5-Port Gigabit Desktop Switch

Manufacturer:
Mercusys
Mercusys 5-Port Gigabit Desktop Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable
Please log in to see your price
Related products

Description

Mercusys 5-Port Gigabit Desktop Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Power connector: DC-in jack. Wall mountable
  • Full Gigabit Ports: 5× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
  • Multiple Installation Operation: Steel housing, desktop or wall-mounting design

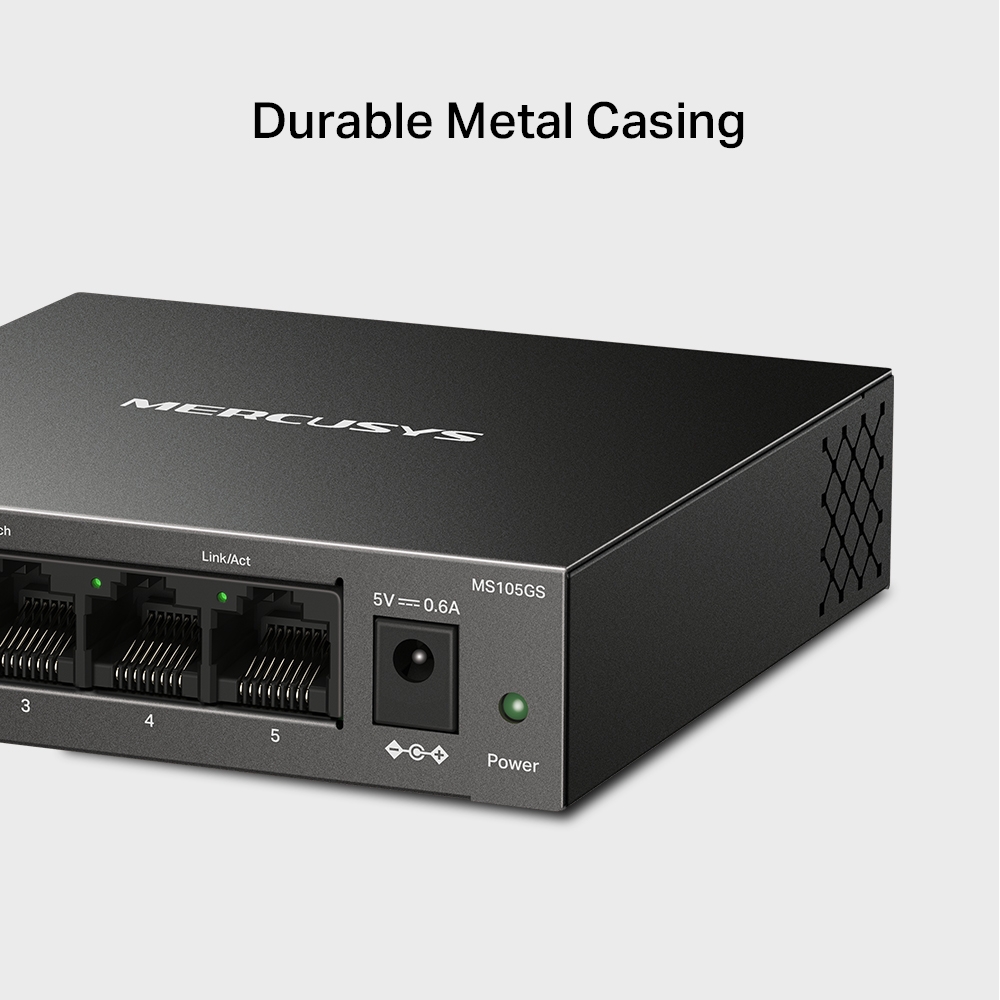

  • Durable Metal Casing: Allows for efficient heat dissipation and long network life
  • Plug and Play: Simple to use and saves time and effort
  • Power Saving: Green Ethernet technology saves power

Product Properties

  • Model
  • MS105GS
  • EAN
  • 6957939001322
  • Bullet points
  • Point
  • Durable Metal Casing: Allows for efficient heat dissipation and long network life
    Full Gigabit Ports: 5× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
    Multiple Installation Operation: Steel housing, desktop or wall-mounting design
    Plug and Play: Simple to use and saves time and effort
    Power Saving: Green Ethernet technology saves power
  • Certificates
  • Certification
  • CE, RoHS
  • Data transmission
  • Jumbo frames
  • 9000
  • Jumbo frames support
  • Yes
  • MAC address table
  • 2000 entries
  • Packet buffer memory
  • 0.125 MB
  • Store-and-forward
  • Yes
  • Switching capacity
  • 10 Gbit/s
  • Design
  • Housing material
  • Metal
  • LED indicators
  • Yes
  • Product colour
  • Black
  • Rack mounting
  • No
  • Stackable
  • No
  • Wall mountable
  • Yes
  • Management features
  • Switch type
  • Unmanaged
  • Network
  • 10G support
  • No
  • Auto MDI/MDI-X
  • Yes
  • Auto-negotiation
  • Yes
  • Flow control support
  • Yes
  • Full duplex
  • Yes
  • Half duplex
  • Yes
  • MAC address auto-aging supported
  • Yes
  • MAC address auto-learning supported
  • Yes
  • Networking standards
  • IEEE 802.3, IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
  • Operational conditions
  • Heat dissipation
  • 12.331 BTU/h
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 95%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Optical fiber
  • Transmission distance (max)
  • 0.1 km
  • Packaging content
  • Cables included
  • AC
  • Quick start guide
  • Yes
  • Performance
  • Fanless
  • Yes
  • Ports & interfaces
  • Installed SFP modules quantity
  • 0
  • Installed SFP+ modules quantity
  • 0
  • Power connector
  • DC-in jack
  • Switch Number of Ports
  • 5
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 50/60 Hz
  • AC input voltage
  • 220 V
  • DC input voltage
  • 5 V
  • Input current
  • 0.6 A
  • Power consumption (max)
  • 3.614 W
  • Power source
  • DC
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • No
  • Weight & dimensions
  • Depth
  • 98 mm
  • Height
  • 25.1 mm
  • Width
  • 99.8 mm
