Description

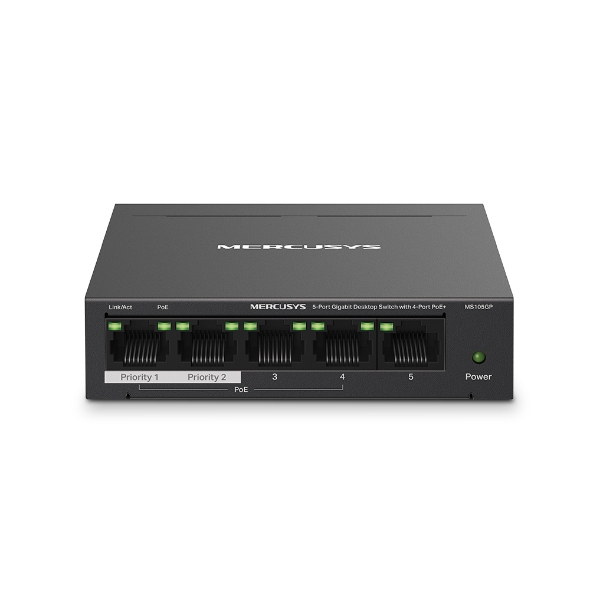

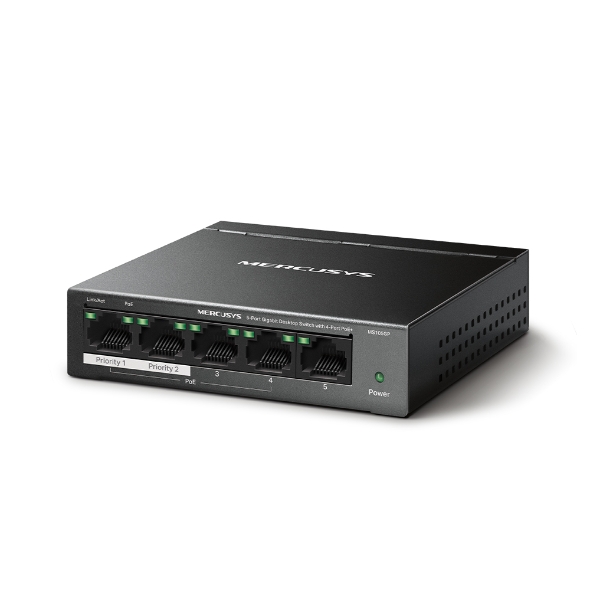

Mercusys 5-Port Gigabit Desktop Switch with 4-Port PoE+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable

ull Gigabit Ports: 5× 10/100/1000 Mbps RJ45 ports

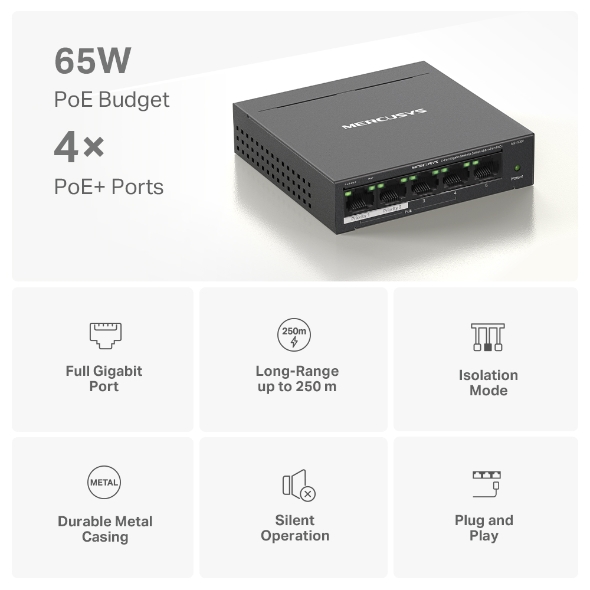

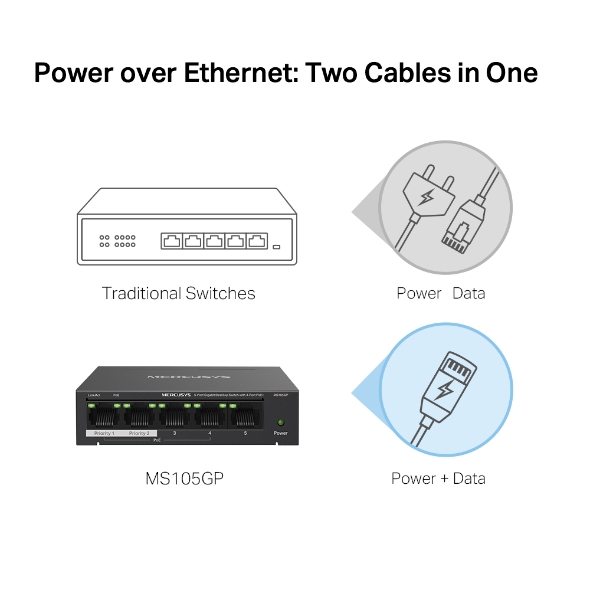

Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*

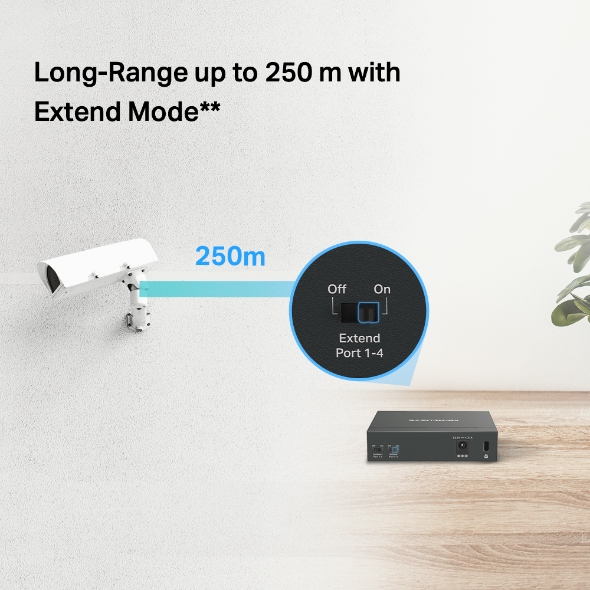

Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

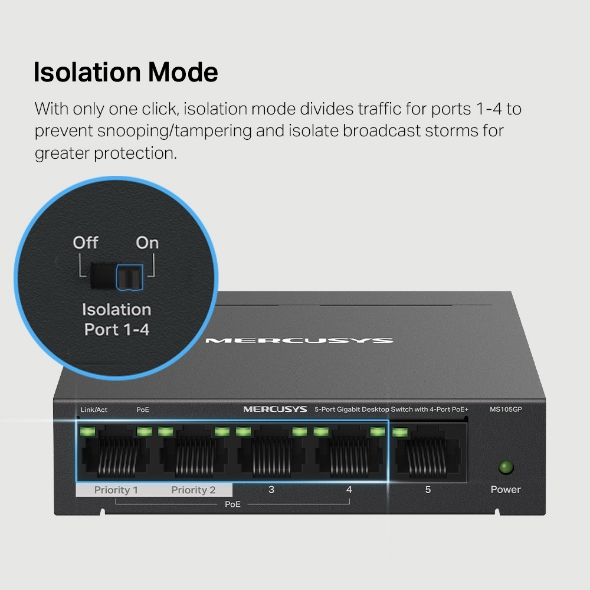

Isolation Mode: One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
Durable Metal Casing: Allows for efficient heat dissipation and long network life

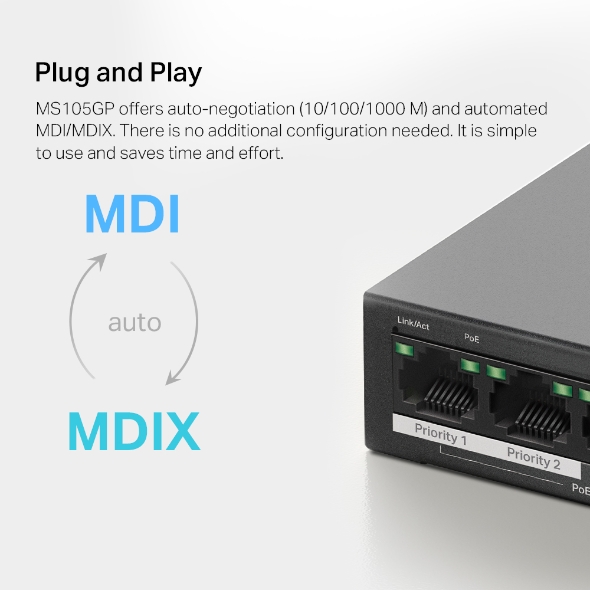

Plug and Play: Simple to use and saves time and effort

Product Properties

Manufacturer
Mercusys

Model
MS105GP

EAN
6957939001193

Bullet points

Point
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs

Durable Metal Casing: Allows for efficient heat dissipation and long network life

High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*

Isolation Mode: One click to divide traffic for specific ports for stability and security

Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

Plug and Play: Simple to use and saves time and effort

Two Cables in One: With four PoE+ ports, transfers data and power on one single cable

ull Gigabit Ports: 5× 10/100/1000 Mbps RJ45 ports

Certificates

Certification
CE, RoHS

Data transmission

Jumbo frames
9

Jumbo frames support
Yes

MAC address table
2000 entries

Switching capacity
10 Gbit/s

Design

Housing material
Metal

LED indicators
Yes

Product colour
Black

Rack mounting
No

Stackable
No

Wall mountable
Yes

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Flow control support
Yes

Full duplex
Yes

Half duplex
Yes

Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-40 - 70 °C

Optical fiber

Transmission distance (max)
0.1 km

Packaging content

Cables included
AC

Quick start guide
Yes

Ports & interfaces

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

Switch Number of Ports
5

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50 Hz

AC input voltage
220 V

Power consumption (max)
75.15 W

Power consumption (typical)
3.13 W

Power source
DC

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) ports quantity
4

Total Power over Ethernet (PoE) budget
65 W

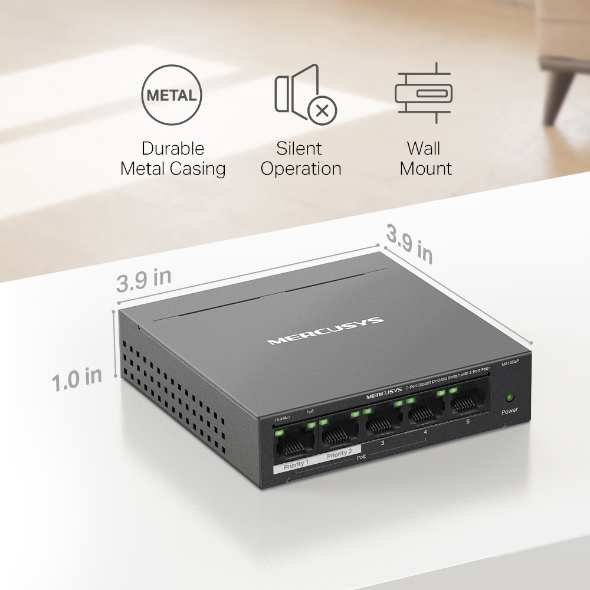

Weight & dimensions

Depth
98 mm

Height
25 mm

Width
99.8 mm
