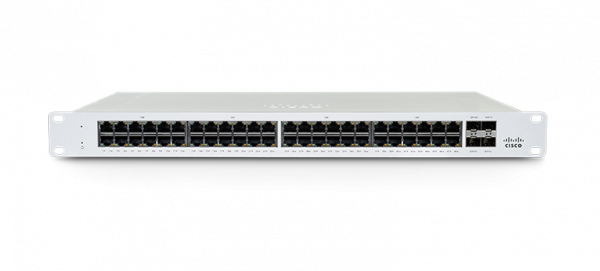

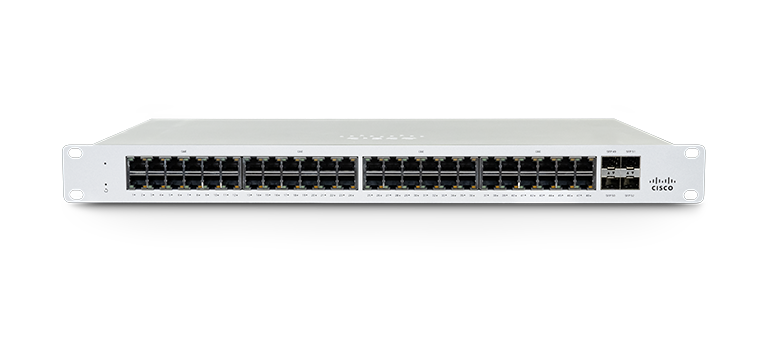

Cisco Meraki MS130-48 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
Roll over image to zoom inClick to Open expanded view
Print
Model: MS130-48X-HW

Cisco Meraki MS130-48 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

Manufacturer:
Cisco
Cisco Meraki MS130-48, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Meraki MS130-48. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 40. Switching capacity: 200 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3bt. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
  • Managed via Cisco Meraki Dashboard
  • Remote Packet Capture Tools via Meraki Dashboard
  • Automatic Firmware upgrades
  • SNMP/Syslog Integration
  • IPv4/6 ACL support
  • 802.1Q VLAN tagging
  • DHCP Snooping
  • 802.1X Authentication
  • 10/100/1000 Mbps RJ45
  • 100M/1G/2.5G mGbE RJ45
  • 4x 10 Gbe SFP+ models available
  • 802.3bt PoE up to 30W per port

Product Properties

  • Model
  • MS130-48X-HW
  • Bullet points
  • Point
  • 10/100/1000 Mbps RJ45
    100M/1G/2.5G mGbE RJ45
    4x 10 Gbe SFP+ models available
    802.1Q VLAN tagging
    802.1X Authentication
    802.3bt PoE up to 30W per port
    Automatic Firmware upgrades
    DHCP Snooping
    IPv4/6 ACL support
    Managed via Cisco Meraki Dashboard
    Remote Packet Capture Tools via Meraki Dashboard
    SNMP/Syslog Integration
  • Data transmission
  • Switching capacity
  • 200 Gbit/s
  • Design
  • Form factor
  • 1U
  • LED indicators
  • Yes
  • Product colour
  • White
  • Rack mounting
  • Yes
  • Management features
  • Cloud-managed
  • Yes
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2
  • Switch type
  • Managed
  • Multicast features
  • Multicast features
  • Multicast traffic suppression
  • Multicast support
  • Yes
  • Network
  • 10G support
  • No
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1x, IEEE 802.3bt
  • Port mirroring
  • Yes
  • Spanning tree protocol
  • Yes
  • Virtual LAN features
  • Voice VLAN
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 45 °C
  • Storage temperature (T-T)
  • -20 - 70 °C
  • Performance
  • Firmware upgradeable
  • Yes
  • Mean time between failures (MTBF)
  • 309196 h
  • Ports & interfaces
  • 2.5G Ethernet (copper) ports quantity
  • 8
  • Number of management ports
  • 1 pc(s)
  • SFP+ module slots quantity
  • 4
  • Switch Number of Ports
  • 40
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 50/60 Hz
  • AC input voltage
  • 100 - 240 V
  • Input current
  • 12 A
  • Power consumption (max)
  • 808 W
  • Power source
  • AC
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) power per port
  • 30 W
  • Total Power over Ethernet (PoE) budget
  • 740 W
  • Protocols
  • IPv4 & IPv6 features
  • IPv4/IPv6 access-control list (ACL)
  • Security
  • Authentication
  • MAC-based authentication
  • Authentication type
  • RADIUS
  • DHCP features
  • DHCP snooping
  • IGMP snooping
  • Yes
  • Security algorithms
  • SNMP
  • Weight & dimensions
  • Depth
  • 340 mm
  • Height
  • 44 mm
  • Weight
  • 5.71 kg
  • Width
  • 440 mm
