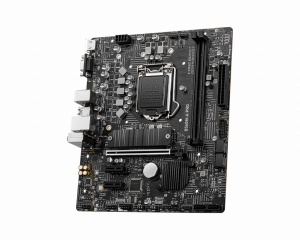

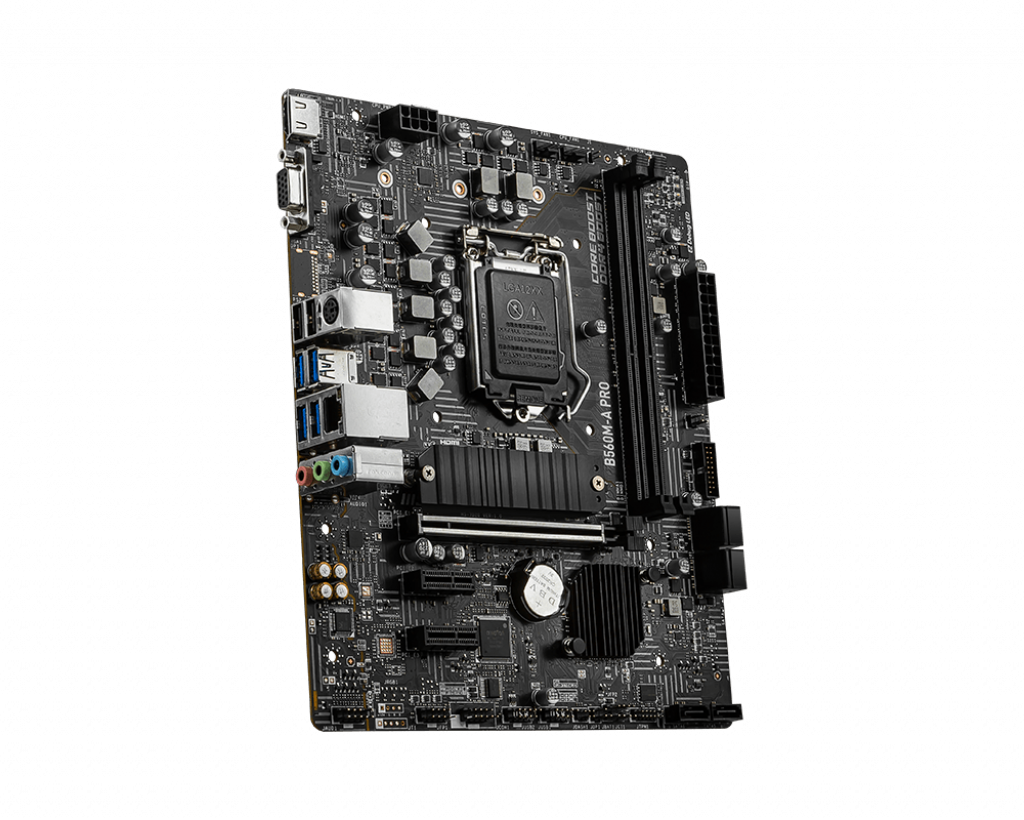

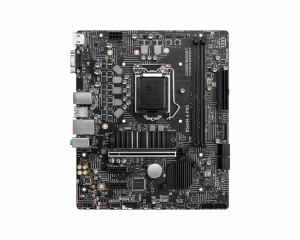

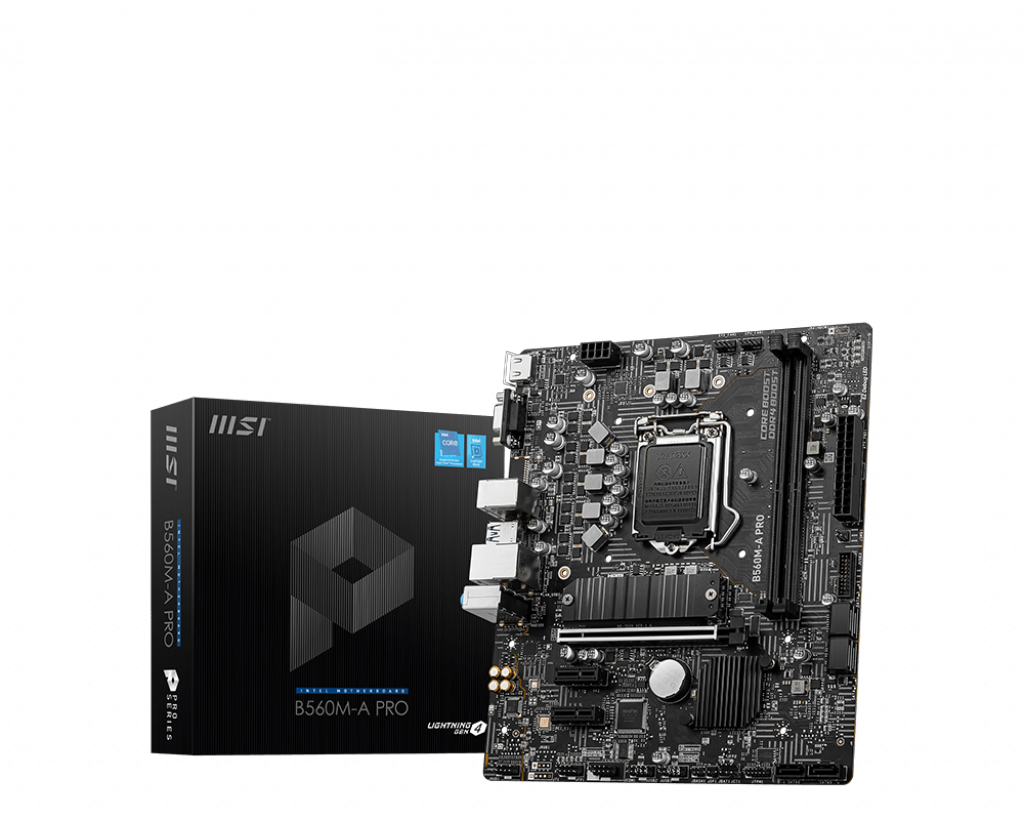

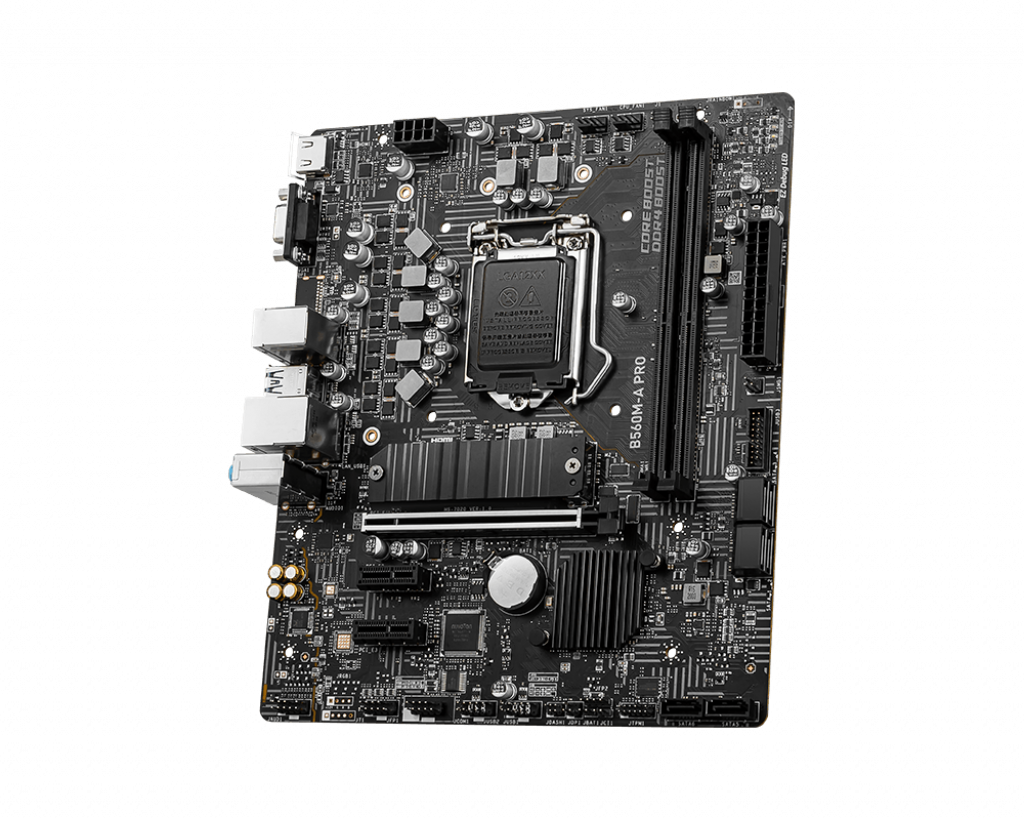

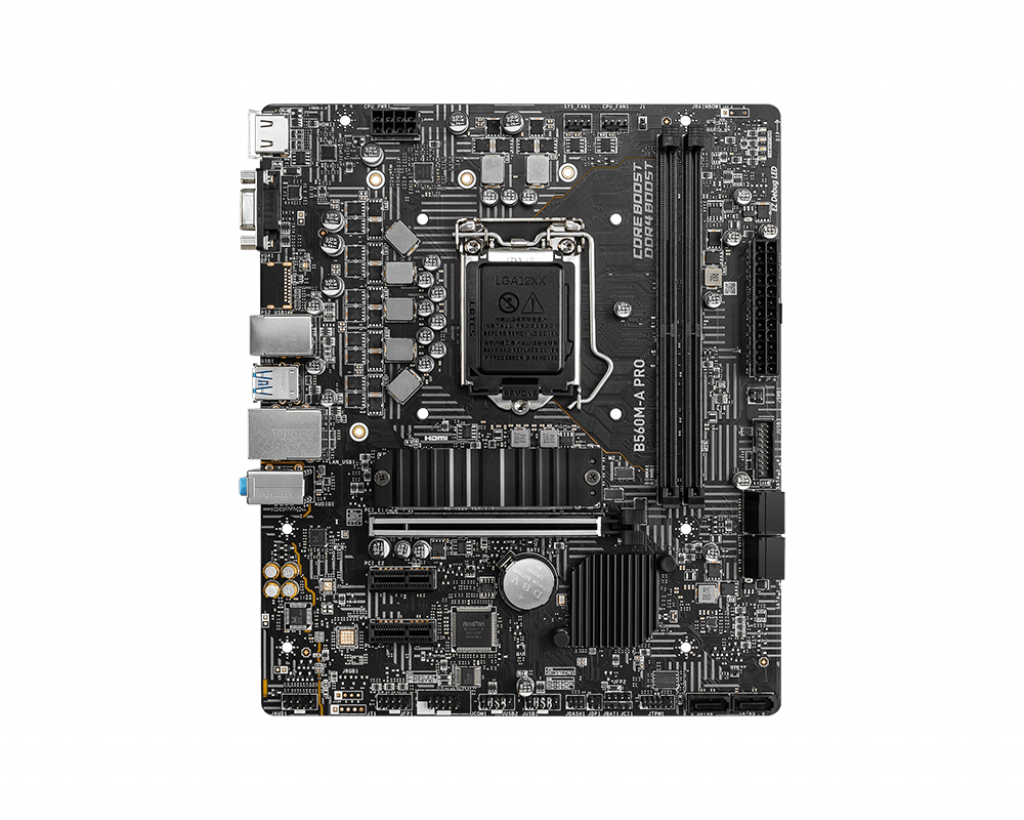

MSI B560M-A PRO motherboard Intel B560 LGA 1200 micro ATX
Roll over image to zoom inClick to Open expanded view
MSI B560M-A PRO motherboard Intel B560 LGA 1200 micro ATX
MSI B560M-A PRO motherboard Intel B560 LGA 1200 micro ATX
MSI B560M-A PRO motherboard Intel B560 LGA 1200 micro ATX
MSI B560M-A PRO motherboard Intel B560 LGA 1200 micro ATX
MSI B560M-A PRO motherboard Intel B560 LGA 1200 micro ATX
Print
Model: B560M-A PRO
EAN: 4719072802950

MSI B560M-A PRO motherboard Intel B560 LGA 1200 micro ATX

Manufacturer:
MSI
MSI B560M-A PRO, Intel, LGA 1200, Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, DDR4-SDRAM, 64 GB, DIMM
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

MSI B560M-A PRO. Processor manufacturer: Intel, Processor socket: LGA 1200, Compatible processor series: Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. HDMI version: 2.0b, USB connector type: USB Type-A
  • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5200(OC) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • DDR4 Boost : Advanced technology to deliver pure data signals for the best performance and stability
  • Lightning Fast Experience : PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Audio Boost : Reward your ears with studio grade sound quality
  • Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength

Product Properties

  • Manufacturer
  • MSI
  • Model
  • B560M-A PRO
  • EAN
  • 4719072802950
  • BIOS
  • ACPI version
  • 6.2
  • BIOS memory size
  • 256 Mbit
  • BIOS type
  • UEFI AMI
  • Clear CMOS jumper
  • Y
  • System Management BIOS (SMBIOS) version
  • 3.0
  • Bullet points
  • Point
  • 2.5G LAN
    Audio Boost : Reward your ears with studio grade sound quality
    Core Boost
    DDR4 Boost : Advanced technology to deliver pure data signals for the best performance and stability
    Lightning Fast Experience : PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
    Steel Armor
    Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
    Supports DDR4 Memory, up to 5200(OC) MHz
  • Expansion slots
  • Number of M.2 (M) slots
  • 1
  • PCI Express x1 (Gen 3.x) slots
  • 2
  • PCI Express x16 slots
  • 1
  • Features
  • Audio chip
  • Realtek ALC897
  • Audio output channels
  • 7.1 channels
  • Chip Set
  • Intel
  • Component for
  • PC
  • Harmonized System (HS) code
  • 84733020
  • Motherboard chipset
  • Intel B560
  • Motherboard form factor
  • micro ATX
  • Number of mounting holes
  • 6
  • Power source type
  • ATX
  • Windows operating systems supported
  • Windows 10 x64
  • Graphics
  • DirectX version
  • 12.0
  • Maximum resolution
  • 4096 x 2304 pixels
  • Number of displays supported
  • 2
  • Internal I/O
  • 12V power connector
  • Y
  • ATX Power connector (24-pin)
  • Y
  • Chassis intrusion connector
  • Y
  • CPU fan connector
  • Y
  • EPS power connector (8-pin)
  • Y
  • Front panel audio connector
  • Y
  • Number of EATX power connectors
  • 1
  • Number of SATA III connectors
  • 6
  • Serial port headers
  • 1
  • Total number of SATA connectors
  • 6
  • TPM connector
  • Y
  • USB 2.0 connectors
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 1
  • Memory
  • Memory Slot Support
  • 64 GB
  • Memory slots type
  • DIMM
  • Non-ECC
  • Y
  • Number of memory slots
  • 2
  • Supported memory clock speeds
  • 2133,2666,2933,3200 MHz
  • Supported memory types
  • DDR4-SDRAM
  • Unbuffered memory
  • Y
  • Network
  • Ethernet interface type
  • 2.5 Gigabit Ethernet
  • Ethernet LAN
  • Y
  • LAN controller
  • Realtek RTL8125B
  • Wi-Fi
  • N
  • Other features
  • Weight
  • 776 g
  • Packaging content
  • Cables included
  • SATA
  • Drivers included
  • Y
  • Processor
  • Compatible processor series
  • Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
  • Maximum number of SMP processors
  • 1
  • Processor manufacturer
  • Intel
  • Processor socket
  • LGA 1200

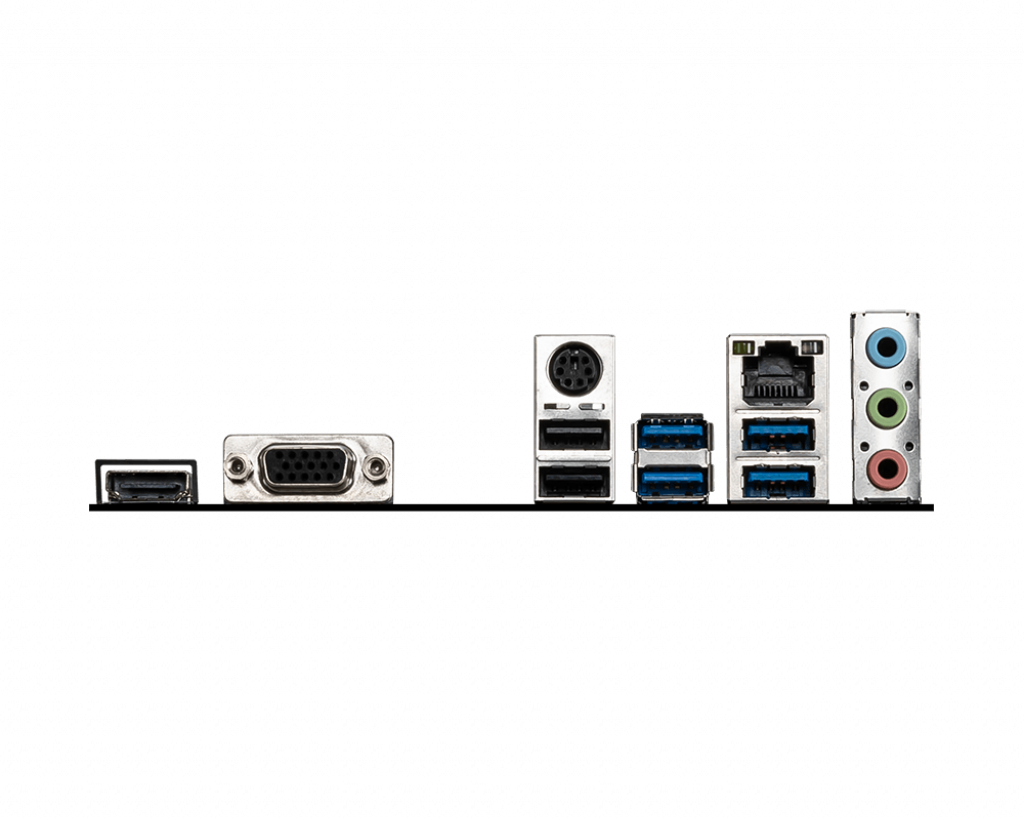

  • Rear panel I/O ports
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • HDMI version
  • 2.0b
  • Microphone in
  • Y
  • PS/2 ports quantity
  • 1
  • USB 2.0 ports quantity
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 4
  • USB connector type
  • USB Type-A
  • VGA (D-Sub) ports quantity
  • 1
  • Storage controllers
  • Number of storage drives supported
  • 7
  • RAID levels
  • 0, 1, 5, 10
  • Supported storage drive interfaces
  • M.2, SATA
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 202 mm
  • Height
  • 60 mm
  • Width
  • 236 mm
