Description

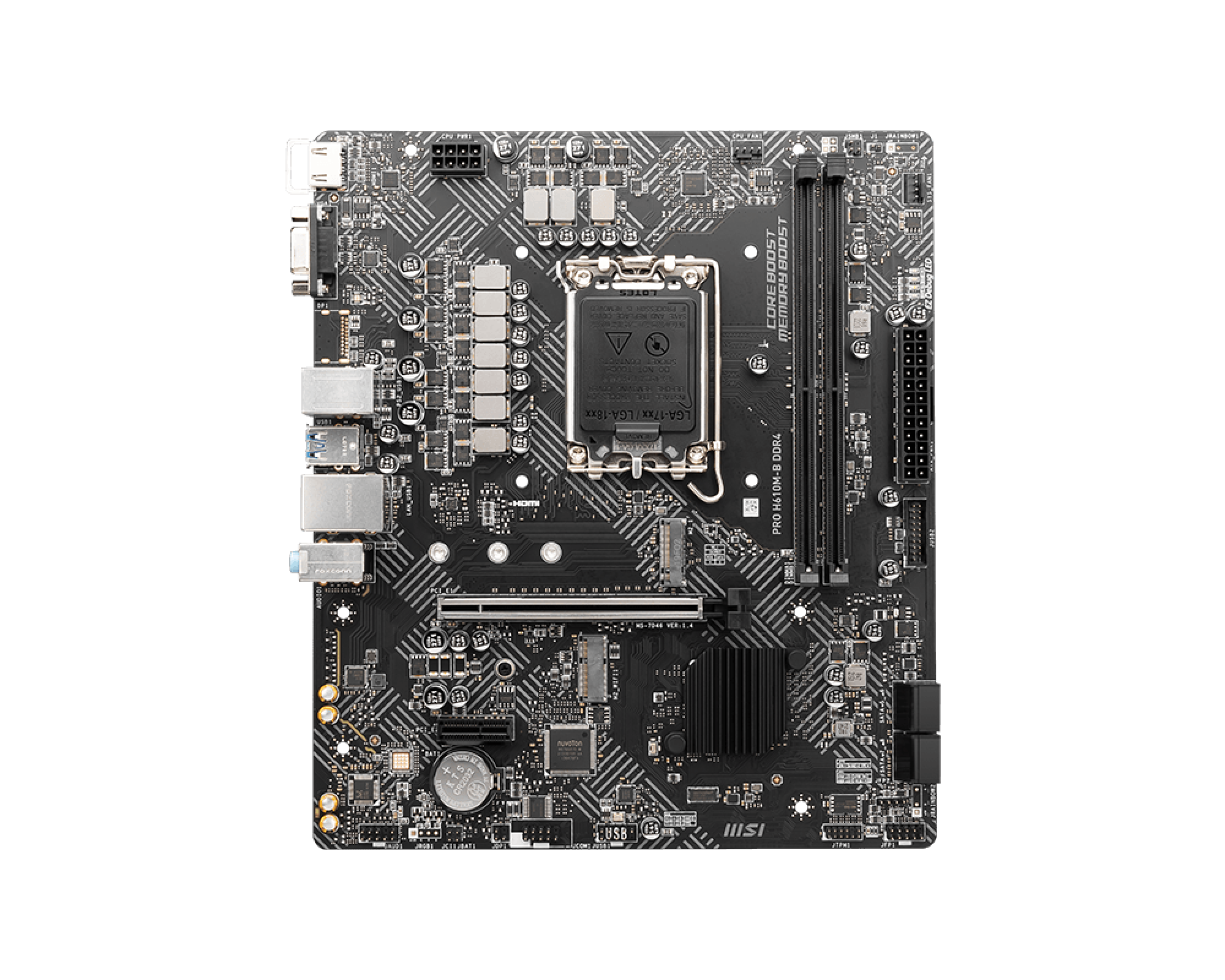

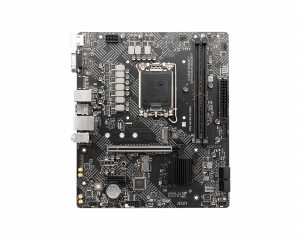

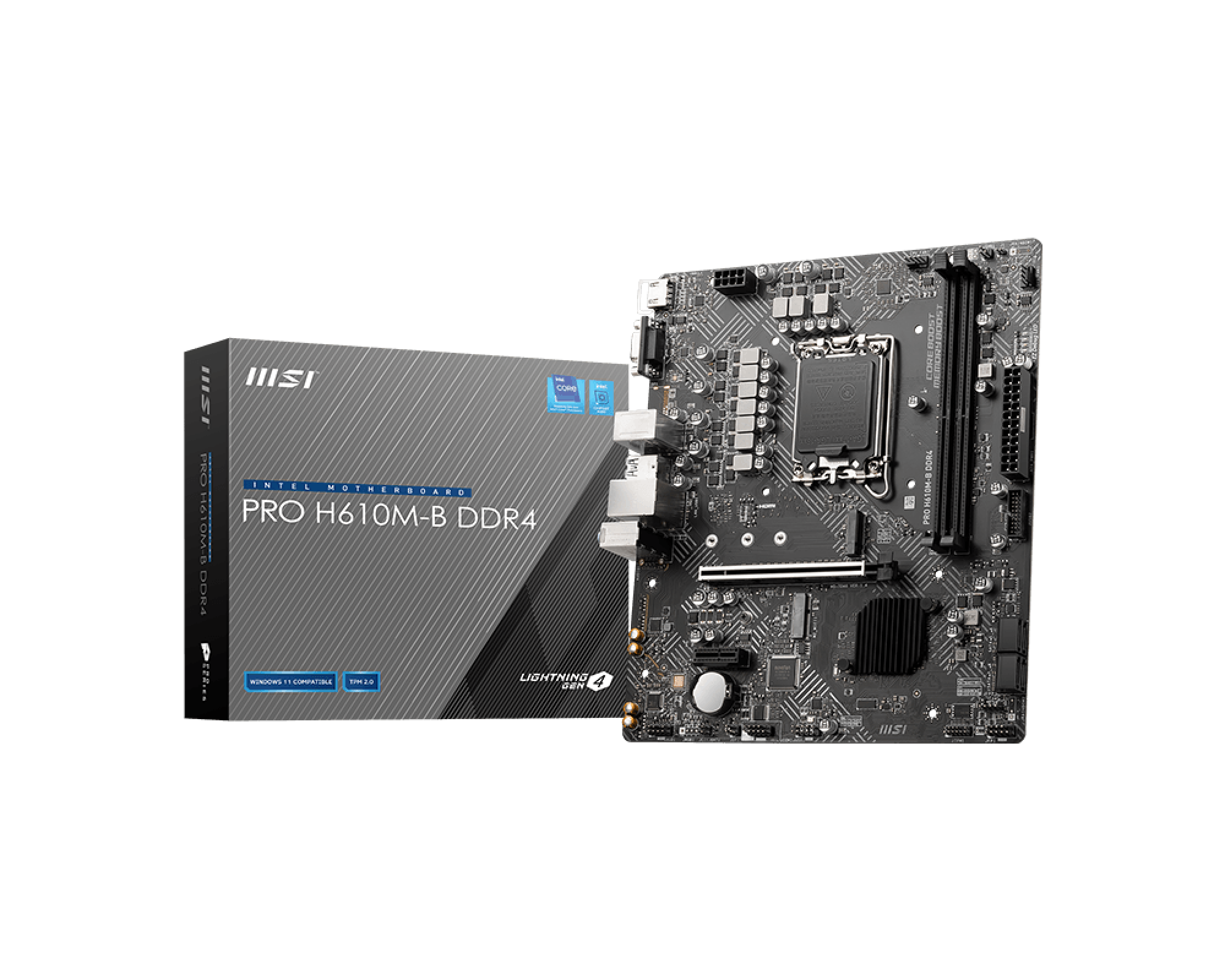

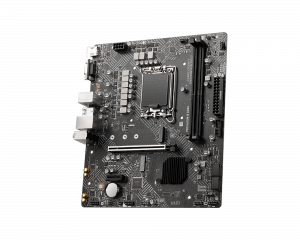

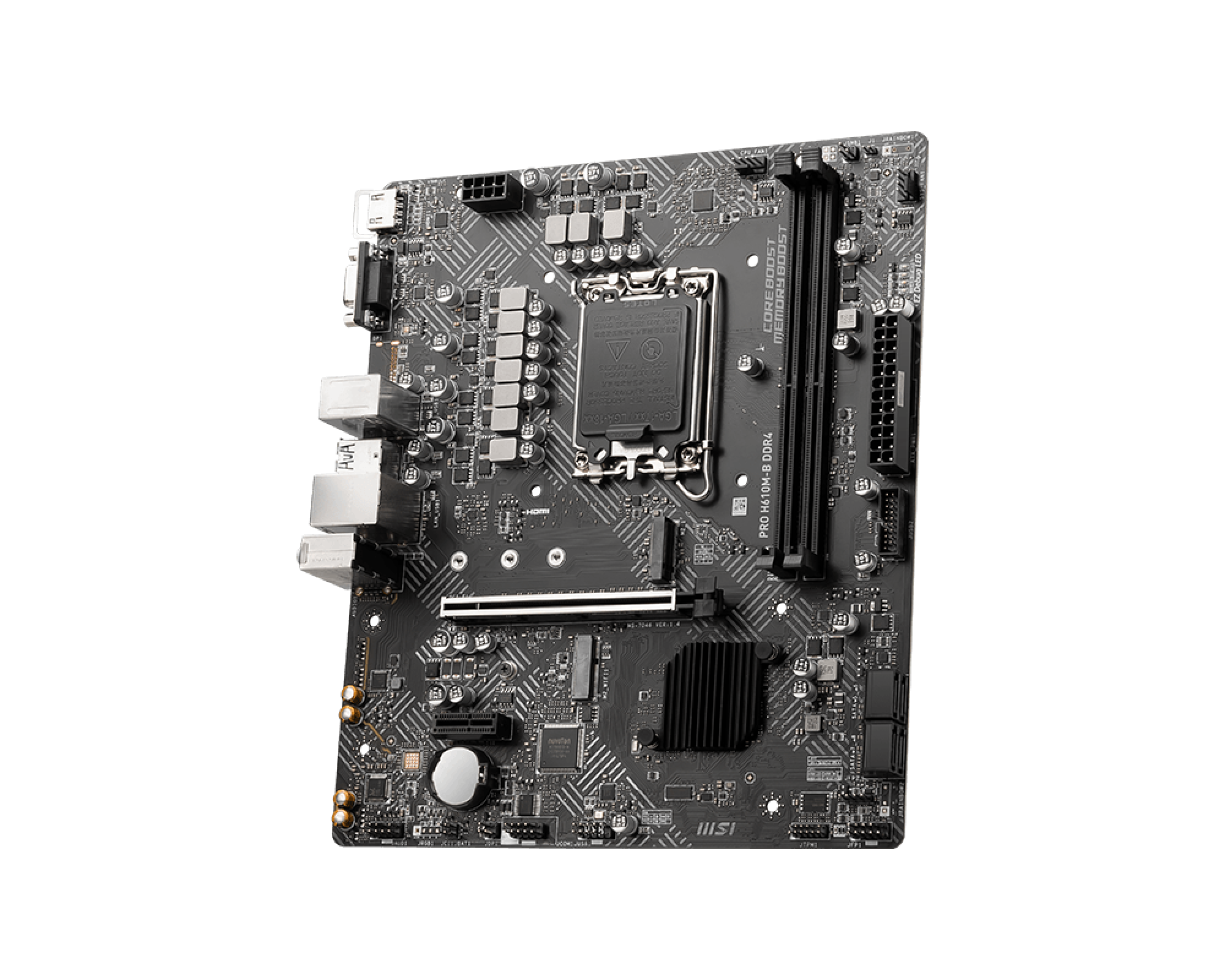

MSI MB PRO H610M-B DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Parallel processing technology support: Crossfire. Ethernet interface type: Gigabit Ethernet

PRO H610M-B DDR4
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 3200(MAX) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Core Boost

With premium layout and digital power design to support more cores and provide better performance.

Audio Boost

Reward your ears with studio grade sound quality for the most immersive gaming experience.

Memory Boost

The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

Product Properties

Manufacturer
MSI

Model
PRO H610M-B DDR4

EAN
4719072924980

BIOS

BIOS memory size
256 Mbit

BIOS type
EFI AMI

Clear CMOS jumper
Y

System Management BIOS (SMBIOS) version
3.4

Bullet points

Point
Audio Boost: Reward your ears with studio grade sound quality

Core Boost

Lightning Fast Experience: PCIe 4.0

Memory Boost

PRO H610M-B DDR4

Steel Armor

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket

Supports DDR4 Memory, up to 3200(Max) MHz

Features

Audio chip
Realtek ALC897

Audio output channels
7.1 channels

Chip Set
Intel

Component for
PC

Harmonized System (HS) code
84733020

Motherboard chipset
Intel H610

Motherboard form factor
micro ATX

Graphics

Parallel processing technology support
Crossfire

Internal I/O

12V power connector
Y

ATX Power connector (24-pin)
Y

CPU fan connector
Y

Front panel audio connector
Y

Number of chassis fan connectors
1

Number of SATA III connectors
4

TPM connector
Y

USB 2.0 connectors
4

USB 3.2 Gen 1 (3.1 Gen 1) connectors
2

Memory

Memory channels
Dual-channel

Memory Slot Support
64 GB

Memory slots type
DIMM

Number of memory slots
2

Supported memory clock speeds
2133,2666,2933,3000 MHz

Supported memory types
DDR4-SDRAM

Network

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Y

Wi-Fi
N

Other features

Weight
760 g

Packaging content

Cables included
SATA

Drivers included
Y

Processor

Compatible processor series
Intel® Core™ i9

Maximum number of SMP processors
1

Processor manufacturer
Intel

Processor socket
LGA 1700

Supported processor sockets
LGA 1700

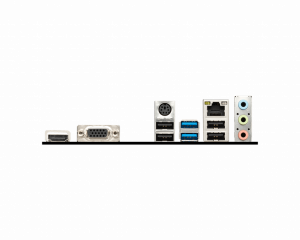

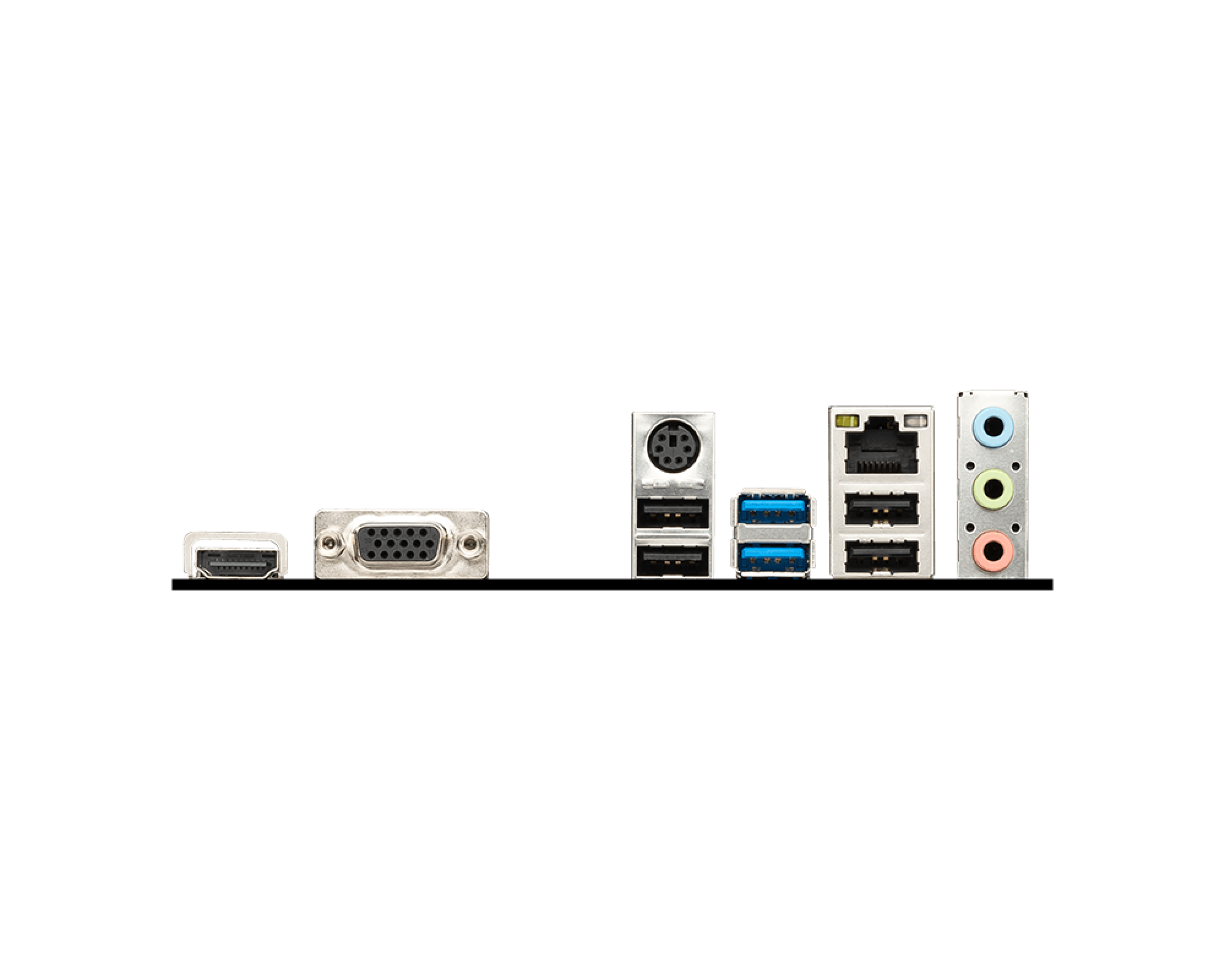

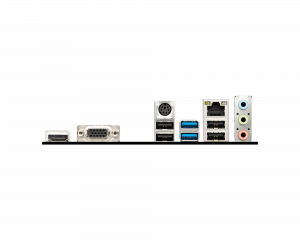

Rear panel I/O ports

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

HDMI version
2.1

USB 2.0 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

VGA (D-Sub) ports quantity
1

Storage controllers

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
211 mm

Height
65 mm

Width
244 mm

MSI MB PRO H610M-B DDR4 Intel H610 LGA 1700 micro ATX
