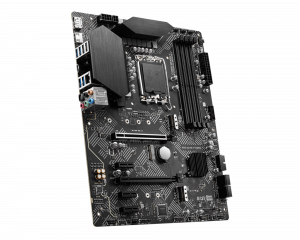

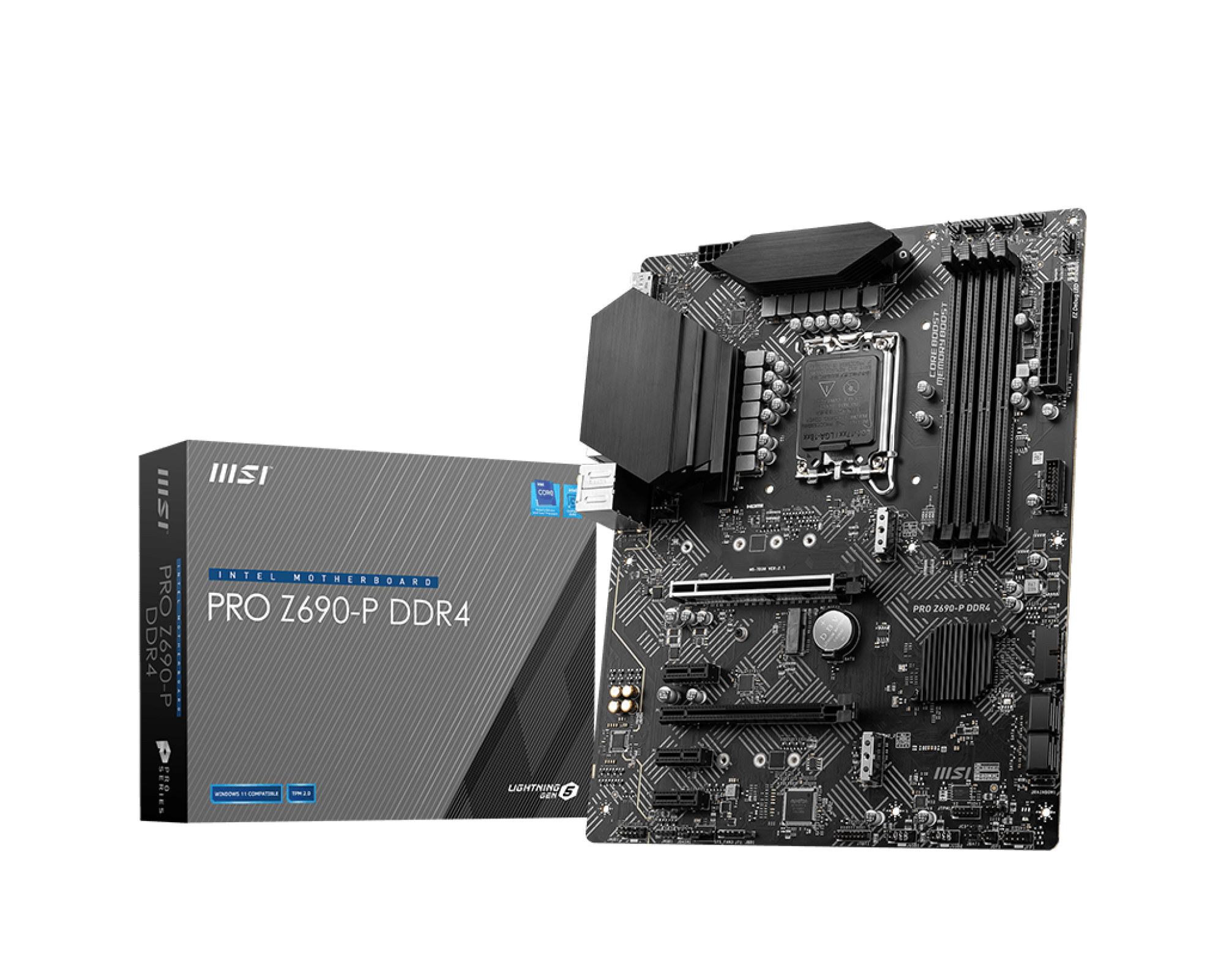

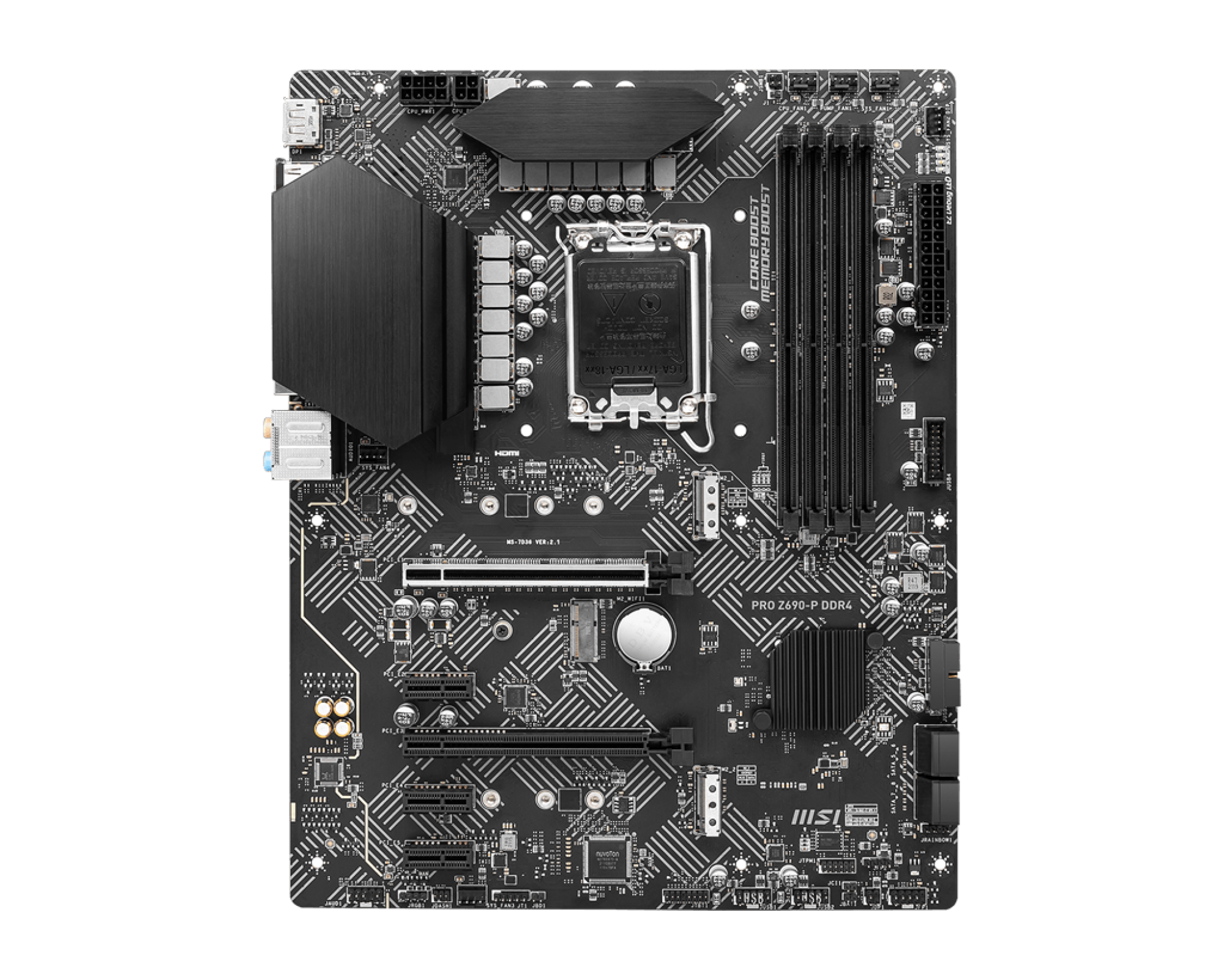

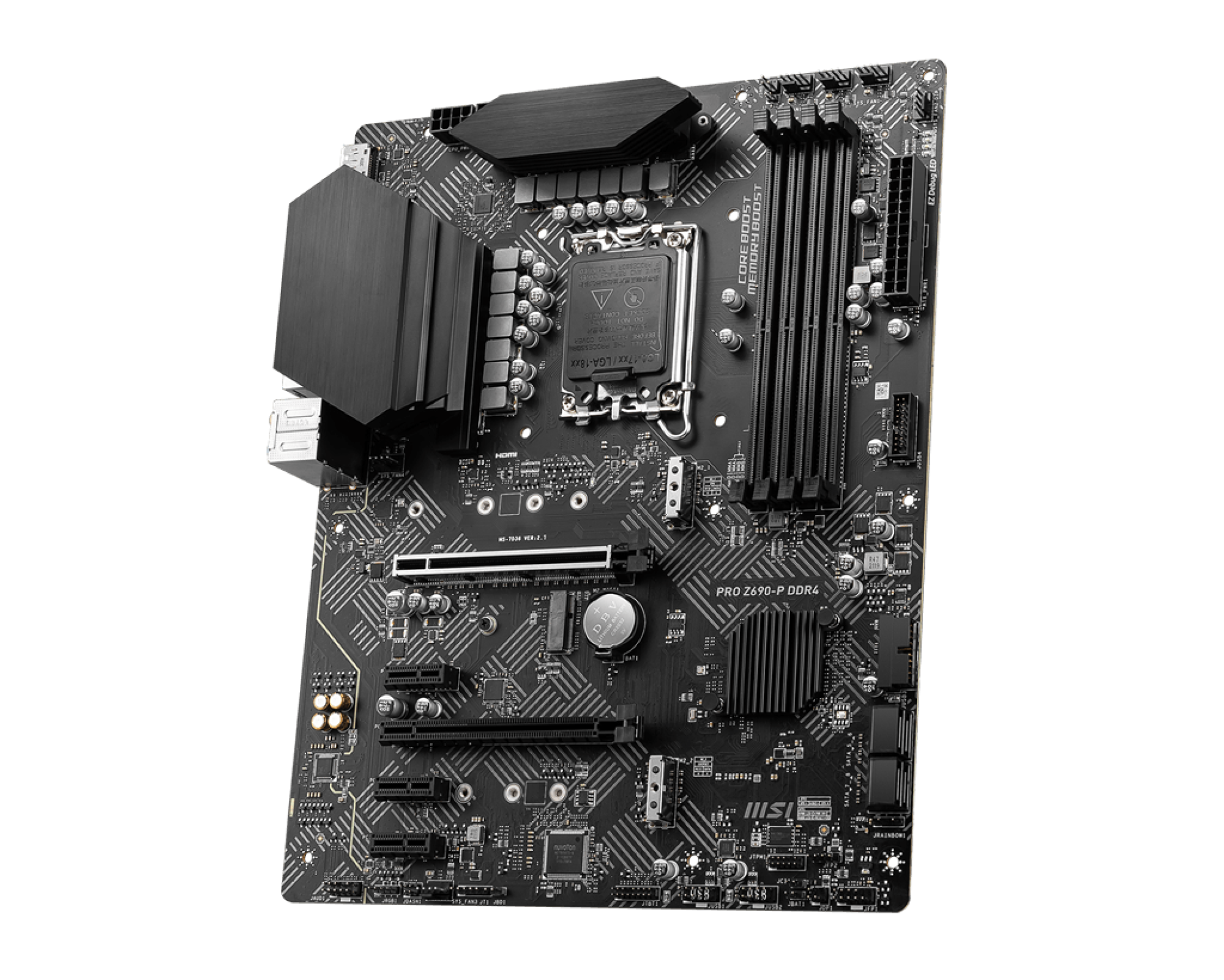

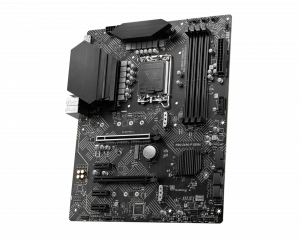

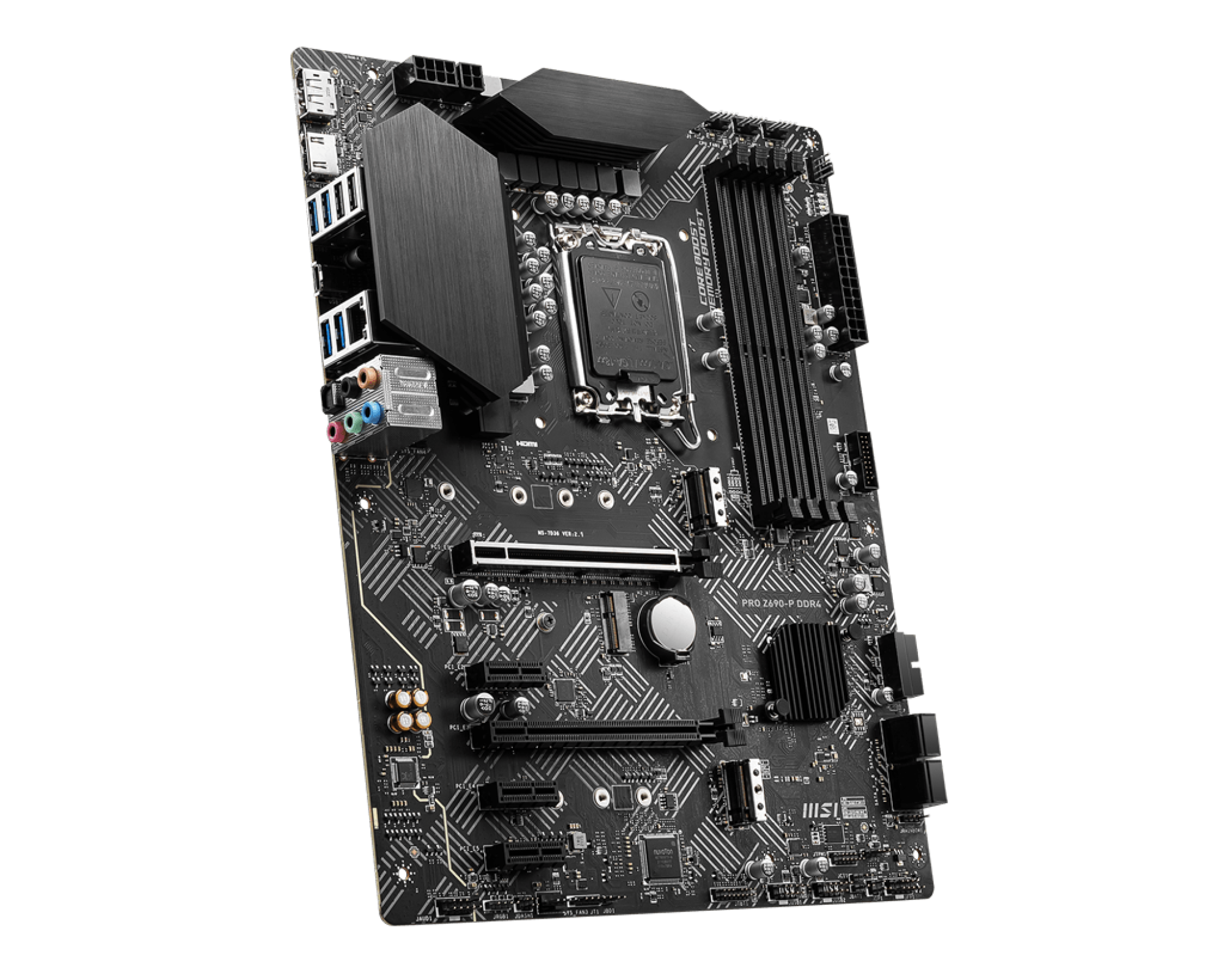

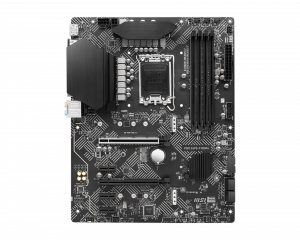

MSI PRO Z690-P DDR4 motherboard Intel Z690 LGA 1700 ATX
Roll over image to zoom inClick to Open expanded view
MSI PRO Z690-P DDR4 motherboard Intel Z690 LGA 1700 ATX
MSI PRO Z690-P DDR4 motherboard Intel Z690 LGA 1700 ATX
MSI PRO Z690-P DDR4 motherboard Intel Z690 LGA 1700 ATX
MSI PRO Z690-P DDR4 motherboard Intel Z690 LGA 1700 ATX
MSI PRO Z690-P DDR4 motherboard Intel Z690 LGA 1700 ATX
Print
Model: PRO Z690-P DDR4
EAN: 4719072902940

MSI PRO Z690-P DDR4 motherboard Intel Z690 LGA 1700 ATX

Manufacturer:
MSI
MSI PRO Z690-P DDR4, Intel, LGA 1700, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, LGA 1700, 128 GB, DDR4-SDRAM
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

MSI PRO Z690-P DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-BG. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 5000+(OC) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
  • Premium Thermal Solution: Extended Heatsink Design and MOSFET thermal pads rated for 7W/mk are built for high performance system and non-stop works
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Audio Boost: Reward your ears with studio grade sound quality
  • High Quality PCB: 6-layer PCB and server grade level material
  • Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire

Product Properties

  • Manufacturer
  • MSI
  • Model
  • PRO Z690-P DDR4
  • EAN
  • 4719072902940
  • BIOS
  • ACPI version
  • 6.4
  • BIOS memory size
  • 256 Mbit
  • BIOS type
  • UEFI AMI
  • System Management BIOS (SMBIOS) version
  • 3.4
  • Bullet points
  • Point
  • 2.5G LAN
    Audio Boost: Reward your ears with studio grade sound quality
    Core Boost
    High Quality PCB: 6-layer PCB and server grade level material
    Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
    Memory Boost
    Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire
    Premium Thermal Solution
    Supports DDR4 Memory, up to 5000+(OC) MHz
  • Expansion slots
  • 1st M.2 highest PCI Express generation
  • 4.0
  • 1st M.2 largest key size
  • 22110
  • 2nd M.2 largest key size
  • 2280
  • Number of M.2 (M) slots
  • 2
  • PCI Express x16 (Gen 3.x) slots
  • 1
  • PCI Express x16 (Gen 5.x) slots
  • 1
  • Features
  • Audio output channels
  • 5.1 channels
  • Chip Set
  • Intel
  • Component for
  • PC
  • Motherboard chipset
  • Intel Z690
  • Motherboard form factor
  • ATX
  • Product colour
  • Black
  • Windows operating systems supported
  • Windows 10, Windows 11
  • Graphics
  • On-board graphics card
  • No
  • Internal I/O
  • Number of SATA connectors
  • 0
  • Number of SATA II connectors
  • 0
  • Number of SATA III connectors
  • 4
  • TPM connector
  • Yes
  • USB 2.0 connectors
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 4
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 1
  • Memory
  • ECC сompatibility
  • Non-ECC
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 128 GB
  • Memory slots type
  • DIMM
  • Number of memory slots
  • 4
  • Supported memory clock speed (max)
  • 2133 MHz
  • Supported memory clock speeds
  • 2133,2666,3200,5200 MHz
  • Supported memory types
  • DDR4-SDRAM
  • Network
  • Ethernet interface type
  • 2.5 Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • LAN controller
  • Realtek RTL8125-BG
  • Wi-Fi
  • No
  • Processor
  • Compatible processor series
  • Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
  • Maximum internal memory supported by processor
  • 128 GB
  • Processor manufacturer
  • Intel
  • Processor socket
  • LGA 1700
  • Supported processor sockets
  • LGA 1700

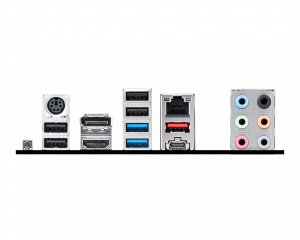

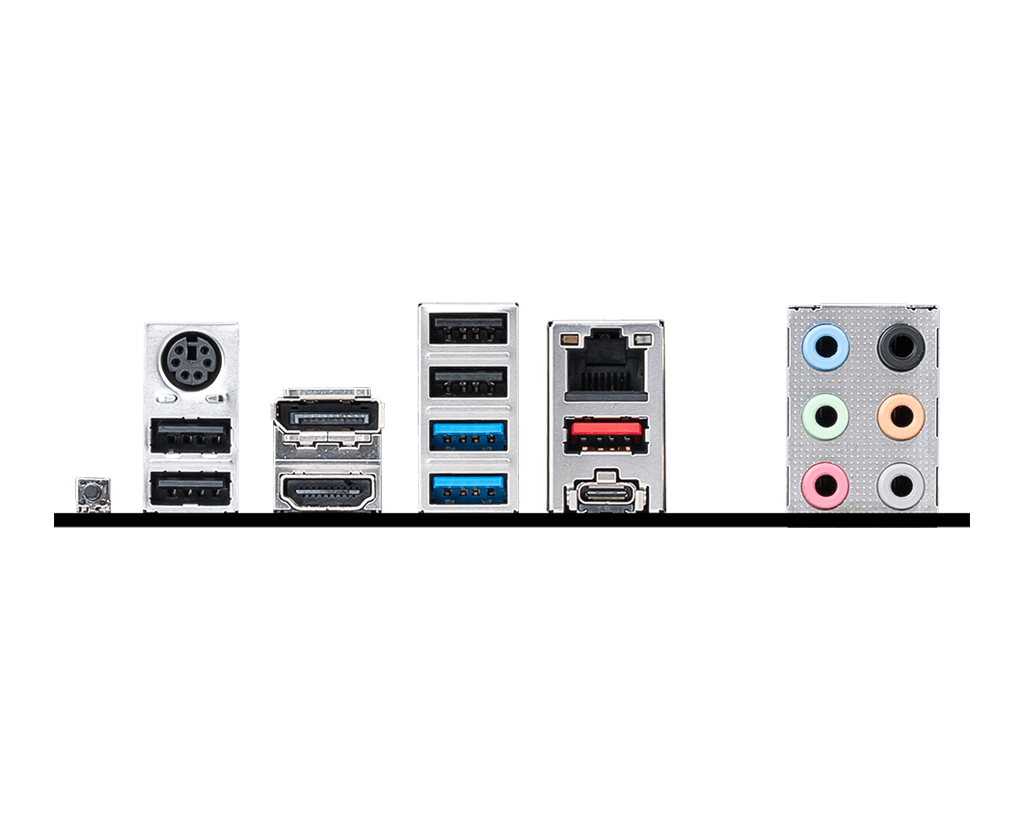

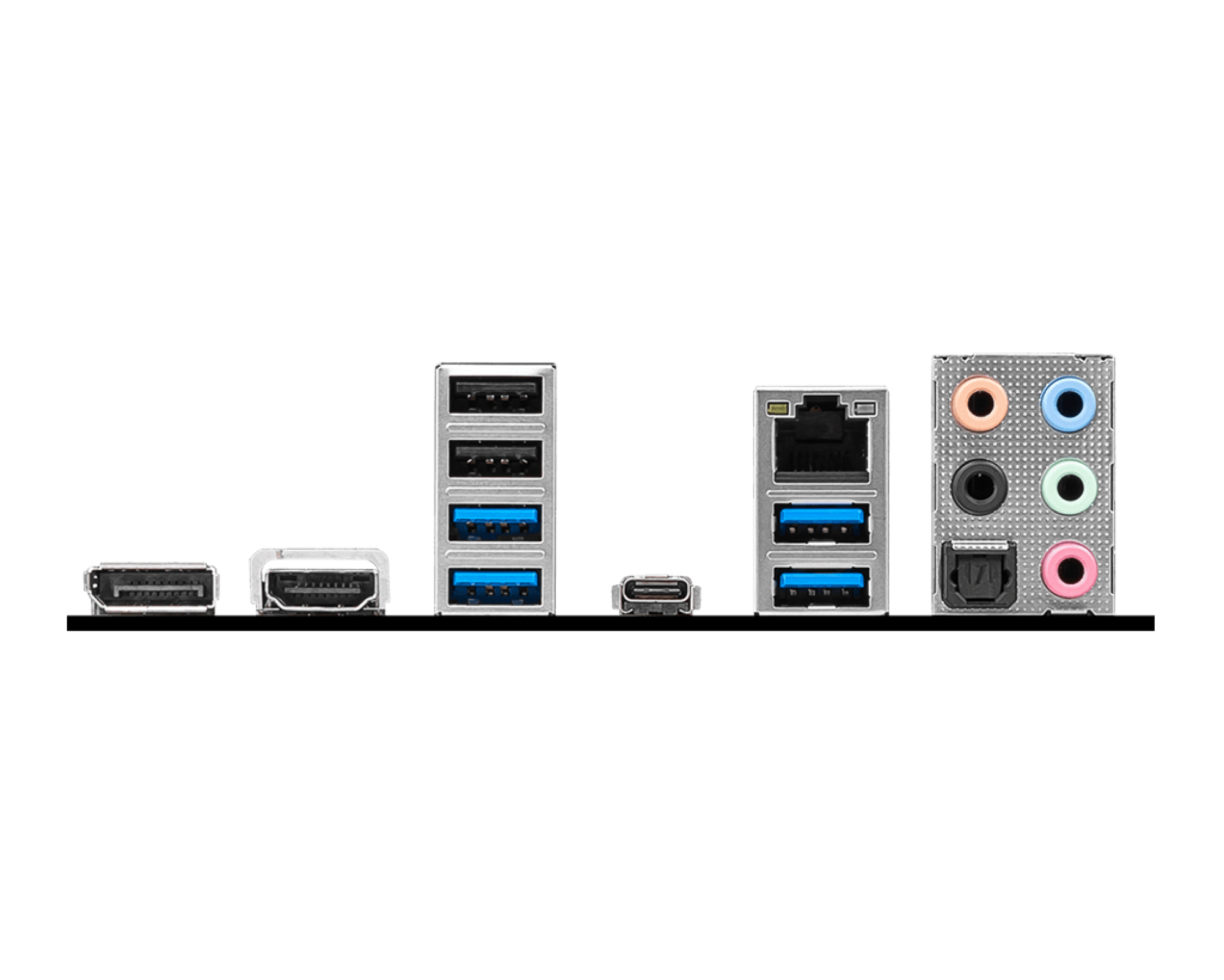

  • Rear panel I/O ports
  • DisplayPorts quantity
  • 1
  • DVI-D ports quantity
  • 0
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • USB 2.0 ports quantity
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2x2 Type-C ports quantity
  • 1
  • VGA (D-Sub) ports quantity
  • 0
  • Storage controllers
  • Number of HDDs supported
  • 4
  • Number of storage drives supported
  • 6
  • RAID levels
  • 0, 1, 5, 10
  • RAID support
  • Yes
  • Supported storage drive interfaces
  • M.2, SATA
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 244 mm
  • Height
  • 65 mm
  • Width
  • 305 mm
