Description

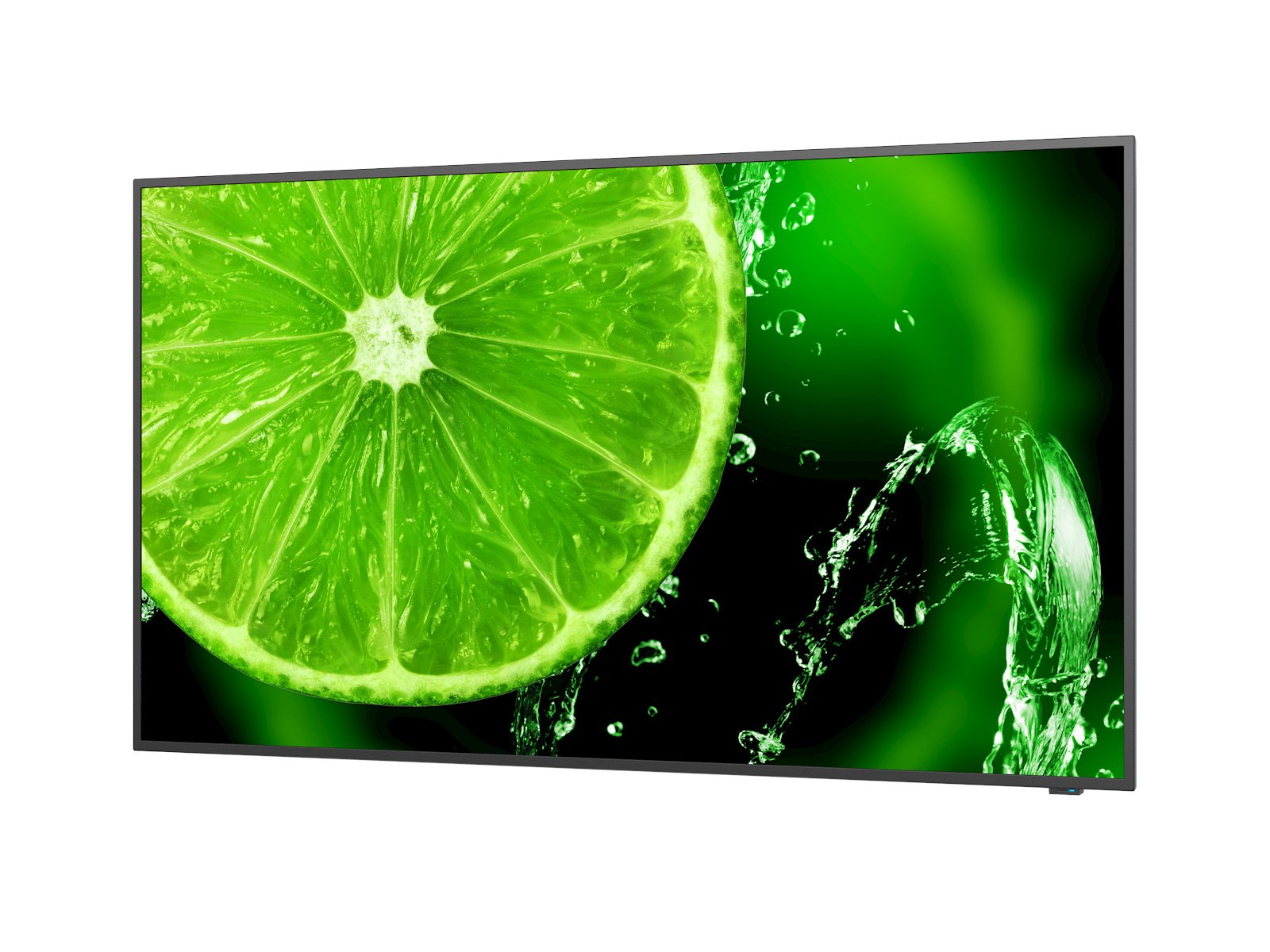

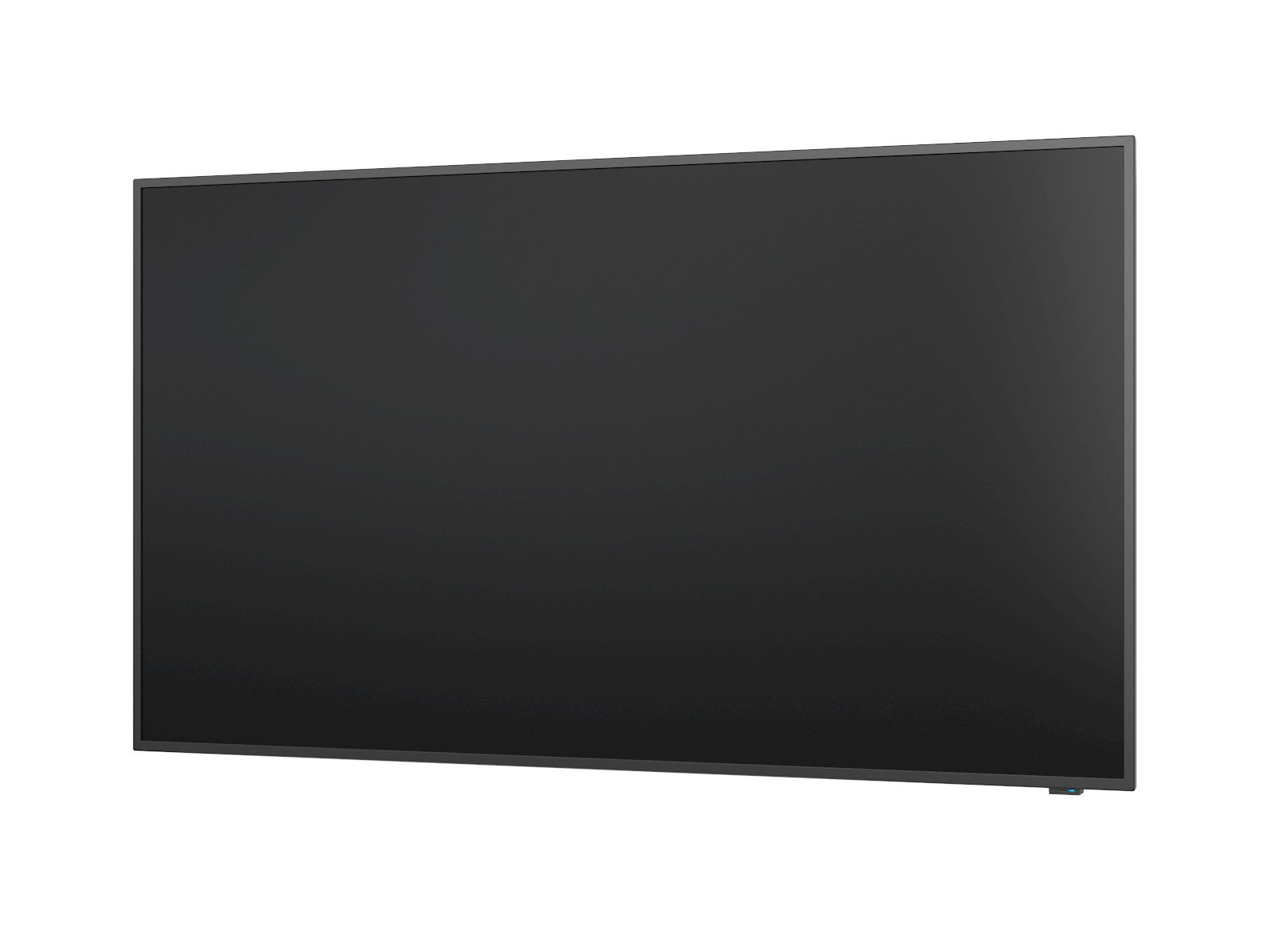

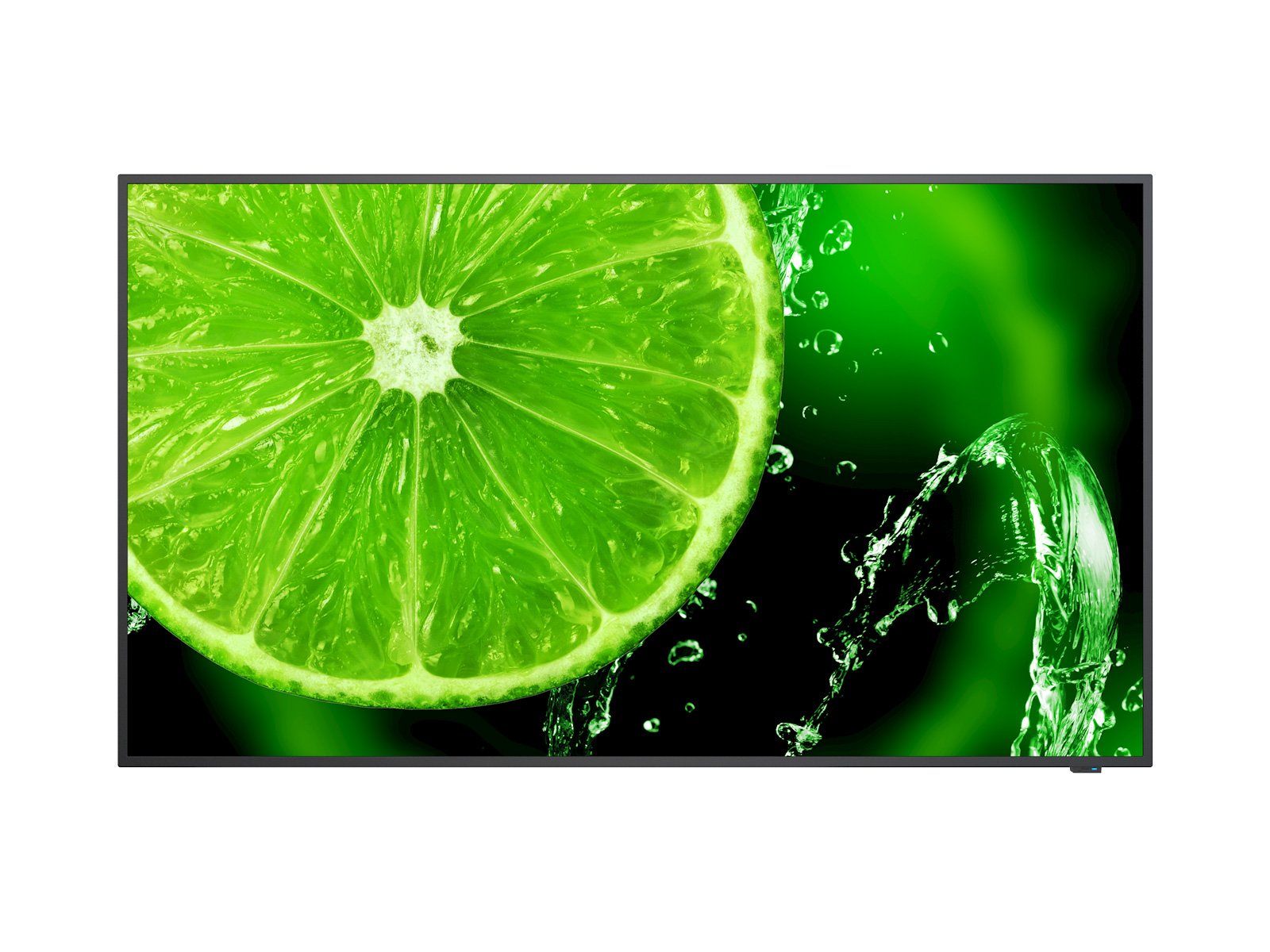

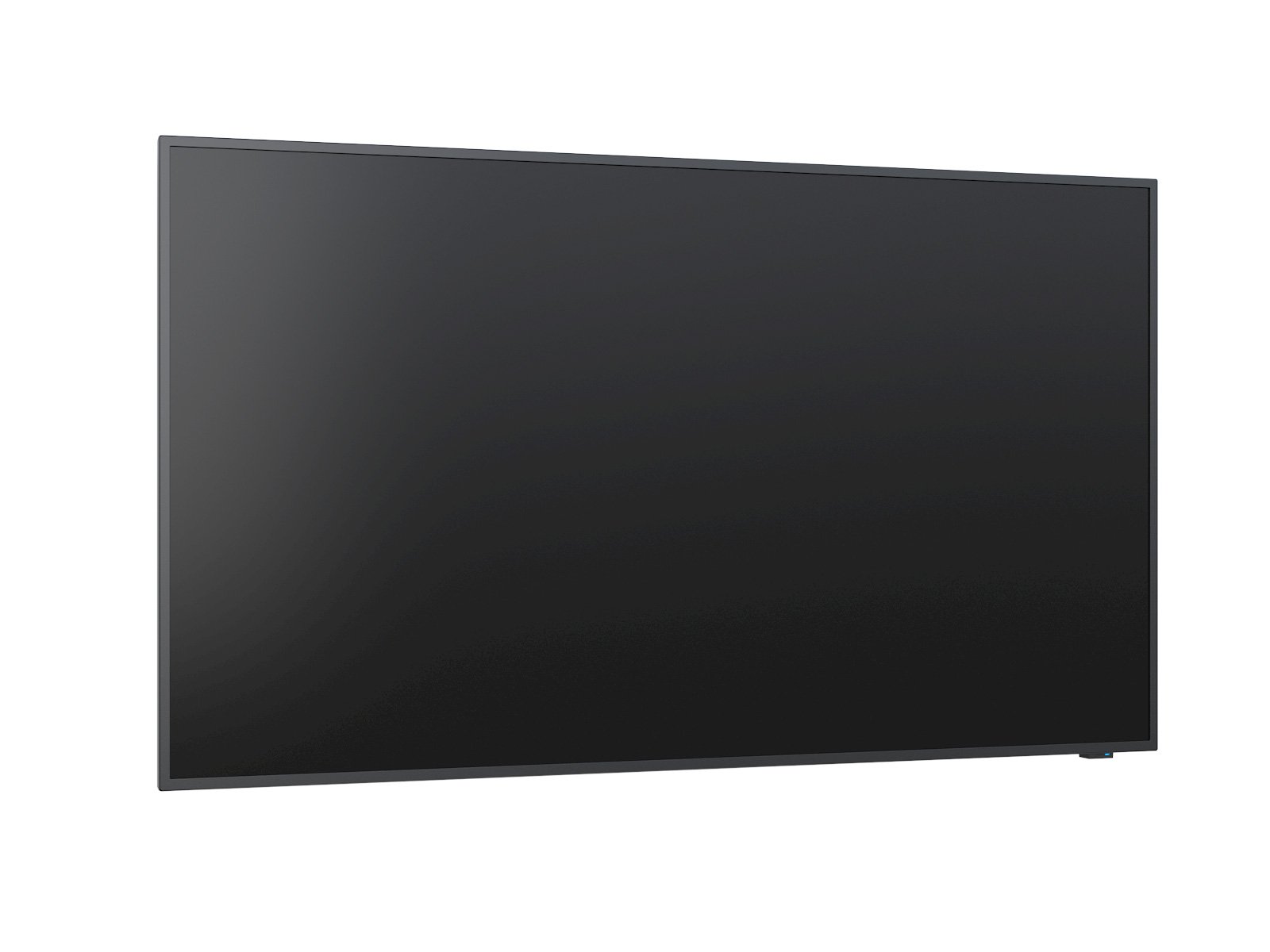

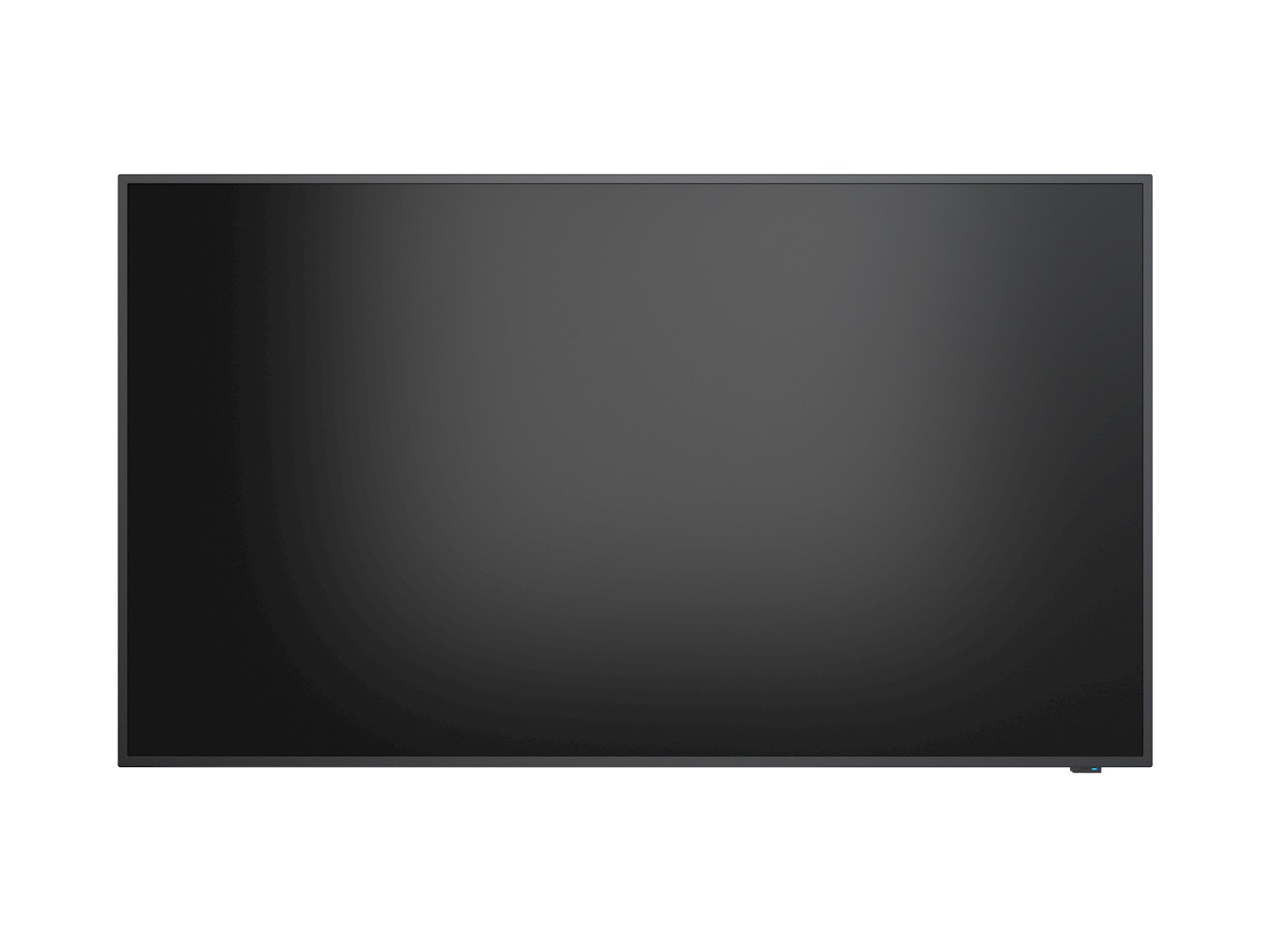

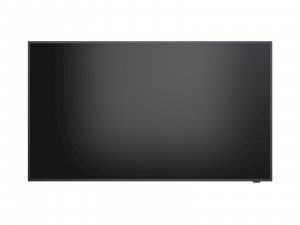

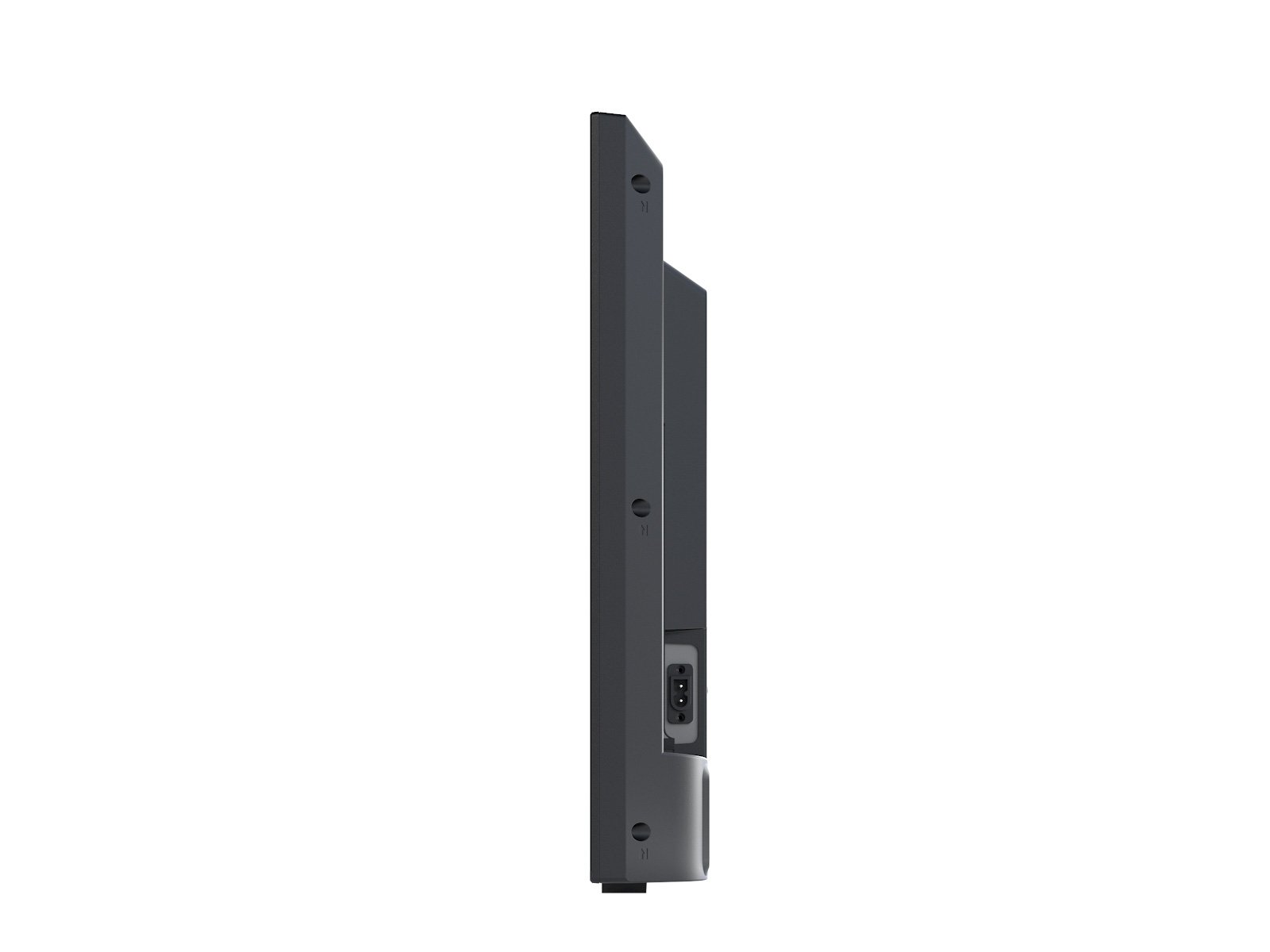

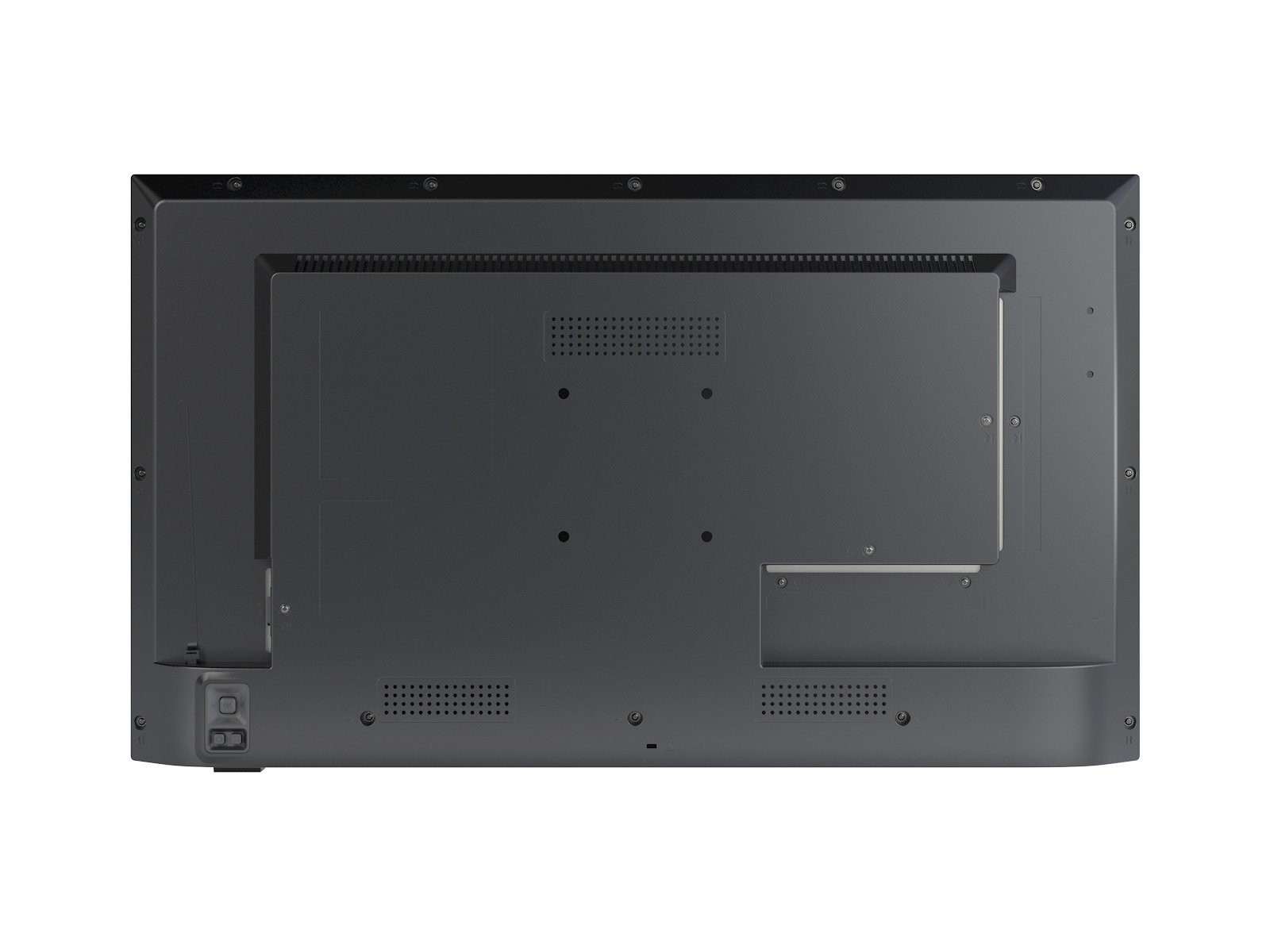

NEC MultiSync E328. Product design: Digital signage flat panel. Display diagonal: 81.3 cm (32"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 350 cd/m², HD type: Full HD. Operating hours (hours/days): 16/7. Product colour: Black

Reduced Installation and Operating Costs – highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration
Slim Design and Integrated Speakers – the aesthetic design is pleasing to the eye and enables easy, low cost installation
Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures
Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback
Standalone operation – the display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality

Product Properties

Manufacturer
NEC

Model
60005270

EAN
5028695120839

Audio

Built-in speaker(s)
Yes

Number of built-in speakers
2

RMS rated power
10 W

Computer system

Audio formats supported
AAC, LPCM, MP3, WMA, WMA-PRO, WMV

Image formats supported
JPG

Video formats supported
MP4, MPG, TS

Design

Bezel width (bottom)
1.39 cm

Bezel width (side)
1.25 cm

Bezel width (top)
1.25 cm

Orientation
Horizontal

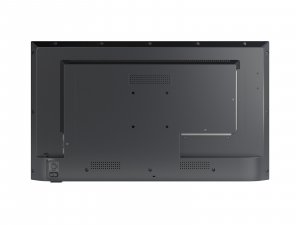

Panel mounting interface
100 x 100 mm

Placement supported
Indoor

Product colour
Black

Product design
Digital signage flat panel

VESA mounting
Yes

Display

Active display area (W x H)
698 x 393 mm

Contrast ratio (typical)
1200:1

Display brightness
350 cd/m²

Display number of colours
16.78 million colours

HD type
Full HD

Horizontal scan range
15 - 136 kHz

LED backlight
Yes

LED backlighting type
Direct-LED

Native aspect ratio
16:9

Native refresh rate
60 Hz

Panel type
IPS

Pixel pitch
0.364 x 0.364 mm

Response time
8 ms

Screen Resolution
1920 x 1080 pixels

Screen Size
81.3 cm (32")

Screen Type
LCD

Screen Type
80 cm

Vertical scan range
24 - 75 Hz

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Logistics data

Harmonized System (HS) code
85285210

Operational conditions

Operating relative humidity (H-H)
10 - 80%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 85%

Storage temperature (T-T)
-10 - 60 °C

Packaging content

Batteries included
Yes

Cables included
AC, HDMI

Remote control included
Yes

Performance

Ambient light sensor
Yes

Operating hours (hours/days)
16/7

Purpose
Universal

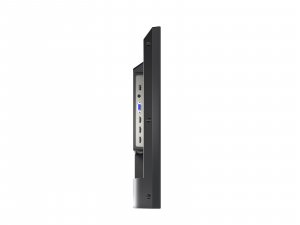

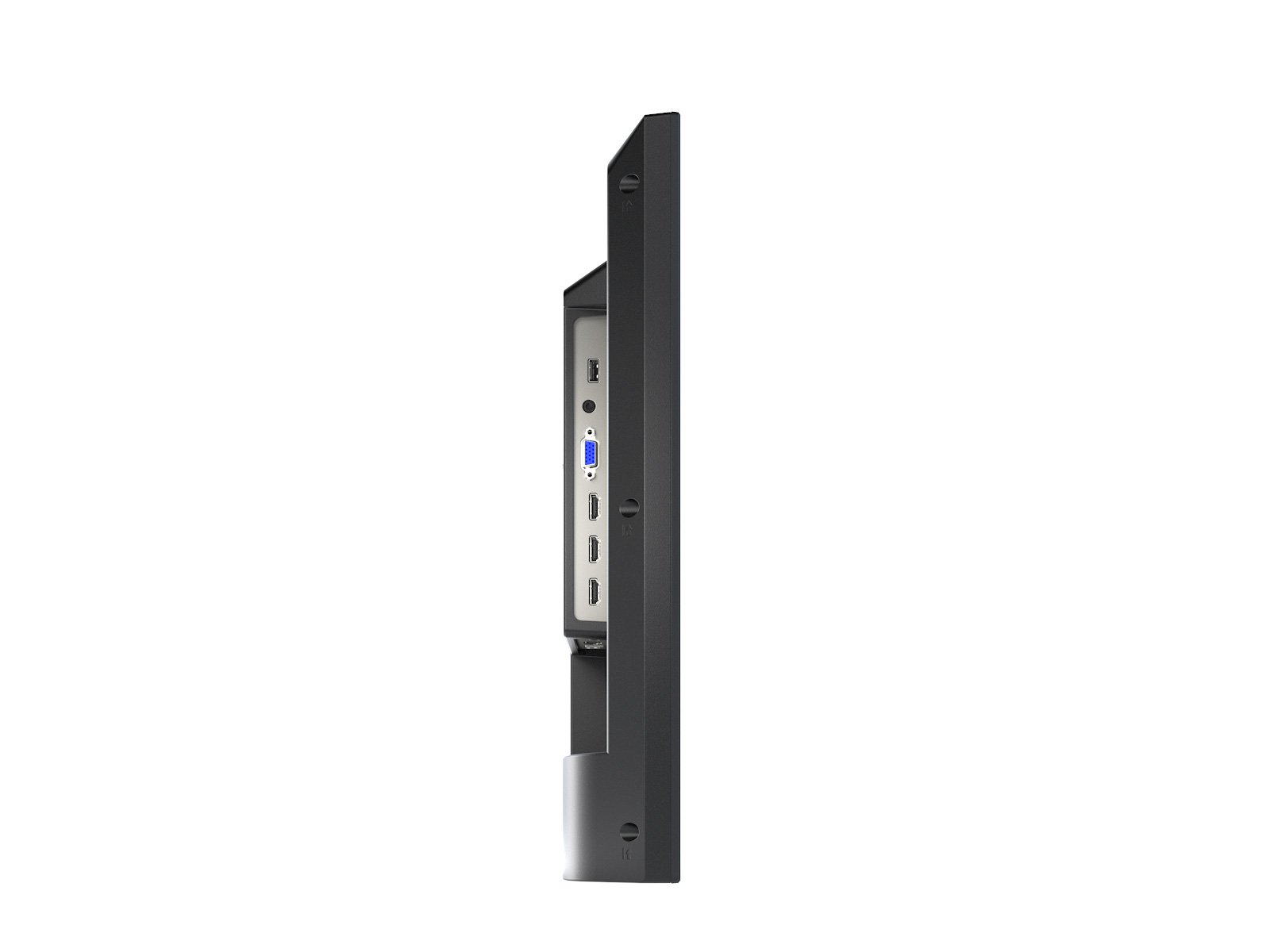

Ports & interfaces

Audio (L/R) out
1

Component video (YPbPr/YCbCr) in
1

Composite video in
1

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
100 Mbit/s

HDMI input ports quantity
3

HDMI ports
3

Number of speaker outputs
1

PC Audio in
Yes

Remote (IR) input
1

RS-232 interface
Yes

USB port
Yes

USB ports quantity
2

USB version
2.0

VGA (D-Sub) input ports
1

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Energy consumption (HDR) per 1000 hours
27 kWh

Energy consumption (SDR) per 1000 hours
27 kWh

Energy efficiency class (HDR)
E

Energy efficiency class (SDR)
F

Power consumption (standby)
2 W

Power consumption (typical)
33 W

Technical details

Sustainability certificates
ENERGY STAR

Weight & dimensions

Display depth
67.1 mm

Display height
422.3 mm

Display weight
5.3 kg

Display width
726.6 mm

NEC MultiSync E328 Digital signage flat panel 81.3 cm (32") LCD 350 cd/m² Full HD Black 16/7
