Description

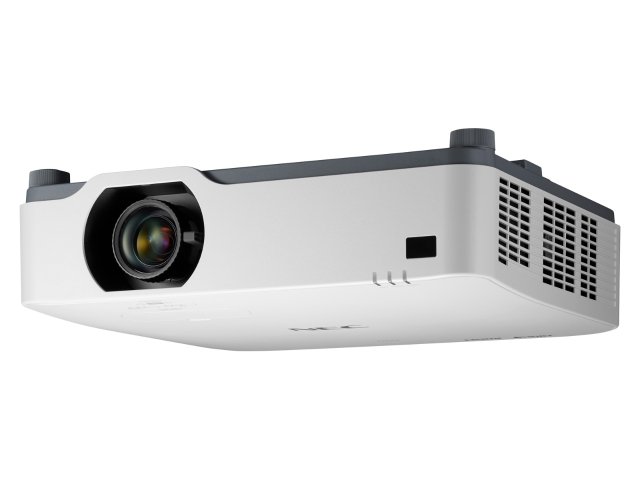

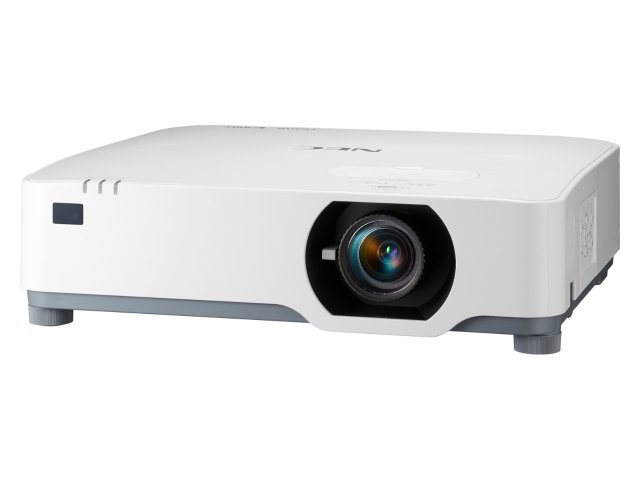

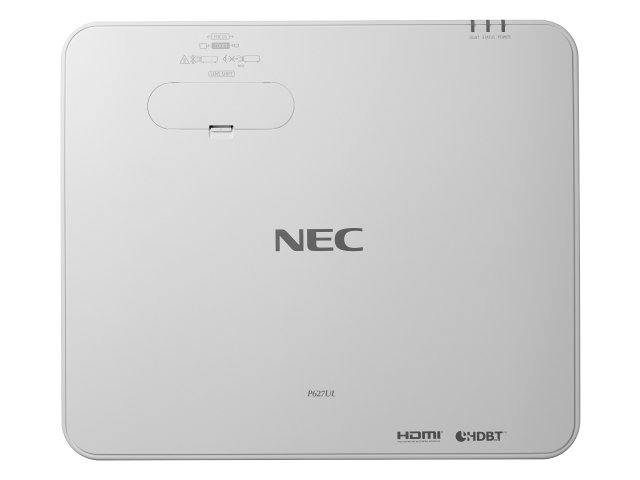

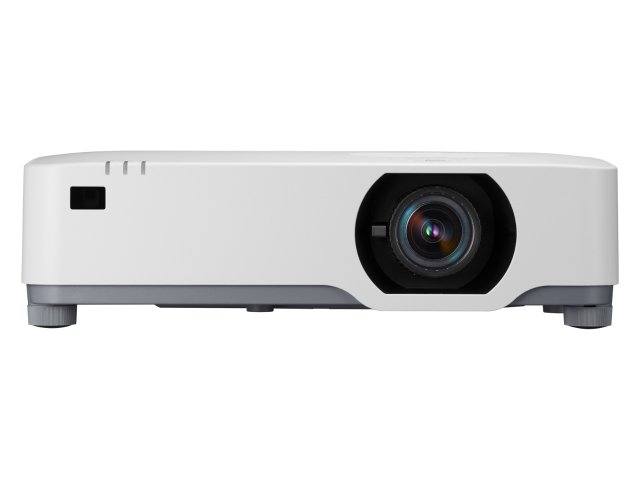

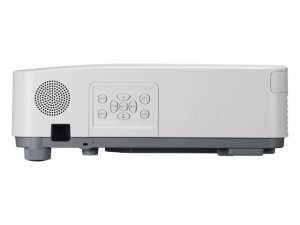

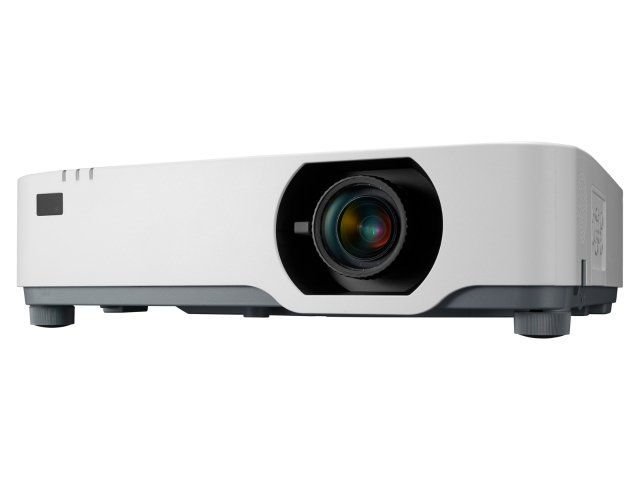

NEC P627UL. Projector brightness: 6200 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h. Focus: Manual, Focal length range: 17.2 - 27.7 mm, Aperture range (F-F): 1.5 - 2.1. Analog signal format system: NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM, Supported graphics resolutions: 1920 x 1200 (WUXGA), 3840 x 2160. Serial interface type: RJ-45, RS-232, HDMI connector type: Full-size, Service port type: USB Type-B

No filter service required – a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget
Low Noise Level – with 22dB, the silent technology will not disturb your meeting
Future-proof input management – thanks to 4K@30 Hz input processing
No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source
Risk Group 2 – because of the Risk Group 2 compliance, no prescribed safety precautions are necessary

Product Properties

Manufacturer
NEC

Model
60005762

EAN
5028695614826

Bullet points

Point
Future-proof input management – thanks to 4K@30 Hz input processing

Low Noise Level – with 22dB, the silent technology will not disturb your meeting

No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

LED indicators
Yes

Market positioning
Home cinema

Placement
Ceiling, Desktop

Product colour
White

Product type
Standard throw projector

Display

Built-in display
No

Features

Certification
CE; EAC; ErP; RoHS; TUEV, TÜV

HDCP
Yes

HID support
Yes

Interactive
No

Noise level
27 dB

Noise level (economic mode)
22 dB

Number of OSD languages
30

On Screen Display (OSD)
Yes

Projection modes
Ceiling, Front

Lens system

Aperture range (F-F)
1.5 - 2.1

Focal length range
17.2 - 27.7 mm

Focus
Manual

Horizontal lens shift range
-29 - 29%

Vertical lens shift range
0 - 60%

Zoom capability
Yes

Zoom ratio
1.6:1

Zoom type
Manual

Light source

Light source type
Laser

Service life of light source
20000 h

Logistics data

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
Yes

Number of built-in speakers
1

RMS rated power
20 W

Network

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Smart TV
No

Web browser
Yes

Wi-Fi
No

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
5 - 40 °C

Storage relative humidity (H-H)
20 - 80%

Storage temperature (T-T)
-10 - 50 °C

Packaging content

Batteries included
Yes

Cables included
AC

Manual
Yes

Remote control included
Yes

Remote control type
IR

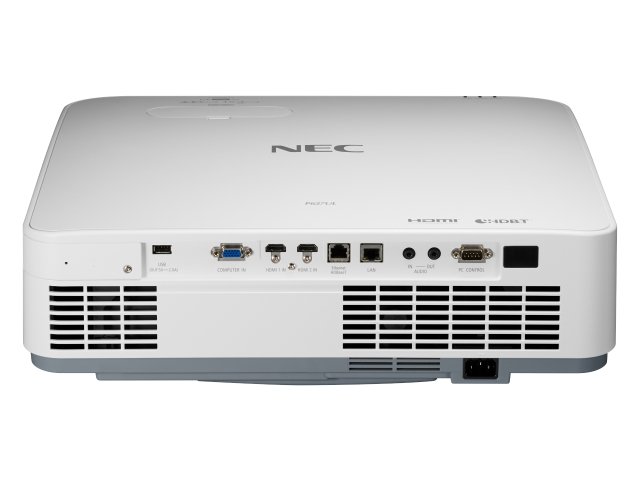

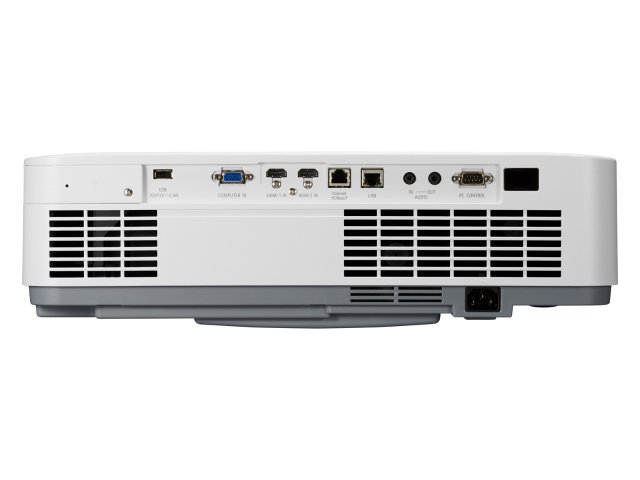

Ports & interfaces

AC (power) in
Yes

Audio (L/R) in
1

Audio (L/R) out
1

DVI port
No

HDBaseT port
Yes

HDMI connector type
Full-size

HDMI ports
2

PC in (D-Sub)
Yes

Serial interface type
RJ-45, RS-232

Service port type
USB Type-B

USB 2.0 ports quantity
1

USB 2.0 Type-A ports quantity
2

USB 2.0 Type-B ports quantity
1

VGA (D-Sub) ports quantity
1

Power

AC input frequency
50-60 Hz

AC input voltage
100-240 V

Power consumption (economy mode)
237 W

Power consumption (standby)
0.3 W

Power consumption (typical)
318 W

Power source
AC

Projector

Contrast ratio (typical)
600000:1

Keystone correction, horizontal
-30 - 30°

Keystone correction, vertical
-30 - 30°

Native aspect ratio
16:10

Projection distance
0.8 - 12.9 m

Projection technology
3LCD

Projector brightness
6200 ANSI lumens

Projector native resolution
WUXGA (1920x1200)

Screen size compatibility
762 - 7620 mm (30 - 300")

Smart projector
No

Storage

Card reader integrated
No

Video

Analog signal format system
NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM

Full HD
Yes

Supported graphics resolutions
1920 x 1200 (WUXGA), 3840 x 2160

Weight & dimensions

Depth
407 mm

Height
122 mm

Weight
9.7 kg

Width
480 mm

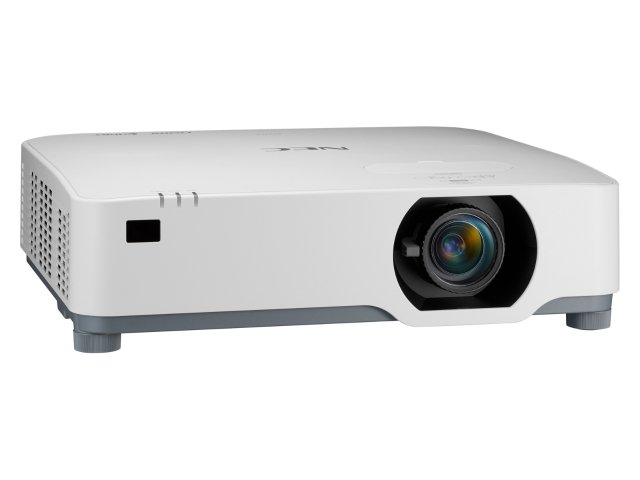

NEC P627UL Standard throw projector 6200 ANSI lumens 3LCD WUXGA (1920x1200) White
