Description

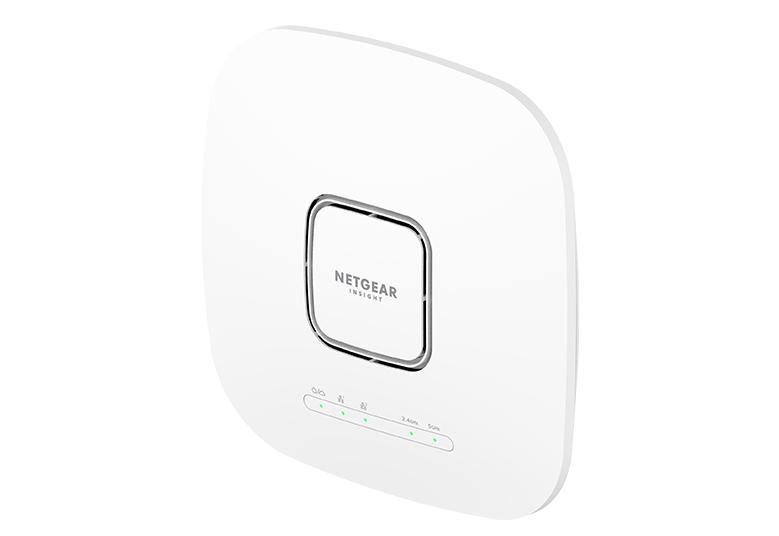

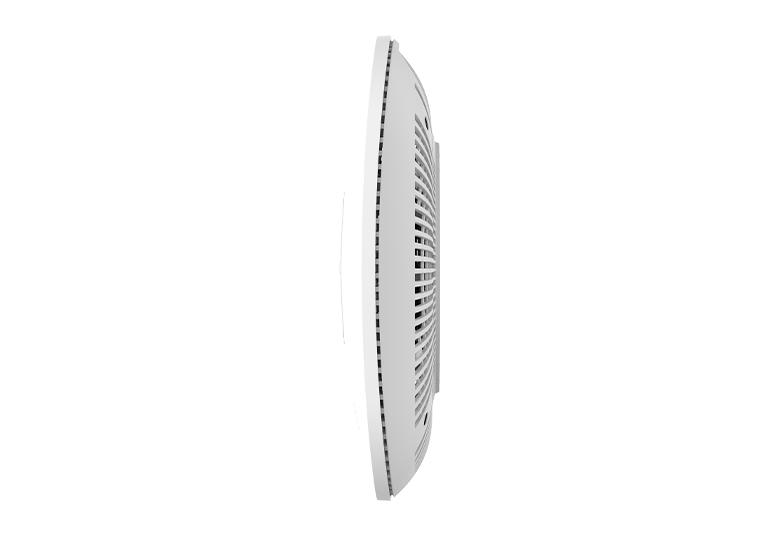

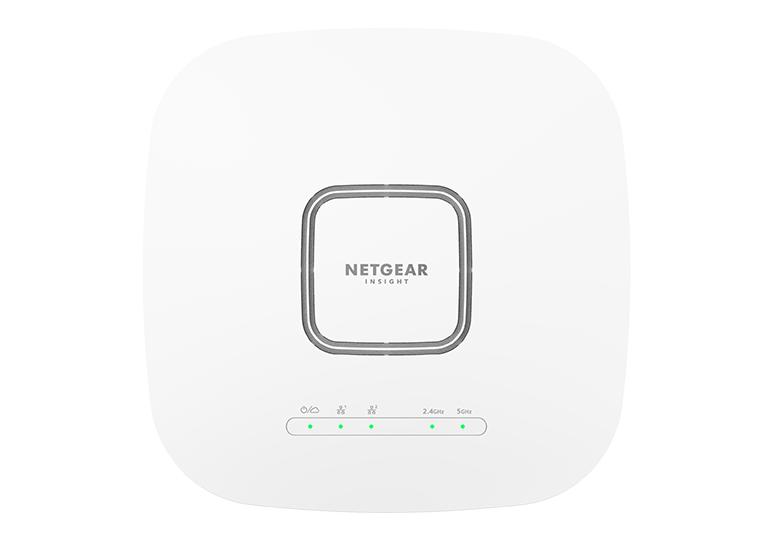

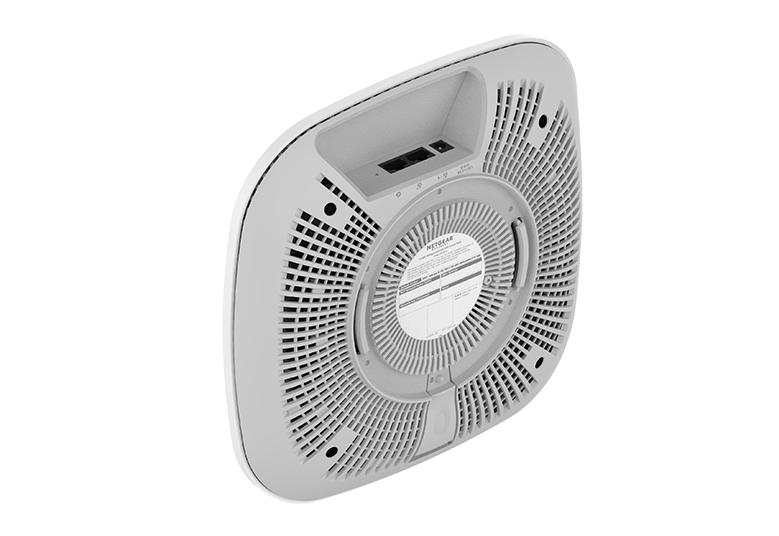

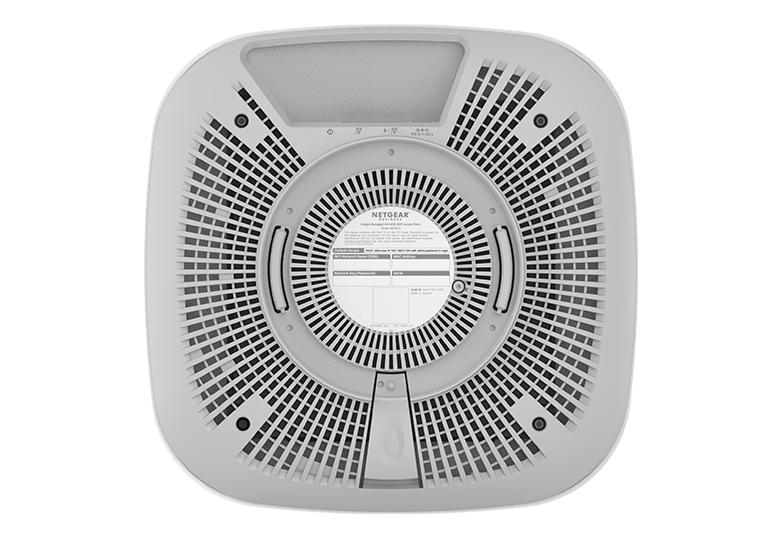

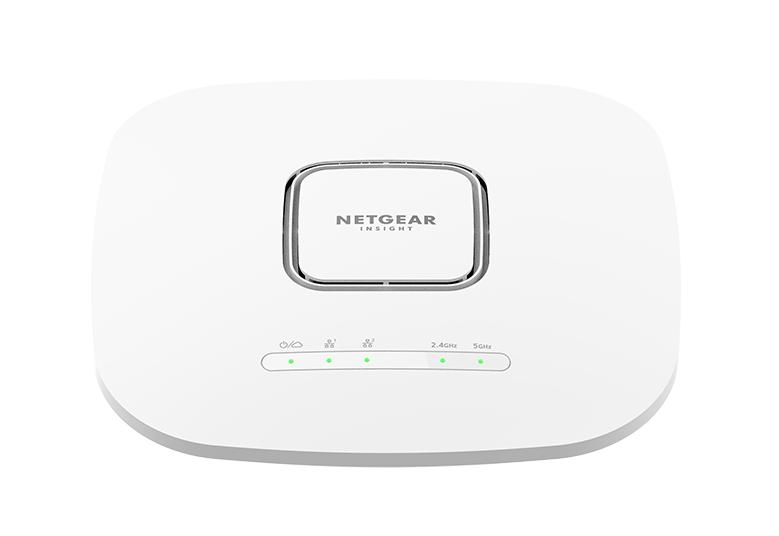

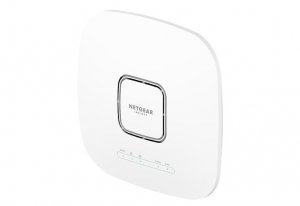

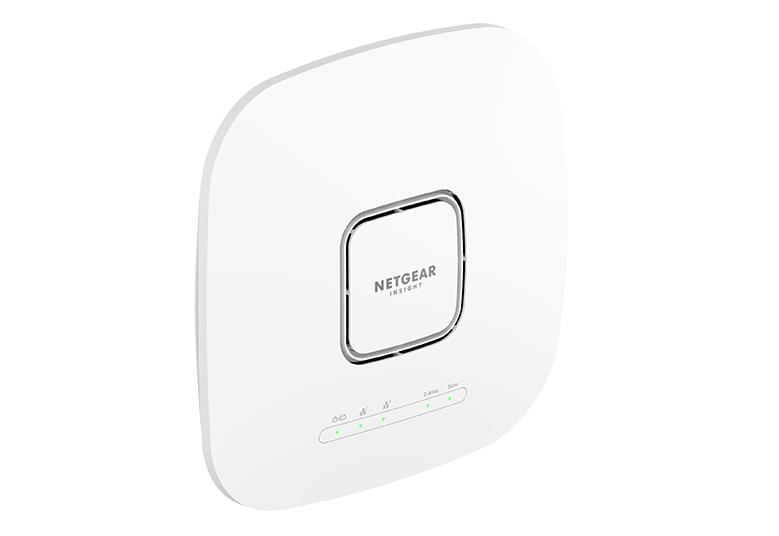

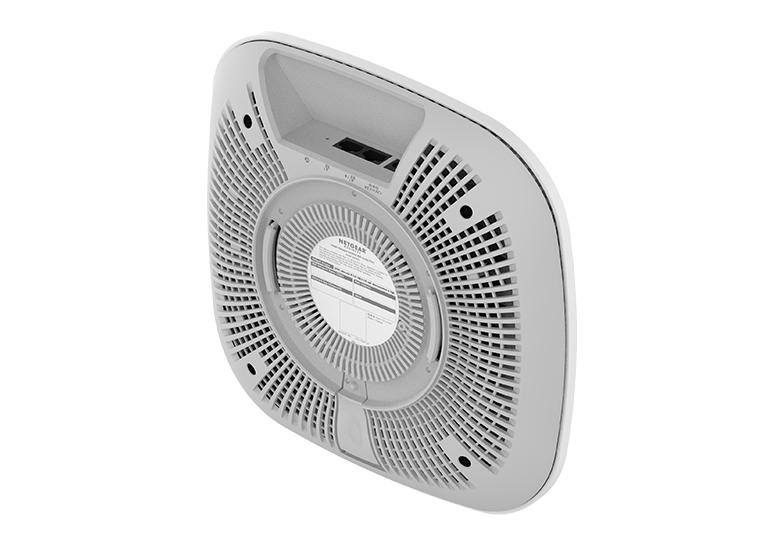

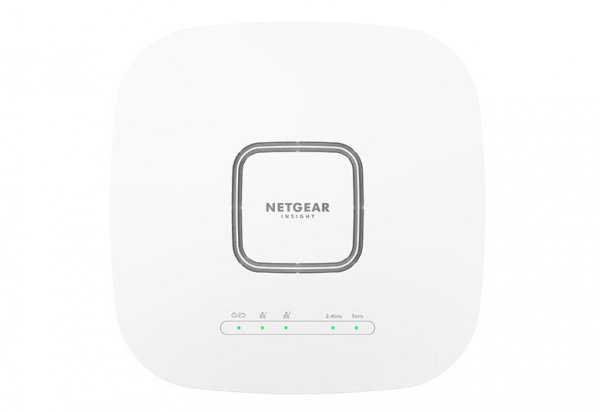

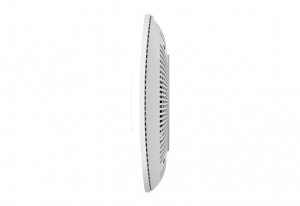

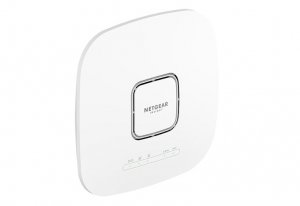

NETGEAR AX5400. 2.4 GHz, 5 GHz, Maximum data transfer rate: 5400 Mbit/s. Security algorithms: EAP, PEAP, SSID, TLS, TTLS, WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White

Ultimate speed and capacity with WiFi 6
Enterprise level security with WPA3 and 8 separate wireless networks (SSIDs)
High speed and easy wiring with a 2.5GbE port with PoE
Mesh capabilities for seamless roaming and highly scalable coverage areas
Monitor and manage your network from anywhere with NETGEAR Insight, a user-friendly cloud monitoring and management cloud portal and app

Product Properties

Manufacturer
Netgear

Model
WAX625-100EUS

EAN
606449160789

Antenna

Antenna gain level (max)
2.9 dBi

Antenna type
Internal

Antennas quantity
2

Bullet points

Point
Enterprise level security with WPA3 and 8 separate wireless networks (SSIDs)

High speed and easy wiring with a 2.5GbE port with PoE

Mesh capabilities for seamless roaming and highly scalable coverage areas

Ultimate speed and capacity with WiFi 6

Design

LED indicators
Yes

Placement
Ceiling, Wall

Product colour
White

Reset button
Yes

Features

2.4 GHz
Yes

5 GHz
Yes

Auto MDI/MDI-X
Yes

Cabling technology
10/100/1000Base-T(X)

Ethernet LAN data rates
10,100,1000,2500 Mbit/s

Maximum data transfer rate
5400 Mbit/s

Maximum data transfer rate (2.4 GHz)
600 Mbit/s

Maximum data transfer rate (5 GHz)
4800 Mbit/s

MIMO
Yes

MIMO type
Multi User MIMO

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Number of users
275 user(s)

Spread spectrum method
OFDM, OFDMA

VLAN support
Yes

Wi-Fi Multimedia (WMM)/(WME)
Yes

Management features

Web-based management
Yes

Operational conditions

Operating relative humidity (H-H)
0 - 40%

Packaging content

Mounting kit
Yes

Quantity per pack
1 pc(s)

Quick start guide
Yes

Ports & interfaces

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
2

Power

DC voltage range
12 V

Input current
2.5 A

Power over Ethernet (PoE)
Yes

Security

Auto Wireless Distribution System (WDS)
Yes

MAC address filtering
Yes

Remote Authentication Dial-In User Service (RADIUS)
Yes

Security algorithms
EAP, PEAP, SSID, TLS, TTLS, WPA, WPA2, WPA3

Service Set Identifier (SSID) features
SSID broadcast, SSID broadcast on/off

Weight & dimensions

Depth
239.6 mm

Height
51.4 mm

Weight
819 g

Width
241.2 mm

NETGEAR AX5400 5400 Mbit/s White Power over Ethernet (PoE)
