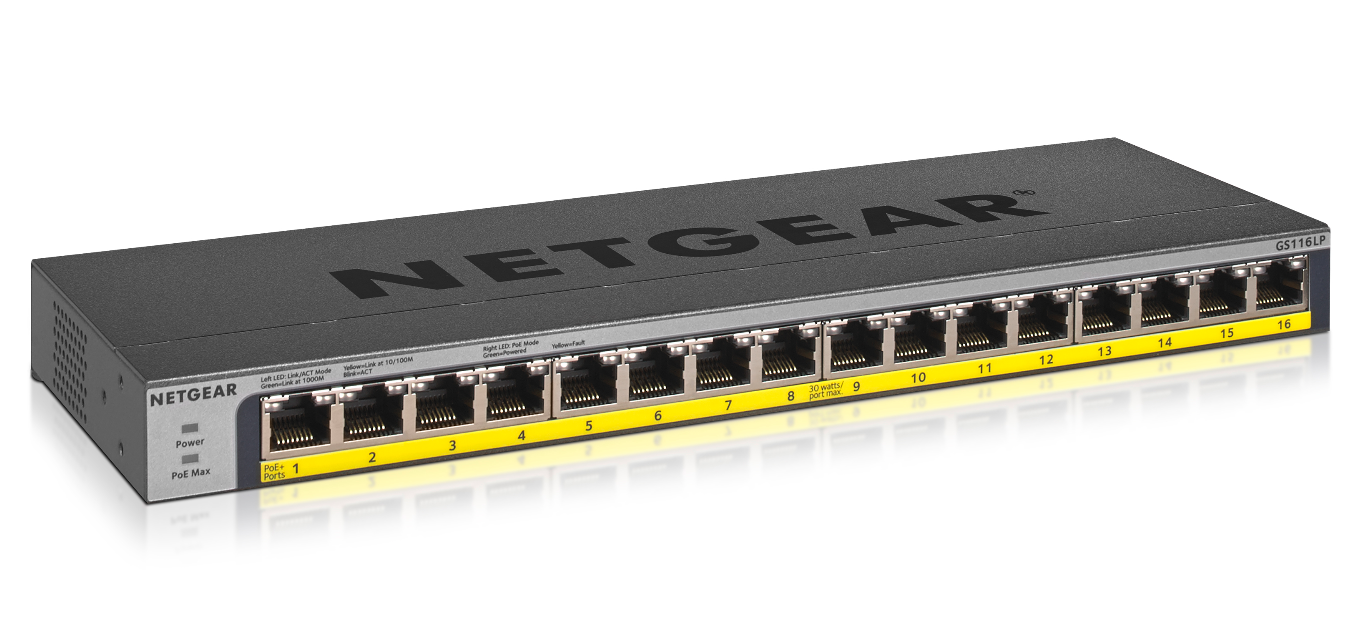

NETGEAR GS116LP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Roll over image to zoom inClick to Open expanded view
NETGEAR GS116LP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS116LP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Print
Model: GS116LP-100EUS
EAN: 606449133356

NETGEAR GS116LP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Manufacturer:
Netgear
NETGEAR GS116LP, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
Please log in to see your price
Related products

Description

NETGEAR GS116LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). MAC address table: 4000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x. DC input voltage: 54 V. Power over Ethernet (PoE). Rack mounting

Product Properties

  • Model
  • GS116LP-100EUS
  • EAN
  • 606449133356
  • Certificates
  • Certification
  • CE, FCC, ICES-003, VCCI, RCM, BSMI, KC, CB, CE LVD, BSMI, EAC, RCM, KC, EN 60950-1
  • Data transmission
  • Jumbo frames support
  • Yes
  • MAC address table
  • 4000 entries
  • Switching capacity
  • 32 Gbit/s
  • Design
  • LED indicators
  • Yes
  • Number of fans
  • 1 fan(s)
  • Product colour
  • Black
  • Rack mounting
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch type
  • Unmanaged
  • Network
  • 10G support
  • No
  • Flow control support
  • Yes
  • Networking standards
  • IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
  • Operational conditions
  • Heat dissipation
  • 270.18 BTU/h
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 0 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 0 - 95%
  • Storage temperature (T-T)
  • -20 - 70 °C
  • Performance
  • Buffer size
  • 1000 KB
  • Mean time between failures (MTBF)
  • 2088514 h
  • Ports & interfaces
  • Gigabit Ethernet (copper) ports quantity
  • 16
  • Installed SFP modules quantity
  • 0
  • Installed SFP+ modules quantity
  • 0
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • DC input voltage
  • 54 V
  • Input current
  • 1.66 A
  • Power consumption (typical)
  • 90 W
  • Power source
  • DC/PoE
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet plus (PoE+) ports quantity
  • 16
  • Total Power over Ethernet (PoE) budget
  • 76 W
  • Weight & dimensions
  • Depth
  • 102 mm
  • Height
  • 27 mm
  • Weight
  • 880 g
  • Width
  • 286 mm
