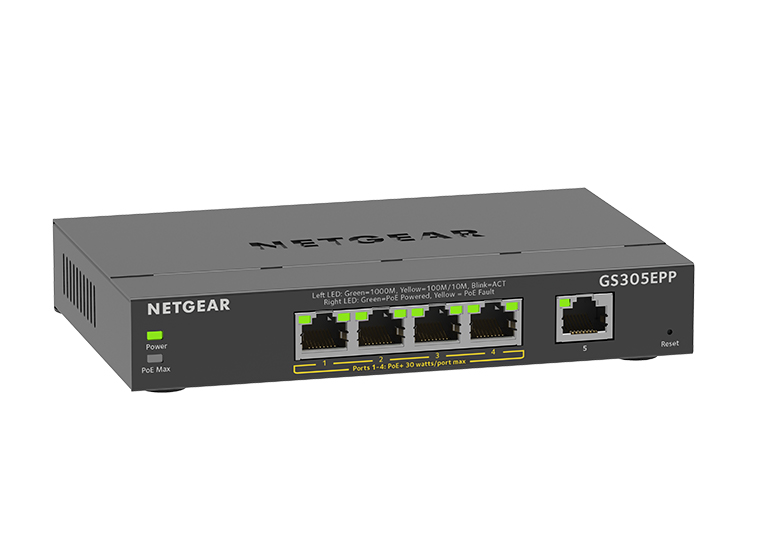

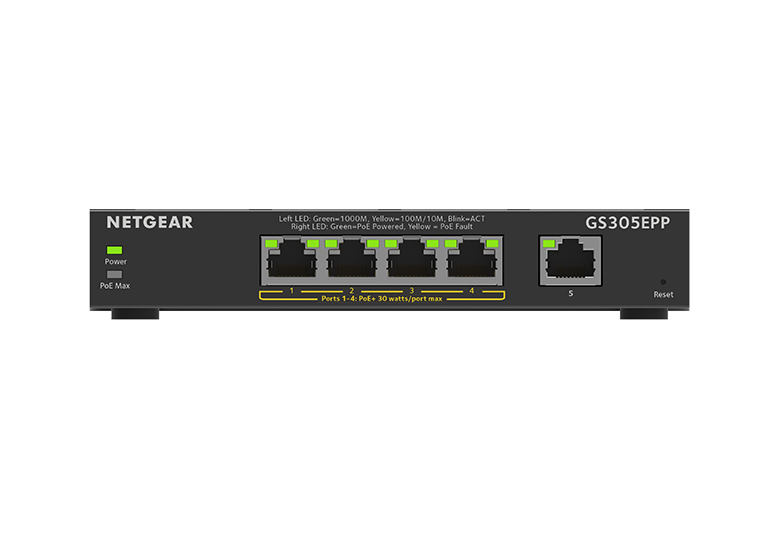

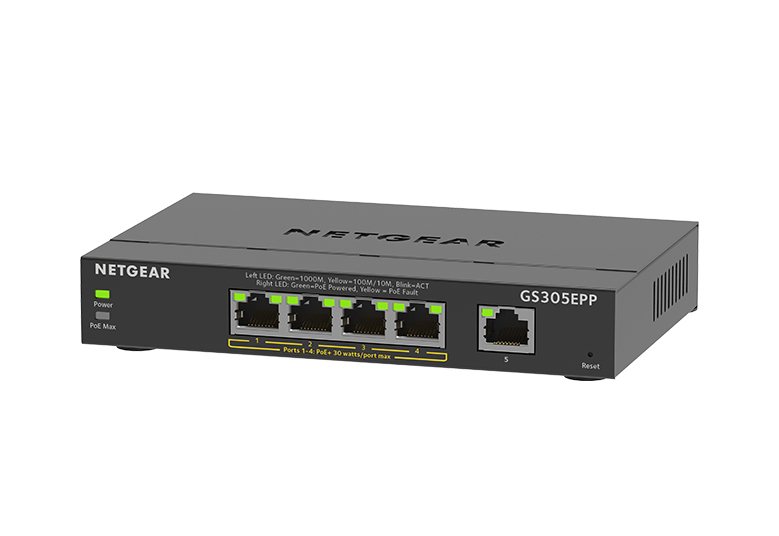

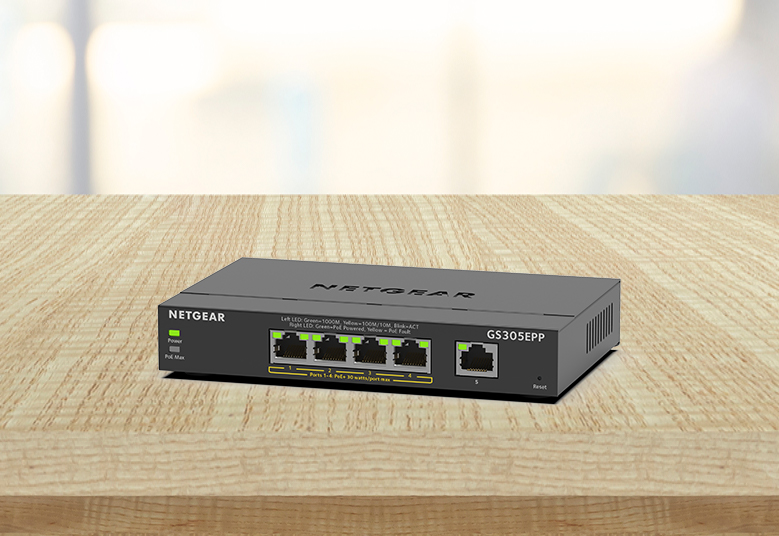

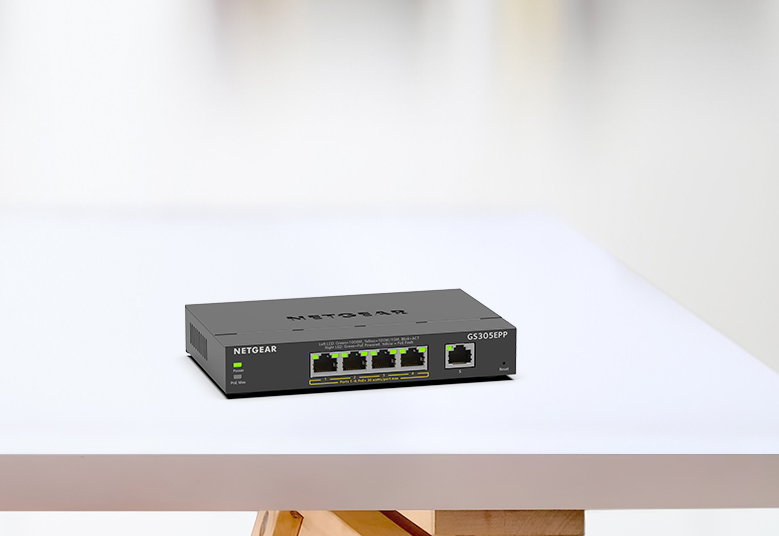

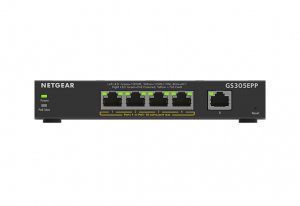

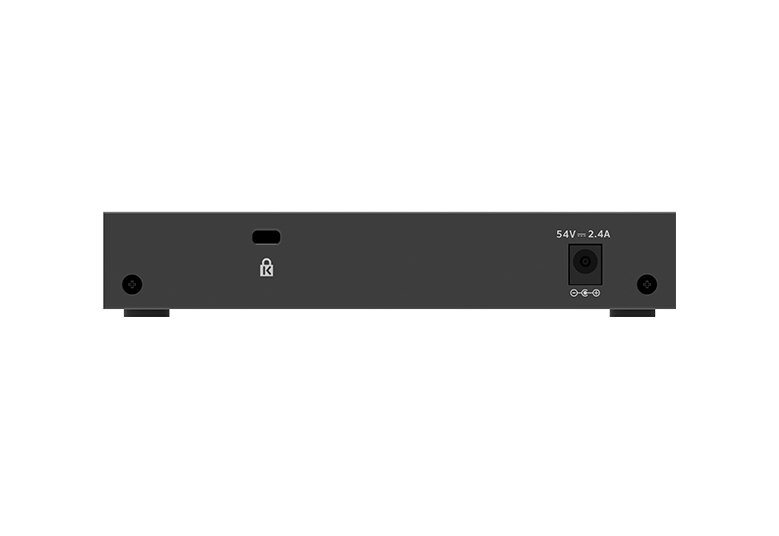

NETGEAR GS305EPP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Roll over image to zoom inClick to Open expanded view
NETGEAR GS305EPP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS305EPP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS305EPP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS305EPP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS305EPP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS305EPP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Print
Model: GS305EPP-100UKS
EAN: 606449153200

NETGEAR GS305EPP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Manufacturer:
Netgear
NETGEAR GS305EPP, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable
Please log in to see your price
Related products

Description

NETGEAR GS305EPP. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 4000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE.... Power over Ethernet (PoE). Wall mountable

Product Properties

  • Model
  • GS305EPP-100UKS
  • EAN
  • 606449153200
  • Certificates
  • Certification
  • CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI
  • Data transmission
  • Jumbo frames
  • 9216
  • MAC address table
  • 4000 entries
  • Packet buffer memory
  • 0.192 MB
  • Store-and-forward
  • Yes
  • Switching capacity
  • 10 Gbit/s
  • Design
  • Housing material
  • Metal
  • LED indicators
  • Activity, Link, PoE, Power, Speed, System
  • Product colour
  • Black
  • Rack mounting
  • No
  • Wall mountable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L3
  • Switch type
  • Managed
  • Web-based management
  • Yes
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • 10G support
  • No
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
  • Number of VLANs
  • 64
  • Port mirroring
  • Yes
  • Rate limiting
  • Yes
  • VLAN support
  • Yes
  • Operational conditions
  • Non-operating altitude
  • 0 - 3000 m
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 0 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 0 - 95%
  • Storage temperature (T-T)
  • -20 - 70 °C
  • Packaging content
  • Quick start guide
  • Yes
  • Performance
  • Fanless
  • Yes
  • Mean time between failures (MTBF)
  • 853770 h
  • Ports & interfaces
  • Installed SFP modules quantity
  • 0
  • Installed SFP+ modules quantity
  • 0
  • Switch Number of Ports
  • 5
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • Input current
  • 1.25 A
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) ports quantity
  • 4
  • Power over Ethernet plus (PoE+) ports quantity
  • 4
  • Total Power over Ethernet (PoE) budget
  • 120 W
  • Security
  • DHCP features
  • DHCP client
  • IGMP snooping
  • Yes
  • Loop protection
  • Yes
  • Password protection
  • Yes
  • Queue scheduling algorithms
  • Weighted Round Robin (WRR)
  • Weight & dimensions
  • Depth
  • 101 mm
  • Height
  • 27 mm
  • Weight
  • 400 g
  • Width
  • 158 mm
