Description

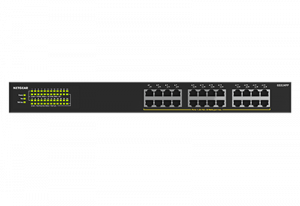

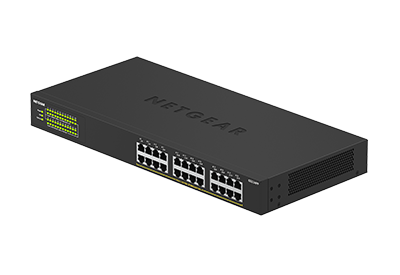

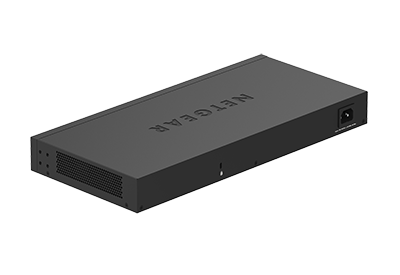

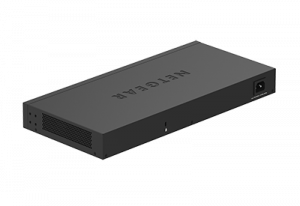

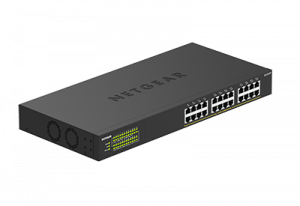

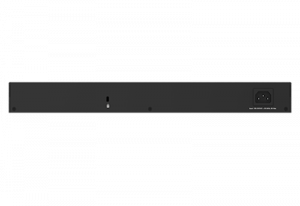

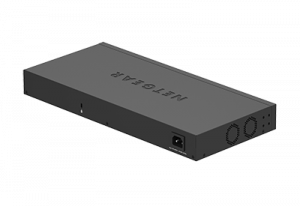

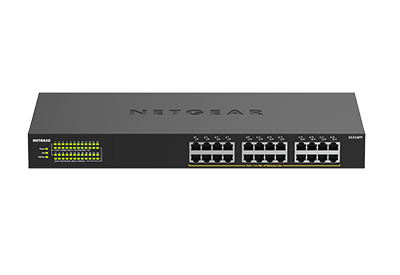

NETGEAR GS324PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting

ETHERNET PORT CONFIGURATION: 24 Gigabit ports
POWER-OVER-ETHERNET: 24 PoE+ ports with 380W total power budget to power wireless AP, IP Cameras, IP Phones and much more
PLUG-AND-PLAY: Simple set up with no software to install or configuration needed
VERSATILE MOUNTING OPTIONS: Supports desktop, or rackmount placement, and includes all the necessary mounting hardware in the box
PoE POWER AUTO-BALANCE AND ALLOCATION - NETGEAR’s unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs
QUIET OPERATION: Ideal for noise-sensitive environments
ENERGY EFFICIENT: Designed to optimize power usage lowering its cost to operate. Compliant with IEEE802.3az Energy Efficient Ethernet mode
BUILT TO LAST: Every NETGEAR Network switch is rigorously tested for reliability, quality, and performance

Product Properties

Manufacturer
Netgear

Model
GS324PP-100EUS

EAN
606449144826

Bullet points

Point
Built to last

ENERGY EFFICIENT

ETHERNET PORT CONFIGURATION: 24 Gigabit ports

PLUG-AND-PLAY: Simple set up with no software to install or configuration needed

POWER-OVER-ETHERNET

QUIET OPERATION: Ideal for noise-sensitive environments

VERSATILE MOUNTING OPTIONS

Certificates

Certification
CB, CE LVD, UL

Data transmission

Jumbo frames
10000

Jumbo frames support
Yes

Latency (1 Gbps)
4 µs

MAC address table
8000 entries

Packet buffer memory
0.192 MB

Packet forwarding rate (1 Gbps)
1448000 pps

Switching capacity
48 Gbit/s

Design

Electromagnetic compatibility
CE, FCC 15 A, IC A, RCM, VCCI, KC

Housing material
Metal

LED indicators
Activity, Link, PoE, Power, Speed

Number of fans
2 fan(s)

Product colour
Black

Rack mounting
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Quality of Service (QoS) support
Yes

Switch type
Unmanaged

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Full duplex
Yes

Networking standards
IEEE 802.1p, IEEE 802.3at

Operational conditions

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 45 °C

Storage relative humidity (H-H)
10 - 95%

Storage temperature (T-T)
-20 - 70 °C

Performance

Mean time between failures (MTBF)
667762 h

Ports & interfaces

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

Switch Number of Ports
24

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Input current
8 A

Power consumption (max)
400 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) power per port
30 W

Power over Ethernet plus (PoE+) ports quantity
24

Total Power over Ethernet (PoE) budget
380 W

Security

Queue scheduling algorithms
Weighted Round Robin (WRR)

Weight & dimensions

Depth
204 mm

Height
43 mm

Weight
3.3 kg

Width
440 mm

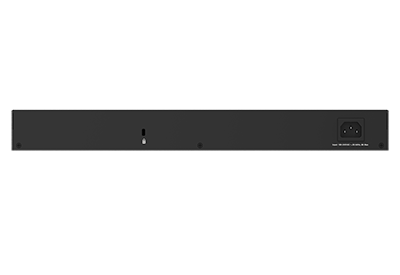

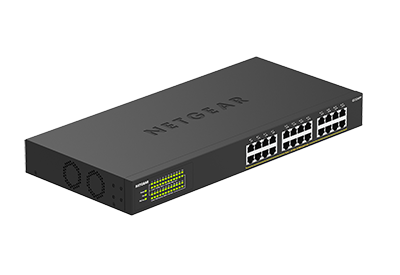

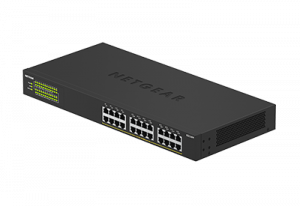

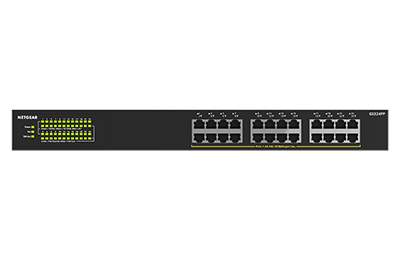

NETGEAR GS324PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
