Description

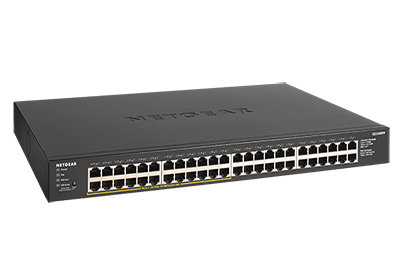

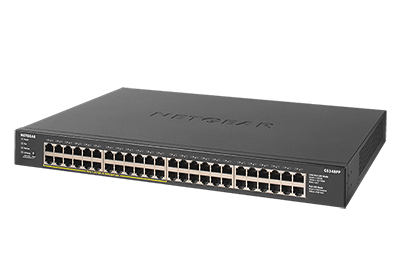

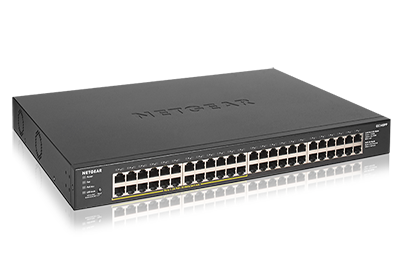

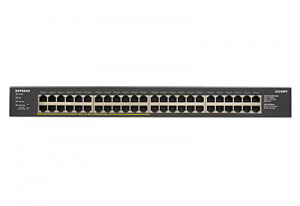

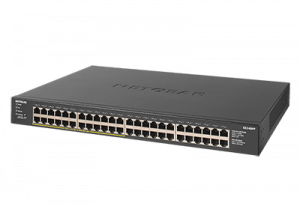

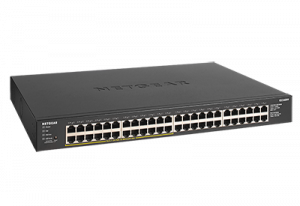

NETGEAR GS348PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 8000 entries, Switching capacity: 96 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting

ETHERNET PORT CONFIGURATION: 48 Gigabit ports
POWER-OVER-ETHERNET: 24 PoE+ ports with 380W total power budget to power wireless AP, IP Cameras, IP Phones and much more
PLUG-AND-PLAY: Simple set up with no software to install or configuration needed
VERSATILE MOUNTING OPTIONS: Supports desktop, or rackmount placement, and includes all the necessary mounting hardware in the box
PoE POWER AUTO-BALANCE AND ALLOCATION - NETGEAR’s unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs
QUIET OPERATION: Ideal for noise-sensitive environments
ENERGY EFFICIENT: Designed to optimize power usage lowering its cost to operate. Compliant with IEEE802.3az Energy Efficient Ethernet mode
BUILT TO LAST: Every NETGEAR Network switch is rigorously tested for reliability, quality, and performance

Product Properties

Manufacturer
Netgear

Model
GS348PP-100EUS

EAN
606449145588

Bullet points

Point
Built to last

ENERGY EFFICIENT

ETHERNET PORT CONFIGURATION: 48 Gigabit ports

PLUG-AND-PLAY: Simple set up with no software to install or configuration needed

POWER-OVER-ETHERNET

QUIET OPERATION: Ideal for noise-sensitive environments

VERSATILE MOUNTING OPTIONS

Data transmission

Forwarding rate
1.448 Mpps

Jumbo frames
12288

Jumbo frames support
Yes

Latency (1 Gbps)
4 µs

MAC address table
8000 entries

Packet buffer memory
1.5 MB

Packet forwarding rate (1 Gbps)
1448000 pps

Switching capacity
96 Gbit/s

Design

Certification
CE, FCC 15 A, IC A, RCM, VCCI, KC CB, CE LVD, UL

Housing material
Metal

LED indicators
Activity, Link, PoE, Power, Speed

Number of fans
2 fan(s)

Product colour
Black

Rack mounting
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Quality of Service (QoS) support
Yes

Switch type
Unmanaged

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Auto-sensing
Yes

Cable length detection
Yes

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T

Full duplex
Yes

Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u

Operational conditions

Heat dissipation
1402.2 BTU/h

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 45 °C

Storage relative humidity (H-H)
10 - 95%

Storage temperature (T-T)
-20 - 70 °C

Packaging data

Cables included
AC

Rack mount kit
Yes

User guide
Yes

Performance

Mean time between failures (MTBF)
570972 h

Ports & interfaces

Switch Number of Ports
48

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50 - 60 Hz

AC input voltage
110 - 240 V

Power consumption (max)
410 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) ports quantity
24

Power over Ethernet (PoE) power per port
30 W

Total Power over Ethernet (PoE) budget
380 W

Security

Queue scheduling algorithms
Weighted Round Robin (WRR)

Weight & dimensions

Depth
310 mm

Height
43 mm

Weight
4.56 kg

Width
440 mm

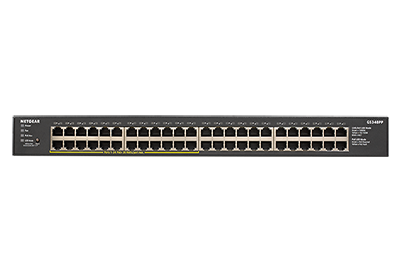

NETGEAR GS348PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
