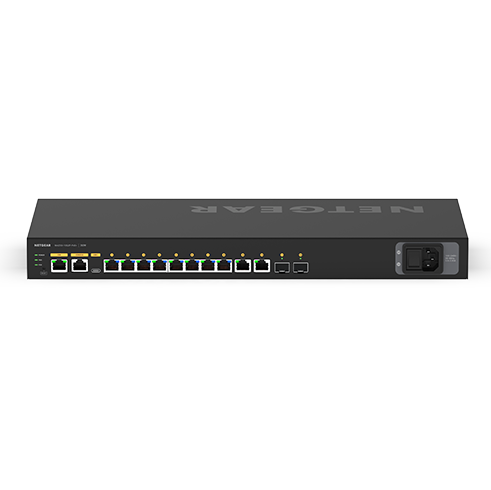

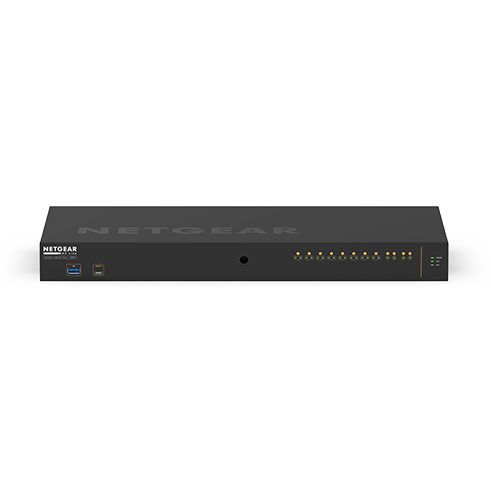

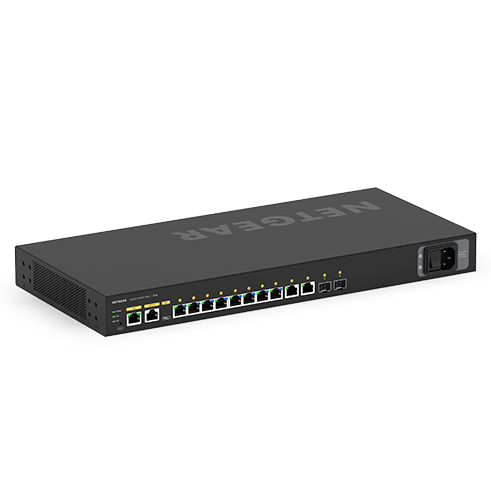

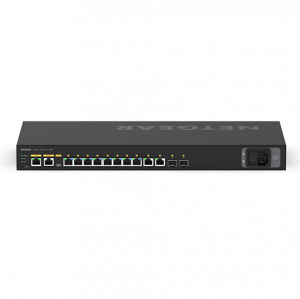

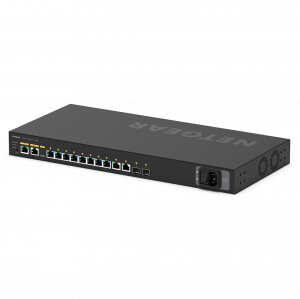

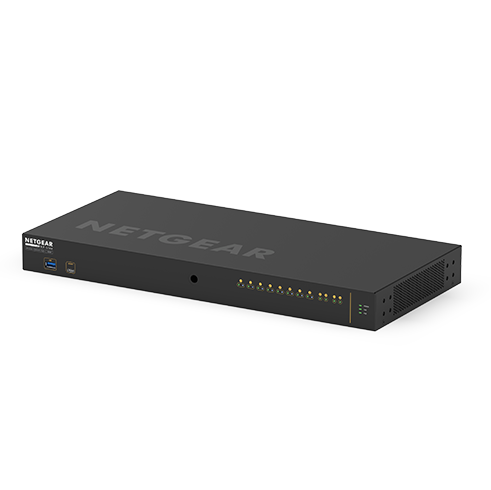

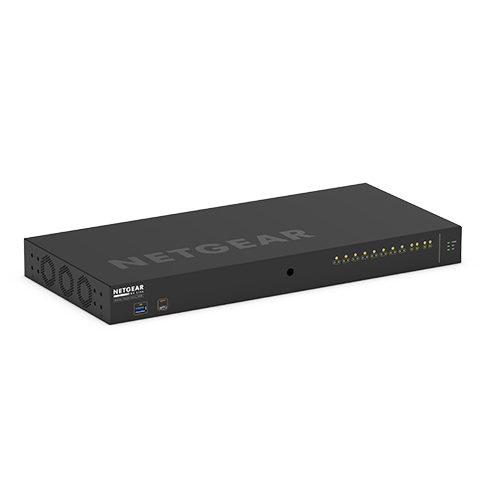

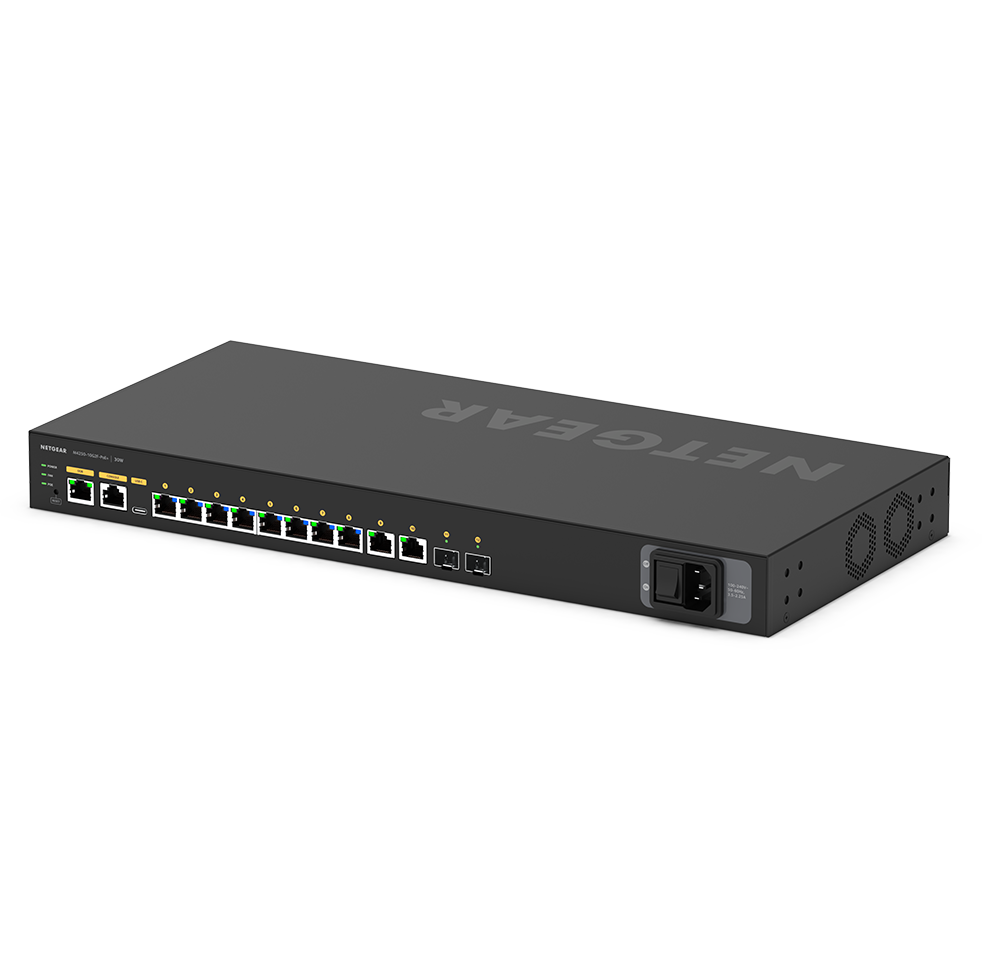

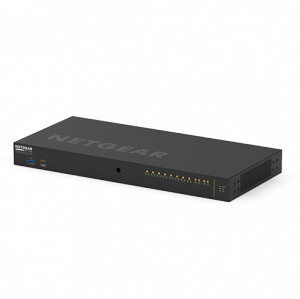

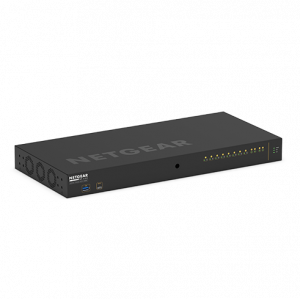

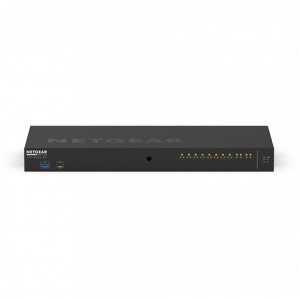

NETGEAR M4250-10G2F Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Roll over image to zoom inClick to Open expanded view
NETGEAR M4250-10G2F Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
NETGEAR M4250-10G2F Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
NETGEAR M4250-10G2F Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
NETGEAR M4250-10G2F Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
NETGEAR M4250-10G2F Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
NETGEAR M4250-10G2F Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Print
Model: GSM4212P-100EUS
EAN: 606449149548

NETGEAR M4250-10G2F Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Manufacturer:
Netgear
NETGEAR M4250-10G2F, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Please log in to see your price
Related products

Description

NETGEAR M4250-10G2F. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. Full duplex. MAC address table: 16000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Product Properties

  • Model
  • GSM4212P-100EUS
  • EAN
  • 606449149548
  • Data transmission
  • Jumbo frames
  • 12000
  • Jumbo frames support
  • Yes
  • Latency (1 Gbps)
  • 2.27 µs
  • MAC address table
  • 16000 entries
  • Number of queues
  • 8
  • Packet buffer memory
  • 16 MB
  • Store-and-forward
  • Yes
  • Switching capacity
  • 24 Gbit/s
  • Throughput
  • 17.86 Mpps
  • Design
  • Form factor
  • 1U
  • LED indicators
  • PoE, Power, Status
  • Product colour
  • Black
  • Rack mounting
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2/L3
  • Switch type
  • Managed
  • Multicast features
  • IPv4 multicast entries
  • 2000
  • IPv6 multicast entries
  • 2000
  • Multicast support
  • Yes
  • Network
  • 10G support
  • No
  • Broadcast storm control
  • Yes
  • Full duplex
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
  • Number of VLANs
  • 4093
  • Rate limiting
  • Yes
  • Spanning tree protocol
  • Yes
  • Virtual LAN features
  • MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
  • VLAN support
  • Yes
  • Operational conditions
  • Heat dissipation
  • 559.555 BTU/h
  • Non-operating altitude
  • 0 - 3000 m
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 0 - 90%
  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage relative humidity (H-H)
  • 0 - 95%
  • Storage temperature (T-T)
  • -20 - 70 °C
  • Performance
  • Built-in processor
  • Yes
  • Internal memory
  • 2048 MB
  • Mean time between failures (MTBF)
  • 778769 h
  • Noise level
  • 30.06 dB
  • Processor frequency
  • 1250 MHz
  • Processor model
  • ARM Cortex-A9
  • Ports & interfaces
  • Installed SFP modules quantity
  • 0
  • Installed SFP+ modules quantity
  • 0
  • SFP module slots quantity
  • 2
  • Switch Number of Ports
  • 10
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • Power consumption (typical)
  • 163.9 W
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) power per port
  • 30 W
  • Power over Ethernet plus (PoE+) ports quantity
  • 8
  • Total Power over Ethernet (PoE) budget
  • 150 W
  • Security
  • Access Control List (ACL)
  • Yes
  • Authentication
  • MAC-based authentication
  • Authentication type
  • RADIUS
  • BPDU filtering/protection
  • Yes
  • DHCP features
  • DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
  • IGMP snooping
  • Yes
  • Loop protection
  • Yes
  • SSH/SSL support
  • Yes
  • Weight & dimensions
  • Depth
  • 200 mm
  • Height
  • 43.2 mm
  • Weight
  • 2.85 kg
  • Width
  • 440 mm
