Description

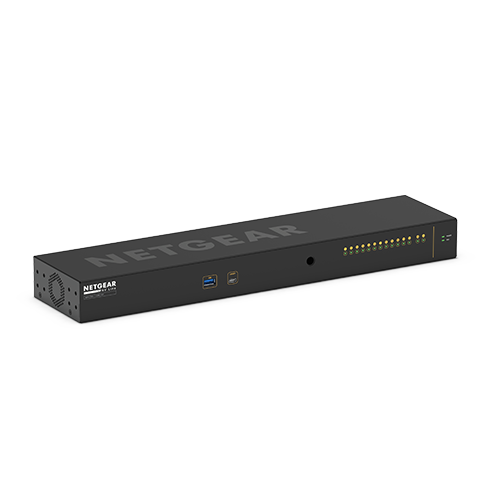

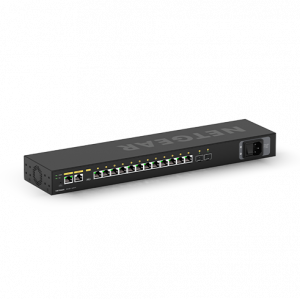

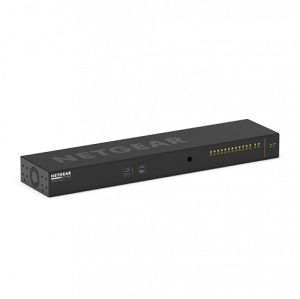

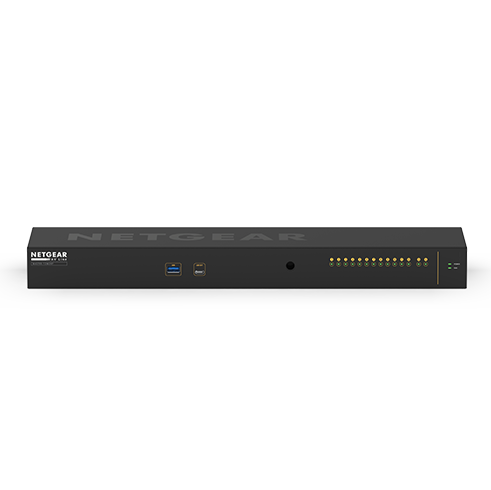

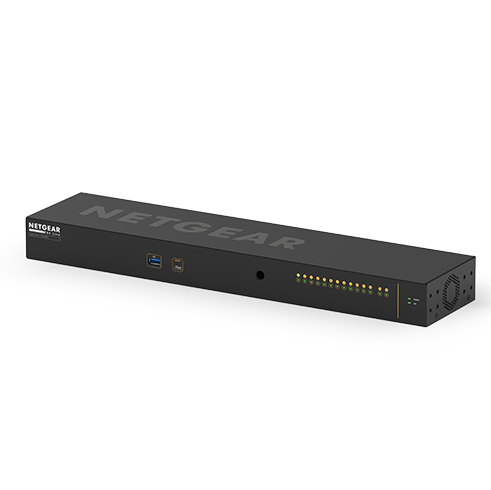

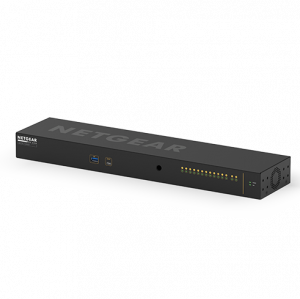

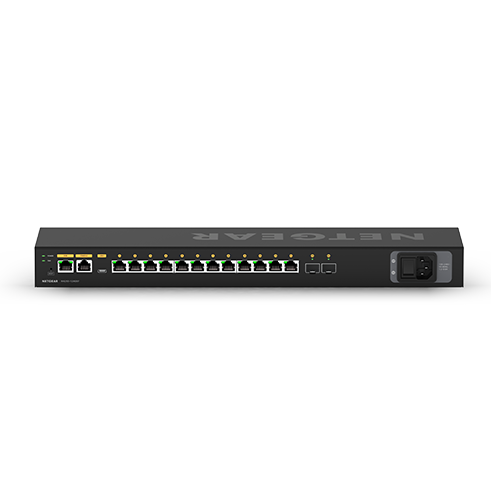

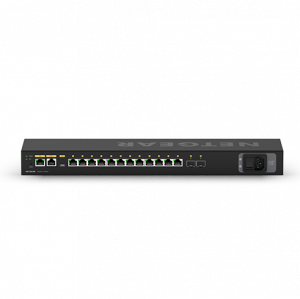

NETGEAR M4250-12M2XF. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet, Basic switching RJ-45 Ethernet ports quantity: 12. Full duplex. MAC address table: 16000 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U

Dedicated AV web-based GUI interface for more specific AV installations
Color-based AV profiles can be applied to the different ports
Dante, Q-SYS, AES67 and AVB audio profiles
AVB requires an AVB4212P-10000S license (sold separately)
NVX, SVSI, Q-SYS, NDI and Dante video profiles
Audio / video / control mixed profiles
Automatic switch interconnect with NETGEAR IGMP Plus
Common Layer 2 and Layer 3 switching engine across all M4250 models
Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series
Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2

Product Properties

Manufacturer
Netgear

Model
MSM4214X-100EUS

EAN
606449149661

Bullet points

Point
Audio / video / control mixed profiles

Automatic switch interconnect with NETGEAR IGMP Plus

AVB requires an AVB4212P-10000S license (sold separately)

Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series

Color-based AV profiles can be applied to the different ports

Common Layer 2 and Layer 3 switching engine across all M4250 models

Dante, Q-SYS, AES67 and AVB audio profiles

Dedicated AV web-based GUI interface for more specific AV installations

Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2

NVX, SVSI, Q-SYS, NDI and Dante video profiles

Data transmission

Jumbo frames
12000

Jumbo frames support
Yes

Latency (1 Gbps)
1.186 µs

MAC address table
16000 entries

Number of queues
8

Packet buffer memory
16 MB

Store-and-forward
Yes

Switching capacity
100 Gbit/s

Throughput
74.4 Mpps

Design

Form factor
1U

LED indicators
PoE, Power, Status

Product colour
Black

Rack mounting
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Quality of Service (QoS) support
Yes

Switch layer
L2/L3

Switch type
Managed

Multicast features

IPv4 multicast entries
2000

IPv6 multicast entries
2000

Multicast support
Yes

Network

10G support
No

Broadcast storm control
Yes

Full duplex
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x

Number of VLANs
4093

Rate limiting
Yes

Spanning tree protocol
Yes

Virtual LAN features
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

VLAN support
Yes

Operational conditions

Heat dissipation
129.39 BTU/h

Non-operating altitude
0 - 3000 m

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
0 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-20 - 70 °C

Performance

Built-in processor
Yes

Internal memory
2048 MB

Mean time between failures (MTBF)
720892 h

Noise level
46.4 dB

Processor frequency
1250 MHz

Processor model
ARM Cortex-A9

Ports & interfaces

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

SFP+ module slots quantity
2

Switch Number of Ports
12

Switch Port Speed
2.5G Ethernet

Power

Power consumption (typical)
37.9 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Security

Access Control List (ACL)
Yes

Authentication
MAC-based authentication

Authentication type
RADIUS

BPDU filtering/protection
Yes

DHCP features
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping

IGMP snooping
Yes

Loop protection
Yes

SSH/SSL support
Yes

Weight & dimensions

Depth
100 mm

Height
43.2 mm

Weight
1.75 kg

Width
440 mm

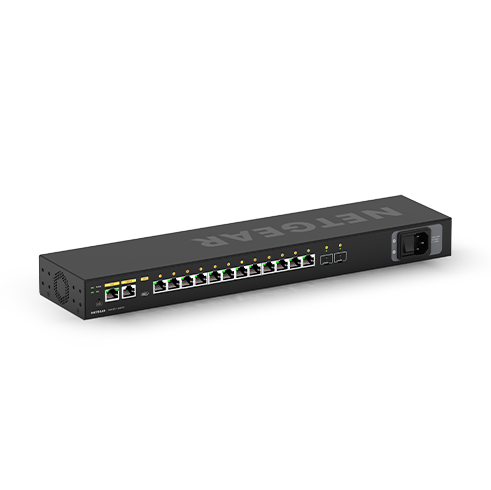

NETGEAR M4250-12M2XF Managed L2/L3 2.5G Ethernet 1U Black
