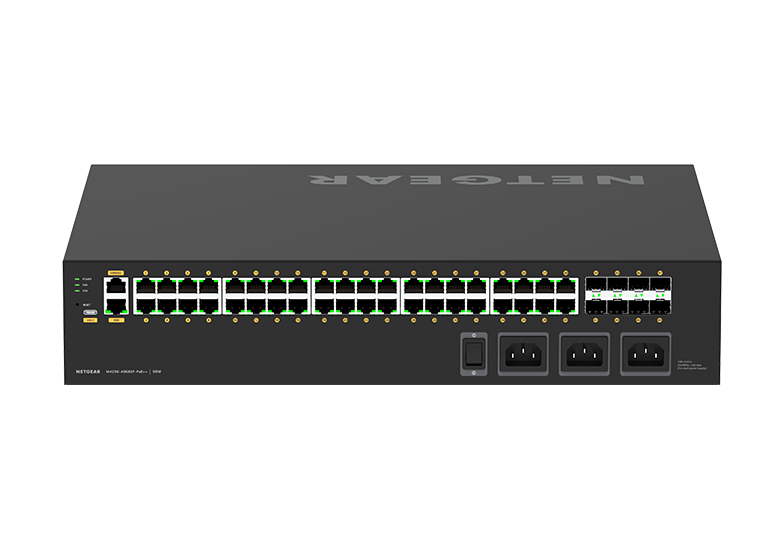

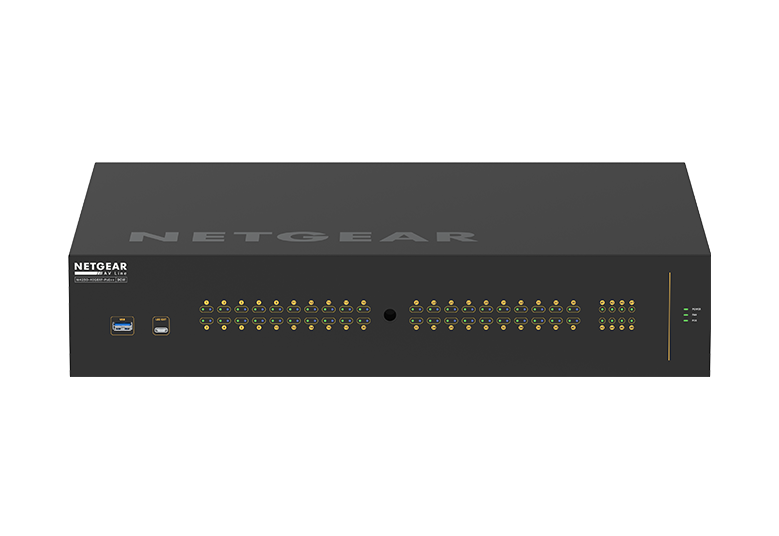

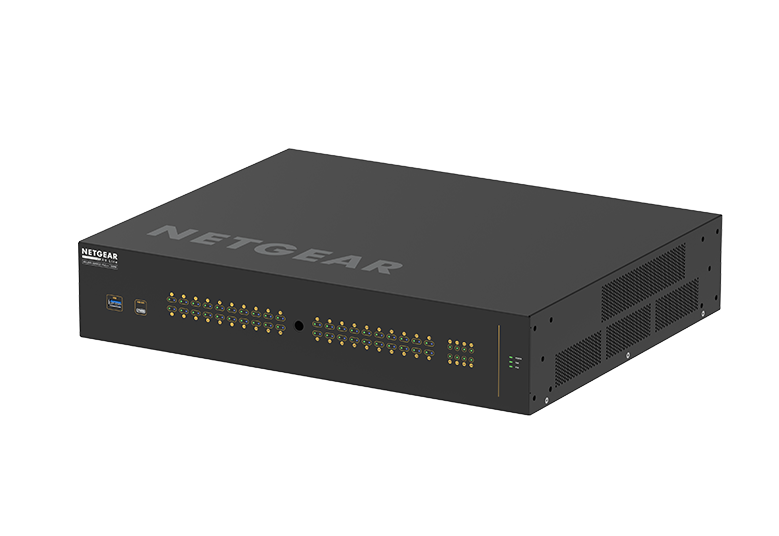

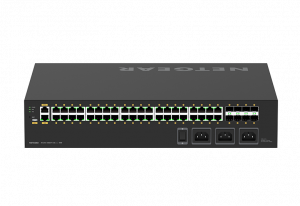

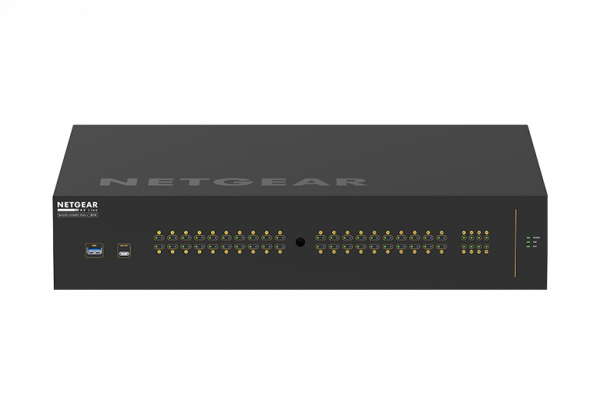

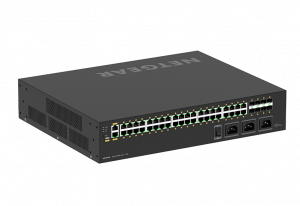

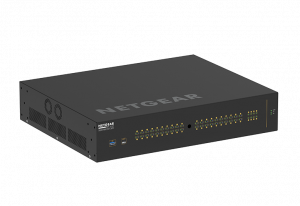

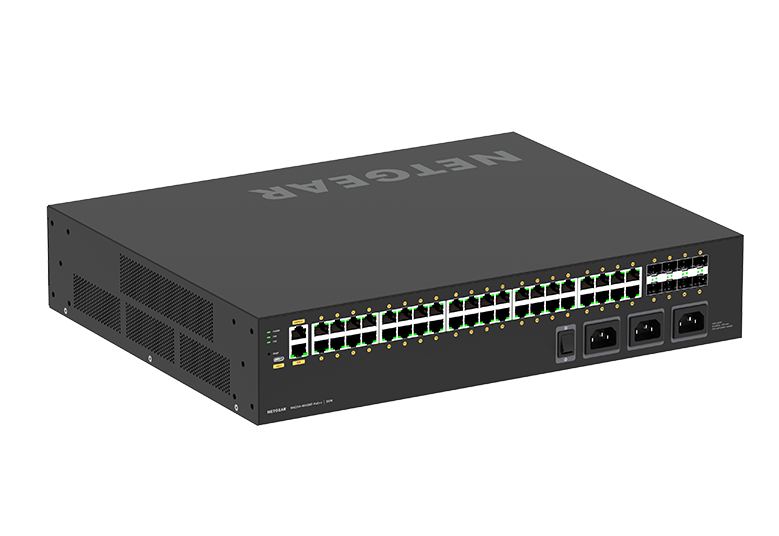

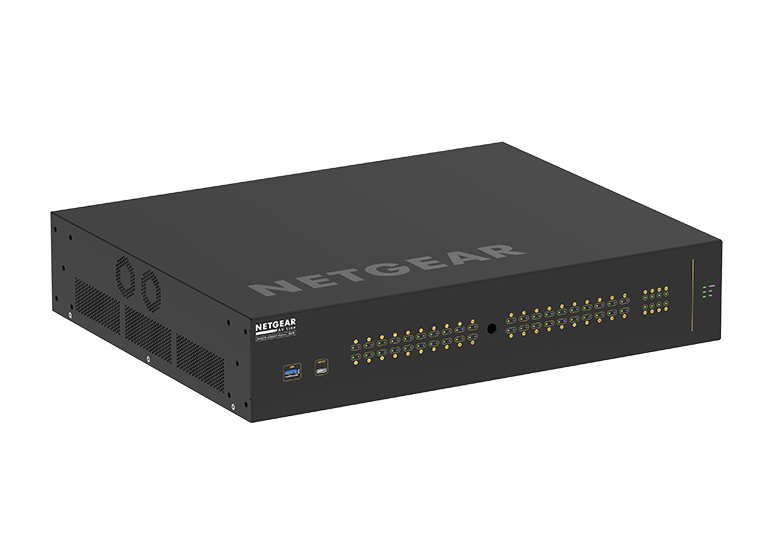

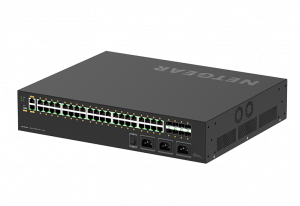

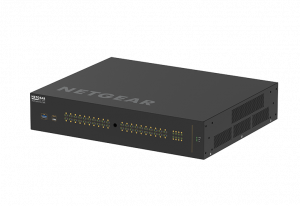

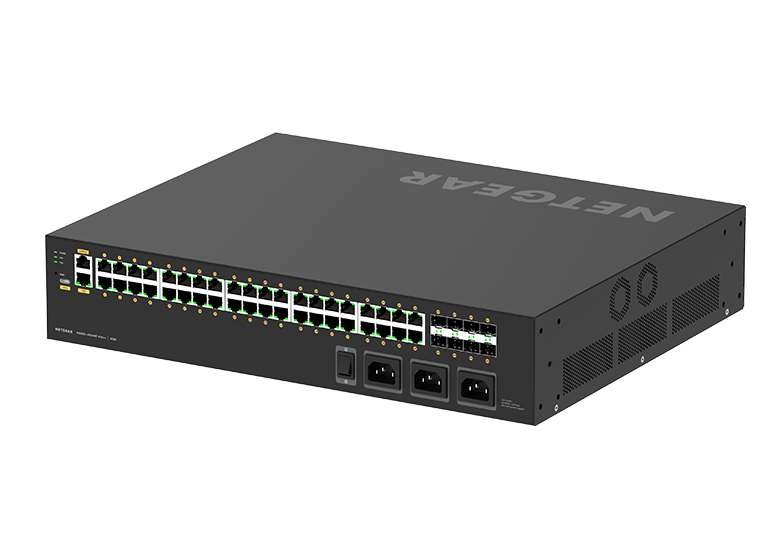

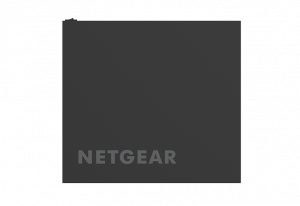

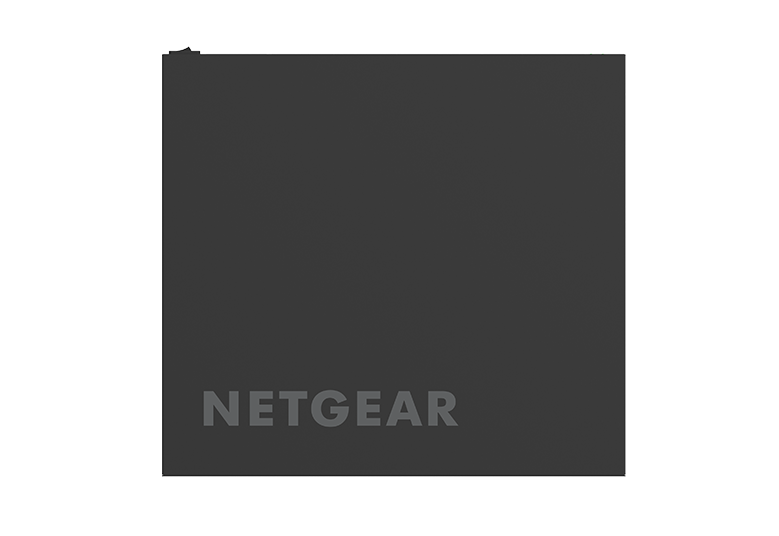

NETGEAR M4250-40G8XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U Black
Roll over image to zoom inClick to Open expanded view
NETGEAR M4250-40G8XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U Black
NETGEAR M4250-40G8XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U Black
NETGEAR M4250-40G8XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U Black
NETGEAR M4250-40G8XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U Black
NETGEAR M4250-40G8XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U Black
NETGEAR M4250-40G8XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U Black
NETGEAR M4250-40G8XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U Black
Print
Model: GSM4248UX-100EUS
EAN: 606449151763

NETGEAR M4250-40G8XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U Black

Manufacturer:
Netgear
NETGEAR M4250-40G8XF-PoE++, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 2U
Please log in to see your price
Related products

Description

NETGEAR M4250-40G8XF-PoE++. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 40, USB 2.0 ports quantity: 1. MAC address table: 16000 entries, Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Power over Ethernet (PoE). Rack mounting, Form factor: 2U
  • Primary Port Speed : 1 Gigabit
  • Number of Ports : 48 (40x 1G PoE++, 8x SFP+)
  • PoE Ports / Budget : 40 PoE++ (90W/port), 2,880W Budget

Product Properties

  • Model
  • GSM4248UX-100EUS
  • EAN
  • 606449151763
  • Bullet points
  • Point
  • Number of Ports : 48 (40x 1G PoE++, 8x SFP+)
    PoE Ports / Budget : 40 PoE++ (90W/port), 2,880W Budget
    Primary Port Speed : 1 Gigabit
  • Data transmission
  • Jumbo frames support
  • Yes
  • Latency (1 Gbps)
  • 2.78 µs
  • Latency (10 Gbps)
  • 0.73 µs
  • MAC address table
  • 16000 entries
  • Switching capacity
  • 240 Gbit/s
  • Throughput
  • 178.56 Mpps
  • Design
  • Form factor
  • 2U
  • Product colour
  • Black
  • Rack mounting
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Switch layer
  • L2/L3
  • Switch type
  • Managed
  • Network
  • 10G support
  • Yes
  • Networking standards
  • IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
  • Operational conditions
  • Heat dissipation
  • 3113.57 BTU/h
  • Packaging content
  • Cables included
  • LAN (RJ-45), USB Type-C
  • Rack mount kit
  • Yes
  • User guide
  • Yes
  • Packaging data
  • Rack rails
  • Yes
  • Performance
  • Fanless
  • Yes
  • Noise level
  • 60 dB
  • Ports & interfaces
  • SFP+ module slots quantity
  • 8
  • Switch Number of Ports
  • 40
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • USB 2.0 ports quantity
  • 1
  • Power
  • Power consumption (typical)
  • 912 W
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) type supported
  • Active PoE
  • Power over Ethernet plus (PoE+) ports quantity
  • 40
  • Total Power over Ethernet (PoE) budget
  • 2880 W
  • Weight & dimensions
  • Depth
  • 86.4 mm
  • Height
  • 350 mm
  • Weight
  • 10.3 kg
  • Width
  • 440 mm
