Description

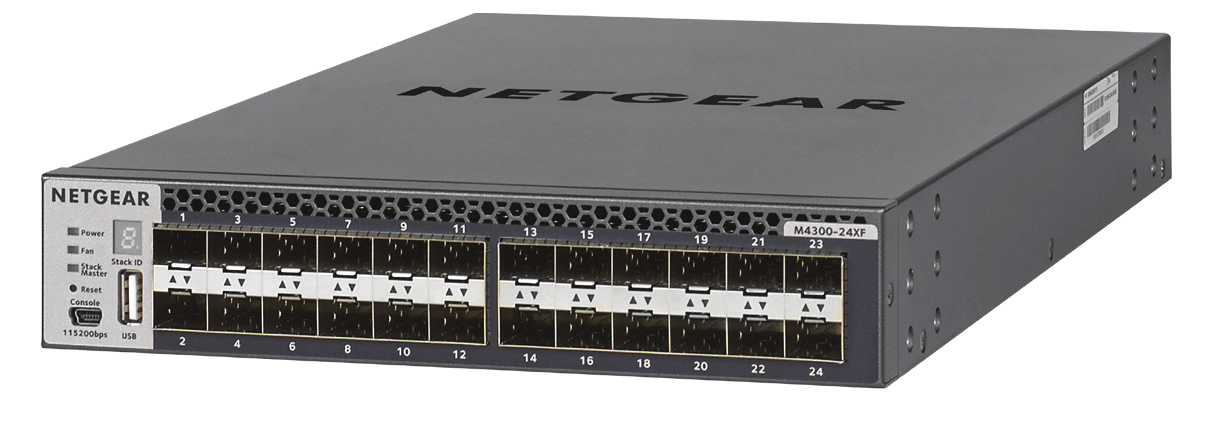

NETGEAR M4300-24XF. Switch type: Managed, Switch layer: L3. USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. Full duplex. MAC address table: 16000 entries, Switching capacity: 480 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s,.... Rack mounting, Form factor: 1U

24-port 10GBASE-X (SFP+)

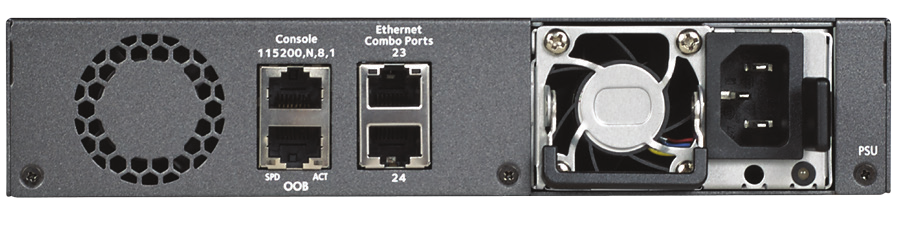

2-port 10GBASE-T (RJ45) (shared, back)
480Gbps non-blocking fabric across 24 ports
Out-of-band 1G Ethernet management port
Mini-USB and RJ45 RS232 console ports and USB storage port
Full L3 feature set and non-stop forwarding (NSF) stacking
Half-width form factor with one- and two-unit rack mount kit
Two half-width switches can be installed in a single rack space for redundant topof-rack
Ships with one modular APS250W PSU in its power supply slot
Low acoustics (39.7dB @25°C / 77°F)

Product Properties

Manufacturer
Netgear

Model
XSM4324FS-100NES

EAN
606449142488

Bullet points

Point
2-port 10GBASE-T (RJ45) (shared, back)

24-port 10GBASE-X (SFP+)

480Gbps non-blocking fabric across 24 ports

Full L3 feature set and non-stop forwarding (NSF) stacking

Half-width form factor with one- and two-unit rack mount kit

Low acoustics (39.7dB @25°C / 77°F)

Mini-USB and RJ45 RS232 console ports and USB storage port

Out-of-band 1G Ethernet management port

Ships with one modular APS250W PSU in its power supply slot

Two half-width switches can be installed in a single rack space for redundant topof-rack

Data transmission

Jumbo frames
9000

Jumbo frames support
Yes

Latency (1 Gbps)
2.333 µs

Latency (10 Gbps)
1.323 µs

MAC address table
16000 entries

Number of queues
8

Number of static routes
64

Packet buffer memory
32 MB

Static route
Yes

Store-and-forward
Yes

Switching capacity
480 Gbit/s

Throughput
357 Mpps

Design

Airflow direction
Front-to-back airflow

Form factor
1U

Product colour
Black, Grey

Rack mounting
Yes

Stackable
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Quality of Service (QoS) support
Yes

Switch layer
L3

Switch type
Managed

Multicast features

Multicast support
Yes

Network

10G support
Yes

Auto-sensing
Yes

Broadcast storm control
Yes

Copper ethernet cabling technology
10GBASE-T

Flow control support
Yes

Full duplex
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x

Number of VLANs
4093

Policy-based routing
Yes

Port mirroring
Yes

Spanning tree protocol
Yes

Virtual LAN features
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

VLAN support
Yes

Operational conditions

Heat dissipation
330.6 BTU/h

Optical fiber

Fiber ethernet cabling technology
10GBASE-X

Performance

Built-in processor
Yes

Flash memory
256 MB

Internal memory
1024 MB

Mean time between failures (MTBF)
968447 h

Noise level
39.7 dB

Physical stacking (units)
8

Processor frequency
800 MHz

Ports & interfaces

Console port
RJ-45/Mini-USB

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

SFP+ module slots quantity
24

USB 2.0 ports quantity
1

Power

Number of power supply units
1

Power consumption (max)
87.2 W

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Protocols

GARP VLAN Registration Protocol (GVRP)
Yes

Routing protocols
OSPF, OSPFv3, RIP, RIP-1, RIP-2

Security

Access Control List (ACL)
Yes

Access Control List (ACL) rules
64

BPDU filtering/protection
Yes

DHCP features
DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 snooping

IGMP snooping
Yes

Weight & dimensions

Depth
345 mm

Height
44 mm

Weight
3.56 kg

Width
212 mm

NETGEAR M4300-24XF Managed L3 1U Black, Grey
