Model: XSM4328FV-100NES
EAN: 606449161397

NETGEAR M4350-24F4V Managed L3 1U Black

Manufacturer:
Netgear
NETGEAR M4350-24F4V, Managed, L3, Full duplex, Rack mounting, 1U
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

NETGEAR M4350-24F4V. Switch type: Managed, Switch layer: L3. USB 2.0 ports quantity: 2, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 680 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power connector: AC-in jack. Rack mounting, Form factor: 1U

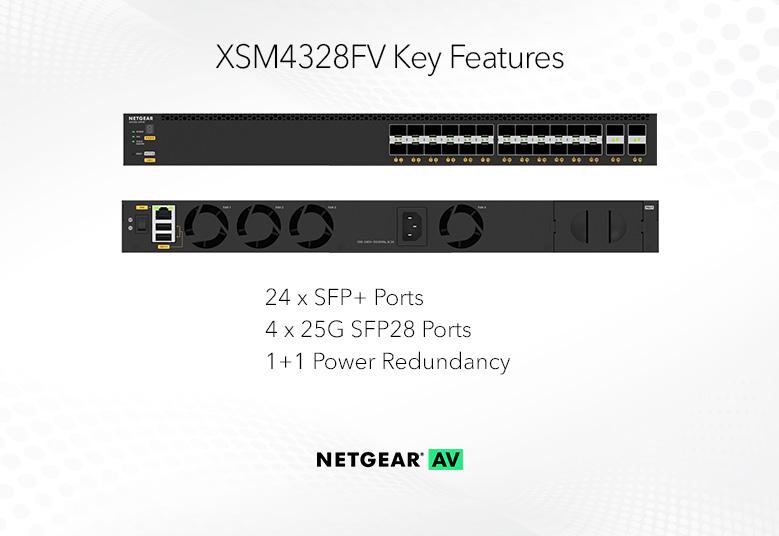

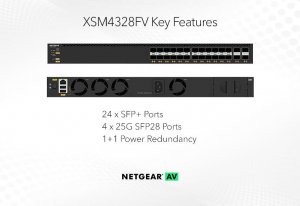

  • 24 10GBASE-X SFP+ ports with 4 25GBASE-X SFP28 uplinks
  • 240W internal power supply
  • 1 slot for modular power supply (1+1 redundancy)
  • Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations

Product Properties

  • Model
  • XSM4328FV-100NES
  • EAN
  • 606449161397
  • Bullet points
  • Point
  • 1 slot for modular power supply (1+1 redundancy)
    24 10GBASE-X SFP+ ports with 4 25GBASE-X SFP28 uplinks
    240W internal power supply
    Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
    Layer 3 feature set includes static, policy-based, and dynamic routing
    NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
    Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Certificates
  • Compliance certificates
  • BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
  • Data transmission
  • Jumbo frames
  • 12000
  • Jumbo frames support
  • Yes
  • Latency (1 Gbps)
  • 1.06 µs
  • Latency (10 Gbps)
  • 0.63 µs
  • MAC address table
  • 16000 entries
  • Packet buffer memory
  • 32 MB
  • Static route
  • Yes
  • Store-and-forward
  • Yes
  • Switching capacity
  • 680 Gbit/s
  • Throughput
  • 505.92 Mpps
  • Design

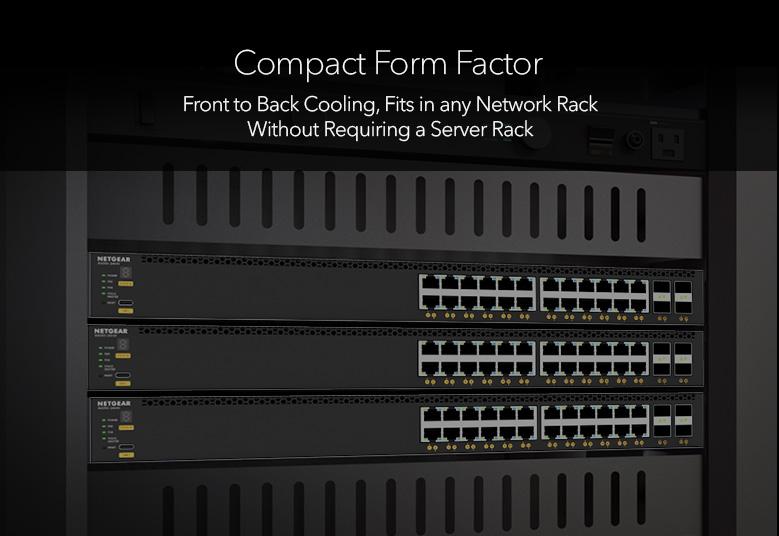

  • Airflow direction
  • Front-to-back airflow
  • Form factor
  • 1U
  • LED indicators
  • Yes
  • Product colour
  • Black
  • Rack mounting
  • Yes
  • Stackable
  • Yes
  • Management features
  • ARP inspection
  • Yes
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L3
  • Switch type
  • Managed

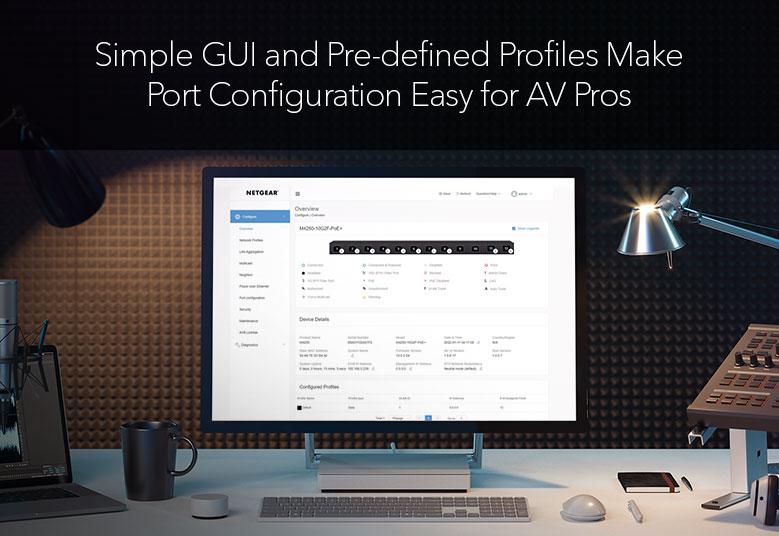

  • Web-based management
  • Yes
  • Multicast features
  • Multicast Listener Discovery (MLD) snooping
  • Y
  • Multicast support
  • Yes
  • Network
  • 10G support
  • Yes
  • 6to4 tunnel
  • Yes
  • Broadcast storm control
  • Yes
  • Flow control support
  • Yes
  • Full duplex
  • Yes
  • IPv4 routes
  • 512
  • IPv6 routes
  • 256
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u
  • Number of VLANs
  • 4093
  • Policy-based routing
  • Yes
  • Rate limiting
  • Yes
  • Spanning tree protocol
  • Yes
  • Virtual LAN features
  • MAC address-based VLAN, Private VLAN, Voice VLAN
  • VLAN support
  • Yes
  • Operational conditions
  • Heat dissipation
  • 374.6 BTU/h
  • Non-operating altitude
  • 0 - 3000 m
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 0 - 90%
  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage relative humidity (H-H)
  • 0 - 95%
  • Storage temperature (T-T)
  • -20 - 70 °C
  • Other features
  • Power supply
  • 240 W
  • Packaging content
  • Cables included
  • AC, USB Type-C
  • Rack mount kit
  • Yes
  • User guide
  • Yes
  • Packaging data
  • Included power plug types
  • EU, NA, UK
  • Performance
  • Built-in processor
  • Yes
  • Flash memory
  • 512 MB
  • Internal memory
  • 2048 MB
  • Mean time between failures (MTBF)
  • 778741 h
  • Memory type
  • DDR4-SDRAM
  • Noise level
  • 61.8 dB
  • Processor frequency
  • 1800 MHz
  • Processor model
  • ARM Cortex-A57
  • sFlow
  • Yes
  • Ports & interfaces
  • Console port
  • RJ-45
  • Installed SFP modules quantity
  • 0
  • Installed SFP+ modules quantity
  • 0
  • Power connector
  • AC-in jack
  • SFP+ module slots quantity
  • 24
  • SFP28 ports quantity
  • 4
  • Switch Number of Ports
  • 0
  • Switch Port Speed
  • No
  • USB 2.0 ports quantity
  • 2
  • Power
  • AC input frequency
  • 50/60 Hz
  • AC input voltage
  • 100 - 240 V
  • Input current
  • 6.3 A
  • Power consumption (typical)
  • 119.3 W
  • Power source
  • AC
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • No
  • Protocols
  • GARP VLAN Registration Protocol (GVRP)
  • Yes
  • Management protocols
  • SNMP V1, V2, V3
  • Routing protocols
  • OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2
  • Security
  • Access Control List (ACL)
  • Yes
  • Access Control List (ACL) egress
  • 1023
  • Access Control List (ACL) ingress
  • 511
  • Authentication
  • Guest VLAN, MAC-based authentication
  • Authentication type
  • RADIUS, TACACS+
  • BPDU filtering/protection
  • Yes
  • DHCP features
  • DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping
  • DoS attack prevention
  • Yes
  • IGMP proxy
  • Yes
  • IGMP snooping
  • Yes
  • Loop protection
  • Yes
  • MAC address filtering
  • Yes
  • Password protection
  • Yes
  • Queue scheduling algorithms
  • Strict Priority Queue (SPQ), Weighted random early detection (WRED)
  • Root protection
  • Yes
  • Static port security
  • Yes
  • Sustainability
  • Sustainability compliance
  • Yes
  • Weight & dimensions
  • Depth
  • 400 mm
  • Height
  • 43.2 mm
  • Weight
  • 6.25 kg
  • Width
  • 440 mm
