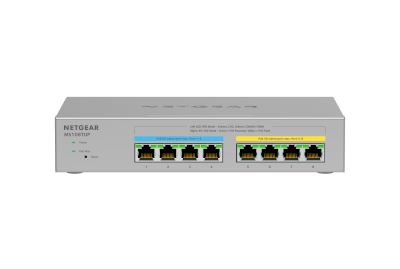

NETGEAR MS108TUP Unmanaged L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Grey
Roll over image to zoom inClick to Open expanded view
Print
Model: MS108TUP-100EUS
EAN: 606449168112

NETGEAR MS108TUP Unmanaged L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Grey

Manufacturer:
Netgear
NETGEAR MS108TUP, Unmanaged, L2, 2.5G Ethernet (100/1000/2500), Power over Ethernet (PoE)
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

NETGEAR MS108TUP. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 16000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE.... Power over Ethernet (PoE)

Product Properties

  • Model
  • MS108TUP-100EUS
  • EAN
  • 606449168112
  • Certificates
  • Certification
  • CE mark FCC Part 15 class B CE/EN55032/24 CSA VCCI ACMA KC CCC BSMI
  • Data transmission
  • Jumbo frames
  • 12000
  • Jumbo frames support
  • Yes
  • MAC address table
  • 16000 entries
  • Packet buffer memory
  • 1.5 MB
  • Switching capacity
  • 40 Gbit/s
  • Design
  • Housing material
  • Metal
  • LED indicators
  • Activity, Link, PoE, Power, Speed, Yes
  • Product colour
  • Grey
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2
  • Switch type
  • Unmanaged
  • Multicast features
  • Multicast MAC address table
  • 128 entries
  • Multicast support
  • Yes
  • Network
  • Networking standards
  • IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
  • Number of VLANs
  • 64
  • Rate limiting
  • Yes
  • VLAN support
  • Yes
  • Operational conditions
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 0 - 90%
  • Operating temperature (T-T)
  • 0 - 32 °C
  • Storage relative humidity (H-H)
  • 0 - 95%
  • Storage temperature (T-T)
  • -20 - 70 °C
  • Performance
  • Mean time between failures (MTBF)
  • 373643.7 h
  • Ports & interfaces
  • 2.5G Ethernet (copper) ports quantity
  • 8
  • Installed SFP modules quantity
  • 0
  • Installed SFP+ modules quantity
  • 0
  • Switch Number of Ports
  • 8
  • Switch Port Speed
  • 2.5G Ethernet (100/1000/2500)
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) ports quantity
  • 8
  • Power over Ethernet (PoE) power per port
  • 230 W
  • Power over Ethernet 4PPoE (PoE++) ports quantity
  • 4
  • Power over Ethernet plus (PoE+) ports quantity
  • 4
  • Security
  • DHCP features
  • DHCP client, DHCP relay
  • IGMP snooping
  • Yes
  • Weight & dimensions
  • Depth
  • 140 mm
  • Height
  • 40 mm
  • Weight
  • 900 g
  • Width
  • 210 mm
