Description

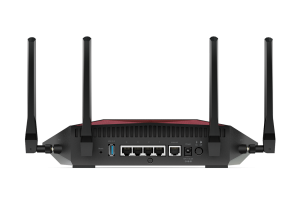

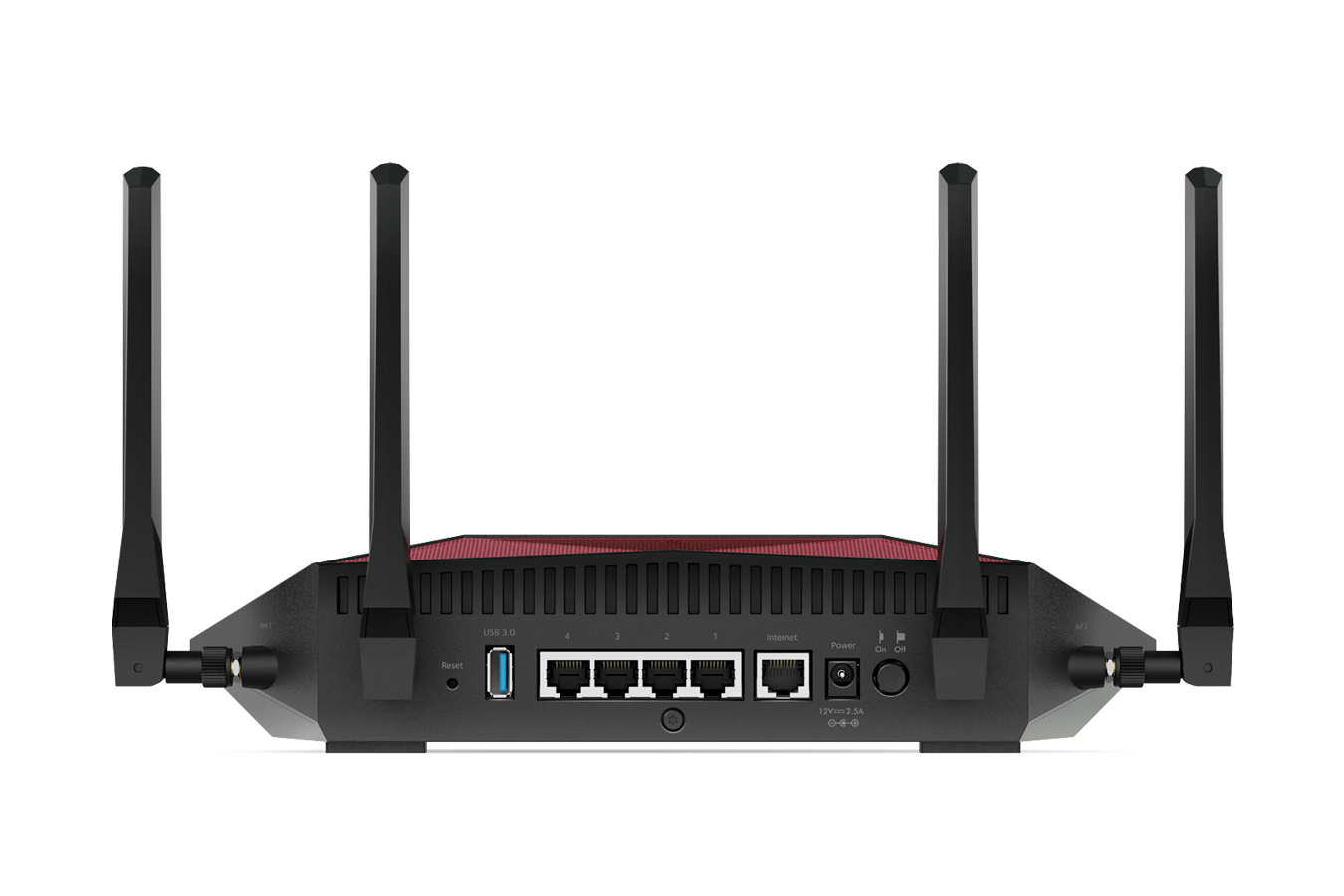

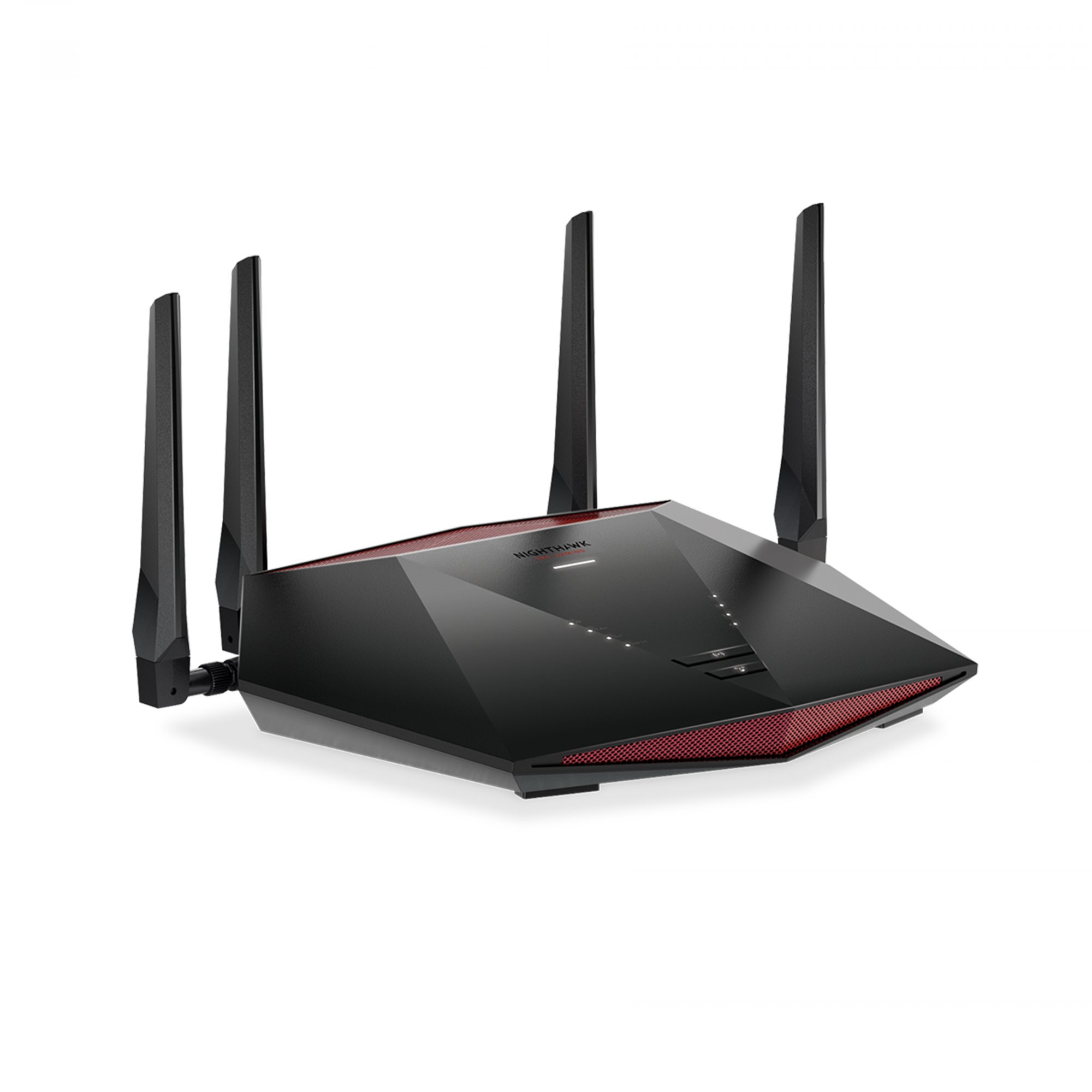

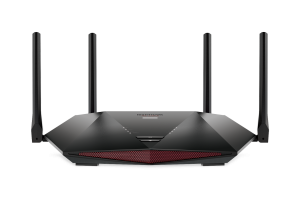

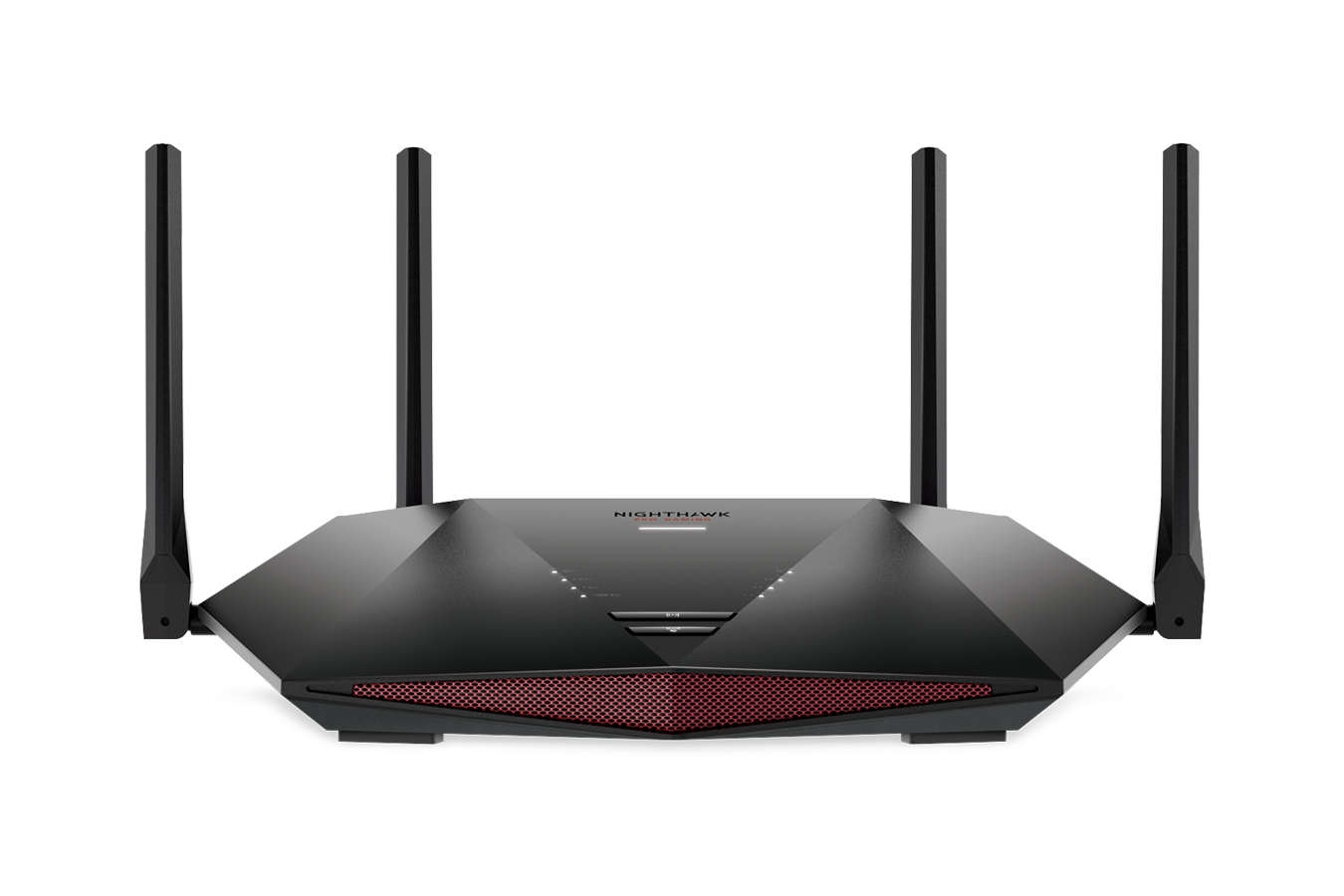

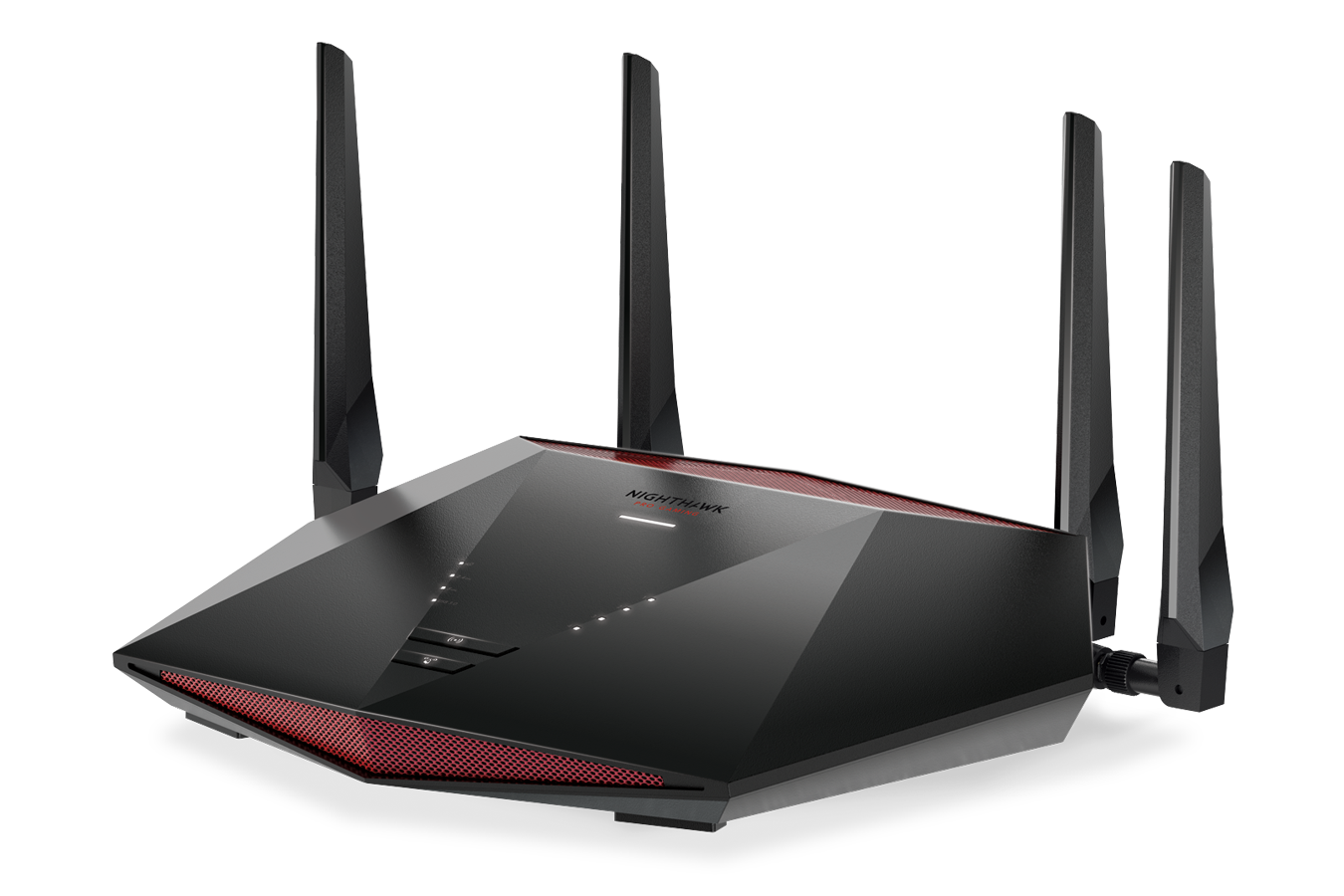

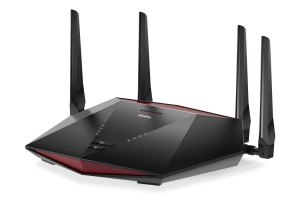

NETGEAR Nighthawk XR1000 WiFi 6 Gaming Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 5400 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11i. Security algorithms: 128-bit AES, WPA3. Routing protocols: IP

Ping rate reduction - Up to 93% reduction†
Powerful AX5400 WiFi 6 - Lag-free gaming even on WiFi
1.5GHz Triple-Core Processor - Boosts your gaming experience
NETGEAR Armor - Game, browse, & stream without compromising security1
Powered by DumaOS 3.0 - Gaming operating system

Product Properties

Manufacturer
Netgear

Model
XR1000-100EUS

EAN
606449150551

Antenna

Antenna design
External

Antennas quantity
4

Detachable antenna(s)
Yes

Bullet points

Point
1.5GHz Triple-Core Processor - Boosts your gaming experience

NETGEAR Armor - Game, browse, & stream without compromising security1

Ping rate reduction - Up to 93% reduction†

Powered by DumaOS 3.0 - Gaming operating system

Powerful AX5400 WiFi 6 - Lag-free gaming even on WiFi

Design

Indication light
Yes

On/off switch
Yes

Product colour
Black

Product type
Tabletop router

Features

Built-in processor
Yes

Flash memory
256 MB

Internal memory
512 MB

Processor cores
3

Processor frequency
1.5 MHz

Logistics data

Harmonized System (HS) code
85176990

Management features

Quality of Service (QoS) support
Yes

Reset button
Yes

WPS push button
Yes

Mobile network

Network

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Ethernet LAN interface type
Gigabit Ethernet

Networking standards
IEEE 802.11i

USB sharing
Yes

VPN support
Hybrid VPN—Select which traffic to protect for privacy and which to pass through directly to avoid any lag or data charges with this flexible VPN client

Packaging content

AC adapter included
Yes

Antenna included
Yes

Cables included
LAN (RJ-45)

Quick start guide
Yes

Ports & interfaces

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
4

Memory card slot(s)
No

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

USB port
Yes

Power

Power source type
DC

Protocols

Routing protocols
IP

Security

DoS attack prevention
Yes

Firewall
Yes

Network address translation (NAT)
Yes

Security algorithms
128-bit AES, WPA3

Stateful Packet Inspection (SPI)
Yes

System requirements

Browser supported
Microsoft Internet Explorer 11 or higher, Microsoft Edge, Google Chrome 55 or higher, Firefox 45 or higher, Safari 10 or higher

Linux operating systems supported
Yes

Mac operating systems supported
Yes

Windows operating systems supported
Windows 10, Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP

WAN connection

3G/4G USB modem compatibility
No

DSL WAN
No

Ethernet WAN
Yes

SIM card slot
No

WAN connection type
RJ-45

Weight & dimensions

Depth
200 mm

Height
64 mm

Weight
600 g

Width
295 mm

Wireless LAN features

Modulation
256-QAM, 1024-QAM

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

WLAN data transfer rate (first band)
600 Mbit/s

WLAN data transfer rate (max)
5400 Mbit/s

WLAN data transfer rate (second band)
4800 Mbit/s
