Description

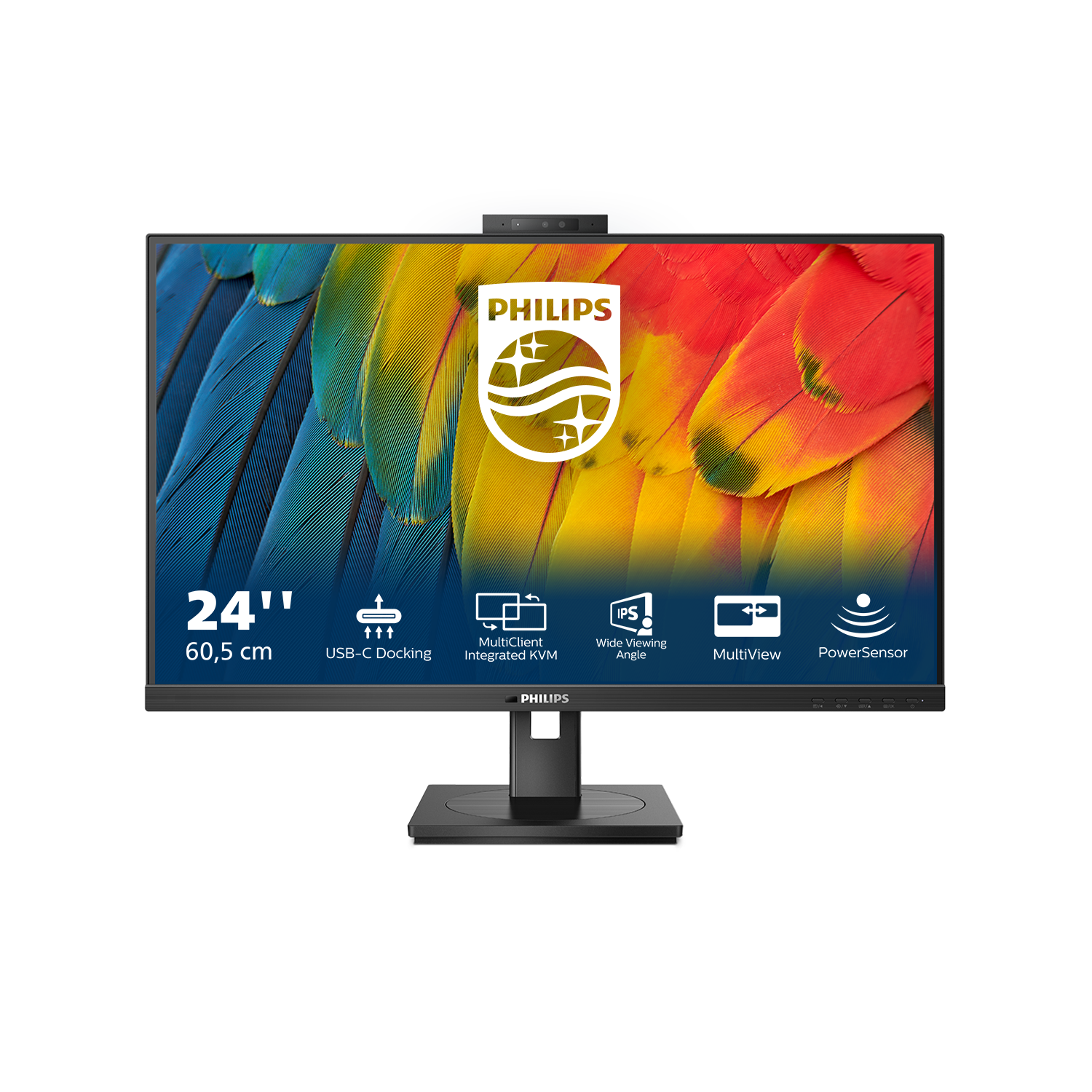

Philips 5000 series 24B1U5301H/00. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 2 (3.1 Gen 2). VESA mounting, Height adjustment. Product colour: Black

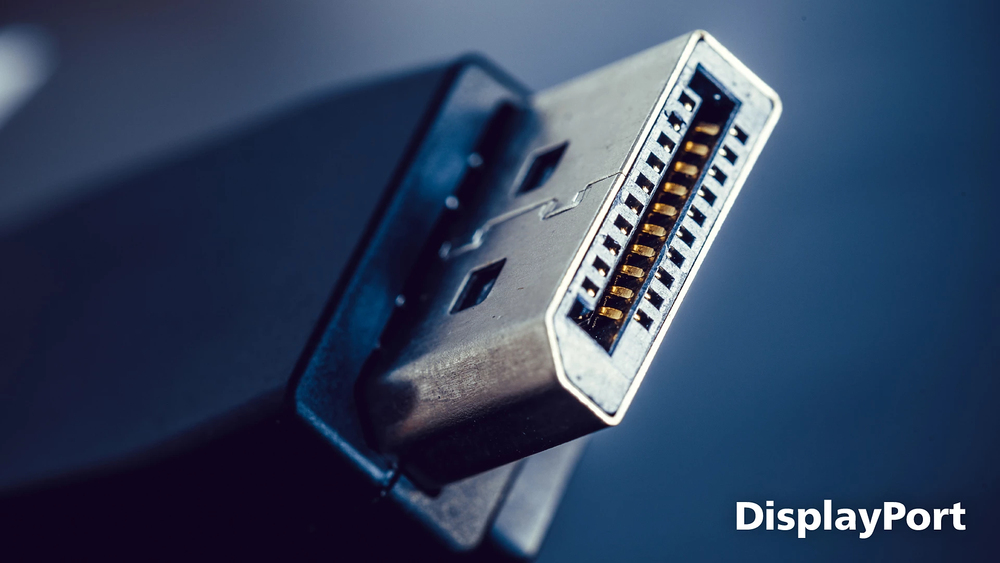

DisplayPort-out for connecting additional displays

With DisplayPort-out you can connect multiple high resolution displays with just one cable from your first display to the PC. The ability to daisy chain multiple displays enables you to create a clean desktop without the hassle of too many wires all over.

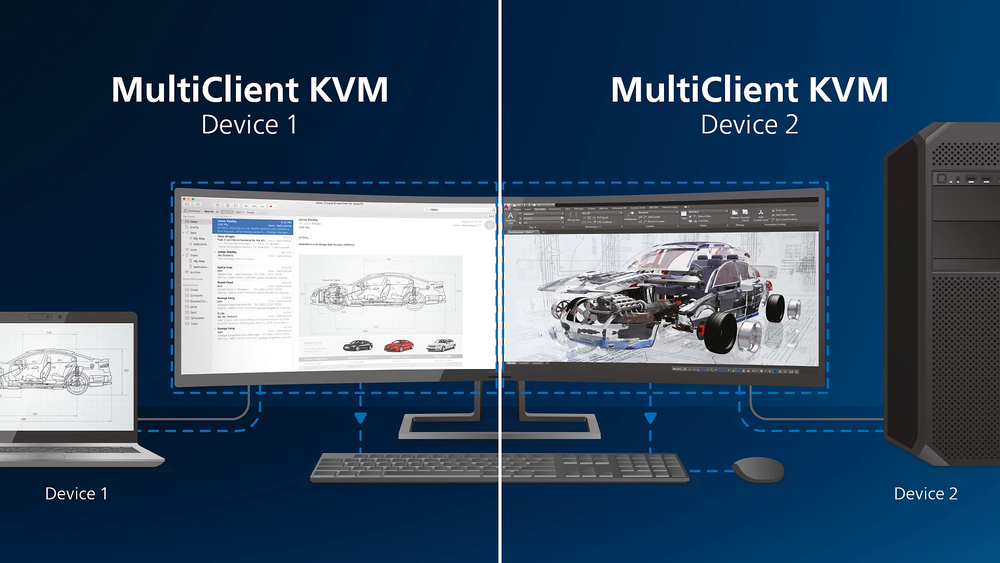

Built-in KVM switch to easily switch between sources

With the MultiClient Integrated KVM switch, you can control two separate PCs with one monitor-keyboard-mouse setup. A convenient button allows you to quickly switch between sources. Handy with setups that require dual PC computing power or sharing one large monitor to show two different PCs.

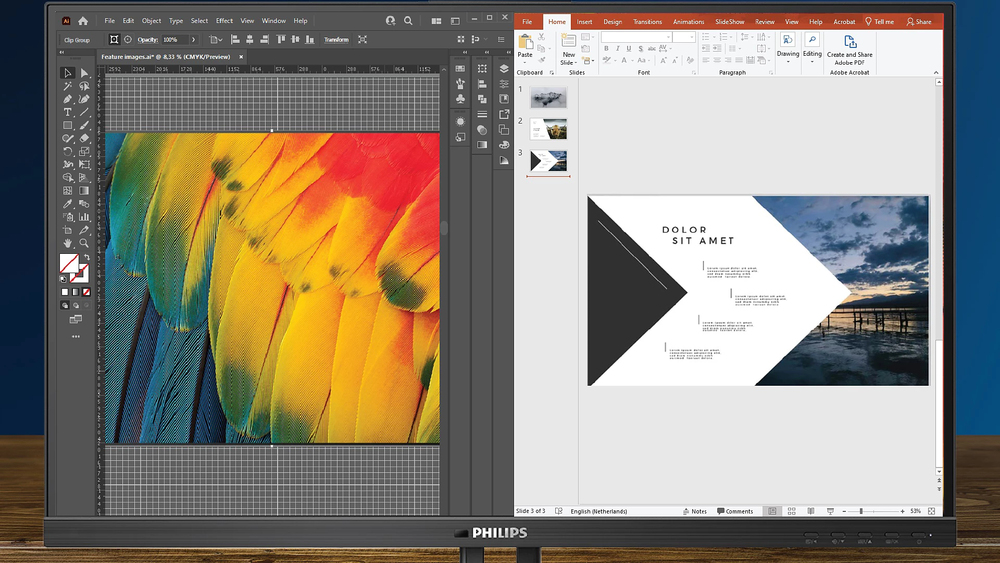

MultiView enables simultaneous dual connection and view

With the ultra-high resolution Philips MultiView display, you can now experience a world of connectivity. MultiView enables active dual connect and view so that you can work with multiple devices like a PC and notebook simultaneously, for complex multitasking.

Collaboration-ready webcam with noise-cancelling mic.

This Philips monitor comes with a built-in 5 MP webcam, noise-cancelling microphone and speakers, making it perfect for working from home and collaborating remotely. It is equipped with advanced sensors that work seamlessly with Windows Hello facial recognition, allowing you to log into your Windows devices in less than 2 seconds. For added privacy, a physical camera switch lets you disable the webcam when not in use. The noise-cancelling microphone and dual 5 watt integrated speakers ensure clear communication.

TUV Eye Comfort certified to reduce eye fatigue

Philips displays meet TUV Rheinland Eye Comfort standard to prevent eye strain caused by prolonged computer use. With TUV Eye Comfort certification, Philips displays ensure flicker-free, low-blue mode, no disturbing reflections, a wide viewing angle, less reduction of image quality from different angles and ergonomic stand designs for an ideal viewing experience. Keep your eyes healthy and boost work productivity.

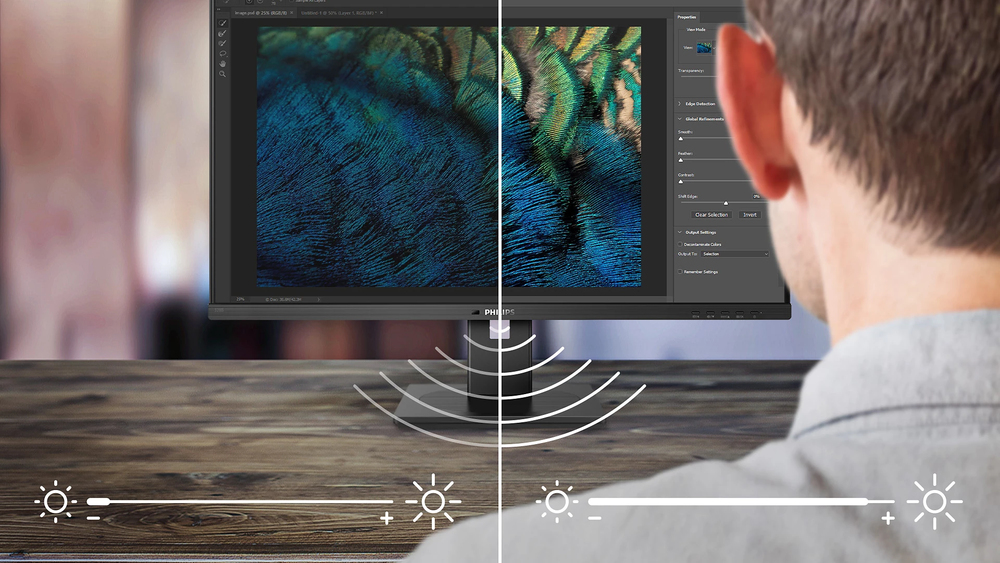

PowerSensor saves up to 75% energy costs

PowerSensor is a built-in "people sensor" that transmits and receives harmless infra-red signals to determine if the user is present and automatically reduces monitor brightness when the user steps away from the desk, cutting energy costs by up to 75 percent and prolonging monitor life.

LightSensor for the perfect brightness with minimal power

LightSensor uses a smart sensor to adjust the picture brightness depending on the light conditions in the room for the perfect picture with minimal power usage.

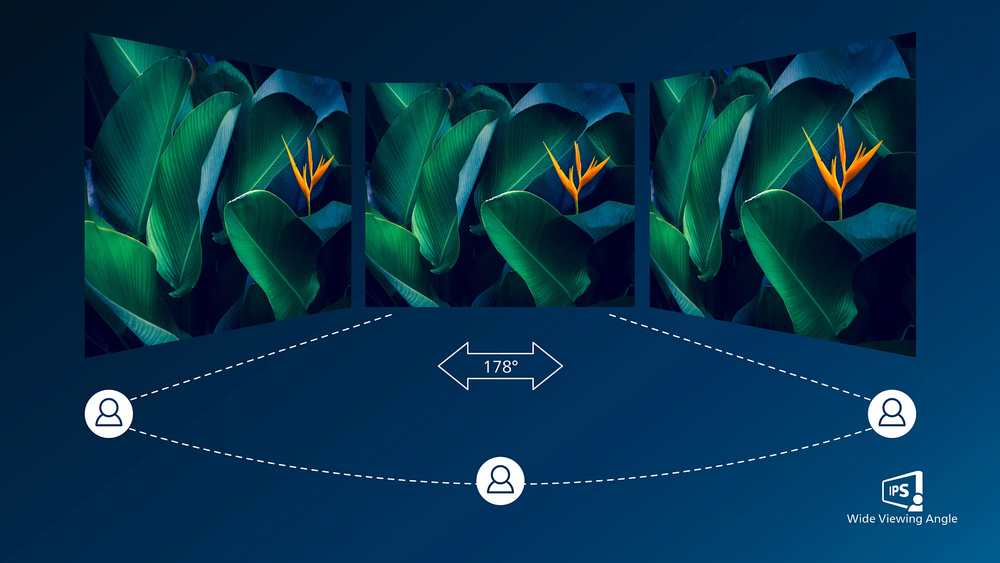

IPS technology for full colours and wide viewing angles

IPS displays use advanced technology that gives you extra-wide viewing angles of 178/178 degrees, making it possible to view the display from almost any angle — even in 90-degree Pivot mode! Unlike standard TN panels, IPS displays gives you remarkably crisp images with vivid colours, making it ideal not only for Photos, films and web browsing, but also for professional applications that demand colour accuracy and consistent brightness at all times.

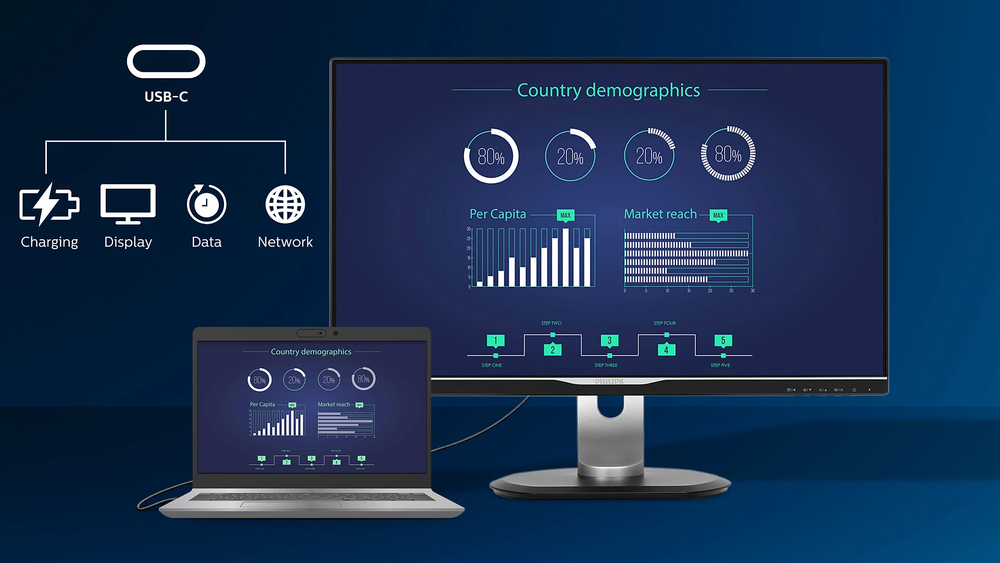

RJ-45 to USB-C gives easy network connection with security

Simplify all peripherals from monitor to PC using one-cable docking USB Type-C connector, including networking, high-resolution video output from PC to monitor, and surfing on the Internet without an additional network cable, even without a LAN port on your notebook. RJ45 connection through USB-C offers a fast and secure connection when needed. Getting the fastest data speeds allows you to transfer data from a HDD to your PC faster than ever. Additionally, USB-C with power delivery can even enable you to power and charge your notebook from the monitor, eliminating the need for extra power cables.

Secure sign-in with pop-up webcam

Philips' innovative and secure webcam pops up when you need it and securely tucks back into the monitor when you are not using it. The webcam is also equipped with advanced sensors for Windows Hello facial recognition, which conveniently logs you into your Windows devices in less than 2 seconds, 3 times faster than a password.

Windows Hello Certified – Seamless, Secure Access

Log in faster and more securely with Windows Hello. This Philips monitor is Windows Hello Certified, offering quick facial recognition and effortless access — every time you power on.

Product Properties

Manufacturer
Philips

Model
24B1U5301H/00

EAN
8712581796488

Design

Feet colour
Black

Front bezel colour
Black

Market positioning
Business

Product colour
Black

Display

Anti-glare screen
Yes

Backlight type
W-LED

Colour depth
8 bit

Colour gamut standard
sRGB

Contrast ratio (dynamic)
50000000:1

Contrast ratio (typical)
1000:1

DDC/CI
Yes

Display brightness (typical)
300 cd/m²

Display number of colours
16.7 million colours

Display sRGB
Yes

Dynamic contrast ratio marketing name
SmartContrast

Haze rate
25%

HD type
Full HD

Horizontal scan range
30 - 85 kHz

Max Refresh Rate
75 Hz

Native aspect ratio
16:9

NTSC coverage (typical)
88%

Panel type
IPS

Pixel density
93 ppi

Pixel pitch
0.2745 x 0.2745 mm

Response time
4 ms

Screen Resolution
1920 x 1080 pixels

Screen shape
Flat

Screen Size
60.5 cm (23.8")

Screen Type
60.5 cm

Screen Type
LCD

sRGB coverage (typical)
105%

Surface hardness
3H

Touchscreen
No

Vertical scan range
48 - 75 Hz

Viewable size, horizontal
52.7 cm

Viewable size, vertical
29.6 cm

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Ergonomics

Adjustable height (max)
15 cm

Cable lock slot
Yes

Cable lock slot type
Kensington

Height adjustment
Yes

LED indicators
Operation, Stand-by

On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian

Panel mounting interface
100 x 100 mm

Picture-in-Picture
Yes

Pivot
Yes

Pivot angle
-90 - 90°

Plug and Play
Yes

Swivel angle range
-180 - 180°

Swivelling
Yes

Tilt adjustment
Yes

Tilt angle range
-5 - 30°

VESA mounting
Yes

Multimedia

Built-in camera
Yes

Built-in microphone
Yes

Built-in speaker(s)
Yes

Megapixel (approx.)
5 MP

Number of speakers
2

RMS rated power
5 W

Network

Ethernet LAN
Yes

Operational conditions

Non-operating altitude
3658 - 12192 m

Operating altitude
0 - 3658 m

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-20 - 60 °C

Other features

Compatible operating systems
Mac OS X Windows 11 / 10 / 8.1 / 8 / 7

Compliance certificates
RoHS

EasyRead mode
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Exterior finish type
Textured

HBR3 support
Yes

Light sensor
Yes

LowBlue mode
Yes

Mean time between failures (MTBF)
70000 h

Picture enhancement
SmartImage

Picture-by-Picture (PbP)
Yes

Recyclable packaging material
100%

Regulatory Approvals
CB; CE Mark; FCC Class B; ICES-003; CU-EAC; EAEU RoHS; TUV Ergo; TUV/GS; TUV Eye Comfort certified; cETLus

Wake-on-LAN
Yes

Packaging content

Bundled software
SmartControl

Cables included
HDMI, DisplayPort, USB Type-C, AC

Manual
Yes

Stand included
Yes

Packaging data

Package depth
198 mm

Package height
406 mm

Package weight
8.32 kg

Package width
600 mm

Performance

AMD FreeSync
No

Component video sync
Separate sync

Fast charging
Yes

Fast charging technology
Power Delivery

Flicker-free technology
Yes

Low Blue Light technology
Yes

NVIDIA G-SYNC
No

Ports & interfaces

Built-in USB hub
Yes

DisplayPort output
Yes

DisplayPort version
1.4

DisplayPorts quantity
1

HDCP
Yes

HDCP version
1.4/2.2

HDMI
Yes

HDMI ports
1

HDMI version
1.4

Headphone out
Yes

Number of upstream ports
1

USB hub version
3.2 Gen 2 (3.1 Gen 2)

USB Power Delivery (USB PD)
Yes

USB Power Delivery up to
90 W

USB Type-A downstream ports quantity
4

USB Type-C DisplayPort Alternate Mode
Yes

USB Type-C downstream ports quantity
1

USB upstream port type
USB Type-C

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Energy consumption (SDR) per 1000 hours
18 kWh

Energy efficiency class (SDR)
E

Energy efficiency scale
A to G

European Product Registry for Energy Labelling (EPREL) code
1325579

Power consumption (standby)
0.3 W

Power consumption (typical)
15.3 W

Power supply type
Internal

Recycling data

Post-consumer recycled plastic
85%

Sustainability

Doesn't contain
Mercury, PVC/BFR

Sustainability certificates
ENERGY STAR, TCO

Sustainability compliance
Yes

Weight & dimensions

Depth (with stand)
205 mm

Depth (without stand)
51 mm

Height (with stand)
500 mm

Height (without stand)
323 mm

Weight (with stand)
5.5 kg

Weight (without stand)
3.9 kg

Width (with stand)
540 mm

Width (without stand)
540 mm

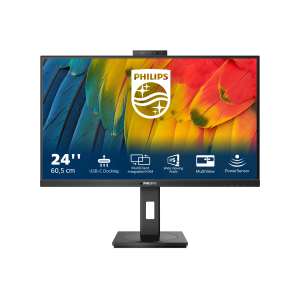

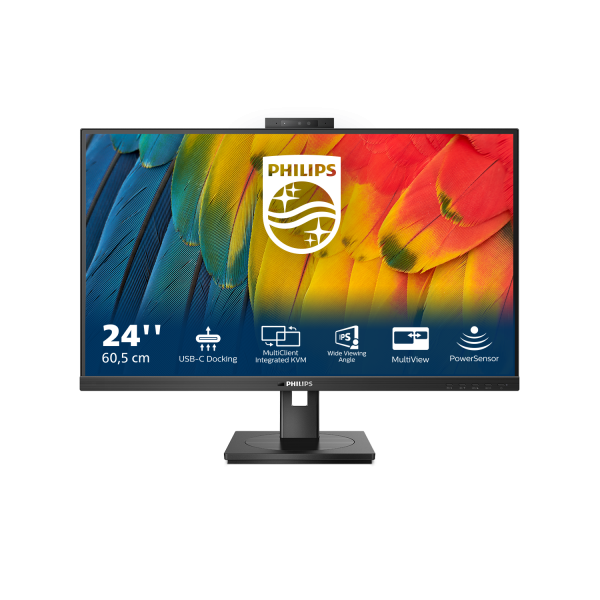

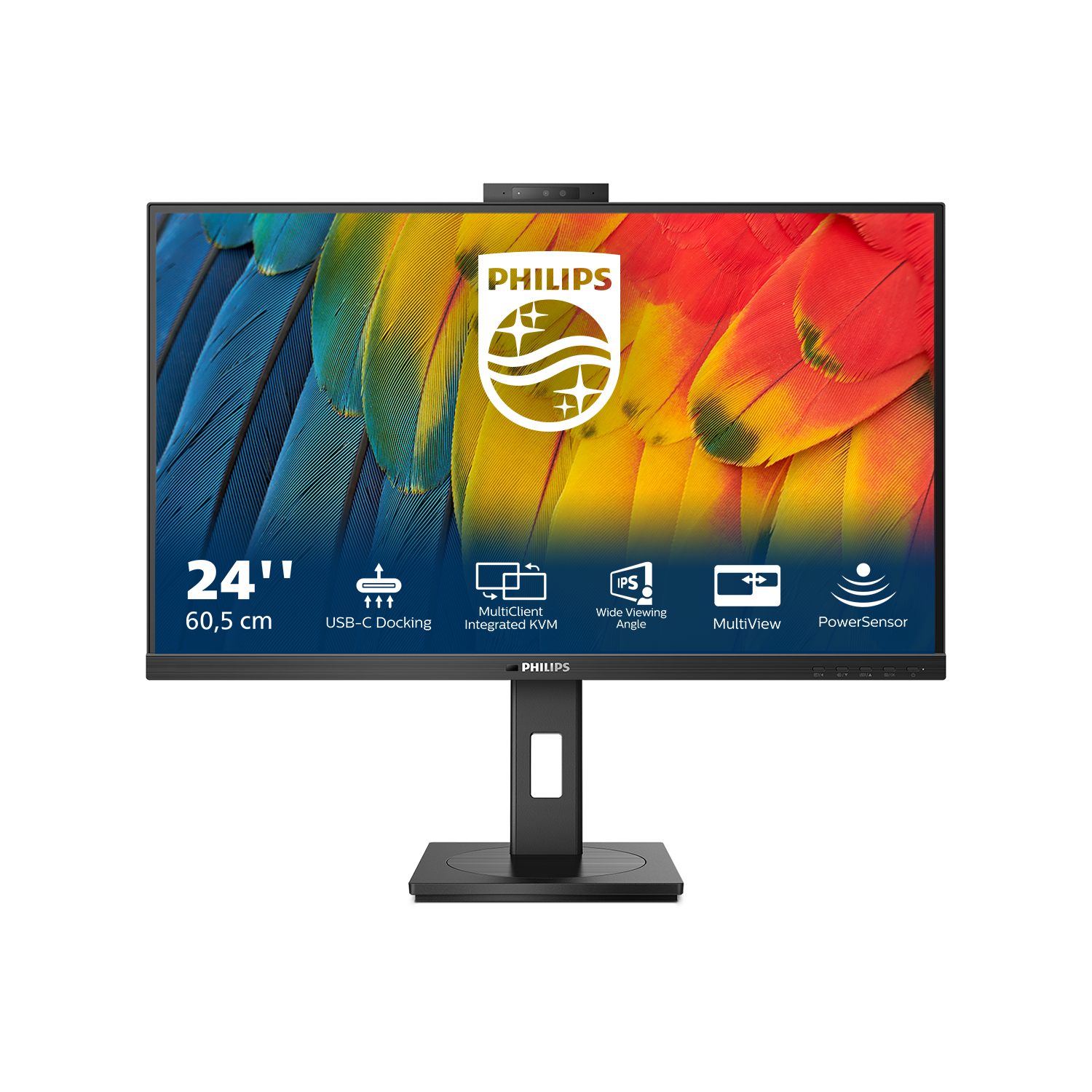

Philips 5000 series 24B1U5301H/00 LED display 60.5 cm (23.8") 1920 x 1080 pixels Full HD LCD Black
