Description

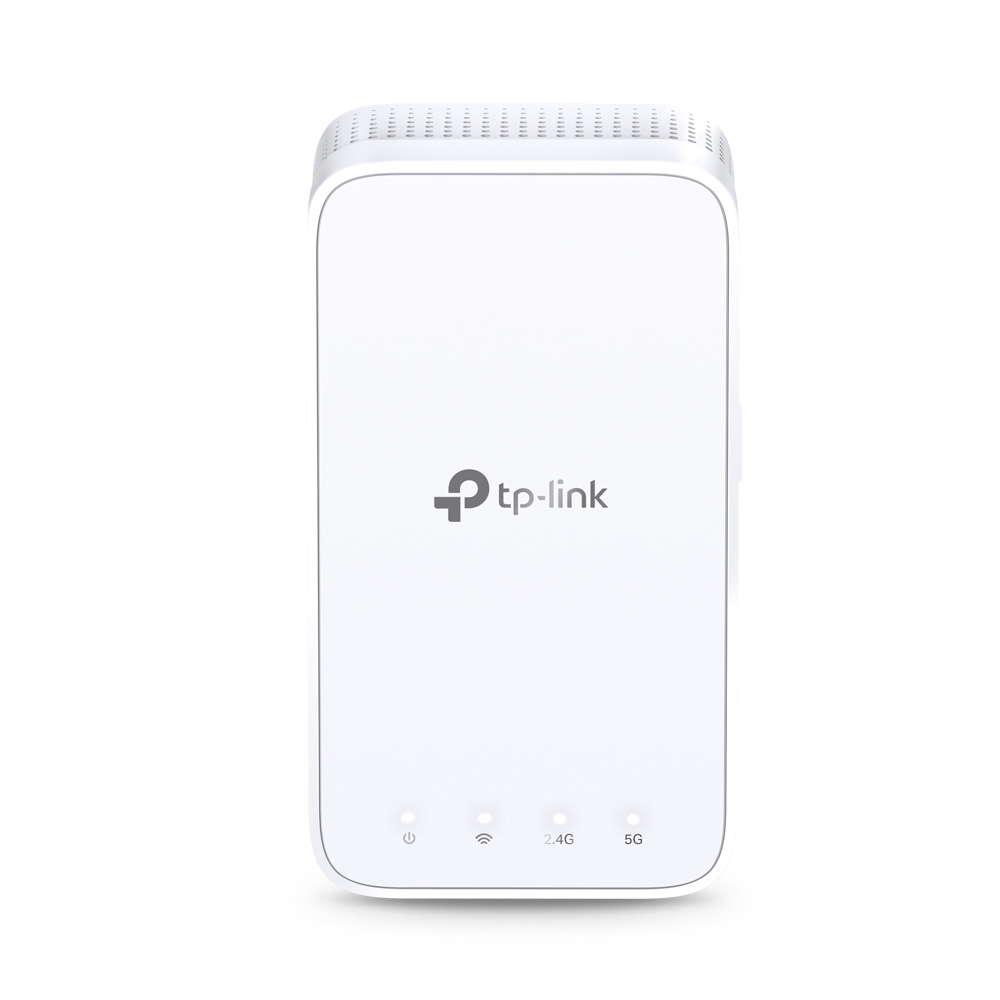

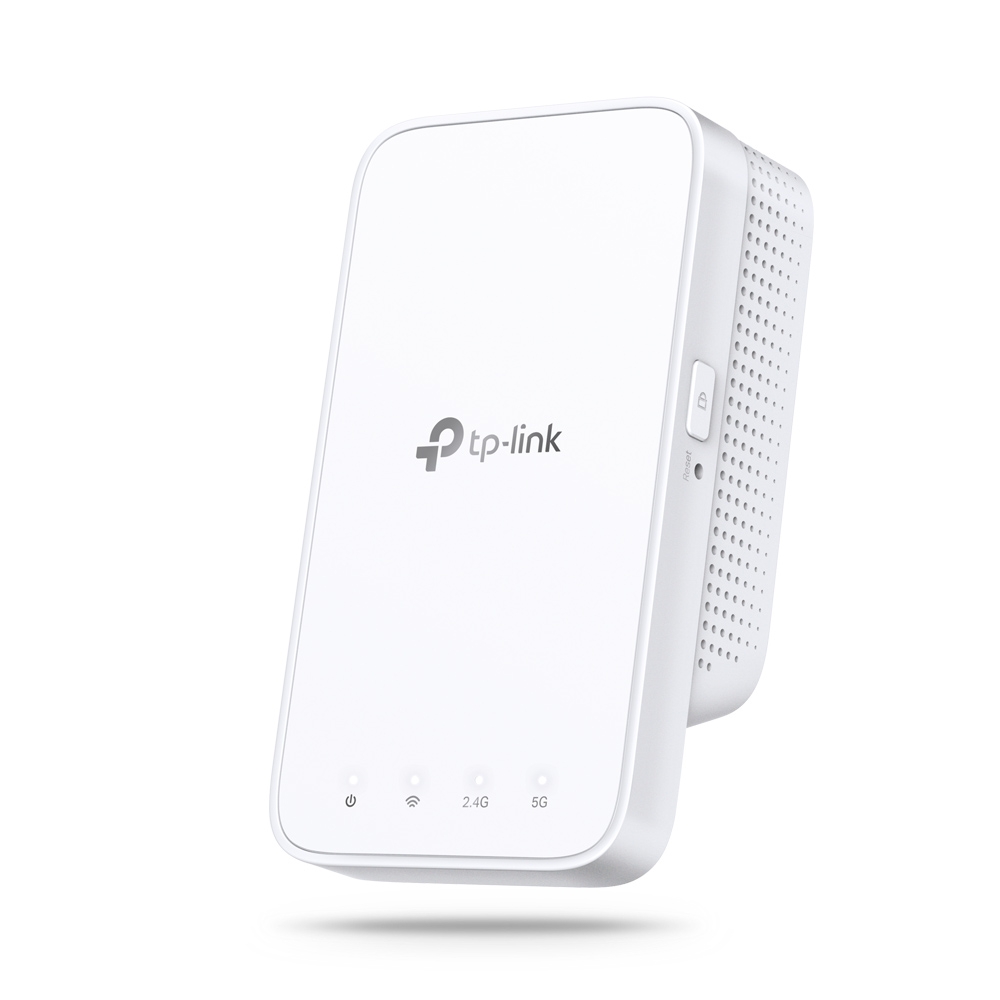

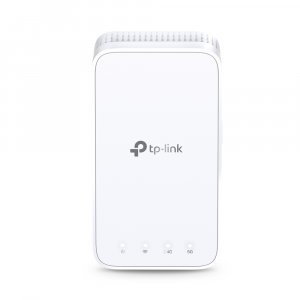

TP-Link AC1200 Mesh Wi-Fi Range Extender. Type: Network repeater, Data transfer rate: 867 Mbit/s, Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP. Antenna type: Internal, Transmitting power (CE): 17 dBm. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi data rate (max): 867 Mbit/s, Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: White, Quantity per pack: 1 pc(s). AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Power consumption (max): 7.3 W

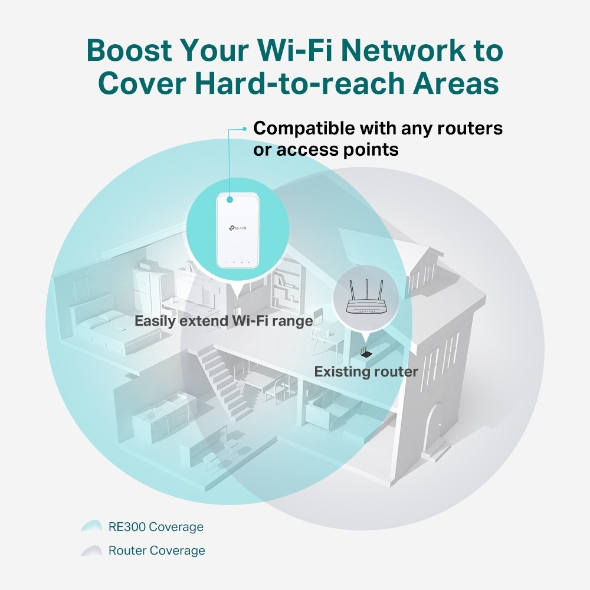

Extends dual-band Wi-Fi across your home to eliminate Wi-Fi dead zones

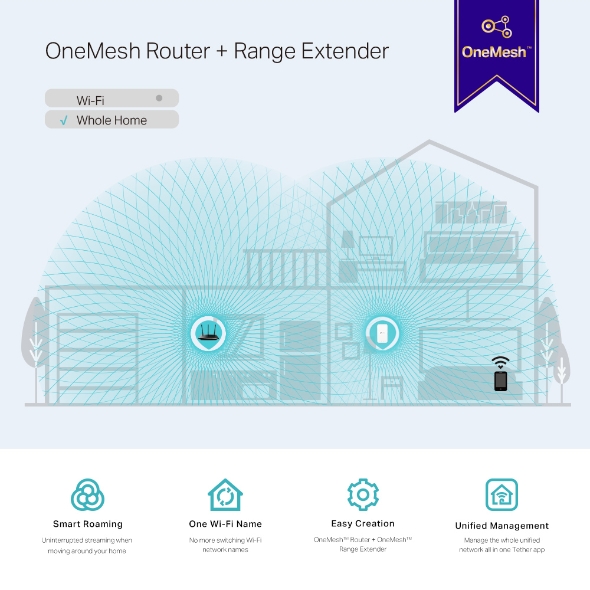

Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage

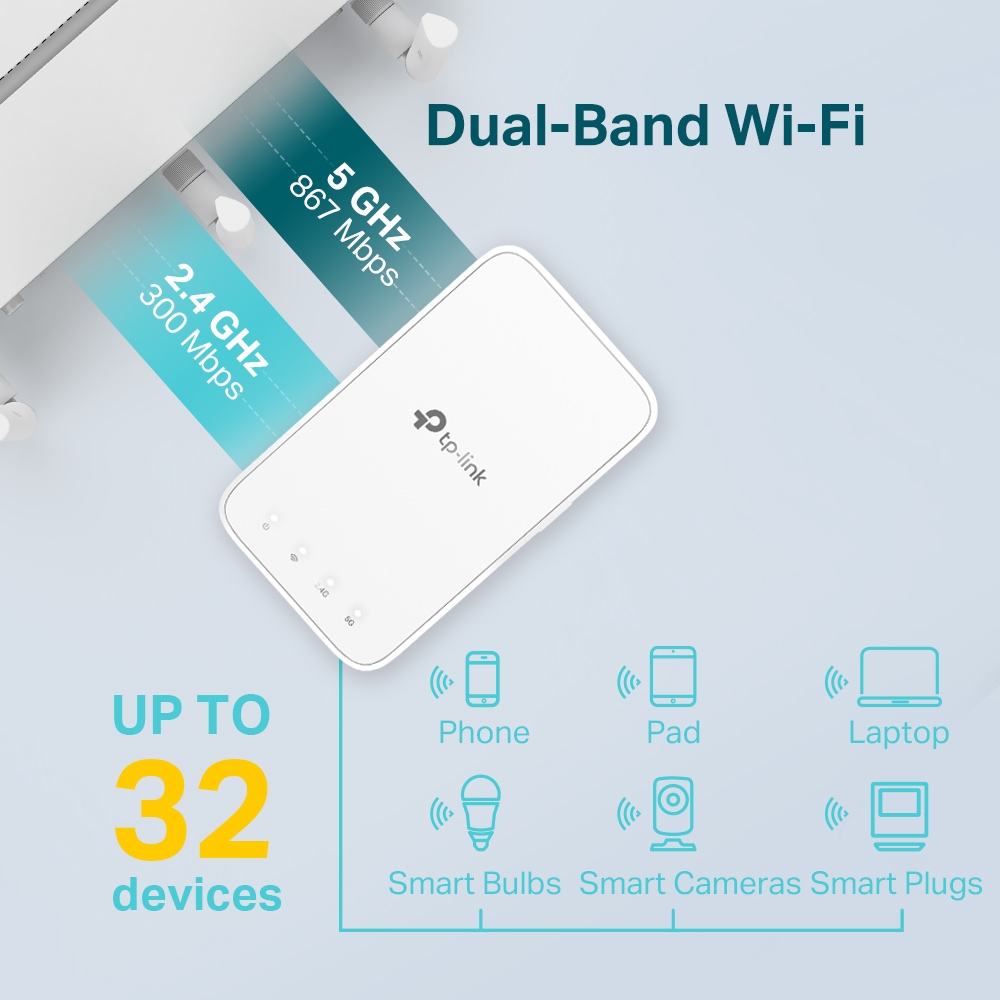

Operates over both the 2.4 GHz band (300 Mbps) and 5 GHz band (867 Mbps)*1 for more stable wireless experience
Smart signal indicator helps to find the best location for optimal Wi-Fi coverage by showing the signal strength

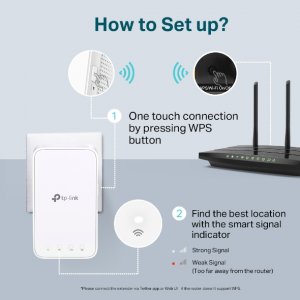

Push the WPS button to easily set up a Mesh network you can uniformly manage from the Tether app or Web UI
Works with any Wi-Fi router or wireless access point

Product Properties

Manufacturer
TP-LINK

Model
RE300

EAN
6935364084219

Antenna

Antenna type
Internal

Antennas quantity
2

Transmitting power (CE)
17 dBm

Bullet points

Point
Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage

Extends dual-band Wi-Fi across your home to eliminate Wi-Fi dead zones

Works with any Wi-Fi router or wireless access point

Certificates

Compliance certificates
RoHS, Federal Communications Commission (FCC), CE

Design

LED indicators
Yes

Product colour
White

Quantity per pack
1 pc(s)

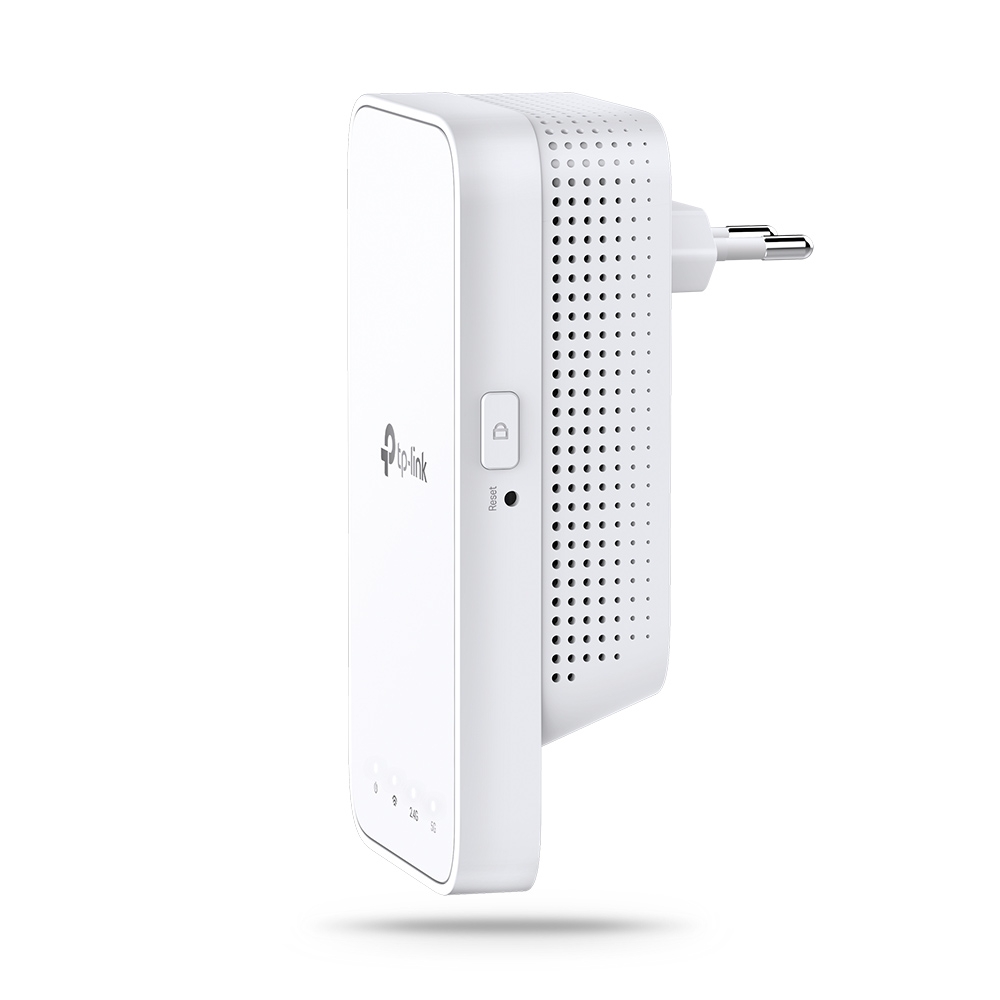

Reset button
Yes

Management features

Access Control List (ACL)
Yes

Network

Security algorithms
64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK

Wi-Fi
Yes

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)

Wi-Fi data rate (max)
867 Mbit/s

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

Quick start guide
Yes

Packaging data

Package depth
101.5 mm

Package height
89 mm

Package type
Box

Package weight
290 g

Package width
156.5 mm

Performance

Data transfer rate
867 Mbit/s

Linux operating systems supported
Yes

Mac compatibility
Yes

Mac operating systems supported
Yes

Type
Network repeater

Windows operating systems supported
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP

WPS push button
Yes

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Power consumption (max)
7.3 W

Weight & dimensions

Depth
69 mm

Height
52 mm

Width
124 mm
