Description

SonicWall NSa 2700. Firewall throughput: 5.5 Gbit/s, IPSec VPN throughput: 2.1 Gbit/s, SSL inspection throughput: 800 Mbit/s. Heat dissipation: 73.32 BTU/h, Compatible operating systems: Microsoft Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1.... Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1. Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3, Routing protocols: BGP, BGP4, OSPF, RIP, RIP-1, RIP-2. Connectivity technology: Wired, Ethernet LAN data rates: 1000,10000 Mbit/s, Console port: RJ-45

Product Properties

Manufacturer
Sonicwall

Model
02-SSC-8199

EAN
758479281993

Certificates

Certification
Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP, FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSM

Data transmission

Firewall throughput
5.5 Gbit/s

HTTPS encryption
Yes

IPSec VPN throughput
2.1 Gbit/s

Maximum connections (DPI)
500000

SSL inspection throughput
800 Mbit/s

VoIP
Yes

Design

Built-in display
No

Form factor
1U

Rack mounting
Yes

Logistics data

Harmonized System (HS) code
85176990

Quantity per pack
1 pc(s)

Management features

LED indicators
Yes

Network

DHCP client
Yes

DHCP server
Yes

Local user database
250

Number of LAN Access Points (max)
32

Number of VLANs
256

Quality of Service (QoS) support
Yes

VPN tunnels quantity
250

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-40 - 70 °C

Other features

Authentication method
LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database,Terminal Services, Citrix, Common Access Card (CAC)

Firewall throughput
5500 Mbit/s

Packaging content

Bundled software
Secure Upgrade Plus - Advanced Edition 2Y

Performance

Compatible operating systems
Microsoft Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Windows 10, Mac OS X 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE, Apple iOS, Mac OS X, Google Android, Kindle Fire, Chrome, Windows 8.1 (Embedded)

Heat dissipation
73.32 BTU/h

Ports & interfaces

Connectivity technology
Wired

Console port
RJ-45

Ethernet LAN (RJ-45) ports
16

Ethernet LAN data rates
1000,10000 Mbit/s

Number of console ports
1

Remote management port
RJ-45 (Gigabit)

SFP+ module slots quantity
3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

Power

AC input frequency
50 - 60 Hz

AC input voltage
100-240 V

Power consumption (max)
21.5 W

Power supply
60 W

Protocols

Routing protocols
BGP, BGP4, OSPF, RIP, RIP-1, RIP-2

Supported network protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3

Security

Security algorithms
3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1

Storage

Flash memory
64000 MB

Storage Capacity
256 GB

Storage media type
Flash

Weight & dimensions

Depth
325 mm

Height
45 mm

Weight
4 kg

Width
430 mm

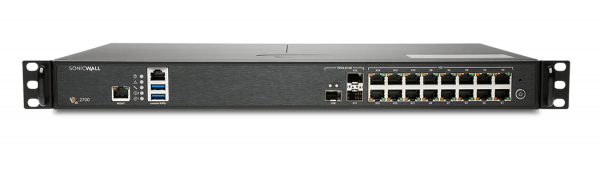

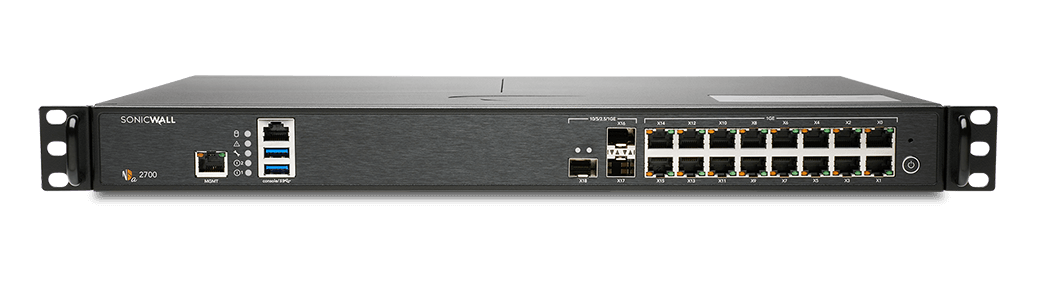

SonicWall NSa 2700 hardware firewall 1U 5.5 Gbit/s
