Model: ST1000PEXPSE
EAN: 65030893107

StarTech.com 1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Card w/RJ45, 30W 802.3at PoE NIC for Desktops/Servers, Network PoE LAN Adapter w/Low-Profile Bracket, NBaseT, Windows/Linux

Manufacturer:
StarTech.com
StarTech.com 1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Card w/RJ45, 30W 802.3at PoE NIC for Desktops/Servers, Network PoE LAN Adapter w/Low-Profile Bracket, NBaseT, Windows/Linux, Internal, Wired, PCI Express, Ethernet, 2500 Mbit/s
Please log in to see your price
Related products

Description

StarTech.com 1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Card w/RJ45, 30W 802.3at PoE NIC for Desktops/Servers, Network PoE LAN Adapter w/Low-Profile Bracket, NBaseT, Windows/Linux. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s

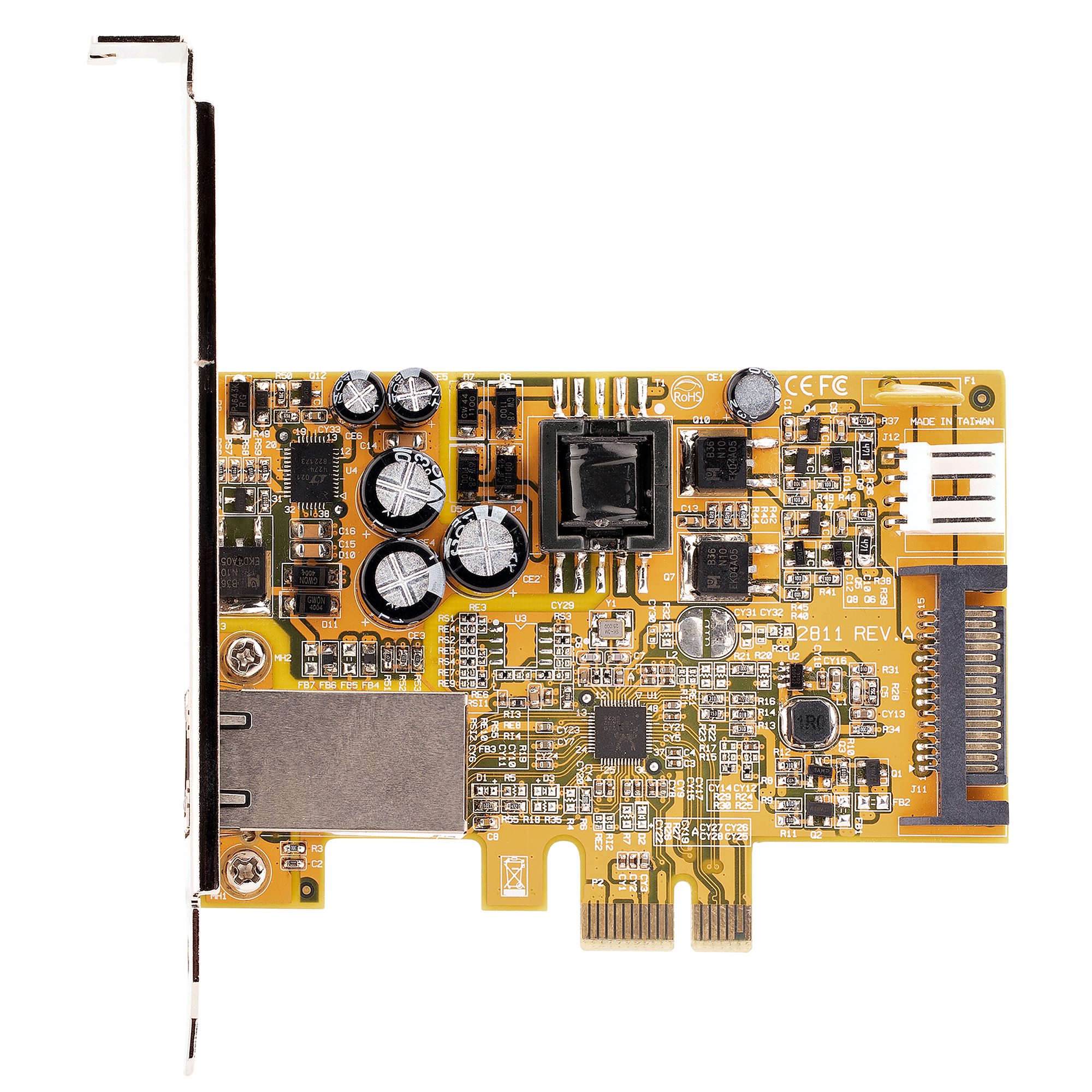

  • 2.5G NETWORK CARD WITH POE: This PCI Express x1 Network Card enables 2.5Gbps network speeds and supplies (PSE) 30W PoE over a single CAT5e (or later) cable - Leverage existing copper cabling without the use of a Power over Ethernet (PoE) injector
  • POE+ COMPLIANT: Card provides up to 30W PSE and 25.5W PD at 48V DC to a connected device - Supports IEEE 802.3af (PoE) and 802.3at (PoE+) to power remote devices such as access points, RFID readers, and IP cameras
  • MULTI-GIGABIT CONNECTIVITY: The Network PoE Card features 2.5GBASE-T (802.3bz) and will auto negotiate to the connected device's highest possible speed - The PCIe Network Card supports Wake-on-LAN and RealWoW for remote wake up of the host computer

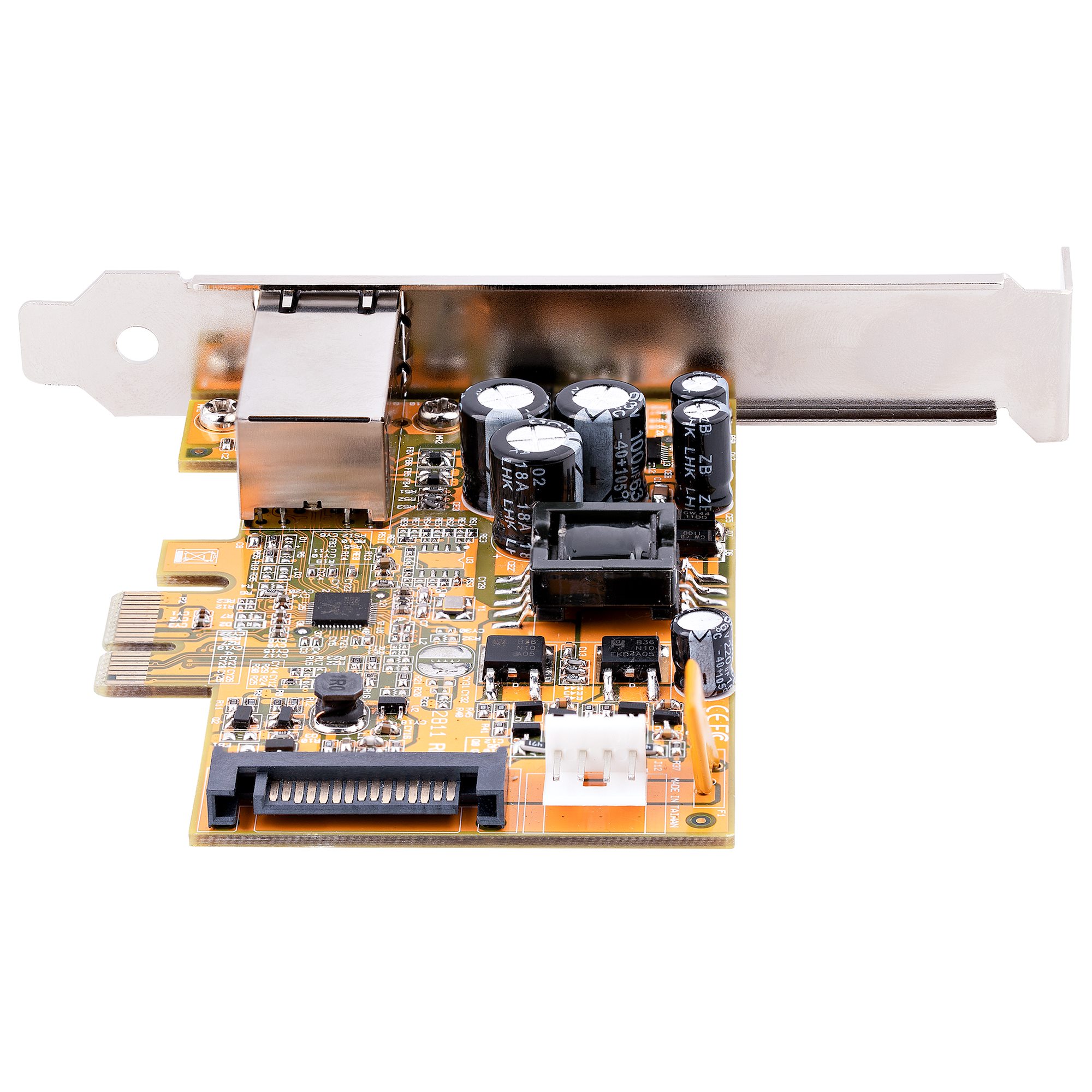

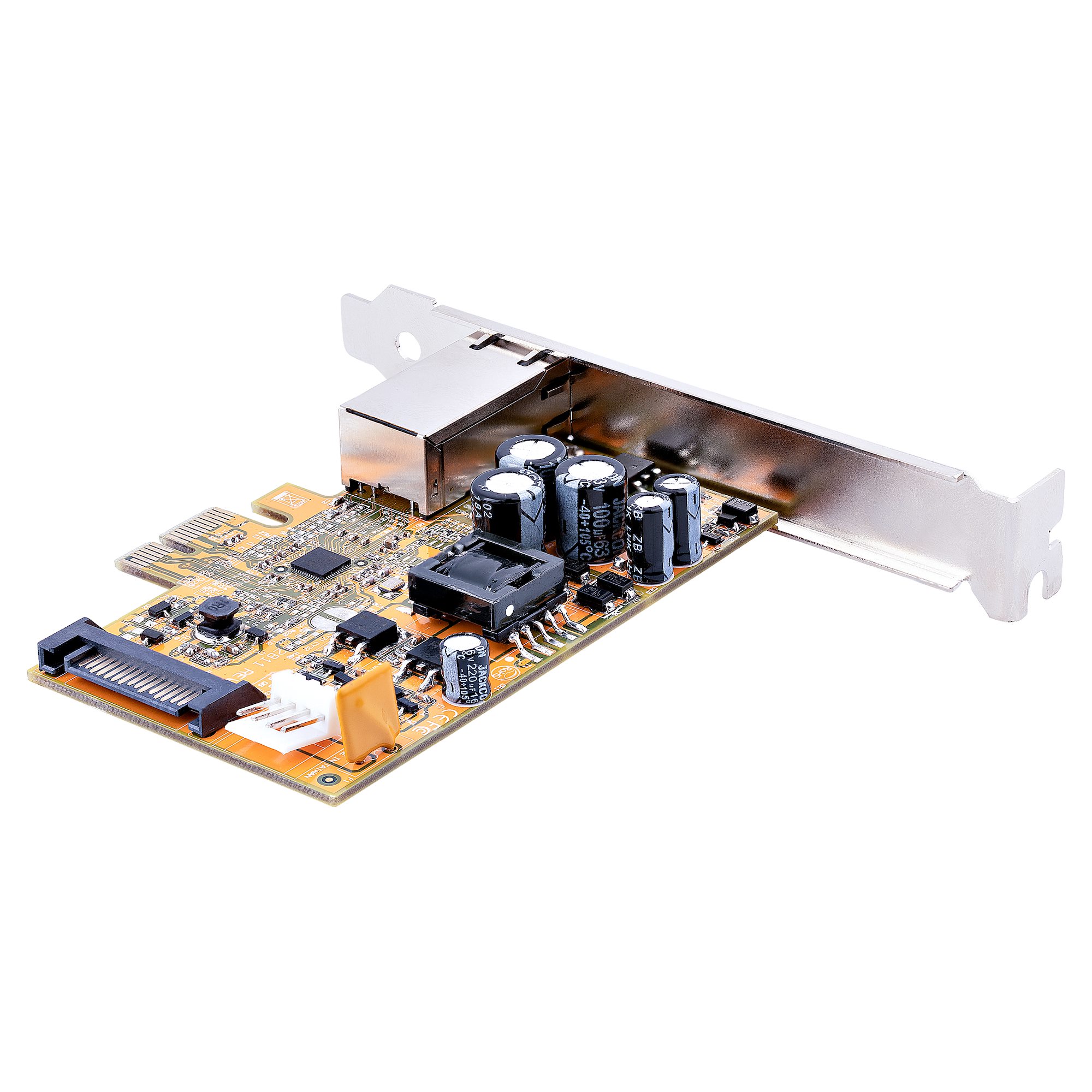

  • TECH SPECS: 2.5Gbps/1Gbps/100Mbps/10Mbps - NBASE-T - 1x RJ45 Port - Realtek RTL8125B - IEEE 802.3af/at - 802.3az EEE - PCIe 2.1 x1 - SATA & SP4 Power Connectors - Link/PoE LED Indicators - 16K Jumbo Frame - VLAN - PXE Boot - Full and Low-Profile Brackets

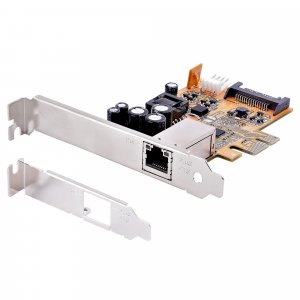

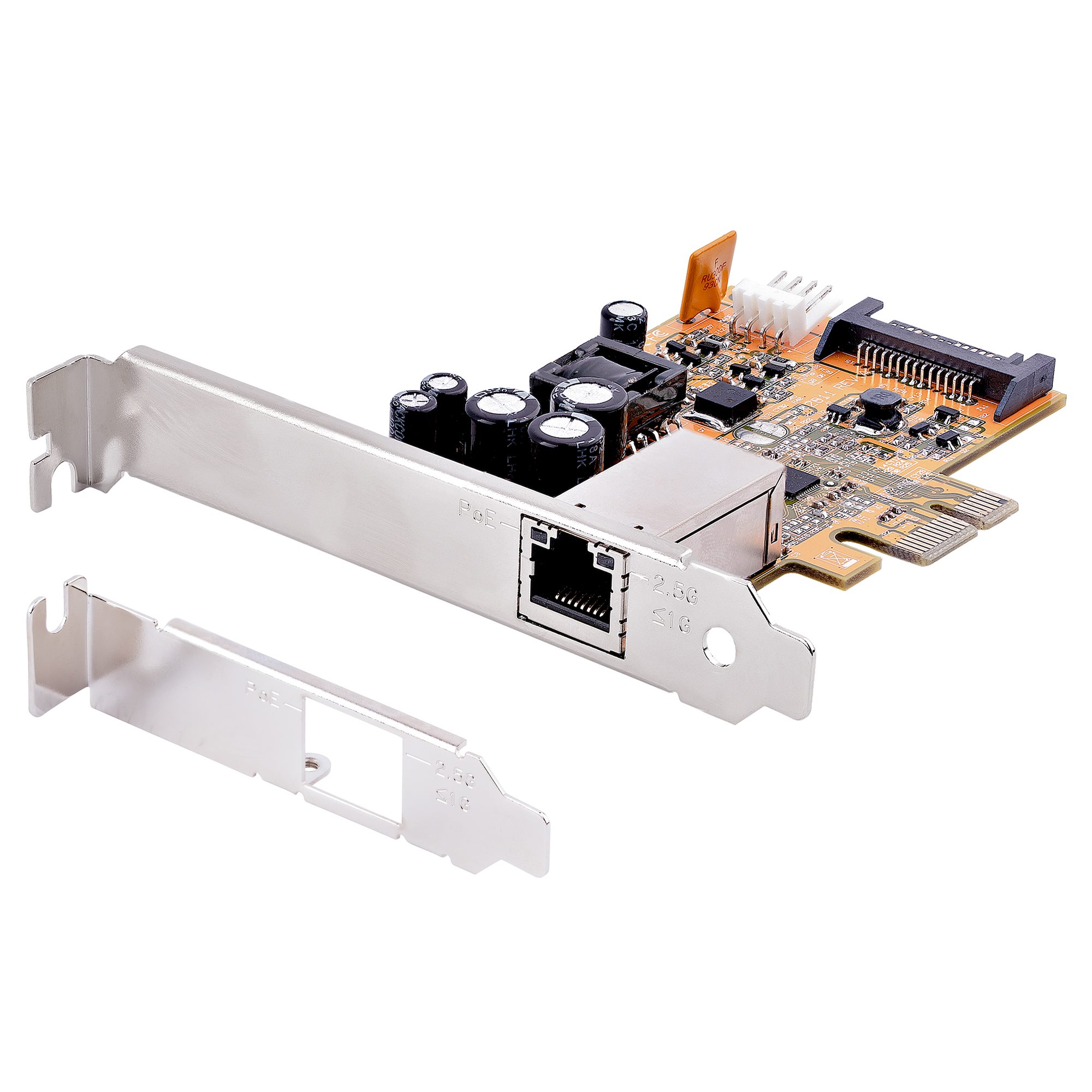

  • VERSATILE POE NETWORK CARD: The PCIe Ethernet Adapter supports Windows and Linux - Variable speed options and includes a low-profile bracket for Small Form Factor (SFF) systems ensures compatibility of the PoE NIC with current and legacy devices

Product Properties

  • Model
  • ST1000PEXPSE
  • EAN
  • 65030893107
  • Bullet points
  • Point
  • 2.5G NETWORK CARD WITH POE
    MULTI-GIGABIT CONNECTIVITY
    POE+ COMPLIANT
    TECH SPECS
    VERSATILE POE NETWORK CARD
  • Design
  • Chipset
  • Realtek RTL8125B
  • Component for
  • PC/Server
  • Internal
  • Yes
  • LED indicators
  • Yes
  • Logistics data
  • Master (outer) case height
  • 340 mm
  • Master (outer) case length
  • 440 mm
  • Master (outer) case width
  • 530 mm
  • Products per master (outer) case
  • 50 pc(s)
  • Network
  • Auto MDIX IEEE
  • Yes
  • Ethernet interface type
  • 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • Ethernet LAN data rates
  • 10,100,1000,2500 Mbit/s
  • Full duplex
  • Yes
  • Jumbo frames
  • 16000
  • Jumbo frames support
  • Yes
  • Maximum data transfer rate
  • 2500 Mbit/s
  • Maximum operating distance
  • 100 m
  • Networking standards
  • IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
  • VLAN tagging
  • Yes
  • Wake-on-LAN ready
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 55 °C
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Packaging content
  • Mounting brackets included
  • Yes
  • Quick installation guide
  • Yes
  • Packaging data
  • Package depth
  • 144 mm
  • Package height
  • 38 mm
  • Package weight
  • 220 g
  • Package width
  • 207 mm
  • Ports & interfaces
  • Connectivity technology
  • Wired
  • Ethernet LAN (RJ-45) ports
  • 1
  • Host interface
  • PCI Express
  • Interface
  • Ethernet
  • PCI Card form factor
  • Full-height (low-profile)
  • PCI version
  • 2.1
  • Power over Ethernet (PoE) ports quantity
  • 1
  • Power
  • Output voltage
  • 48 V
  • Sustainability
  • Sustainability compliance
  • Yes
  • System requirements
  • Linux operating systems supported
  • Yes
  • Windows operating systems supported
  • Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
  • Server operating systems supported
  • Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019
  • Technical details
  • Compliance certificates
  • CE, RoHS
  • Weight & dimensions
  • Depth
  • 95 mm
  • Height
  • 15 mm
  • Weight
  • 220 g
  • Width
  • 63 mm
