Description

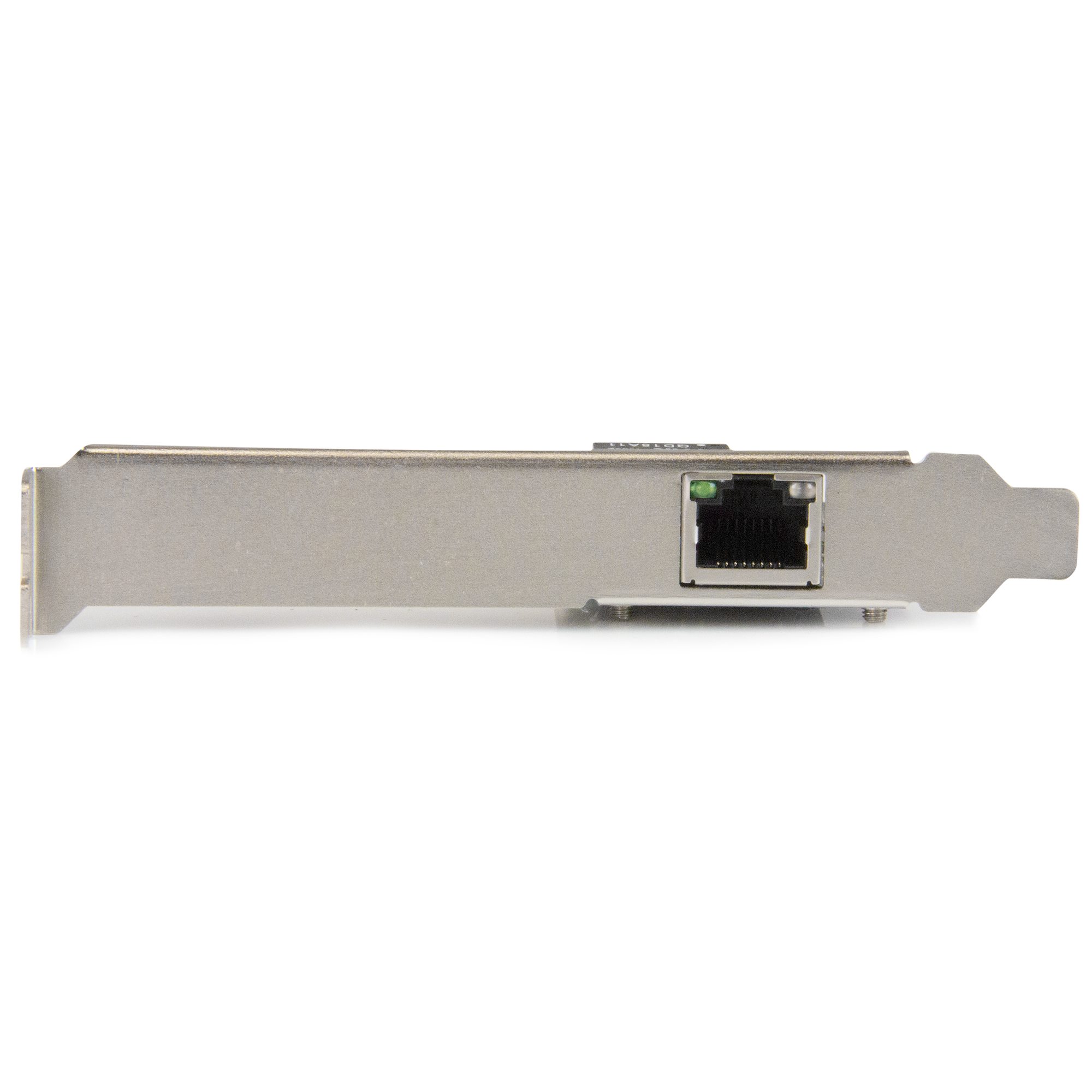

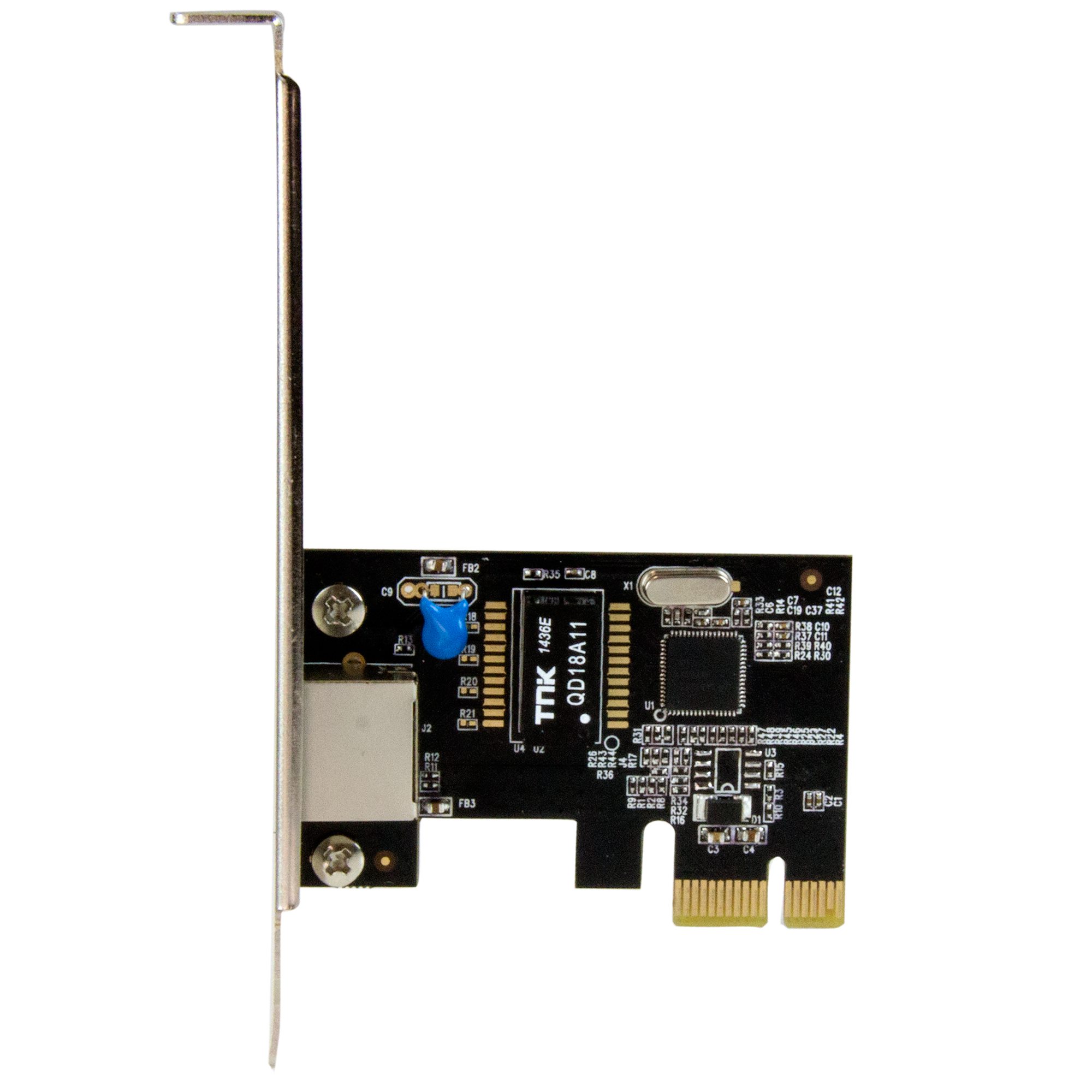

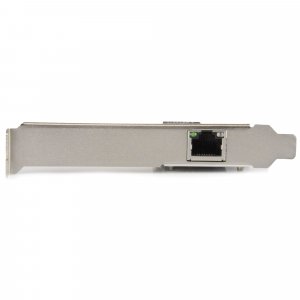

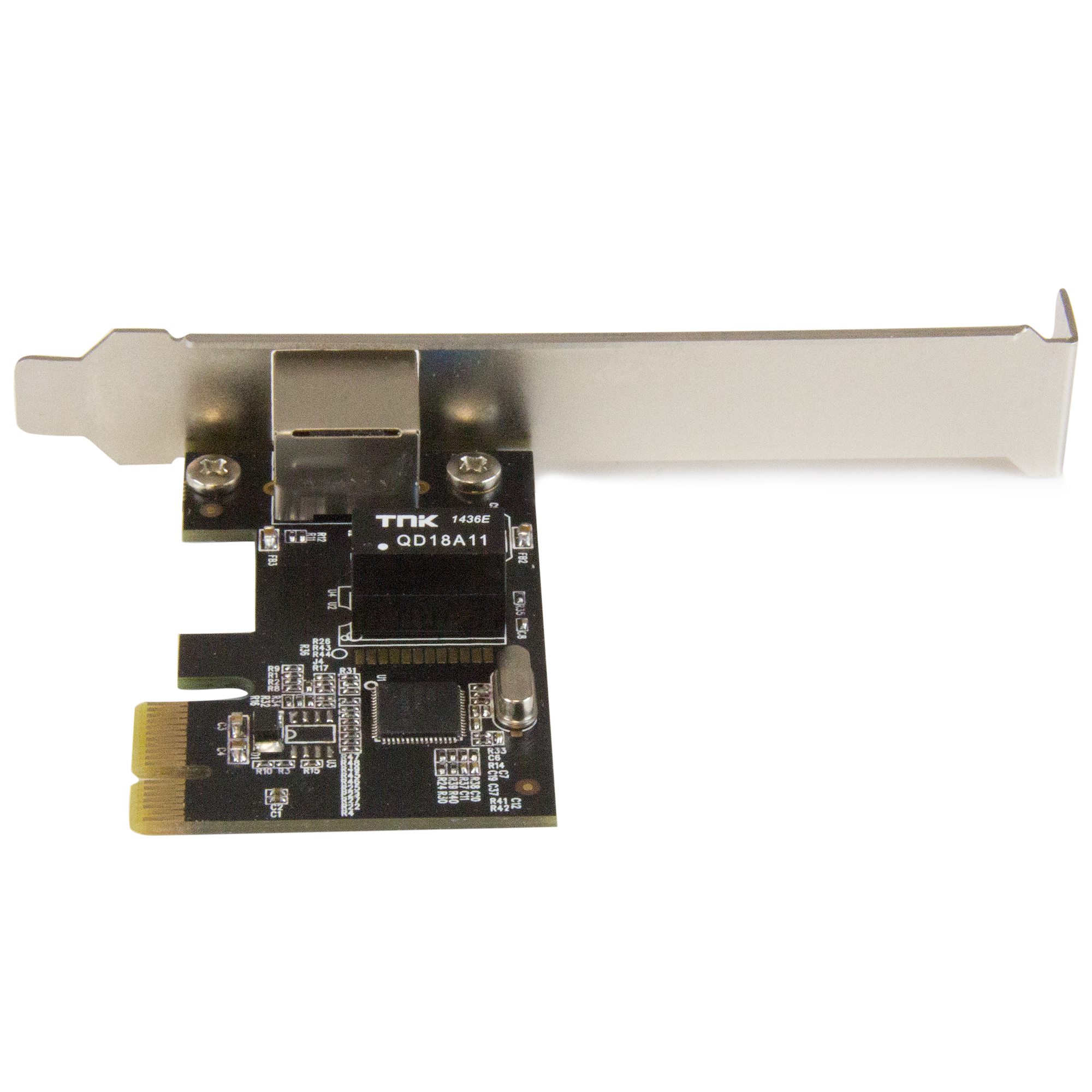

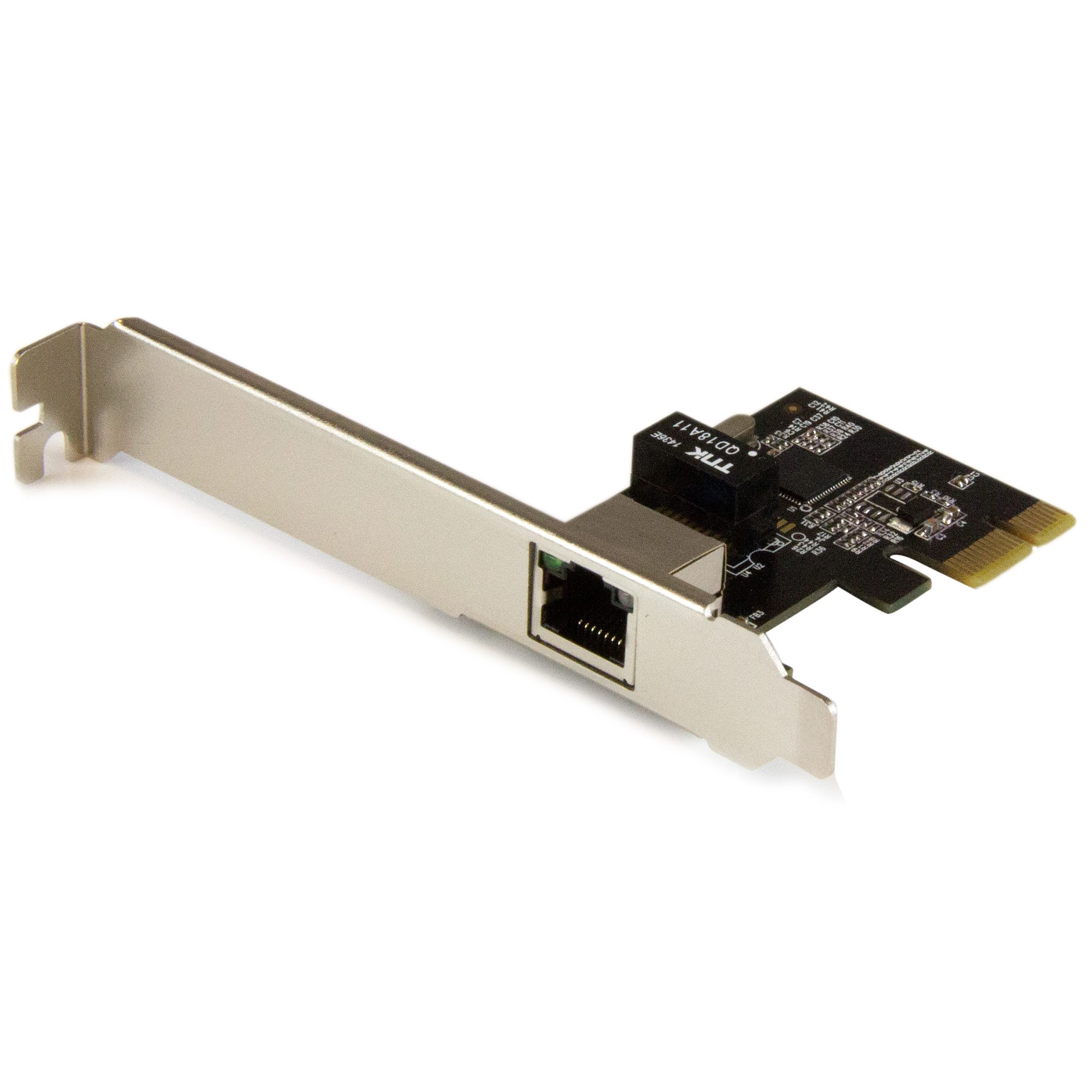

StarTech.com 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2000 Mbit/s. Product colour: Black, Metallic

Add a 10/100/1000 RJ-45 Ethernet port to a client, server or desktop through one PCIe slot
Intel I210-AT chipset
PXE network boot
Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Auto MDIX support
Autonegotiation support
Wake-on-LAN support
Up to 9K jumbo frame support
IEEE802.3az Energy Efficient Ethernet (EEE)
Supports IEEE 802.1Q VLAN tagging

Product Properties

Manufacturer
StarTech.com

Model
ST1000SPEXI

EAN
65030861038

Bullet points

Point
Add a 10/100/1000 RJ-45 Ethernet port to a client, server or desktop through one PCIe slot

Auto MDIX support

Autonegotiation support

Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

IEEE802.3az Energy Efficient Ethernet (EEE)

Intel I210-AT chipset

PXE network boot

Supports IEEE 802.1Q VLAN tagging

Up to 9K jumbo frame support

Wake-on-LAN support

Design

Chipset
Intel® I210-AT

Component for
PC/Server

Internal
Yes

LED indicators
Activity

Product colour
Black, Metallic

Logistics data

Harmonized System (HS) code
85176990

Master (outer) case height
368 mm

Master (outer) case length
592 mm

Master (outer) case width
306 mm

Products per master (outer) case
80 pc(s)

Network

Auto MDIX IEEE
Yes

Auto-negotiation
Yes

Cabling technology
10/100/1000BaseT(X)

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Full duplex
Yes

Jumbo frames support
Yes

Maximum data transfer rate
2000 Mbit/s

Networking standards
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

VLAN tagging
Yes

Wake-on-LAN ready
Yes

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
5 - 50 °C

Storage temperature (T-T)
-20 - 60 °C

Packaging content

Manual
Yes

Mounting brackets included
Yes

Packaging data

Package depth
172 mm

Package height
30 mm

Package weight
100 g

Package width
143 mm

Ports & interfaces

Connectivity technology
Wired

Ethernet LAN (RJ-45) ports
1

Host interface
PCI Express

Interface
Ethernet

Sustainability

Sustainability compliance
Yes

System requirements

Linux operating systems supported
Yes

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Server operating systems supported
Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Technical details

Compliance certificates
CE, RoHS

Weight & dimensions

Depth
120 mm

Height
18 mm

Weight
38 g

Width
66 mm
