Description

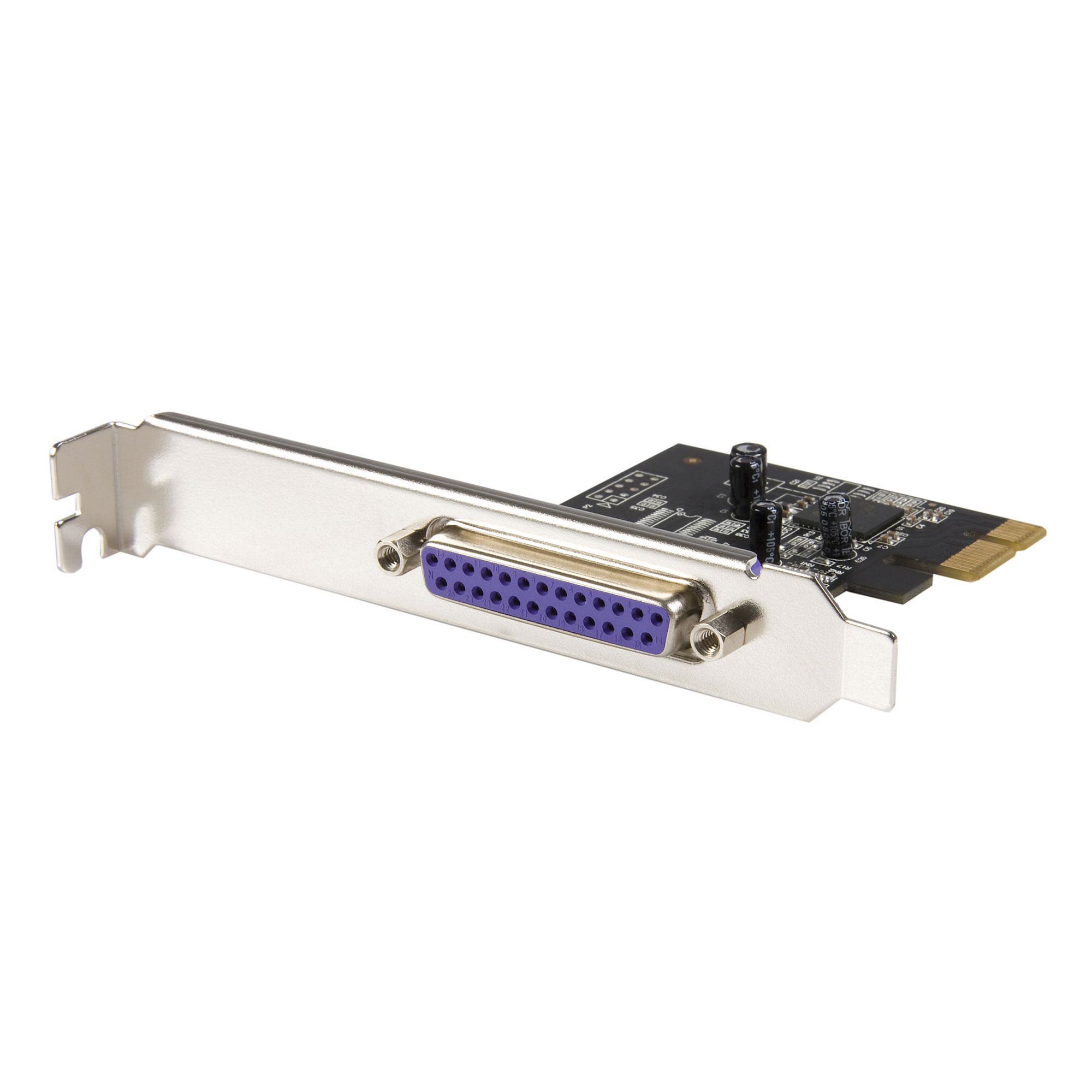

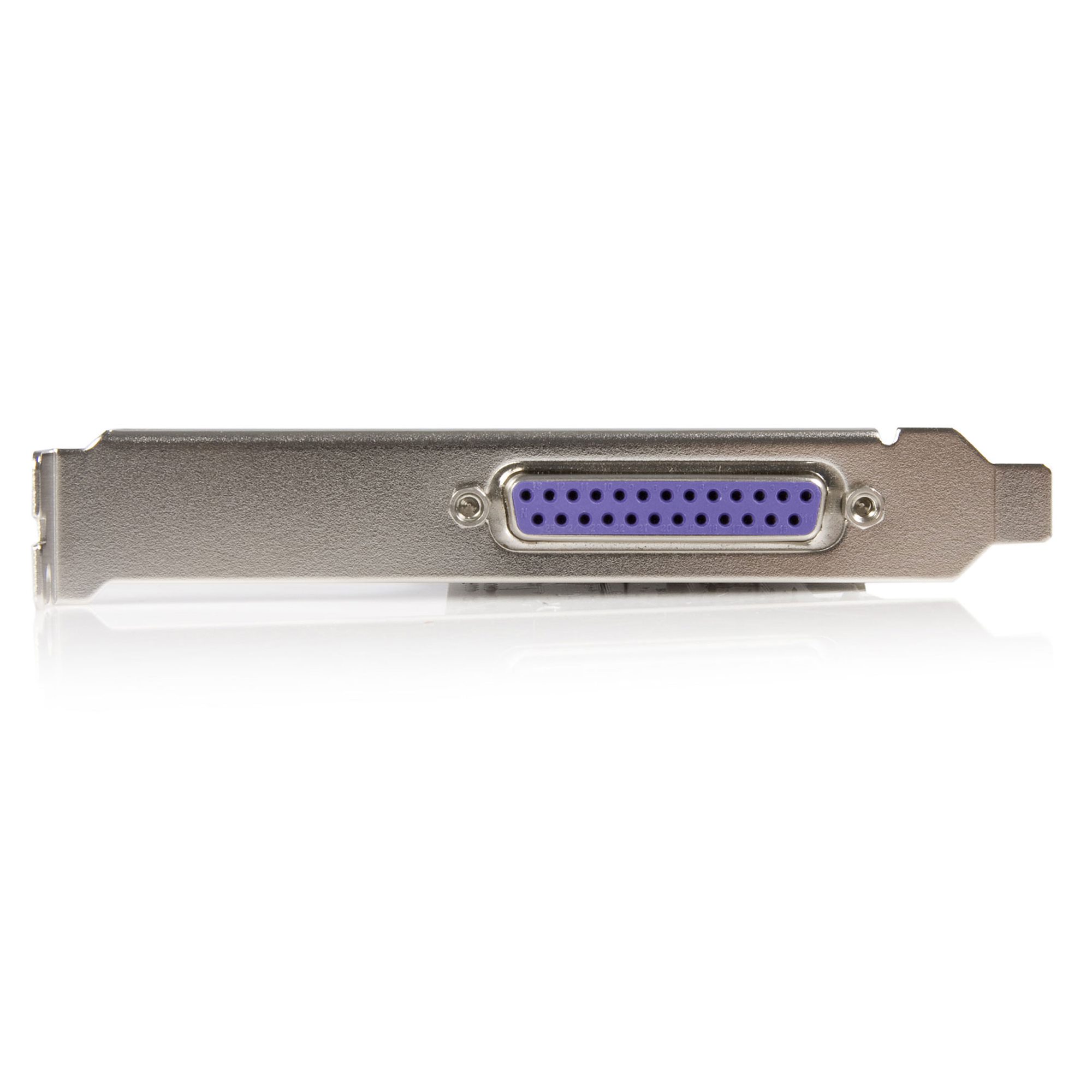

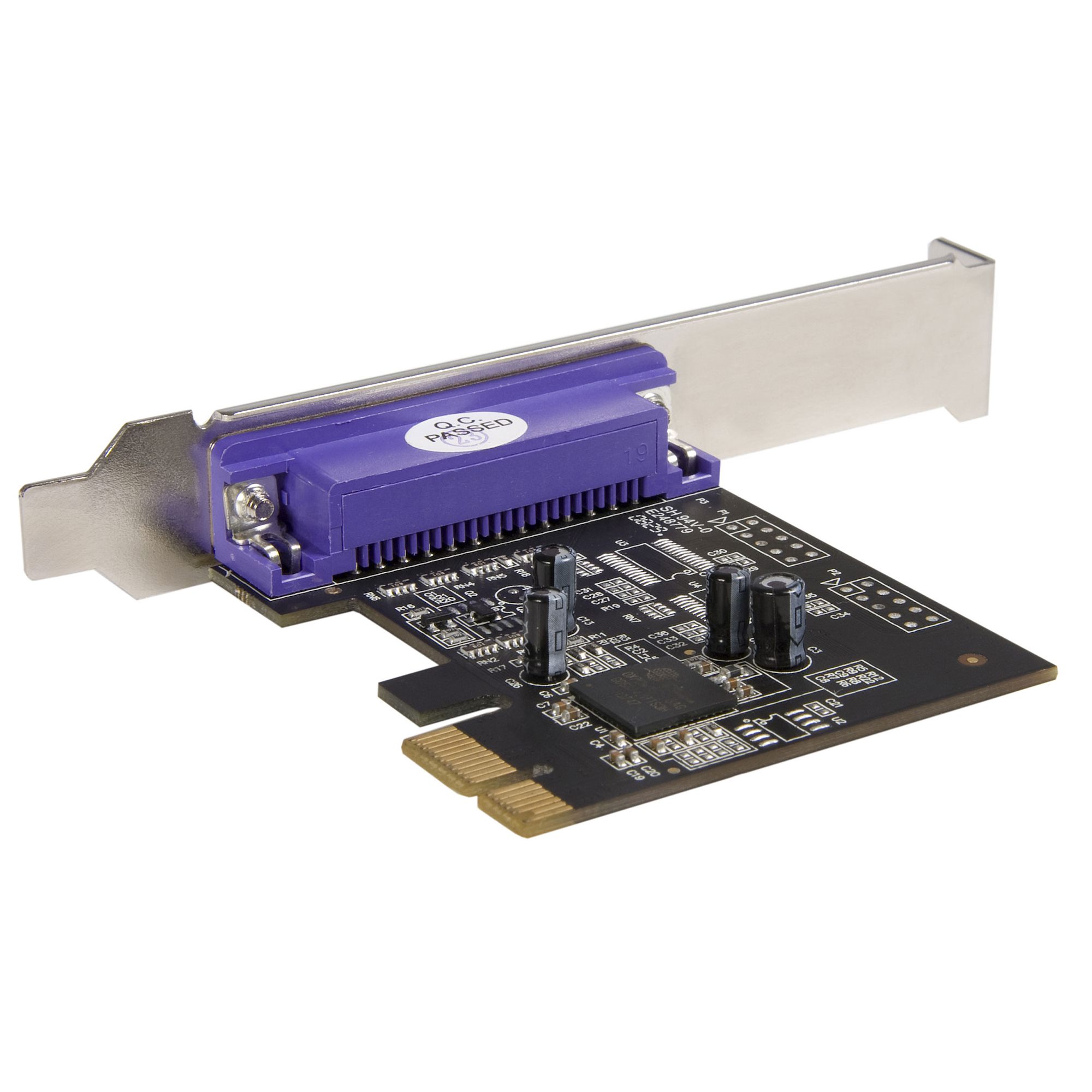

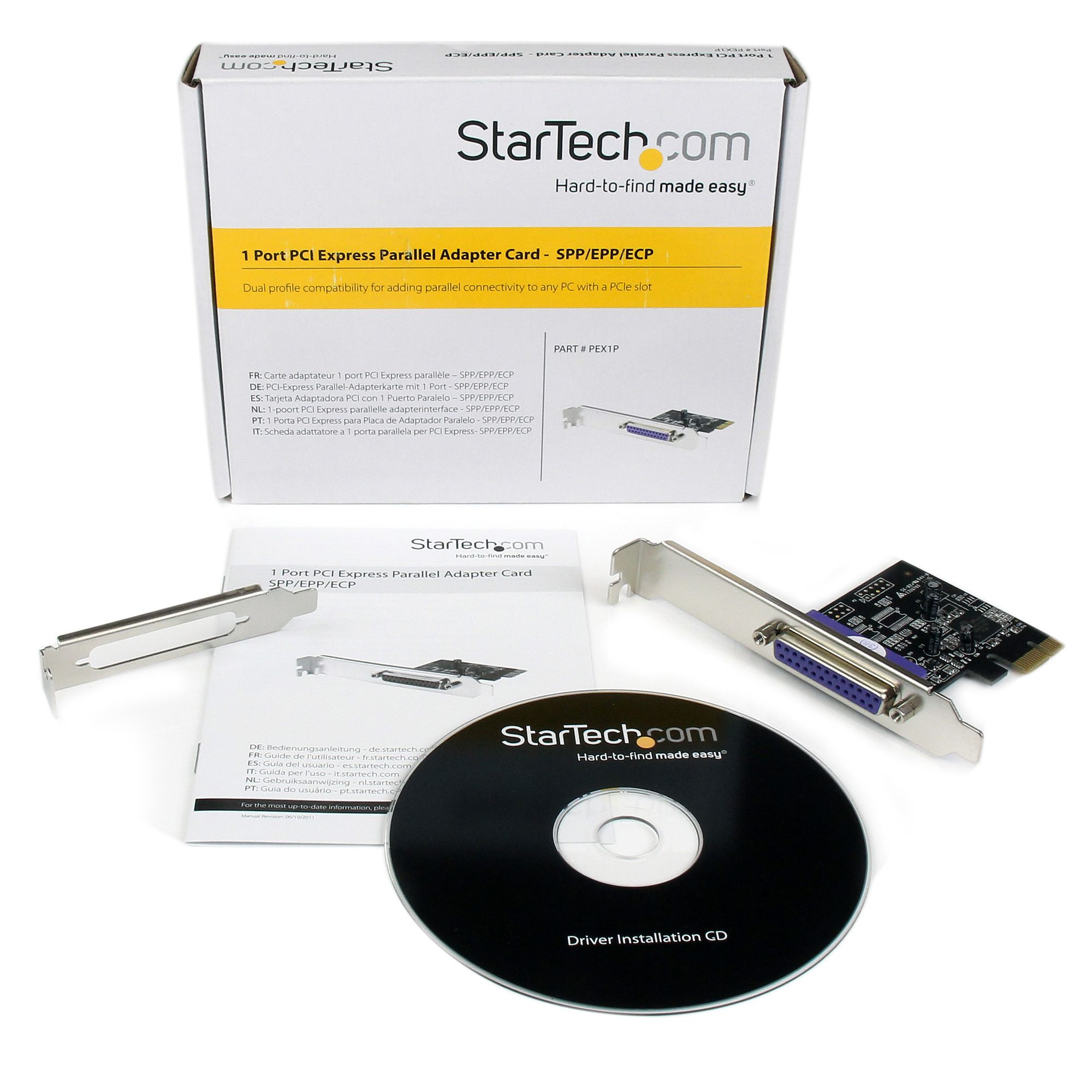

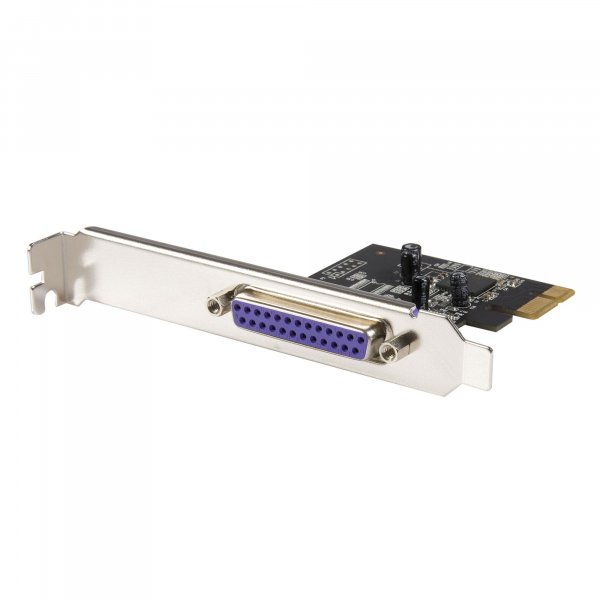

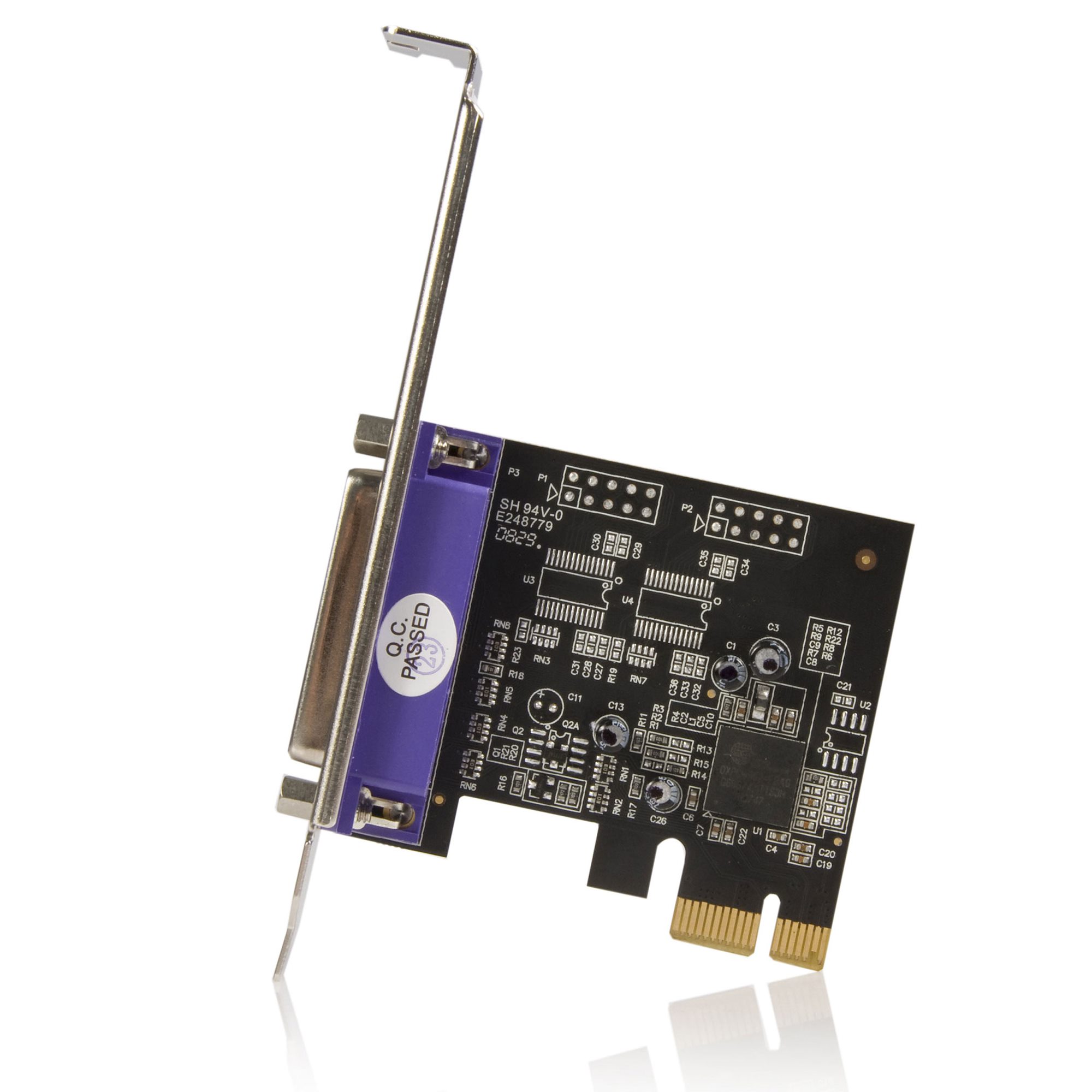

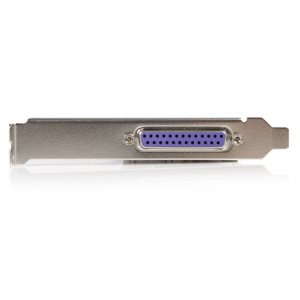

StarTech.com 1-Port Parallel PCIe Card - PCI Express to Parallel DB25 Adapter Card - Desktop Expansion LPT Controller for Printers, Scanners & Plotters - SPP/ECP - Standard/Low Profile. Host interface: PCIe, Output interface: Parallel, Expansion card standard: PCIe 1.0a. Product colour: Black, Steel, Mean time between failures (MTBF): 26297 h. Chipset: PLX/Oxford - OXPCIe952. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 110 mm, Depth: 210 mm, Height: 120 mm

1-PORT PARALLEL PCIe CARD: Using a 1x PCI Express 2.0 Gen 1 slot, add a DB25 parallel communications port to your computer; Installs in full/standard or low profile PCIe cards slots (brackets incl.); Latest version of our popular parallel card PEX1P
TECH SPECS: Parallel port LPT controller card supports SPP/Byte/Nibble/ECP modes
Compatible with IEEE 1284
Speeds up to 2.5Mbps
Asix AX99100 chip
Full profile bracket pre-installed

Product Properties

Manufacturer
StarTech.com

Model
PEX1P2

EAN
65030891400

Bullet points

Point
1-PORT PARALLEL PCIe CARD

Asix AX99100 chip

Compatible with IEEE 1284

Full profile bracket pre-installed

Speeds up to 2.5Mbps

TECH SPECS: Parallel port LPT controller card supports SPP/Byte/Nibble/ECP modes

Design

Internal
Yes

Mean time between failures (MTBF)
26297 h

Product colour
Black, Steel

Features

Chipset
PLX/Oxford - OXPCIe952

Logistics data

Harmonized System (HS) code
84733020

Master (outer) case height
330 mm

Master (outer) case length
400 mm

Master (outer) case width
610 mm

Products per master (outer) case
80 pc(s)

Other features

Data transfer rate
2.5 Mbit/s

Material
Steel

Packaging data

Drivers included
Yes

Manual
Yes

Mounting brackets included
Yes

Package depth
170 mm

Package height
30 mm

Package weight
133 g

Package width
143 mm

Ports & interfaces

Expansion card standard
PCIe 1.0a

Host interface
PCIe

Output interface
Parallel

Parallel ports quantity
1

System requirements

Linux operating systems supported
Yes

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Server operating systems supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Technical details

Compliance certificates
CE, RoHS

Weight & dimensions

Depth
210 mm

Height
120 mm

Weight
42 g

Width
110 mm
