Description

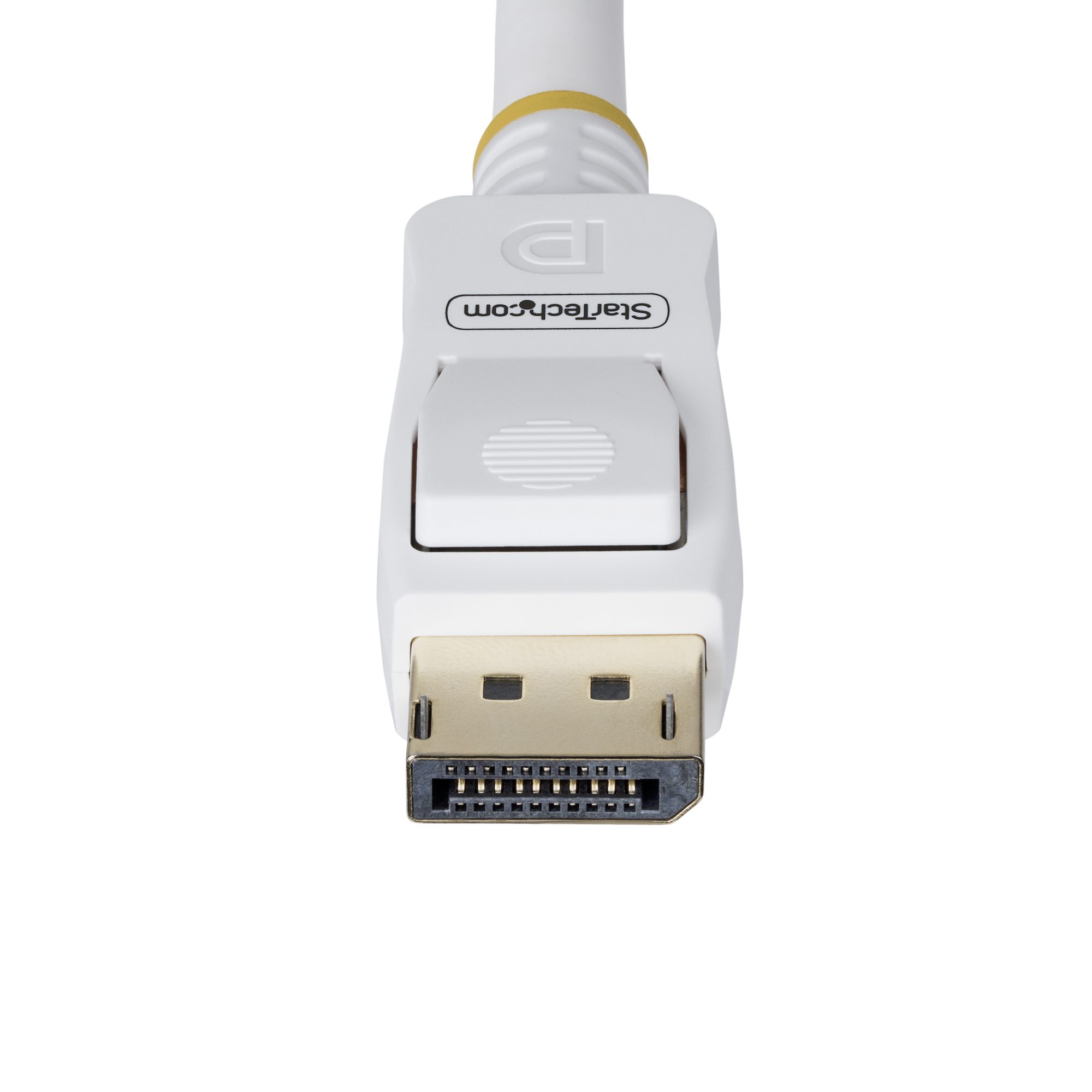

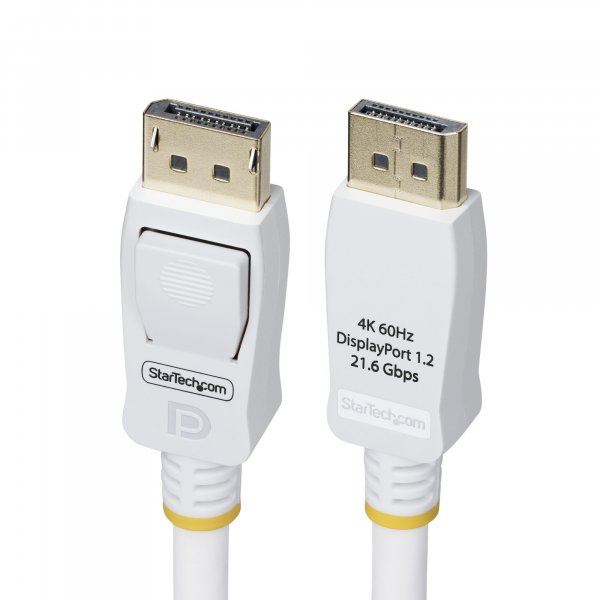

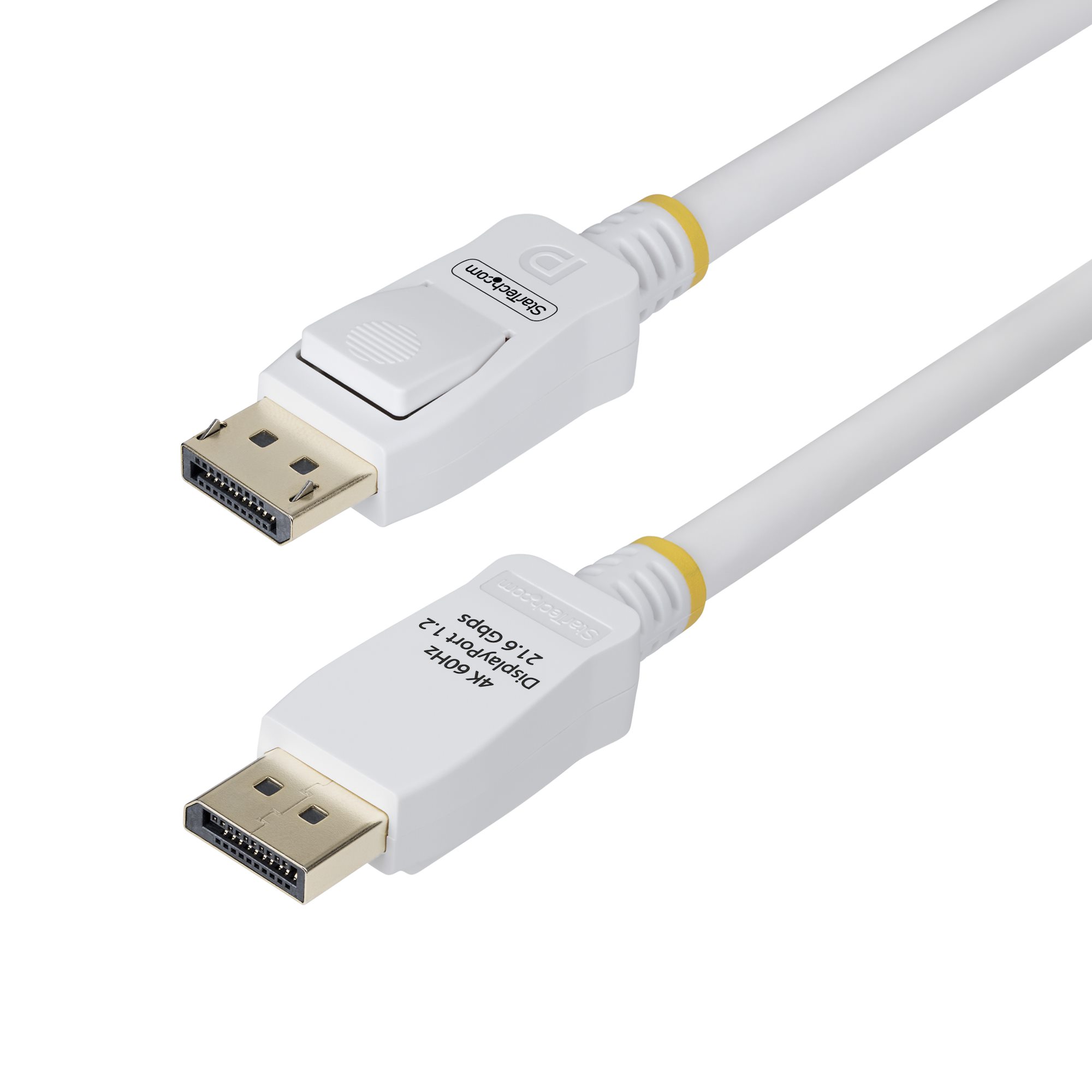

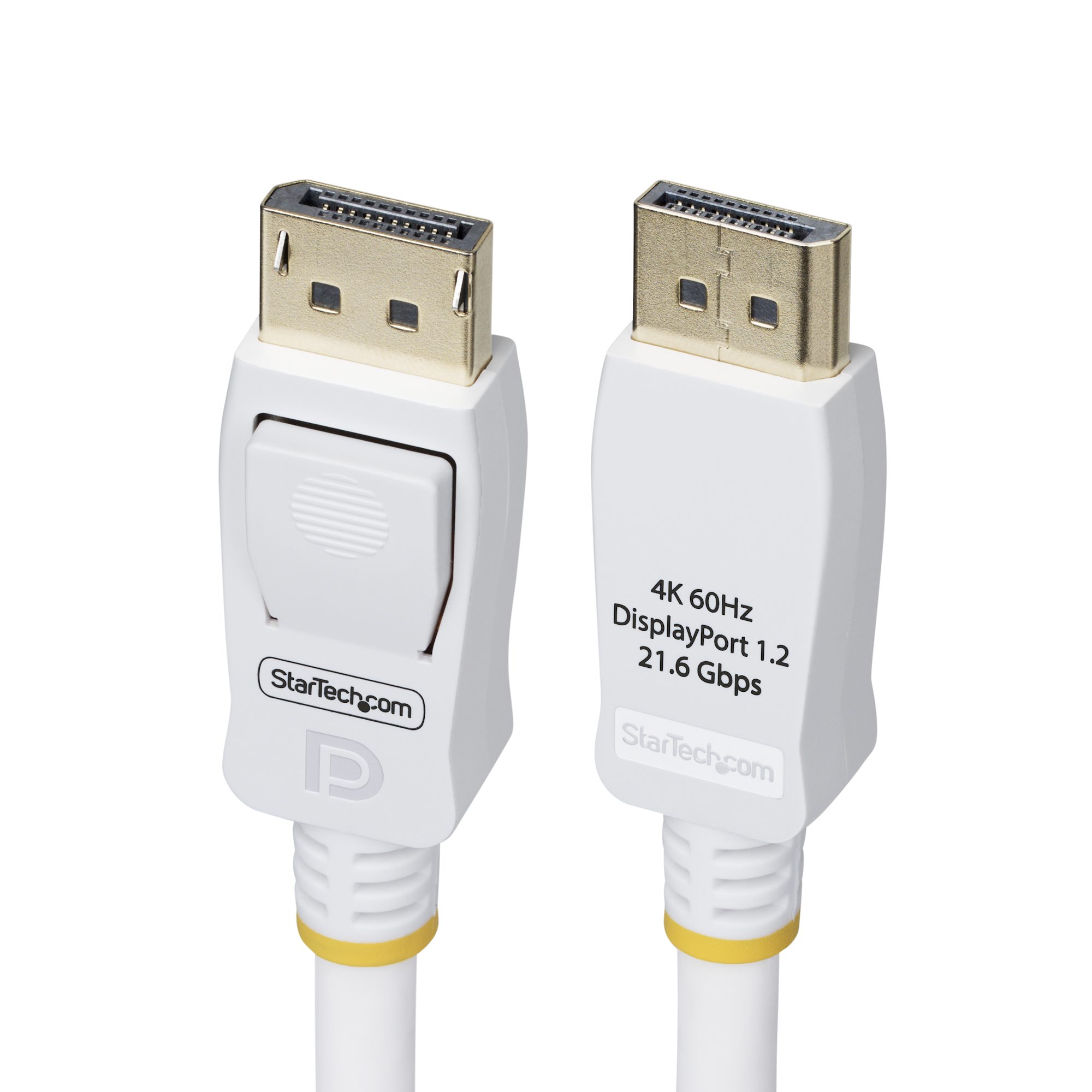

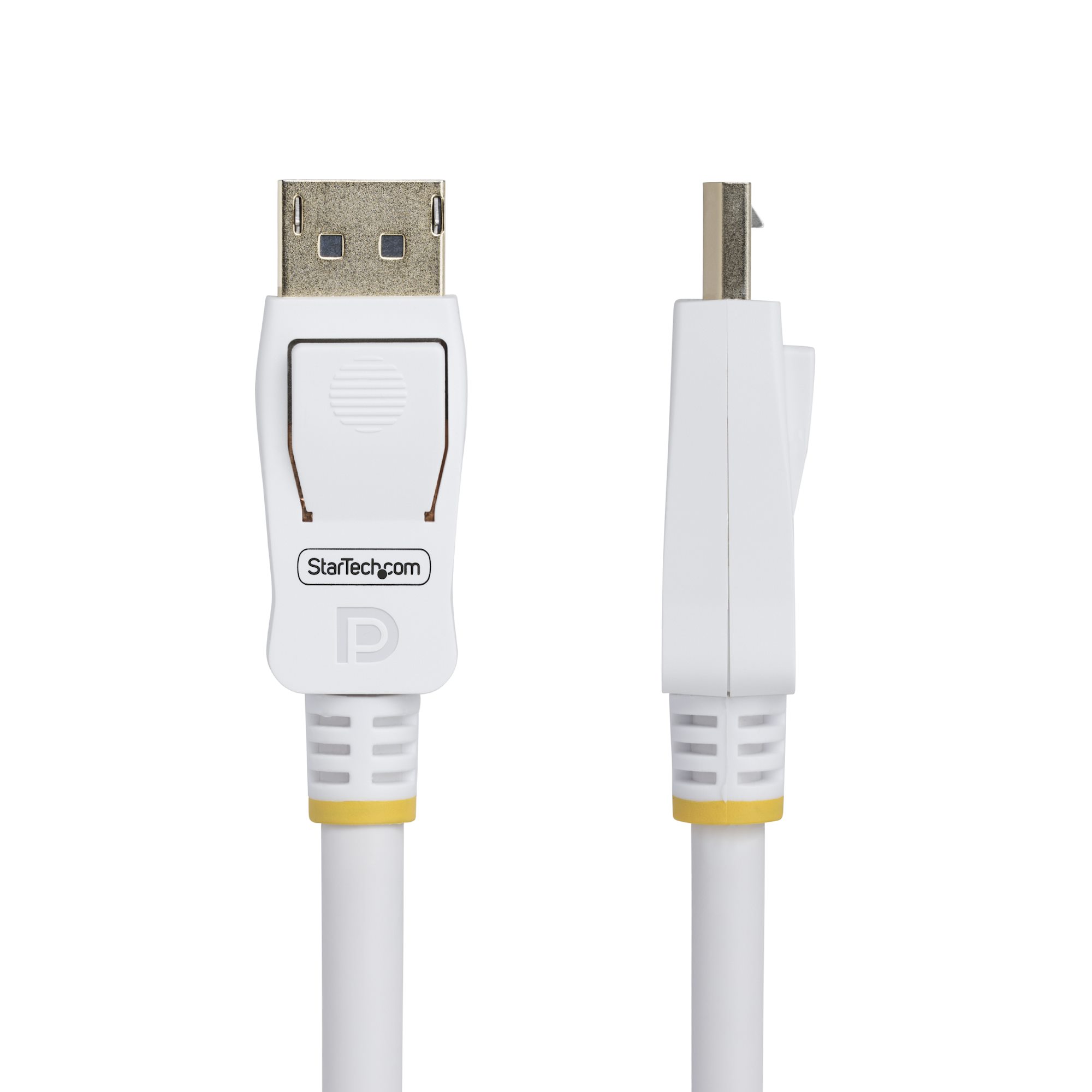

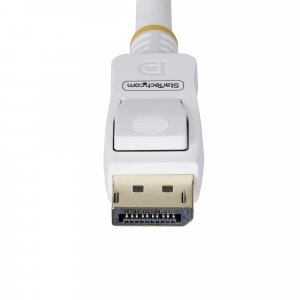

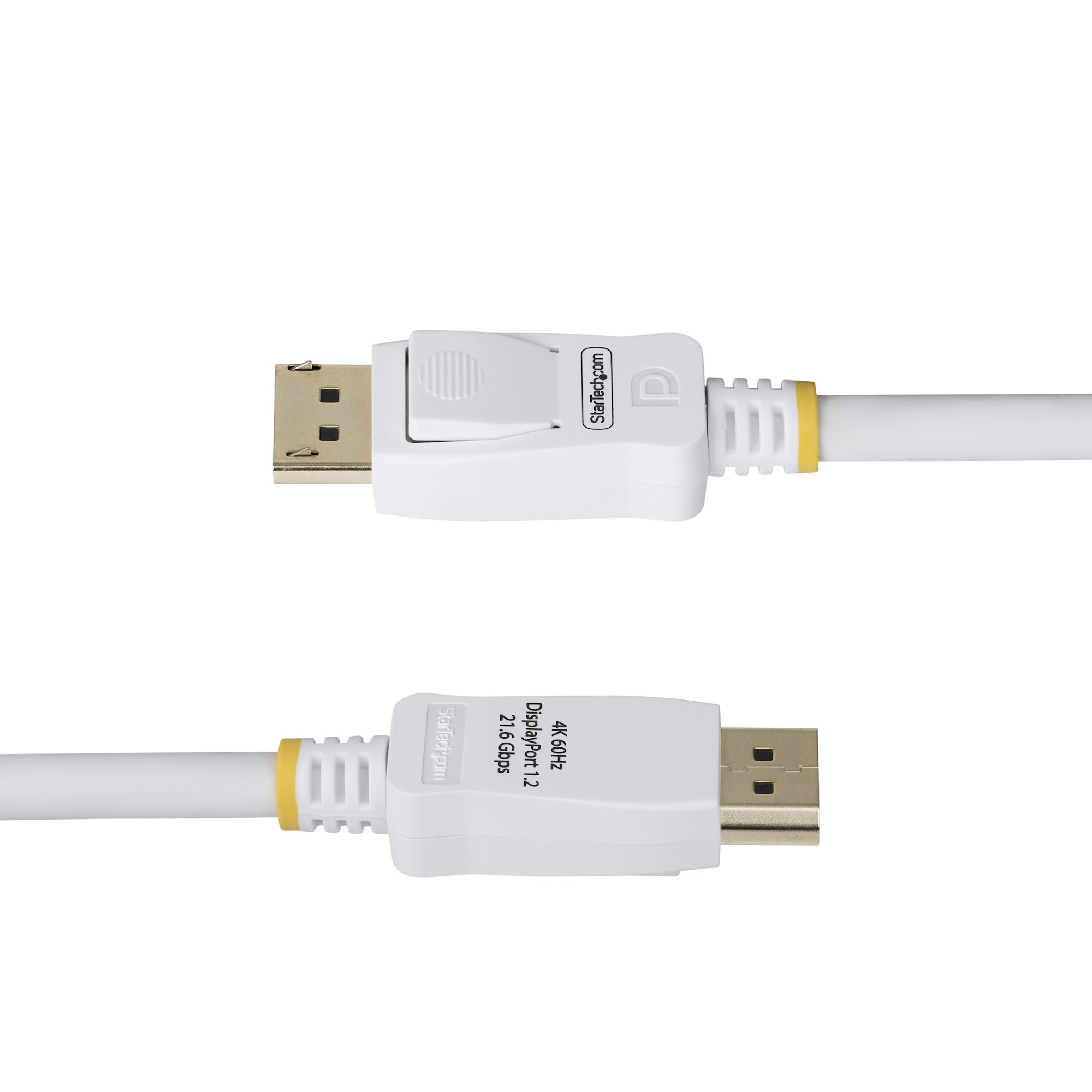

StarTech.com 10ft (3m) White VESA Certified DisplayPort 1.2 Cable, 4K 60Hz, 21.6Gbps, Latching DP Connectors, DP 1.2 DisplayPort Cable, DP Monitor Cord, M/M. Cable length: 3 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Cable diameter: 7.5 mm, Weight: 192 g. Package width: 220 mm, Package depth: 200 mm, Package height: 20 mm. Master (outer) case width: 500 mm, Master (outer) case length: 320 mm, Master (outer) case height: 210 mm

HIGH PERFORMANCE: DP 1.2 Cable is designed for UHD-enabled DisplayPort devices; Choose the right DP cable at-a-glance with performance markings on connectors for quick and easy identification; Up to 21.6Gbps for seamless 4K 60Hz video
VESA CERTIFIED: DP 1.2 Cable is VESA certified for guaranteed performance and compatibility, ensuring reliable signal consistency and smooth video playback on any DP display; Backward compatible with earlier DP versions
QUALITY CONSTRUCTION: Nickel-plated latching DP connectors enable a precise fit and prevents accidental disconnections; Aluminum mylar shield for enhanced EMI protection; Durable TPE Jacket and strain reliefs are halogen-free and RoHS compliant

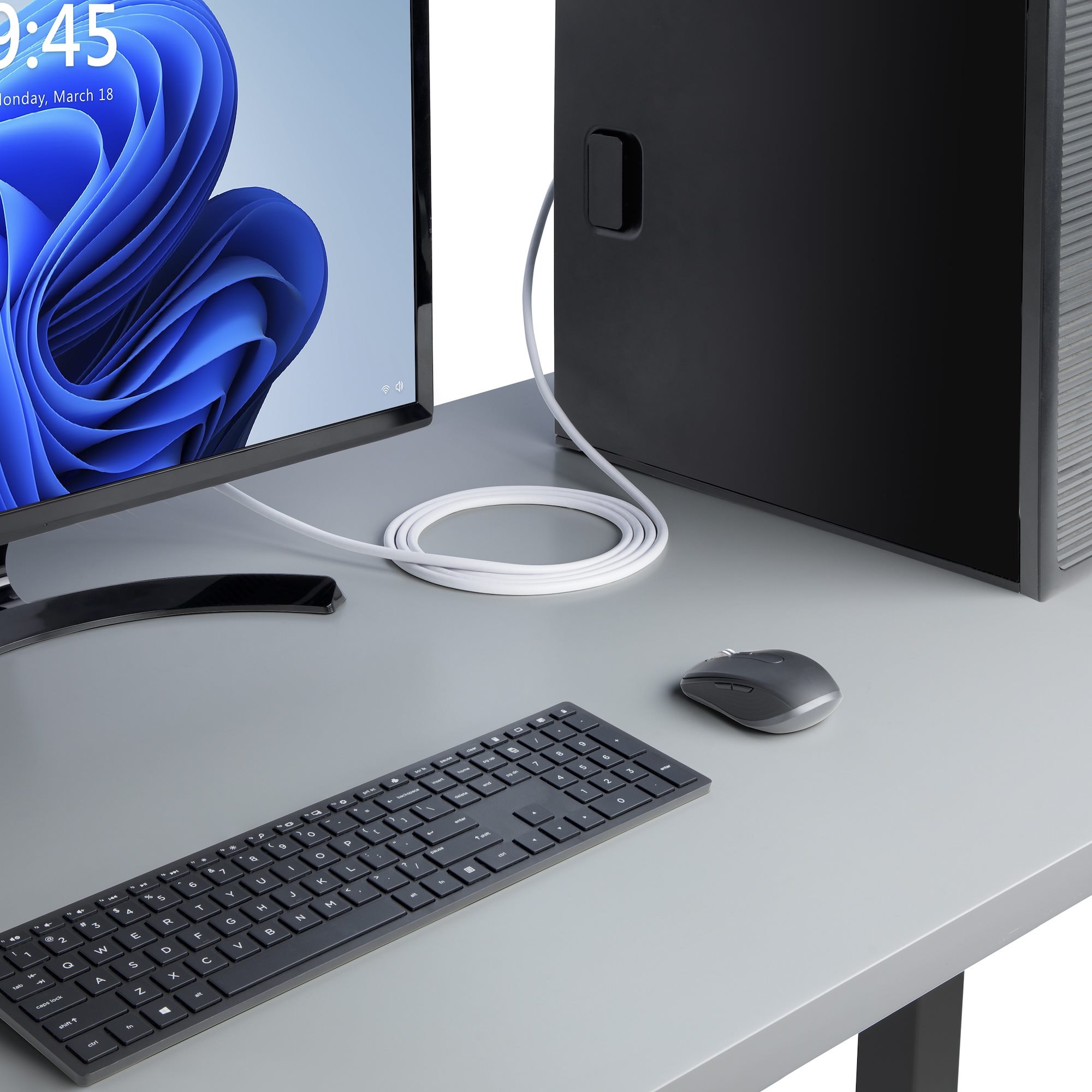

APPLICATIONS: Ideal for 4K UHD displays; Up to 144Hz refresh rate at 1440p resolution; Suitable for high performance GPUs and workstations; Supports MST multi-monitor daisy chains; Connect a DP monitor to a 4K docking station
SPECS: White; 10-foot (3-meter); VESA Certified DisplayPort 1.2; Supports HBR2/MST/HDCP 1.3; 4K 60Hz/1440p 144Hz/1080p 240Hz; 21.6Gbps; 8-ch Audio; Backward Compatible w/DP 1.1; 28AWG; 7.5mm (0.3in) O.D.

Product Properties

Manufacturer
StarTech.com

Model
DP12-CABLE-10FTW

EAN
65030916028

Bullet points

Point
APPLICATIONS

HIGH PERFORMANCE

QUALITY CONSTRUCTION

SPECS

VESA CERTIFIED

Features

AWG wire size
28

Cable length
3 m

Cable shielding
Aluminum mylar foil

Cable type
Round cable

Channels quantity
7.1 channels

Connector 1
DisplayPort

Connector 1 form factor
Straight

Connector 1 gender
Male

Connector 2
DisplayPort

Connector 2 form factor
Straight

Connector 2 gender
Male

Connector contacts plating
Nickel

Data transfer rate
21.6 Gbit/s

DisplayPort version
1.2

Fire-resistance rating
VW-1

HDCP
Yes

HDCP version
1.3

Latching connectors
Yes

Maximum refresh rate
240 Hz

Maximum resolution
4096 x 2160 pixels

Multi-Stream Transport (MST)
Yes

Number of conductors
19

Product colour
White

Supported graphics resolutions
2560 x 1440, 4096 x 2160, 1920 x 1080 (HD 1080)

Supported video modes
1080p, 1440p, 2160p

Logistics data

Master (outer) case height
210 mm

Master (outer) case length
320 mm

Master (outer) case width
500 mm

Products per master (outer) case
40 pc(s)

Operational conditions

Operating relative humidity (H-H)
5 - 85%

Operating temperature (T-T)
0 - 50 °C

Storage temperature (T-T)
-20 - 70 °C

Packaging data

Package depth
200 mm

Package height
20 mm

Package weight
200 g

Package width
220 mm

Weight & dimensions

Cable diameter
7.5 mm

Weight
192 g
