Description

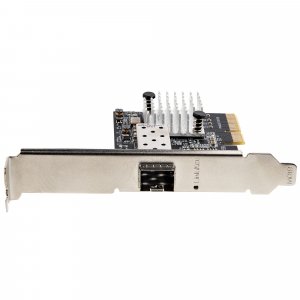

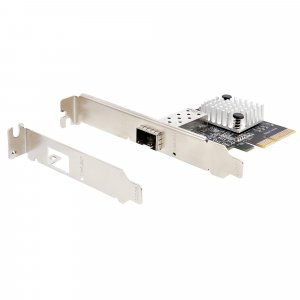

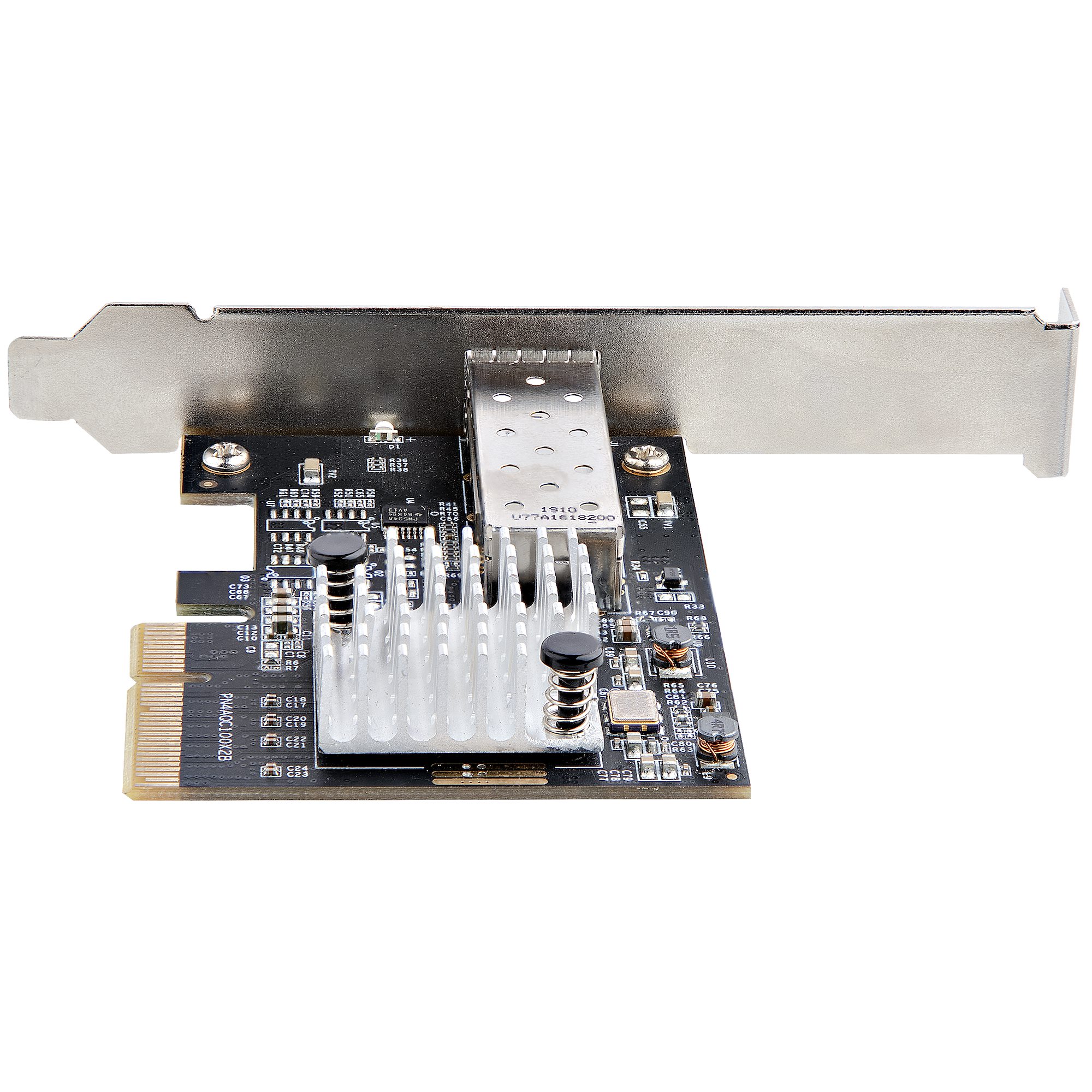

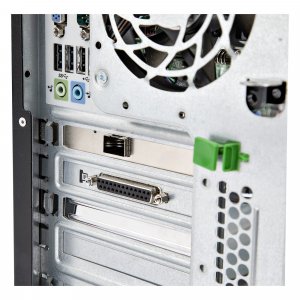

StarTech.com 10G PCIe SFP+ Card - Single SFP+ Port Network Adapter - Open SFP+ for MSA-Compliant Modules/Direct-Attach Cables - 10 Gigabit Fiber PCIe NIC - PCI Express SFP+ Network Card. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 20000 Mbit/s. Product colour: Black

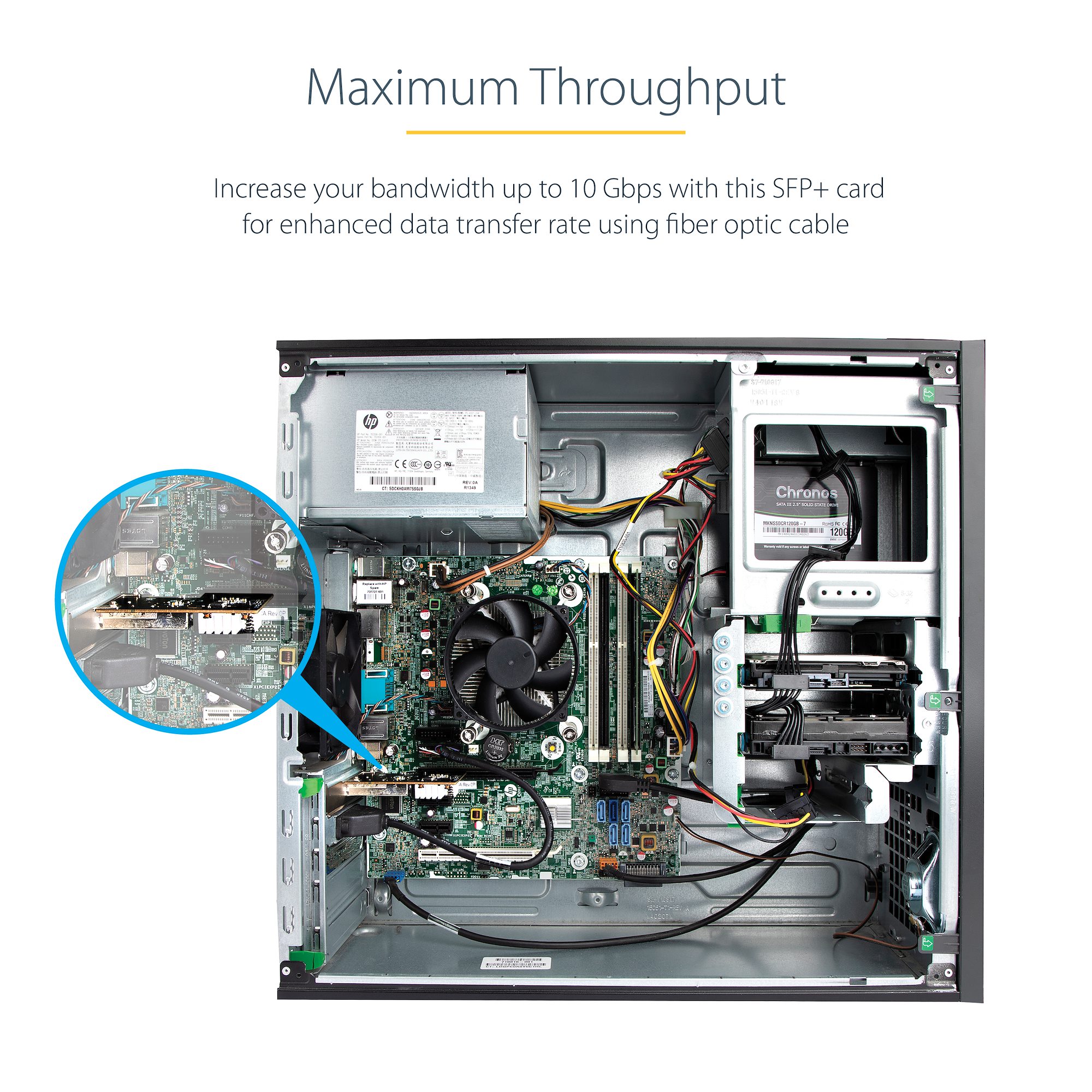

MAXIMUM THROUGHPUT: Increase your bandwidth up to 10 Gbps with this SFP+ card for enhanced data transfer rate using fiber optic cable; Reduce wait times for large file transfers, content sharing, network storage, or any other high bandwidth application

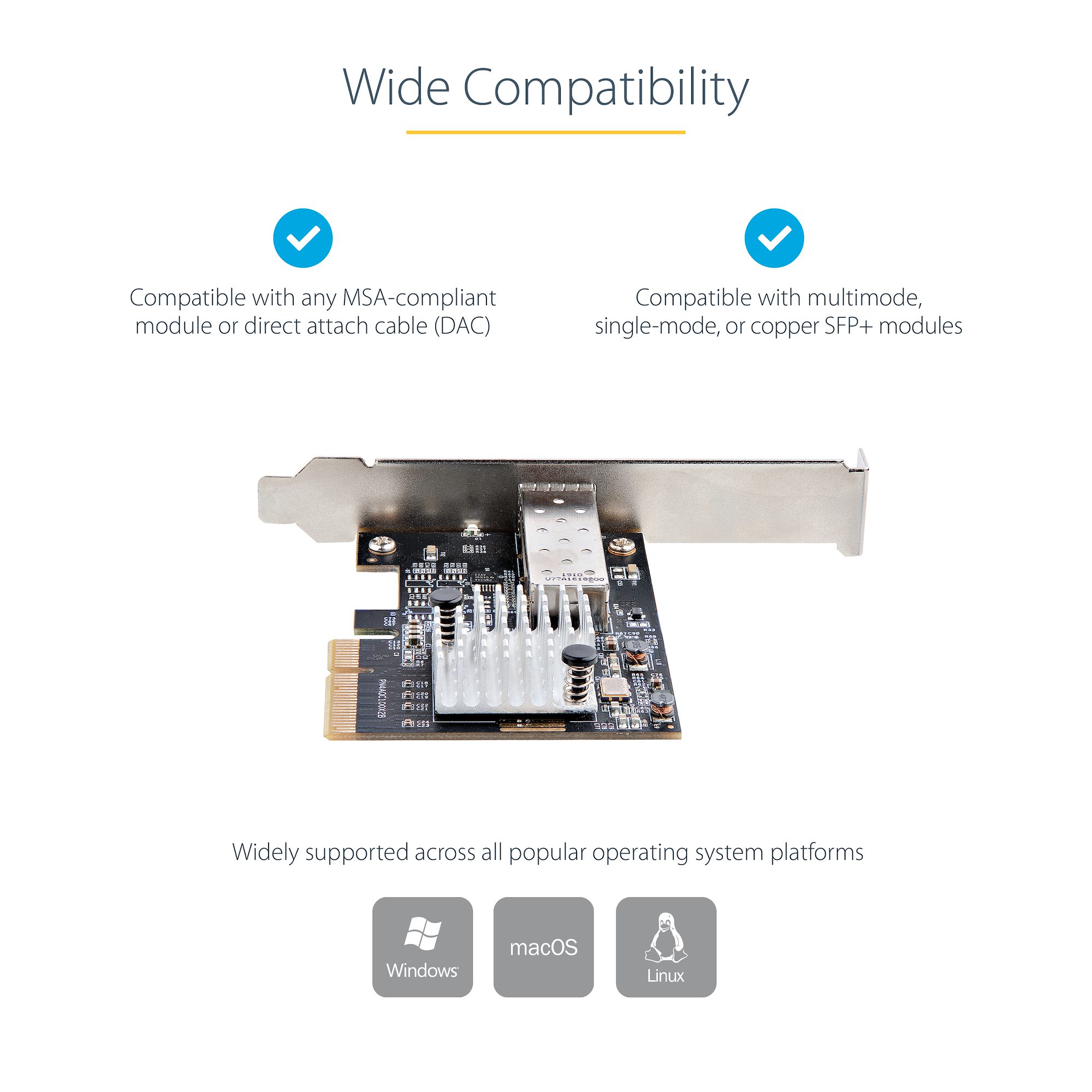

WIDE COMPATIBILITY: This PCIe network card has an open SFP+ slot that can accept any MSA-compliant module or direct attach cable (DAC). It is compatible with multimode, single-mode, and copper SFP+ modules. This card is natively supported in Windows 11

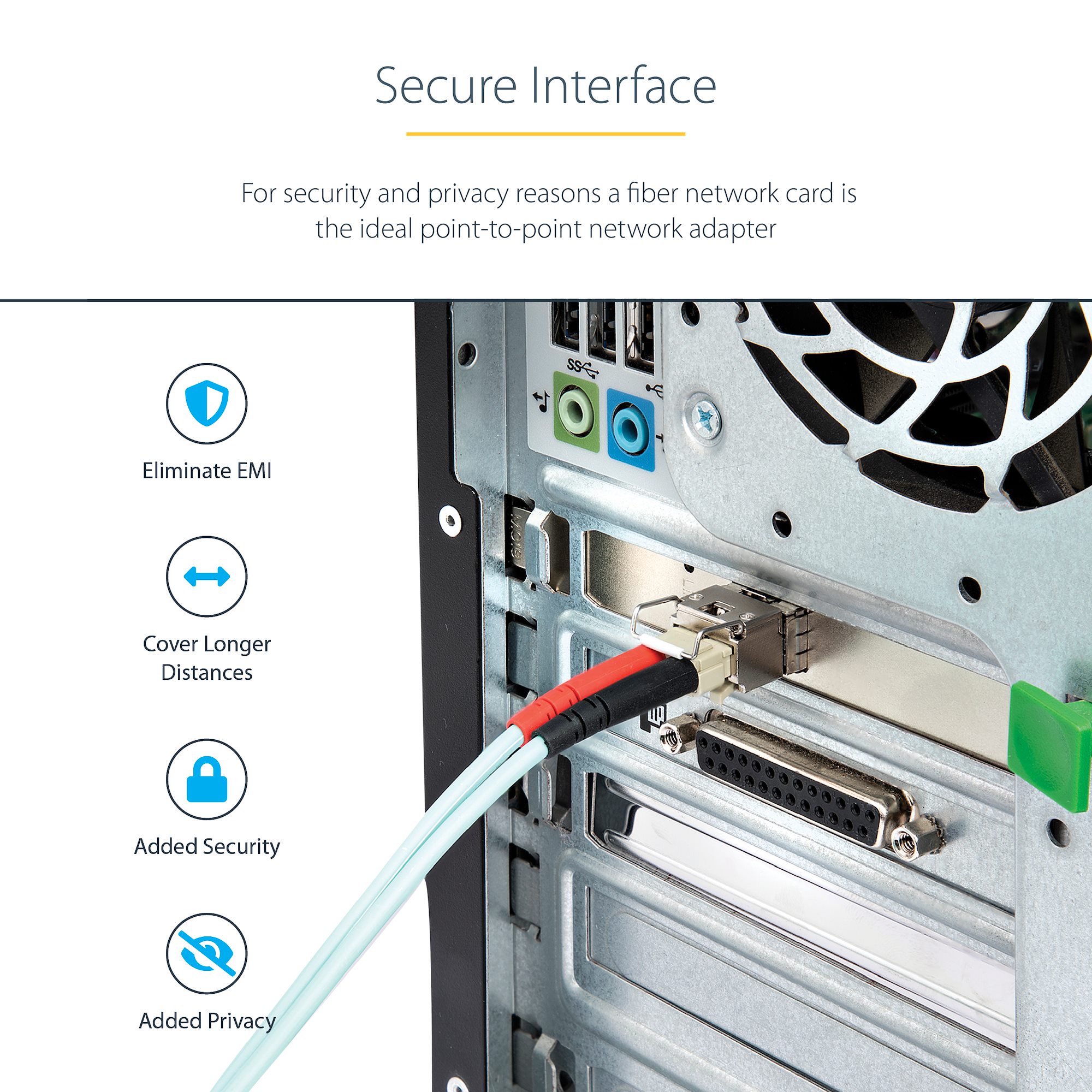

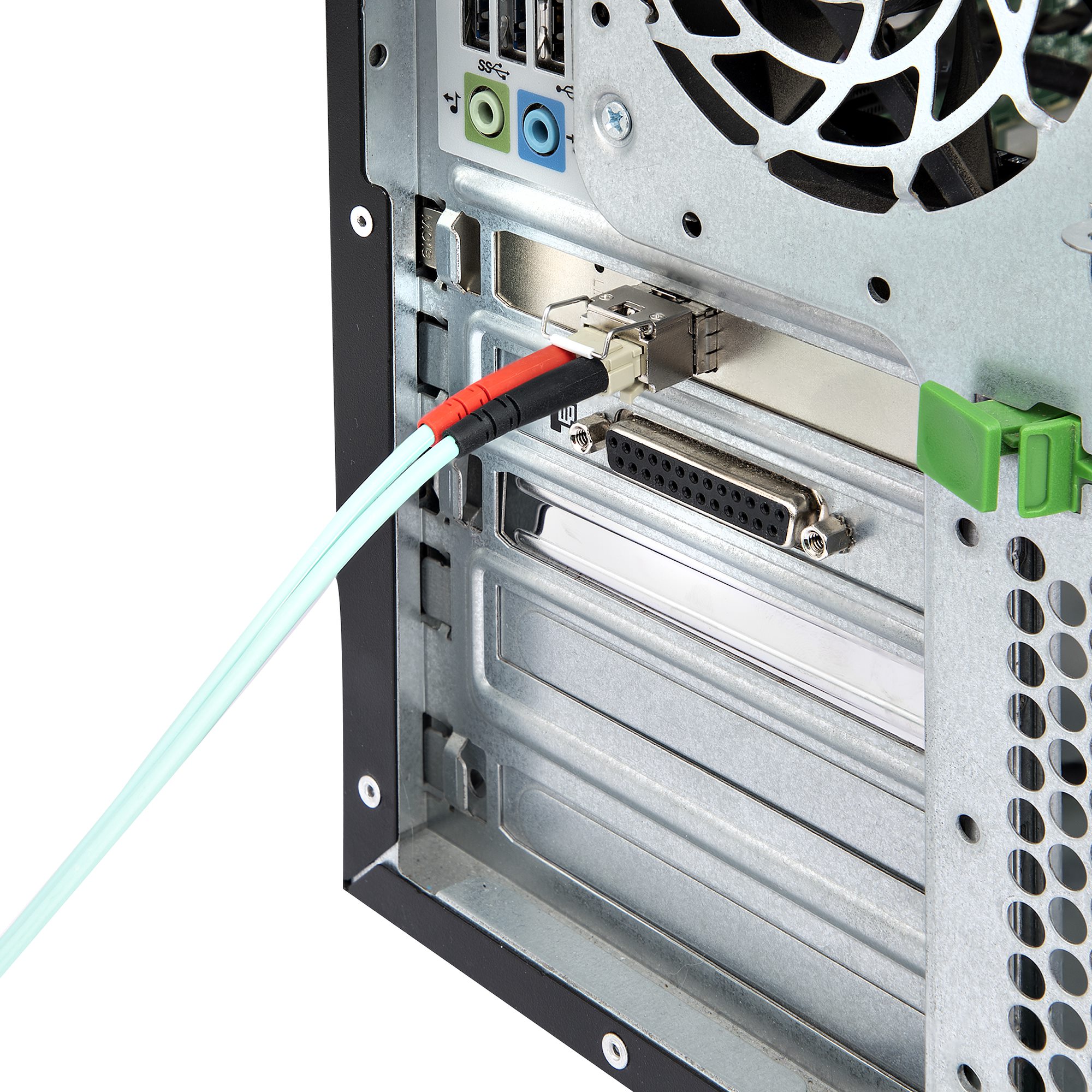

SECURE INTERFACE: For security and privacy reasons a fiber network card is the ideal point-to-point network adapter; Eliminate EMI with a fiber connection and cover longer distances with fiber to host

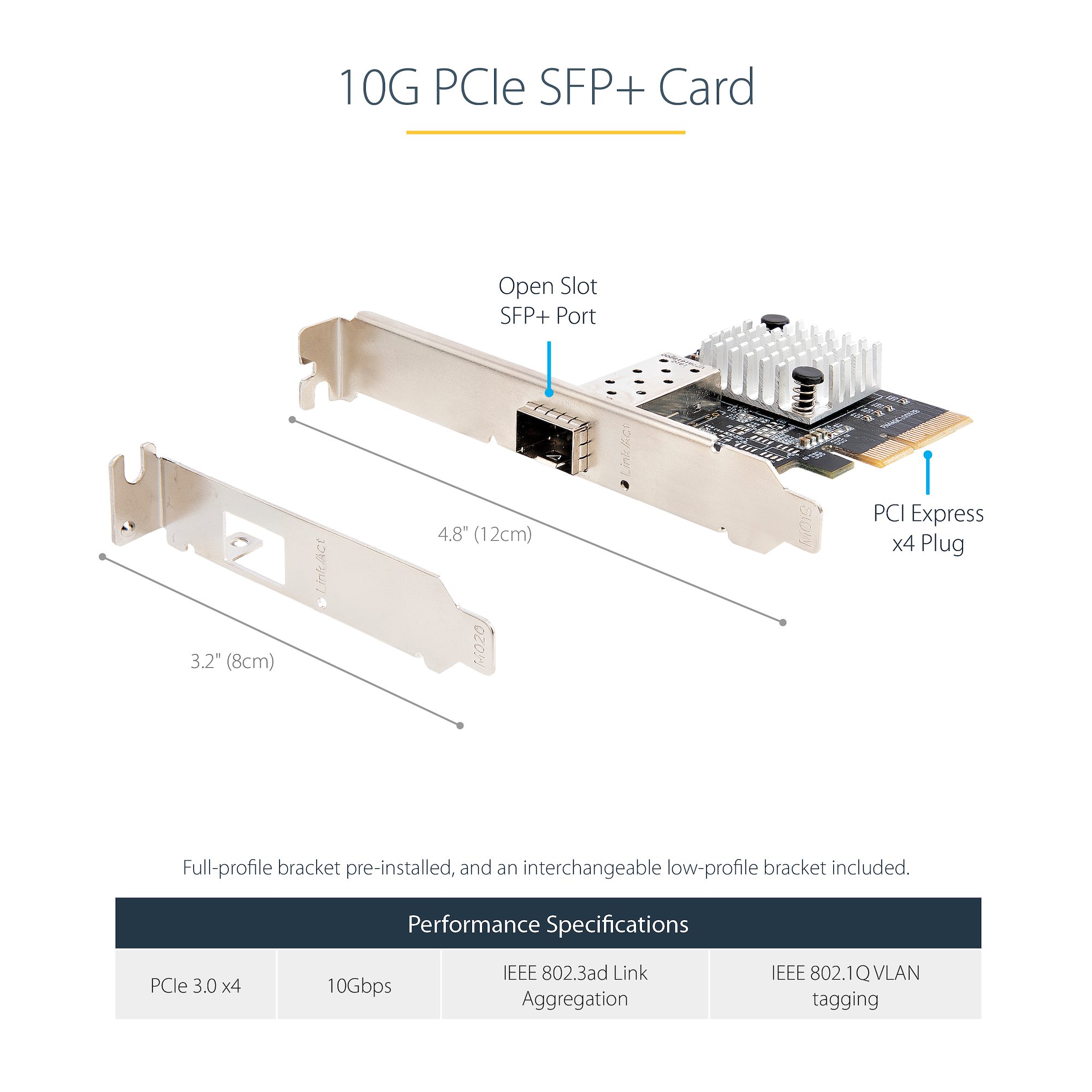

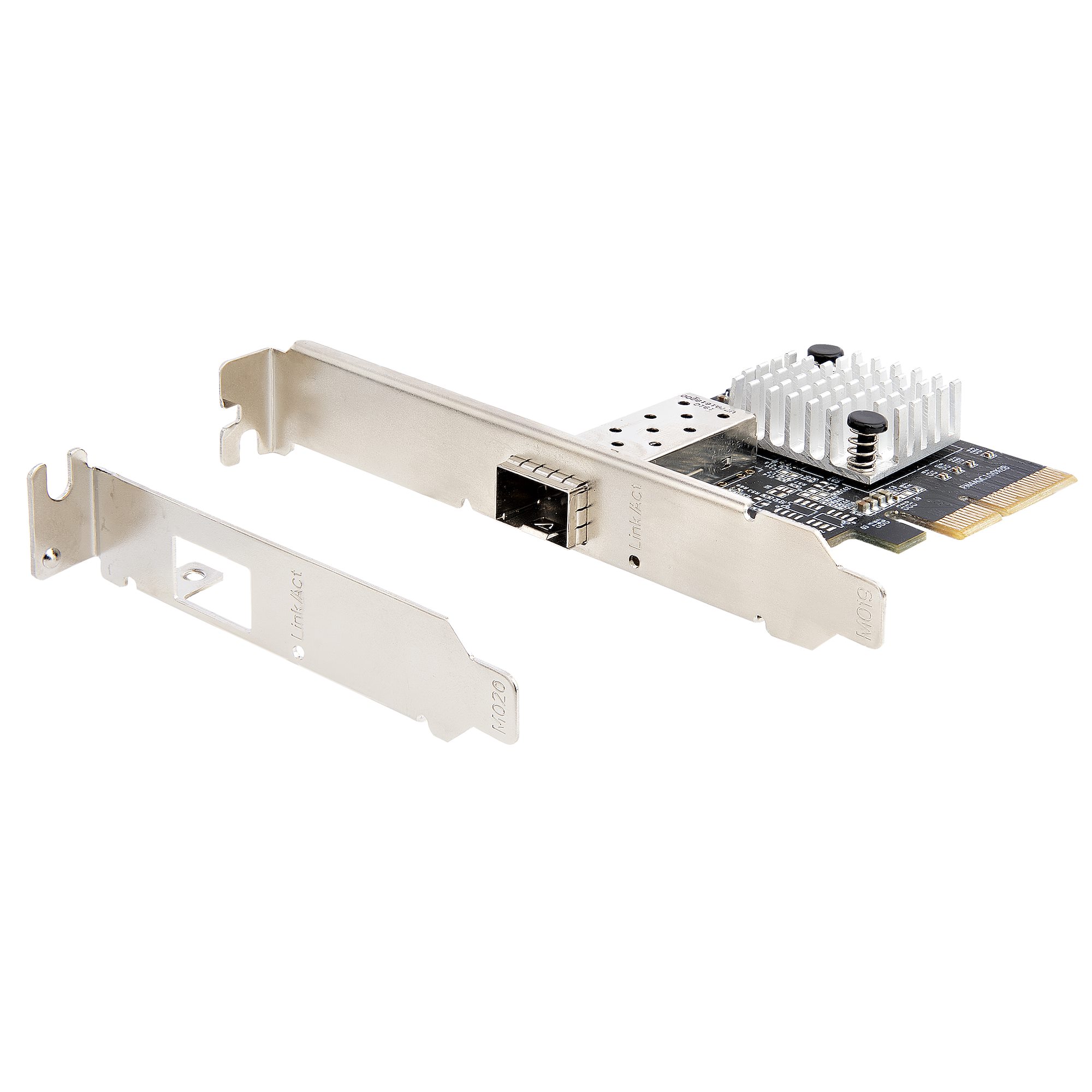

SPECIFICATIONS: 10Gbps open slot SFP+ port / MMF, SMF, and Copper Support / 9K Jumbo Frames / IEEE 802.3ad Link Aggregation / IEEE 802.1Q VLAN tagging / PCIe 3.0 x4 / MSA Compliant / Full Duplex / Low Profile Bracket included / Windows, macOS and Linux
STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years, this PCIe 10Gb open slot SFP+ card is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance

Product Properties

Manufacturer
StarTech.com

Model
PEX10GSFP

EAN
65030891295

Bullet points

Point
MAXIMUM THROUGHPUT

SECURE INTERFACE

Specifications

STARTECH.COM ADVANTAGE

WIDE COMPATIBILITY

Design

Chipset
Aquantia AQC100S

Component for
PC

Internal
Yes

Product colour
Black

Logistics data

Harmonized System (HS) code
85176990

Master (outer) case height
235 mm

Master (outer) case length
355 mm

Master (outer) case width
310 mm

Products per master (outer) case
20 pc(s)

Network

Fiber mode structure
Multi-mode, Single-mode

Full duplex
Yes

Jumbo frames
9000

Jumbo frames support
Yes

Maximum data transfer rate
20000 Mbit/s

Networking standards
IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3x

VLAN tagging
Yes

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
5 - 50 °C

Storage temperature (T-T)
-20 - 60 °C

Other features

Flow control support
Yes

Packaging content

Mounting brackets included
Yes

Quick installation guide
Yes

Packaging data

Package depth
145 mm

Package height
35 mm

Package weight
145 g

Package width
210 mm

Ports & interfaces

Connectivity technology
Wired

Fiber optic connector
SFP+

Host interface
PCI Express

Interface
Fiber

PCI version
3.0

System requirements

Linux operating systems supported
Yes

Mac operating systems supported
Yes

Windows operating systems supported
Yes

Technical details

Compliance certificates
CE, RoHS

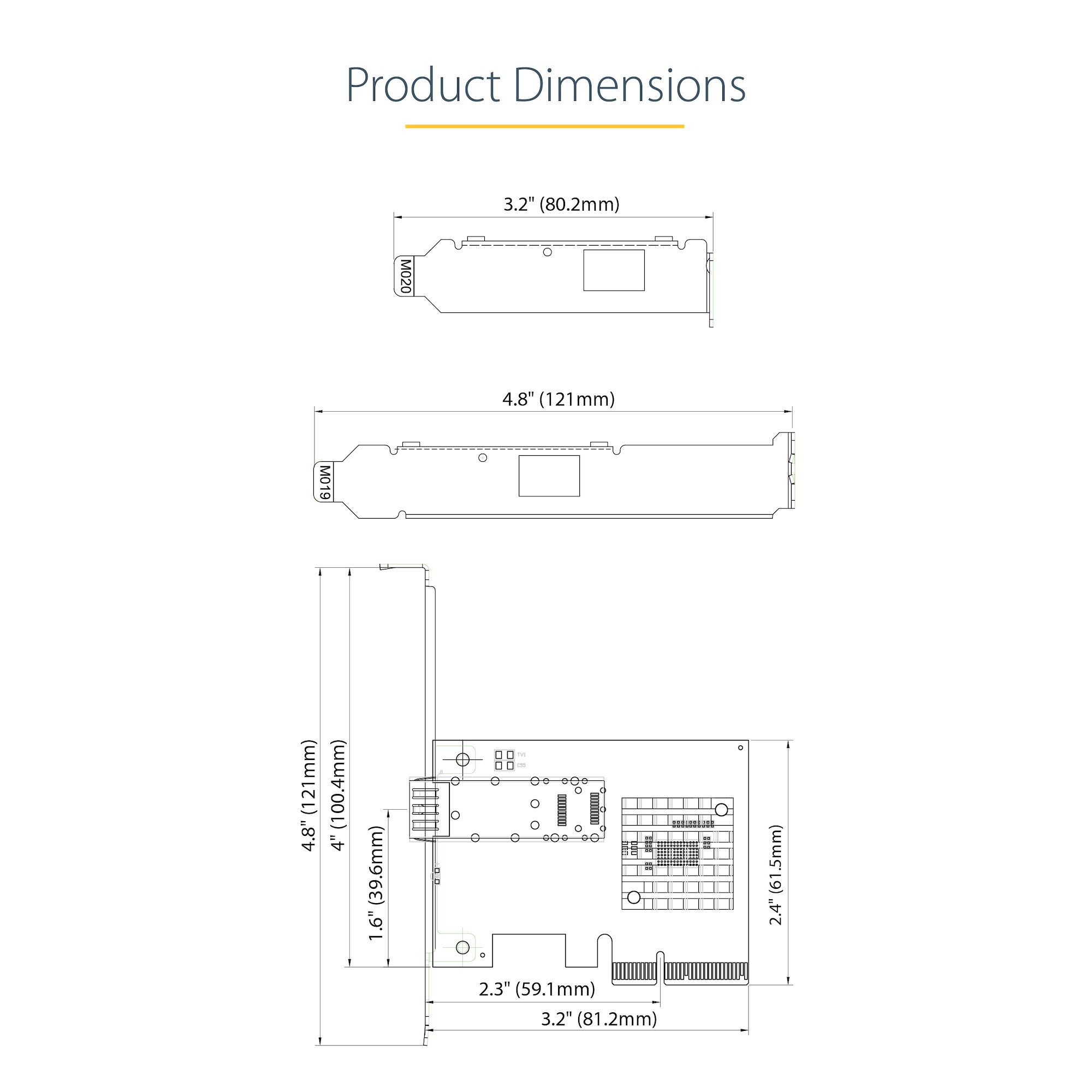

Weight & dimensions

Depth
94 mm

Height
121 mm

Weight
55 g

Width
18 mm
