Description

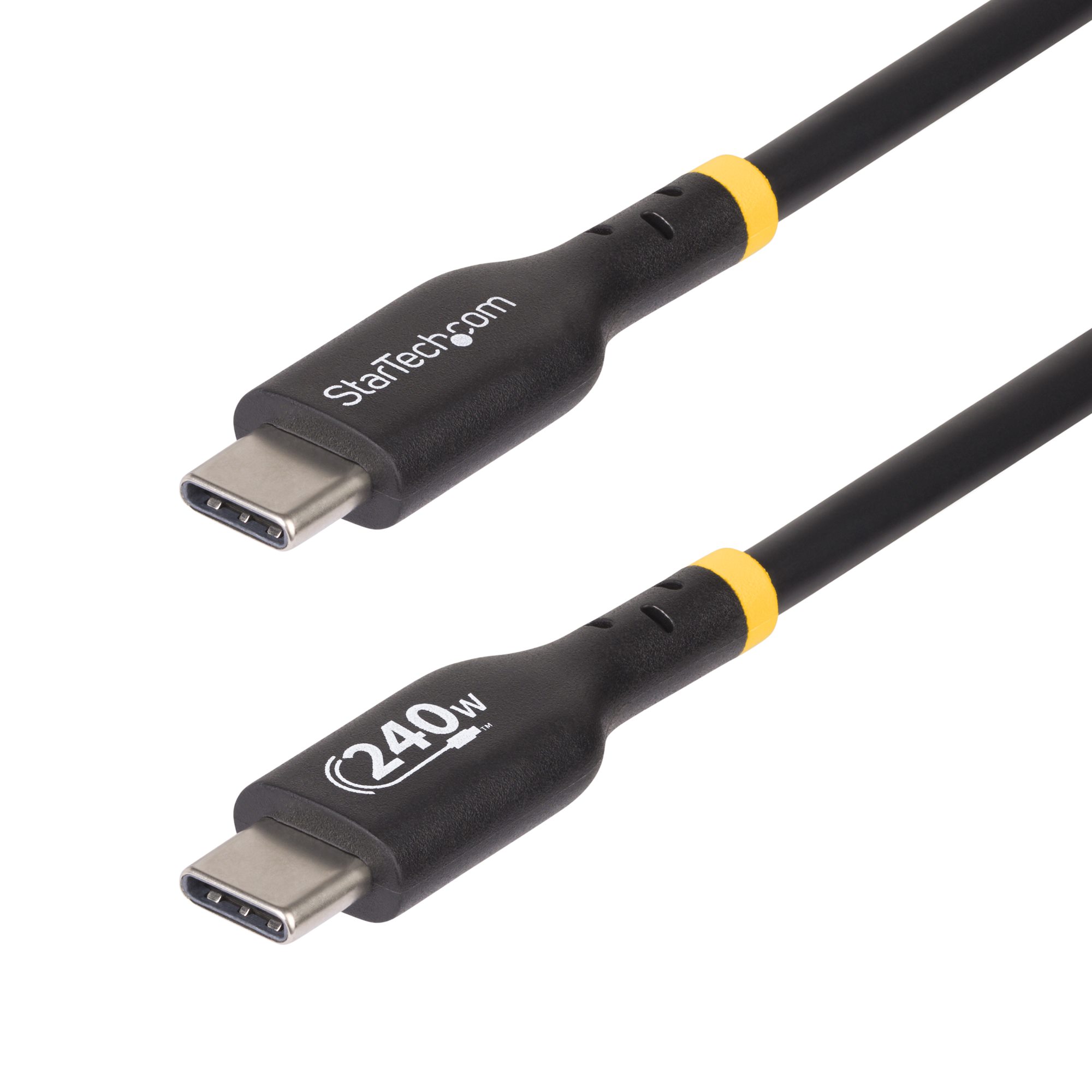

StarTech.com 1m USB-C Charging Cable, USB-IF Certified USB C Cable, 240W PD EPR, USB 2.0 Type-C Laptop Charger Cord, USB-C Data Transfer Cable, TPE Jacket, M/M. Cable length: 1 m. Connector 1: USB C, Connector 2: USB C, USB version: USB 2.0, Maximum data transfer rate: 0.48 Gbit/s, Connector contacts plating: Nickel, Product colour: Black

USB-C EPR CHARGING CABLE: USB Type-C cable supports Power Delivery 3.1 Extended Power Range (EPR); Up to 240W output for charging high-performance USB-C laptops and devices; Connects to a USB-C wall charger, power bank, or external USB-C hub
USB-IF Certified: The USB C Cable is USB-IF certified with integrated E-marker chip, for consistent Power Delivery output to USB-C hosts and peripherals; When using certified cables, reliable performance and compatibility is guaranteed

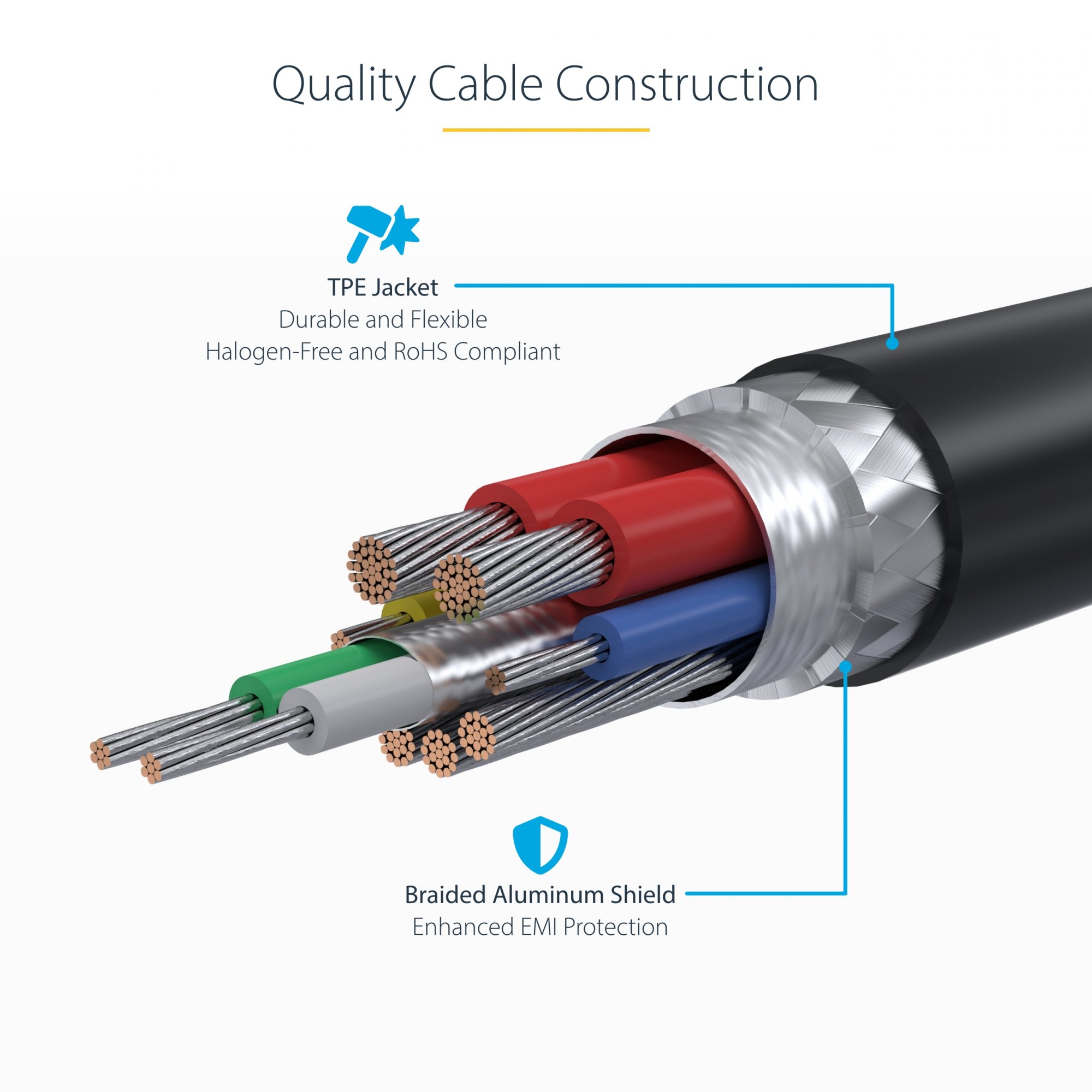

QUALITY CONSTRUCTION: Nickel-plated connectors rated beyond 10,000 insertion cycles; 30AWG wire tested to withstand 120° bends; Braided Aluminum shield for enhanced EMI protection; Durable TPE outer jacket is halogen-free and RoHS compliant

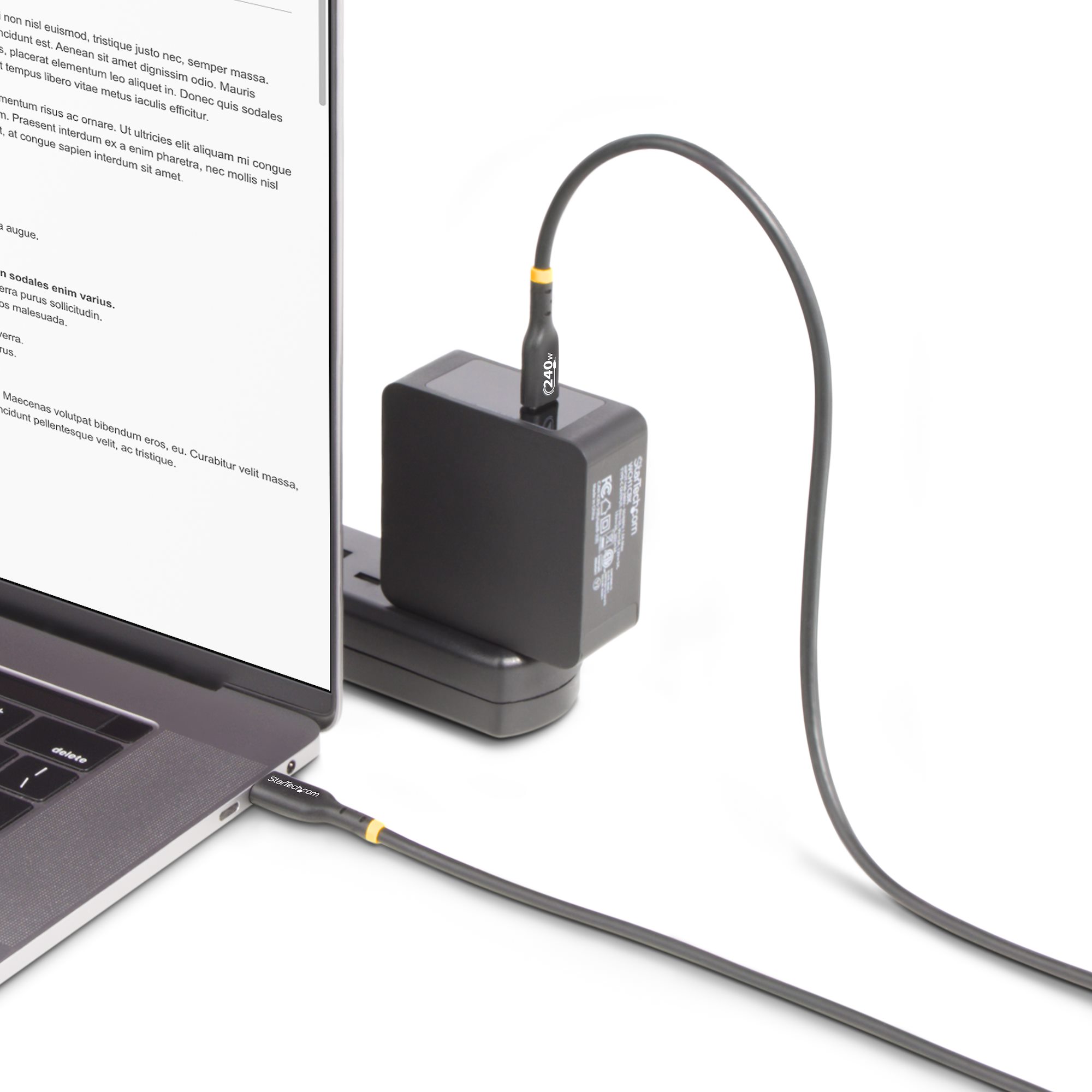

APPLICATIONS: Compatible with USB-C Power Delivery-enabled devices; Ideal for high-power laptops requiring EPR charging, including 16in MacBook Pro M3 Pro/M3 Max; Supports USB 2.0 for general use, including file transfer and device synchronization

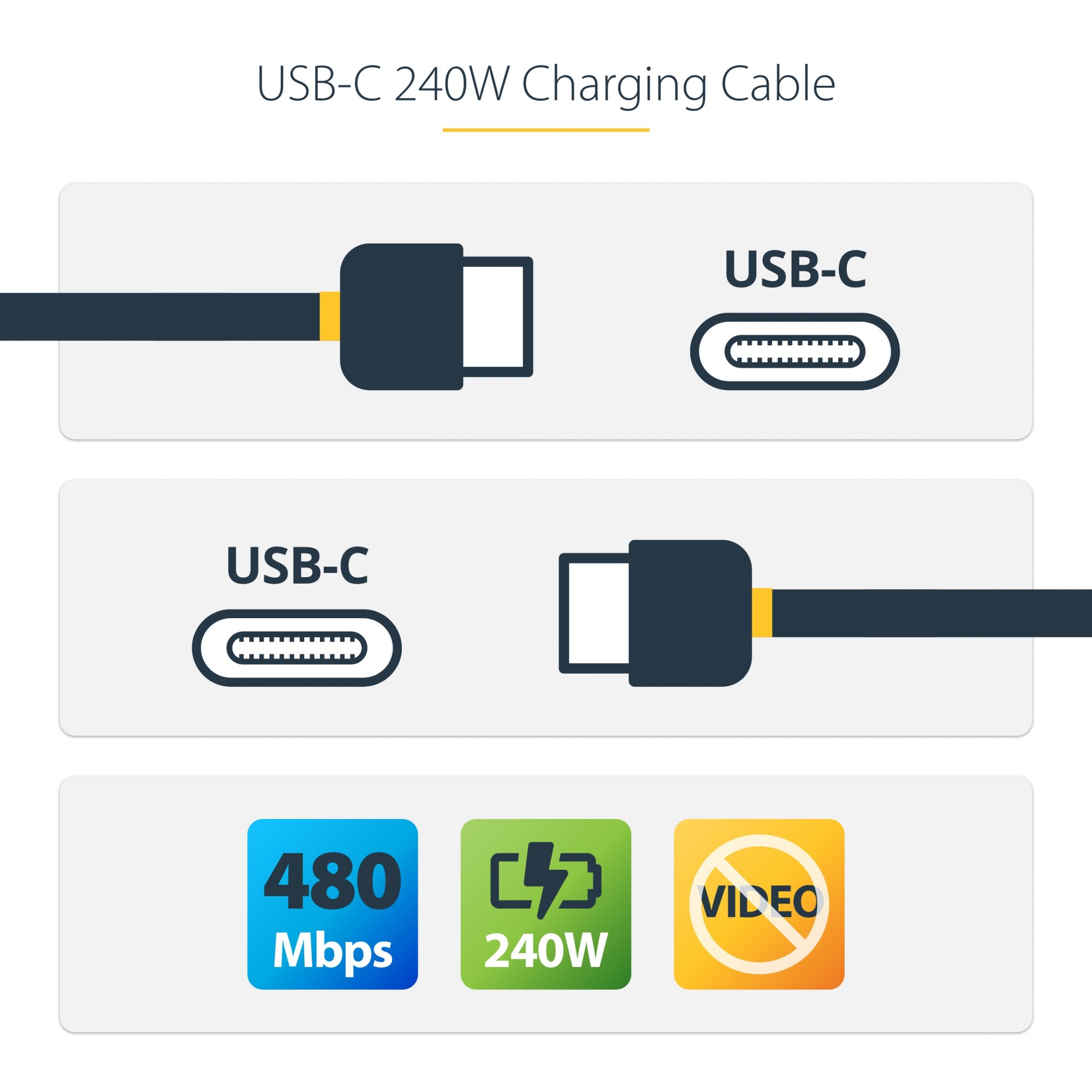

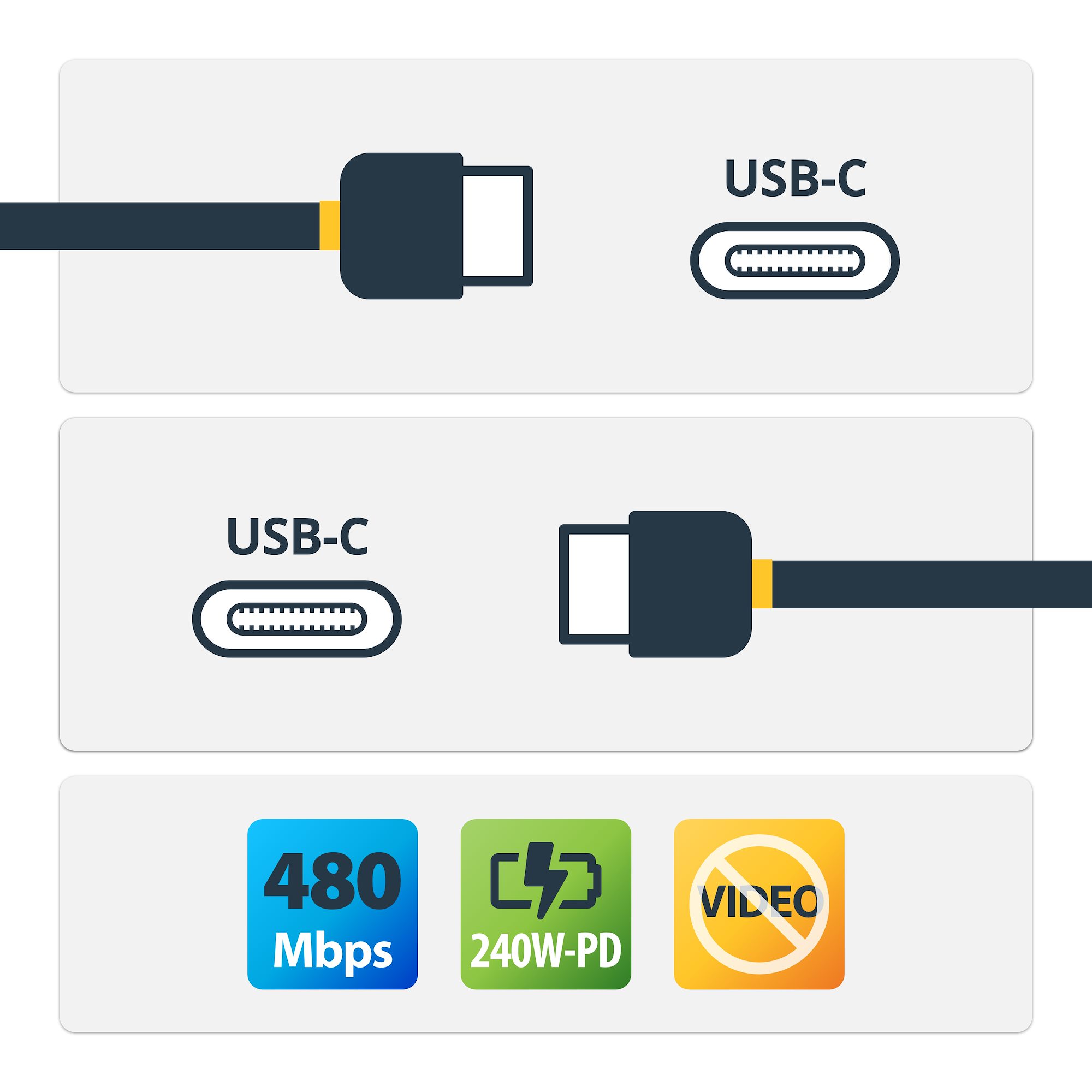

PERFORMANCE: 240W/5A PD 3.1 EPR, 48V; Backward Compatible w/140W/100W/60W; USB 2.0 Type-C (480Mbps); 1-meter (3.3-foot) cable; Color: Black; O.D.: 0.16in (4.0mm); TPE Jacket w/Braided Aluminum Shield; NOTE: USB-C video (DP Alt Mode) is not supported

Product Properties

Manufacturer
StarTech.com

Model
USB2EPR1M

EAN
65030909150

Bullet points

Point
APPLICATIONS

PERFORMANCE

QUALITY CONSTRUCTION

USB-C EPR CHARGING CABLE

USB-IF certified

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS

Features

AWG wire size
30

Cable jacket material
Thermoplastic elastomer (TPE)

Cable shielding
Aluminum mylar foil

Connector 1
USB C

Connector 1 form factor
Straight

Connector 1 gender
Male

Connector 2
USB C

Connector 2 form factor
Straight

Connector 2 gender
Male

Connector contacts plating
Nickel

Maximum data transfer rate
0.48 Gbit/s

480 Mbit/s

Product colour
Black

USB Power Delivery (USB PD)
Yes

USB Power Delivery revision
3.1

USB Power Delivery up to
240 W

USB Type-C DisplayPort Alternate Mode
No

USB version
USB 2.0

Logistics data

Master (outer) case height
210 mm

Master (outer) case length
320 mm

Master (outer) case width
500 mm

Products per master (outer) case
200 pc(s)

Operational conditions

Operating temperature (T-T)
-10 - 60 °C

Storage temperature (T-T)
-20 - 70 °C

Packaging content

Quantity per pack
1 pc(s)

Packaging data

Package depth
125 mm

Package height
10 mm

Package weight
25 g

Package width
225 mm

Power

Input current (max)
5 A

Sustainability

Sustainability compliance
Yes

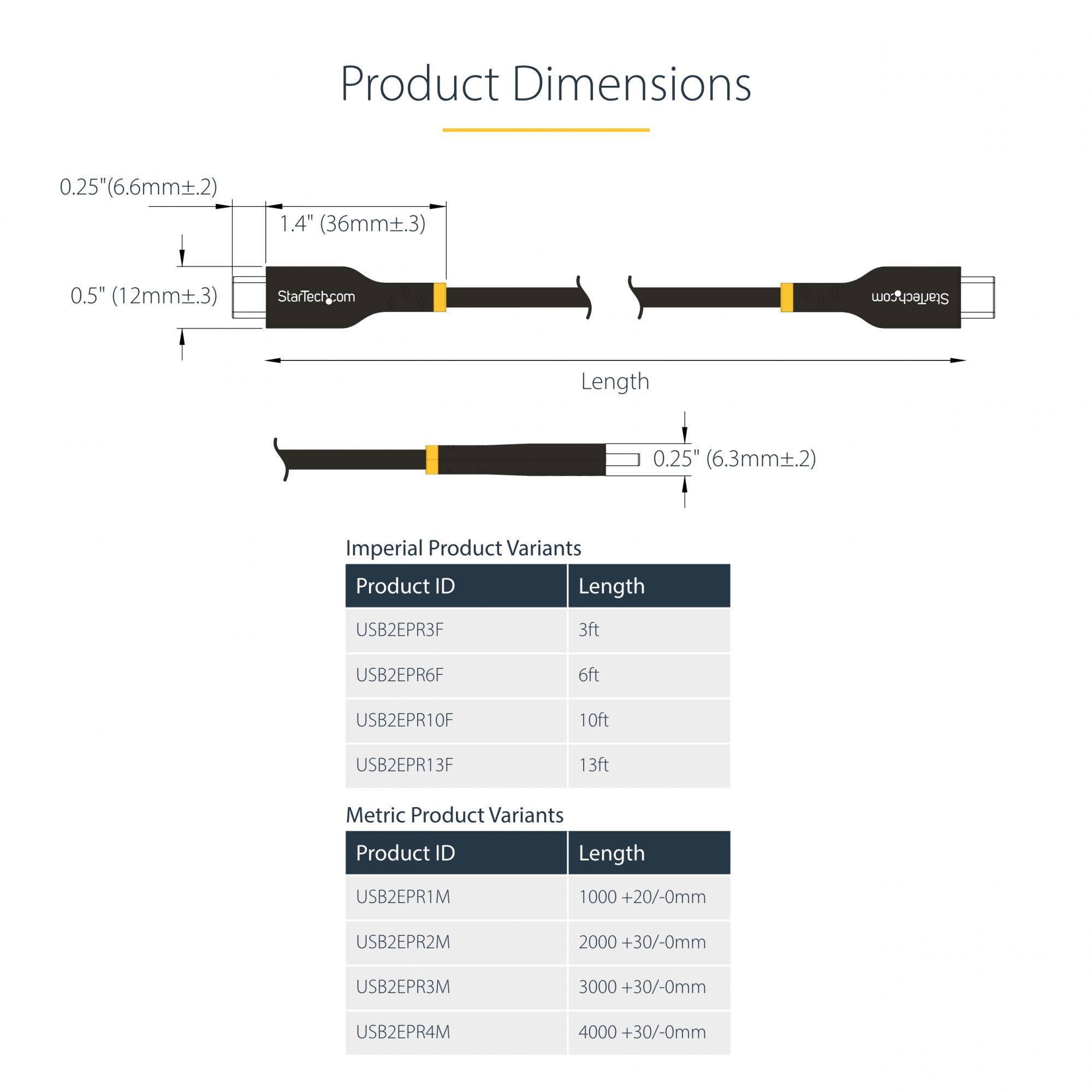

Weight & dimensions

Cable diameter
4 mm

Cable length
1 m
