Description

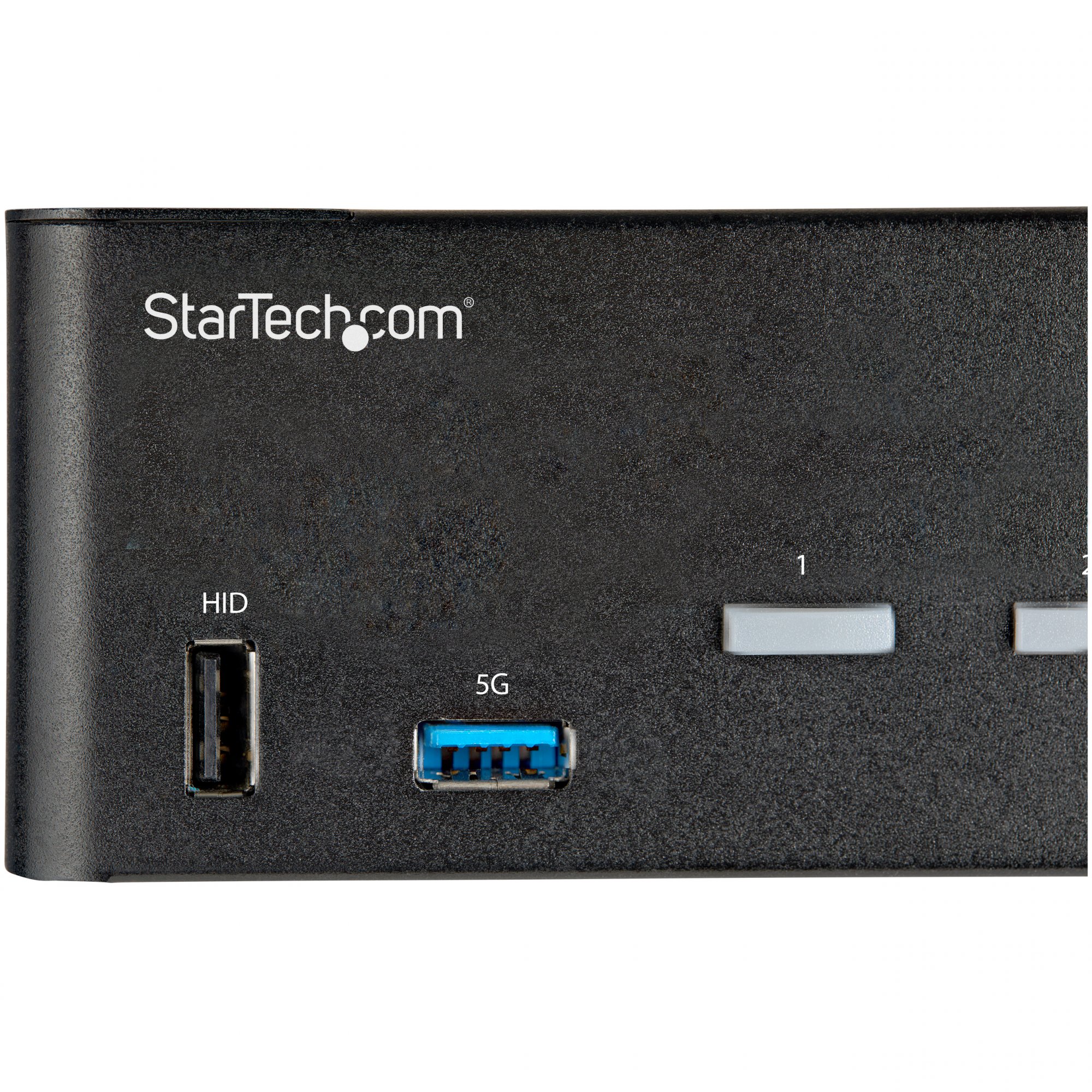

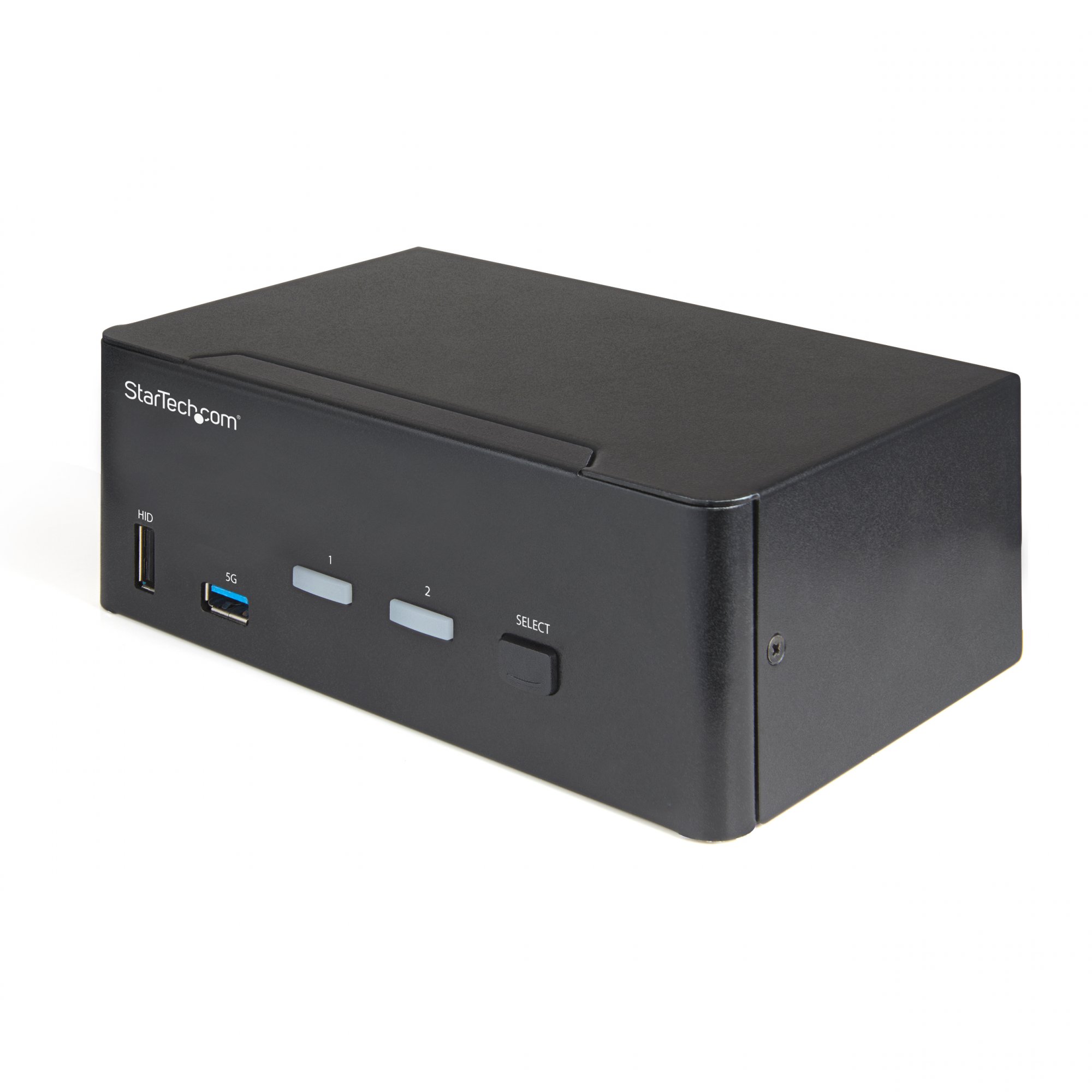

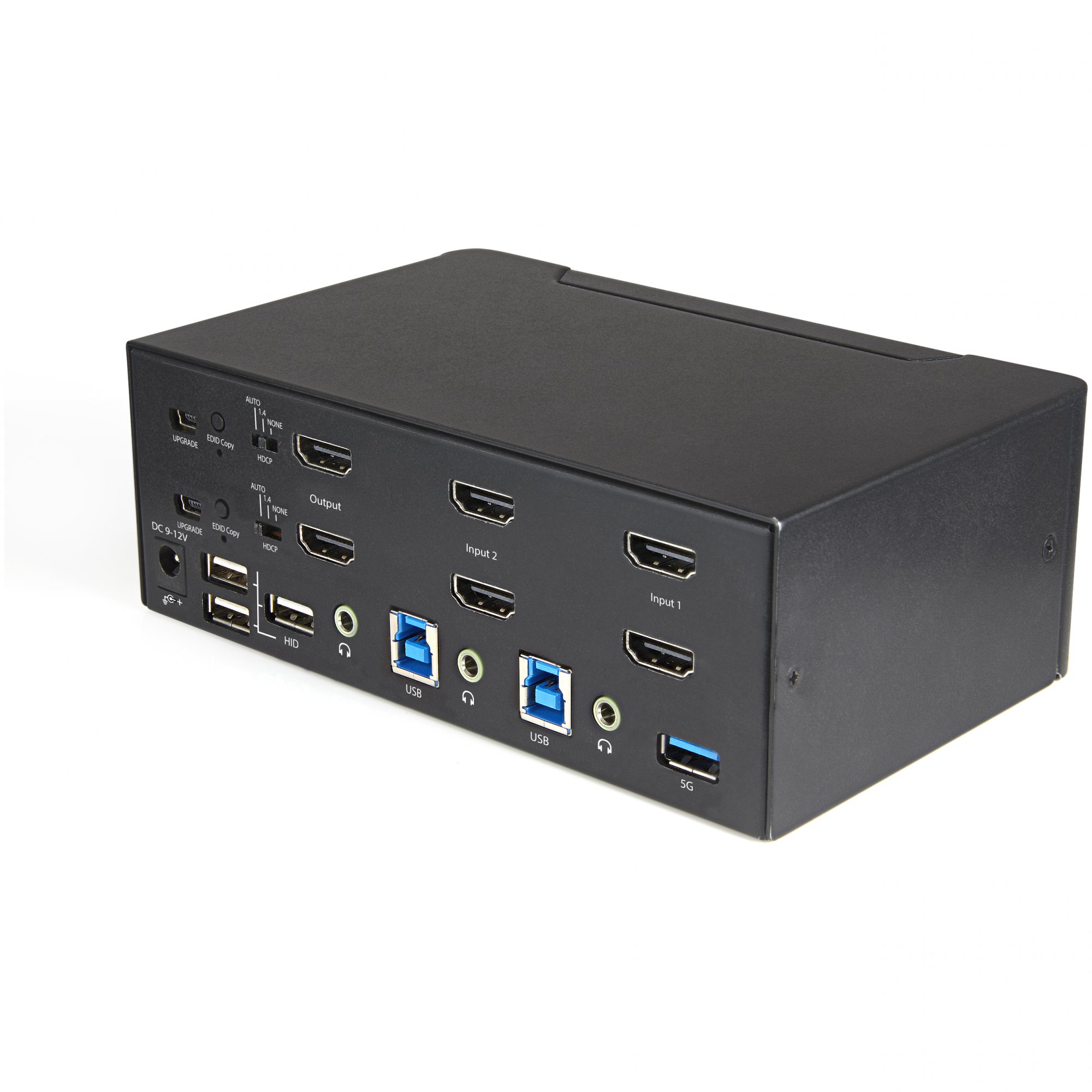

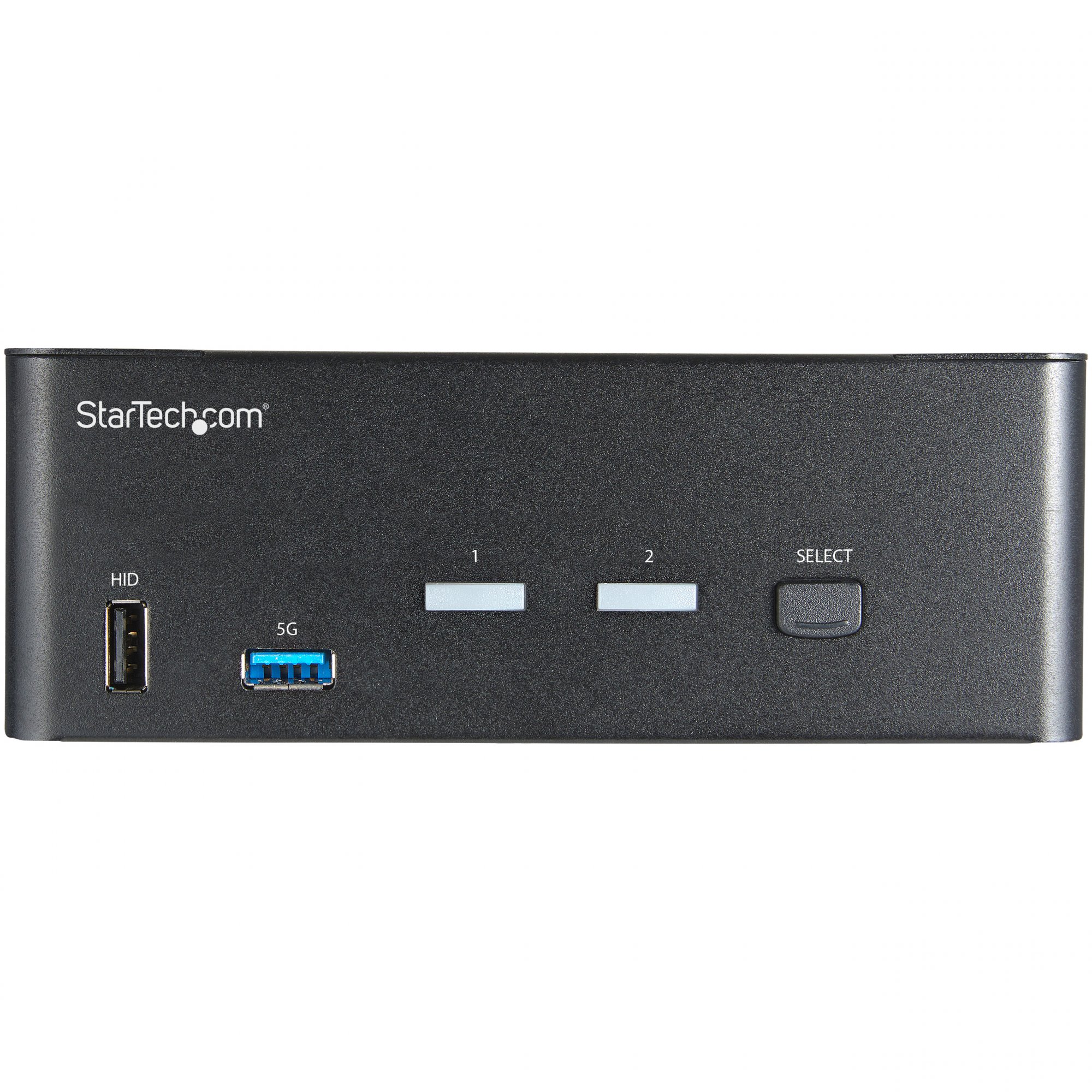

StarTech.com 2 Port Dual Monitor HDMI KVM Switch - 4K 60Hz Ultra HD HDR - Desktop 4K HDMI 2.0 KVM Switch with 2 Port USB 3.0 Hub (5Gbps) & 4x USB 2.0 HID, Audio - Hotkey Switching - TAA. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Data transfer rate (max): 5 Gbit/s. Product colour: Black, Housing material: Steel, Mean time between failures (MTBF): 156000 h. Input voltage: 100 - 240 V, Input current: 1 A, Output voltage: 12 V. Width: 100 mm, Depth: 160 mm, Height: 58 mm

DUAL 4K 60Hz UHD: 2 Port HDMI Dual Screen KVM switch supports up to 4K at 60Hz on two monitors for applications like CAD/CAM, video editing and content creation; works with major brands including Dell, HP, and Lenovo
FAST SWITCHING: Includes EDID and HDCP signal emulation so monitors stay synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow while switching between up to 2 computers
TECH SPECS: 2-Port Dual Screen HDMI 2.0
3840 x 2160
HDCP 2.2
HDR10 Support

Product Properties

Manufacturer
StarTech.com

Model
SV231DHU34K6

EAN
65030881999

Bullet points

Point
3840 x 2160

DUAL 4K 60Hz UHD

FAST SWITCHING

HDCP 2.2

HDR10 Support

TECH SPECS: 2-Port Dual Screen HDMI 2.0

Design

Certification
CE, FCC, RoHS

Hot keys
Yes

Housing material
Steel

LED indicators
Yes

Mean time between failures (MTBF)
156000 h

Product colour
Black

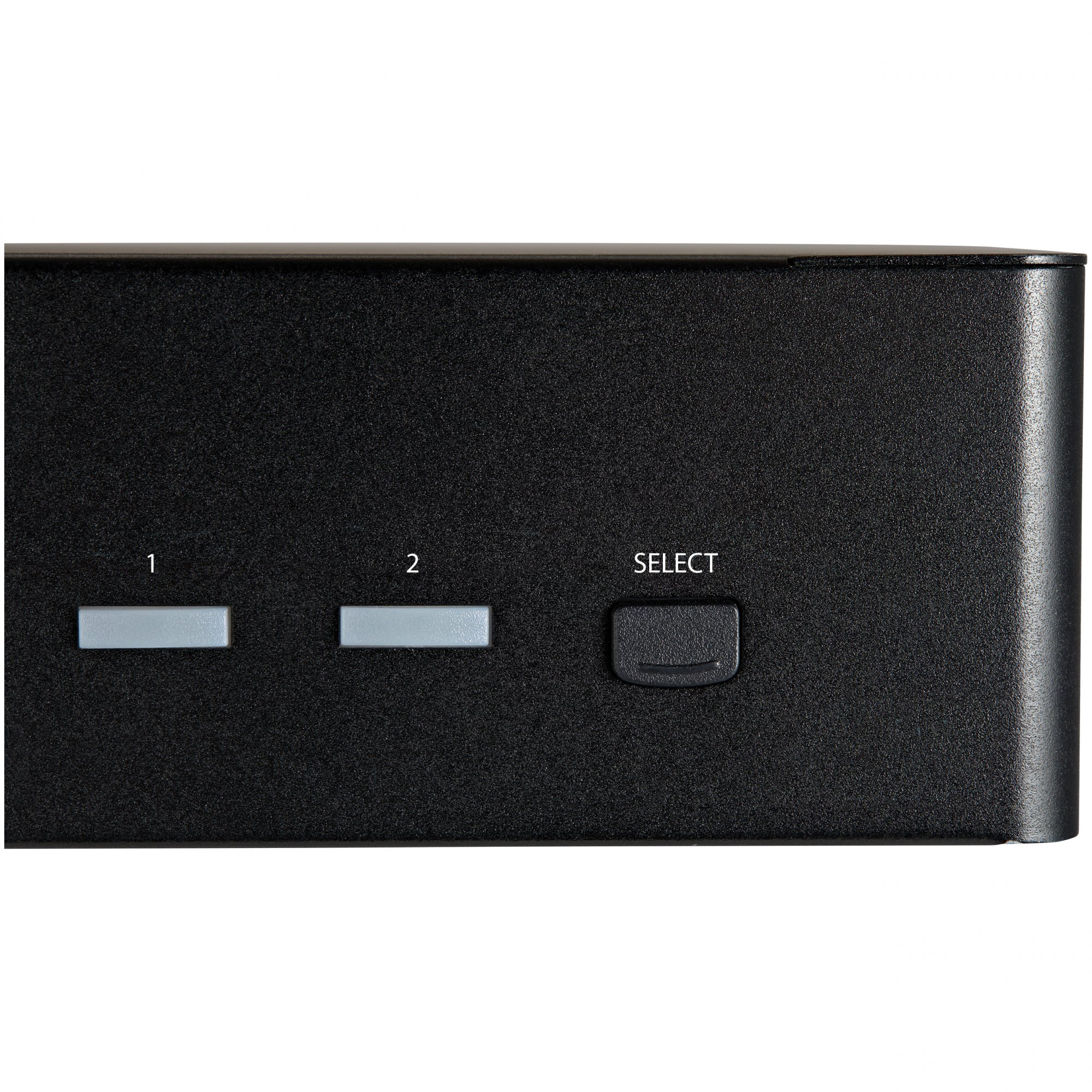

Push button
Yes

Rack mounting
No

Display

Built-in display
No

On Screen Display (OSD)
No

Logistics data

Harmonized System (HS) code
85176200

Master (outer) case height
277 mm

Master (outer) case length
315 mm

Master (outer) case width
397 mm

Products per master (outer) case
6 pc(s)

Operational conditions

Operating relative humidity (H-H)
0 - 80%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-10 - 60 °C

Other features

Audio support
Yes

IP control
No

Packaging content

AC adapter included
Yes

Manual
Yes

Rubber feet
Yes

Packaging data

Package depth
189 mm

Package height
91 mm

Package weight
147 g

Package width
238 mm

Performance

Audio channels
7.1

Chipset
Genesys Logic - GL3523

Daisy chain
No

Data transfer rate (max)
5 Gbit/s

HD type
4K Ultra HD

HDCP
Yes

Maximum resolution
3840 x 2160 pixels

Number of users
1 user(s)

Scan interval
3,8,15,30 s

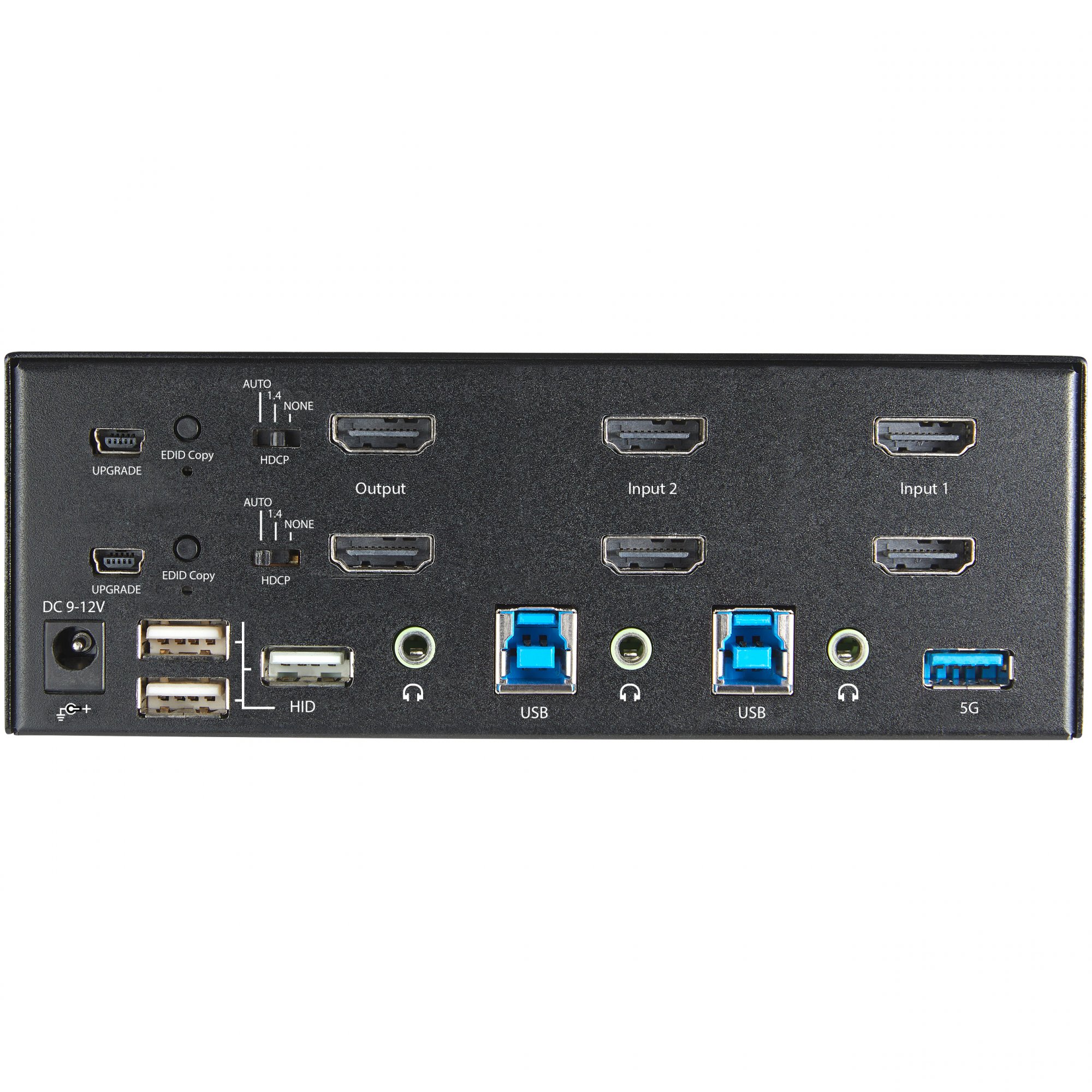

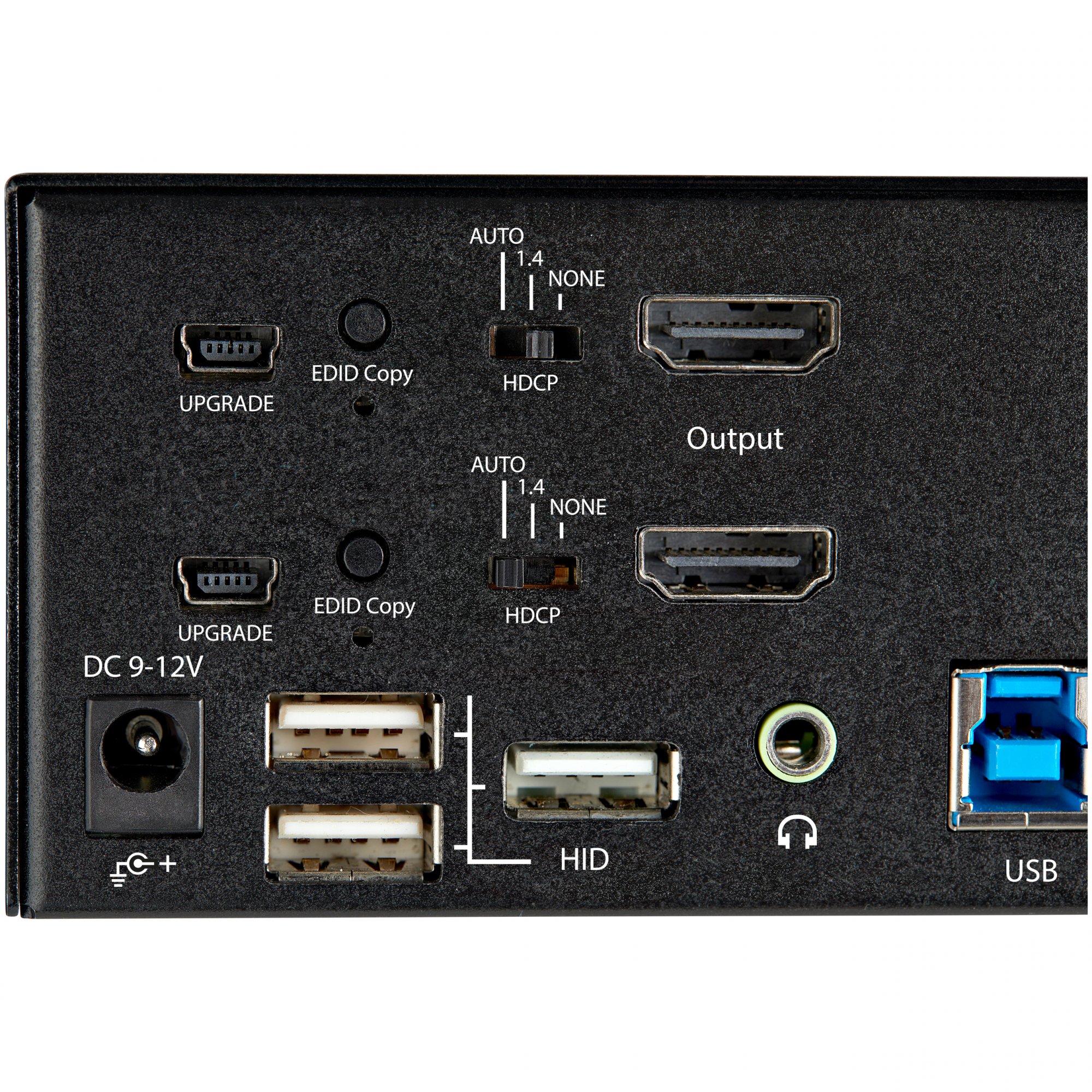

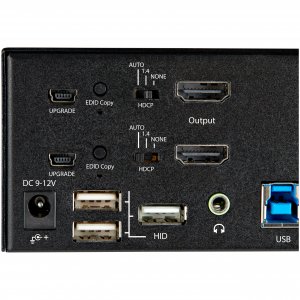

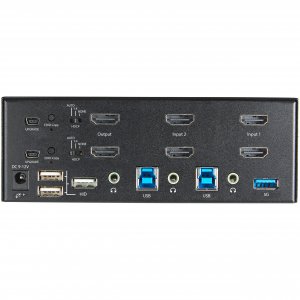

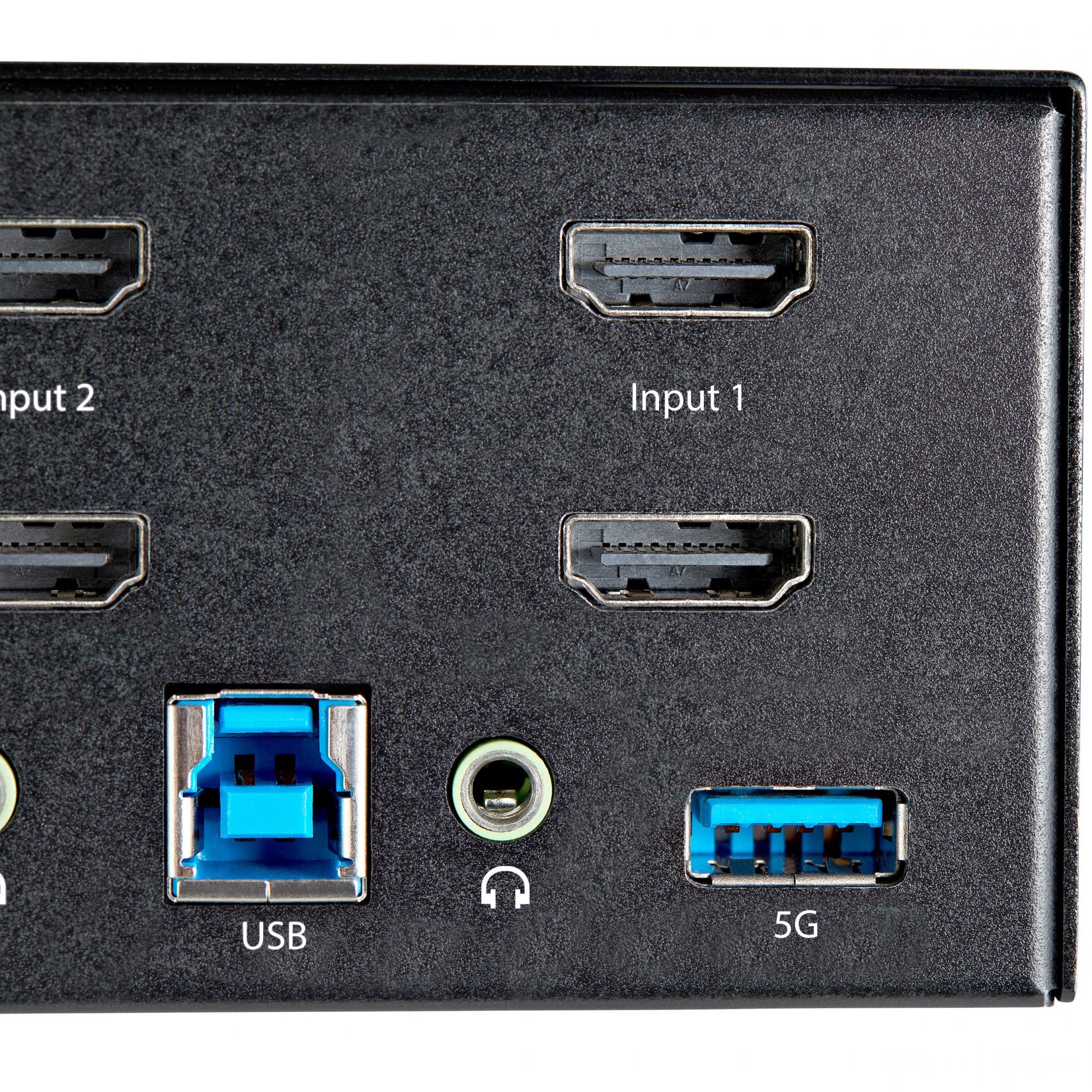

Ports & interfaces

Audio connections
Yes

Console ports
3.5mm headphone, HDMI, USB A

Console USB ports quantity
4

HDMI ports
6

HDMI version
2.0

Headphone outputs
3

Keyboard port type
USB

Mouse port type
USB

Number of computers controlled
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
2

USB connector type
Mini-USB B, USB Type-A, USB Type-B

USB hub
Yes

Video port type
HDMI

Power

Compatible power plug types
AU, EU, JP, UK, US

External power adapter
Yes

Input current
1 A

Input voltage
100 - 240 V

Output current
3 A

Output voltage
12 V

Power consumption (typical)
36 W

Power plug type
Type M

Weight & dimensions

Depth
160 mm

Height
58 mm

Weight
779 g

Width
100 mm
