Description

StarTech.com 2-Port HDMI Splitter with HDR - 4K 60Hz. Video port type: HDMI, Video out: 2x HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160. AC input voltage: 100 - 240 V, Input current: 0.2 A, Output voltage: 5 V. Dimensions (WxDxH): 56 x 100 x 17 mm, Weight: 159 g. Package width: 55 mm, Package depth: 100 mm, Package height: 16 mm

2-PORT HDMI SPLITTER: Displays the same image with sound on 2 screens; Splits an HDMI video signal up to Ultra HD 4K 60Hz & 7.1 CH audio; 4:4:4 chroma subsampling support with bandwidth up to 18Gbps (HDMI 2.0b); HDR; HDCP 2.2 to HDCP 1.4 conversion
EDID EMULATION: 1x2 HDMI splitter 4K automatically passes EDID between your video source and the display attached to port 1 ensuring native settings (such as resolution and refresh rate) are configured
AUDIO SUPPORT: Audio output is supported on all ports simultaneously; Support for 7.1 surround sound audio including Dolby® True HD and DTS HD Master Audio
LONG REACH: Reach up to 16.4ft (5m) with a passive HDMI cable; For longer distances, active HDMI cables or HDMI extenders are available (sold separately) to use with this HDMI splitter for dual TVs/projectors/monitors/displays
EASY SETUP: No drivers required for this 1-input 2-output UHD HDMI 2.0 splitter box; Simply connect cables and power with the EDID switch set to Auto to get started; Wide screen monitor formats supported; HDMI/DVI compatible

Product Properties

Manufacturer
StarTech.com

Model
ST122HD202

EAN
65030880404

Bullet points

Point
2-PORT HDMI SPLITTER

Audio support

EASY SETUP

EDID EMULATION

LONG REACH

Features

Certification
CE, FCC

HDCP
Yes

LED indicators
Yes

Maximum resolution
3840 x 2160 pixels

Plug and Play
Yes

Power LED
Yes

Product colour
Black

Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160

Supported video modes
720p, 1080p

Logistics data

Harmonized System (HS) code
85176990

Operational conditions

Operating relative humidity (H-H)
20 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-20 - 60 °C

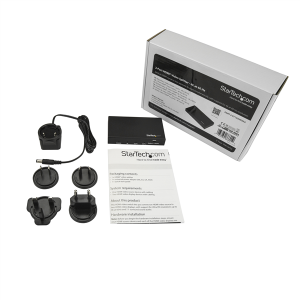

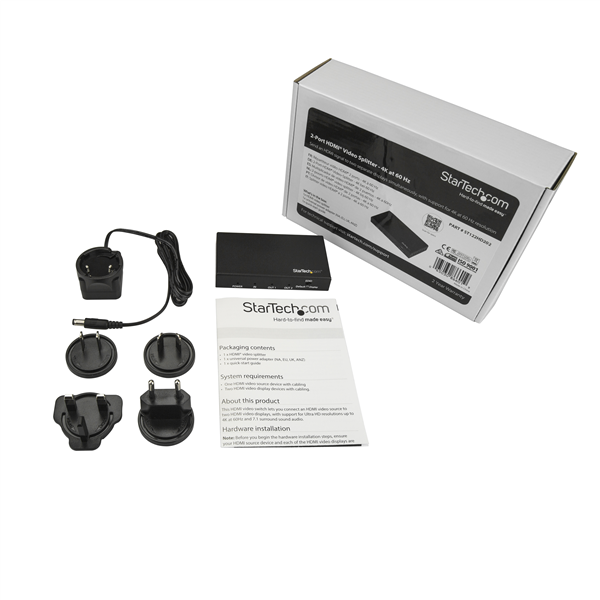

Packaging content

AC adapter included
Yes

User guide
Yes

Packaging data

Package depth
100 mm

Package height
16 mm

Package weight
402 g

Package width
55 mm

Ports & interfaces

HDMI version
2.0

Video out
2x HDMI

Video port type
HDMI

Video ports quantity
2

Power

AC input voltage
100 - 240 V

Input current
0.2 A

Output current
1 A

Output voltage
5 V

Power consumption (typical)
5 W

Technical details

Compliance certificates
RoHS

Supported audio channels
7.1

Weight & dimensions

Dimensions (WxDxH)
56 x 100 x 17 mm

Weight
159 g
