Model: 21050-PC-SERIAL-LP
EAN: 65030899376

StarTech.com 2-Port PCI Express Serial Interface Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Low/Full Profile Brackets, COM Retention, For Windows/Linux

Manufacturer:
StarTech.com
StarTech.com 2-Port PCI Express Serial Interface Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Low/Full Profile Brackets, COM Retention, For Windows/Linux, PCIe, Serial, Full-height / Low-profile, PCI 2.0, RS-232, Yellow
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

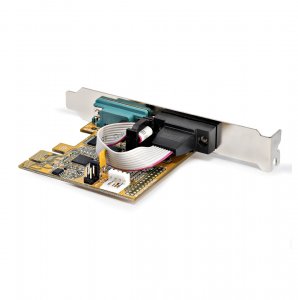

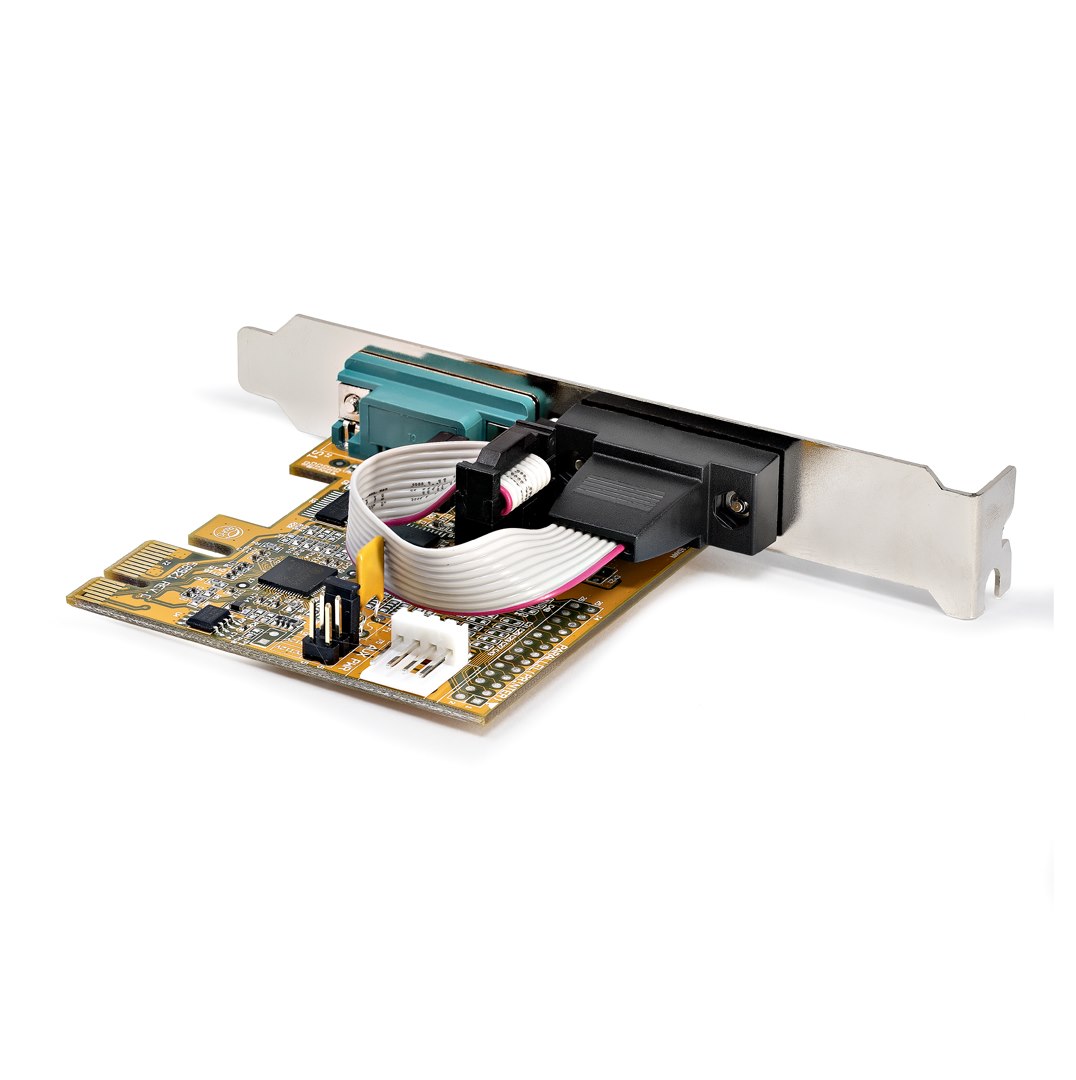

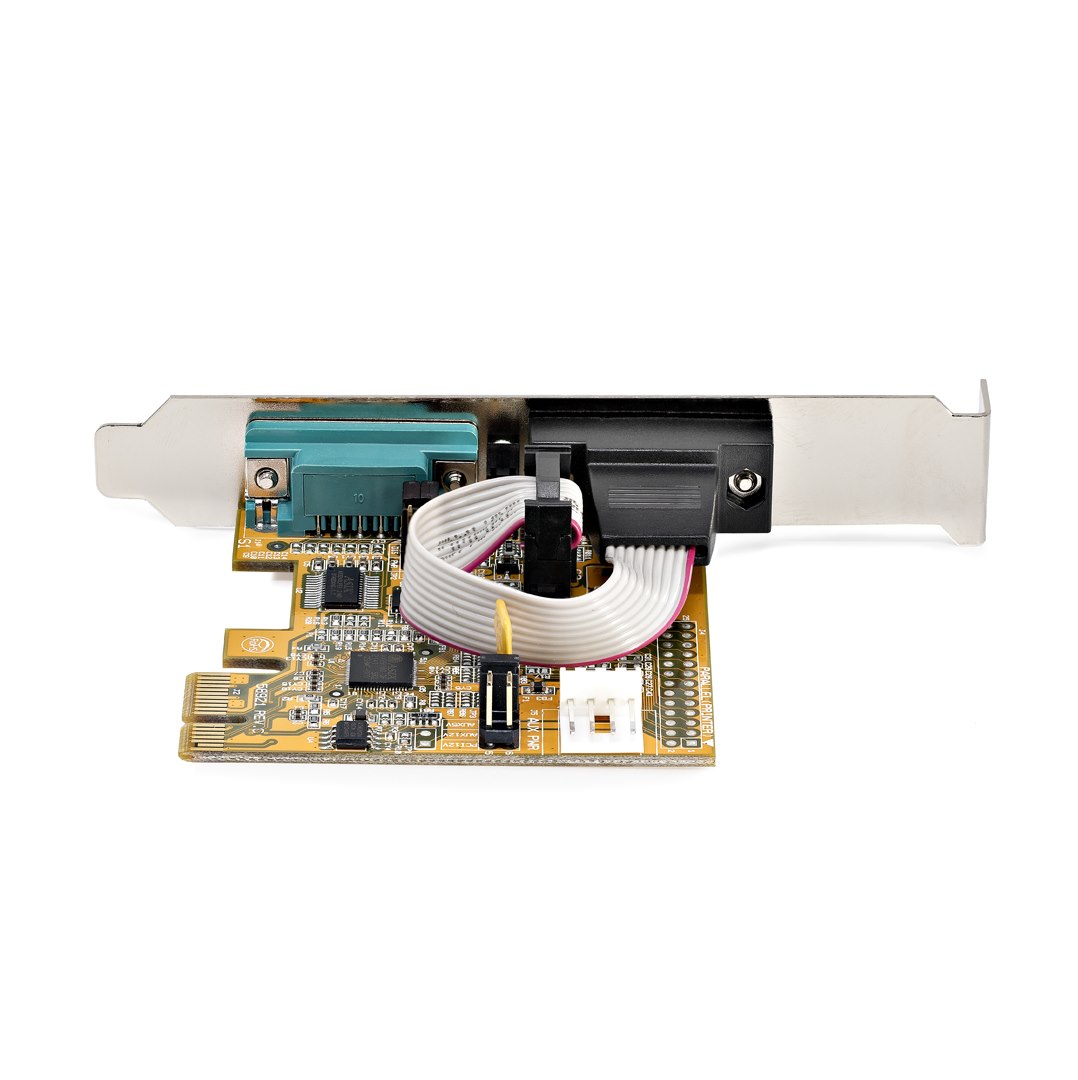

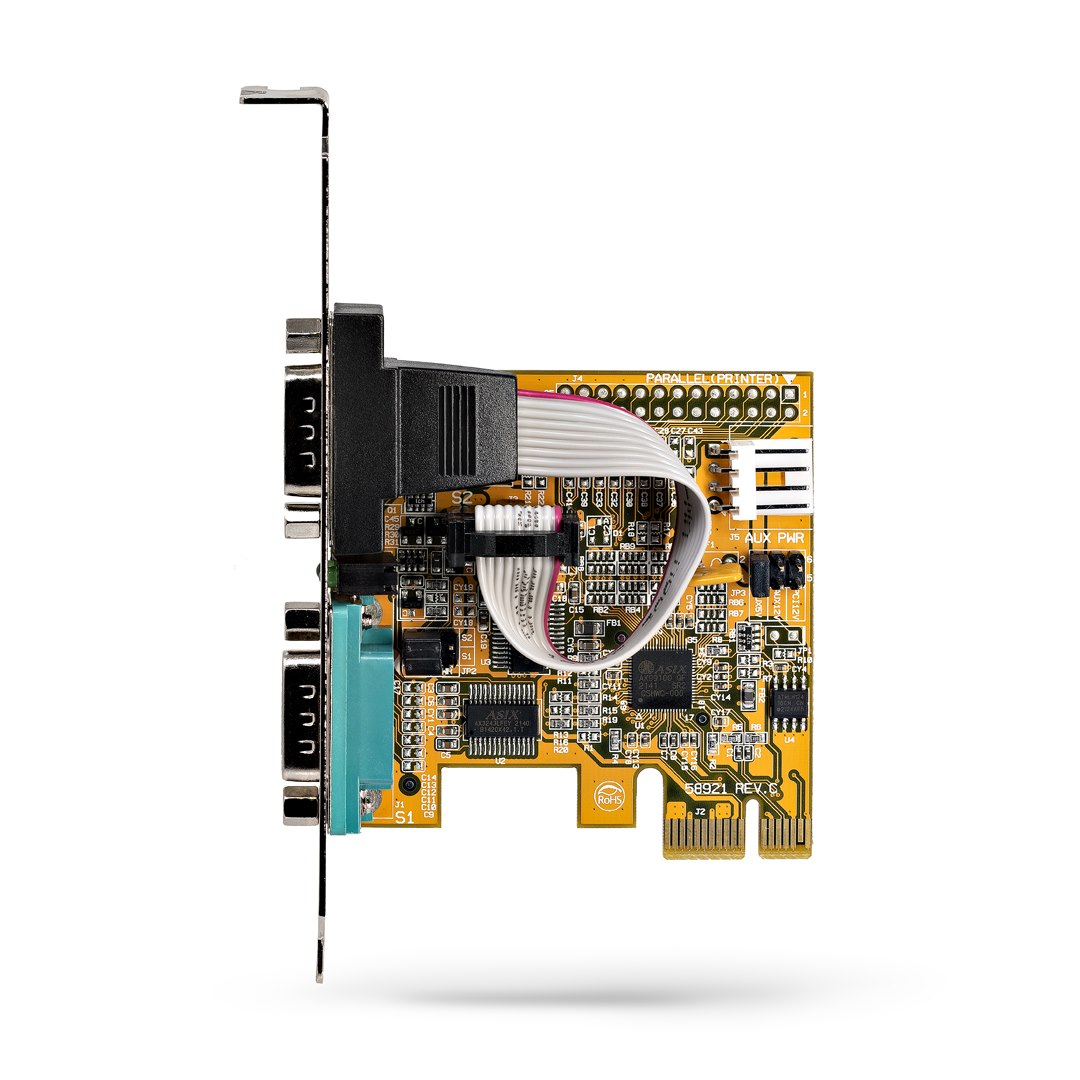

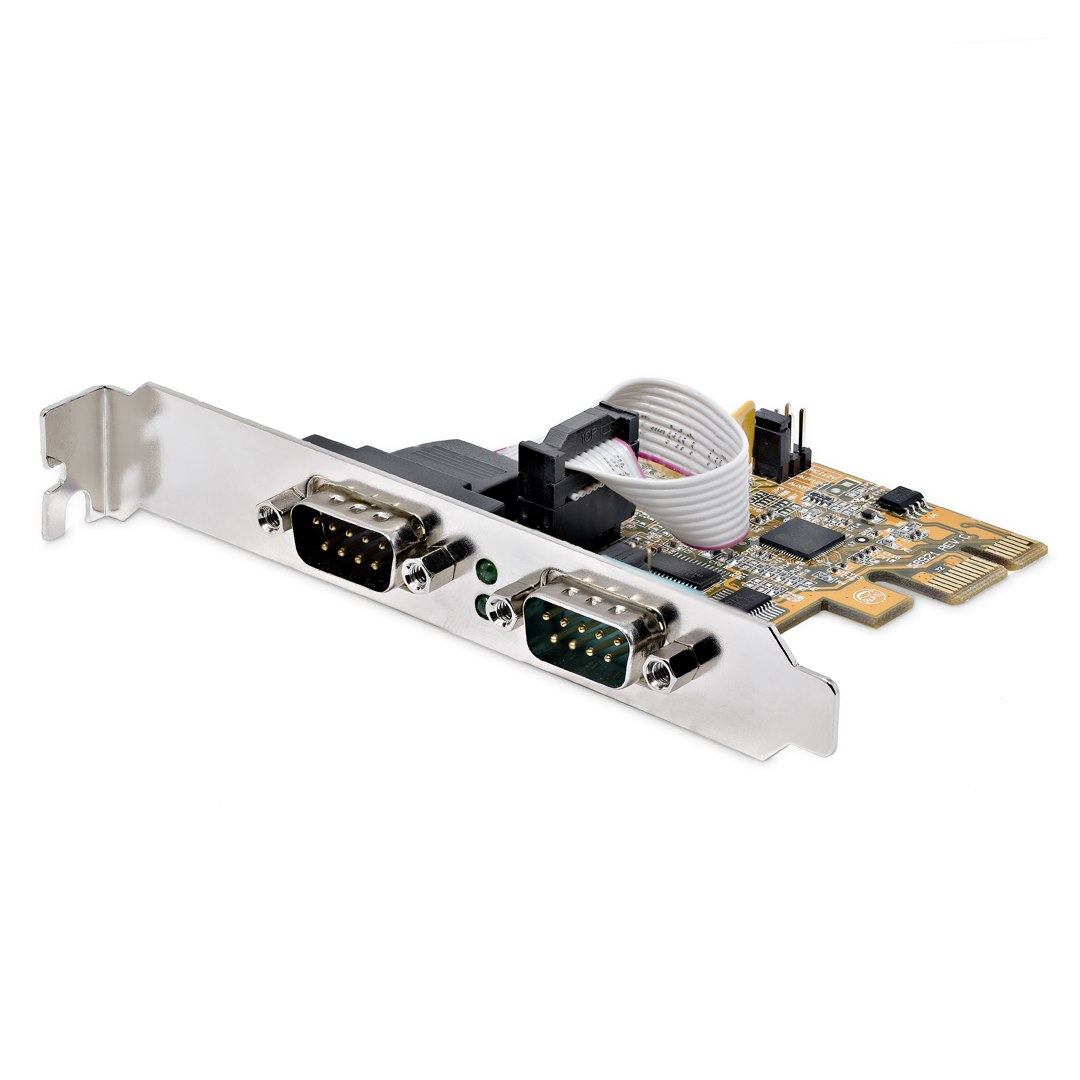

StarTech.com 2-Port PCI Express Serial Interface Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Low/Full Profile Brackets, COM Retention, For Windows/Linux. Host interface: PCIe, Output interface: Serial, Expansion card form factor: Full-height / Low-profile. Product colour: Yellow, LED indicators: Activity. Chipset: ASIX - AX99100, ASIX - ZT3243LFEY, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2016, Windows Server 2019. Width: 66 mm, Depth: 67 mm, Height: 18 mm

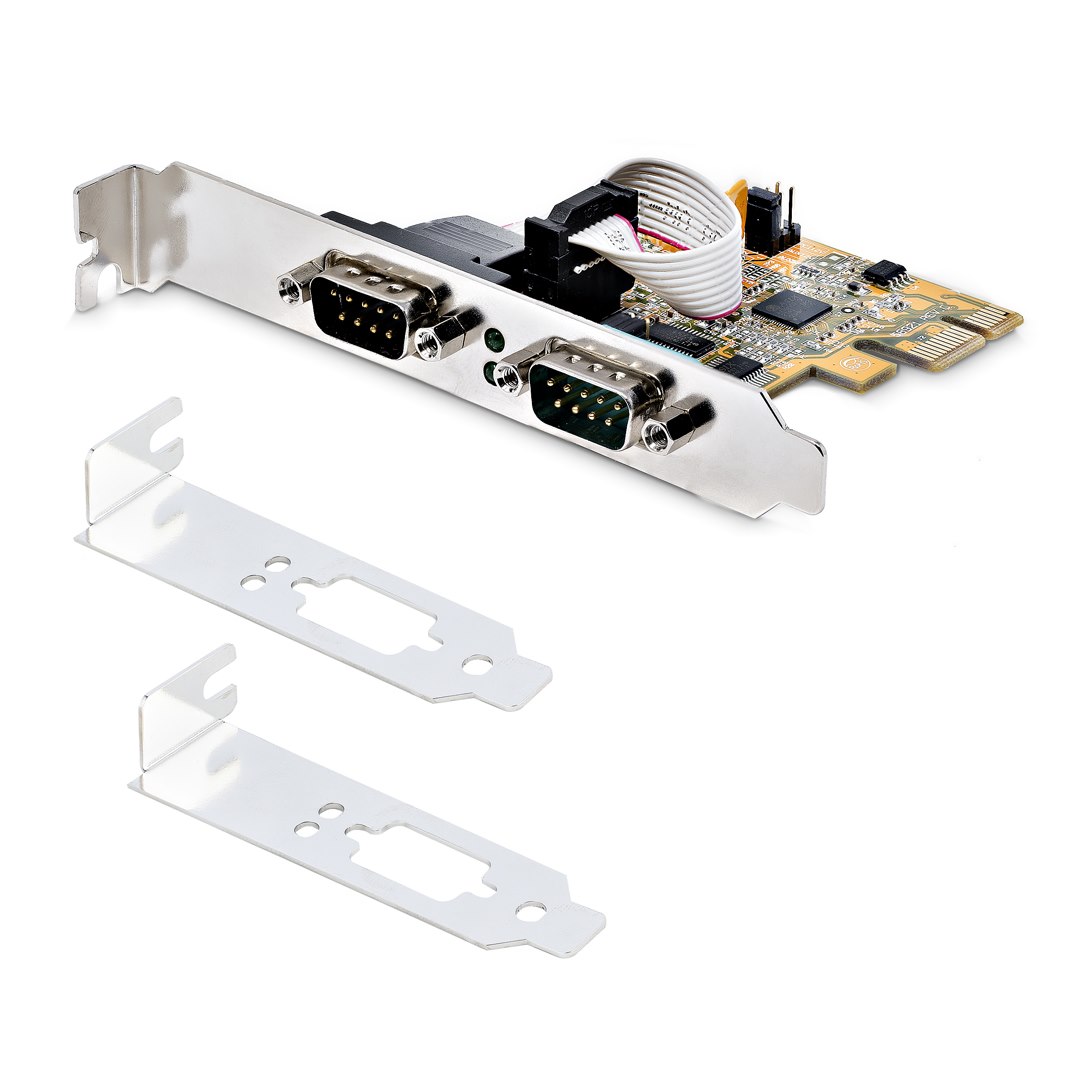

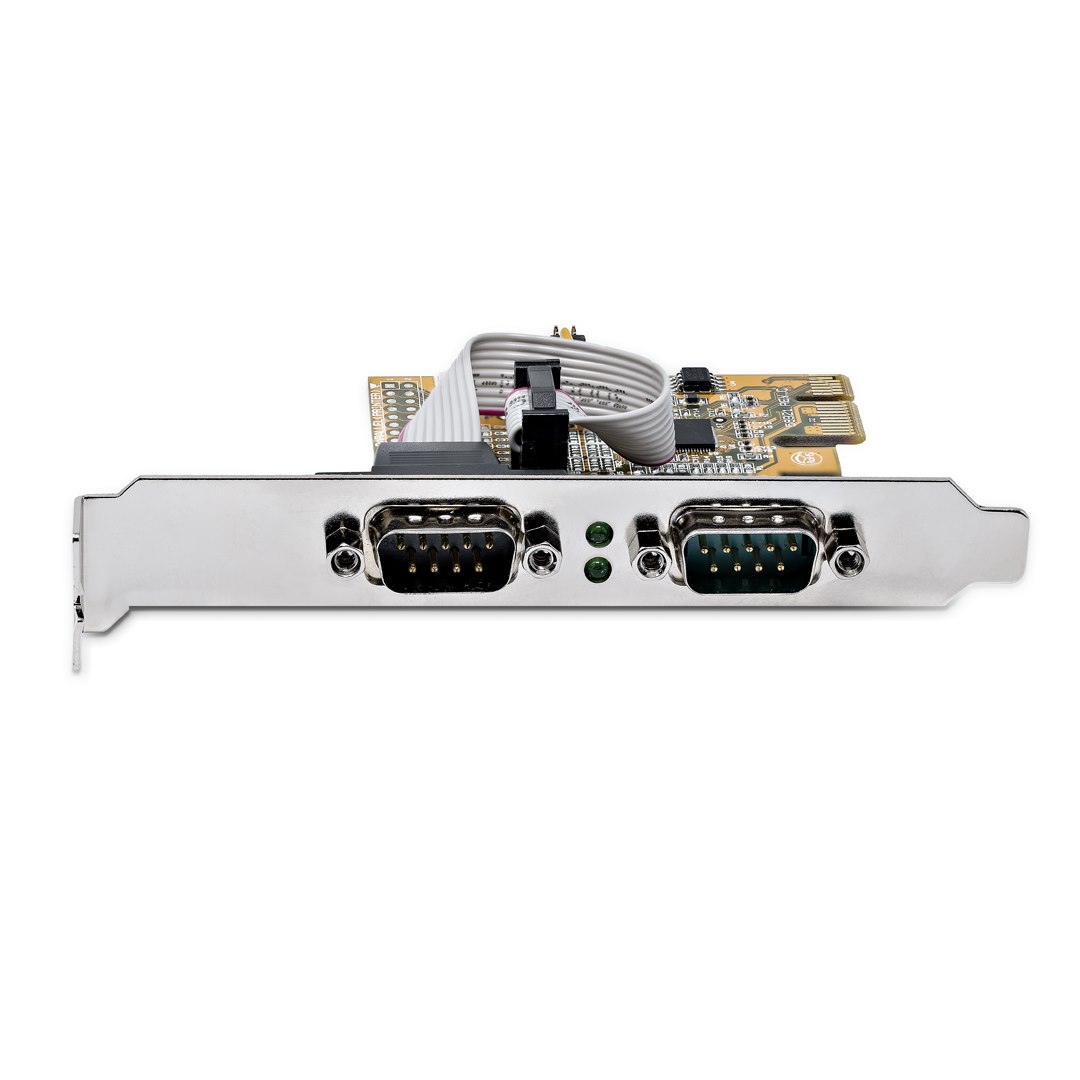

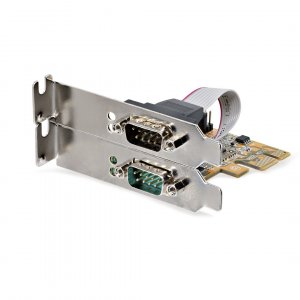

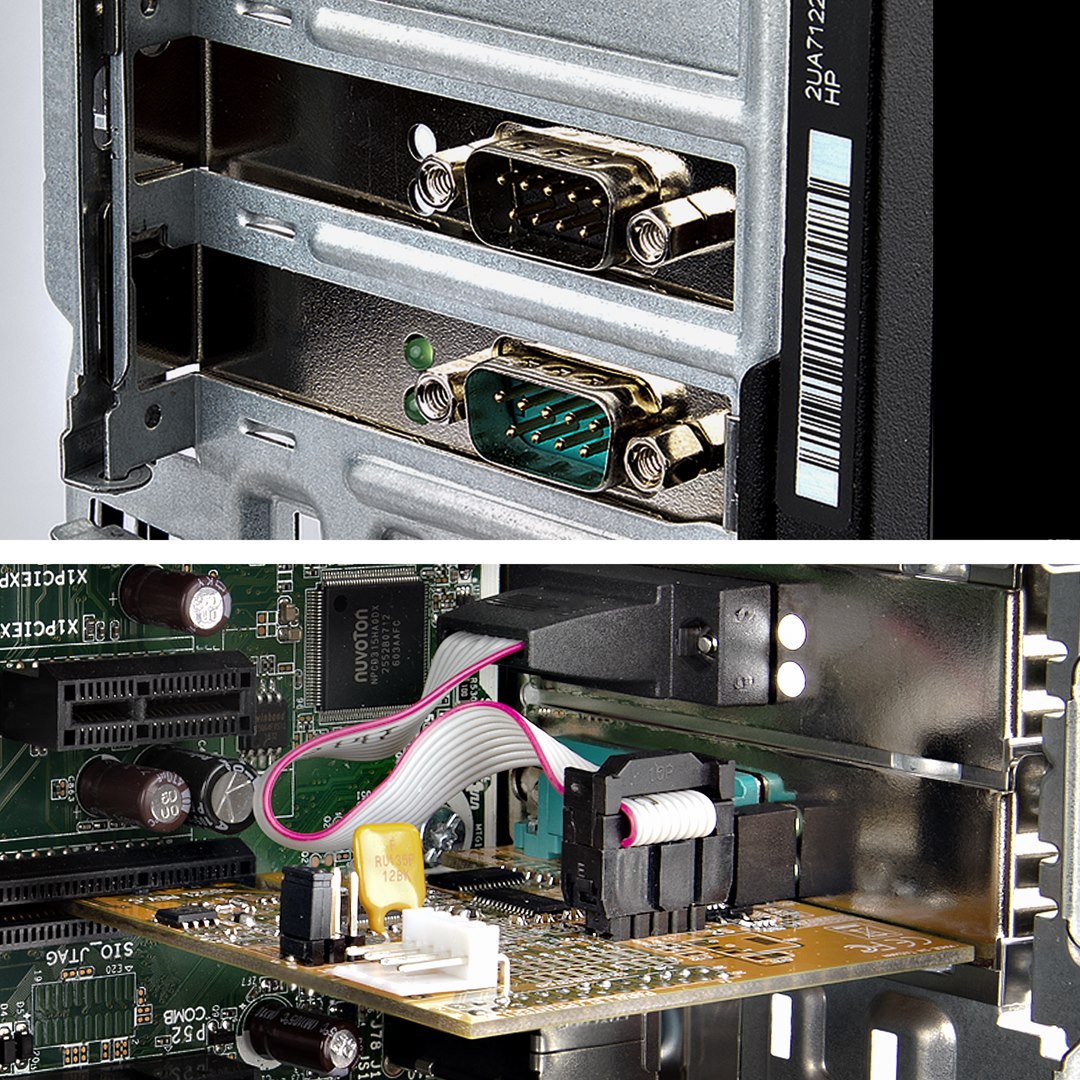

  • PCIE TO SERIAL: Connect serial RS232 (DB9) devices to a computer with this low profile PC serial card; Features support for high performance 16C1050 UART on both DB9 male ports; Monitor activity with the built-in LED status lights on the PCI express DB9 card
  • DEVICE COMPATIBILITY: Use this serial interface card to connect barcode readers/scanners, receipt printers, scales, PLCs, medical devices, etc; The UART PCIe card supplies 5V or 12V power over pin 9; Full-profile bracket included
  • APPLICATIONS: This card is ideal for IT applications such as server rooms, industrial control/automation, logistics, and laboratories; Continue using legacy hardware with this RS232 PCIe card; DB9 ports accept screw locking serial cables

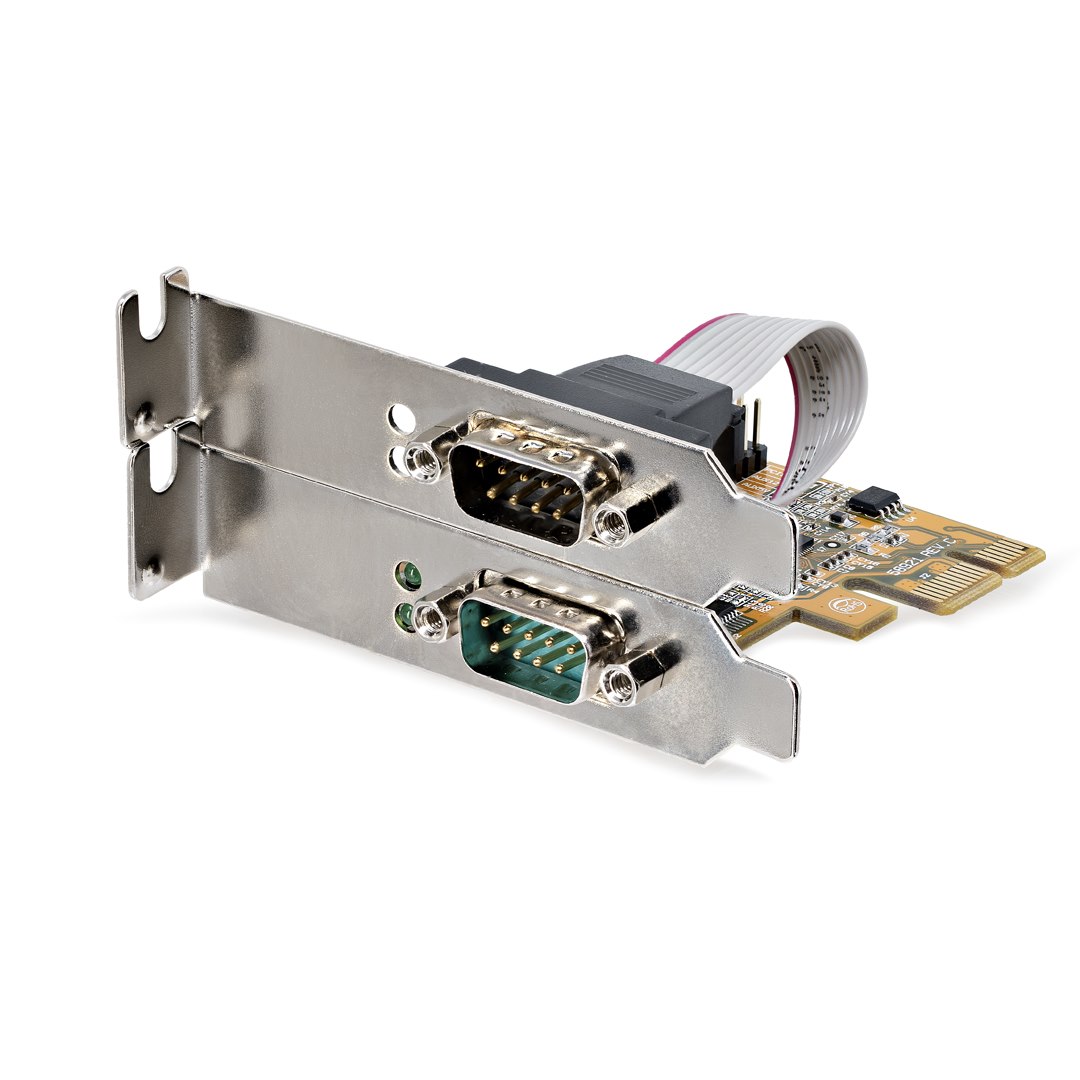

  • DUAL SERIAL PORT CARD SPECS: 16C1050 UART, Max Baud 921.6 Kbps per Port, 256 Byte FIFO, COM Retention, Supports Windows/Linux, ASIX AX99100 Chipset, Odd/Even/Mark/Space/None Parity Modes, 5/6/7/8/9 Data Bits, PCIe 2.0 x1, Low-Profile Brackets Installed
  • THE IT PRO'S CHOICE: Designed and built for IT Professionals, this PCIe to RS232 card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance

Product Properties

  • Model
  • 21050-PC-SERIAL-LP
  • EAN
  • 65030899376
  • Bullet points
  • Point
  • APPLICATIONS
    DEVICE COMPATIBILITY
    DUAL SERIAL PORT CARD SPECS
    PCIE TO SERIAL
    THE IT PRO'S CHOICE
  • Design
  • Internal
  • Yes
  • LED indicators
  • Activity
  • Product colour
  • Yellow
  • Features
  • Baud rate
  • 921.6 Kbit/s
  • Chipset
  • ASIX - AX99100, ASIX - ZT3243LFEY
  • Data bits
  • 5, 6, 7, 8, 9
  • FIFO (First In, First Out)
  • 256 B
  • Parity bit
  • Even, Mark, No, Odd, Space
  • Logistics data
  • Master (outer) case height
  • 340 mm
  • Master (outer) case length
  • 440 mm
  • Master (outer) case width
  • 530 mm
  • Products per master (outer) case
  • 50 pc(s)
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 55 °C
  • Storage temperature (T-T)
  • -40 - 75 °C
  • Other features
  • Material
  • Steel
  • Packaging data
  • Mounting brackets included
  • Yes
  • Package depth
  • 144 mm
  • Package height
  • 38 mm
  • Package weight
  • 160 g
  • Package width
  • 207 mm
  • Quick installation guide
  • Yes
  • Ports & interfaces
  • Expansion card form factor
  • Full-height / Low-profile
  • Expansion card standard
  • PCI 2.0
  • Host interface
  • PCIe
  • Output interface
  • Serial
  • Serial interface type
  • RS-232
  • Serial ports quantity
  • 2
  • System requirements
  • Linux operating systems supported
  • Yes
  • Windows operating systems supported
  • Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
  • Server operating systems supported
  • Windows Server 2016, Windows Server 2019
  • Weight & dimensions
  • Depth
  • 67 mm
  • Height
  • 18 mm
  • Weight
  • 160 g
  • Width
  • 66 mm
