Model: PCI2S5502
EAN: 65030891318

StarTech.com 2-Port PCI RS232 Serial Adapter Card - PCI Serial Port Expansion Controller Card - PCI to Dual Serial DB9 Card - Standard (Installed) & Low Profile Brackets - Windows/Linux

Manufacturer:
StarTech.com
StarTech.com 2-Port PCI RS232 Serial Adapter Card - PCI Serial Port Expansion Controller Card - PCI to Dual Serial DB9 Card - Standard (Installed) & Low Profile Brackets - Windows/Linux, PCI/PCI-X, Serial, RS-232, Black, ASIX - MCS9865, 115.2 Kbit/s
Please log in to see your price
Related products

Description

StarTech.com 2-Port PCI RS232 Serial Adapter Card - PCI Serial Port Expansion Controller Card - PCI to Dual Serial DB9 Card - Standard (Installed) & Low Profile Brackets - Windows/Linux. Host interface: PCI/PCI-X, Output interface: Serial, Serial interface type: RS-232. Product colour: Black. Chipset: ASIX - MCS9865, Baud rate: 115.2 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 21.6 mm, Depth: 134 mm, Height: 120 mm

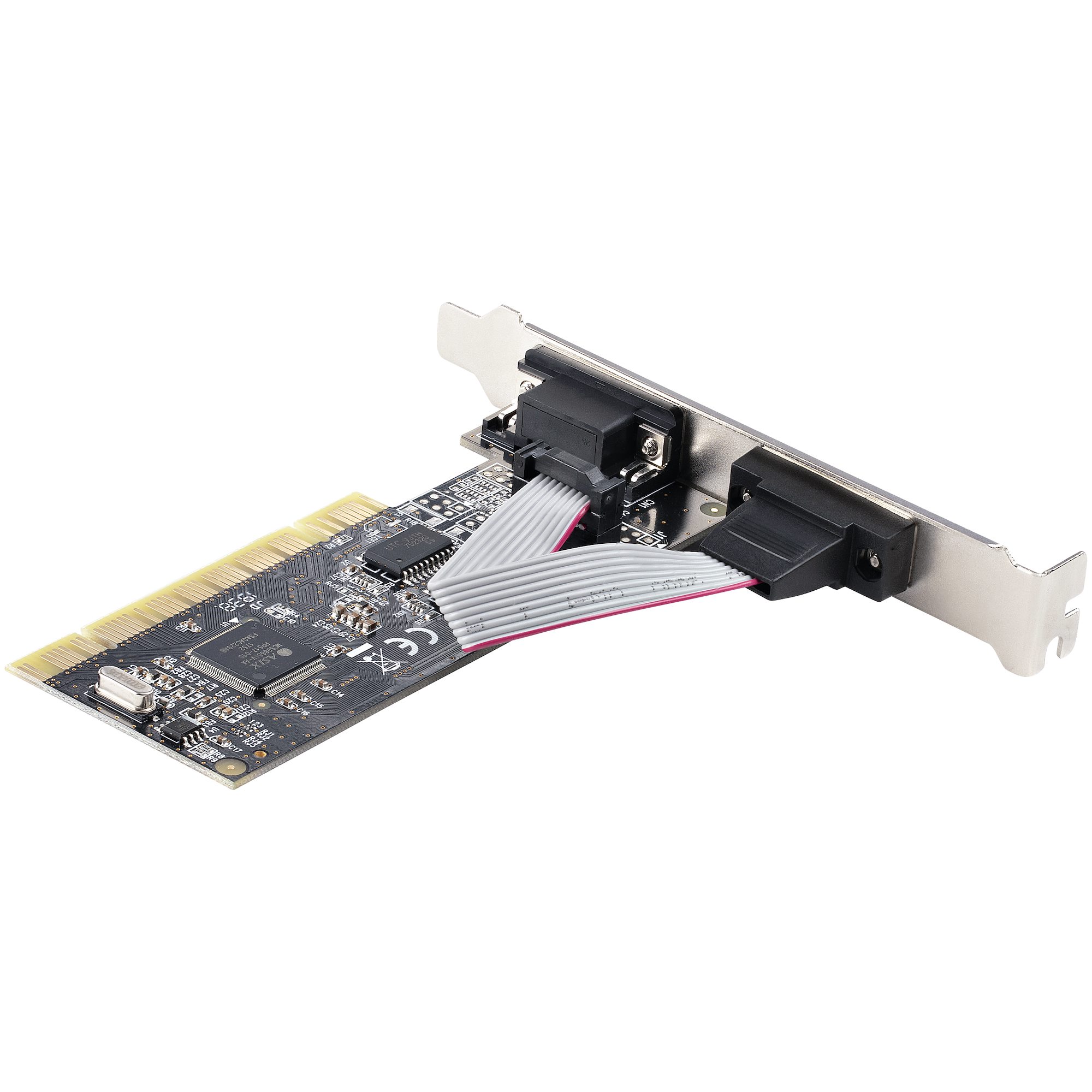

  • 2 PORT PCI RS232 SERIAL ADAPTER CARD: Controller card w/ 16C550 UART based on ASIX MCS9865, 2x DB9 ports w/bi-directional RS232 speeds up to 115.2Kbps/port, 256 byte FIFO buffer & 9th data bit / Upgraded version of our popular cards PCI2S550_LP & PCI2S550
  • TECH SPECS: Speeds up to 115.2Kbps / 16C550 UART / 256 byte FIFO buffer / 5,6,7,8 and 9 bit character / Even, Odd, No, Space or Mark Parity / Auto IRQ & IO assignment / Supports IRQ Sharing / ASIX MCS9865 Chip
  • VERSATILE APPLICATIONS: Dual Serial Port PCI Card for PCI desktops/servers used in point of sale terminals, PLCs, CNC Machines, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope

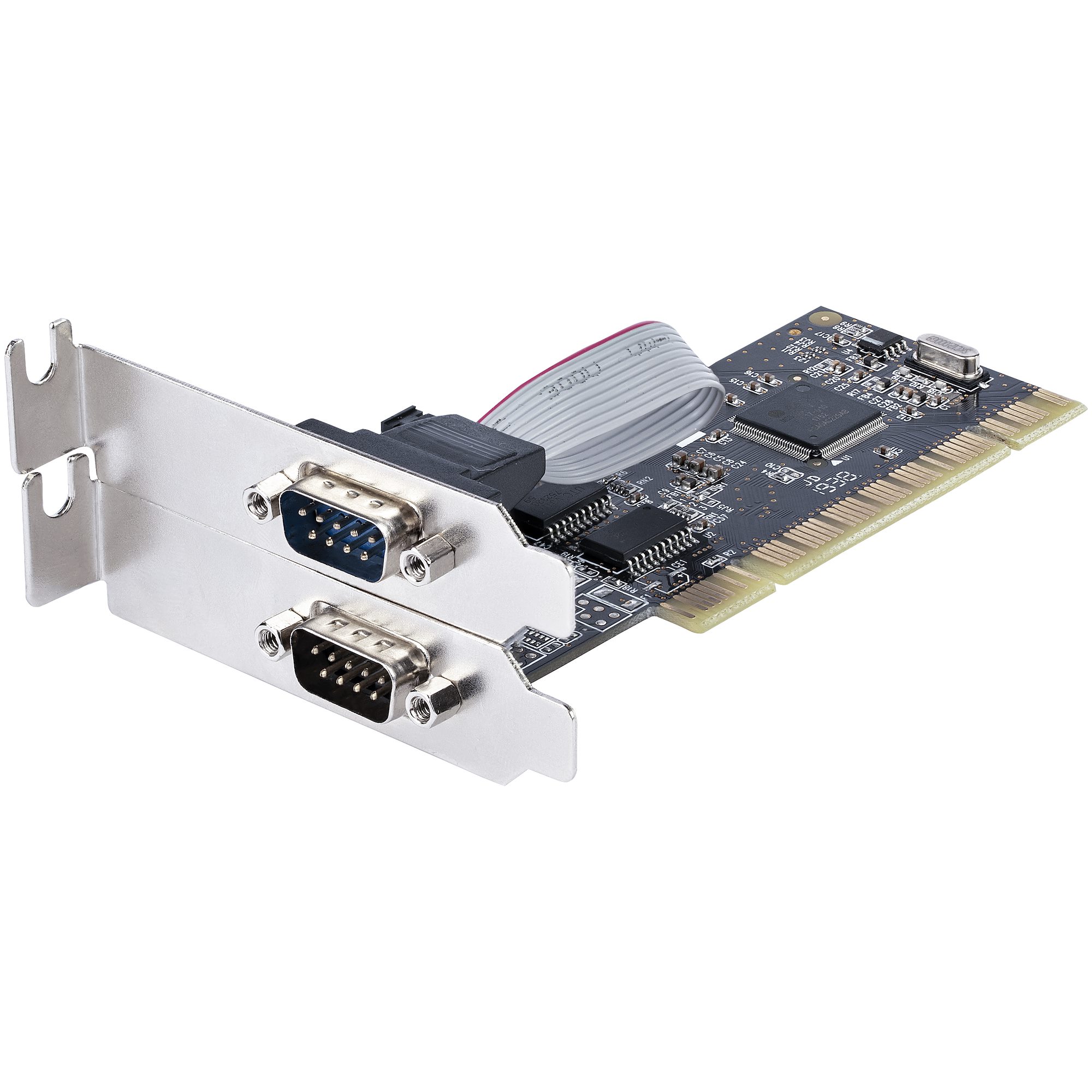

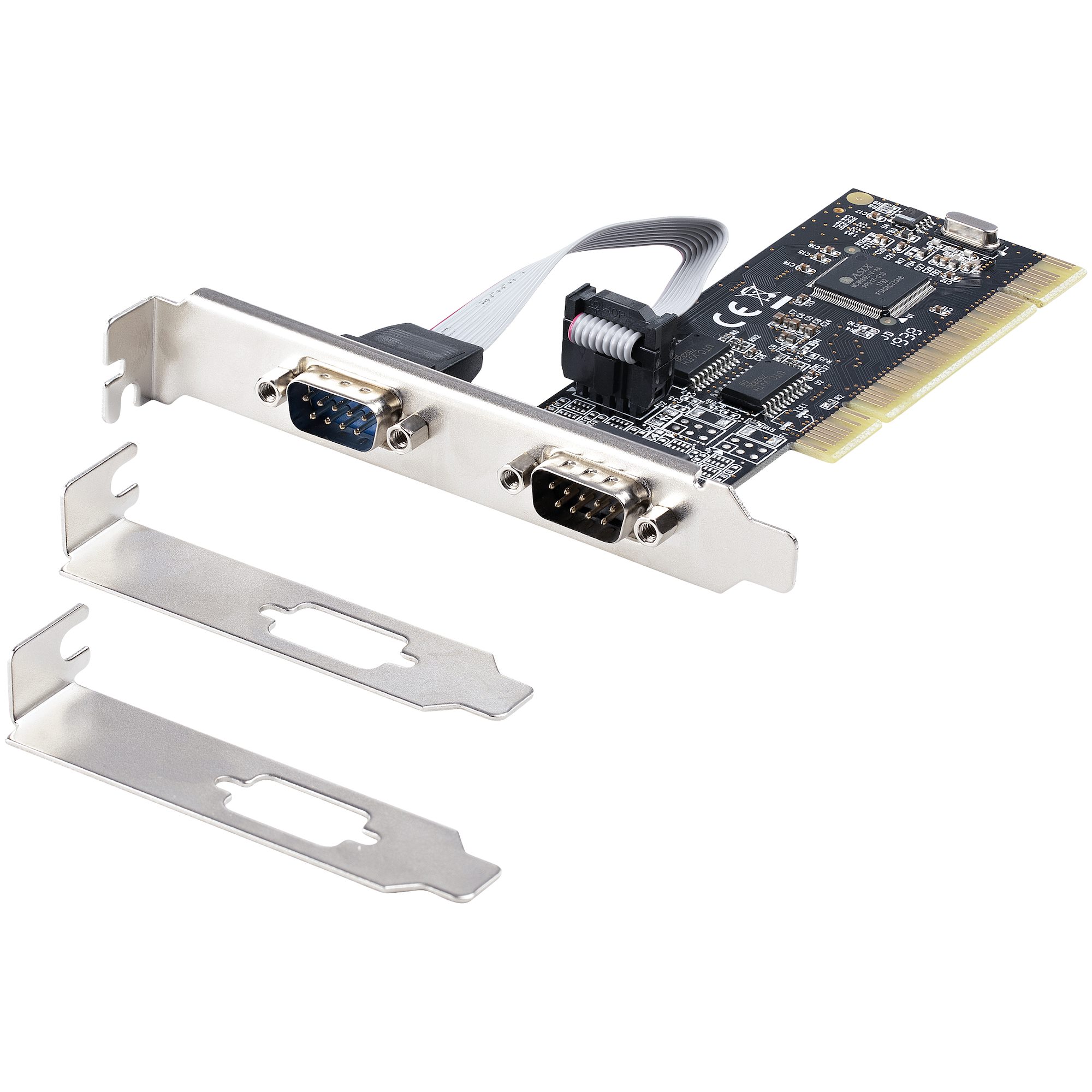

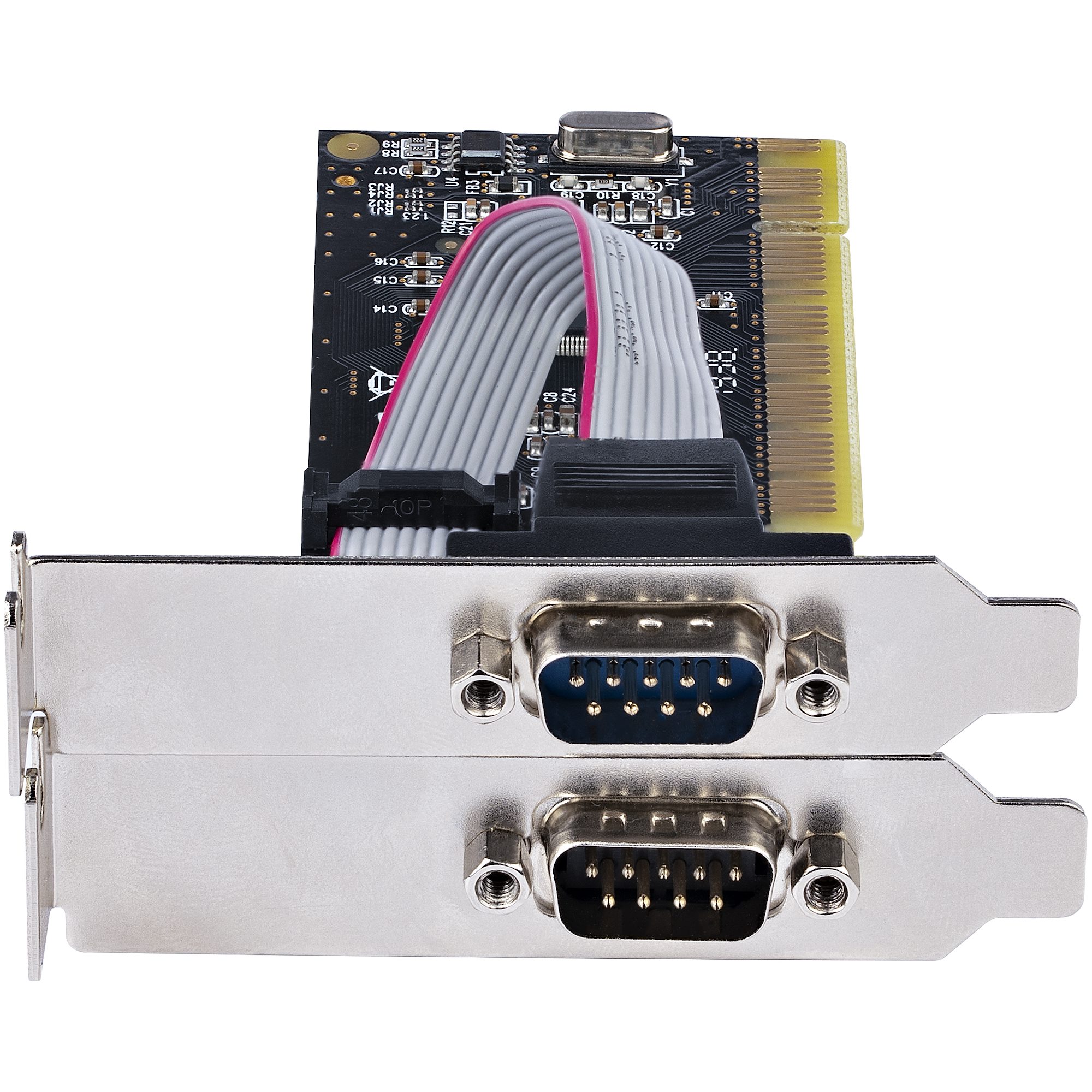

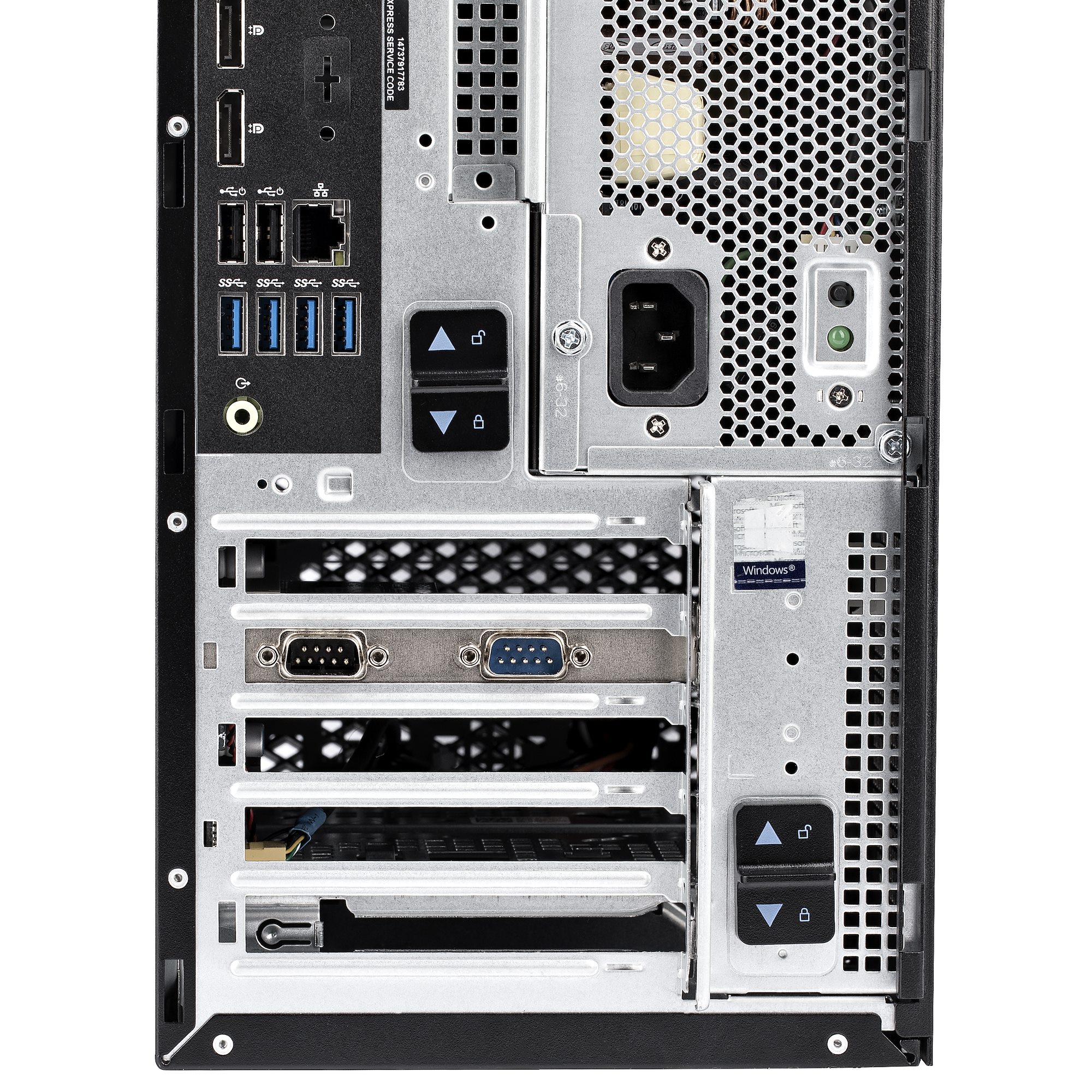

  • STANDARD PROFILE & LOW PROFILE BRACKET: PCI multiport serial COM card installs using 1x standard bracket (pre-installed) or 2x low profile brackets (incl); Supports Windows 7 and up, Linux 2.6.x to 5.x
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCI RS-232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support

Product Properties

  • Model
  • PCI2S5502
  • EAN
  • 65030891318
  • Bullet points
  • Point
  • 2 PORT PCI RS232 SERIAL ADAPTER CARD
    STANDARD PROFILE & LOW PROFILE BRACKET
    STARTECH.COM ADVANTAGE
    TECH SPECS
    VERSATILE APPLICATIONS
  • Design
  • Internal
  • Yes
  • Product colour
  • Black
  • Features
  • Baud rate
  • 115.2 Kbit/s
  • Chipset
  • ASIX - MCS9865
  • FIFO (First In, First Out)
  • 256 B
  • Flow control support
  • Yes
  • Flow Control type
  • No, RTS/CTS, XON/XOFF
  • Parity bit
  • Even, Mark, No, Odd, Space
  • Stop bits
  • 1, 1.5, 2
  • Logistics data
  • Harmonized System (HS) code
  • 84733020
  • Master (outer) case height
  • 340 mm
  • Master (outer) case length
  • 385 mm
  • Master (outer) case width
  • 360 mm
  • Products per master (outer) case
  • 40 pc(s)
  • Operational conditions
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 70 °C
  • Storage temperature (T-T)
  • -20 - 85 °C
  • Packaging data
  • Mounting brackets included
  • Yes
  • Package depth
  • 170 mm
  • Package height
  • 30 mm
  • Package weight
  • 170 g
  • Package width
  • 142 mm
  • Quick installation guide
  • Yes
  • Ports & interfaces
  • Host interface
  • PCI/PCI-X
  • Output interface
  • Serial
  • Serial interface type
  • RS-232
  • Serial ports quantity
  • 2
  • System requirements
  • Linux operating systems supported
  • Yes
  • Windows operating systems supported
  • Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
  • Server operating systems supported
  • Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
  • Technical details
  • Compliance certificates
  • RoHS
  • Weight & dimensions
  • Depth
  • 134 mm
  • Height
  • 120 mm
  • Weight
  • 141 g
  • Width
  • 21.6 mm
