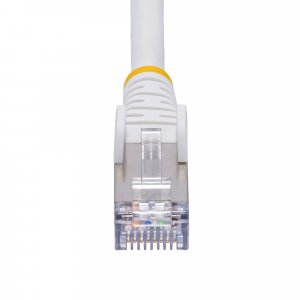

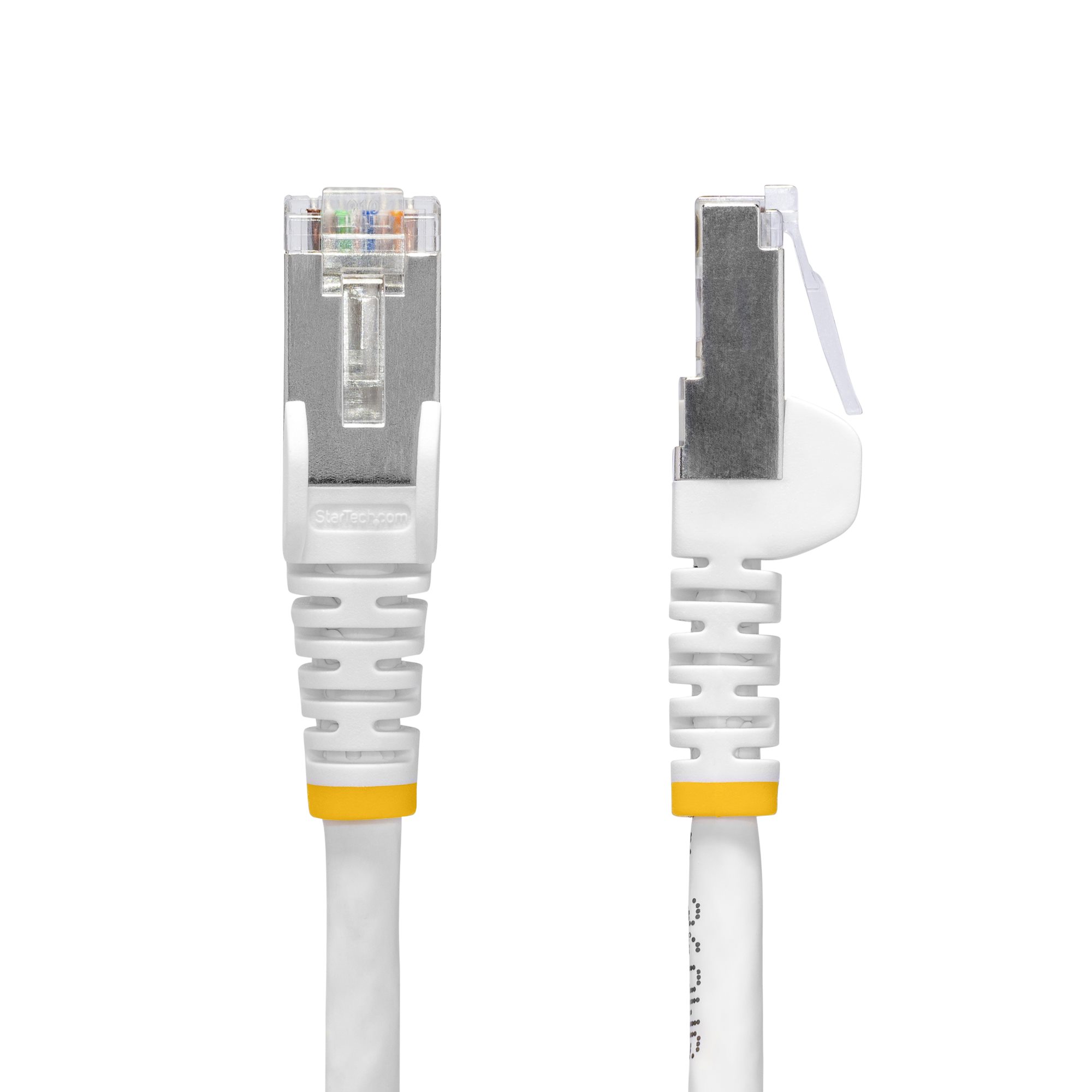

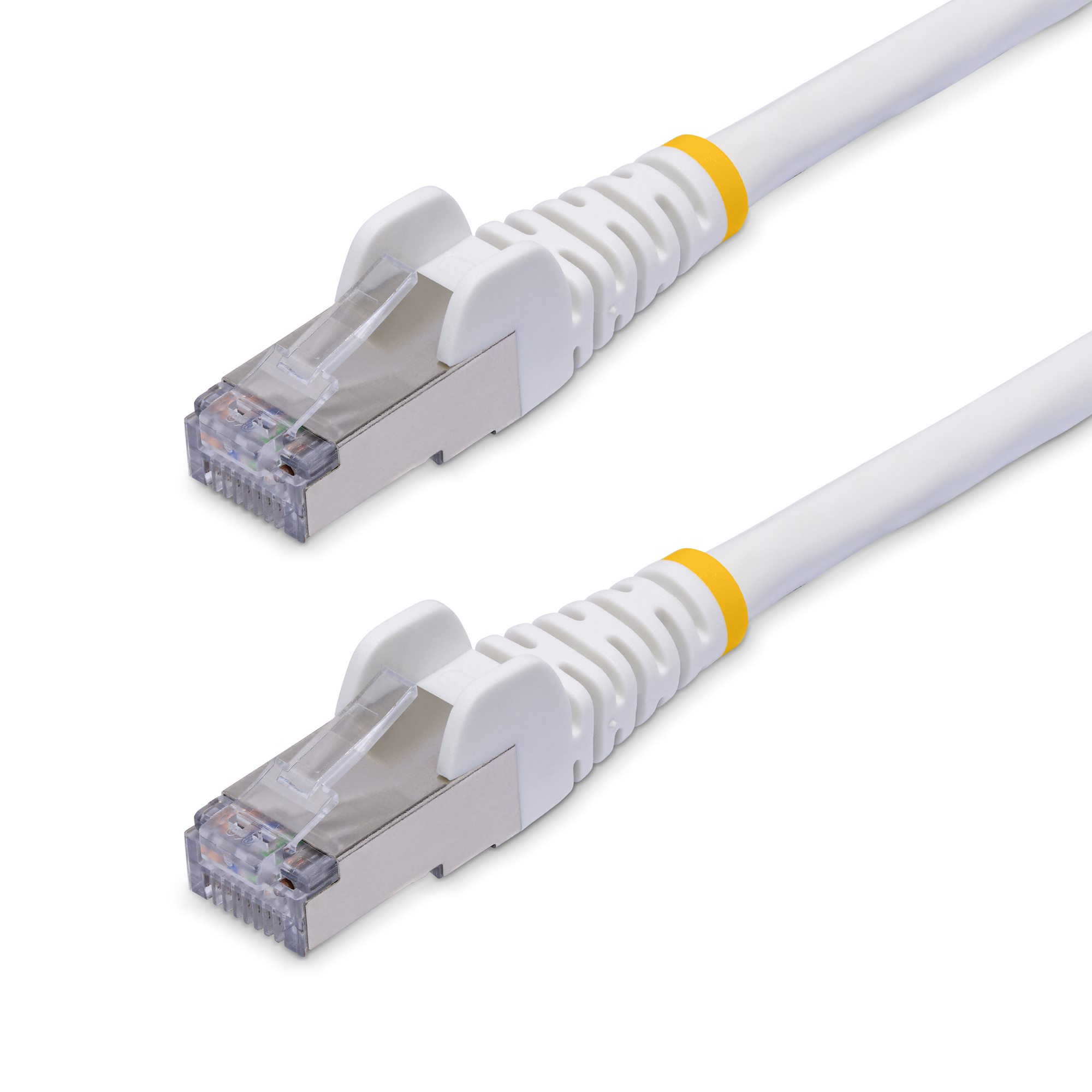

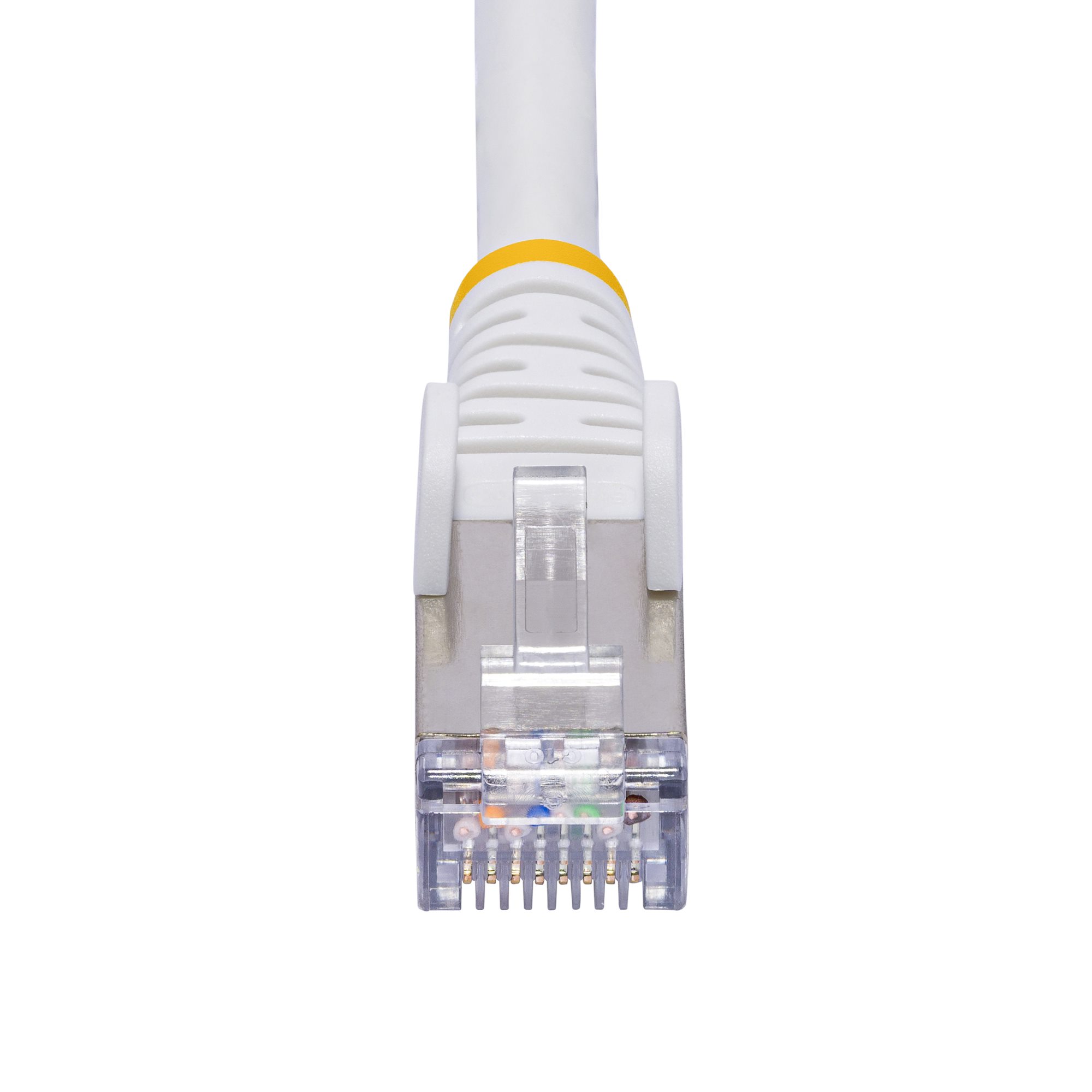

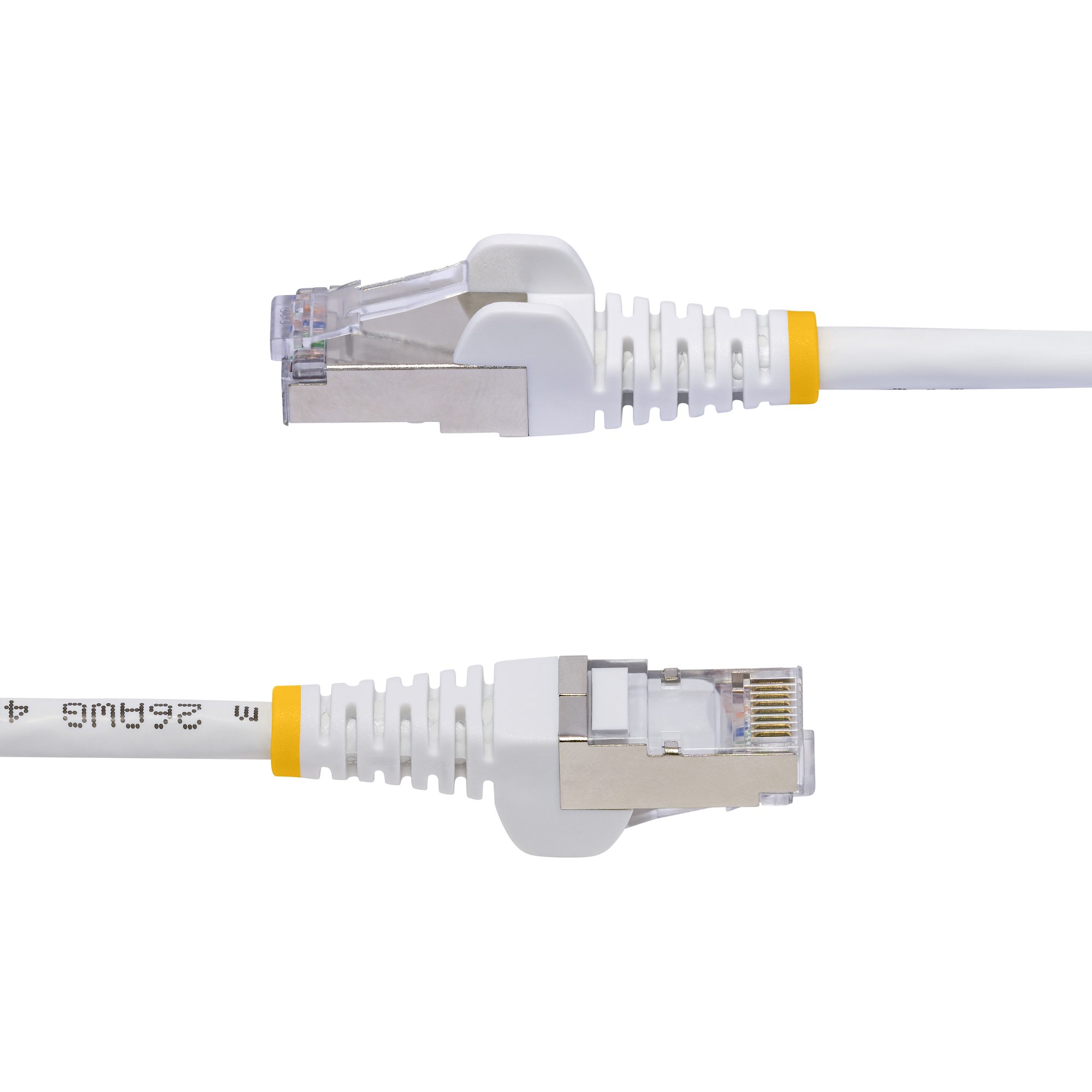

StarTech.com 2m White CAT8 Ethernet Cable, Snagless RJ45, 25G/40G, 2000MHz, 100W PoE++, S/FTP, 26AWG Pure Bare Copper Wire, LSZH, Shielded Network Patch Cord w/Strain Reliefs, Fluke Channel Tested
Roll over image to zoom inClick to Open expanded view
Model: NLWH-2M-CAT8-PATCH
EAN: 65030898607

StarTech.com 2m White CAT8 Ethernet Cable, Snagless RJ45, 25G/40G, 2000MHz, 100W PoE++, S/FTP, 26AWG Pure Bare Copper Wire, LSZH, Shielded Network Patch Cord w/Strain Reliefs, Fluke Channel Tested

Manufacturer:
StarTech.com
StarTech.com 2m White CAT8 Ethernet Cable, Snagless RJ45, 25G/40G, 2000MHz, 100W PoE++, S/FTP, 26AWG Pure Bare Copper Wire, LSZH, Shielded Network Patch Cord w/Strain Reliefs, Fluke Channel Tested, 2 m, Cat8, S/FTP (S-STP), RJ-45, RJ-45, White
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

StarTech.com 2m White CAT8 Ethernet Cable, Snagless RJ45, 25G/40G, 2000MHz, 100W PoE++, S/FTP, 26AWG Pure Bare Copper Wire, LSZH, Shielded Network Patch Cord w/Strain Reliefs, Fluke Channel Tested. Cable length: 2 m, Cable standard: Cat8, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 40000 Mbit/s, Product colour: White

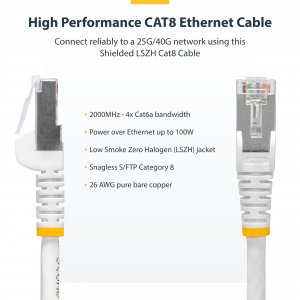

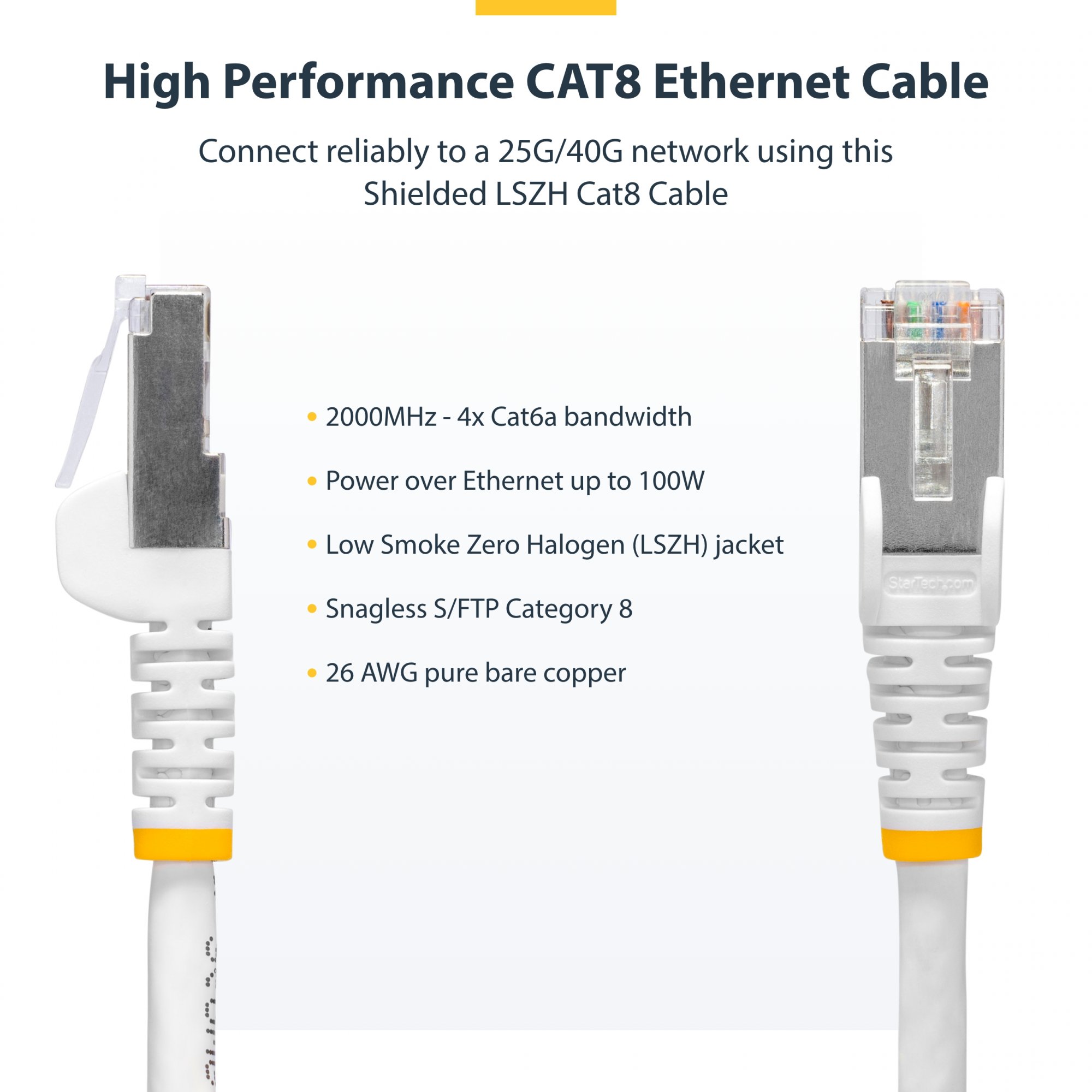

  • CAT8 ETHERNET CABLE: Snagless S/FTP Cat8 cable is optimized for enterprise 25/40Gbps networks; 2000MHz frequency range enhances throughput capacity; Up to 4 times faster than Cat6a; Supports Power over Ethernet (PoE++) devices up to 100W

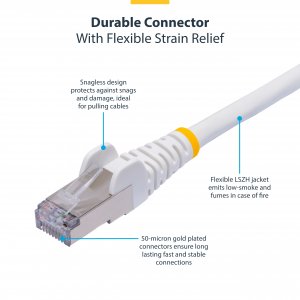

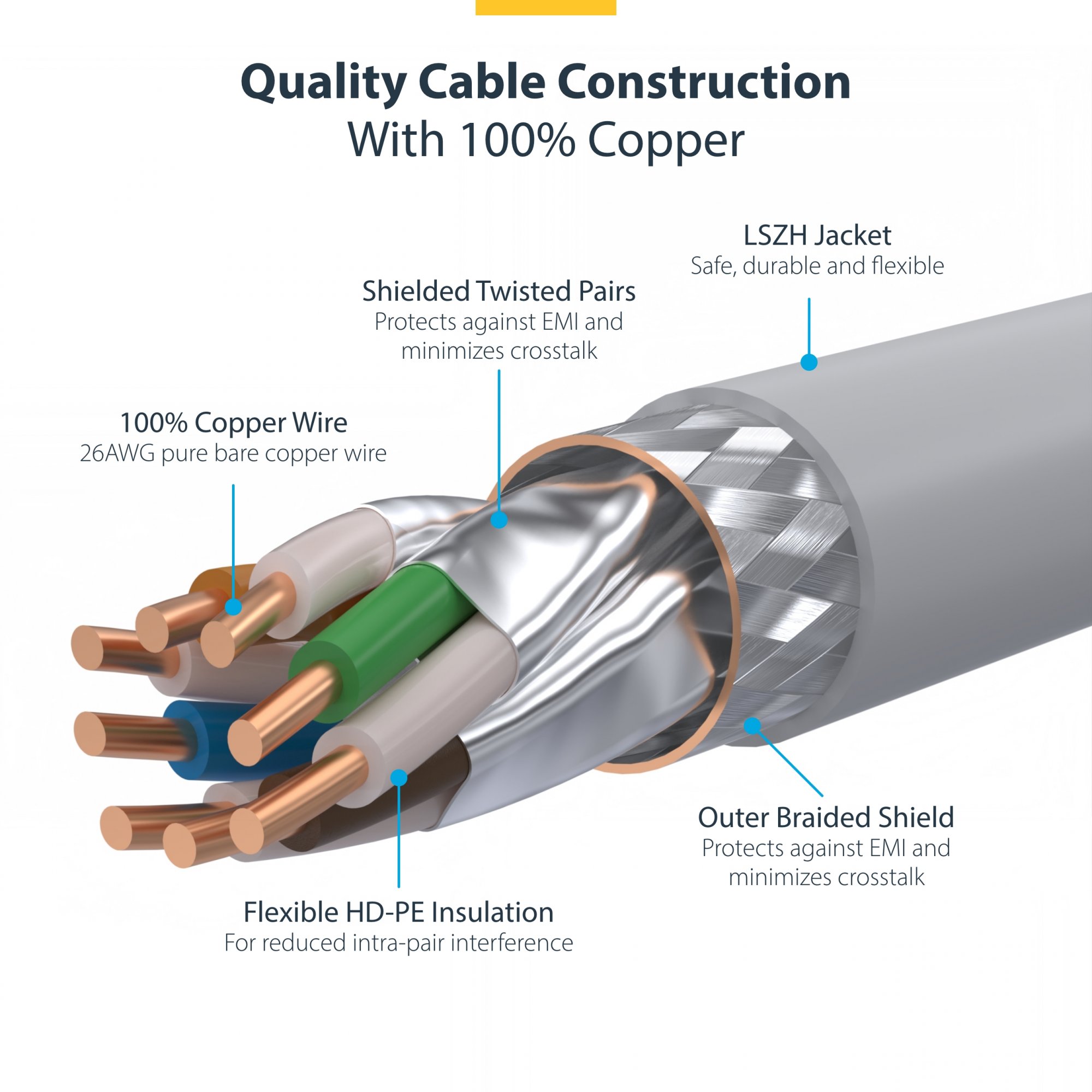

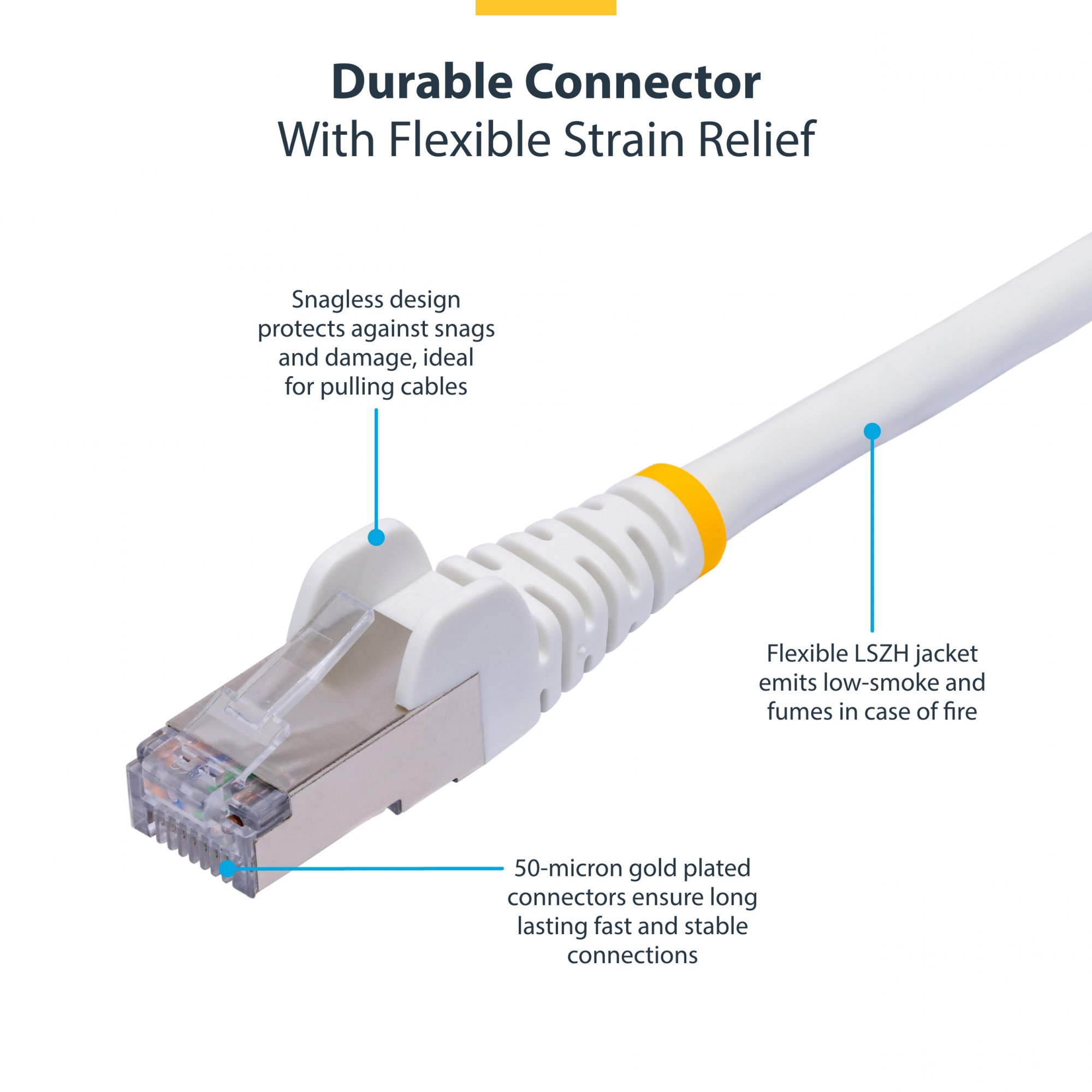

  • QUALITY CONSTRUCTION: Shielded 50-micron gold-plated connectors enable a precise fit to minimize wear and signal loss; Rated beyond 750 insertions; 26AWG pure bare copper wire with braided shield enhance EMI protection for consistent throughput and power

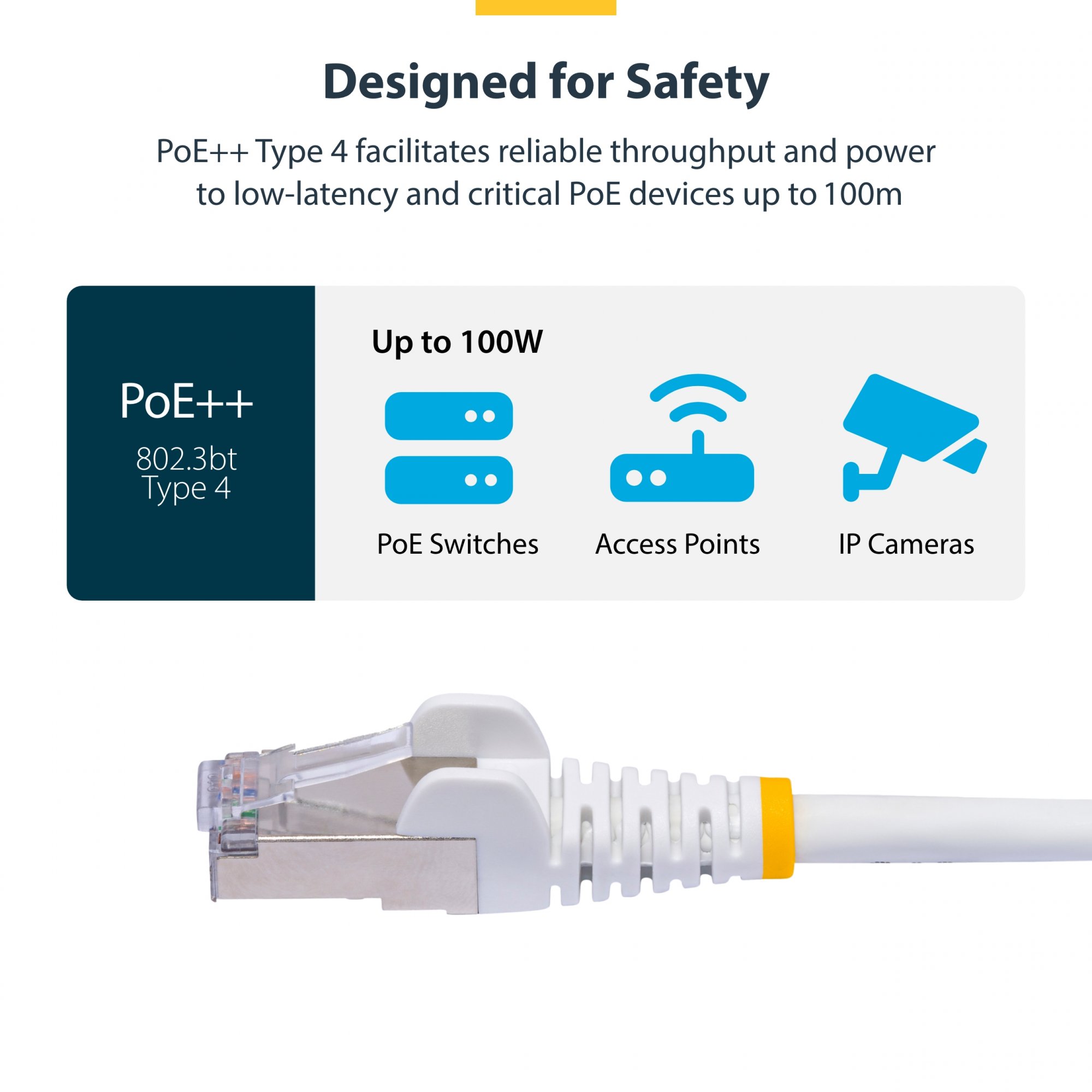

  • SAFETY AND RELIABILITY: Fluke channel tested for guaranteed Cat8 performance; PoE++ specifications complies with IEEE 802.3bt Type 4; Low Smoke Zero Halogen (LSZH) jacket is safe for enclosed/poorly ventilated spaces and emits low toxic fumes if combusted
  • APPLICATIONS: Ideal for high density 25/40GBASE-T enterprise network deployments and switches; Connect reliably to critical PoE devices such as IP cameras and Access Points; Flexible LSZH jacket withstands -/+90deg bends and easily routed through tight spaces
  • SPECS: 2-meter; White; Snagless; 10/25/40Gbps; 2000 MHz; 100W PoE++; S/FTP; 26AWG Pure Bare Copper Wire; Al-Mylar w/Braided Shield; Gold-Plated Connectors; LSZH Jacket; 5.6mm (0.22in) Cable O.D.; Fluke Channel Tested; Supports Cat 6/6a and Cat 5/5e

Product Properties

  • Model
  • NLWH-2M-CAT8-PATCH
  • EAN
  • 65030898607
  • Bullet points
  • Point
  • APPLICATIONS
    CAT8 ETHERNET CABLE
    QUALITY CONSTRUCTION
    SAFETY AND RELIABILITY
    SPECS
  • Certificates
  • Certification
  • TIA/EIA-T568B
  • Features
  • AWG wire size
  • 26
  • Cable length
  • 2 m
  • Cable shape
  • Round
  • Cable shielding
  • S/FTP (S-STP)
  • Cable standard
  • Cat8
  • Cabling technology
  • 40GBase-T
  • Conductor material
  • Copper
  • Conductor type
  • Solid
  • Connector 1
  • RJ-45
  • Connector 1 form factor
  • Straight
  • Connector 1 gender
  • Male
  • Connector 2
  • RJ-45
  • Connector 2 form factor
  • Straight
  • Connector 2 gender
  • Male
  • Connector contacts plating
  • Gold
  • Connector shielding
  • Yes
  • Data transfer rate
  • 40000 Mbit/s
  • Ethernet interface type
  • 25 Gigabit Ethernet, 40 Gigabit Ethernet
  • Frequency
  • 2000 MHz
  • Jacket material
  • Low smoke zero halogen (LSZH)
  • Networking standards
  • IEEE 802.3ba
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) type supported
  • PoE++ (4PPoE)
  • Product colour
  • White
  • Snagless cable boot
  • Yes
  • Total Power over Ethernet (PoE) budget
  • 100 W
  • Logistics data
  • Master (outer) case height
  • 290 mm
  • Master (outer) case length
  • 430 mm
  • Master (outer) case width
  • 380 mm
  • Products per master (outer) case
  • 80 pc(s)
  • Operational conditions
  • Operating relative humidity (H-H)
  • 0 - 85%
  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage temperature (T-T)
  • -20 - 60 °C
  • Packaging content
  • Quantity per pack
  • 1 pc(s)
  • Packaging data
  • Package depth
  • 220 mm
  • Package height
  • 15 mm
  • Package weight
  • 93 g
  • Package width
  • 190 mm
  • Weight & dimensions

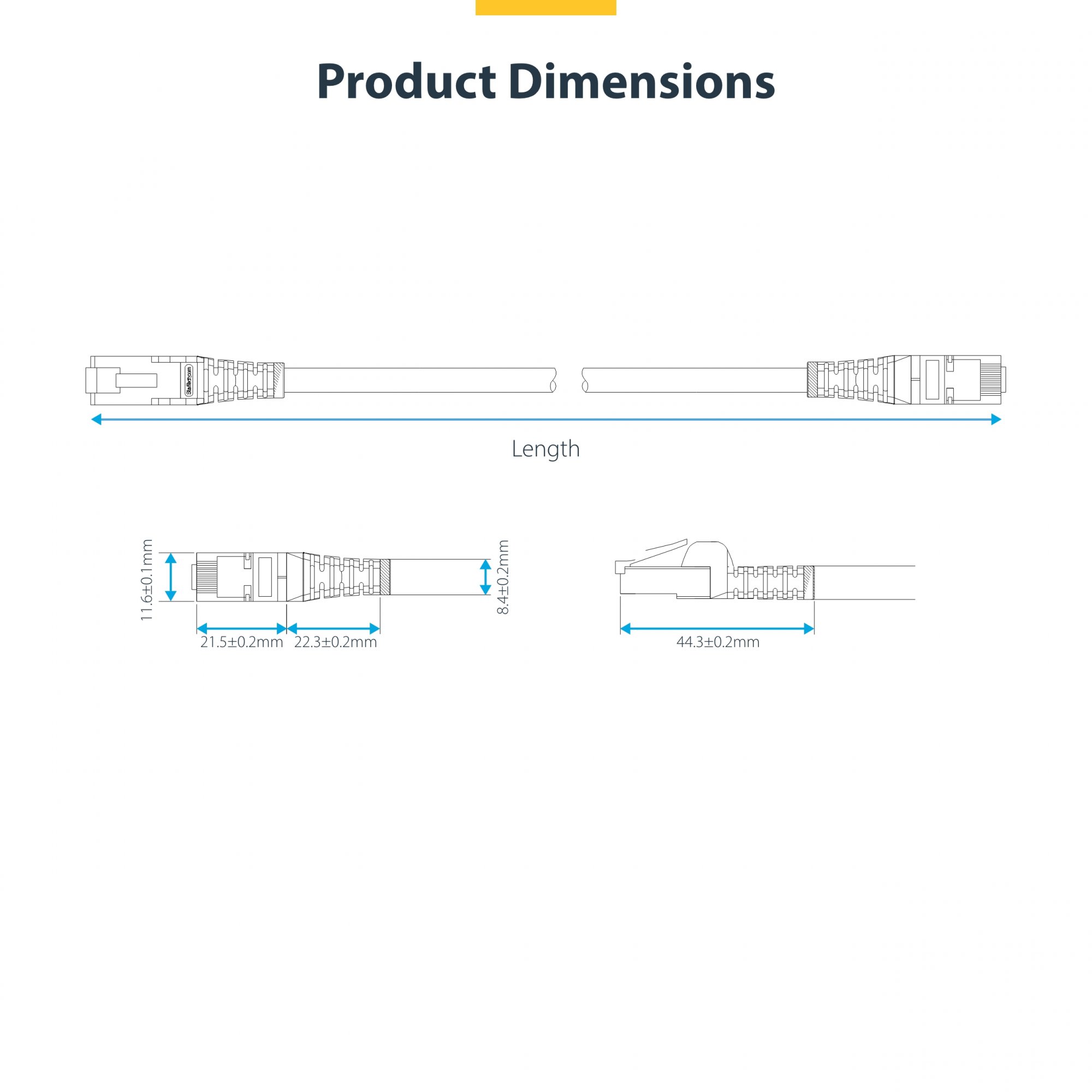

  • Outer diameter
  • 5.6 mm
