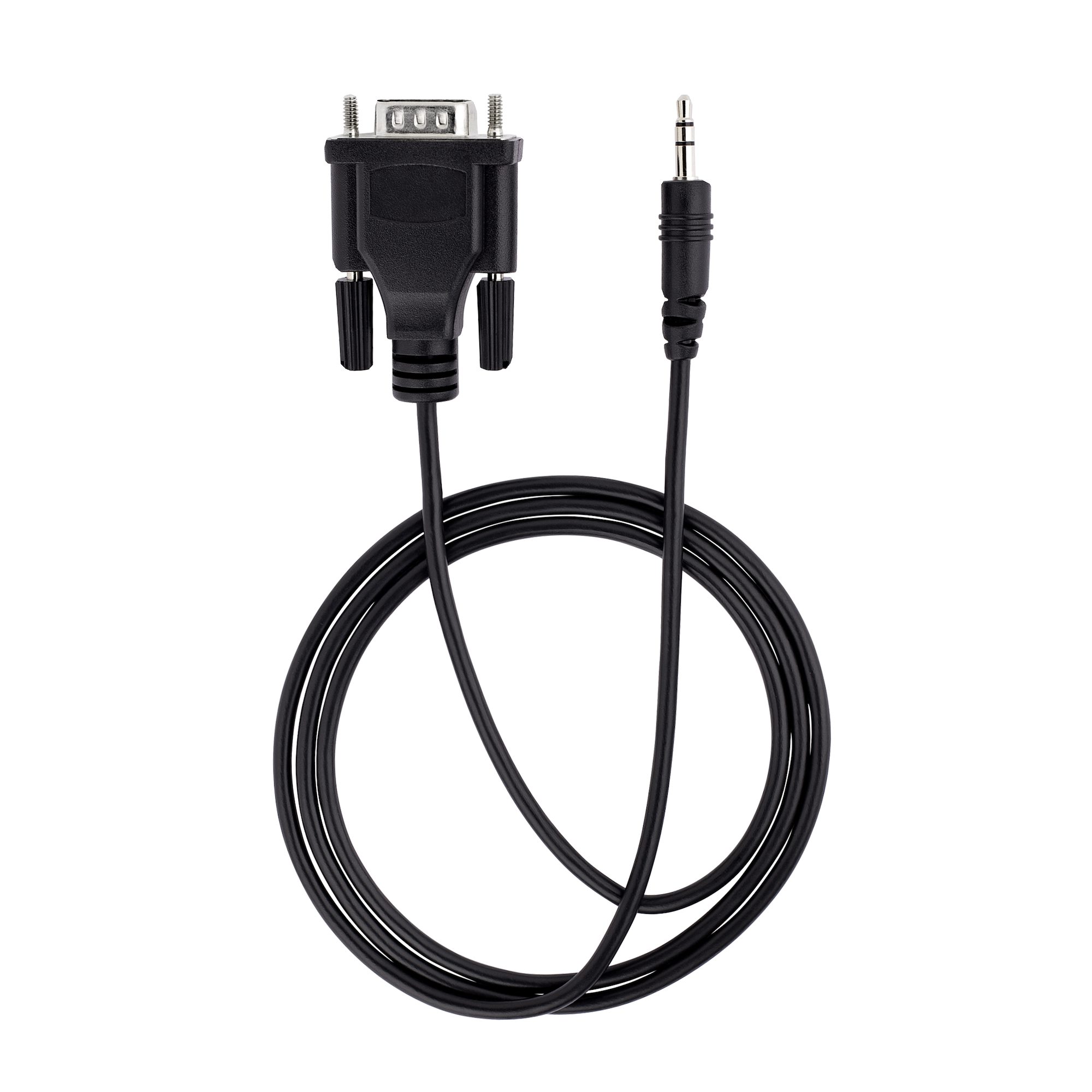

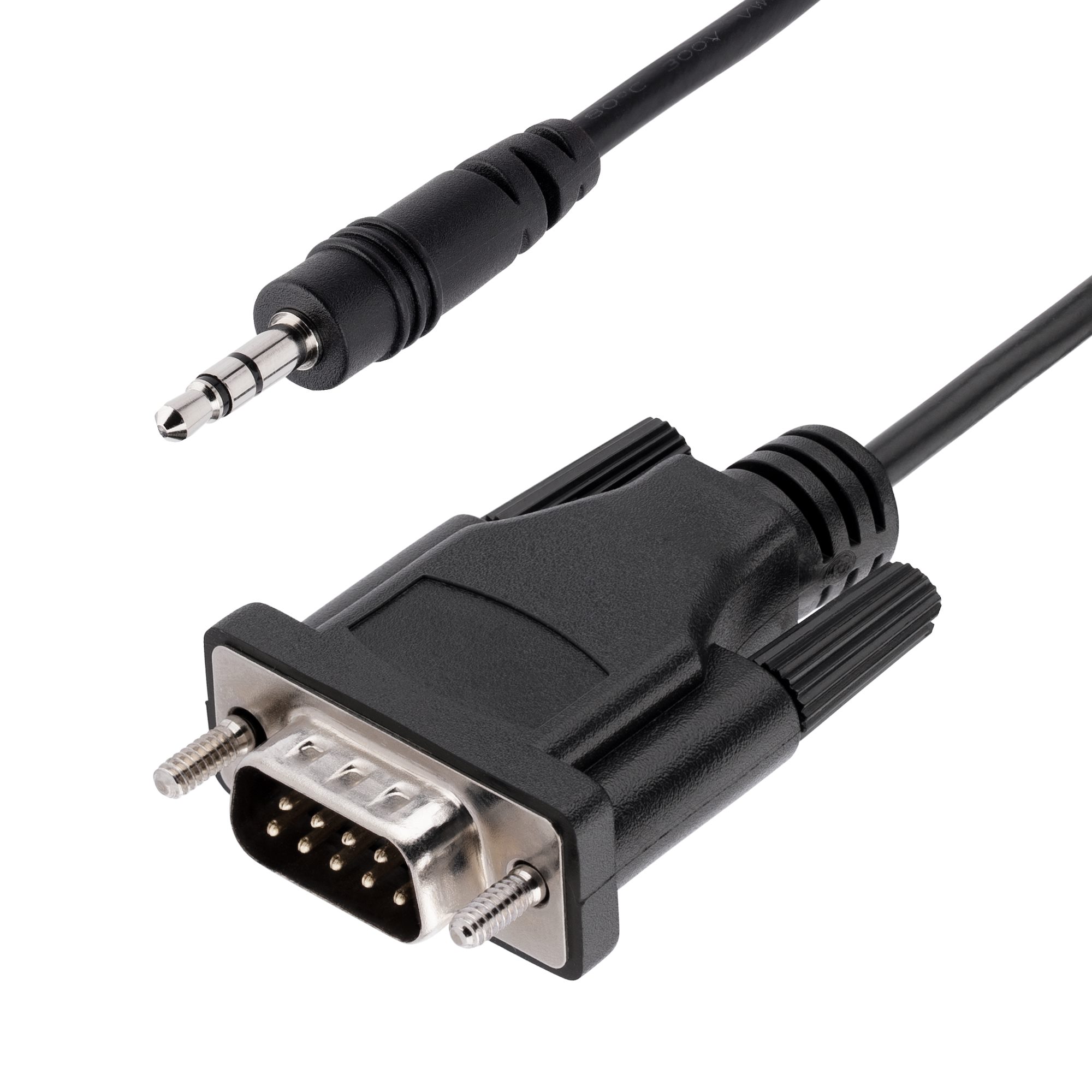

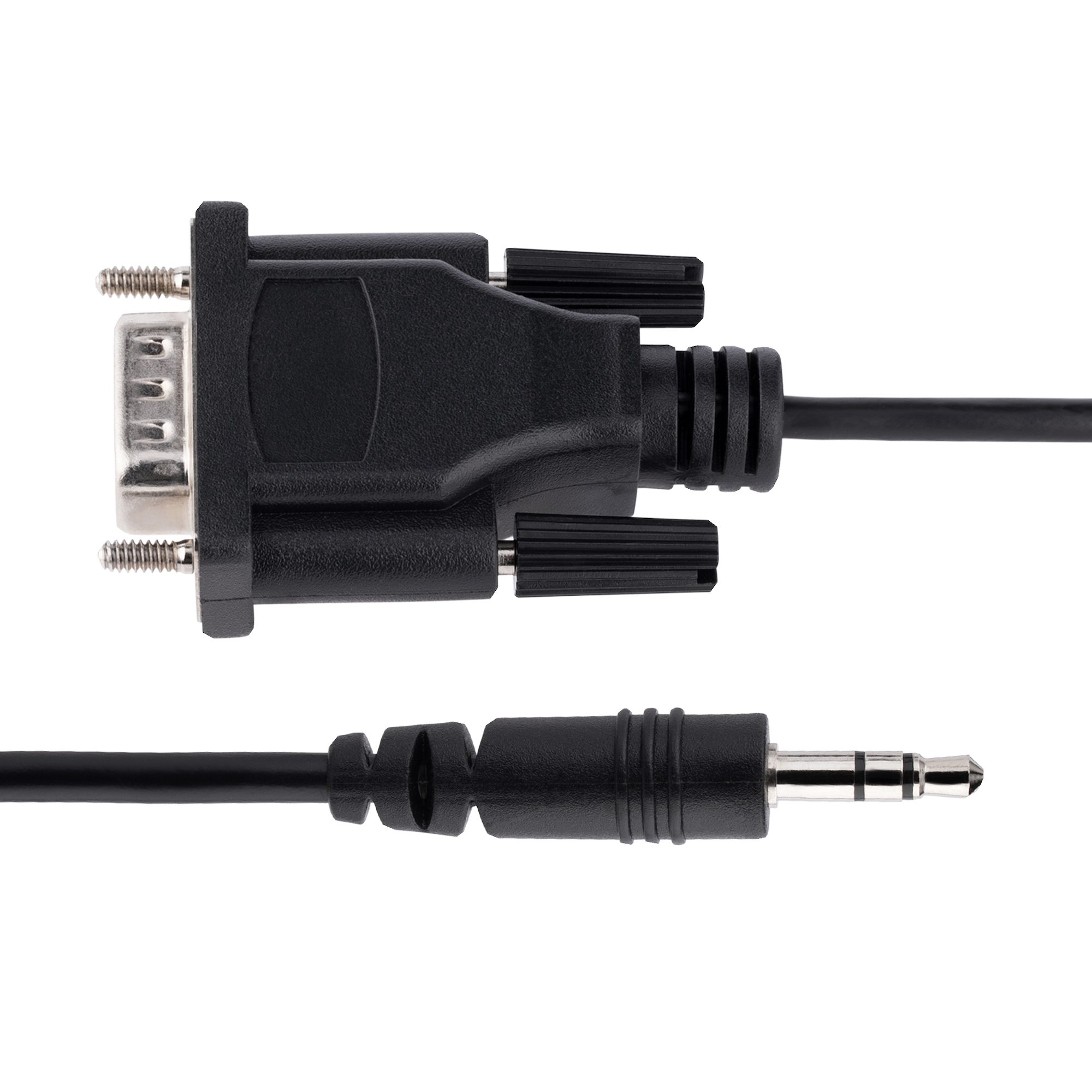

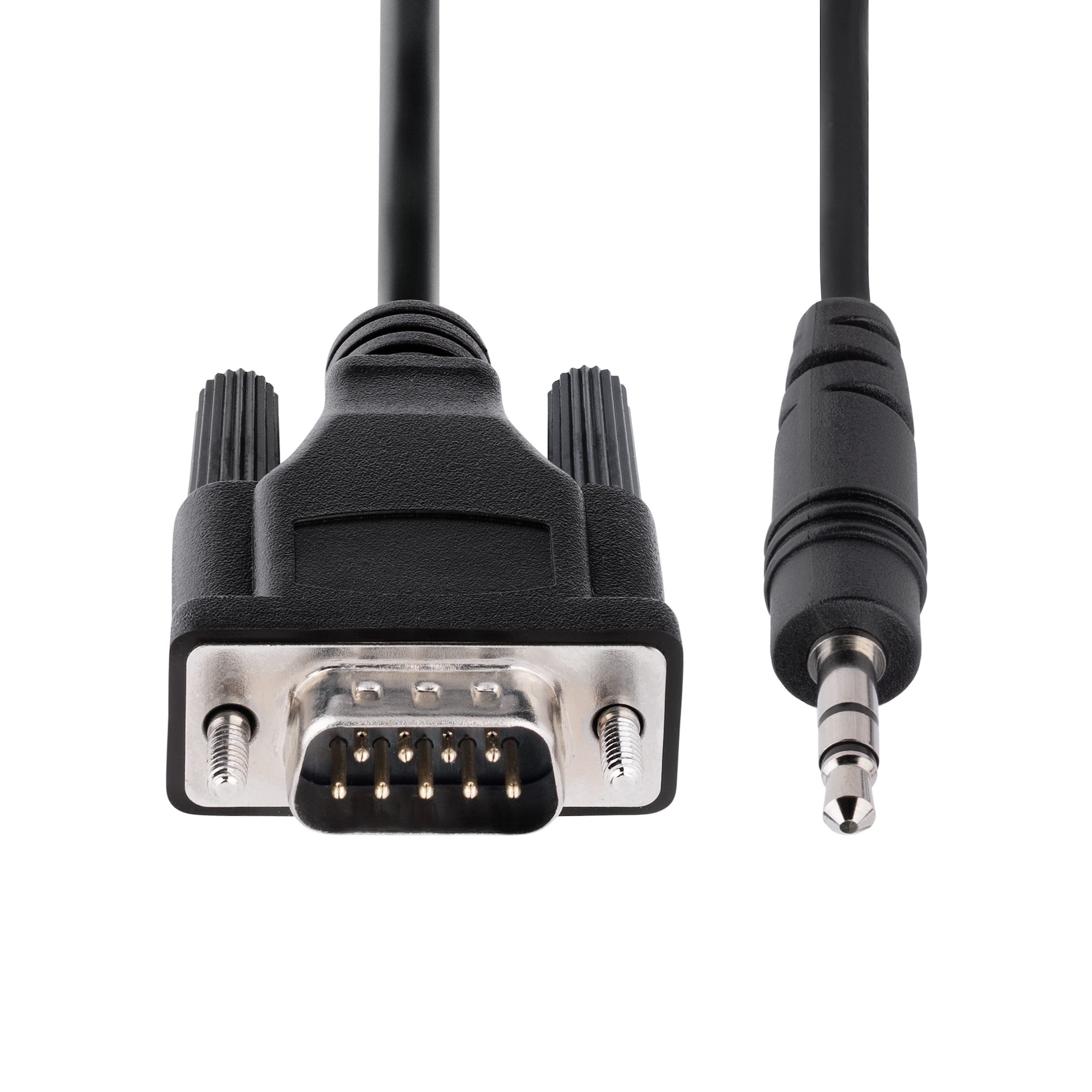

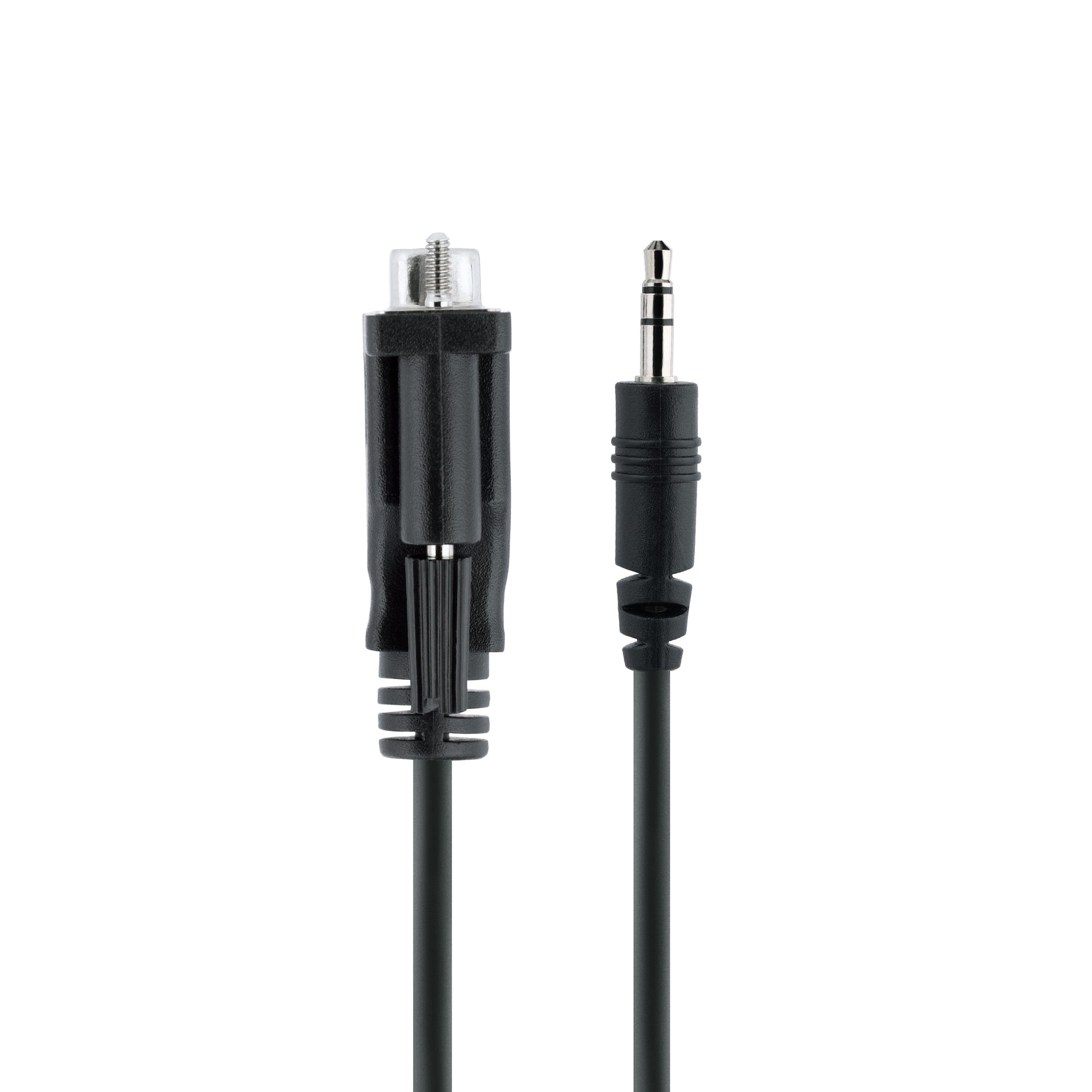

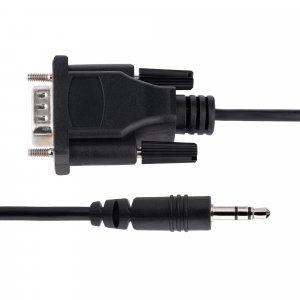

StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack
Roll over image to zoom inClick to Open expanded view
StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack
StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack
StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack
StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack
StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack
Print
Model: 9M351M-RS232-CABLE
EAN: 65030893565

StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack

Manufacturer:
StarTech.com
StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack, DB-9, 3.5mm, 1 m, Black
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack. Connector 1: DB-9, Connector 2: 3.5mm, Cable length: 1 m. Product colour: Black
  • DB9 TO 3.5 MM SERIAL CABLE: 3ft (1m) RS232 serial control cable enables configuration or calibration of a 3.5mm RS-232 serial devices - Use with TVs, projectors, digital signage displays requiring 3-conductor RS-232 serial control through 3.5mm audio jack
  • QUALITY CONSTRUCTION: High quality 28 AWG copper wires with Al-Mylar cable shielding and shielded metal shell connectors prevent EMI interference - Molded PVC connectors with strain reliefs and PVC jacket prevent damage due to bends or rough usage
  • COMPATIBILITY: The DB9 to 3.5mm cable works with USB-A and USB-C to DB9 serial adapters (1P3FP-USB-SERIAL / ICUSB232C) for computers that do not have a built-in serial port / Note: DB9 gender changer may be required such as our GC9SF (not included)
  • SPECIFICATIONS: Length: 3.3ft (1m) - DB9 Male to 3.5 mm Male Serial Cable - Color: Black - 28 AWG - OD: 3.5mm - Jacket: PVC - DB9 Pin 3 to 3.5mm Tip - DB9 Pin 2 to 3.5mm Ring - DB9 Pin 5 to 3.5mm Sleeve
  • THE IT PRO'S CHOICE: Designed and built for IT Professionals, this product is backed for life, including free lifetime 24/5 multi-lingual technical assistance

Product Properties

  • Model
  • 9M351M-RS232-CABLE
  • EAN
  • 65030893565
  • Bullet points
  • Point
  • COMPATIBILITY
    DB9 TO 3.5 MM SERIAL CABLE
    QUALITY CONSTRUCTION
    Specifications
    THE IT PRO'S CHOICE
  • Certificates
  • Compliance certificates
  • RoHS
  • Logistics data
  • Master (outer) case height
  • 310 mm
  • Master (outer) case length
  • 340 mm
  • Master (outer) case width
  • 388 mm
  • Products per master (outer) case
  • 200 pc(s)
  • Operational conditions
  • Operating temperature (T-T)
  • -20 - 60 °C
  • Relative humidity
  • 30 - 75%
  • Storage temperature (T-T)
  • -20 - 60 °C
  • Packaging data
  • Package depth
  • 220 mm
  • Package height
  • 10 mm
  • Package weight
  • 23 g
  • Package width
  • 128 mm
  • Performance
  • AWG wire size
  • 28
  • Cable jacket material
  • Polyvinyl chloride (PVC)
  • Product colour
  • Black
  • Ports & interfaces
  • Cable length
  • 1 m
  • Connector 1
  • DB-9
  • Connector 1 form factor
  • Straight
  • Connector 1 gender
  • Male
  • Connector 2
  • 3.5mm
  • Connector 2 form factor
  • Straight
  • Connector 2 gender
  • Male
  • Sustainability
  • Sustainability compliance
  • Yes
  • Technical details
  • Cable diameter
  • 3.5 mm
