Description

StarTech.com 4 Port HDMI KVM Switch - Single Monitor 4K 60Hz Ultra HD HDR - Desktop HDMI 2.0 KVM Switch with 2 Port USB 3.0 Hub (5Gbps) and 4x USB 2.0 HID, Audio - Hotkey Switching - TAA. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Data transfer rate (max): 5 Gbit/s. Product colour: Black, Housing material: Steel, Mean time between failures (MTBF): 143000 h. Input voltage: 100 - 240 V, Input current: 1 A, Output voltage: 12 V. Width: 130 mm, Depth: 220 mm, Height: 44 mm

4K 60Hz UHD: 4 Port HDMI KVM switch supports up to 4K at 60Hz on one monitor for applications like CAD/CAM, video editing and content creation; works with major brands including Dell, HP, and Lenovo
FAST SWITCHING: Includes EDID and HDCP signal emulation so monitors stay synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow while switching between up to 4 computers
TECH SPECS: 4-Port HDMI 2.0 / 3840 x 2160 / HDCP 2.2 / HDR10 Support / 2 Port USB 3.0 Hub (5Gbps)/ 4x USB HID / Hotkey, Push Buttons / Stereo Analog + 7.1 Digital Audio / EDID & HDCP Emulation / OS Independent

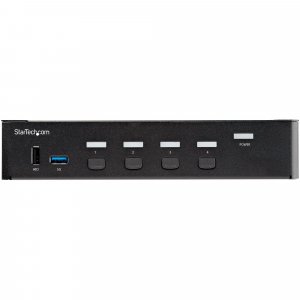

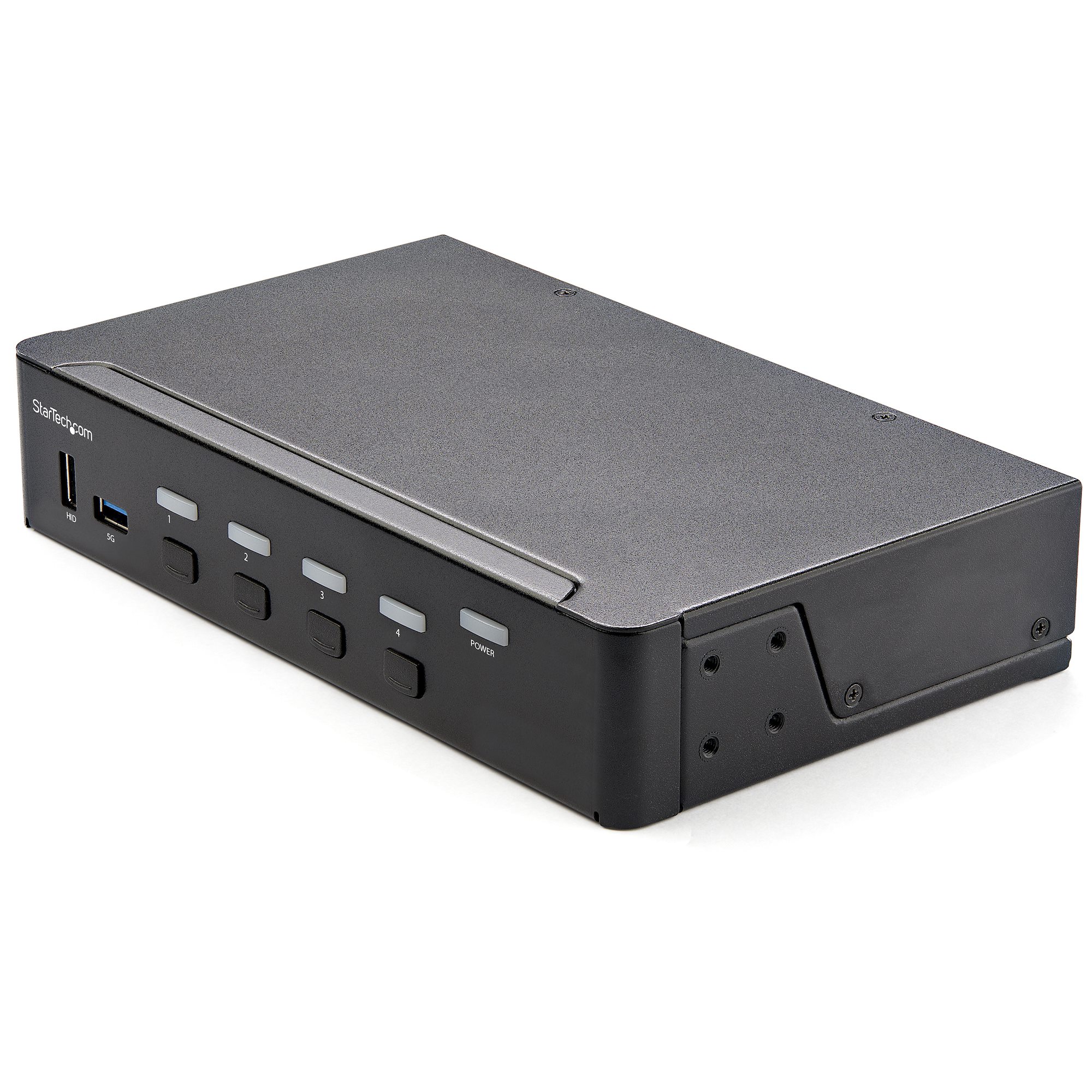

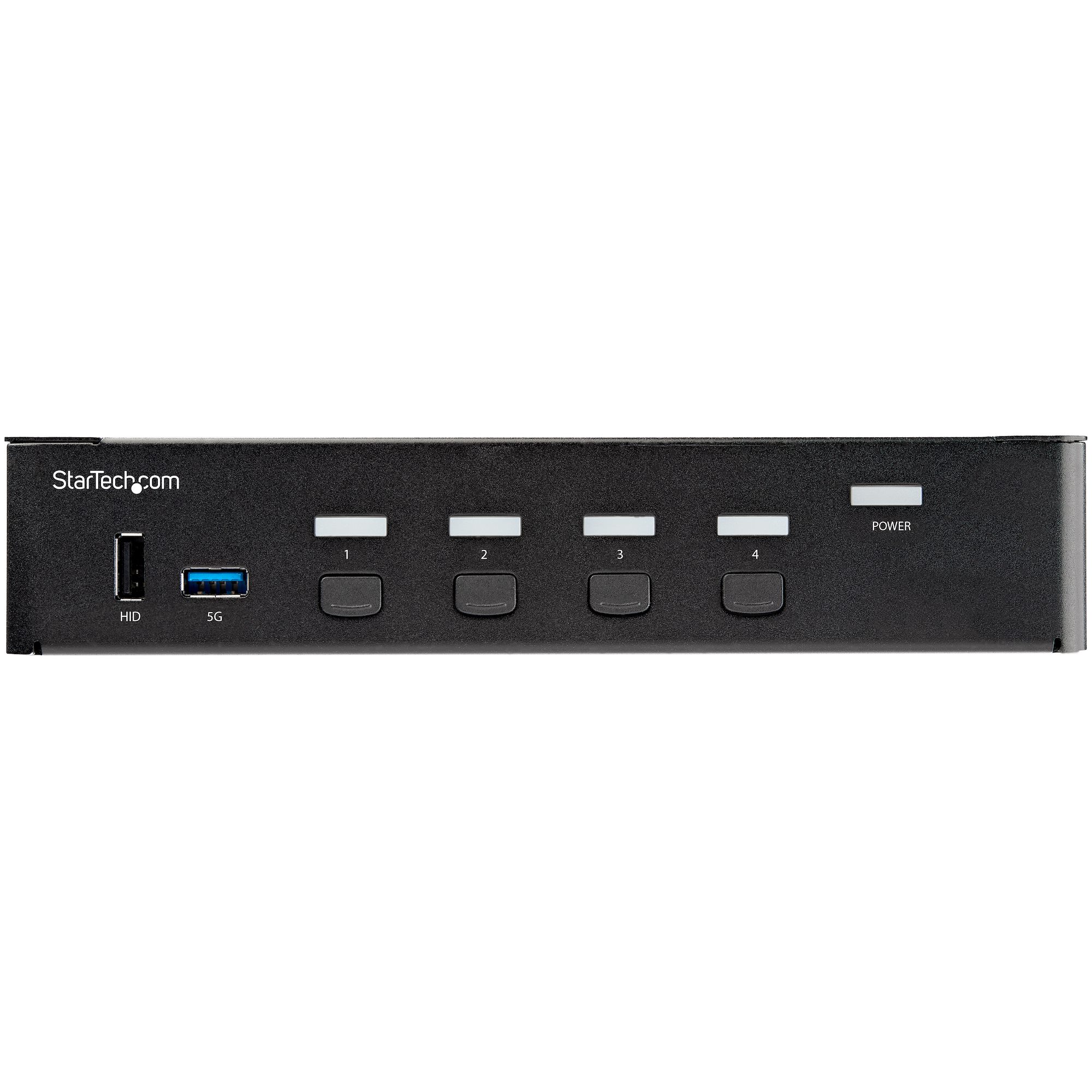

USER-FRIENDLY: KVM switch with compact & durable steel housing featuring easily accessible buttons & front-mounted integrated USB switch (USB 3.1/3.2 Gen 1) for sharing USB devices between connected computers
STARTECH.COM ADVANTAGE: IT professionals’ choice for over 30 years; This KVM (Keyboard, Video/Monitor, Mouse) Switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support

Product Properties

Manufacturer
StarTech.com

Model
SV431HU34K6

EAN
65030882019

Bullet points

Point
4K 60Hz UHD

FAST SWITCHING

STARTECH.COM ADVANTAGE

TECH SPECS

USER-FRIENDLY

Design

Certification
CE, FCC, RoHS

Hot keys
Yes

Housing material
Steel

LED indicators
Yes

Mean time between failures (MTBF)
143000 h

Product colour
Black

Push button
Yes

Display

Built-in display
No

On Screen Display (OSD)
No

Logistics data

Harmonized System (HS) code
85176200

Master (outer) case height
258 mm

Master (outer) case length
438 mm

Master (outer) case width
545 mm

Products per master (outer) case
6 pc(s)

Operational conditions

Operating relative humidity (H-H)
0 - 80%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-10 - 60 °C

Other features

IP control
No

Packaging content

Manual
Yes

Rubber feet
Yes

Packaging data

Package depth
409 mm

Package height
87 mm

Package weight
1.8 kg

Package width
212 mm

Performance

Audio channels
7.1

Chipset
Genesys Logic - GL3523

Daisy chain
No

Data transfer rate (max)
5 Gbit/s

HD type
4K Ultra HD

Maximum resolution
3840 x 2160 pixels

Scan interval
3,8,15,30 s

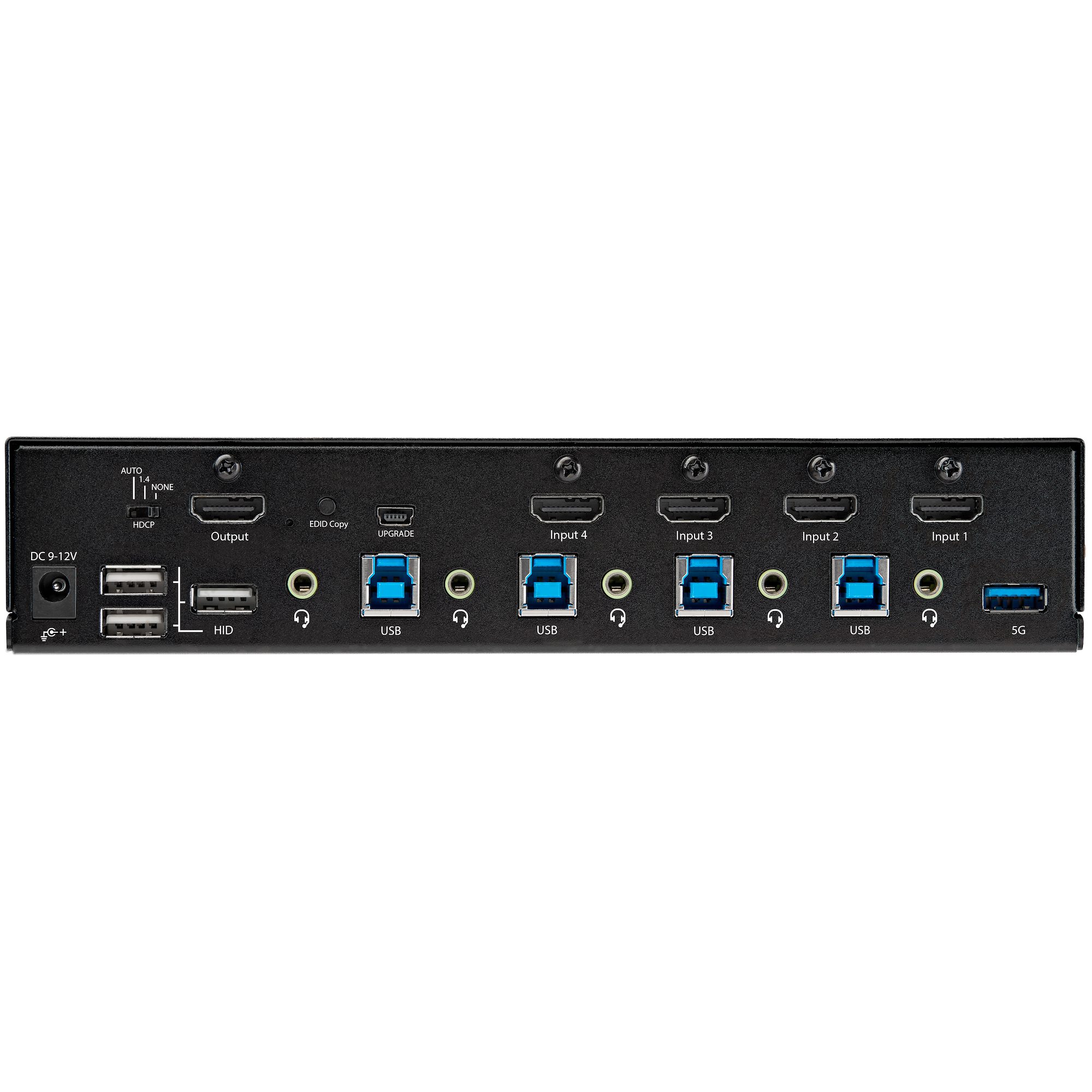

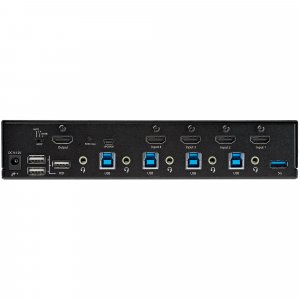

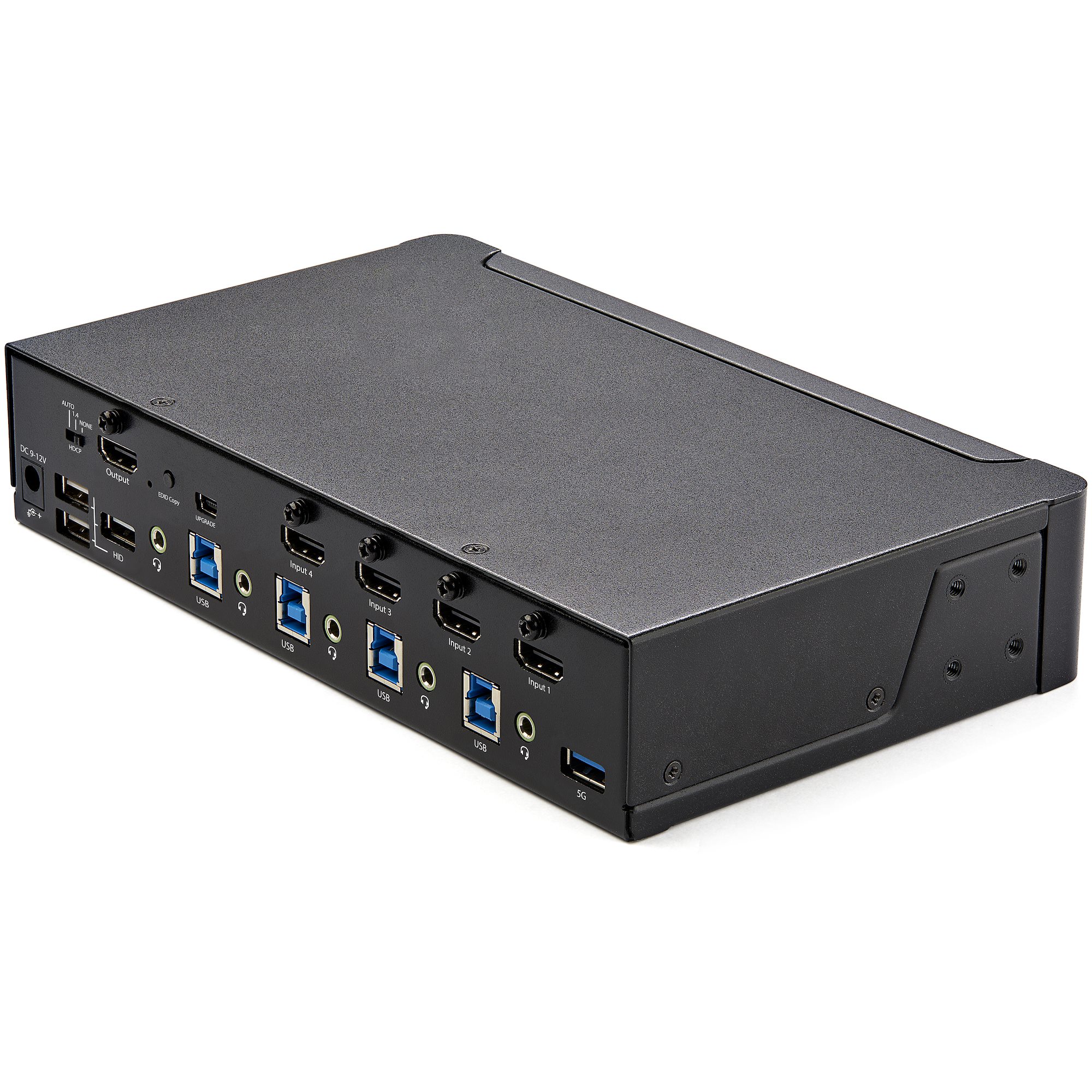

Ports & interfaces

Audio connections
Yes

Console ports
3.5mm headphone, 3.5mm mic, HDMI, USB A

Console USB ports quantity
4

DC-in jack
Yes

HDMI ports
5

HDMI version
2.0

Headphone outputs
5

Keyboard port type
USB

Mouse port type
USB

Number of computers controlled
1

Number of microphone inputs
5

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
4

USB hub
Yes

Video port type
HDMI

Power

Compatible power plug types
EU, UK, US

Input current
1 A

Input voltage
100 - 240 V

Output current
3 A

Output voltage
12 V

Power consumption (typical)
36 W

Power plug type
Type M

Weight & dimensions

Depth
220 mm

Height
44 mm

Weight
1.1 kg

Width
130 mm
