Description

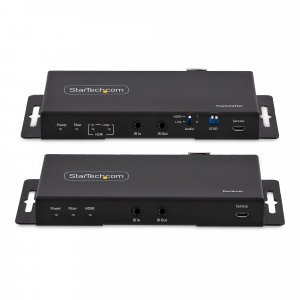

StarTech.com 4K HDMI over Fiber Extender Kit, 4K 60Hz up to 3300ft/1km (Single Mode) or 1000ft/300m (Multimode) LC Fiber Optic, HDR, HDCP, 3.5mm Audio/RS232/IR Extender, Transmitter and Receiver Kit. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Maximum transfer distance: 1000 m. Connectivity technology: Wired, Fiber optic connector: LC, USB connector type: Micro-USB B. AC input voltage: 100 - 240 V, Operating voltage: 5 V, Input current: 0.35 A. Width: 68 mm, Depth: 134 mm, Height: 18 mm. Package width: 200 mm, Package depth: 300 mm, Package height: 60 mm

HDMI OVER FIBER EXTENDER KIT: Extend an Ultra HD (UHD) 4K 60Hz HDMI signal with 7.1ch audio up to 3300ft (1km) over Single Mode or up to 1000ft (300m) over Multimode fiber cabling; Single Strand LC/UPC connector; HDR10; HDCP 2.2; 4:4:4 Chroma Subsampling
RELIABLE VIDEO TRANSMISSION: HDMI extender works over Single Mode or Multimode fiber, enabling the use of existing fiber cabling; Single strand optical fiber provides full bandwidth video while being immune to Electro-Magnetic Interference (EMI)
AUDIO CAPABILITIES: HDMI 2.1 Extender offers an audio extraction function that enables playback of HDMI source audio via the 3.5mm audio output on the receiver unit; Simultaneous audio playback across both HDMI and 3.5mm outputs is supported

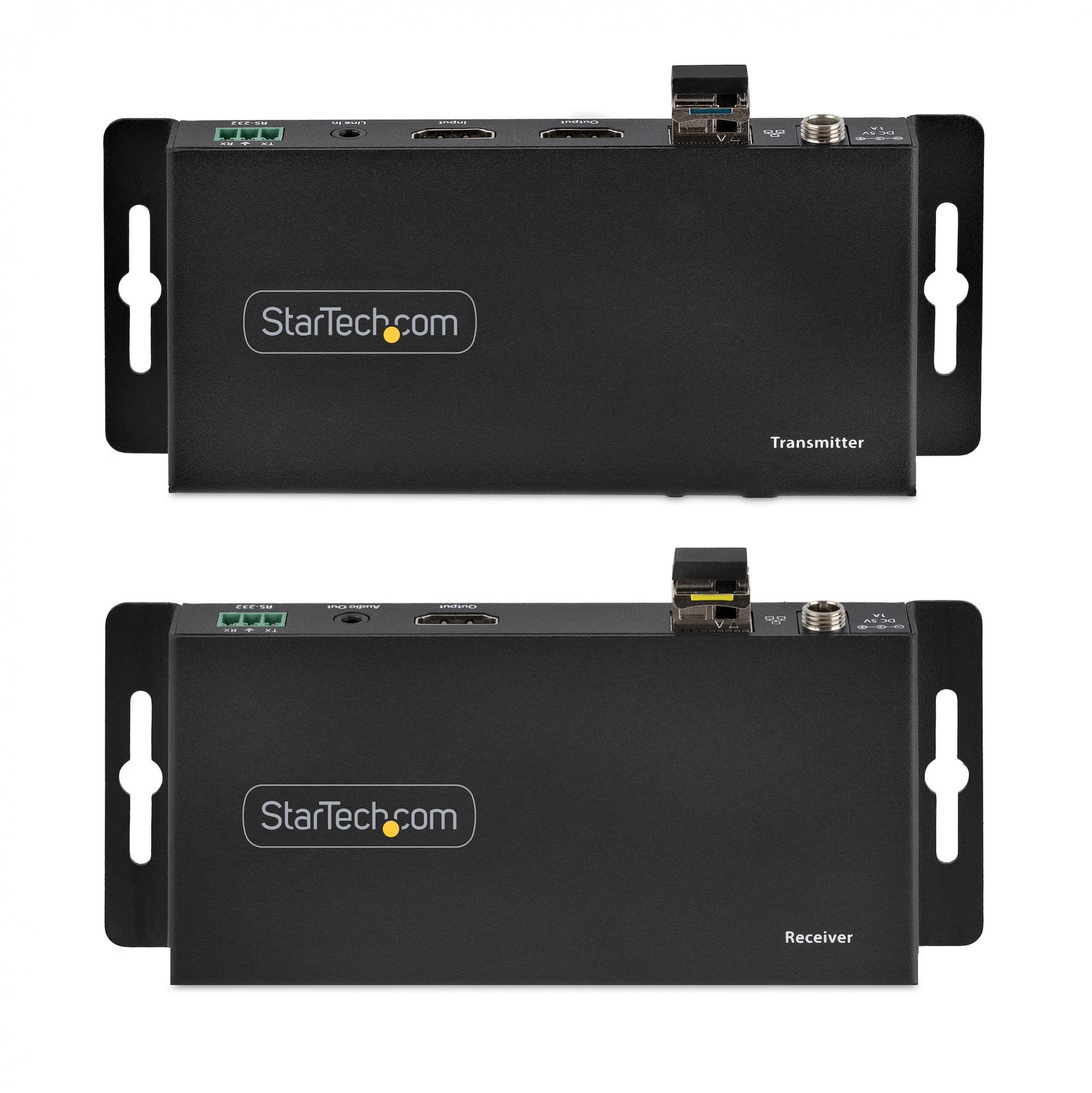

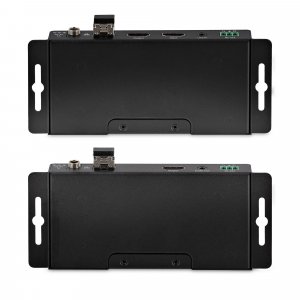

HASSLE-FREE INSTALLATION: Point-to-Point connection with optical fiber between transmitter and receiver means no IP configuration, drivers, or network equipment required; Durable metal housing with built-in mounting brackets for a tidy installation
ROBUST FEATURES: HDMI to Fiber Converter features a local HDMI output and IR/serial extension for convenient and versatile setup options; EDID Copy; LED indicators for status monitoring; 8kV air and 6kV contact Electrostatic Discharge (ESD) protection

Product Properties

Manufacturer
StarTech.com

Model
ST121HD20FXA2

EAN
65030897303

Bullet points

Point
AUDIO CAPABILITIES

HASSLE-FREE INSTALLATION

HDMI OVER FIBER EXTENDER KIT

RELIABLE VIDEO TRANSMISSION

ROBUST FEATURES

Features

Audio output channels
7.1 channels

Bandwidth
18 Gbit/s

Baud rate
115.2 Kbit/s

Chipset
SiFotonics SD1503/SD1513

Electrostatic Discharge (ESD) protection
8 kV

Yes

Extended display identification data (EDID)
Yes

Fiber mode structure
Multi-mode, Single-mode

HDCP
Yes

HDCP version
2.2

High Dynamic Range (HDR) supported
Yes

High Dynamic Range (HDR) technology
High Dynamic Range 10 (HDR10)

Infrared (IR) frequency range
20 - 60 kHz

LED indicators
Activity, Power

Maximum refresh rate
60 Hz

Maximum resolution
4096 x 2160 pixels

Maximum transfer distance
1000 m

Product colour
Black

Type
AV transmitter & receiver

Logistics data

Master (outer) case height
402 mm

Master (outer) case length
530 mm

Master (outer) case width
325 mm

Products per master (outer) case
20 pc(s)

Operational conditions

Operating relative humidity (H-H)
20 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-20 - 60 °C

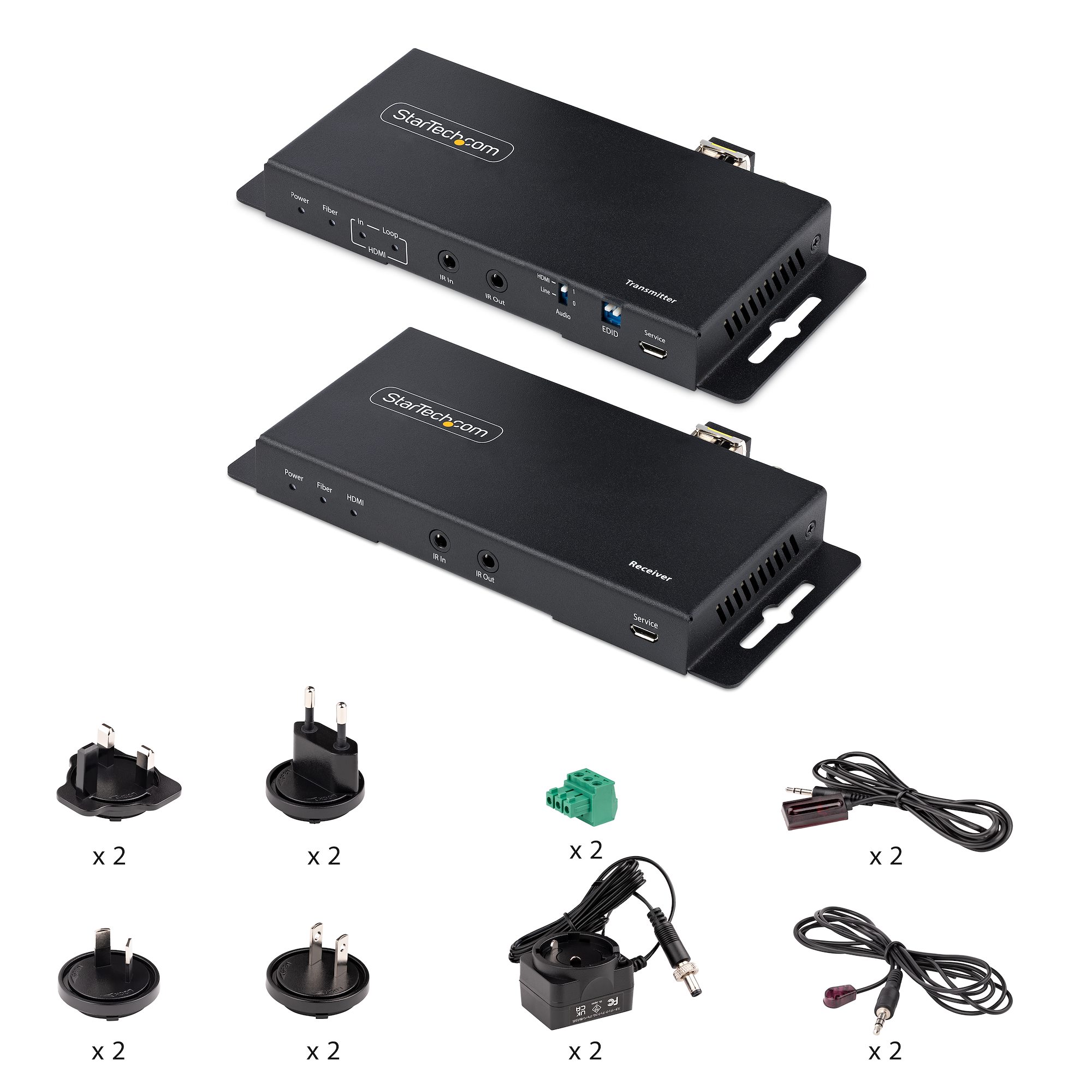

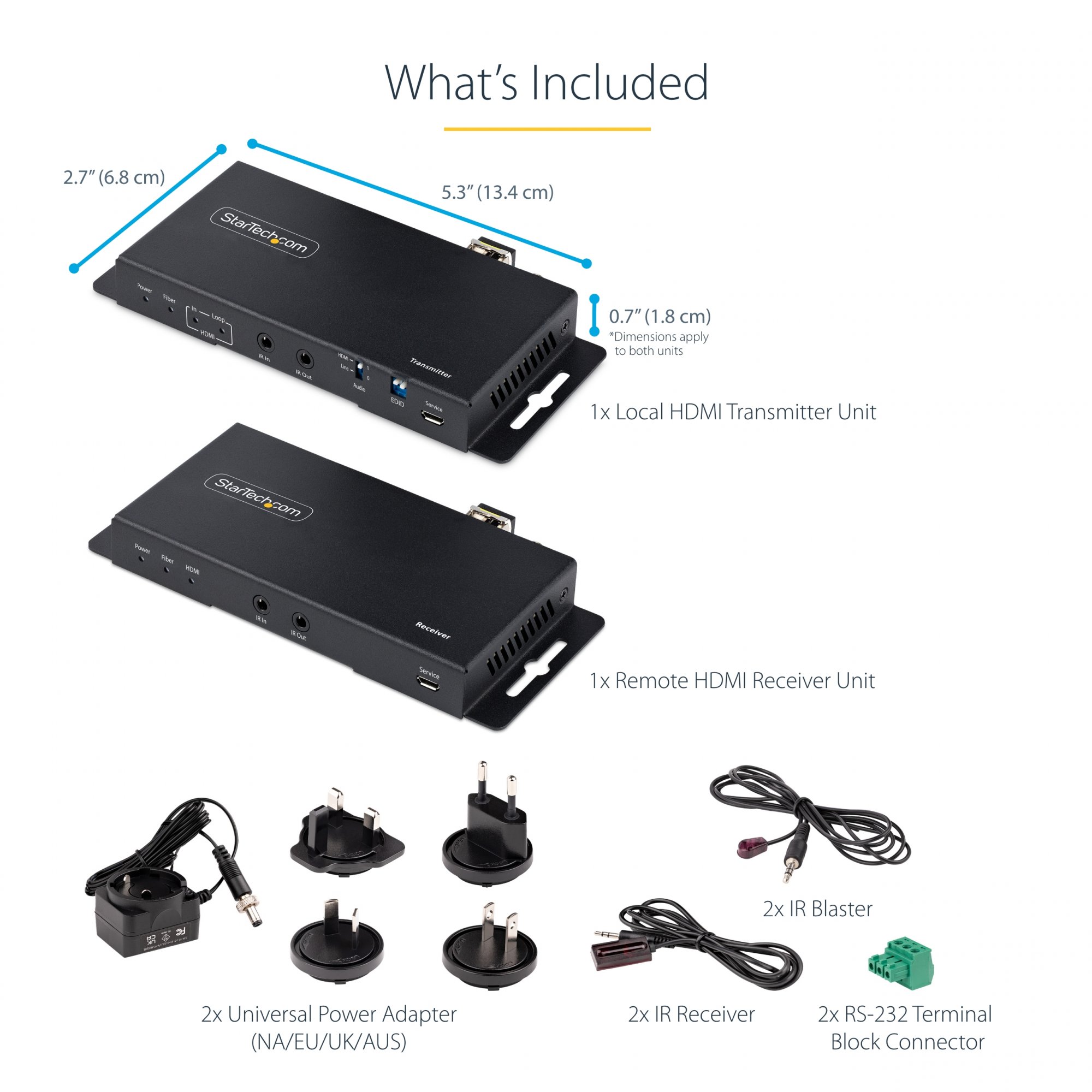

Packaging content

AC adapter included
Yes

IR blaster included
Yes

IR receiver included
Yes

Quick start guide
Yes

Packaging data

Package depth
300 mm

Package height
60 mm

Package weight
1 kg

Package width
200 mm

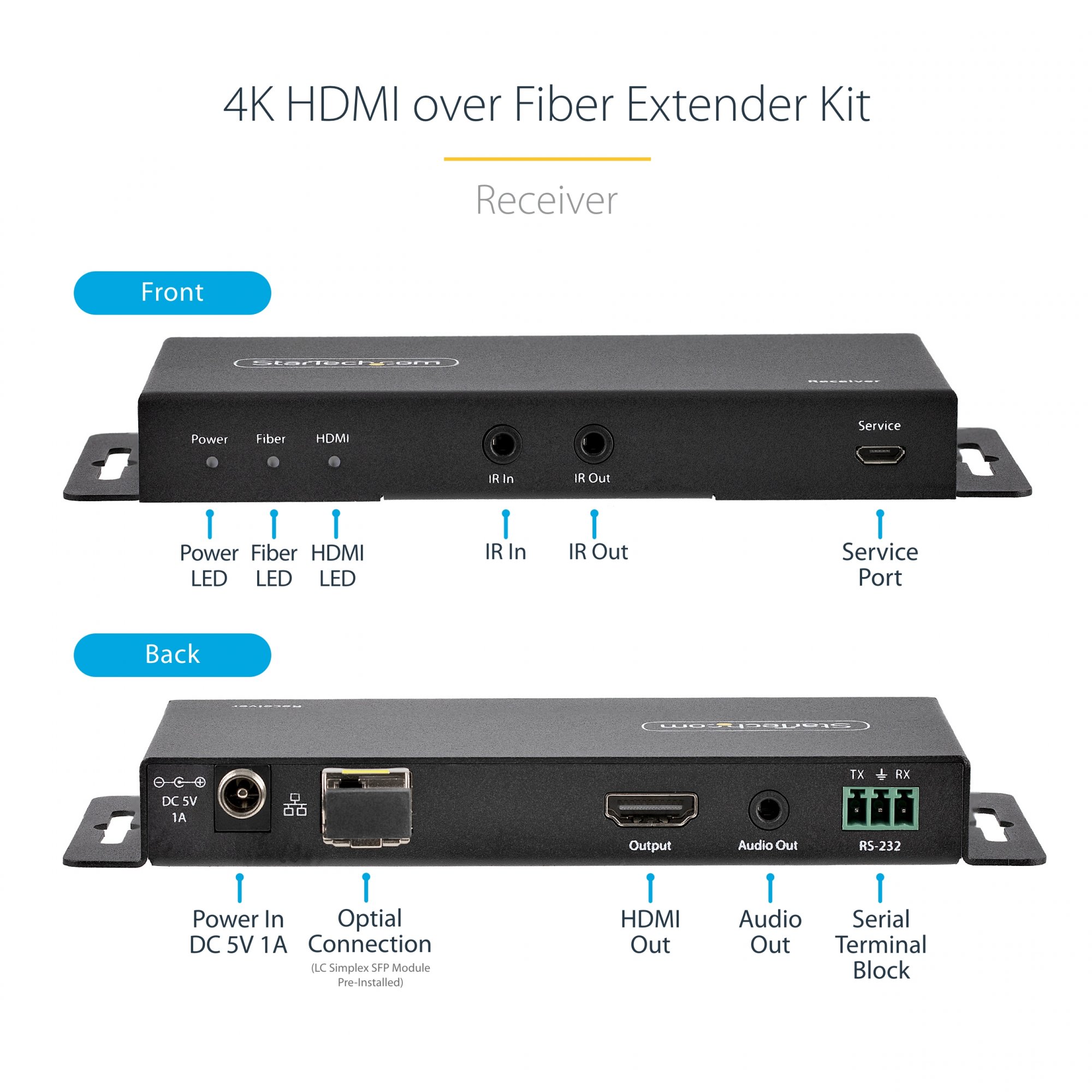

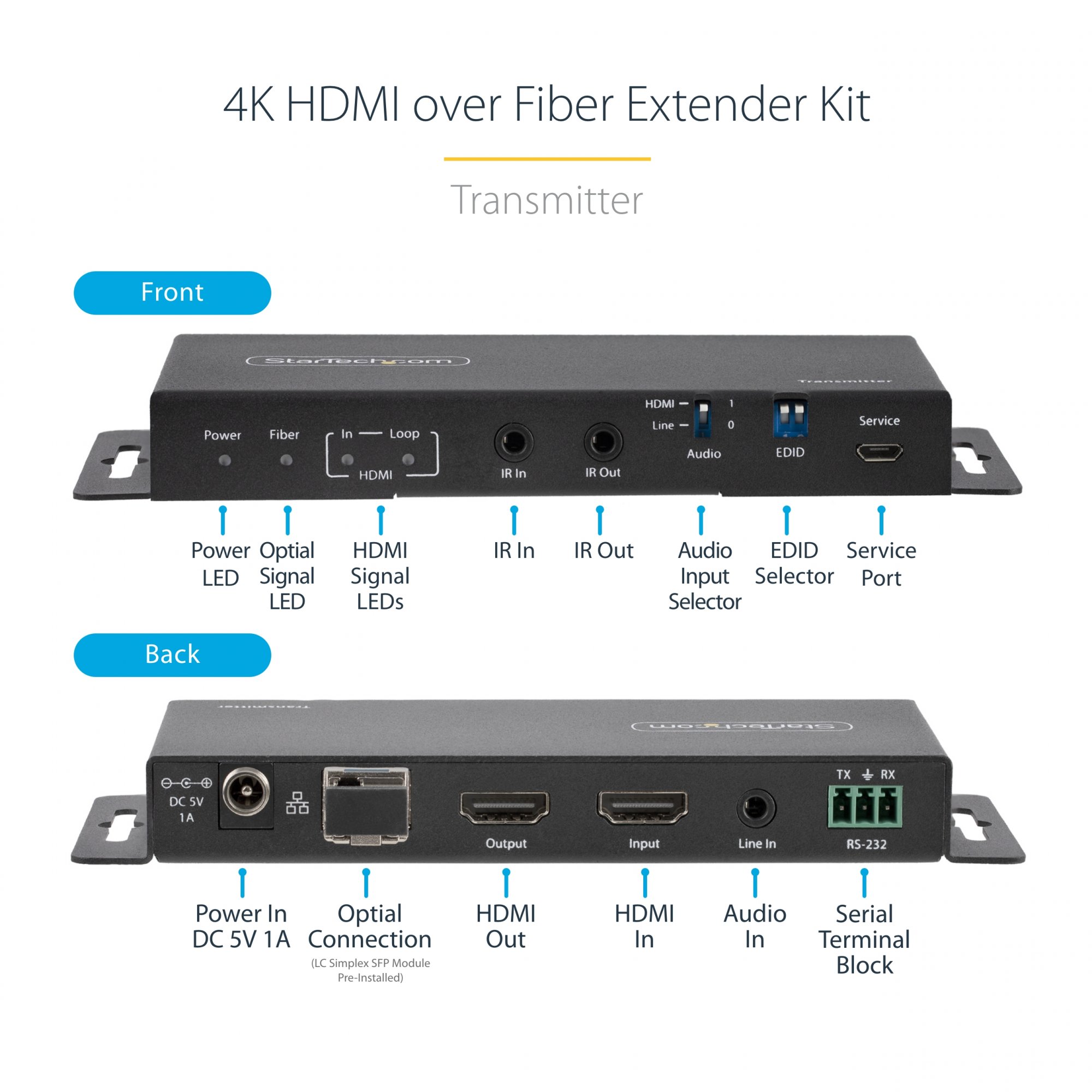

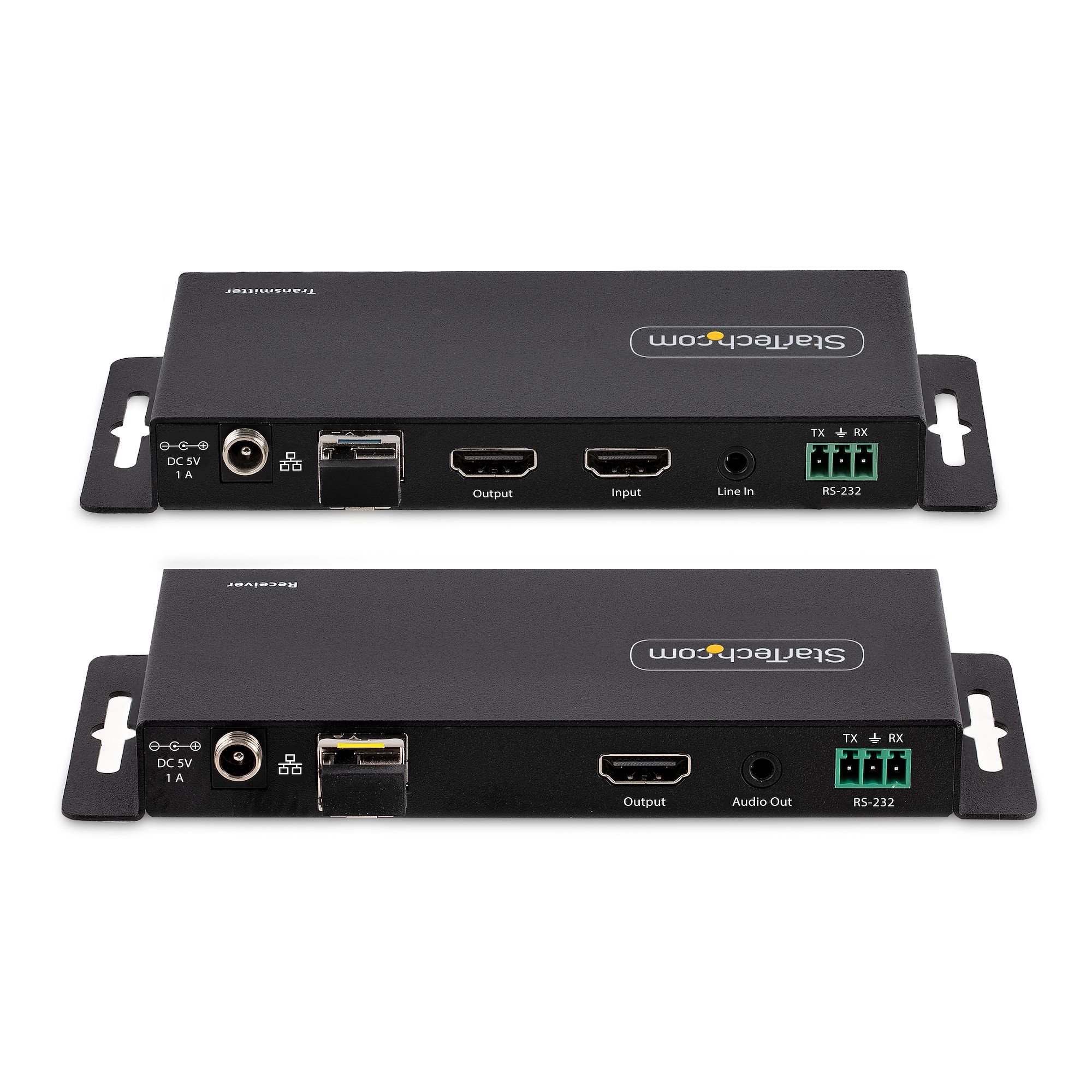

Ports & interfaces

Connectivity technology
Wired

DC-in jack
Yes

Fiber optic connector
LC

Fiber ports quantity
2

HDMI in
1

HDMI version
2.1

Line outputs (RCA)
1

Line-in
Yes

Number of HDMI outputs
2

Remote (IR) input
2

Remote (IR) output
2

Serial interface type
RS-232

Serial ports quantity
2

USB connector type
Micro-USB B

USB ports quantity
2

Power

AC input voltage
100 - 240 V

Input current
0.35 A

Operating voltage
5 V

Output current
1 A

Power plug type
Type M

Technical details

Compliance certificates
CE, RoHS

Sustainability compliance
Yes

Weight & dimensions

Depth
134 mm

Height
18 mm

Weight
280 g

Width
68 mm
