Description

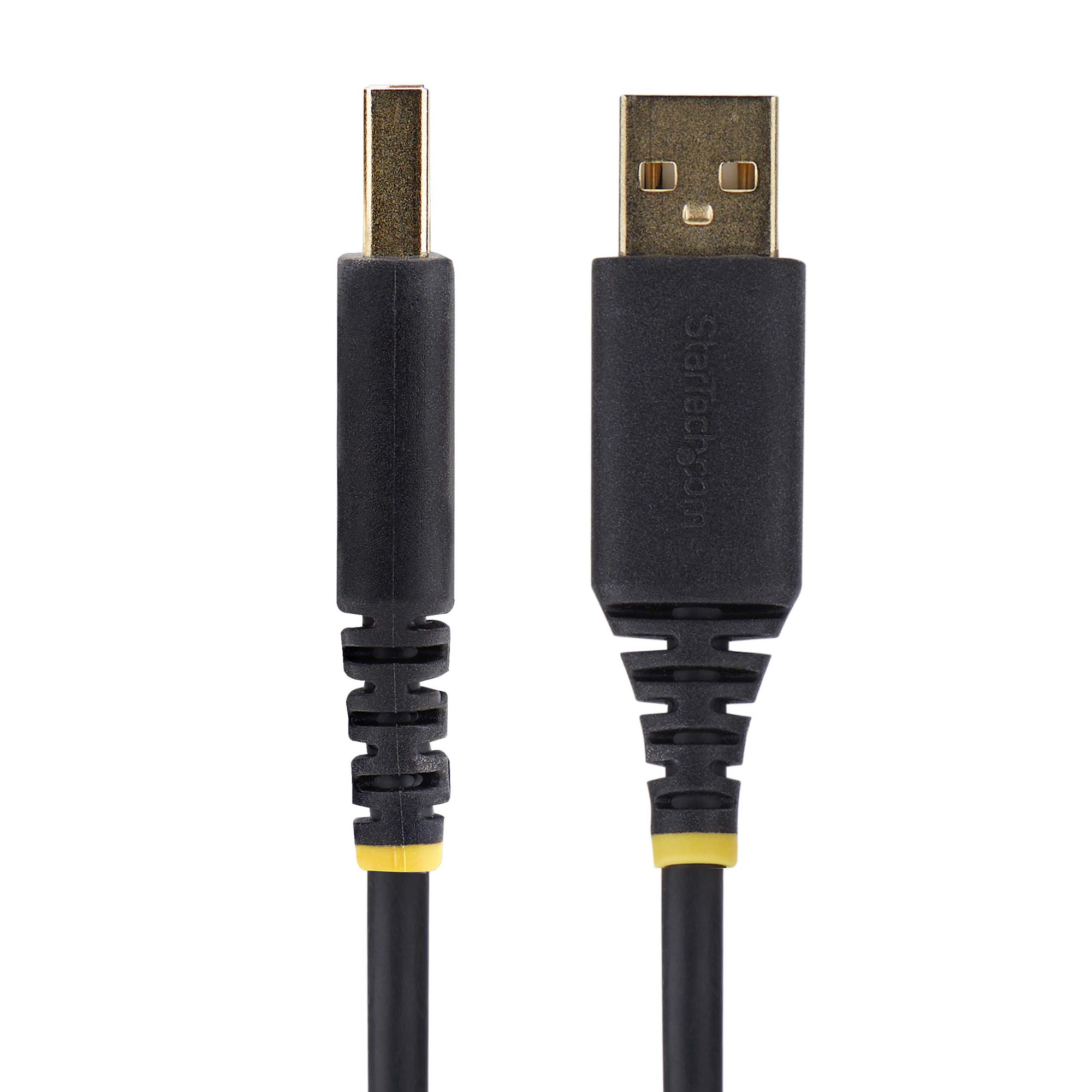

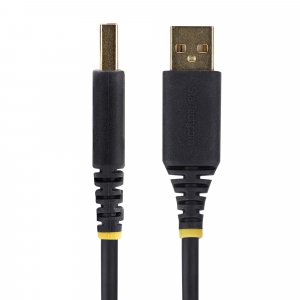

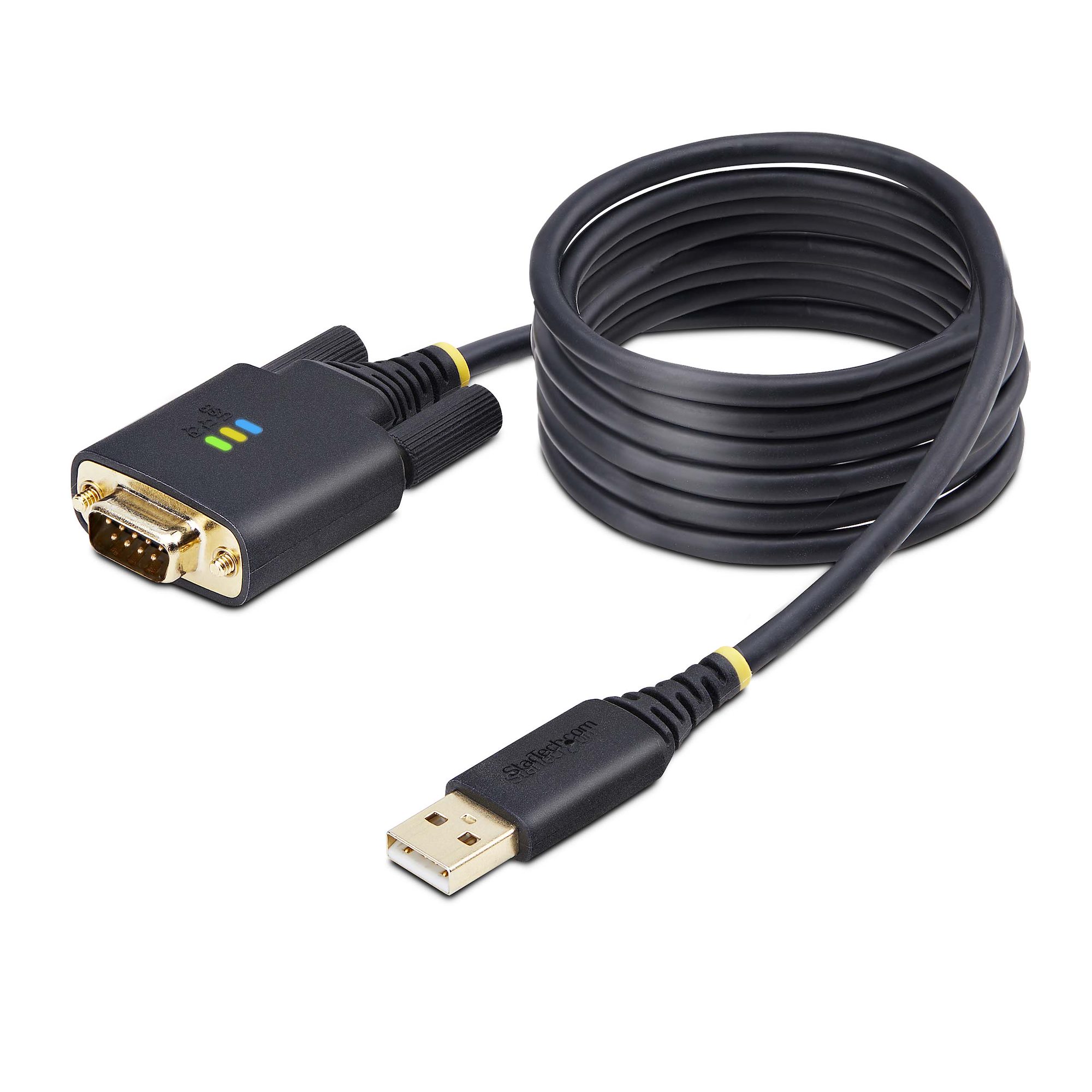

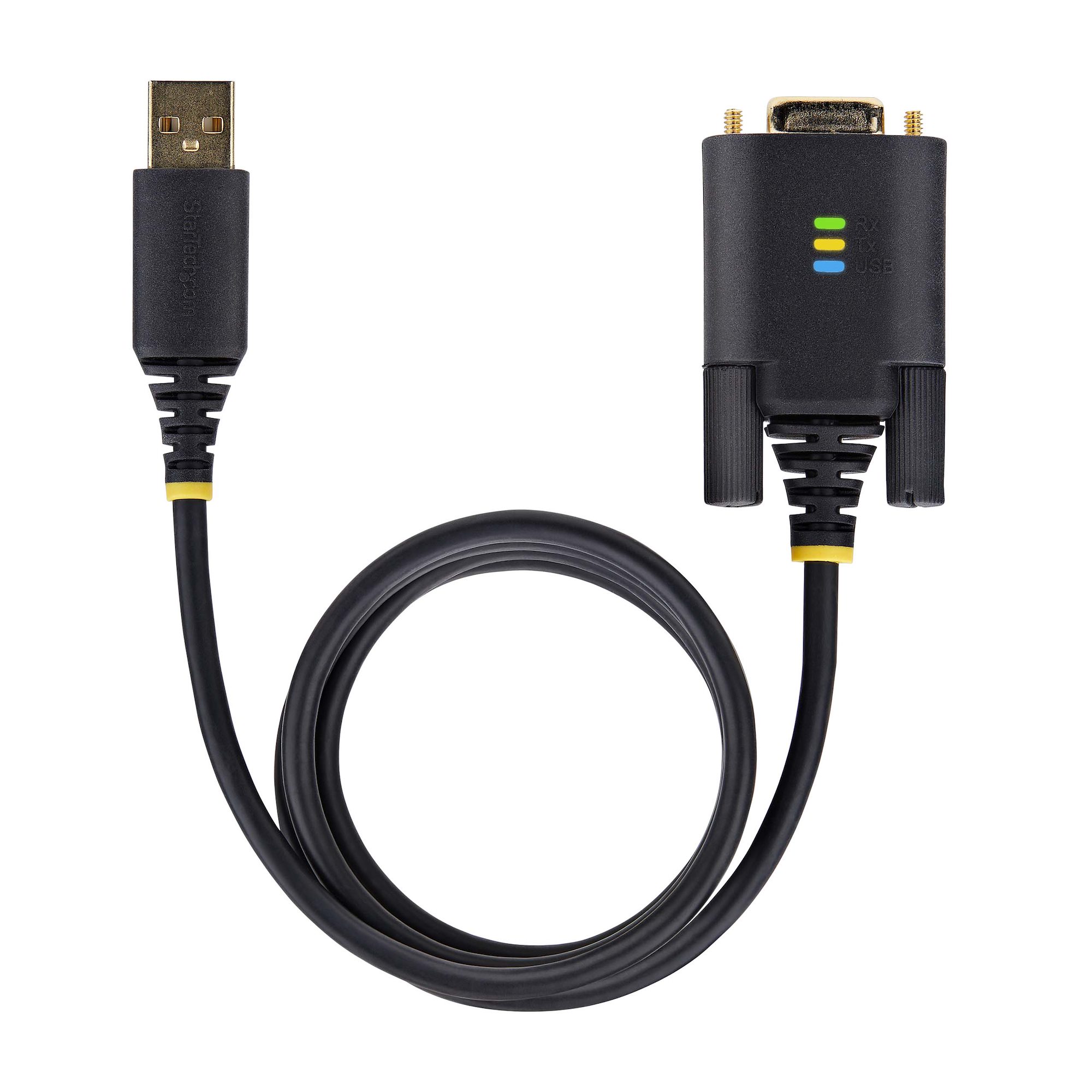

StarTech.com 6.6ft (2m) USB to Serial Adapter Cable, COM Retention, Interchangeable Screws/Nuts, USB-A to DB9 RS232, FTDI IC, ESD Protection, Windows/macOS/Linux. Product colour: Black, Cable length: 2 m, Connector 1: USB Type-A. Quantity per pack: 1 pc(s), Package width: 220 mm, Package depth: 1 mm. Master (outer) case width: 600 mm, Master (outer) case length: 485 mm, Master (outer) case height: 345 mm

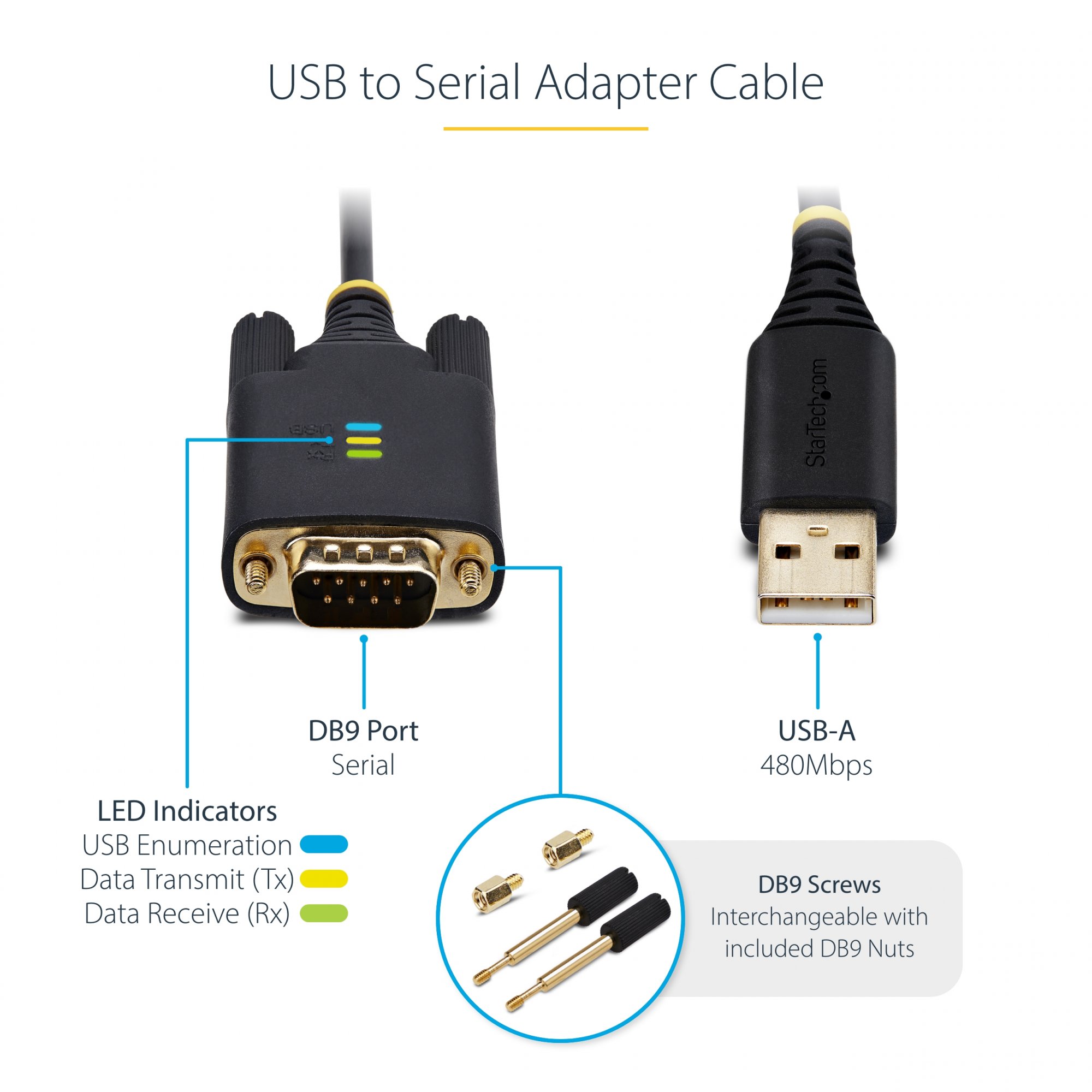

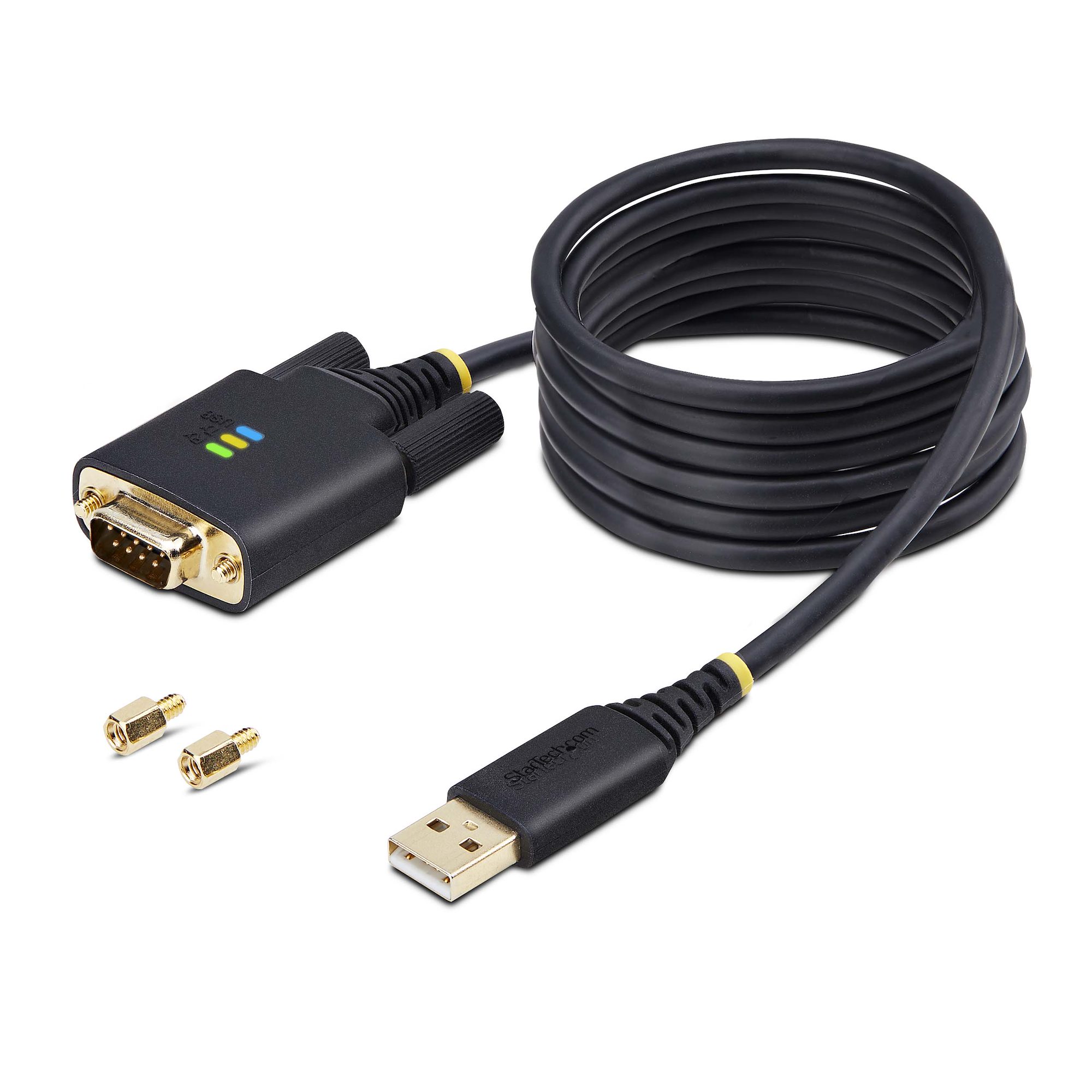

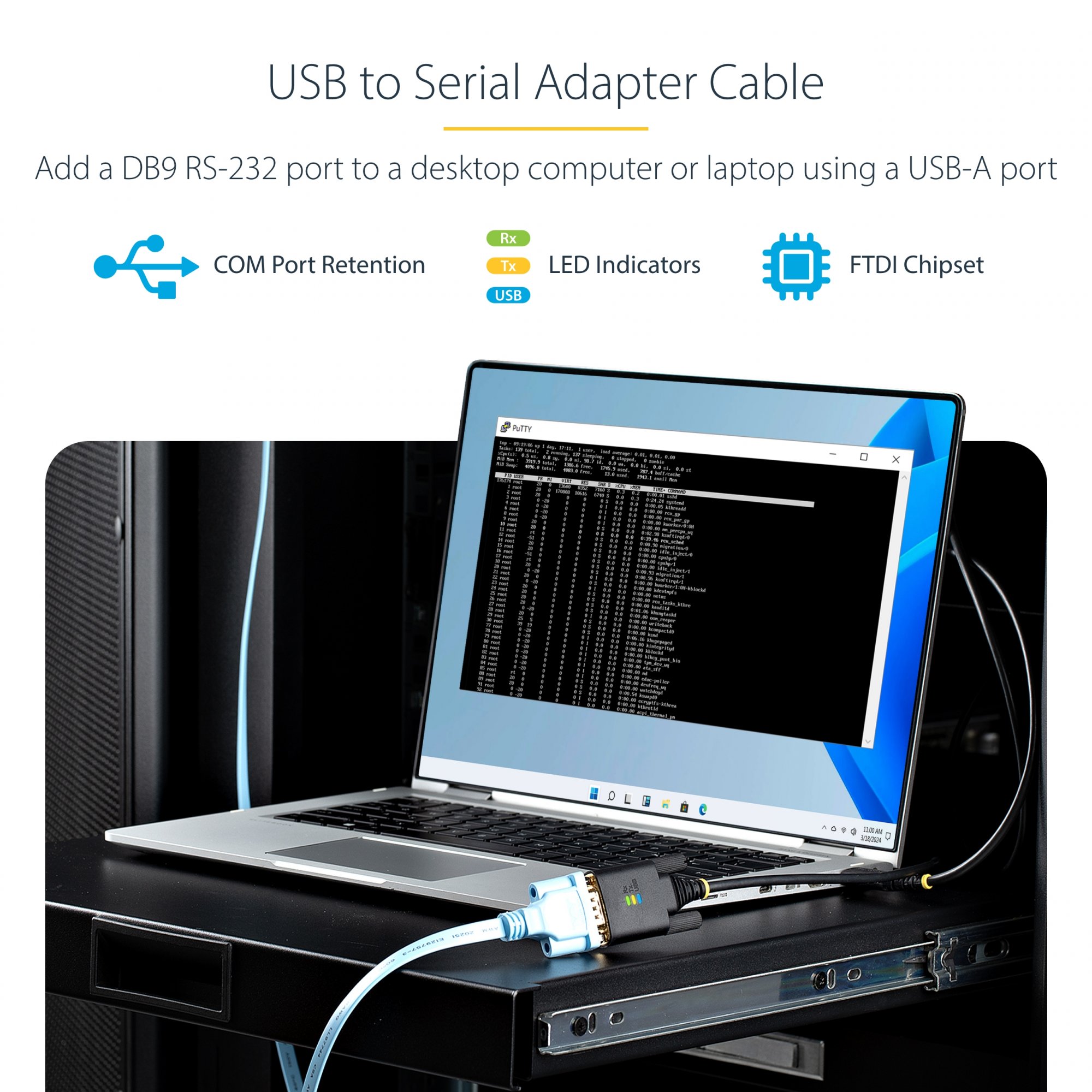

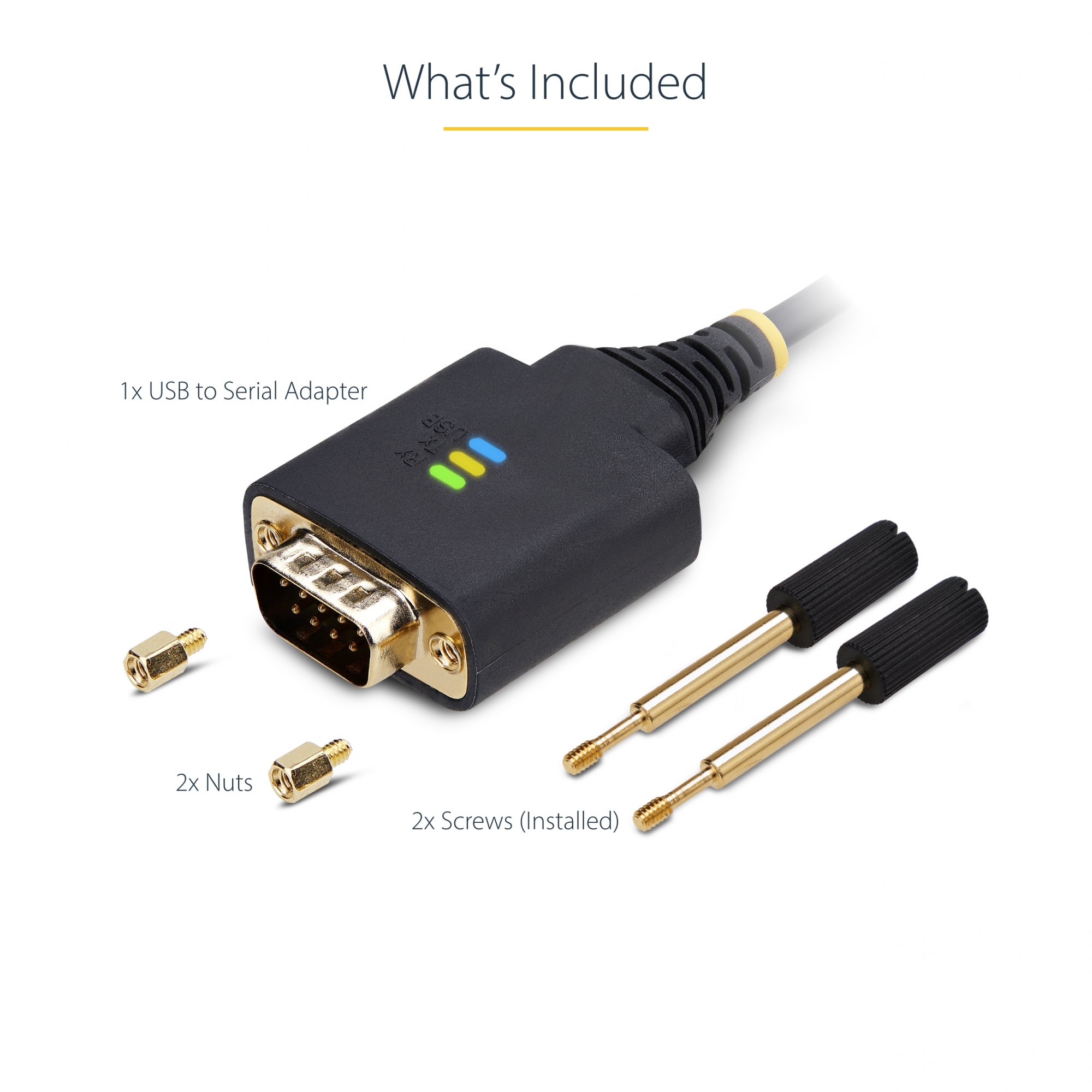

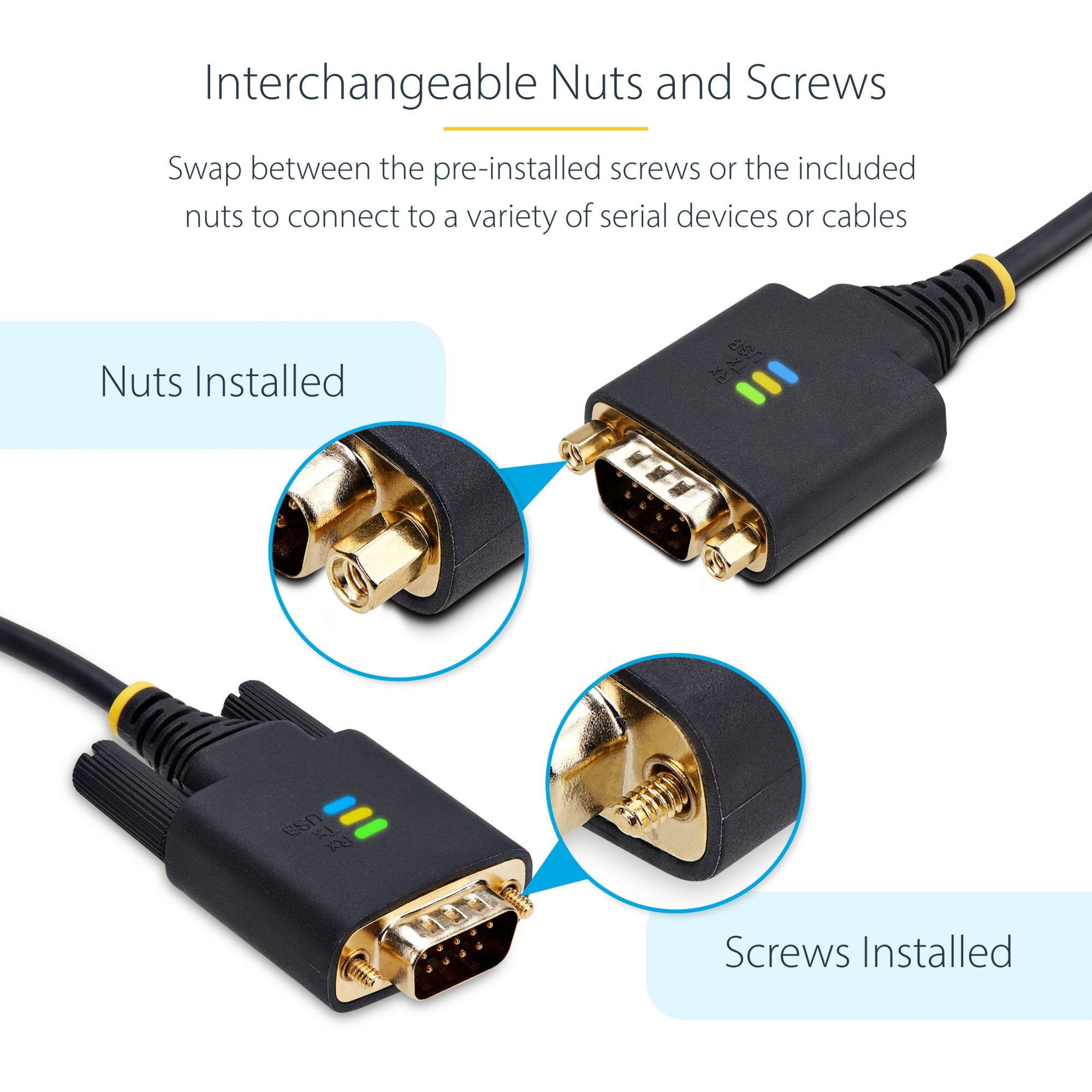

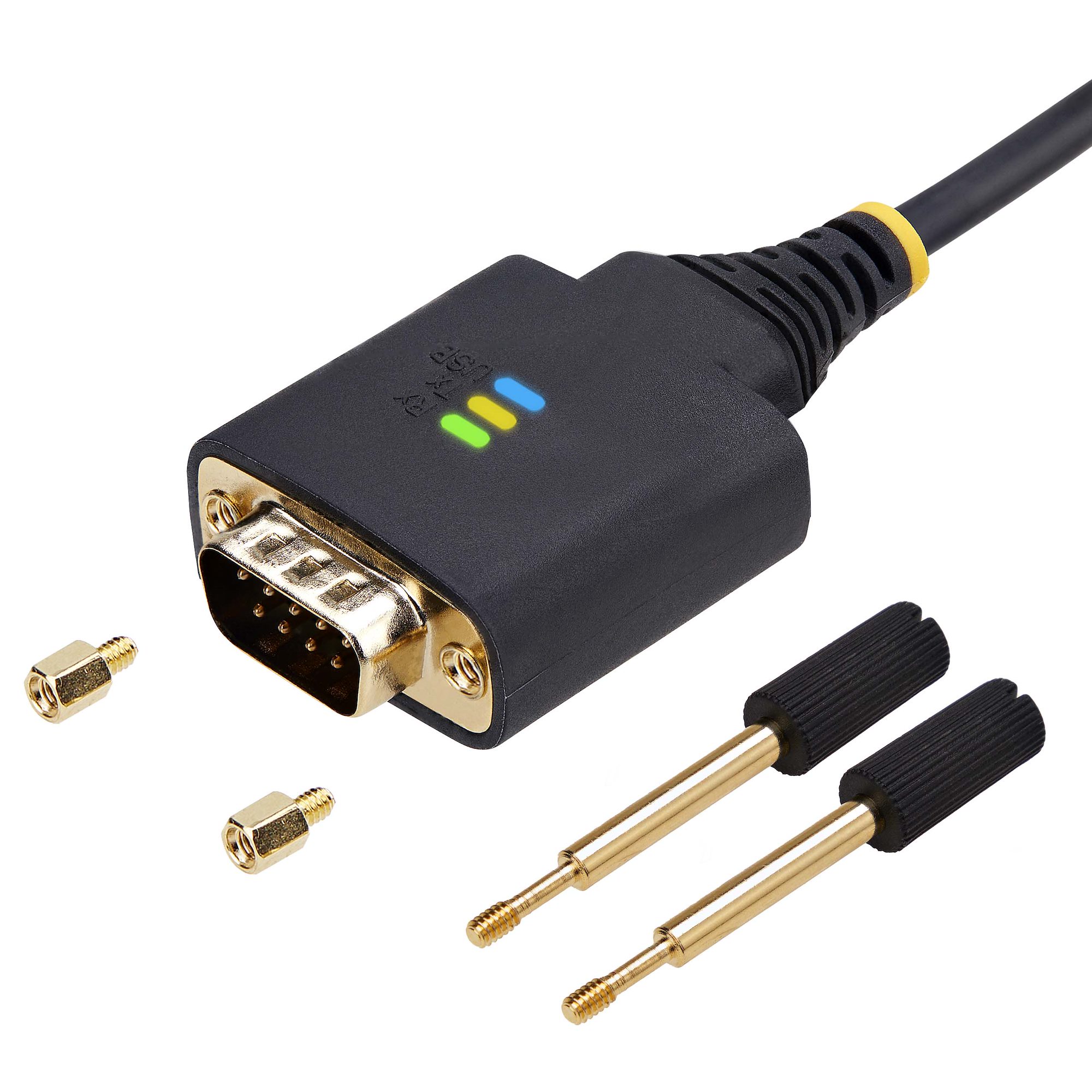

INTERCHANGEABLE NUTS & SCREWS: Secure the adapter to a serial device using the pre-installed DB9 screws, or install the included DB9 Nuts for compatibility with serial peripheral devices/cables; Add a DB9 RS-232 port to a computer, using a USB-A port

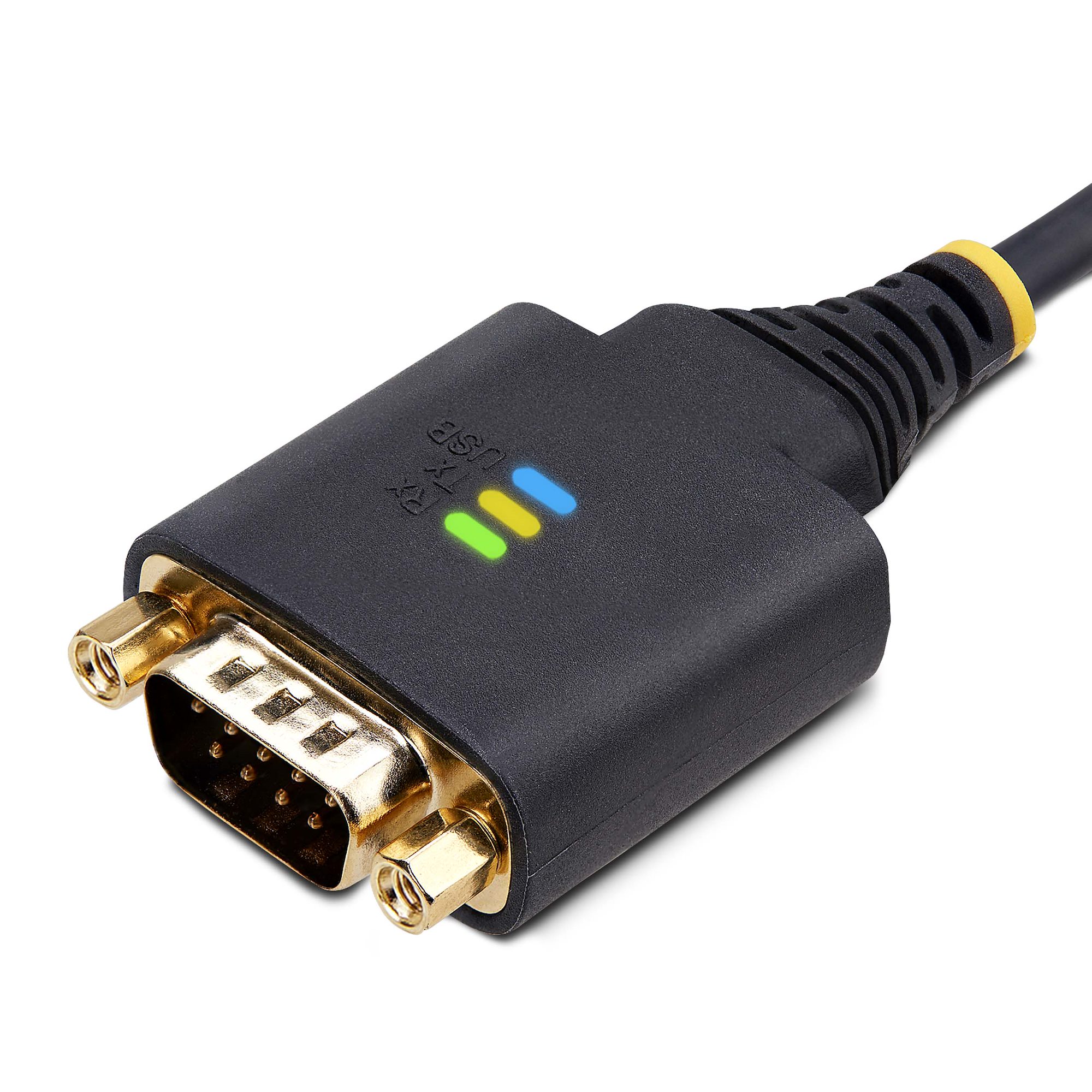

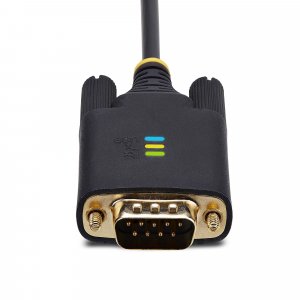

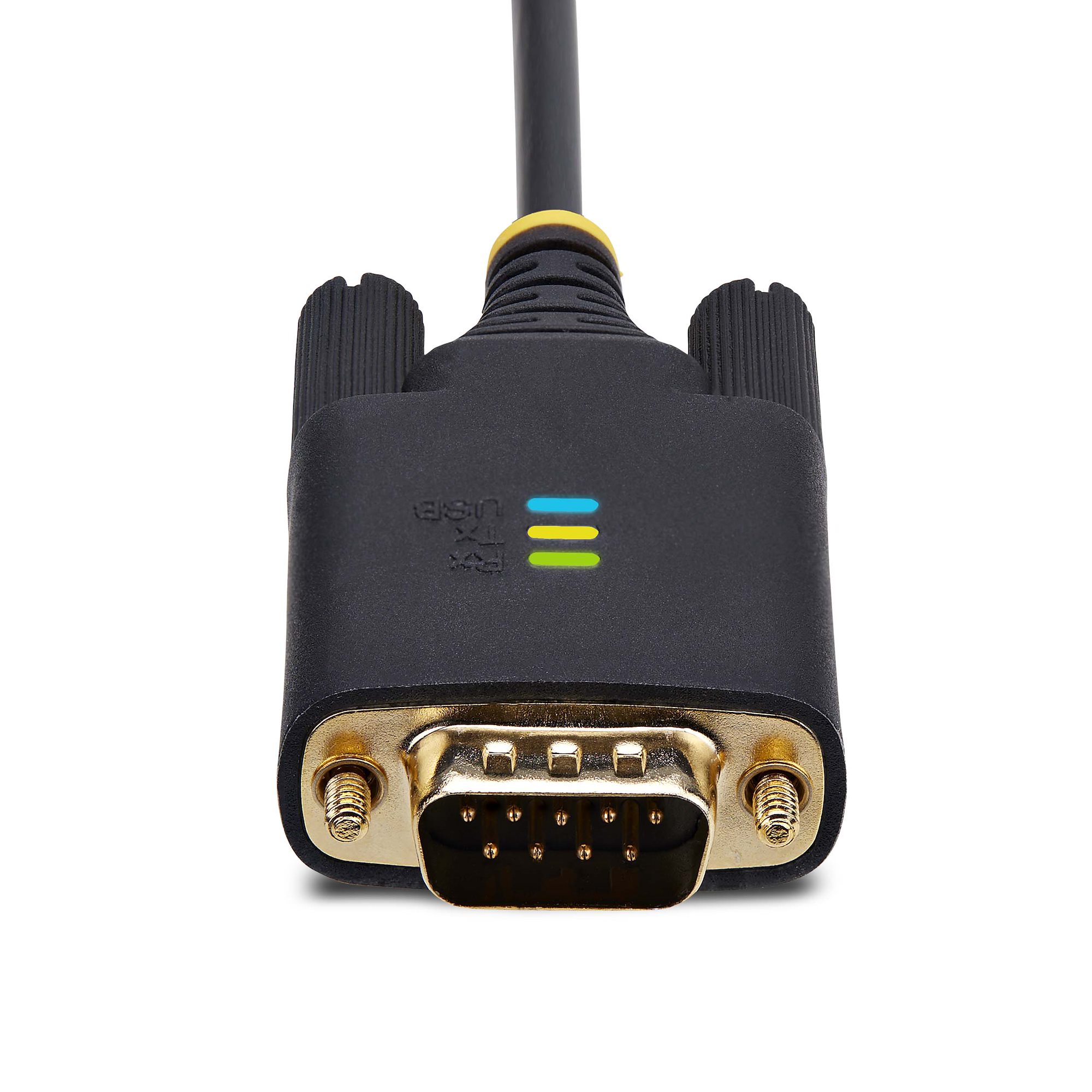

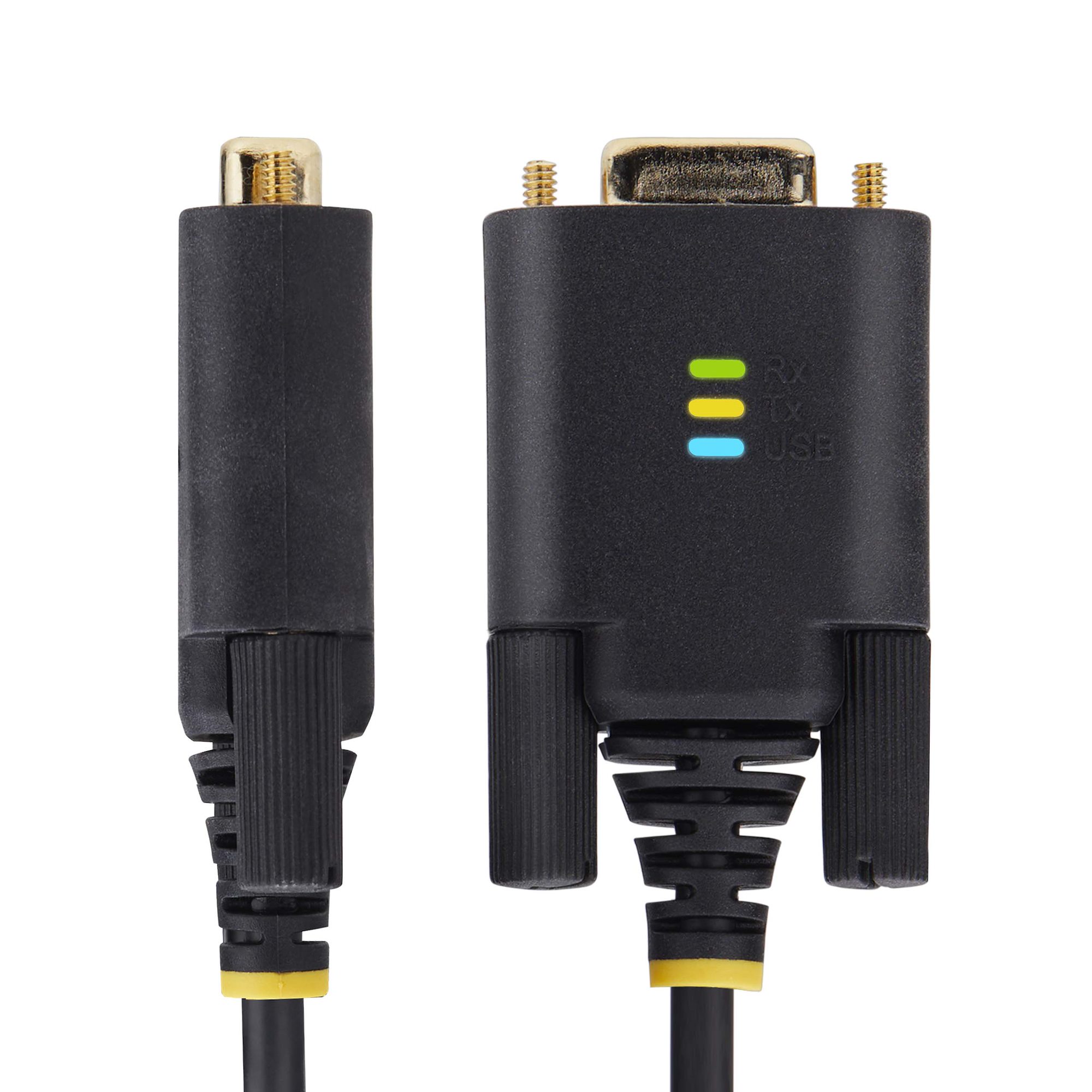

LED INDICATORS: Transmit and Receive LED indicators offer real-time monitoring of port activity, while the USB LED indicates when the adapter is successfully recognized by the desktop or laptop

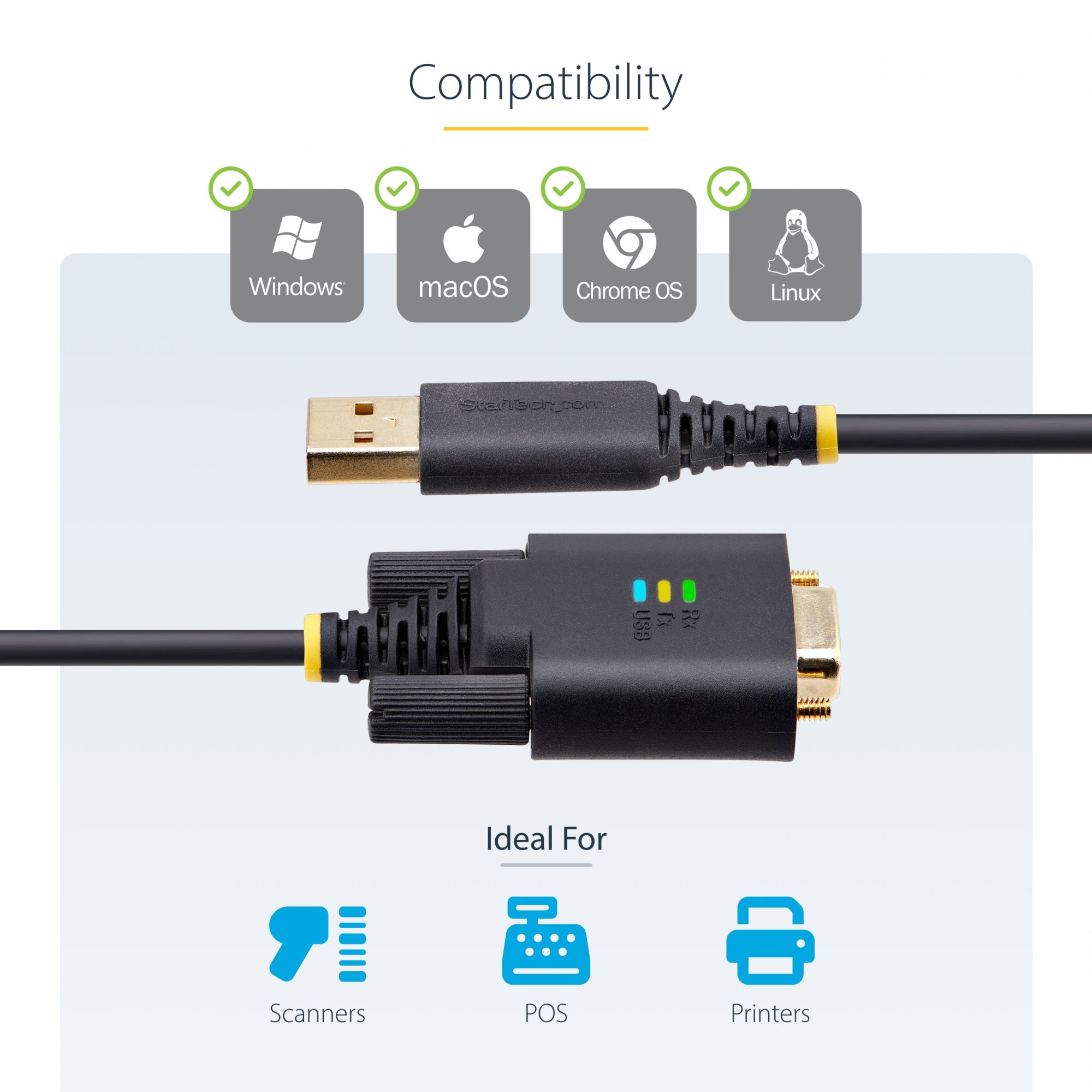

COMPATIBILITY: Works with Windows, macOS, ChromeOS, and Linux; Drivers auto-install in Windows 7+, macOS 10.15+, and Linux; COM retention enables the COM port to automatically re-assign if the cable is disconnected/reconnected or if the system is rebooted

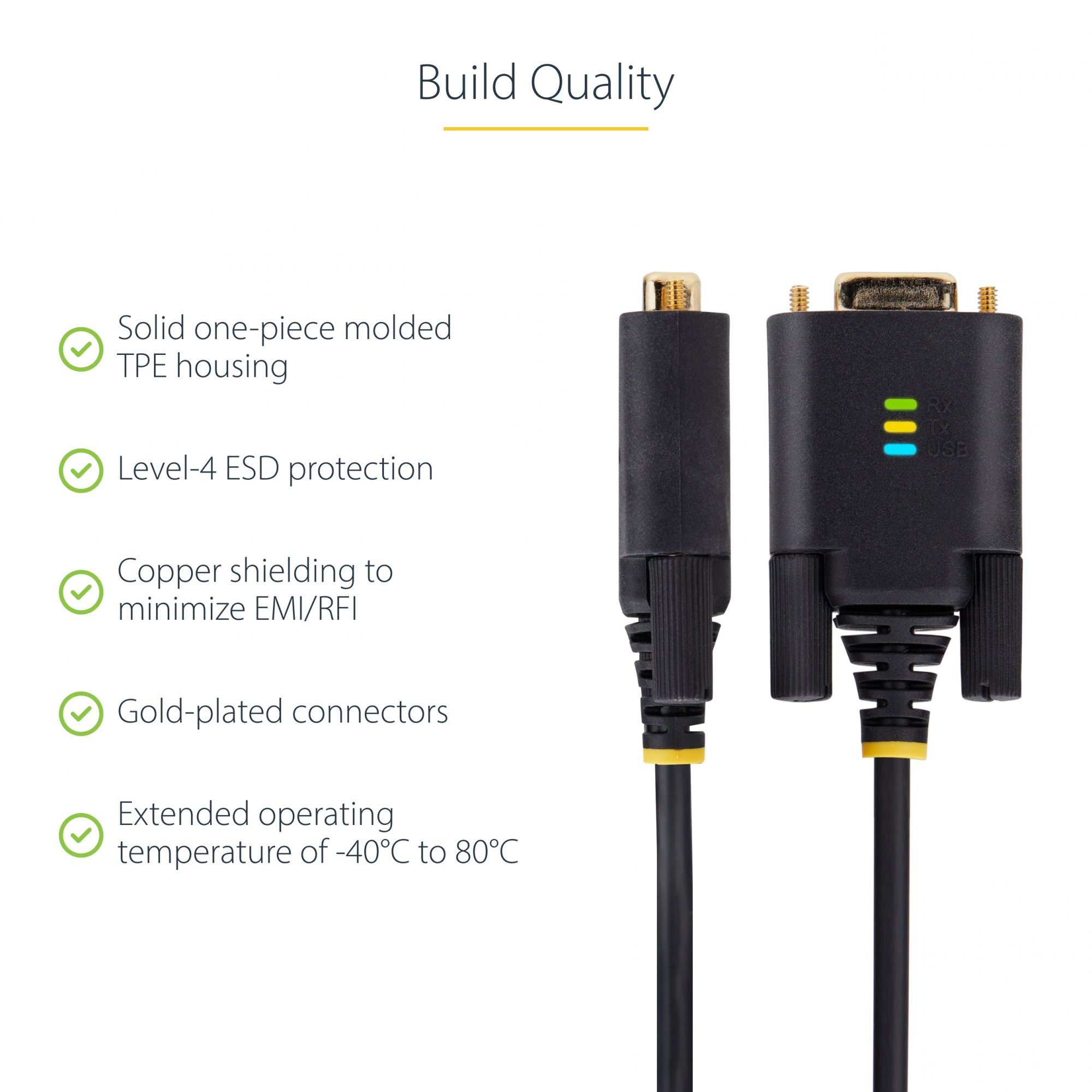

BUILD QUALITY: Solid one-piece molded TPE housing and Level-4 ESD protection (15kV air/8kV contact) enhance reliability and longevity; Copper shielding minimizes EMI/RFI interference; Gold-plated connectors; Extended operating temperature of -40°C to 80°C
TECH SPECS: 6.6-foot (2-meter) Cable Length; FTDI FT232R Chipset; Max Baud Rate: 921.6Kbps; 128 Byte RX and 256 Byte TX FIFO; Odd/Even/Mark/Space/None Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits

Product Properties

Manufacturer
StarTech.com

Model
1P6FFC-USB-SERIAL

EAN
65030898263

Bullet points

Point
BUILD QUALITY

COMPATIBILITY

INTERCHANGEABLE NUTS & SCREWS

LED INDICATORS

TECH SPECS

Features

Baud rate
921.6 Kbit/s

Cable length
2 m

Chipset
FTDI - FT232R

Connector 1
USB Type-A

Connector 1 form factor
Straight

Connector 1 gender
Male

Connector 2
DB-9

Connector 2 form factor
Straight

Connector 2 gender
Male

Data bits
7, 8

FIFO (First In, First Out)
256 B

Linux operating systems supported
Yes

Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma

Parity bit
Even, Mark, No, Odd, Space

Product colour
Black

Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022

Stop bits
1, 2

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Logistics data

Master (outer) case height
345 mm

Master (outer) case length
485 mm

Master (outer) case width
600 mm

Products per master (outer) case
100 pc(s)

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
-40 - 80 °C

Storage temperature (T-T)
-40 - 80 °C

Packaging content

Manual
Yes

Packaging data

Package depth
1 mm

Package height
200 mm

Package weight
95 g

Package width
220 mm

Quantity per pack
1 pc(s)
