Description

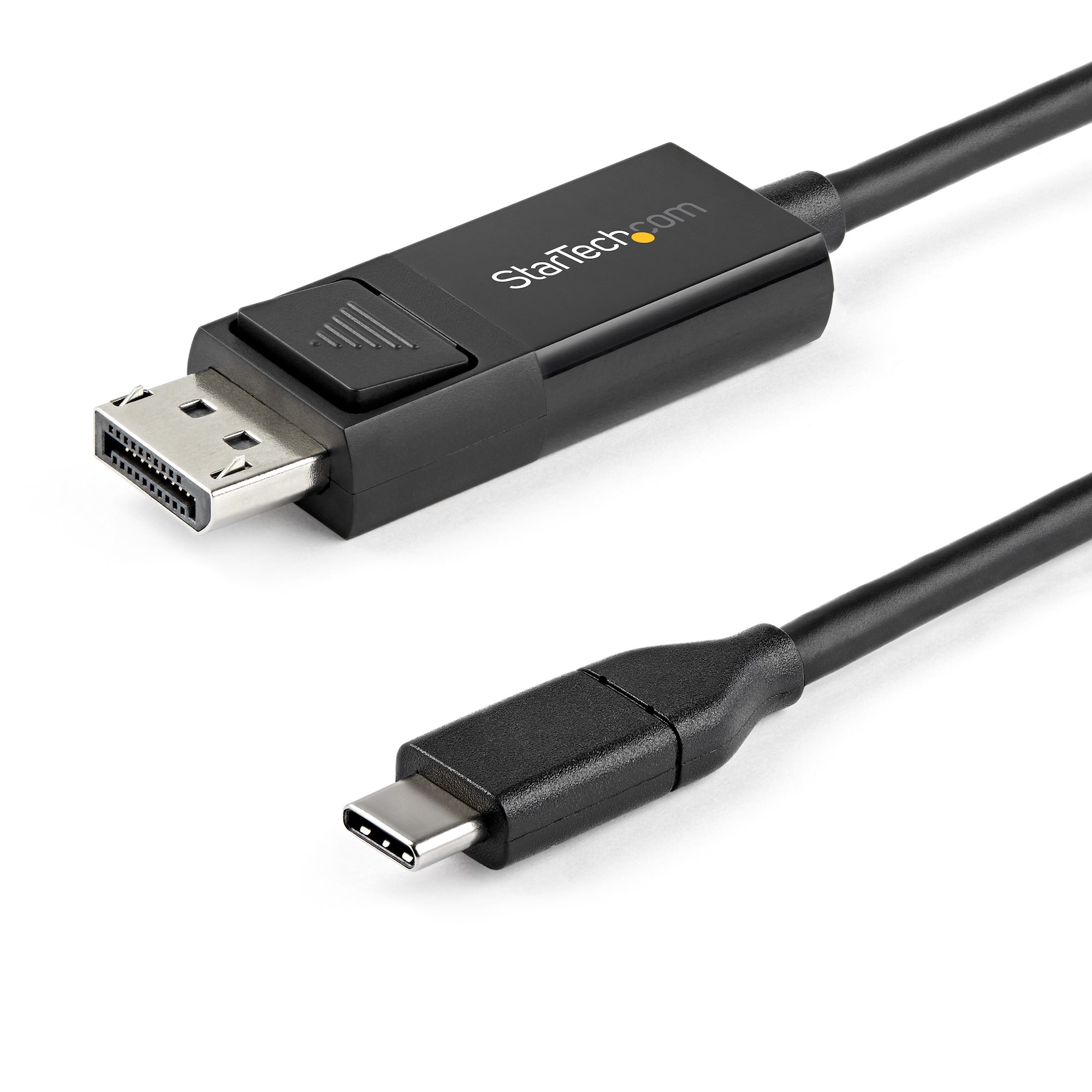

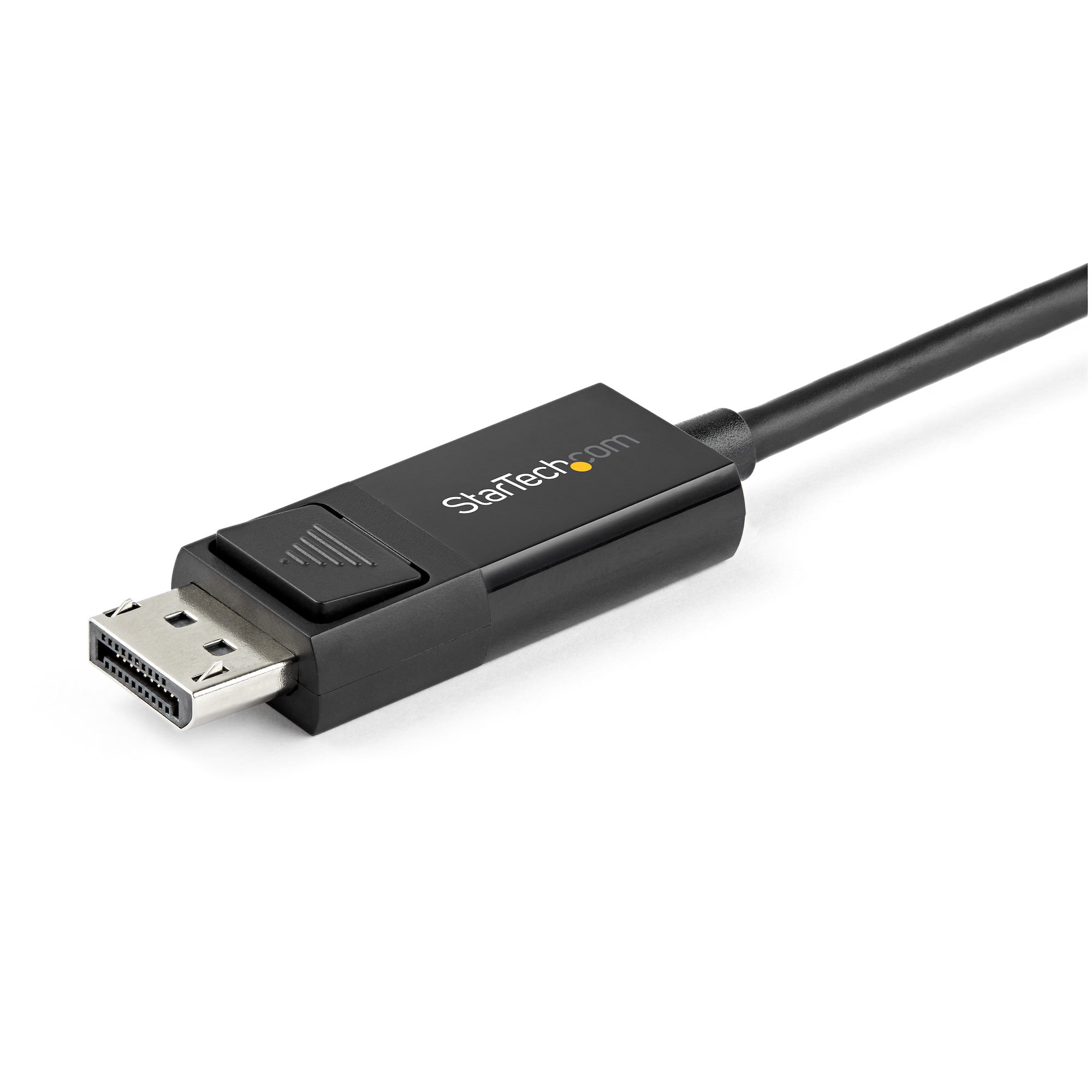

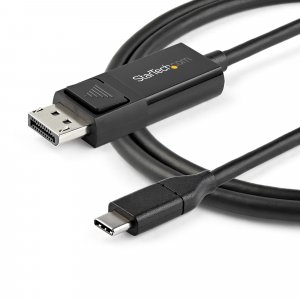

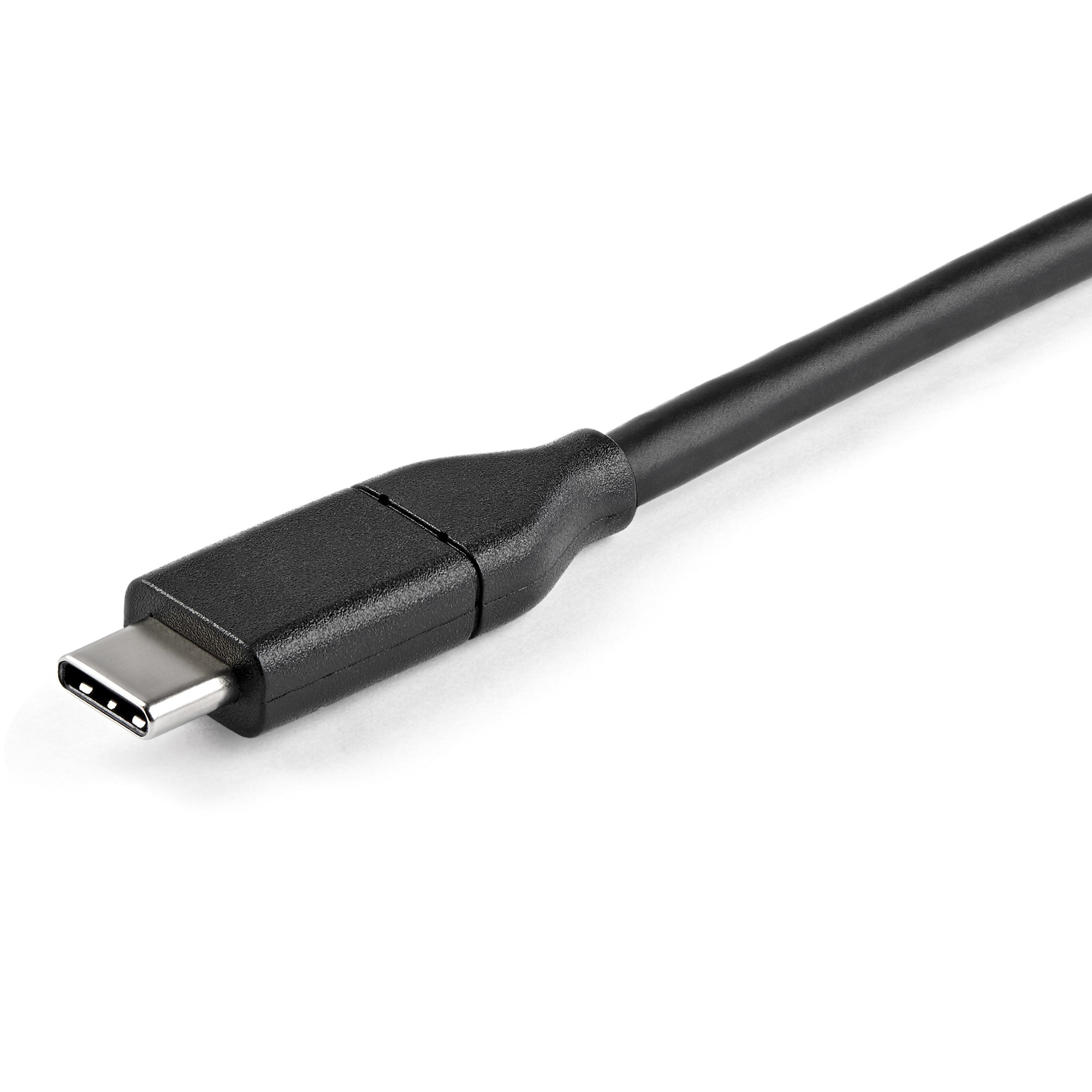

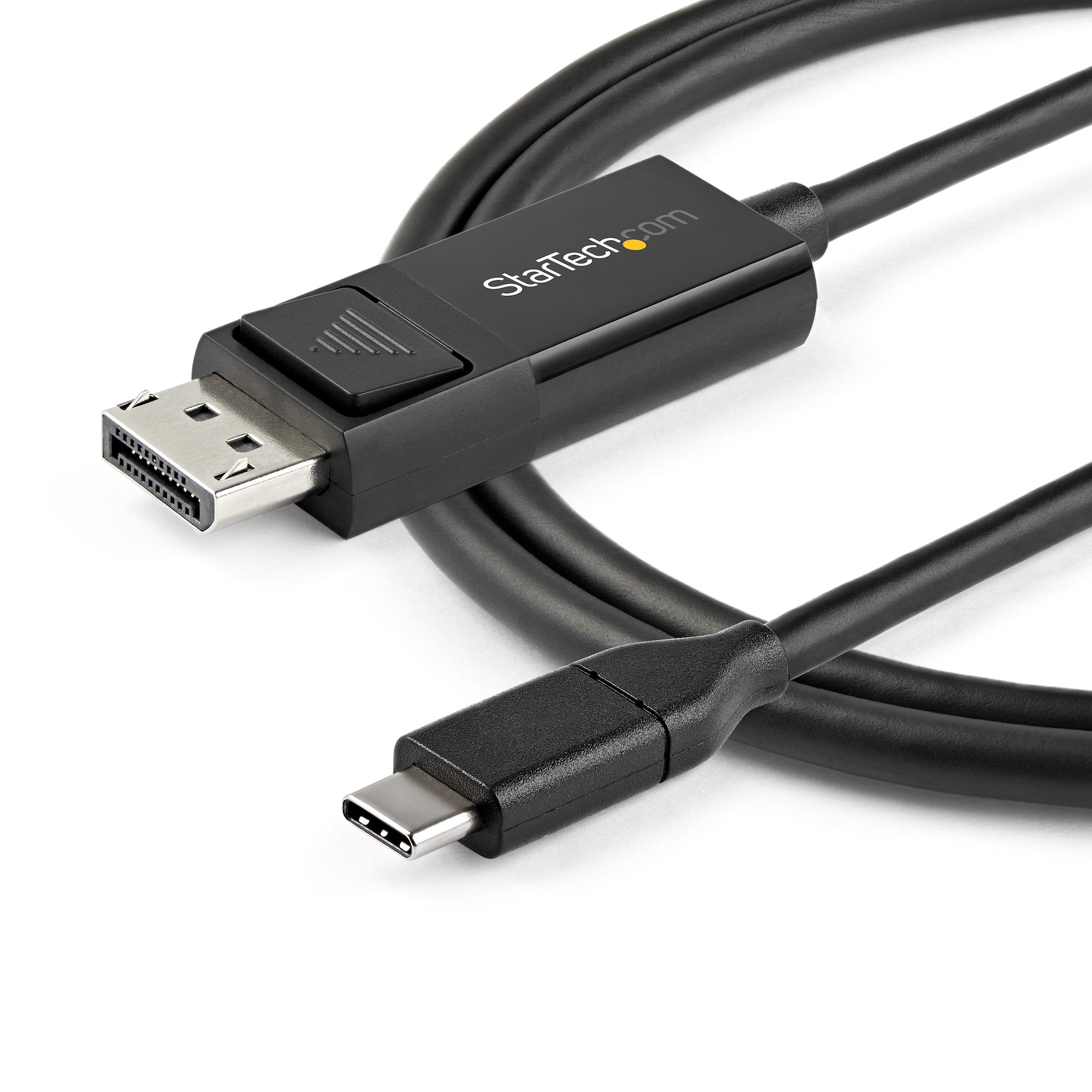

StarTech.com 6ft (2m) USB C to DisplayPort 1.2 Cable 4K 60Hz - Bidirectional DP to USB-C or USB-C to DP Reversible Video Adapter Cable - HBR2/HDR - USB Type C/TB3 Monitor Cable. Cable length: 2 m, Connector 1: USB Type-C, Connector 2: DisplayPort. Compliance certificates: CE, RoHS. Weight: 77 g, Width: 220 mm, Depth: 2038 mm. Package width: 226 mm, Package depth: 124 mm, Package height: 12 mm. Quantity per pack: 1 pc(s)

HIGH PERFORMANCE: 6.6ft/2m Reversible USB-C to DisplayPort 1.2 (21.6Gbps) cable or DP to USB-C cable supports 4K 60Hz/HBR2/HDR/HDCP 2.2/1.4
1080p & Thunderbolt 3 compatible
REVERSIBLE CABLE: This DisplayPort to USB C bidirectional cable works either way to connect your USB-C Laptop to a DisplayPort Monitor or connect a DisplayPort device to a USB Type-C display
DP OR USB-C DP ALT MODE HOST COMPATIBLE: USB-C video cable for Dell XPS/Precision/Latitude, Lenovo ThinkPad X1 Carbon/Extreme, Surface Laptop 3/Pro, TB3 MacBook Pro/Air, HP EliteBook/Spectre/ZBook
DP OR USB-C MONITOR COMPATIBLE: Use this DisplayPort to USB C cable to convert from a DP host to a USB-C monitor; supports USB-C 16:9 & ultrawide monitors from LG, Dell UltraSharp, Acer, Asus Pro Art
INTEGRATED VIDEO ADAPTER CABLE: Supports driverless setup on any OS, minimizes failure points & signal loss, and features latching DP connector to ensure a reliable & consistent connection

Product Properties

Manufacturer
StarTech.com

Model
CDP2DP2MBD

EAN
65030886802

Bullet points

Point
1080p & Thunderbolt 3 Compatible

DP OR USB-C DP ALT MODE HOST COMPATIBLE

DP OR USB-C MONITOR COMPATIBLE

HIGH PERFORMANCE

INTEGRATED VIDEO ADAPTER CABLE

REVERSIBLE CABLE

Certificates

Compliance certificates
CE, RoHS

Features

Bandwidth
21600 MB/s

Cable length
2 m

Chipset
Chrontel - CH7213C-BF, VIA Labs - VL170

Connector 1
USB Type-C

Connector 1 form factor
Straight

Connector 1 gender
Male

Connector 2
DisplayPort

Connector 2 form factor
Straight

Connector 2 gender
Male

Converter type
Active video converter

DisplayPort version
1.2

HBR2 support
Yes

HDCP
Yes

HDCP version
1.4/2.2

High Dynamic Range (HDR) supported
Yes

Maximum refresh rate
60 Hz

Maximum resolution
3840 x 2160 pixels

Plug and Play
Yes

Product colour
Black

Supported audio channels
7.1

Logistics data

Harmonized System (HS) code
84733080

Master (outer) case height
212 mm

Master (outer) case length
497 mm

Master (outer) case width
327 mm

Products per master (outer) case
80 pc(s)

Operational conditions

Operating relative humidity (H-H)
10 - 85%

Operating temperature (T-T)
0 - 45 °C

Storage temperature (T-T)
-10 - 70 °C

Packaging content

Quantity per pack
1 pc(s)

Packaging data

Package depth
124 mm

Package height
12 mm

Package weight
84 g

Package width
226 mm

Weight & dimensions

Depth
2038 mm

Height
12 mm

Weight
77 g

Width
220 mm
